H605-TB

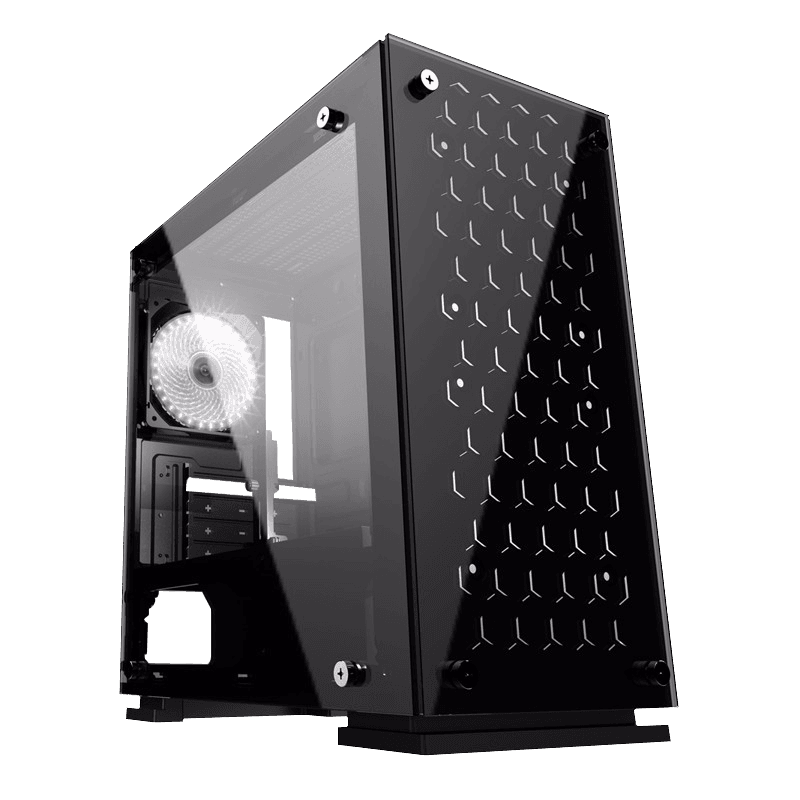

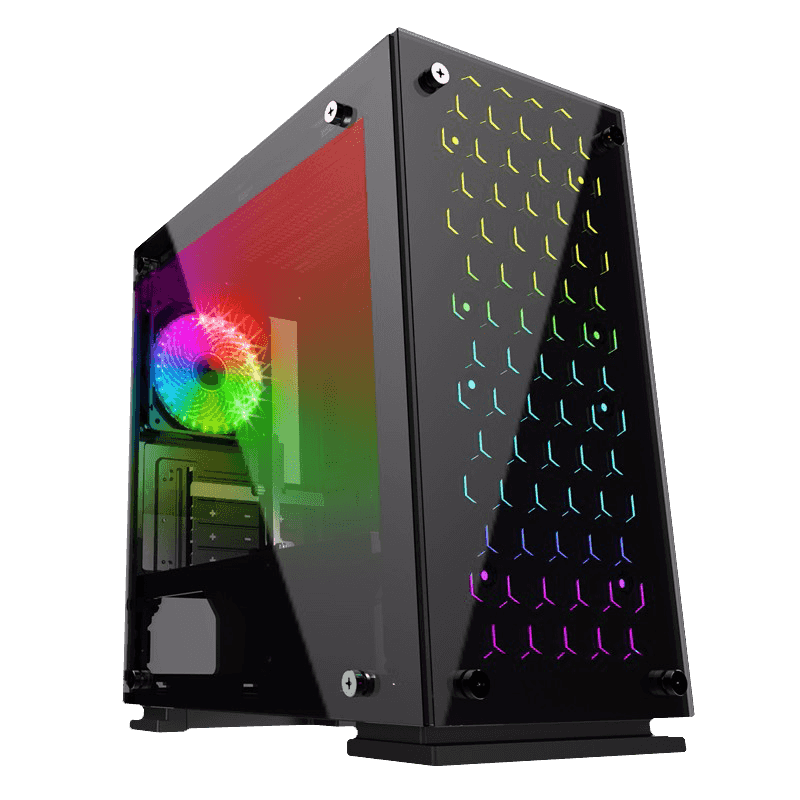

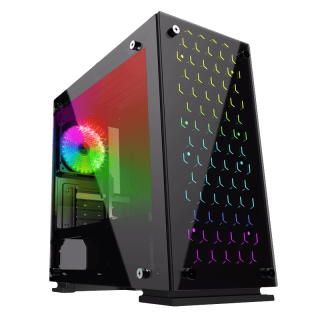

H605 TB micro gaming case with tempered front and side included 3x RGB fan by remote contorlled
Chassis Type:Micro-Gaming Mid-Tower Case
Front Panel:Tempered Glass front
Color Black
Side Panel:Tempred side panel
Top Panel:Top air vent magnetic filter Chassis
Dual internal layout optimized for maximum airflow or advanced water-cooling
Don't let the compact size fool you see, this little one handles full-size components while still offering roomy installation space.

6605-TB-详情页-EN_01.jpg6605-TB-详情页-EN_02.jpg6605-TB-详情页-EN_03.jpg6605-TB-详情页-EN_04.jpg6605-TB-详情页-EN_05.jpg6605-TB-详情页-EN_06.jpg6605-TB-详情页-EN_07.jpg6605-TB-详情页-EN_08.jpg

The product displays on the above pages are for reference only, may have slight differences from the actual products, and the actual products shall prevail in all cases.
Chassis Type:Micro Gaming  Mini Tower
Front Panel:Tempered Glass
Colors:Color Black
Tranparent  Side Panel:Tempered Glass
Top    Panel:Top air vent with magnetic filter
Chassis:0.6mm mixed, Black painting interior
Front USB Ports:USB2.0x 2 (included)

USB3.0x 1 (included)
Front Audio JacketsHD Audio
PSU typeATX
Tool Free Kits:Yes (provide 2pcs of 3.5'' HDD tray)
VGA fit part(Optional):VGA Card Fix part (Included)
Reserved Fan Ports:Front:  2x 120mm RGB fan (inlcuded)

Side:    Null

Rear:  1x 120mm RGB leds  (Included)

Top: None
Water-Cooling System (Support)Rear: 120 mm water cooling

Front: 120 or 240mm water cooling
Drive Bays 5.25'' exposed0
Drive Bay 3.5'' exposed0
Drive Bay 3.5'' hidden2
Drive Bay 2.5'' SSD2
PCI Expansion Slots:4
Chassis Size:350*188*380mm
Carton Size:439*245*470mm
M/B Form Factor :Micro ATX
Max.VGA Card  (Length):340 mm
Max.CPU Cooler(Height):155mm
