TFX 250W for desktop or ITX mini-PC, HTPC. Compatible with ATX12V 2.3
• High-end SECC 0.6mm casing

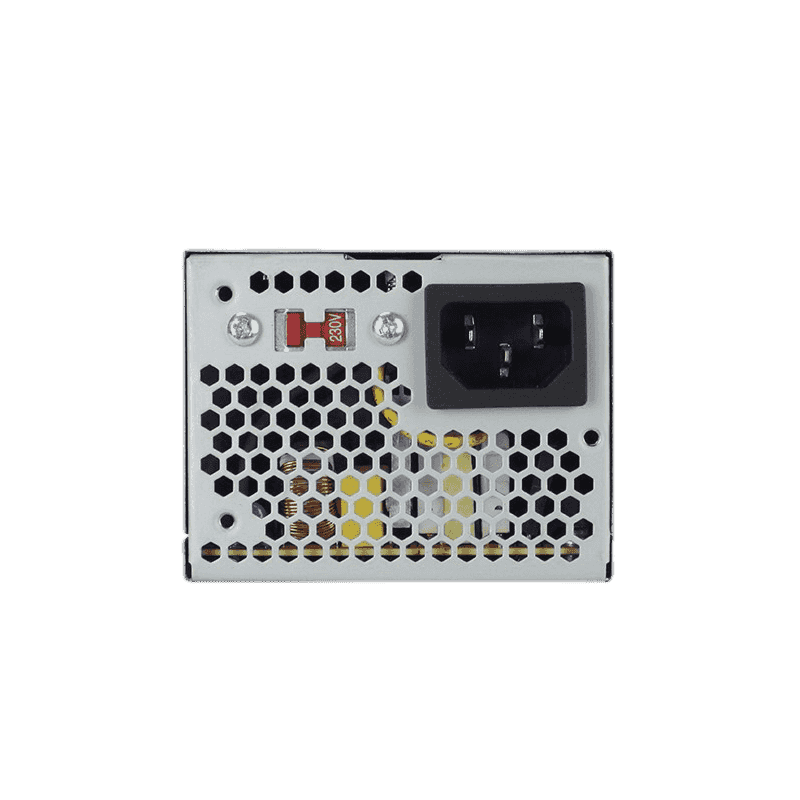

• 110/220 manual switchable
• Size 175*85*65mm

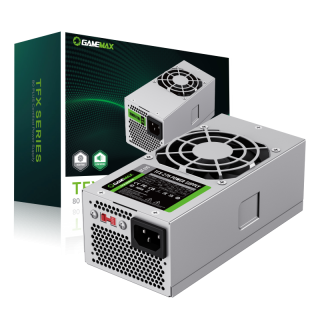

• Box package
Features:
Compatible with ATX12V 2.3&2.31
High-end SECC 0.6mm casing
High-Efficiency
Low Noise 8cm Fan with intelligent fan speed control
Honeycomb ventilation design for optimal heat dissipation
Powerful +12V rails offer stable DC output and support high-end graphic card and PC system
Long cable length at least 500mm supports high-end case with Bottom PSU position
Green power design that meets ErP requirements
Low ripple noise
OPP/OVP/UVP/SCP electrical protection included
OUTPUT Tabel:
| AC Input | 115/230VAC 5-2.5A 60-50Hz | ||||
| Output Voltage | 3.3V | 5V | +12V | -12V | 5Vsb |
| Min. Output Current | 0.5A | 0.5A | 0.5A | 0A | 0.1A |
| Max. Output Current | 15A | 15A | 16A | 0.5A | 2.0A |
| Max. Combined Wattage | 80W | 192W | 6W | 10W | |
| Total Continuous Wattage | 275W | ||||
