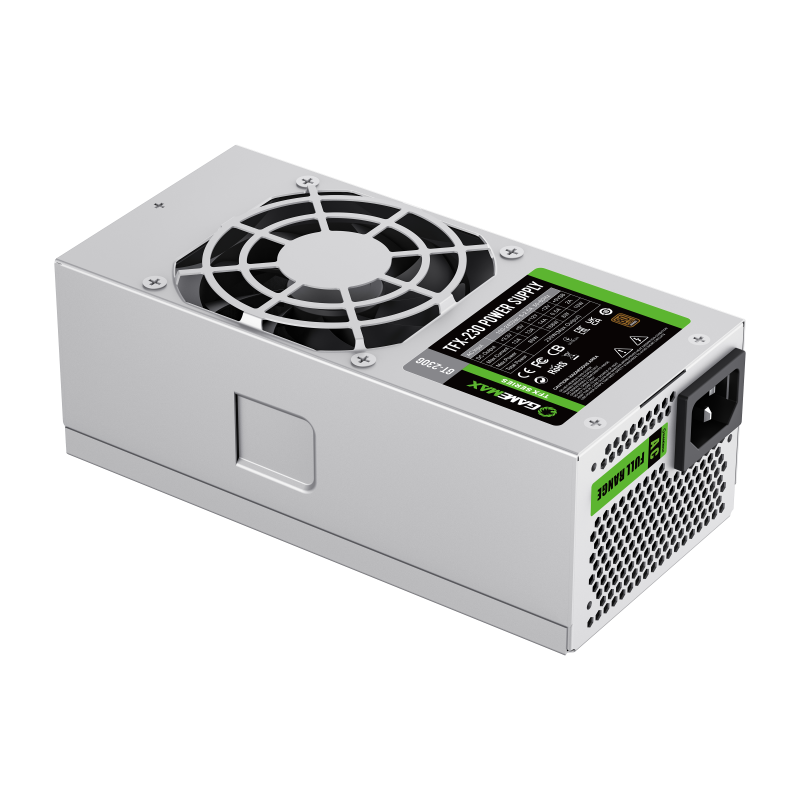

GT-230W TFX offers you the most suitable cost/performance ratio and is certified for 80 PLUS bronze, this active PFC unit runs at a max of 85% efficiency, making it the best choice for a system builder
• The 12V CPU power is available for a high-end Mini PC and Performance Business PC system(with a 4 + 4 CPU connector) and its 3 x L-shaped SATA connectors mean you can use it in a compact desktop chassis
• Finally, there is full electrical protection and official safety is promised by GameMax
TFX 230 80+ BRONZE
Key Features
Compatible with ATX 12V 2.3
High-end SECC 0.6mm casing
High-Efficiency – 85% Certified
Low Noise 8cm Fan with intelligent fan speed control
Honeycomb ventilation design for optimal heat dissipation
Active Power Factor rate up to 0.99
High-end SECC 0.6mm casing.
Full Range AC input 100-240Vac manual switchable
OPP/OVP/UVP/SCP electrical protection included
Safety / EMI Approvals: CE,FCC,CB,UL
Size 175*85*65mm
Box package
PSU Specifications
| AC INPUT: 100-240 VAC 6~3A 50-60Hz | |||||
| DC Output Max | +3.3V | +5V | +12V | -12V | +5VSB |
| 13A | 13A | 11A | 0.5A | 2.0A | |
| 230W | |||||
