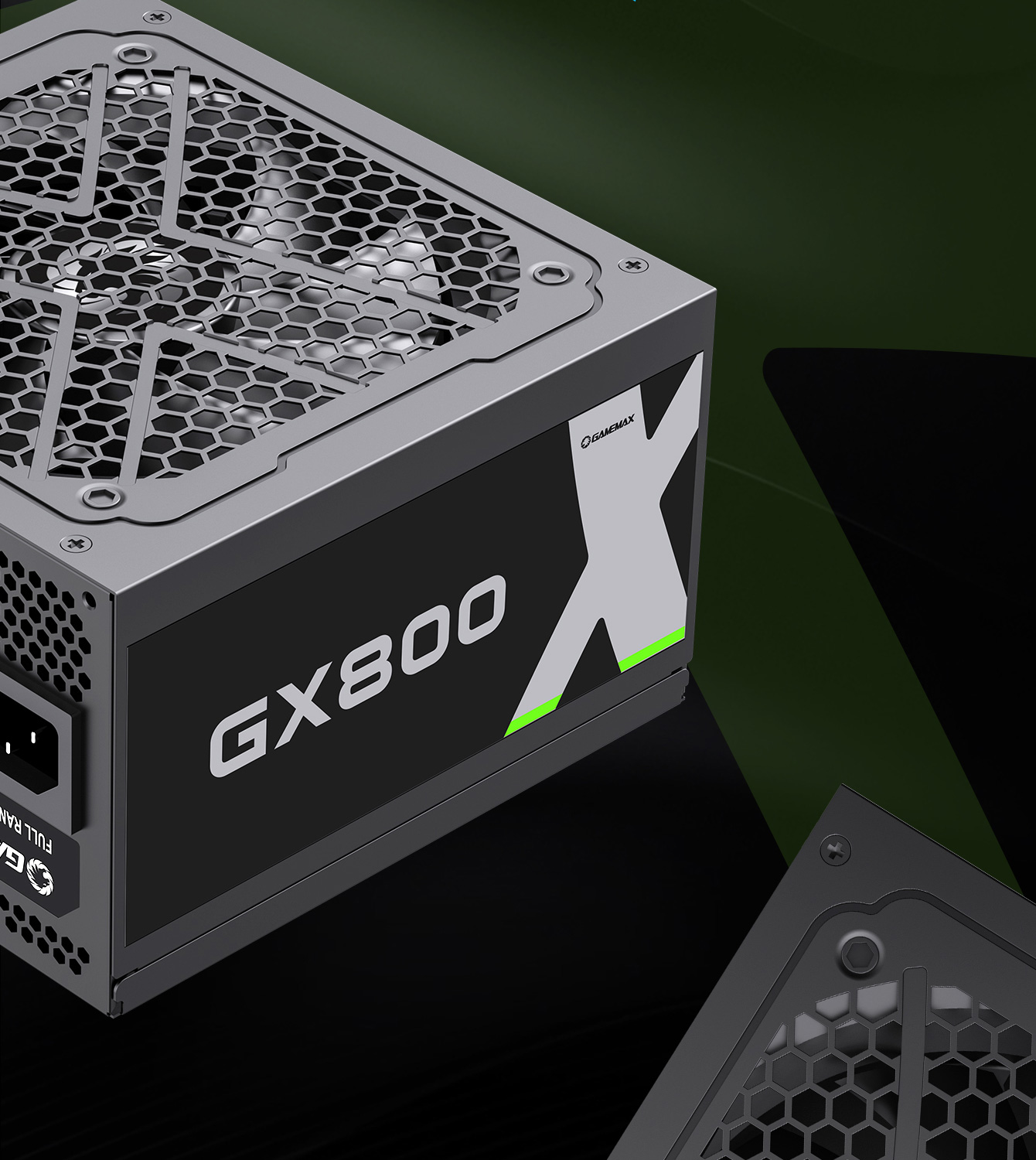

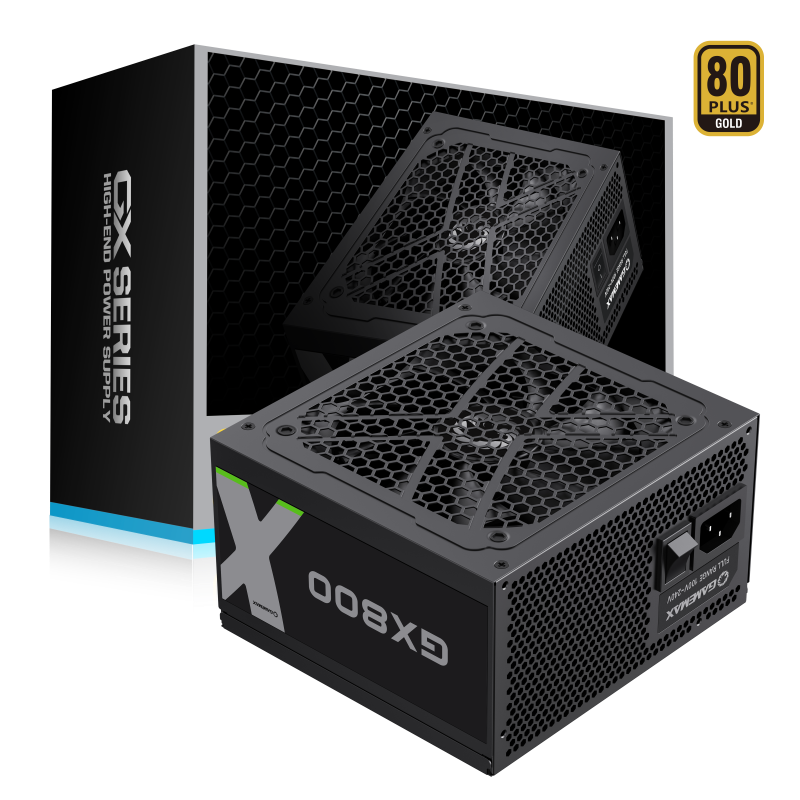

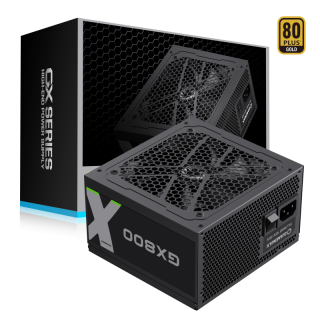

GameMax GX-800 80+ Gold Wired Black ATX Power supply
• Gold Efficiency: Achieves over 92% efficiency with 80+ Gold certification.

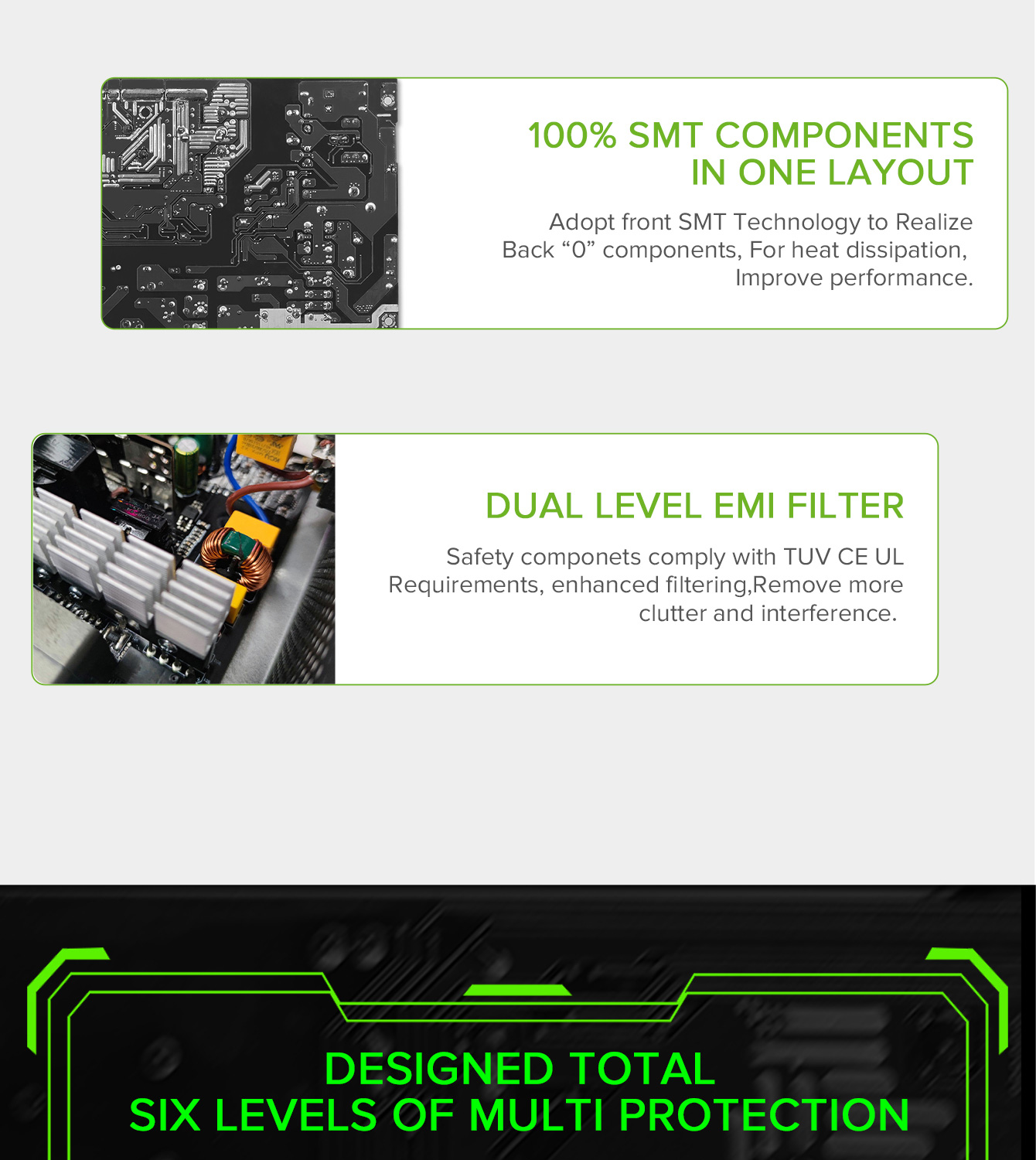

• Advanced Circuitry: Uses LLC and DC-DC for optimal performance.

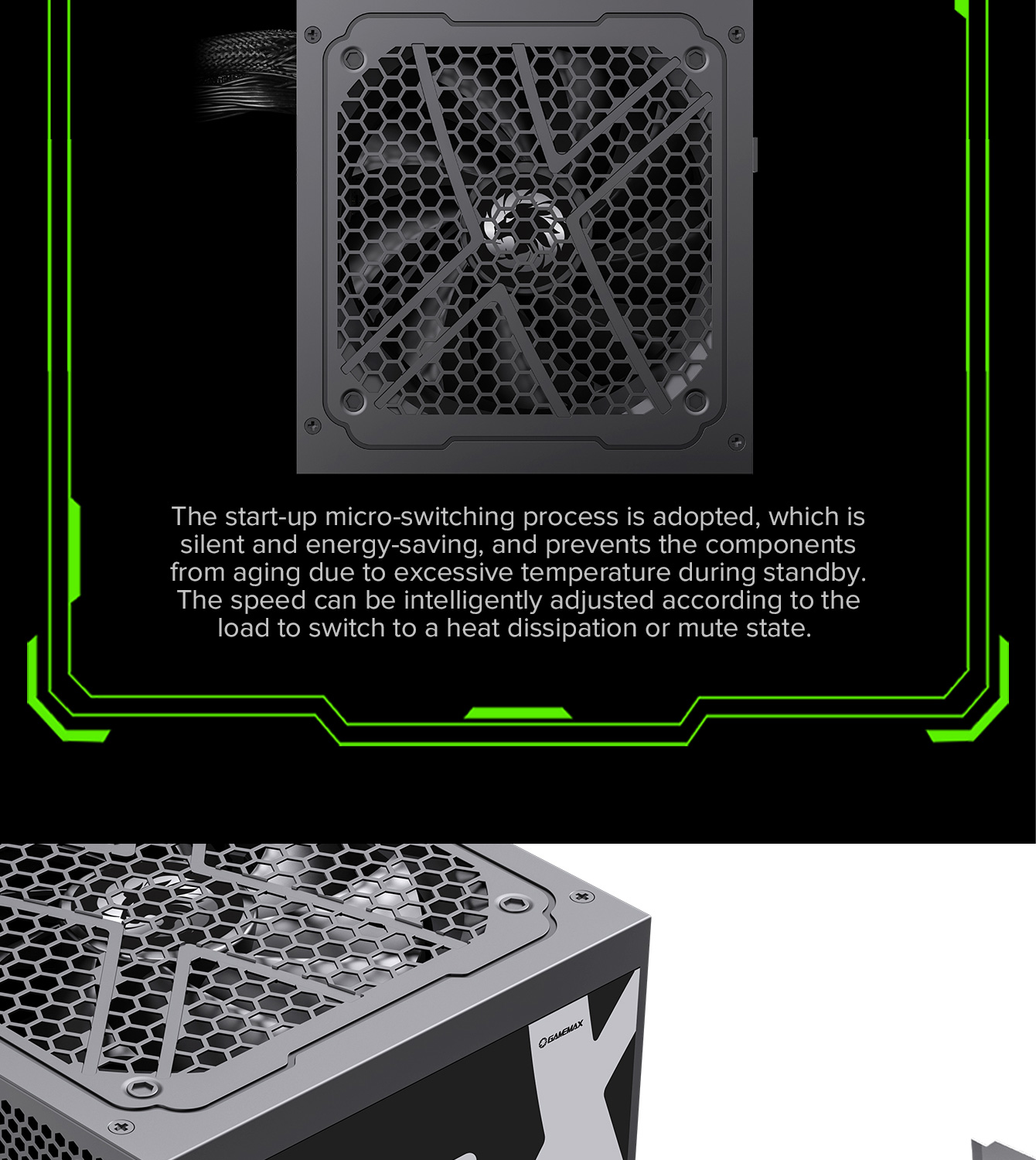

• Quiet Operation: Low-noise HDB fan for cool, silent operation.

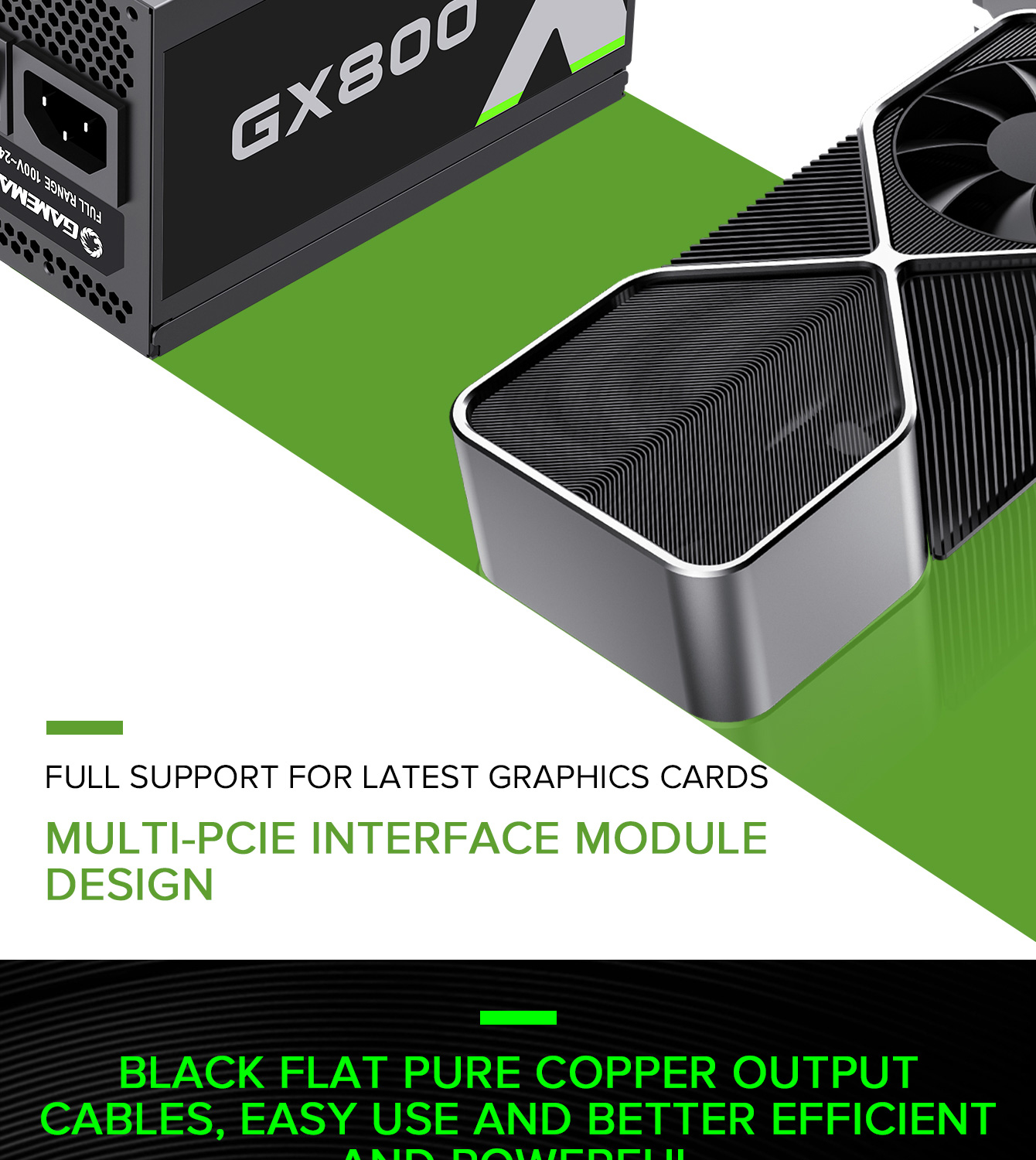

• Future-Ready: Supports full voltage input and latest graphics cards.

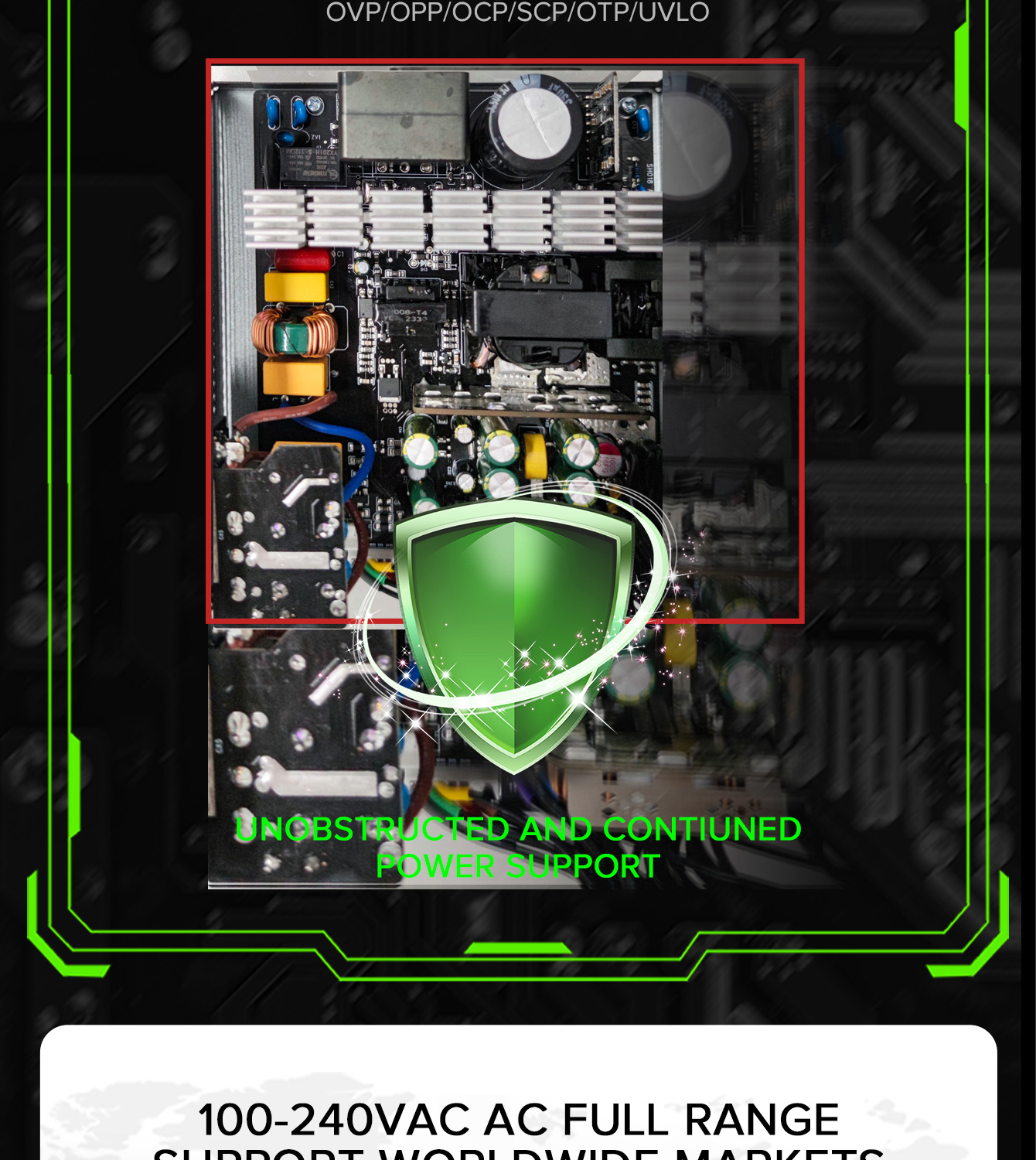

• Safe & Durable: Comprehensive protection and solid components.
Detailed Specifications

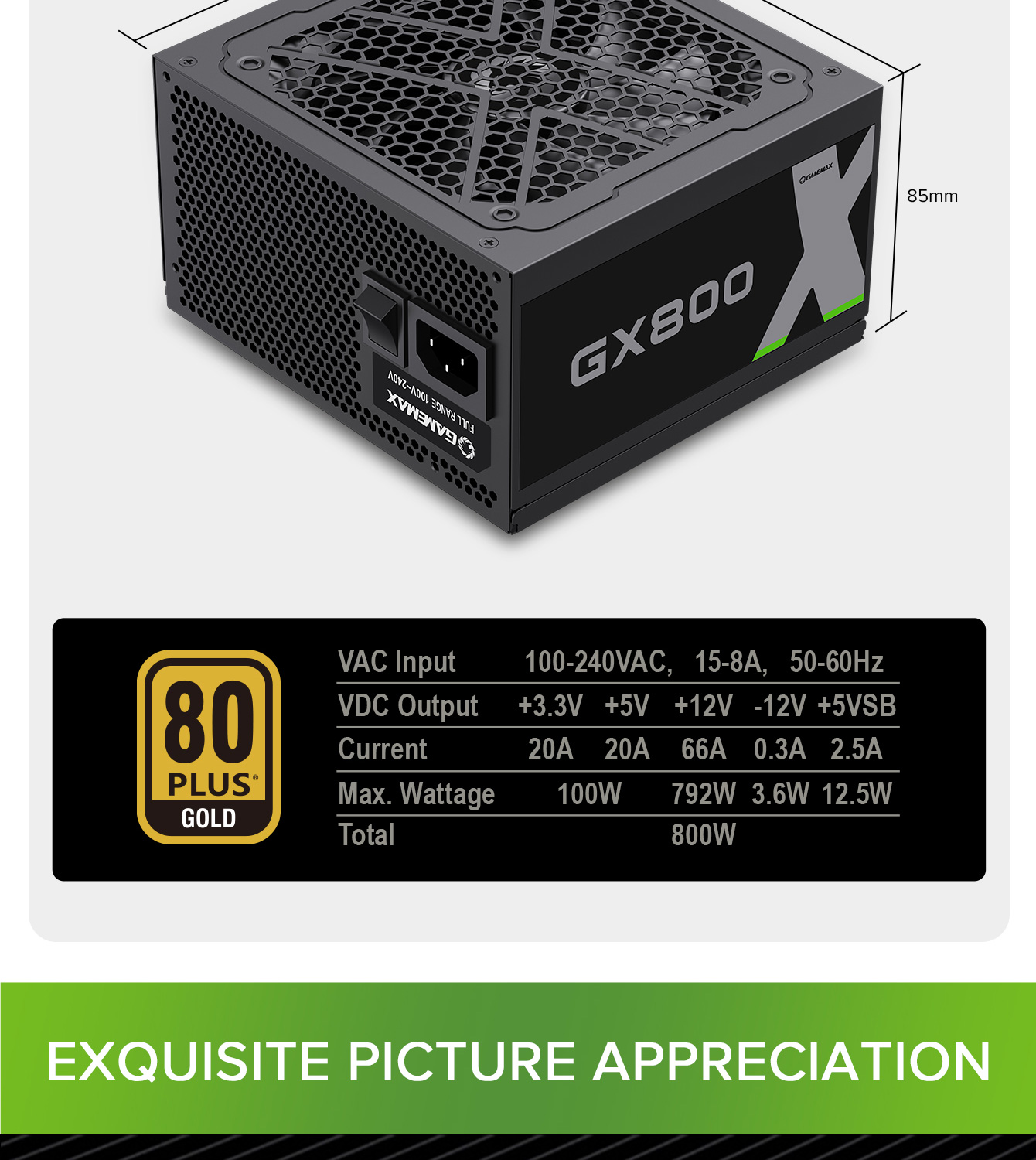

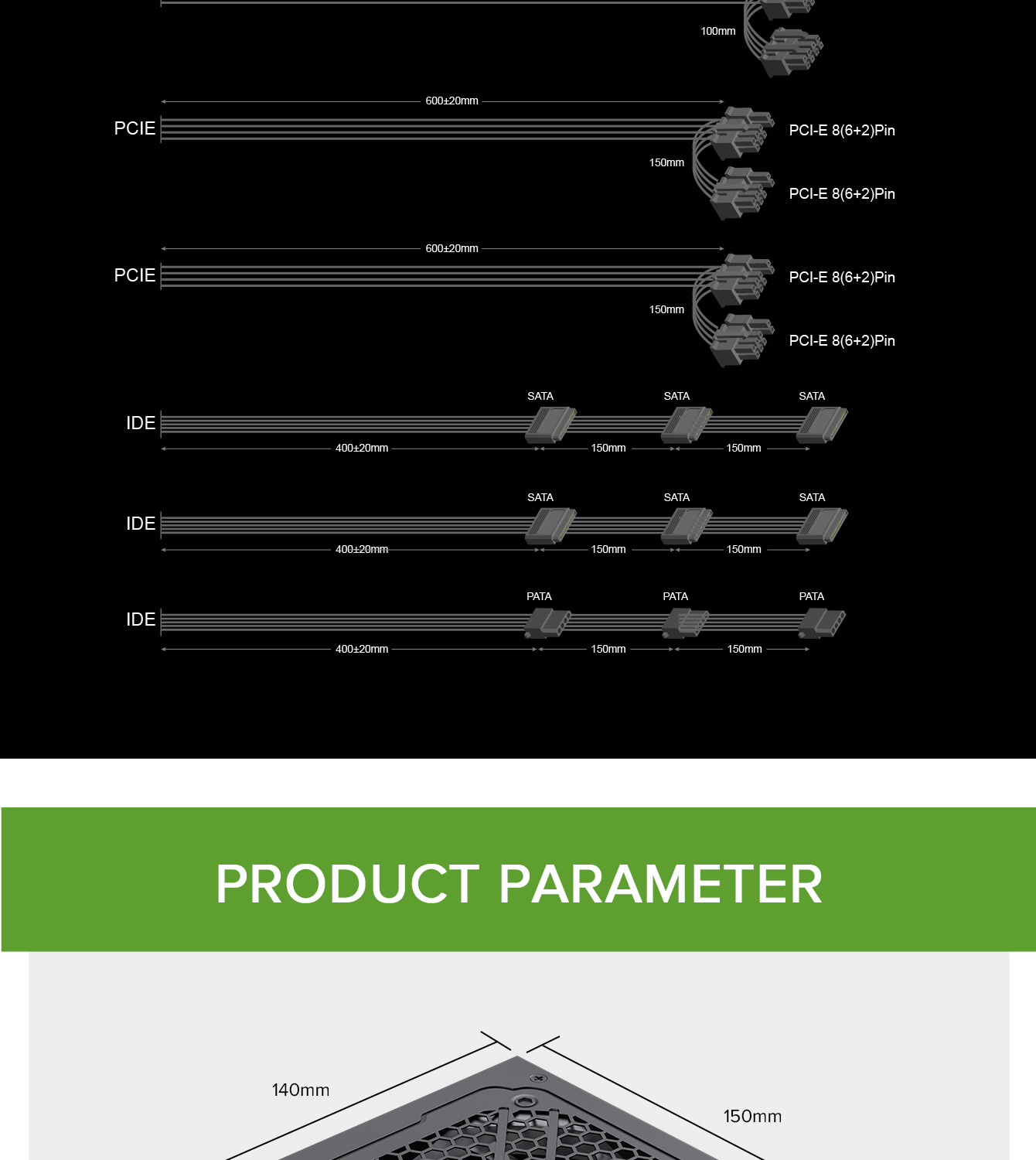

| Dimensions: | 150mm x 85mm x 140mm (W x H x D) |

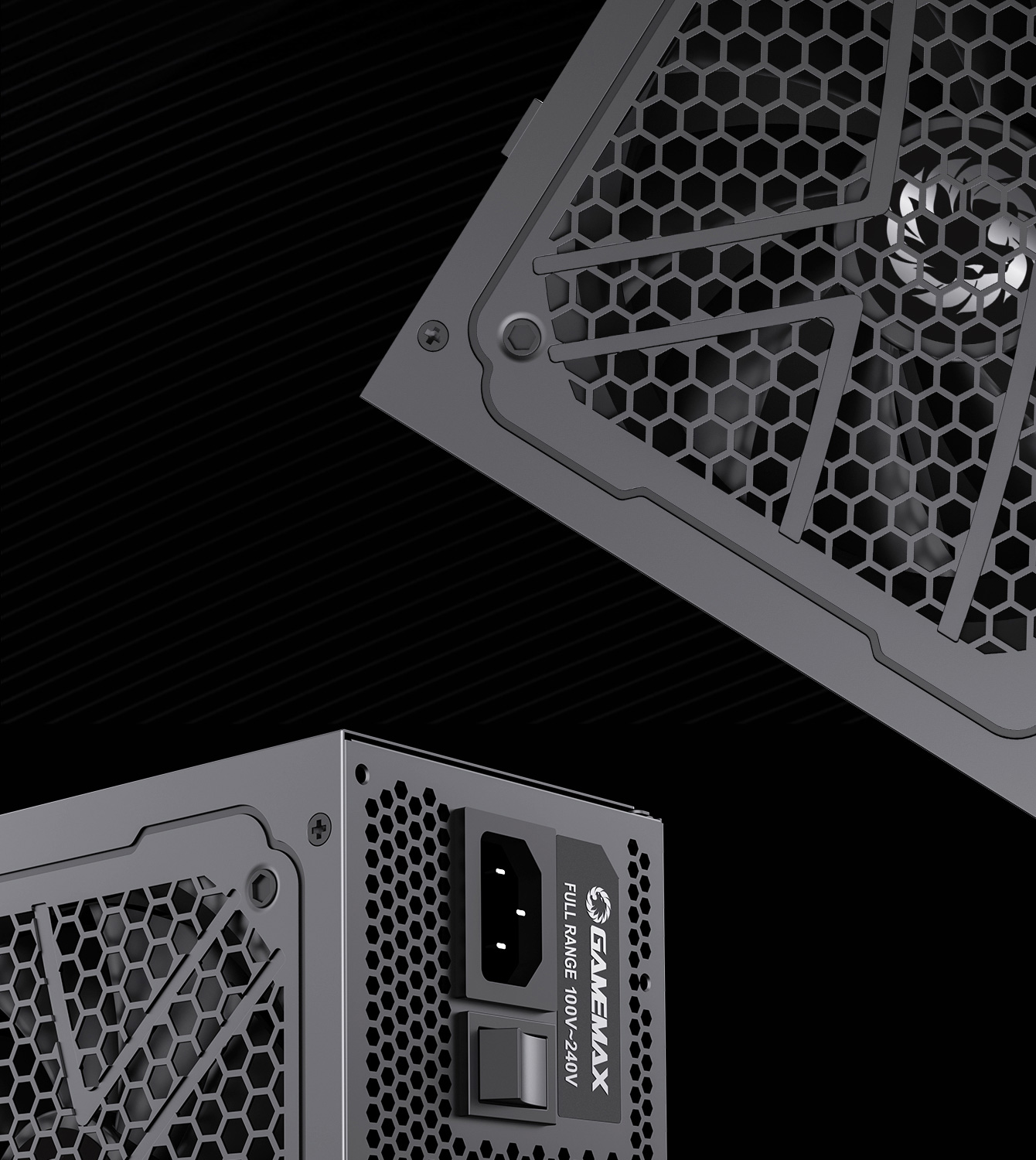

| Input Voltage: | 100-240 VAC |
| Input Current: | 10-5A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-150 ms |
| Hold Up Time: | >10ms |

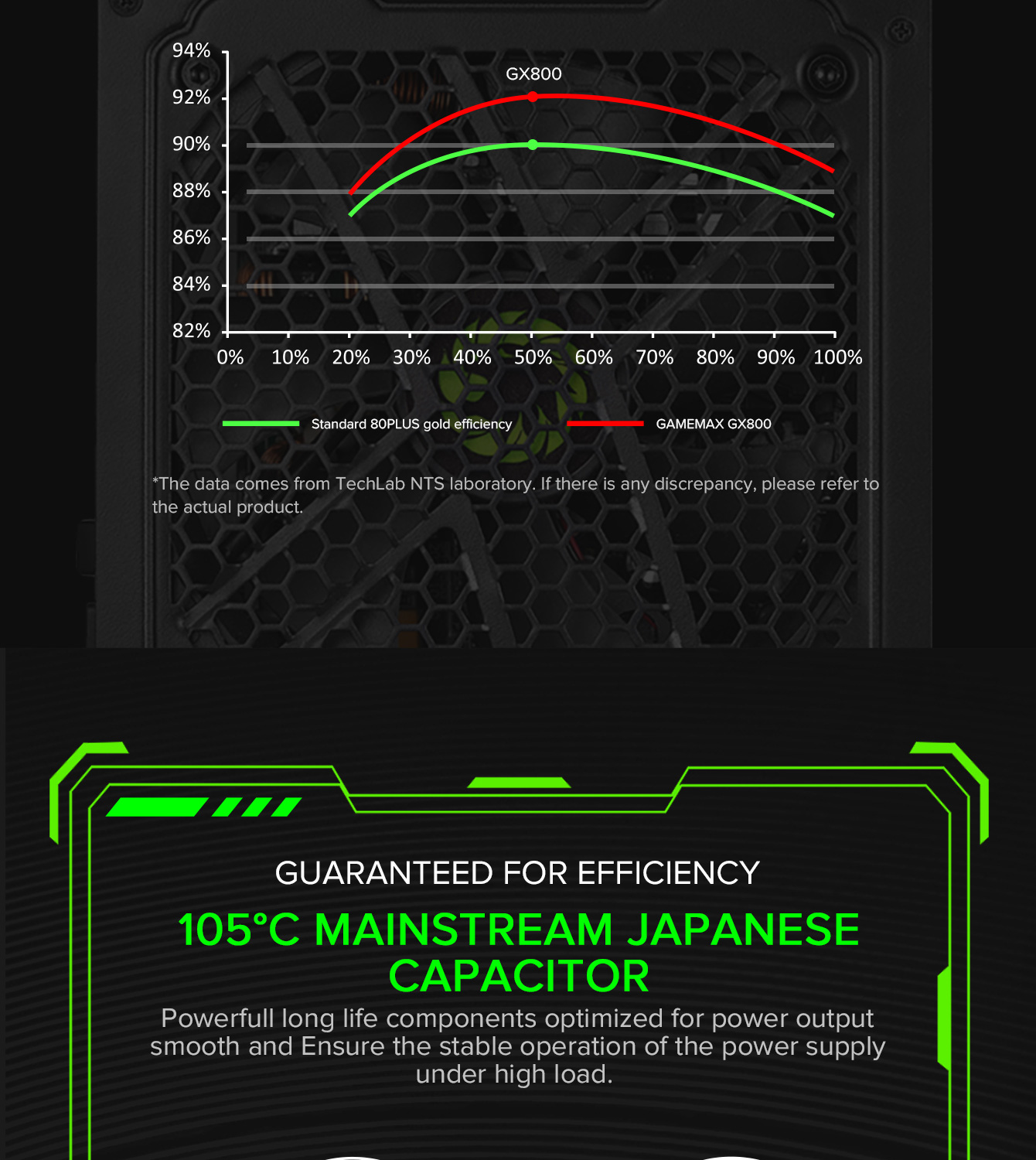

| Efficiency: | > 87% (92% max) |
| MTBF: | > 100,000 Hours |
| Protection: | OVP / UVP/ SIP / OCP/ OLP/ OPP/ SCP/OTP |
| Power: | 800W |
| Operation Temperature: | 0-40C |
| Safety: | CE / FCC / CB/TUV/cTUVus |
| Cooling: | 120mm Ultra Silent Fan |
| Noise: | <25dBa |
| 80 Plus Certified: | Yes - 80 Plus Gold |
