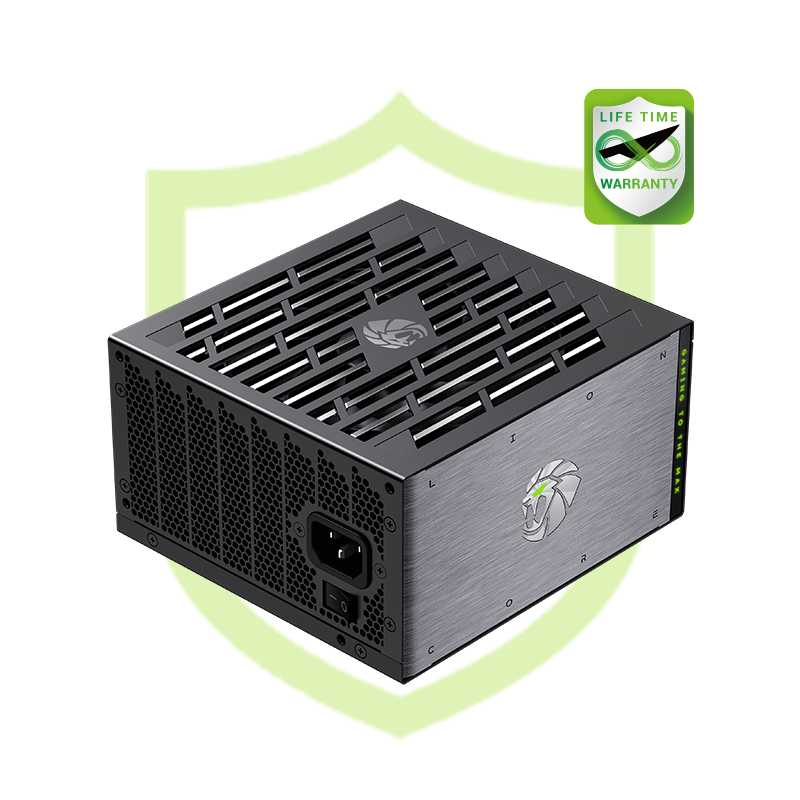

• The world’s first lifetime warranty for a power supply ensures unmatched confidence and peace of mind.
• Supports ATX3.1 and PCIe5.1 standards with a native 12V-2x6 connector for direct RTX™ 40/50 series GPU connections, reducing current loss and improving performance.
• The bold and stylish design enhances the aesthetic appeal of your build while delivering top-tier functionality.

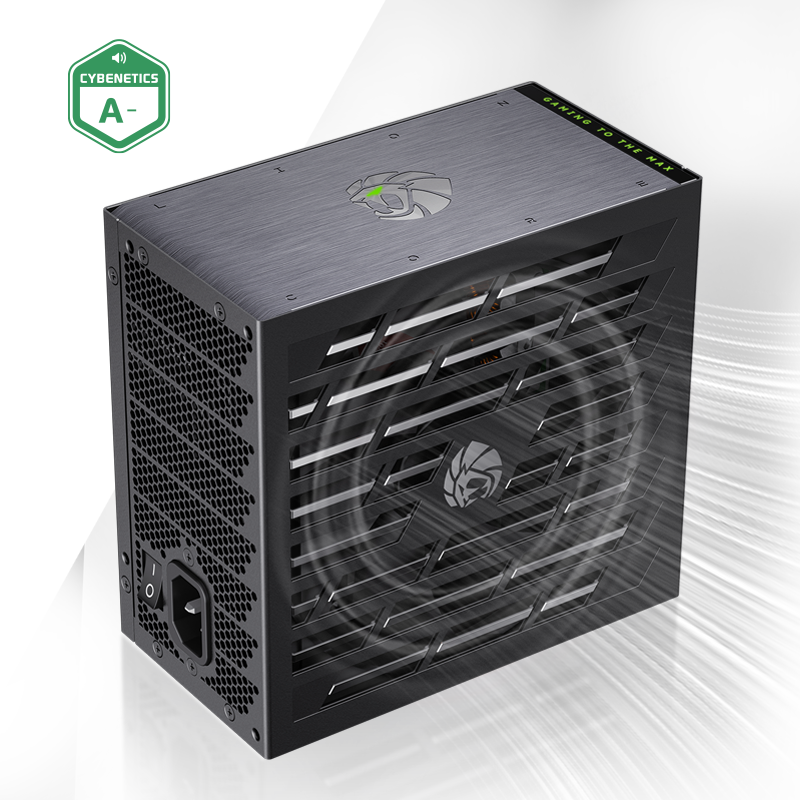

• A 13.5cm low-RPM turbo axial fan with 0dB intelligent temperature control ensures ultra-quiet operation
• Built with sustainable and green materials, it minimizes environmental impact without compromising performance.
• 100% Japanese capacitors rated for up to 105℃ ensures long-lasting durability and stable power delivery.
• Matrix-arranged solid capacitors reduce ripple and noise for cleaner and more stable power delivery.
• Dual-stage EMI filtering and anti-burn circuits protect the system from spikes, surges, and interference.
• Thick cables with 11A gold-plated alloy terminals provide superior conductivity, reduced resistance, and exceptional durability.

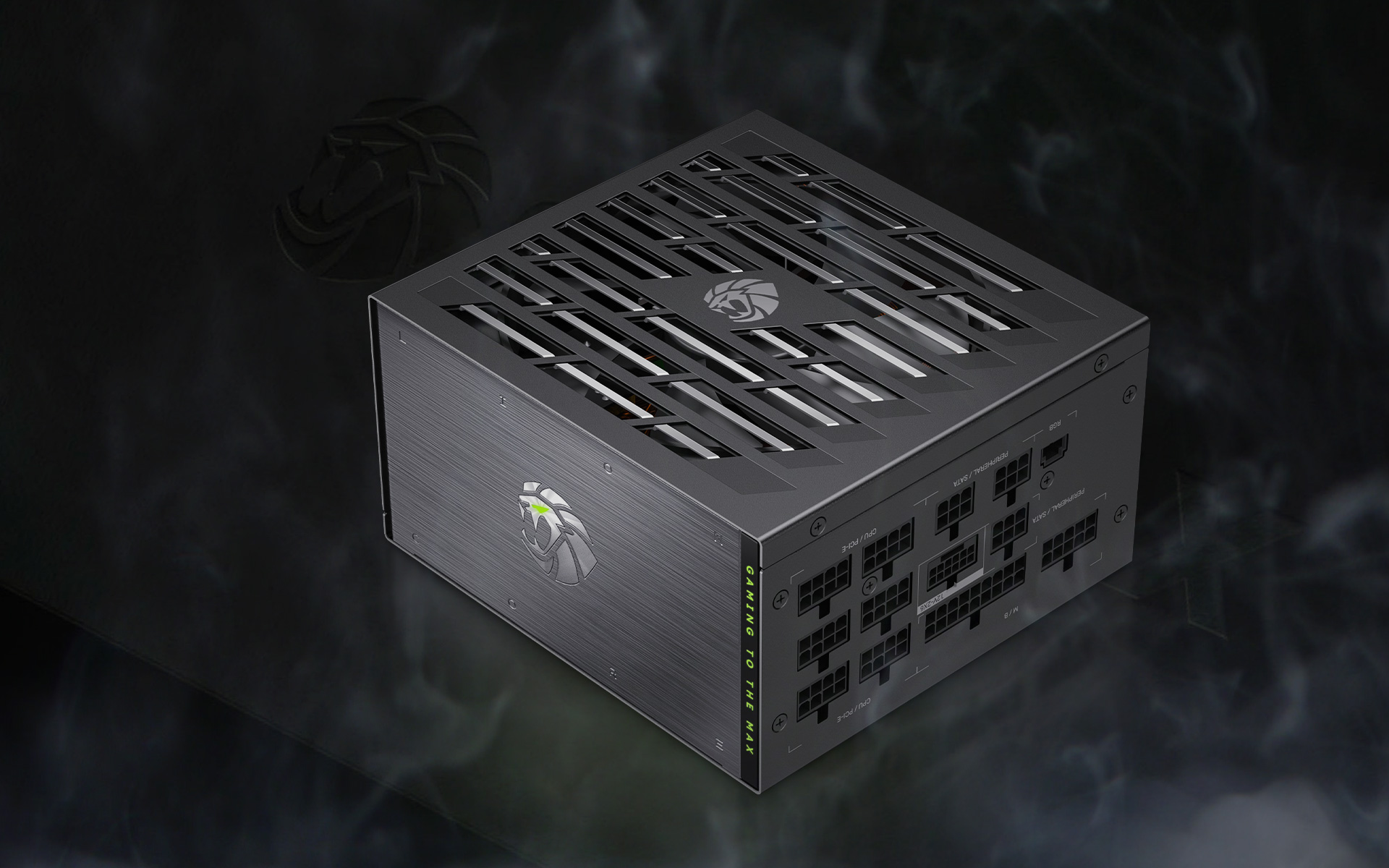

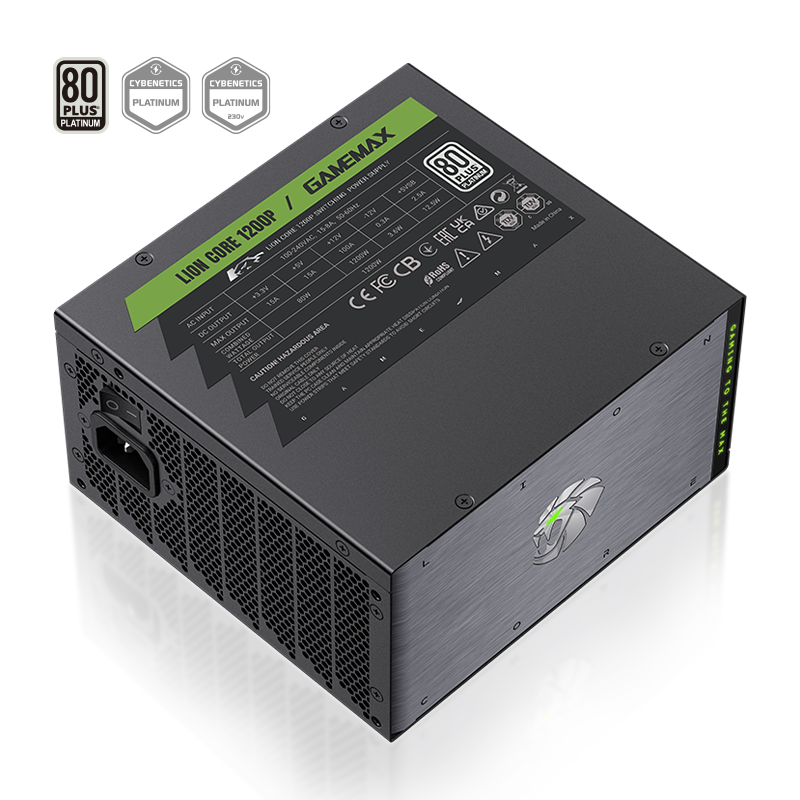

Model name | GameMax LION CORE Series 1200 PLATINUM Power Supply | |
General | ATX Version | ATX 12V Ver. 3.1 |
PFC | Active PFC | |
Input Voltage | 100-240V | |
Input Current | 15-8A | |
Input Frequency | 50-60Hz | |

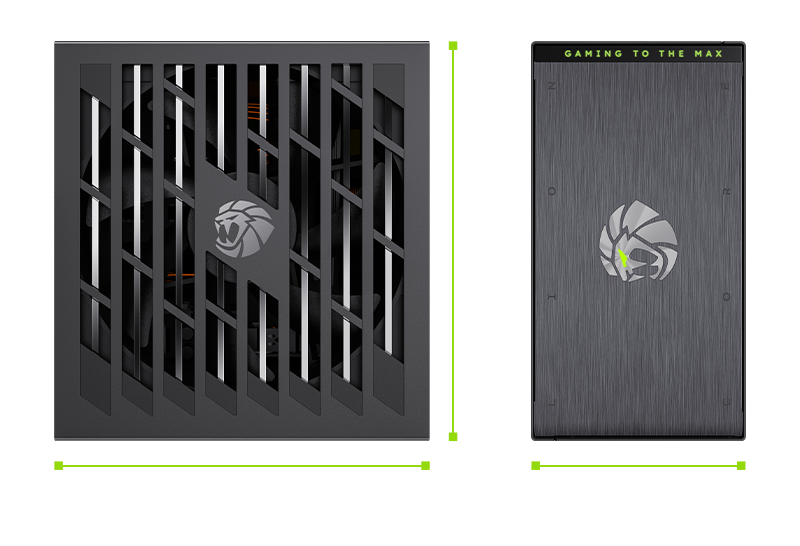

Dimensions (L x W x H) | 160 x 150 x 86mm | |

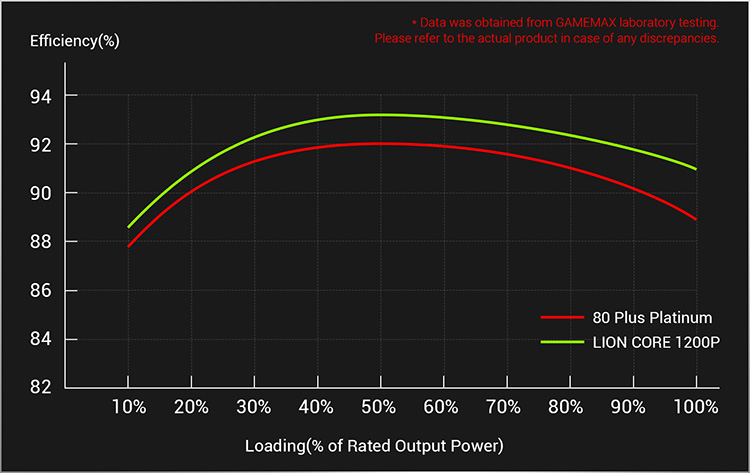

Efficiency | 92% | |
80 PLUS Rating | Platinum | |
Cybenetics Efficiency | Platinum | |
Cybenetics Noise Level | A+ | |
Protections | OPP / OVP/ UVP / OCP/ SCP / OTP / NLP / SIP / OLP / NLO | |
Safety Certificate | CE / FCC / CB / EAC / UKrTEST / RoHS / CCC | |
Fan | Size | 135mm |
Bearing | FDB | |
0dB Mode | Yes | |

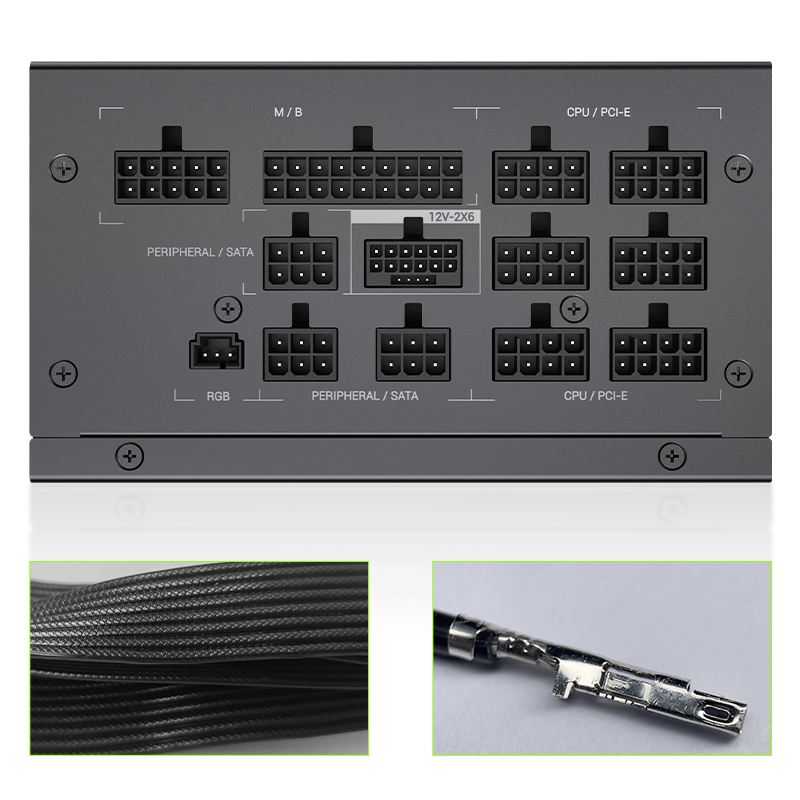

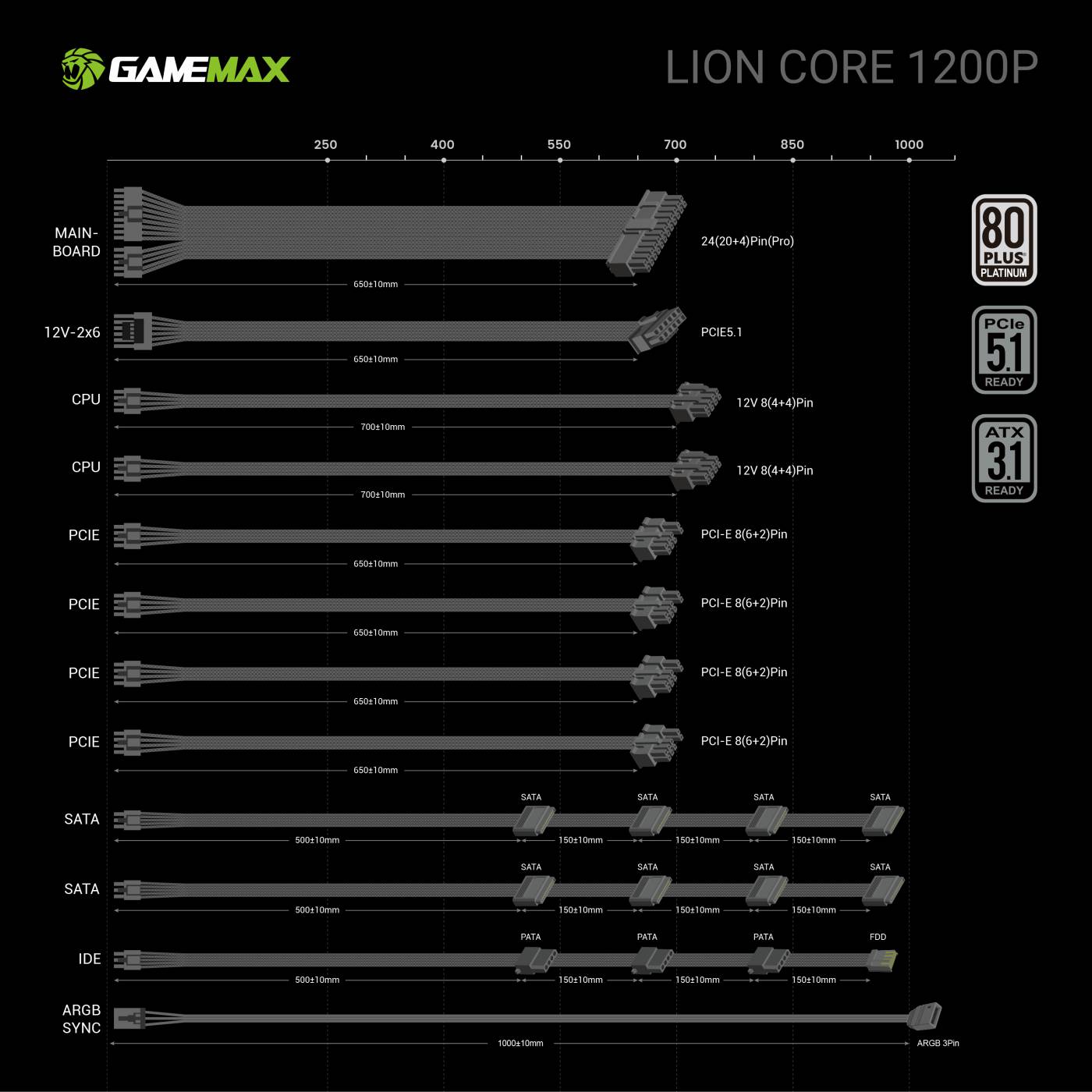

Cables | Type | Embossed |
Module | Fully Modular | |
ATX 24 Pin | MB 24(20+4) Pin x 1 (650mm) | |
CPU 4+4 Pin | CPU 8(4+4) Pin x 2 (700mm) | |
PCI-e 12+4 Pin | PCIE5.1 12V-2x6 (12+4) Pin x 1 (650mm) | |
PCI-e 6+2 Pin | PCIe 8(6+2) Pin x 4 (650mm) | |
SATA | SATA x2 (500+150+150+150mm) | |
Peripheral | PATA x1 (500+150+150mm+FDD 150mm) | |

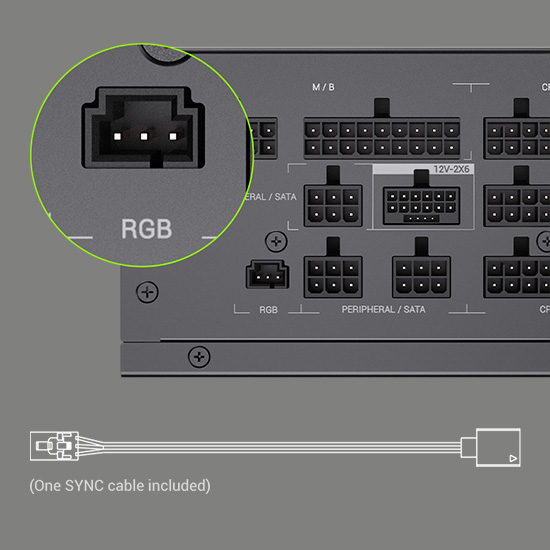

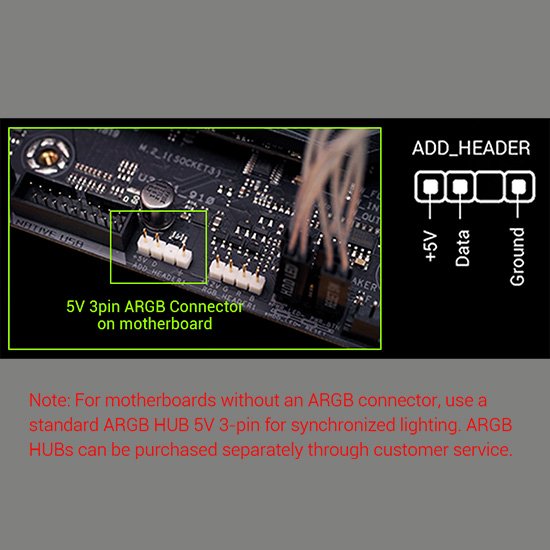

RGB | ARGB x1 3pin (1000mm) | |
