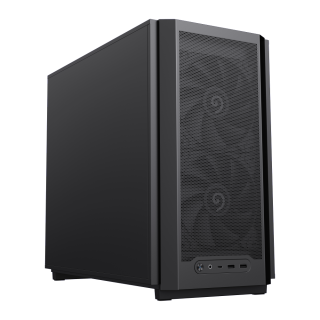

GameMax F36 Dark Micro-ATX Gaming Case: a sleek, airflow-optimized, and easy-to-install premium case featuring a durable steel frame and 4.0mm tempered glass.
• Includes 3 PWM fans for enhanced cooling performance.

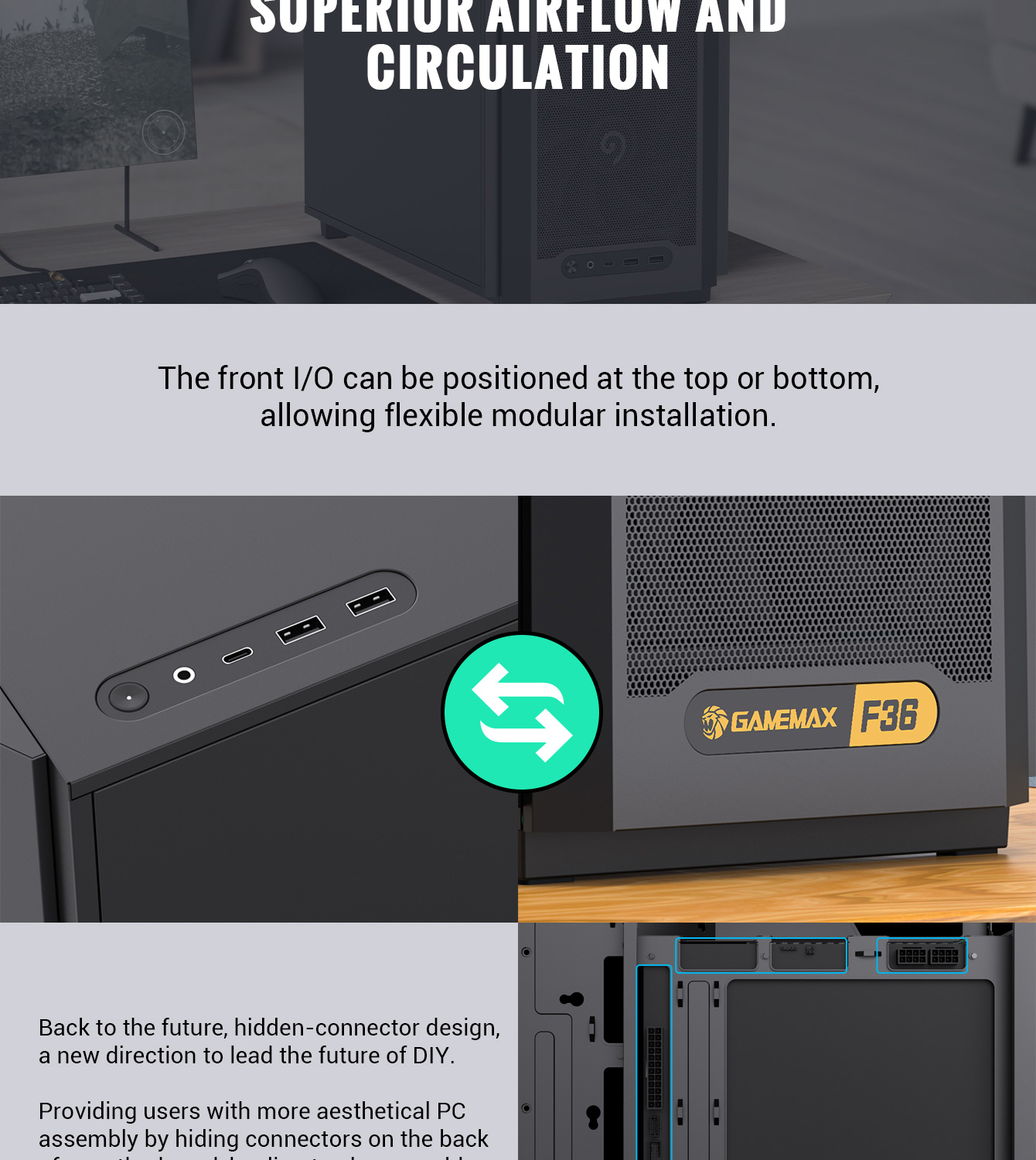

• Switchable I/O module with interchangeable logo and I/O positions.
• Supports up to 166mm air coolers and 240/280mm liquid coolers.
• Compatible with MATX motherboards and backplane configurations, with support for 4.5-slot graphics cards.
• Tool-less quick-release design for both front and side panels.
• Top-mounted power supply compartment for optimal layout.
| Form Factor (Midi, Micro, Mini ITX, Full) | Mini Tower | |
| Chassis | SPCC 0.8/0.6mm mixed | |
| PSU Form Factor | UP/ATX | |
| M/B Form Factor | Micro-ATX, Mini ITX | |
| Front Panel | Metal mesh | |
| Top Panel | metal cover | |
| Side Panel | Left | metal cover |
| Right | metal cover | |
| External Drive Bay(s) | 5.25" (ODD) | *0 |
| 3.5" | *0 | |

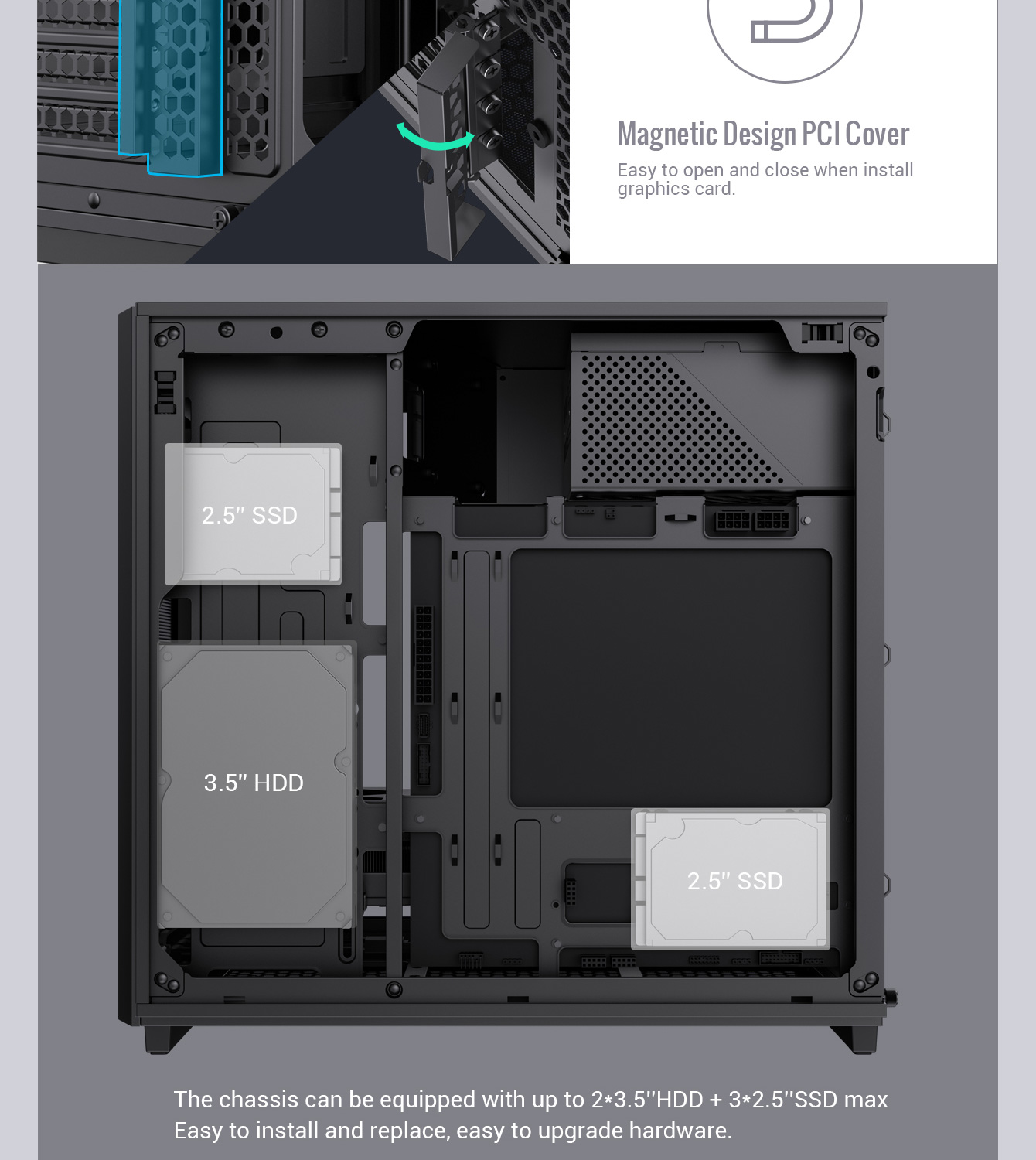

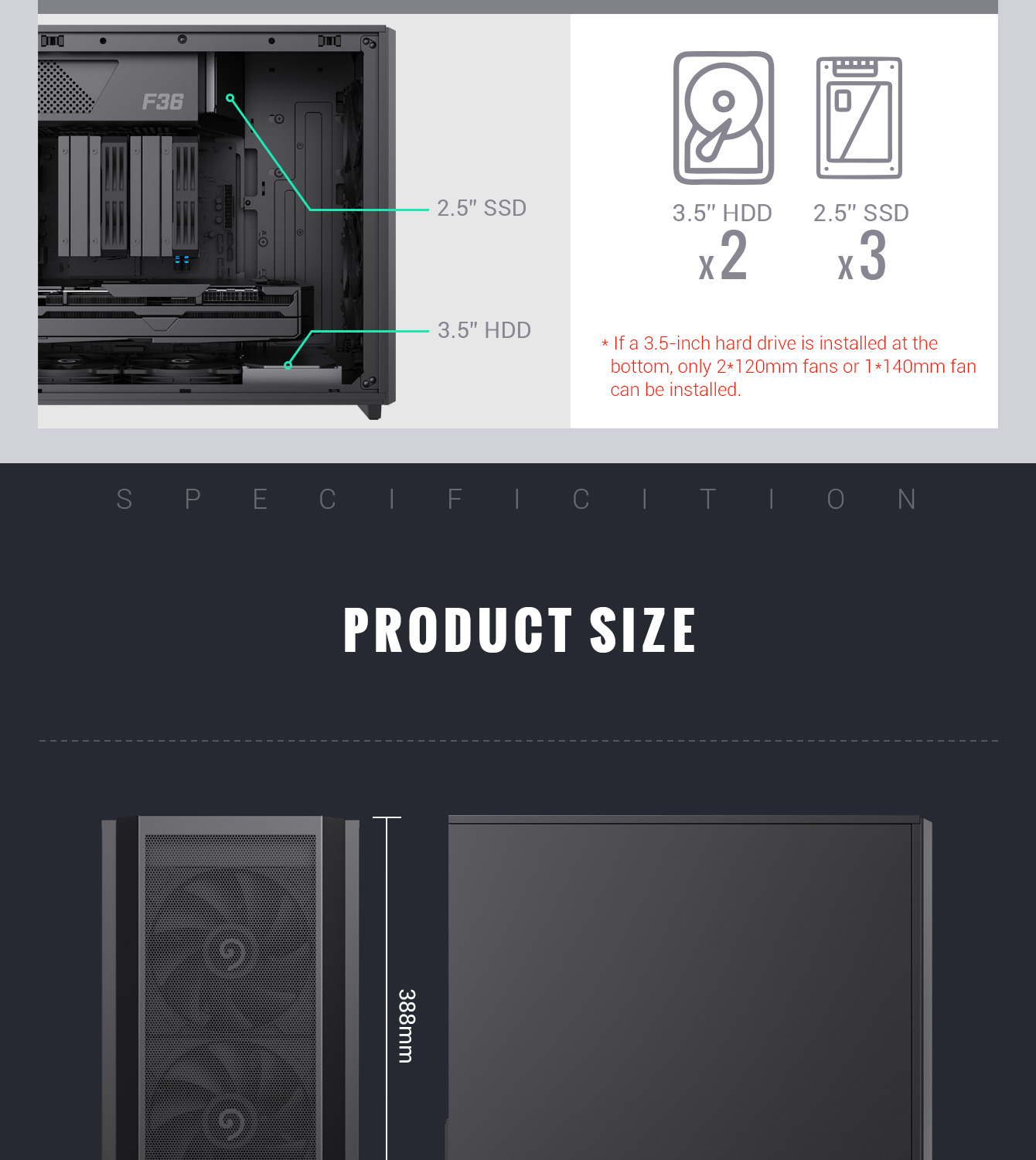

| Internal Drive Bay(s) | 3.5" (HDD) | *2 |
| 2.5" (SSD) | *3 | |

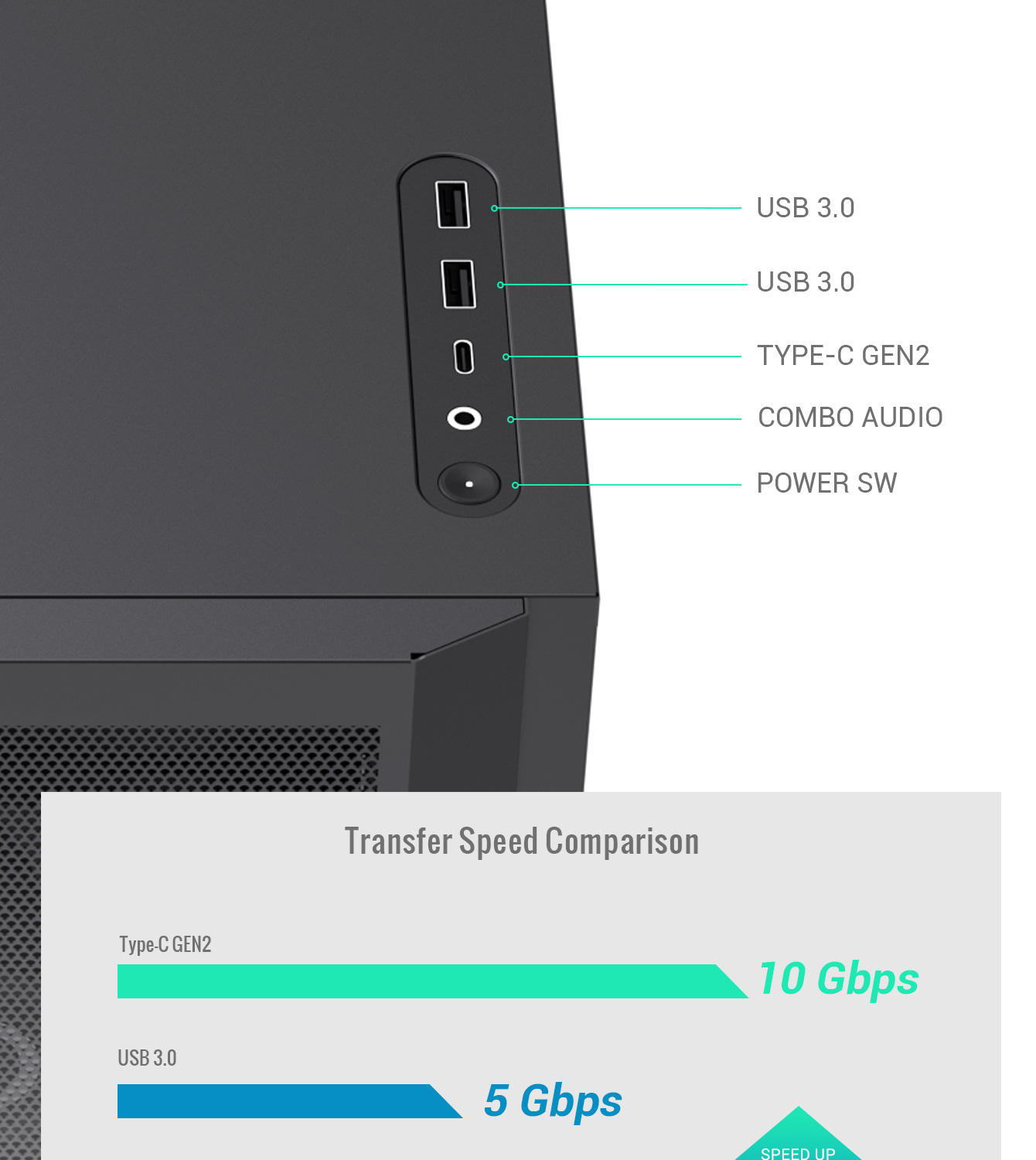

| I/O | Buttons | *1 |
| USB2.0 Port(s) | *0 | |
| USB3.0 Port(s) | *2 | |
| USB3.1 Port(s) | *0 | |
| Combo Audio | *1 | |
| Type C | *1(GEN2) | |
| Fan Controller | *0 | |
| RGB Controller | *0 | |
| Controller max. fans | *0 | |
| RGB Controller max. LED strips | *0 | |
| Remote (IR or RF) | *0 | |

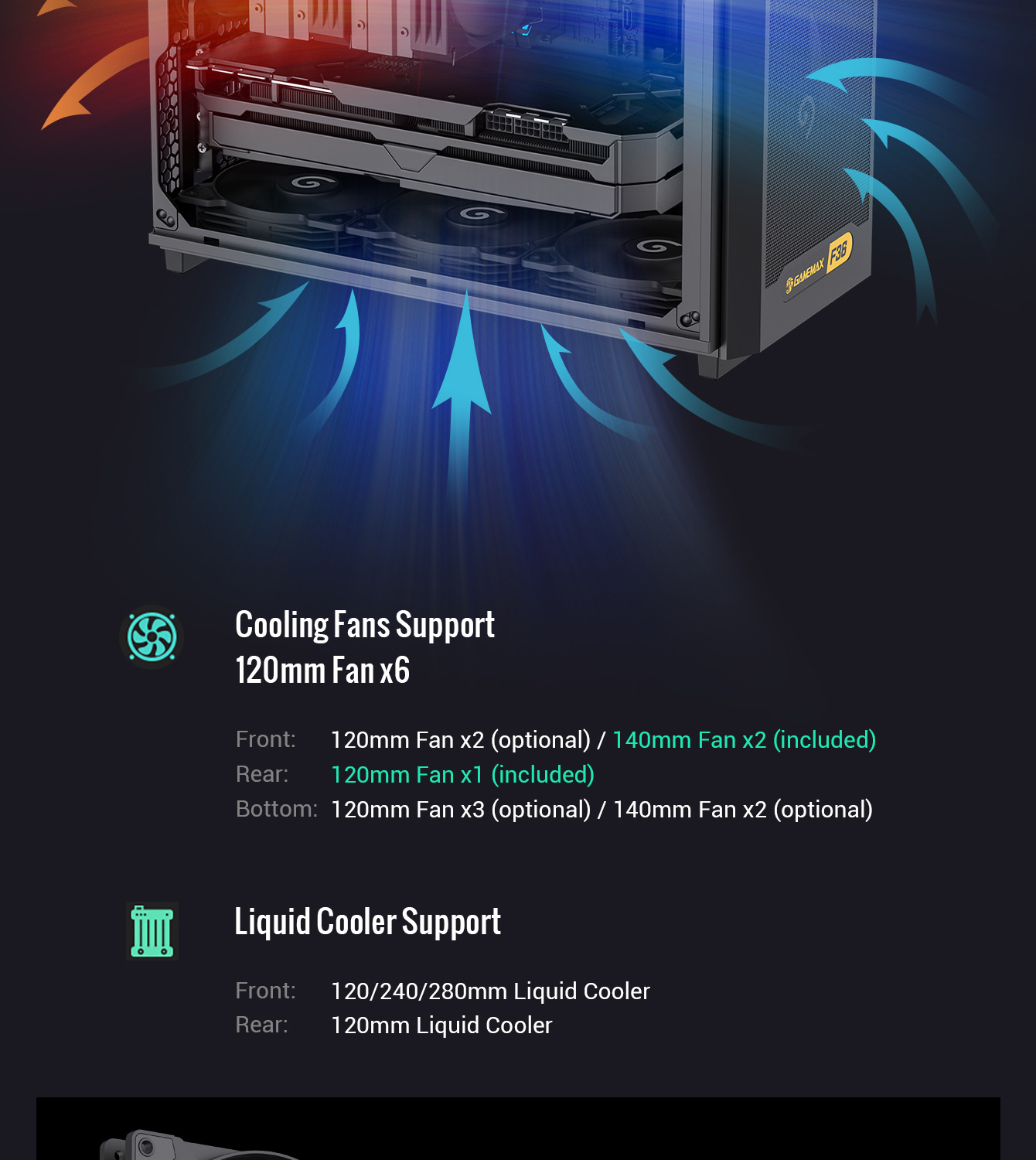

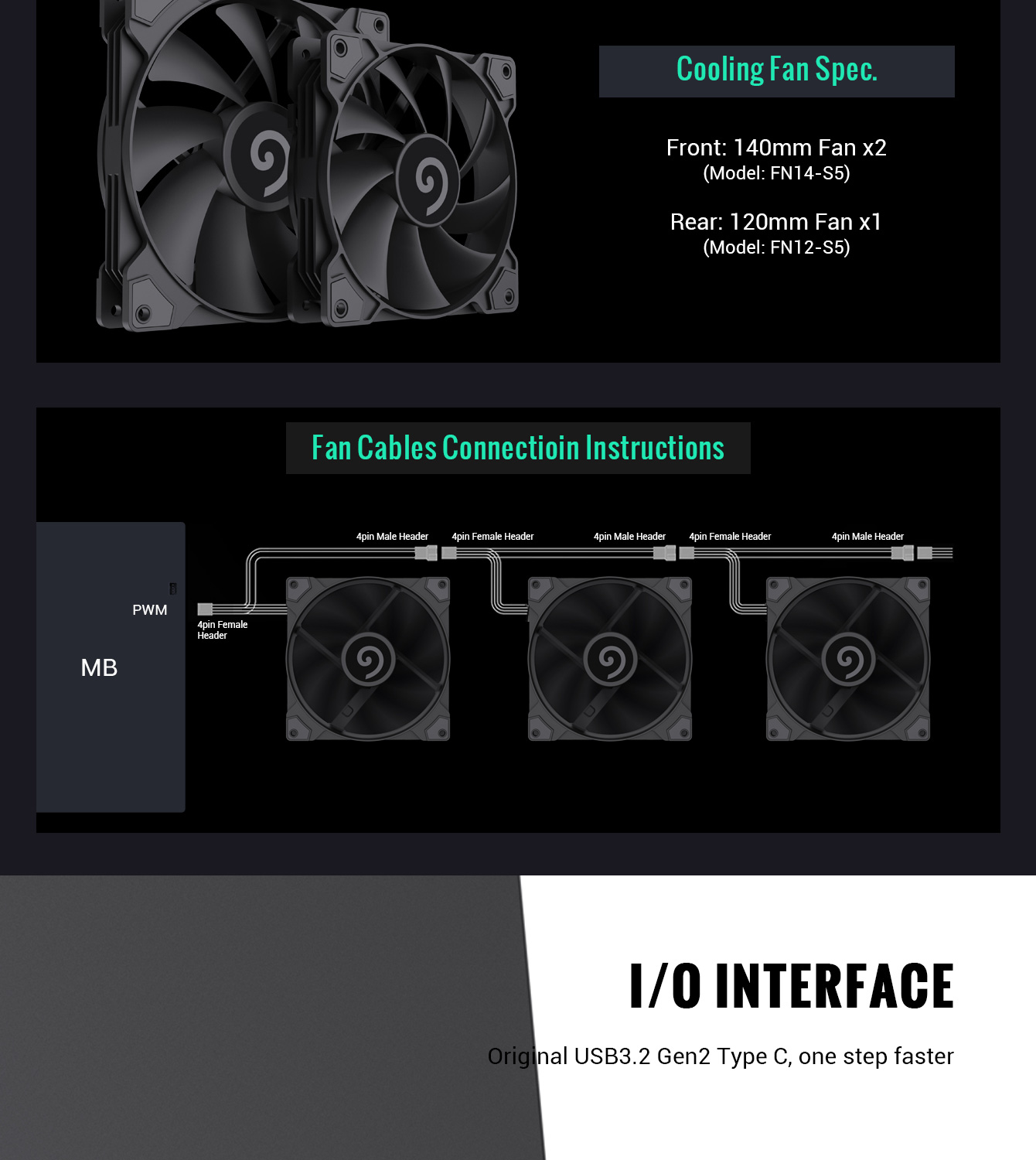

| Cooling Fan Support | Front | 2x120mm (Fan optional),2x140mm (GMX-WFBK-PWM included) |
| Top | 0 | |
| Rear | 1x120mm (GMX-WFBK-PWM included) | |
| Left Side | 0 | |

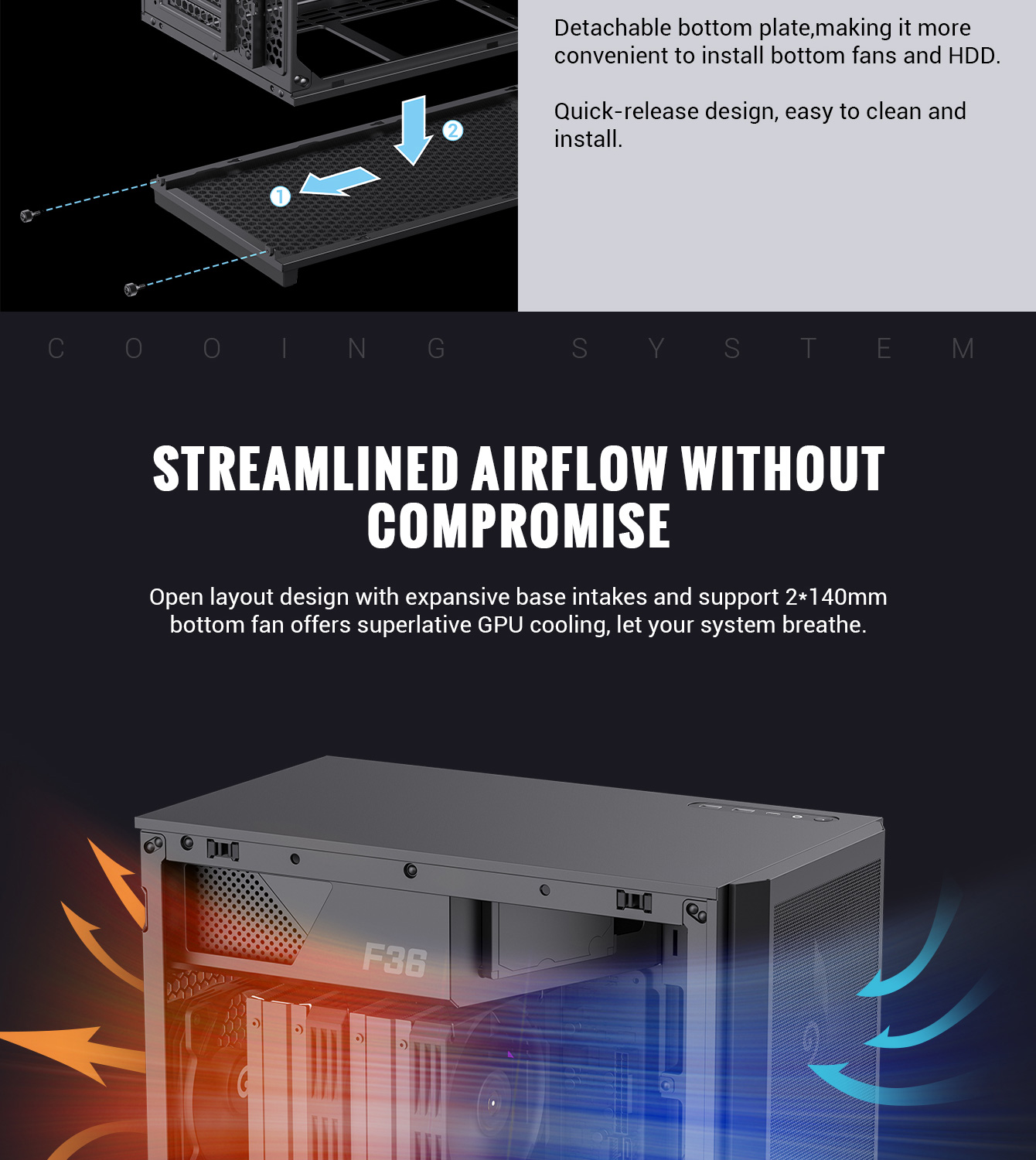

| Bottom | 3x120 or 2x140mm (Fan optional) | |
| Water Cooling Support (Radiator Size) | Front | 120mm*1, 240mm*1,280mm |
| Top | 0 | |
| Rear | 120mm*1 | |
| Dust Cover | Bottom cover with dust filter | |
| Slots | *4 | |
| Carton & Logo | GAMEMAX | |

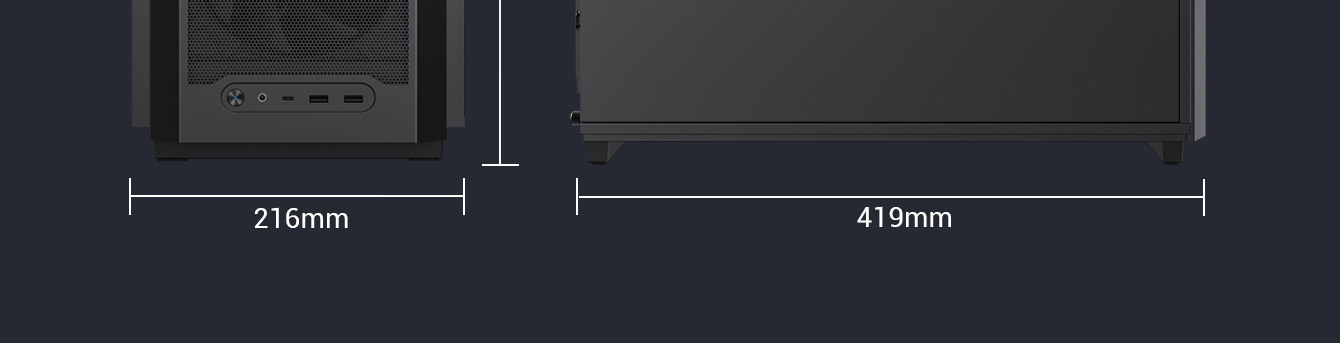

| Dimensions | Chassis | (L)386*(W)216*(H)367mm |
| Full Case (inc Fascia) | (L)419*(W)216*(H)388mm | |
| Carton | (L)478*(W)274*(H)465mm | |
| Net Weight (Kg) | 5.1kgs | |
| Gross Weight (Kg) | 6.1kgs | |

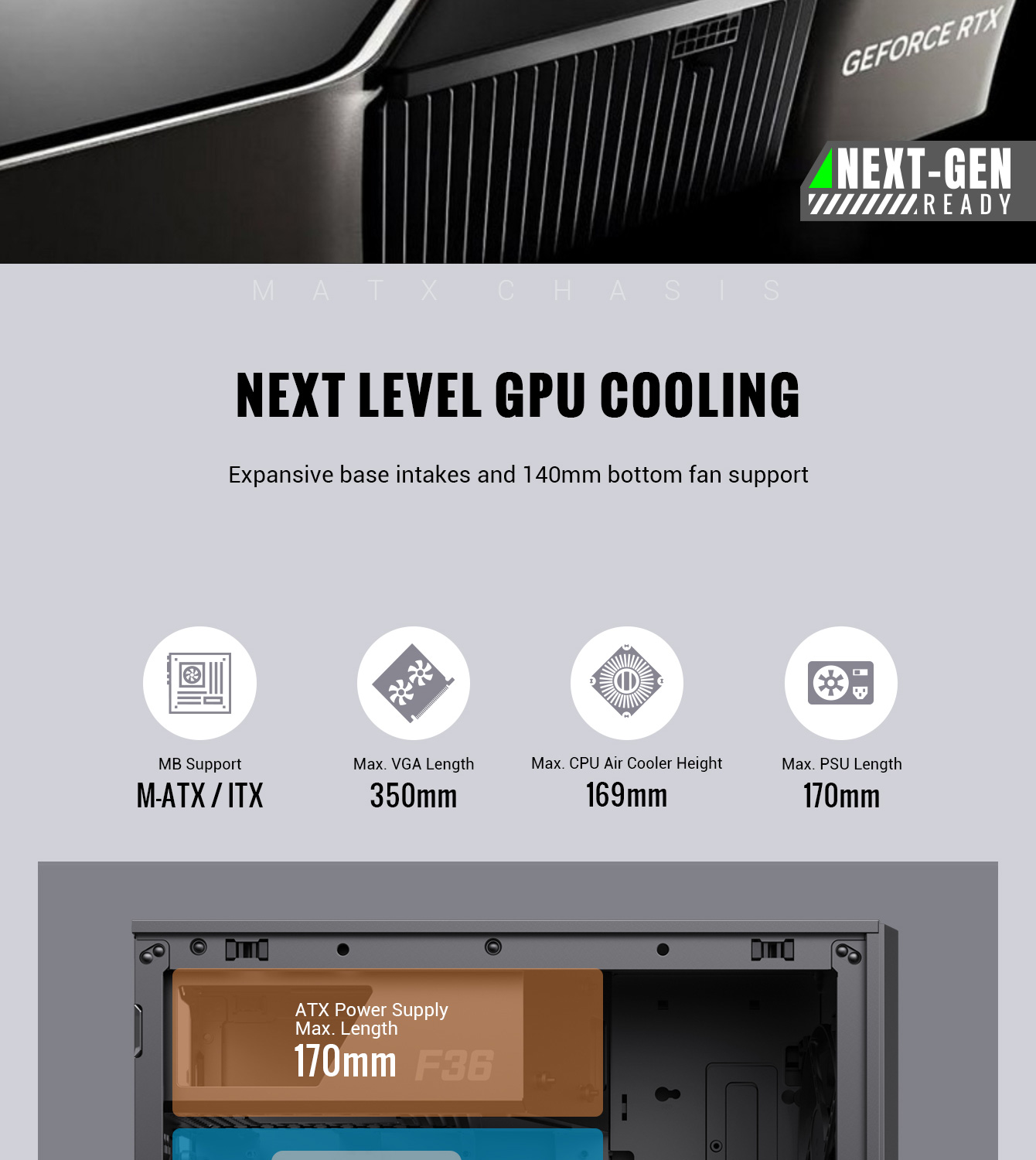

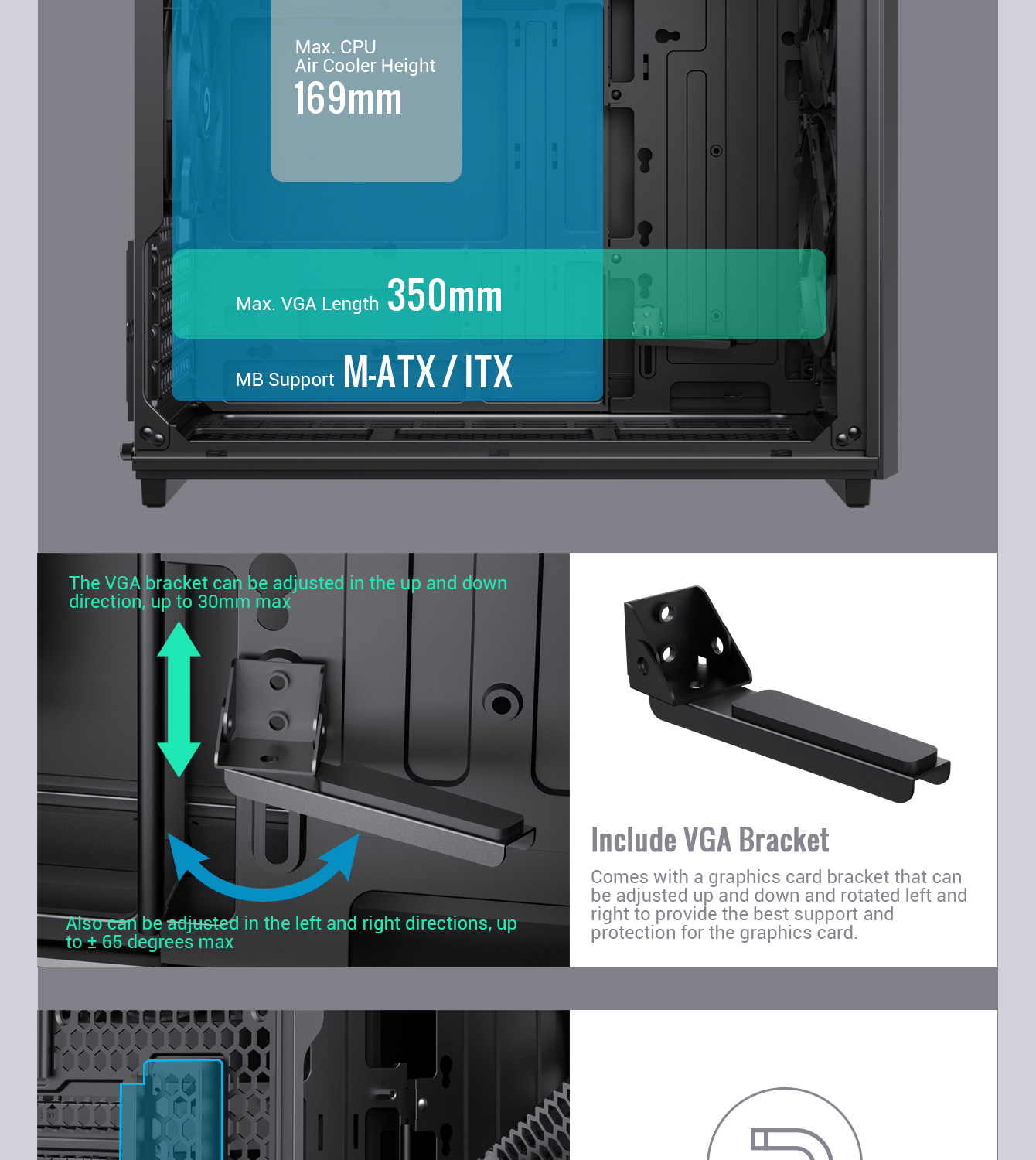

| VGA Card Length | 350mm | |
| CPU Cooler Height | 169mm | |
| Cable Management Depth | 33mm | |
