ATX3.1 Power Supply Buying Guide: Providing Stable Power Support for 9070 XT

Why ATX3.1 Power Supply Is a Must for 9070 XT

With the launch of high-performance graphics cards like AMD Radeon 9070 XT, the power requirements for PC hardware have entered a new era. The ATX3.1 power supply standard brings three core upgrades compared to previous generations:

• Native PCIe 5.1 Support: The specially designed 12V-2x6 interface (16Pin) for next-gen graphics cards directly delivers up to 600W stable power to 9070 XT, reducing current loss by 30% compared to traditional 8Pin interfaces.

• Dynamic Power Response Capability: Supports 150% instantaneous power output, perfectly handling the peak power surges when 9070 XT loads games.

• Energy Efficiency and Cooling Innovation: 80 Plus Gold or higher certification becomes mainstream. Combined with adaptive fan technology, noise can be controlled below 25dB under a typical 400W load.

Take GameMax RGB PRO 1300P as an example. With its 80 Plus Platinum certification and efficiency exceeding 92%, plus a native PCIe 5.1 interface, it can simultaneously meet the power needs of 9070 XT and high-end CPUs, making it an ideal choice for enthusiast setups.

II. Analysis of Five Core Selection Criteria

1. Power Calculation: Maintain a 30% Redundancy Margin

The official nominal TDP of 9070 XT is 350W. When paired with high-end CPUs like Ryzen 9 7950X, the typical system load is around 600-700W. It is recommended to use the following formula for selection:

plaintext

Power Supply Wattage = (GPU TDP + CPU TDP) × 1.3 + Peripheral Power (100-150W)

• Recommended Models:

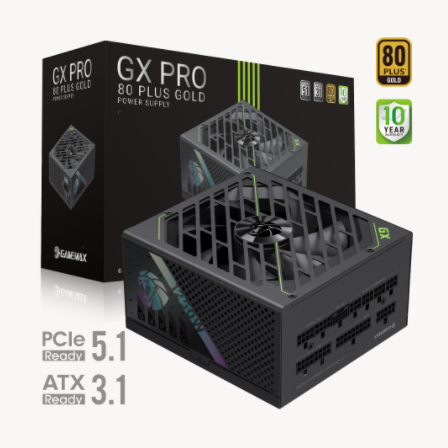

• GameMax GX PRO 1050G (1050W): 80 Plus Gold efficiency, supports ATX3.1, suitable for dual-GPU or overclocking configurations.

• RGB PRO 850G (850W): Fully modular design, 140mm ARGB fan supports motherboard sync, ideal for mainstream high-end platforms.

2. Energy Efficiency Certification: Platinum/Gold as the Baseline

Efficiency differences of different certification levels under typical loads:

Certification	20% Load	50% Load	100% Load
80 Plus Platinum	90%	92%	89%
80 Plus Gold	87%	90%	87%
80 Plus Bronze	82%	85%	82%

• Preferred Models:

• GS 850G (850W SFX Power Supply): 80 Plus Gold certified, Japanese capacitors with intelligent temperature control, suitable for small-form-factor high-end builds.

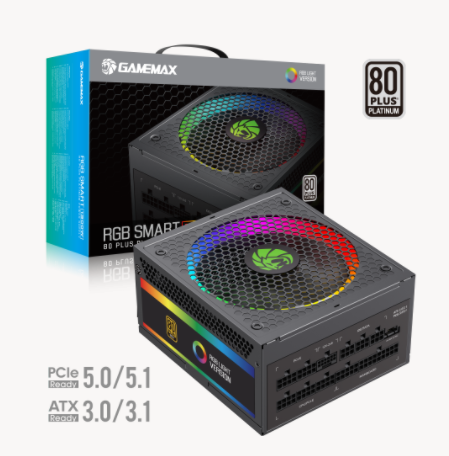

• RGB-Smart 1300 PRO BK (1300W): Platinum certification + LLC+DC-DC topology, conversion efficiency approaching server levels.

3. Interface and Compatibility Design

9070 XT requires at least one native PCIe 5.1 16Pin interface, while considering:

• Multi-GPU Support: RGB PRO 1300P is equipped with 2 PCIe 5.1 interfaces, supporting future dual-GPU upgrades.

• Motherboard Compatibility: ATX3.1 power supplies are backward compatible with ATX3.0/2.52 motherboards, but pairing with new platforms like X670/B650 is recommended to unleash full performance.

• Cable Management: The full modular design of the GX PRO series reduces cable clutter in the case by 40%, improving 散热 (heat dissipation) efficiency.

4. Cooling and Silent Solutions

• Fan Technology:

• FDB Liquid Bearing Fan: As used in GX 850GF, with a lifespan of up to 100,000 hours and noise 12dB lower than ordinary oil-sealed fans.

• Smart Start-Stop Technology: GS 750G completely stops the fan under low load, achieving 0 noise operation.

• Cooling Design:

• All-Aluminum Heat Sinks: The RGB PRO series uses 0.8mm thick aluminum sheets, increasing heat dissipation area by 30% compared to traditional designs.

• Honeycomb Mesh: Models above 800W in the VP series have a mesh opening rate of 75%, increasing air flow by 20%.

5. Safety Protection Mechanisms

Six essential protection functions:

• OVP (Over-Voltage Protection)

• UVP (Under-Voltage Protection)

• OCP (Over-Current Protection)

• OPP (Over-Power Protection)

• SCP (Short-Circuit Protection)

• OTP (Over-Temperature Protection)

GameMax's high-end models like GX PRO 1250G additionally support surge protection, safeguarding 9070 XT against power grid fluctuations.

III. Three Scenario-Based Recommendation Solutions

1. Extreme Performance Solution (4K Gaming/Professional Rendering)

• Power Supply Choice: RGB PRO 1300P (1300W Platinum Certified)

• Core Advantages:

• 12V single-rail output reaches 108A, capable of driving 9070 XT + Ryzen 9 7950X overclocking simultaneously.

• Adaptive fan remains below 30dB at 70% load.

• 10-year extended warranty, suitable for long-term use.

2. Mainstream High-End Solution (2K High-Frame-Rate Gaming)

• Power Supply Choice: GX PRO 1050G (1050W Gold Certified)

• Core Advantages:

• APFC+LLC+DC-DC triple topology, voltage fluctuation controlled within ±1%.

• Fully modular design with native 16Pin interface, facilitating cable management during installation.

• Japanese Chemi-Con KZE series capacitors, resistant to 105℃ high temperatures, suitable for prolonged gaming.

3. Compact High-Performance Solution (ITX Case)

• Power Supply Choice: GS 850G (850W SFX Gold Certified)

• Core Advantages:

• Ultra-small size of 125×100×63.5mm, compatible with mini cases like NR200.

• Intelligent temperature-controlled fan automatically stops below 40℃.

• All-Japanese capacitor configuration, stability comparable to ATX power supplies.

IV. Pitfall Avoidance Guide and Installation Tips

1. Common Misconceptions

• Power Overrating Trap: Verify the 80 Plus official certification number, avoiding low-cost products without clear certification.

• Interface Mixing Risk: Never use adapters to connect the 16Pin interface of 9070 XT, which may cause unstable power supply.

• Neglecting Cable Quality: When choosing fully modular power supplies, confirm that included cables are 16AWG 规格 (specification) (e.g., standard in RGB PRO series).

2. Installation Optimization Tips

• Airflow Design: Install the power supply fan downward, utilizing the bottom intake of the case for direct cooling.

• Cable Management: Use cable ties to organize excess cables at the back of the case, maintaining ventilation in the power supply chamber.

• First Boot Test: Monitor 12V voltage fluctuations via software like HWInfo; the normal range should be within ±0.3V.

V. Conclusion: Stable Power Supply Is the Cornerstone for Unleashing 9070 XT Performance

When selecting an ATX3.1 power supply, adhere to the core principles of "power redundancy + energy efficiency priority + native interface". For 9070 XT platforms, an 850W Gold or 1000W Platinum power supply is an ideal choice balancing performance and cost-effectiveness. GameMax's RGB PRO and GX PRO series, with their fully modular designs, high-spec components, and comprehensive protection mechanisms, fully meet the stability and expandability needs of enthusiast gamers, enabling 9070 XT to unleash its full potential in 4K gaming and professional creation.
