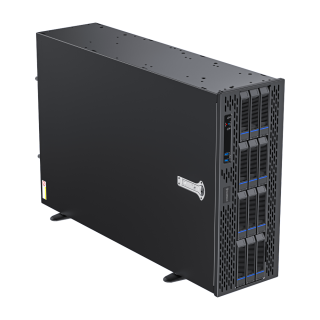

4U Rackmount AI Workstation Case Tower‑Rack Dual‑Use SPCC Steel 12 HDD Bays 11 PCI Slots for GPU Computing
• 4U Tower‑Rack Convertible, vertical tower or 19‑inch rack‑mount dual‑use
• Support up to 8 GPU cards for AI inference & training
• Multi‑position liquid cooling ready
• Pre‑installed 3×12038 + 2×8038 high‑speed cooling fans
• 0.8‑1.2mm SPCC steel, eco‑friendly black spray finish
• E‑ATX / ATX motherboard, 11 PCI expansion slots
• 1+1 CRPS redundant power supply support
• 12×3.5 HDD bays for large‑capacity storage
• Max 360mm GPU length, CPU cooler up to 142mm
• Front‑panel USB3.2 Gen1, power / HDD status LED indicators
| Case Type | AI Workstation（4U Rackmount） | |
| Color(s) | Black | |
| Materials | SPCC 0.8/1.0/1.2mm，Surface Environmentally Friendly Black Spraying Process | |
| M/B Compatibility | E-ATX、ATX | |
| Power Supply | 1+1CRPS redundant power supply/dual power supply | |
| Side Panel | Front Panel | Metal Cover |
| Left/Right | Metal Cover | |
| External Drive Bay(s) | 5.25" (ODD) | N/A |
| 3.5" | *12 | |
| Internal Drive Bay(s) | 3.5" (HDD) | NA |
| 2.5" (SSD) | ||
| I/O Ports | Power Button | *1 |
| Reset Button | *1 | |
| USB3.2 Gen1 Type A Port(s) | *2 | |
| LED Indicators | Power Status x 1, HDD Activity x 1 | |
| Cooling Fan Support (Fan Size) | built in | 3x120mm ( 12038 Pre-installed) |
| Top | / | |
| Rear | 2x80mm (8038 Dual Ball Bearing Fan Pre-installed) | |
| Bottom | / | |
| Water Cooling Support (Radiator Size) | Front | / |
| Bottom | / | |
| MB | / | |
| Slide Rail | Rated load capacity: 32Kg. Length: 50CM, can extend up to 1M. Standard rack supports 1U to 4U.(without Rail kit) | |
| Foot pad | ABS plastic，2 individually packaged units | |
| Dust Filters | / | |
| PCI Expansion Slots | *11 | |
| Carton & Logo | GAMEMAX | |
| Dimensions | Chassis | (L)681.5*(W)437*(H)175mm |
| Full Case (inc Fascia) | (L)724.3*(W)483.6*(H)175mm | |
| Package | (L)838*(W)582*(H)245mm | |
| Net Weight (Kg) | kgs | |
| Gross Weight (Kg) | kgs | |
| VGA Card Length | Up to 360mm | |
| CPU Cooler Height CPU | Up to 107mm(With GPU Holder) | |
| Up to 142mm(W/O GPU Holder) | ||
