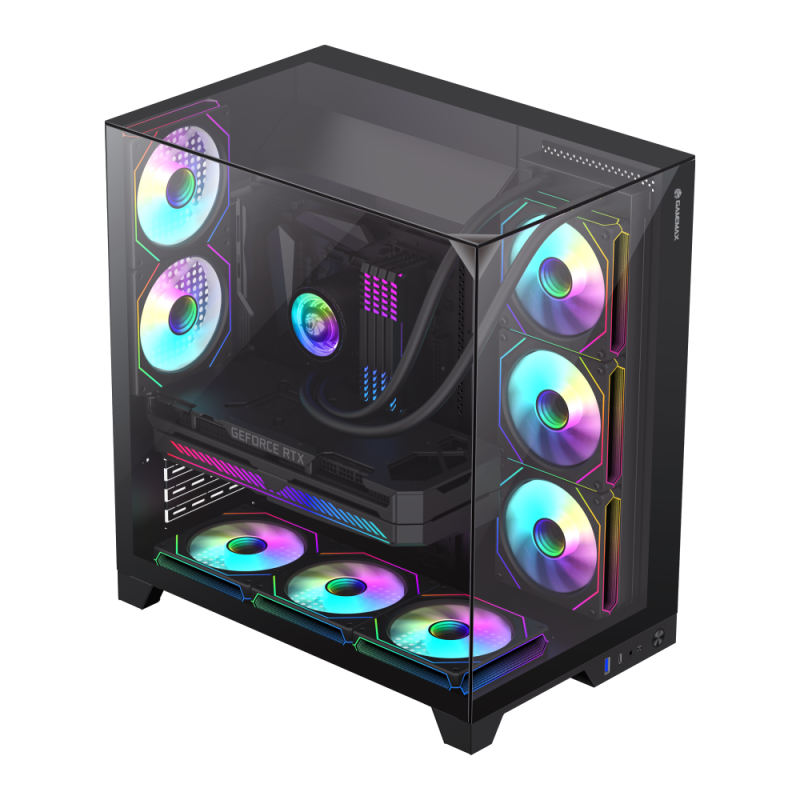

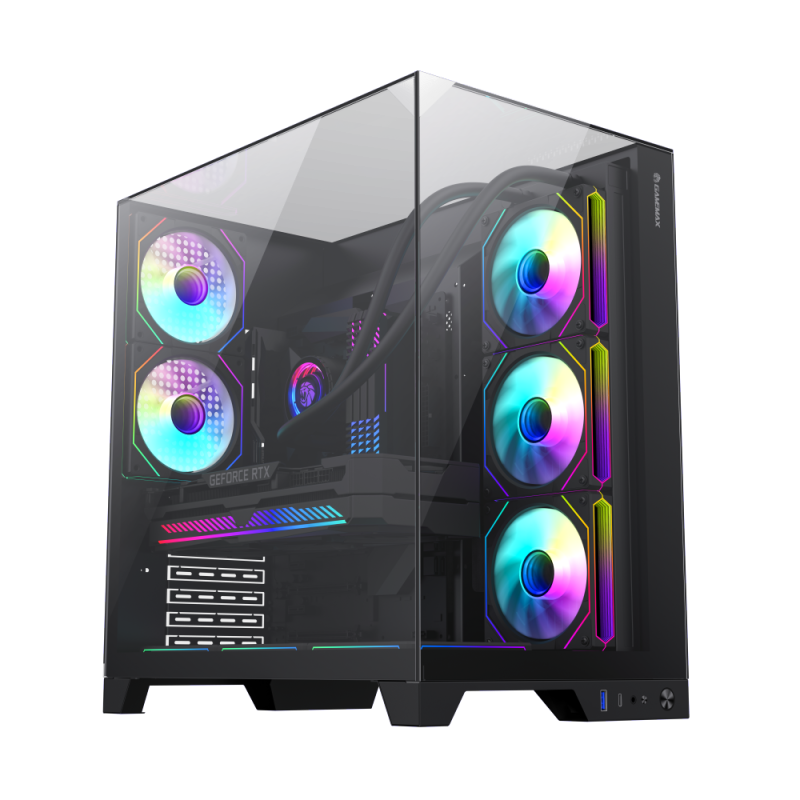

Infinity Mid-Tower Plus PC ATX Chassis - Great looking, airflow oriented, easy to install, and provides plenty of room for large GPUs and cable management
• Compatibility & Form Factor:Supports ATX, M-ATX, and ITX motherboards for flexible build options.

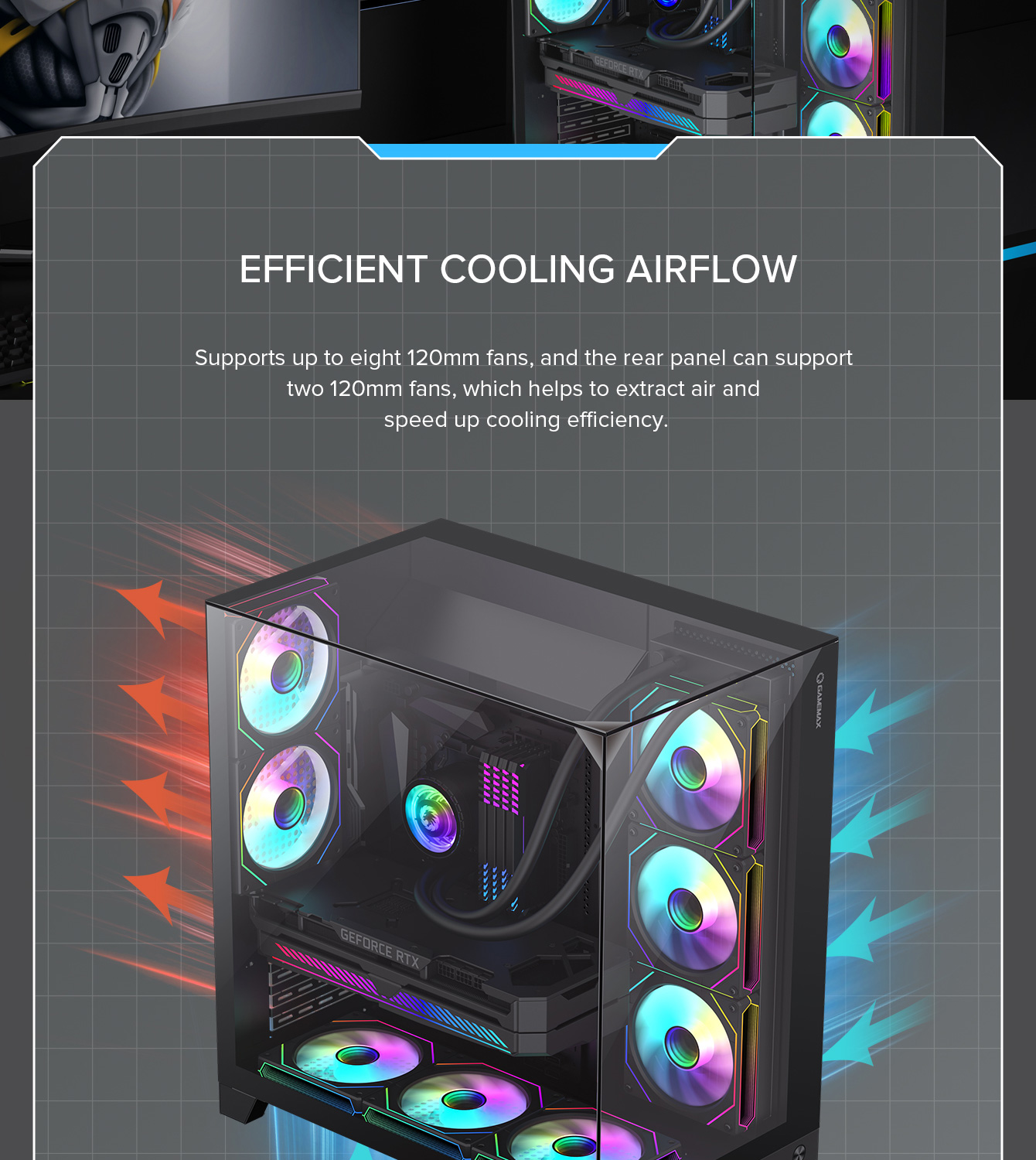

• Advanced Cooling:Supports up to 8 fans and water cooling radiators for optimal thermal performance.

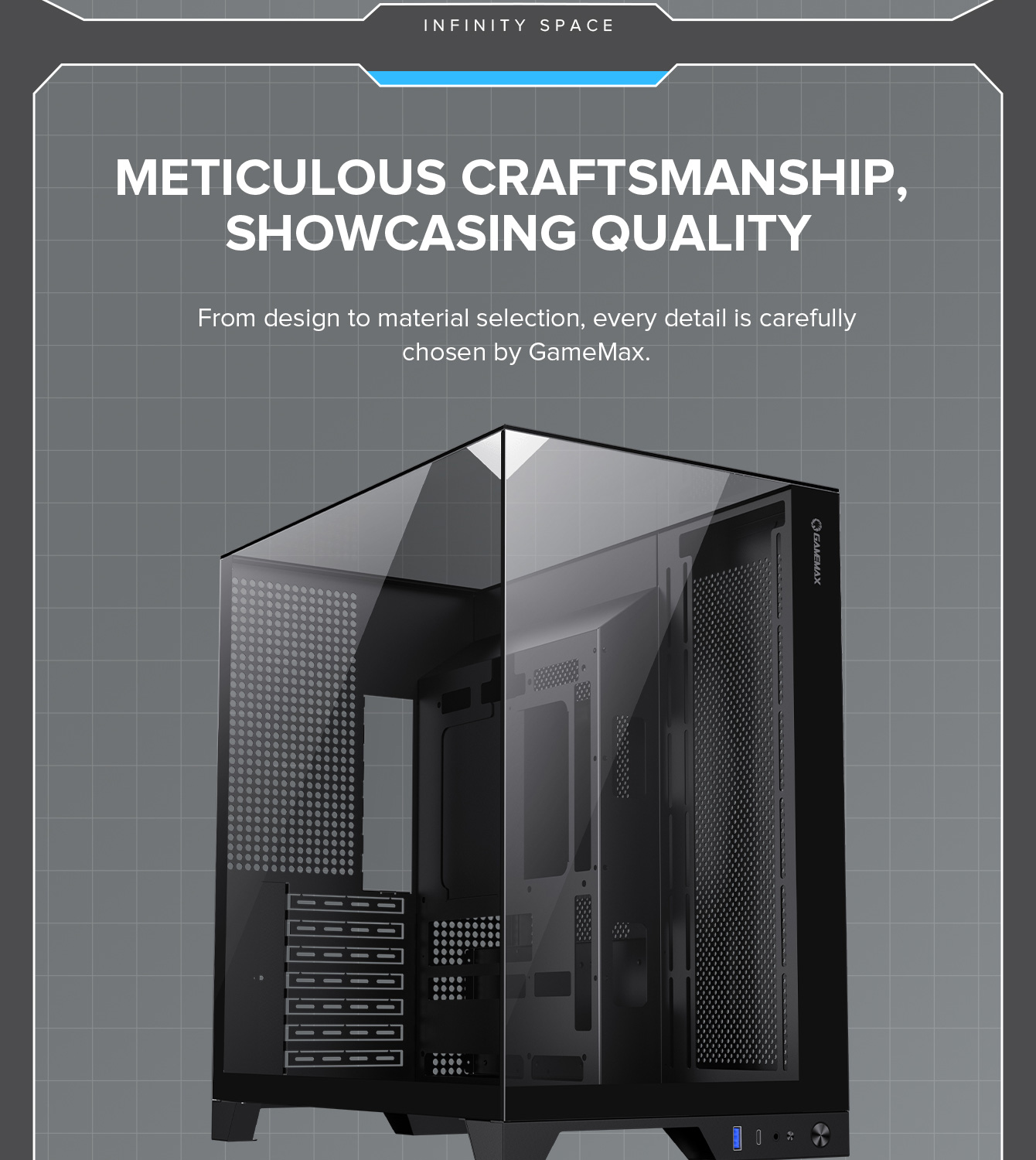

• Durability & Style:Crafted from sturdy SPCC steel with tempered glass panels for a sleek, durable design.
• Storage & Expansion:Offers 1x3.5 HDD and 3x2.5 SSD bays, plus 7 expansion slots for future upgrades.
• Convenient I/O:Includes USB 3.1 Gen1 port and combo audio jack, with an optional RGB controller for customization.
| Infinity Plus BK | SPECIFICATION | |
| Form Factor (Midi, Micro, Mini ITX, Full) | ATX | |
| Chassis | SPCC : 1.2mm | |
| PSU Form Factor | ATX | |
| M/B Form Factor | ATX、M-ATX、ITX | |
| Front Panel | Tempered Glass | |
| Top Panel | Tempered Glass | |
| Side Panel | Left | Tempered Glass |
| Right | Metal cover | |

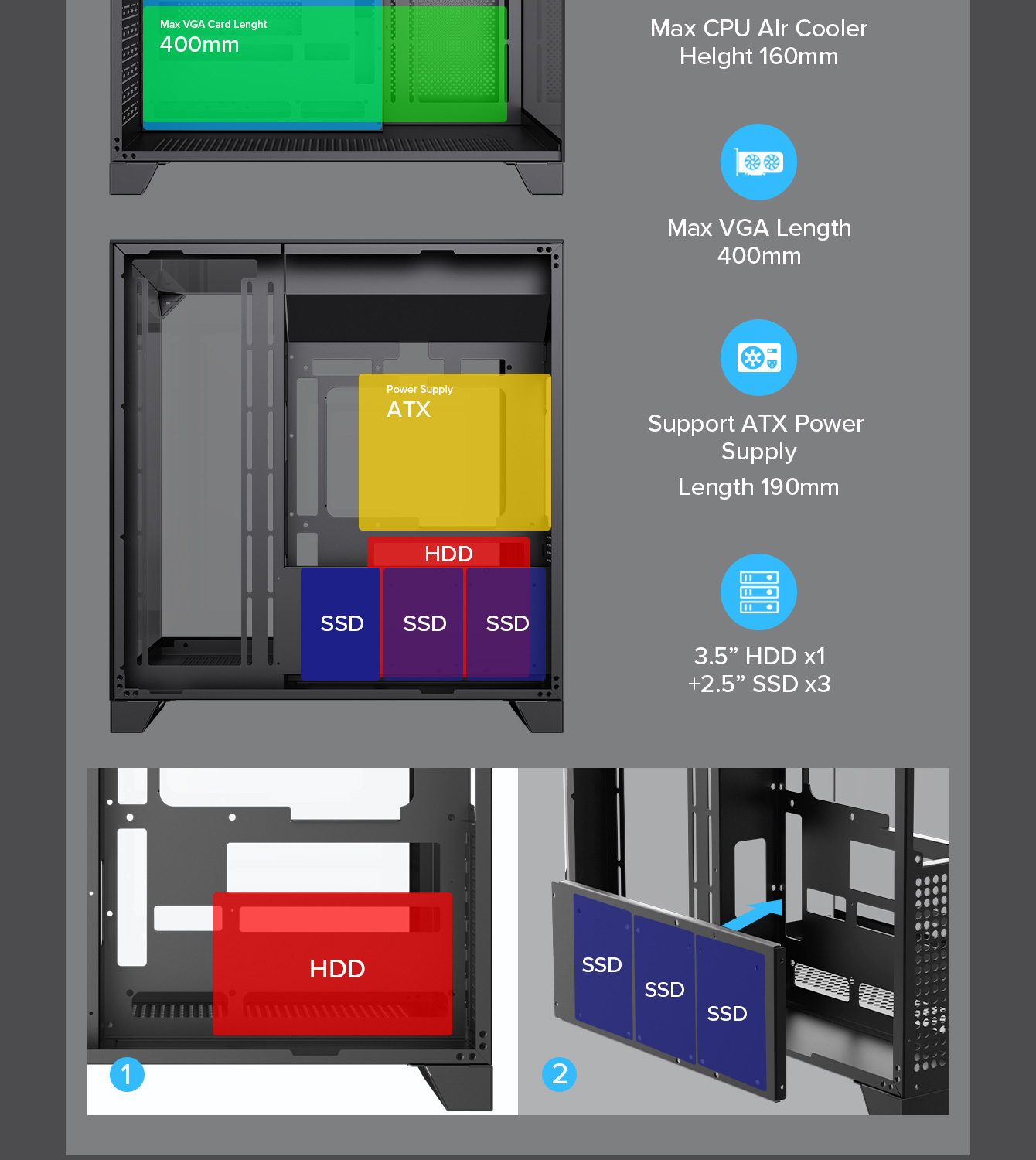

| Internal Drive Bay(s) | 3.5" (HDD) | *1 |
| 2.5" (SSD) | *3 | |
| I/O | Buttons | *2 |
| USB2.0 Port(s) | *0 | |
| USB3.0 Port(s) | *0 | |
| USB3.1 Port(s) | *1 (Gen1) | |
| Audio Support | *1 (COMBO AUDIO) | |
| RGB Controller | Optional | |
| Controller max. fans | *8 | |
| RGB Controller max. LED strips | *0 | |
| Remote (IR or RF) | Optional | |
| Cooling Fan Support | Front | *0 |
| Top | *0 | |
| Rear | 2x120mm (Fan optional) | |
| M/B Cover | 3x120mm, 2x140mm (Fan optional) | |
| PSU Cover | 3x120mm (Fan optional) | |

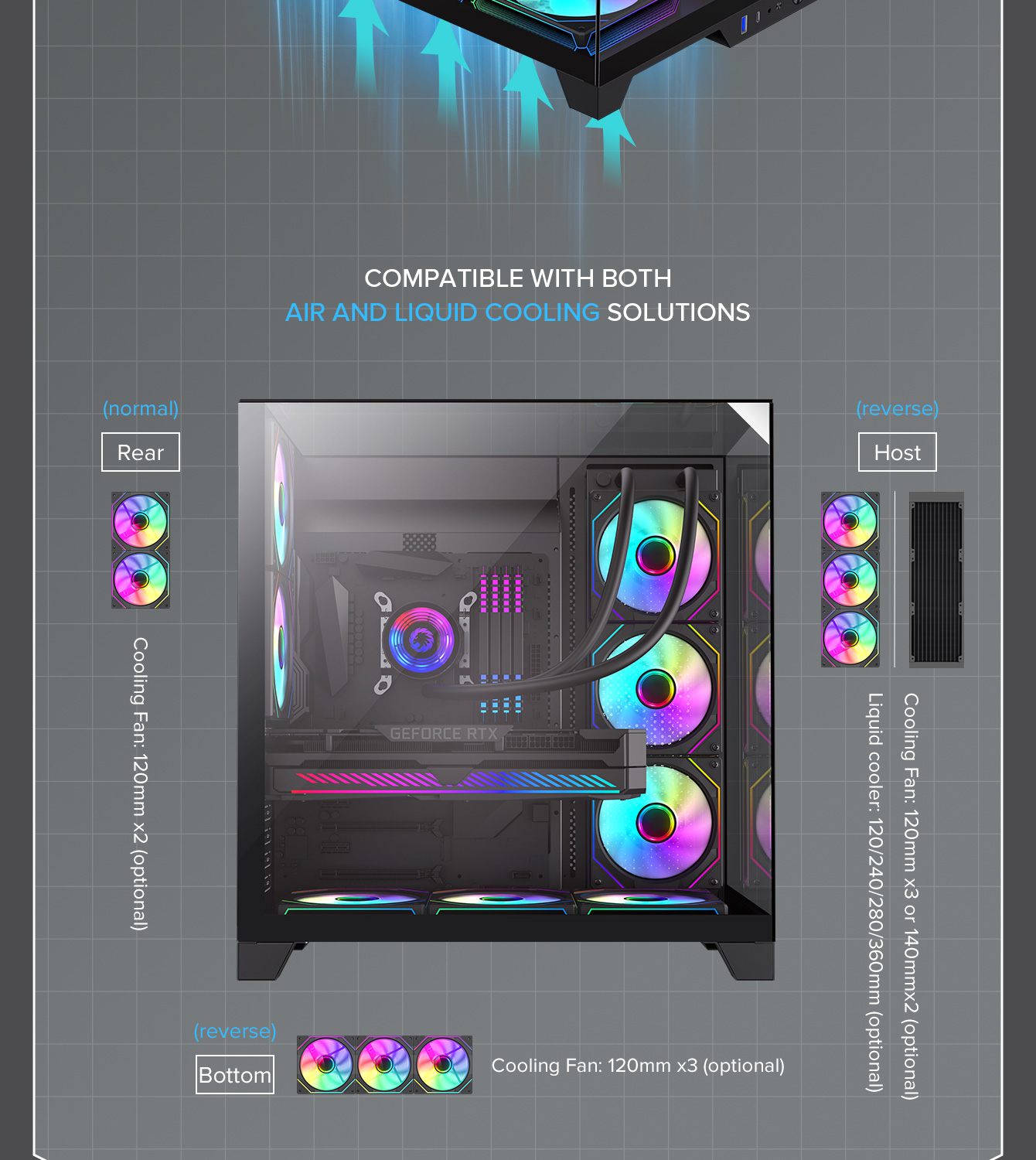

| Water Cooling Support (Radiator Size) | Front | *0 |
| Top | *0 | |
| Rear | 120mm | |
| M/B Cover | 120mm, 240mm,280mm,360mm | |
| Dust Cover | Bottom cover with dust filter | |
| Slots | *7 | |
| Carton Logo | GAMEMAX | |
| Dimensions | Chassis | (L)418*(W)272*(H)454mm |
| Full Case (inc Fascia) | (L)418*(W)272*(H)454mm | |
| Carton | (L)478*(W)332*(H)514mm | |
| VGA Card Length | Up to 400mm | |
| CPU Cooler Height | 160mm | |
| SPS Length | 190mm | |
| Cable Management Depth | 45mm | |
