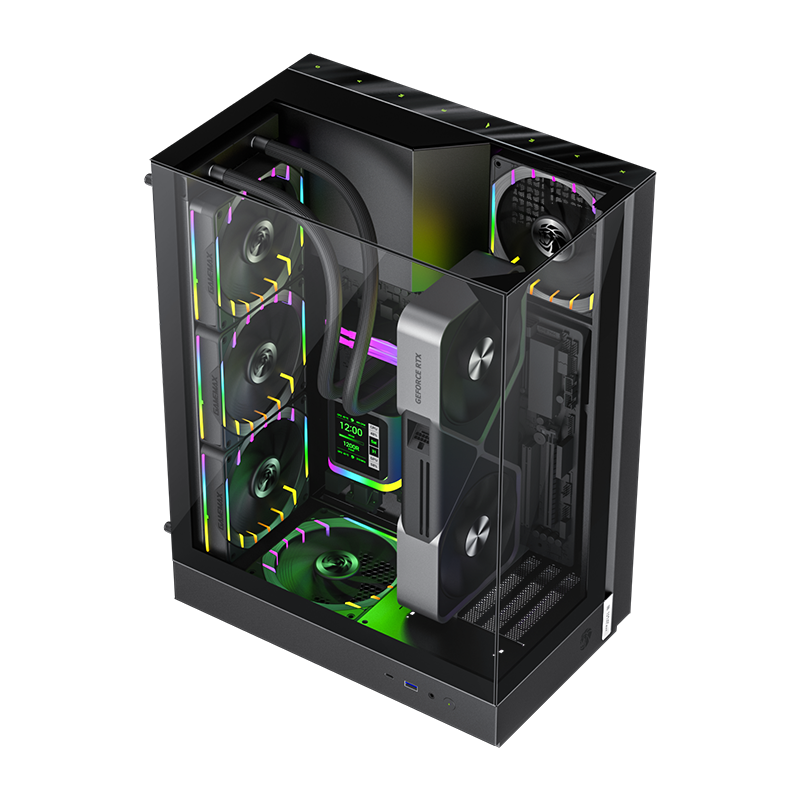

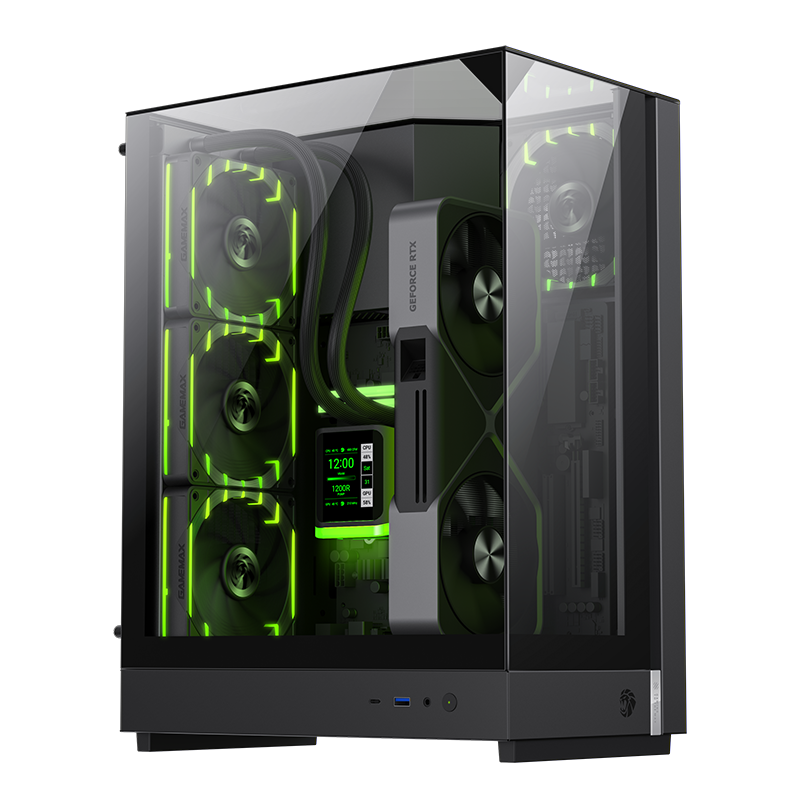

• Panoramic Glass Showcase Three-sided tempered glass provides a full, unobstructed view of your hardware.

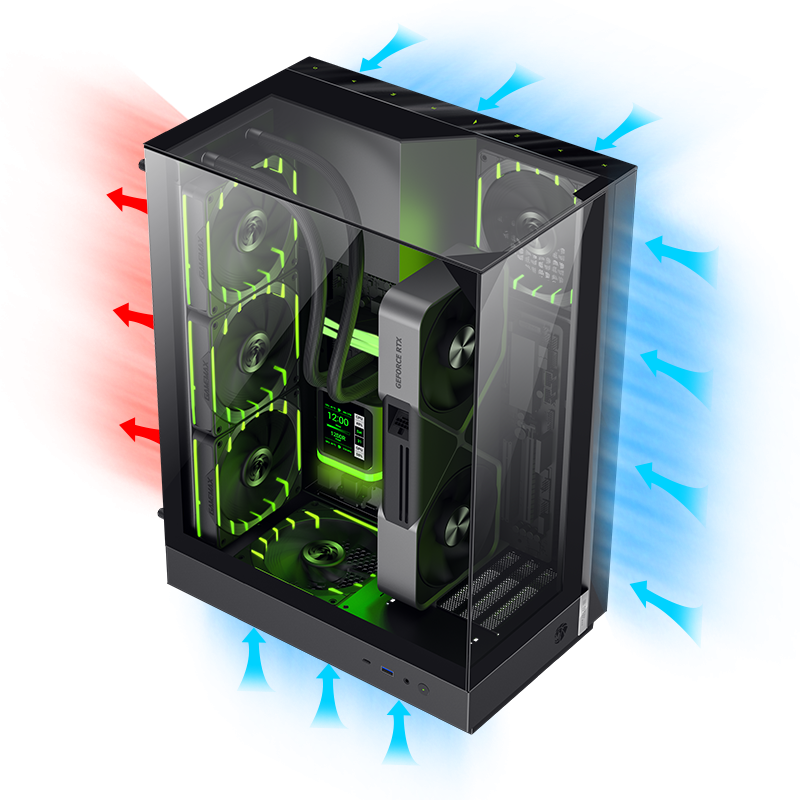

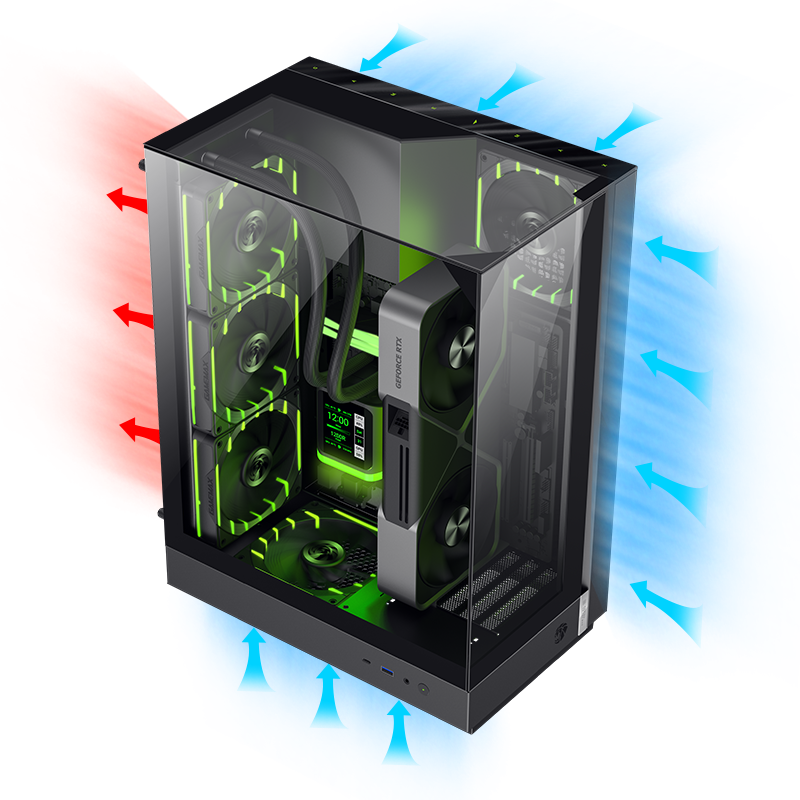

• Stack Effect Cooling with 90° Rotated Layout. A 90-degree rotated motherboard layout enhances airflow by utilizing the natural Stack Effect, leading to improved cooling performance.

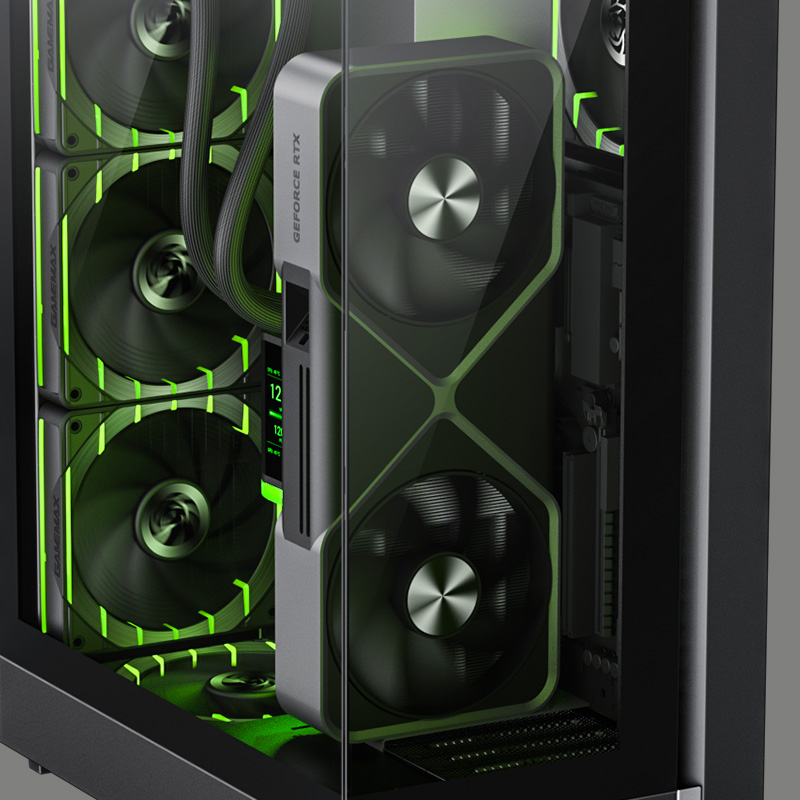

• Easy Vertical GPU Mounting. Install your graphics card vertically without a PCIe riser cable for a seamless setup, latest NV50 series ready for full compatibility.

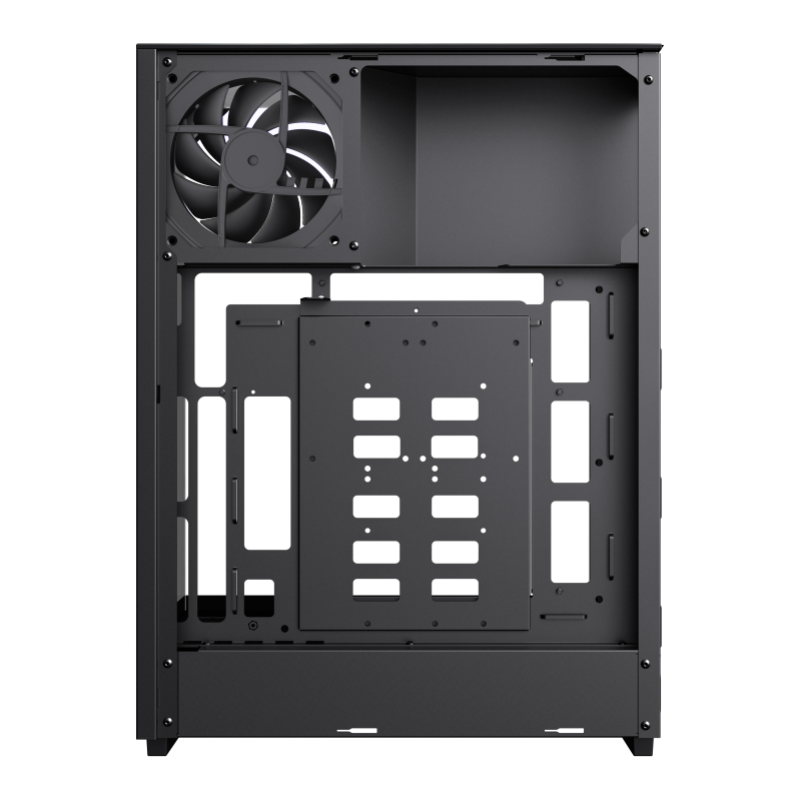

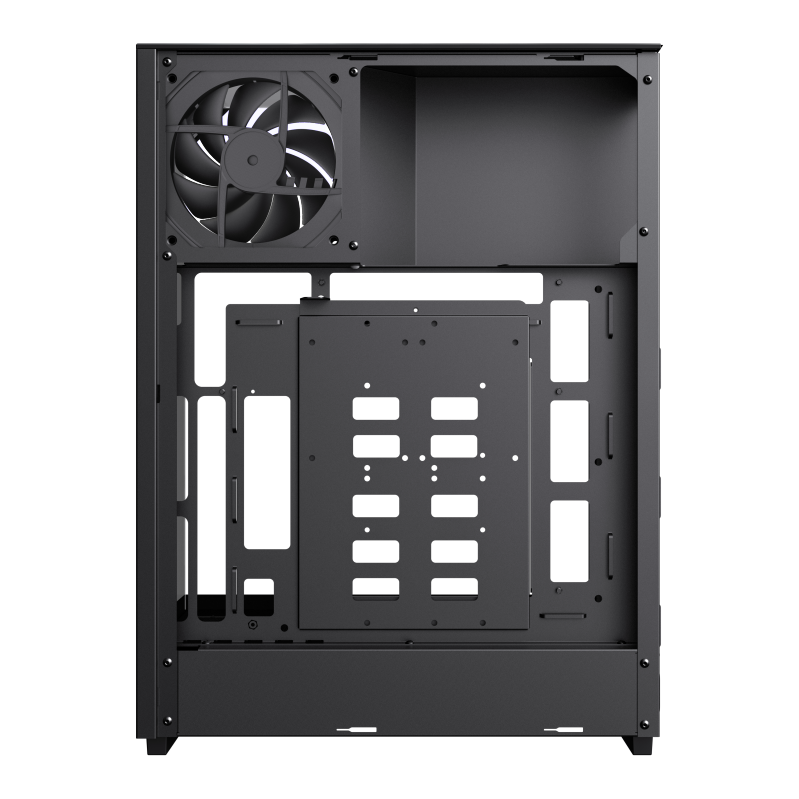

• BTF Motherboard Support . ptimized for Back to Front (BTF) motherboards, ensuring a clean and organized cable management system.
• Compact Yet Powerful. Supports 360mm liquid cooling, M-ATX motherboards, and SFX power supplies in a space-saving design.

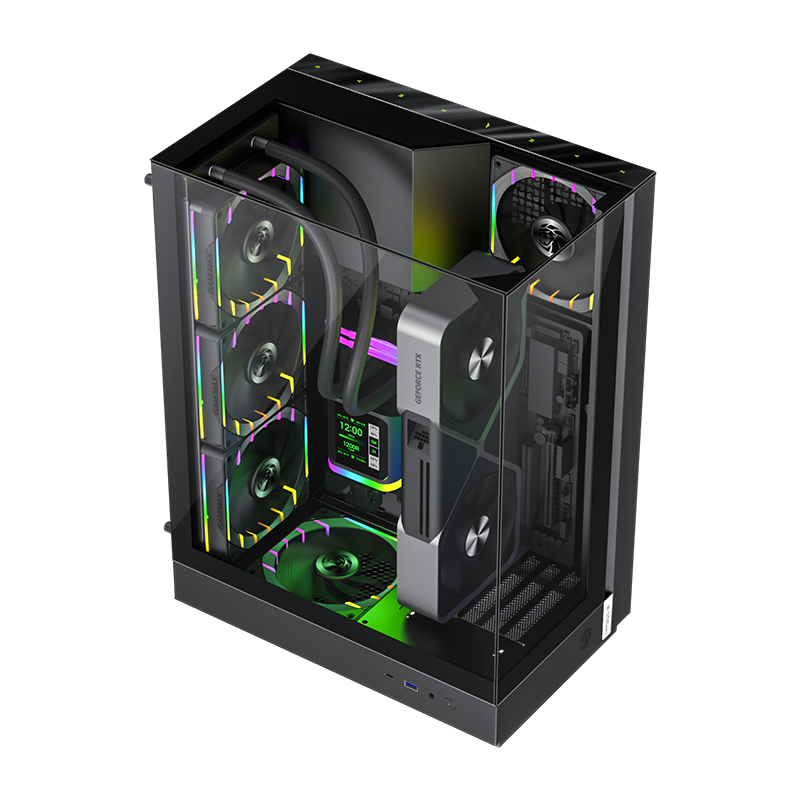

• Brilliant ARGB Lighting. Comes with two ARGB PWM fans that deliver dynamic lighting effects and synchronized illumination for an immersive build experience.

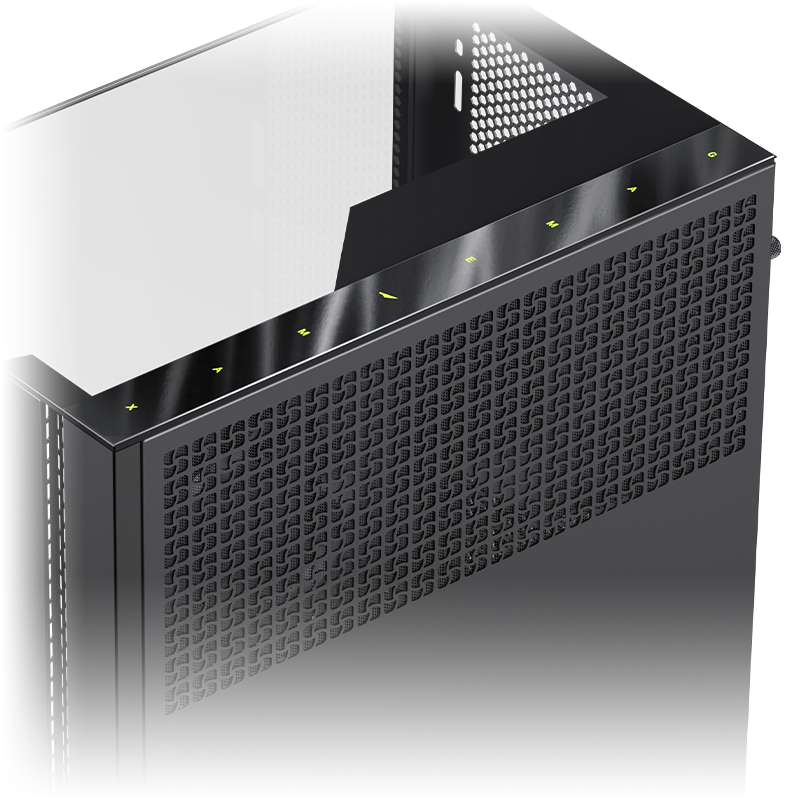

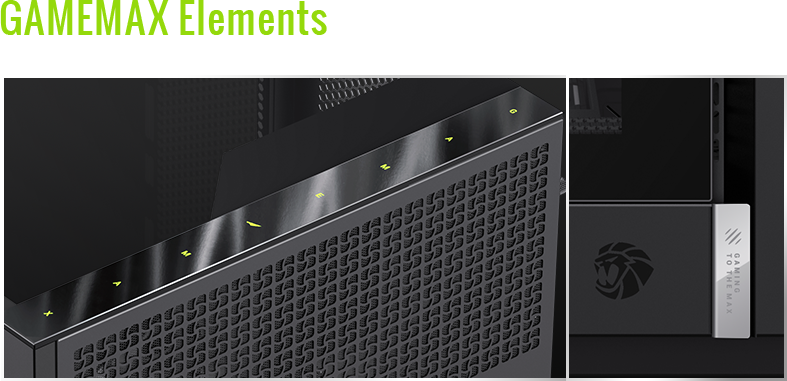

• Nano Technology Finish. A custom metal nano nameplate enhances the case’s premium texture and delivers a sleek, high-end aesthetic.
Form Factor: | M-ATX | |
Chassis: | SPCC:1.0mm | |

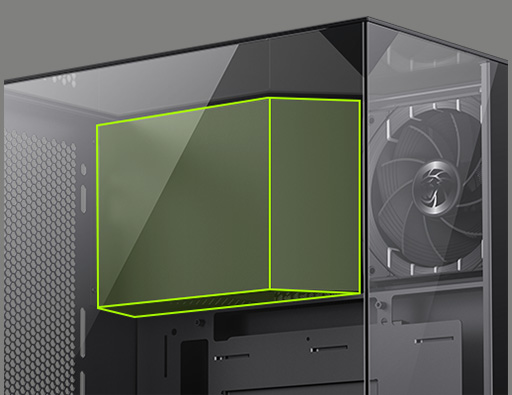

PSU Form Factor | SFX-L | |
M/B Form Factor: | MATX, ITX M-ATX Support BTF | |
Front Panel: | Tempered Glass | |
Top Panel: | Tempered Glass | |
Side Panel: | Left: | Tempered Glass |

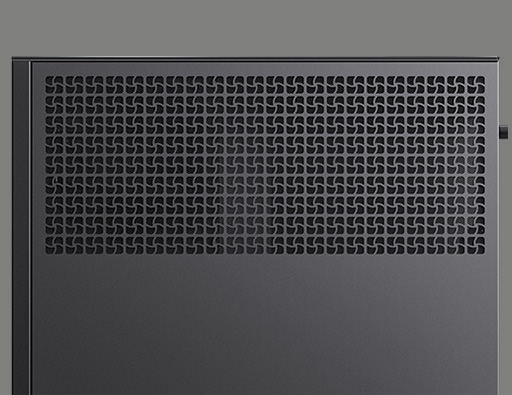

Right: | Metal cover, GAMEMAX Proprietary Mesh | |
External Drive Bay(s): | 5.25”(ODD): | *0 |
3.5”: | *0 | |

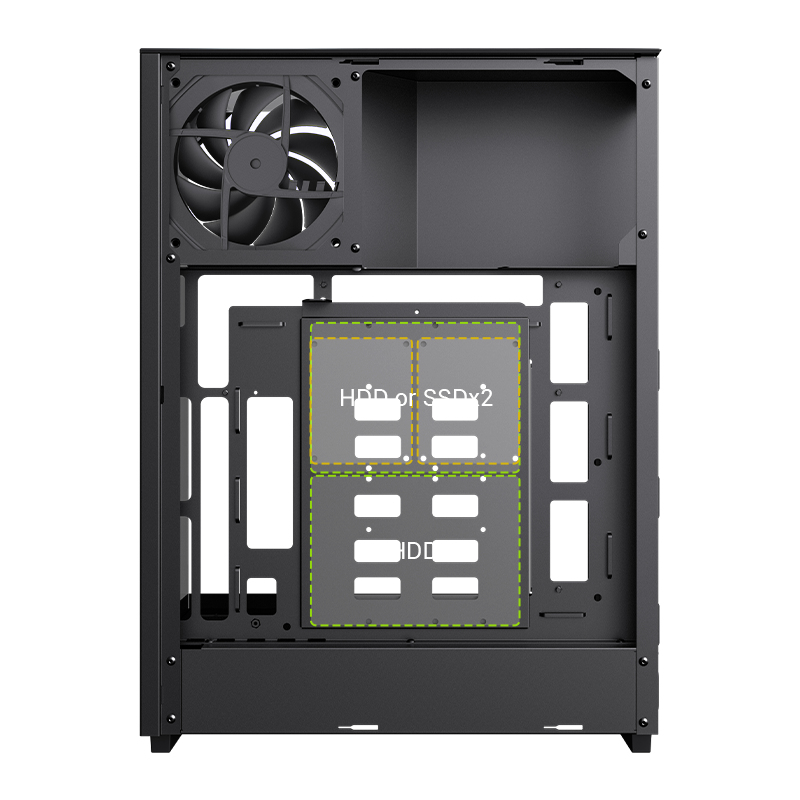

Internal Drive Bay(s): | 3.5" (HDD): | *1or2 |
2.5" (SSD): | *2or0 | |
I/O: | Buttons: | *1 |
USB 2.0 Port(s): | *0 | |
USB 3.0 Port(s): | *1 | |
Type C Port(s): | *1(GEN2) | |
Audio Support: | *1(Combo Audio) | |
Card Reader (Support): | *0 | |
P-Lock： | *0 | |
RGB Controller： | *0 | |
Controller Max Fans: | *0 | |
RGB Controller max. LED strips： | *0 | |
Remote (IR or RF)： | *0 | |

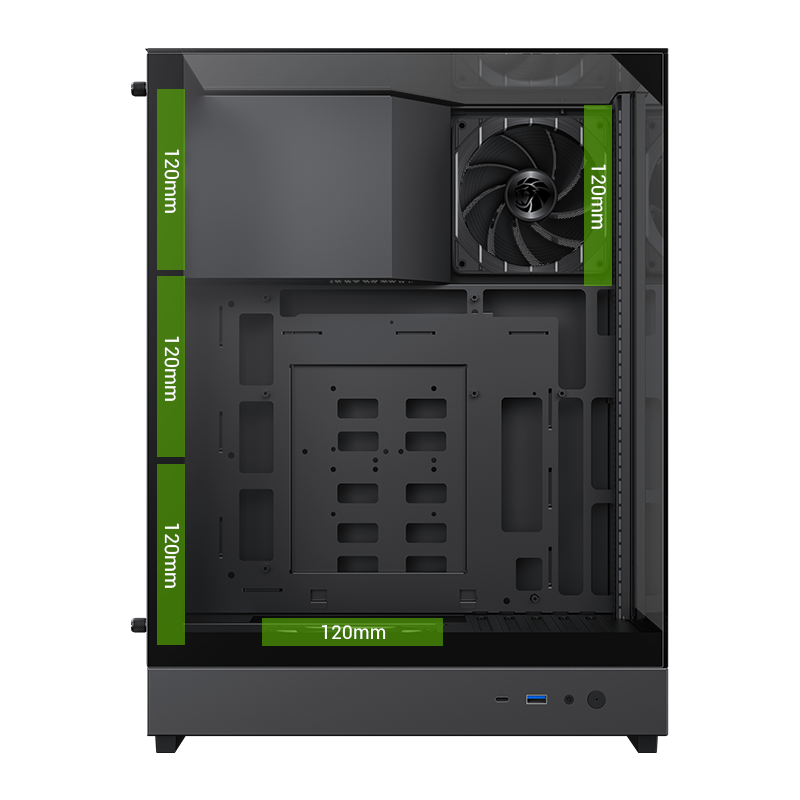

Cooling Fan Support: | Front: | *0 |
Top: | *0 | |
Rear: | 3x120mm(Fan optional) | |
Bottom: | 1x120mm(Tornado T12-R) | |
M/B Cover： | 1x120mm(Tornado T12-R) | |
PSU Cover： | *0 | |
Water Cooling Support (Radiator Size): | Front: | / |
Top: | / | |

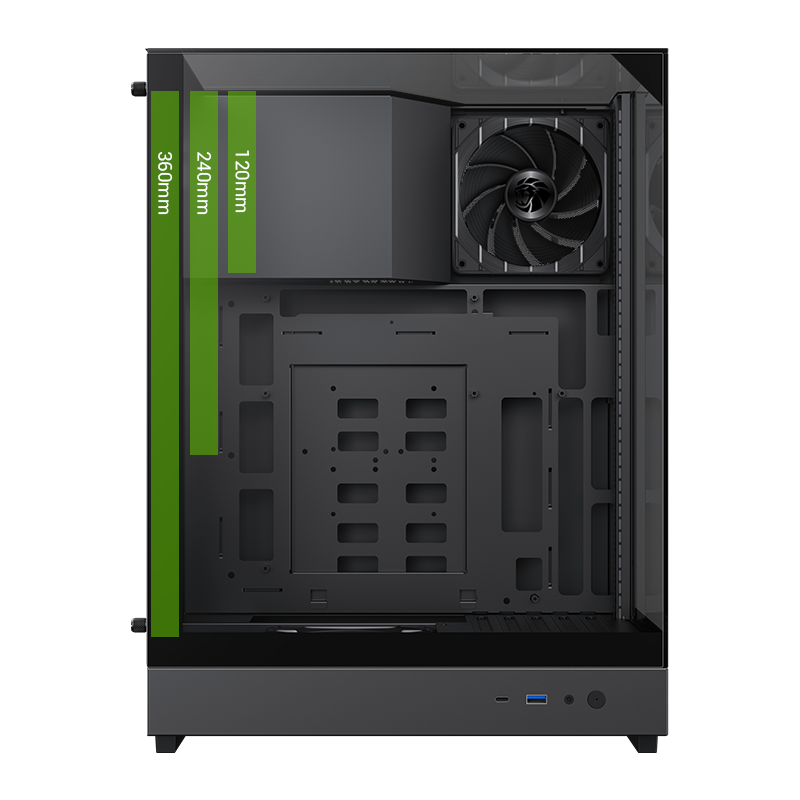

Rear: | 120/240/360mm | |
M/B Cover： | *0 | |

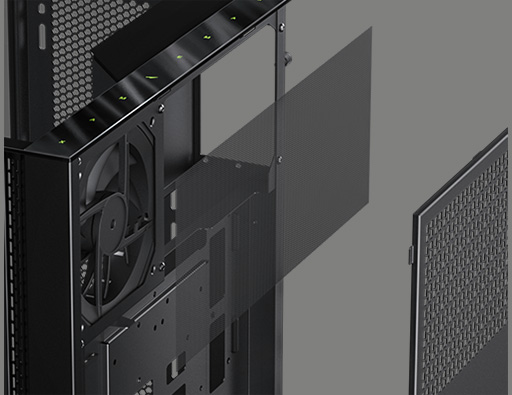

Dust Cover: | Right side magnetic dust screen | |

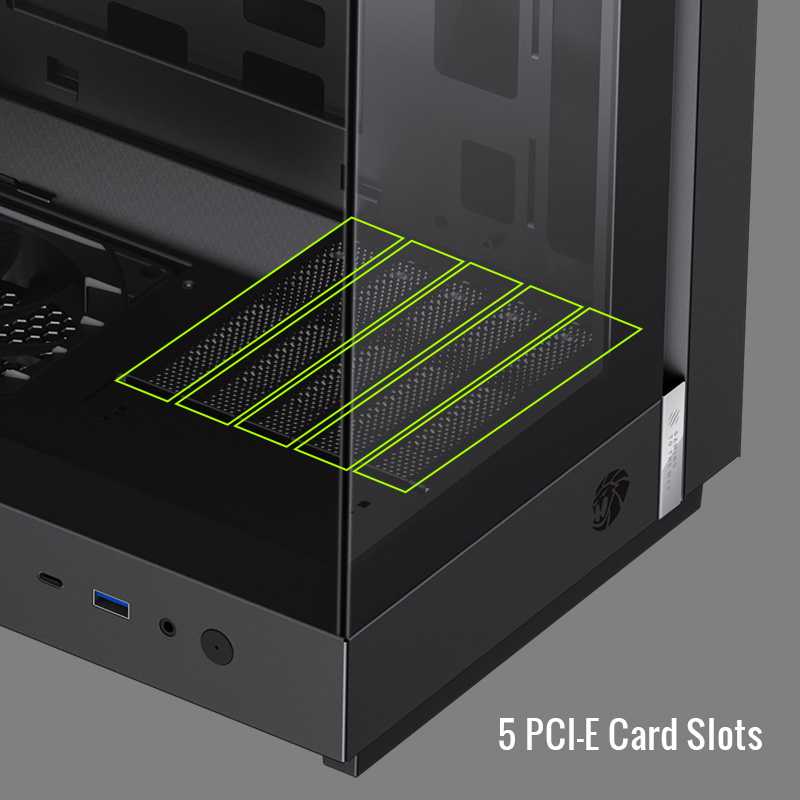

Slots: | *5 | |
Carton & Logo: | GAMEMAX | |

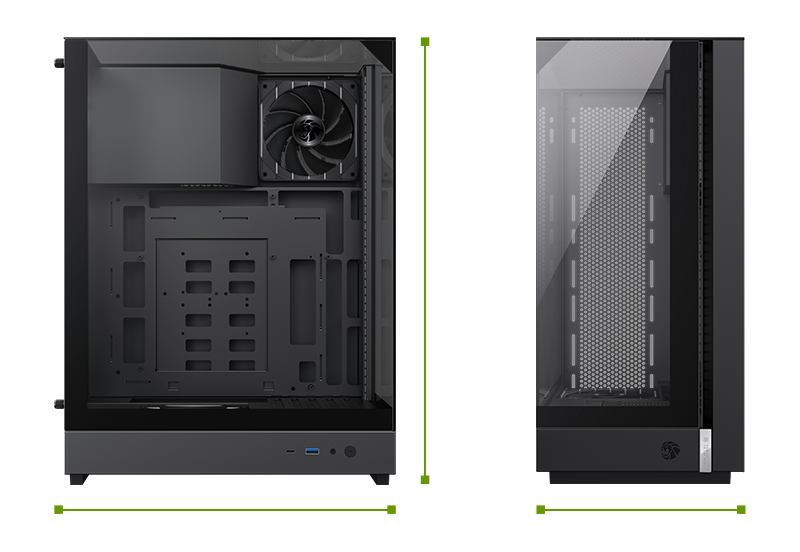

Dimensions: | Chassis: | (L)340*(W)215*(H)448mm |
Full Case (Inc Fascia): | (L)340*(W)215*(H)462mm | |
Carton: | (L)530*(W)285*(H)415mm | |
Net Weight(kg): | 5.7 | |
Gross Weight(kg): | 7.0 | |

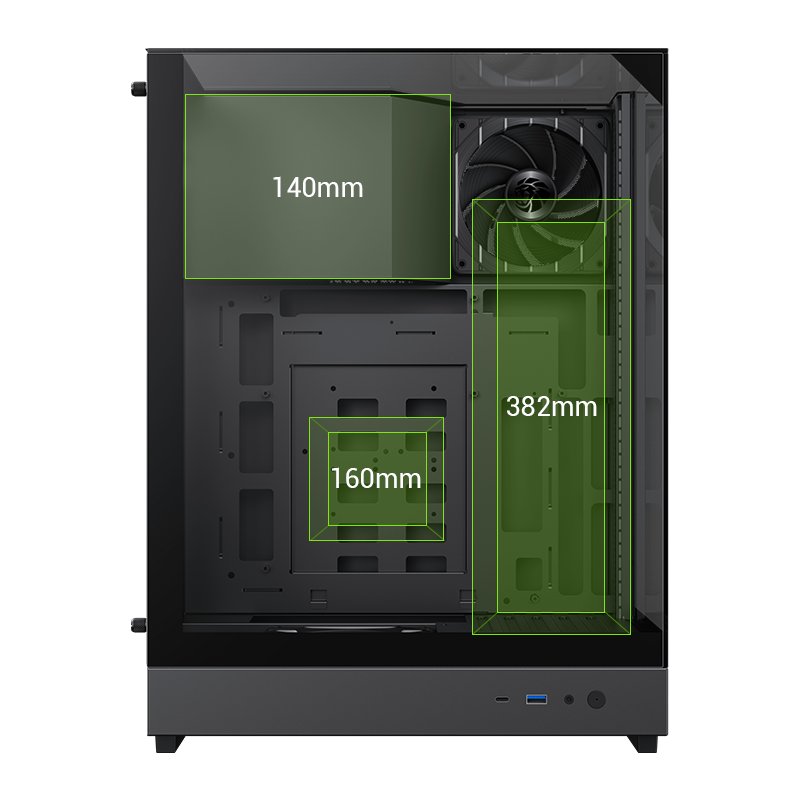

VGA Support: | Up to 382mm, Supports vertical mounting | |
CPU Cooler Height: | Up to 160mm | |
SPS Length: | Up to 140mm | |
Cable Management Depth: | 27mm | |
