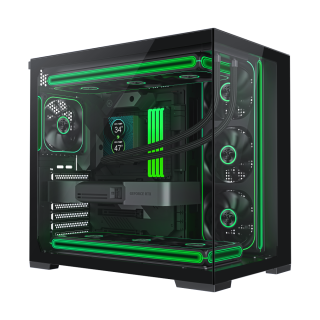

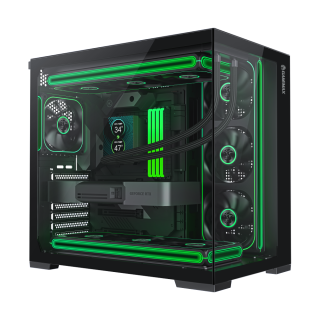

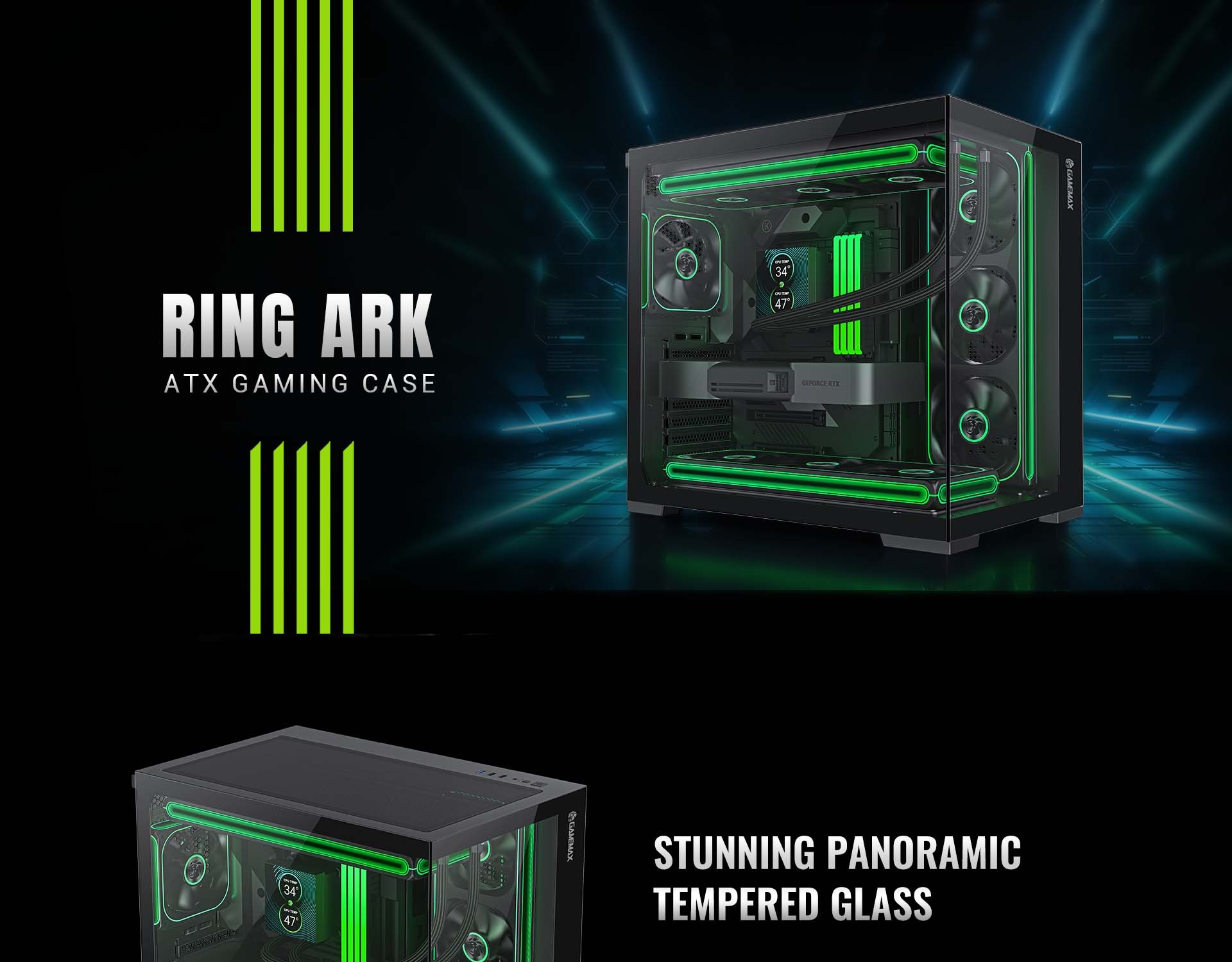

Ring Ark

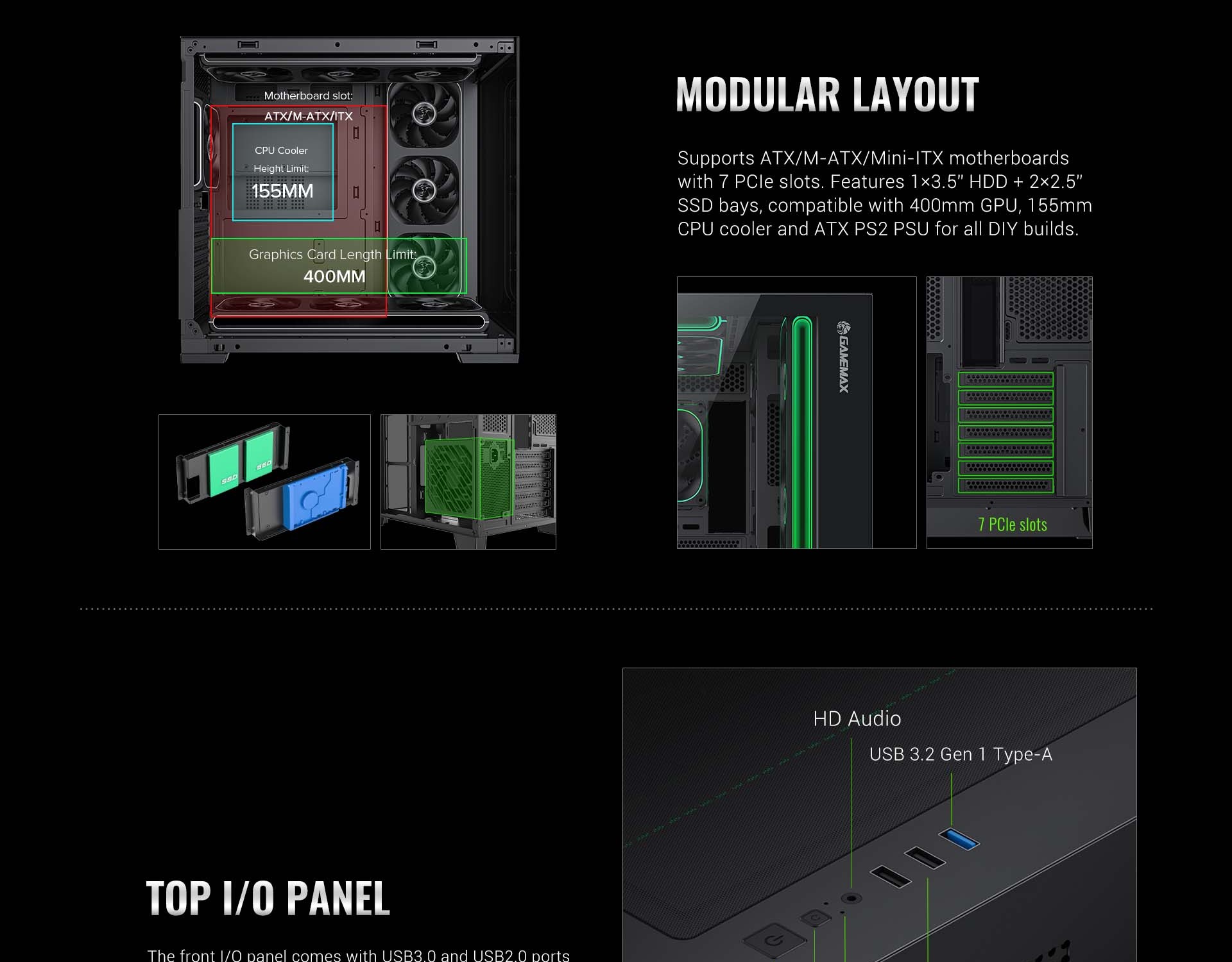

Broad Compatibility, FitsATX/M-ATX/ITX motherboards, plus GPUs up to 400mm, CPU coolers up to 155mm, and 220mm ATX PSUs—ready for diverse gaming setups.

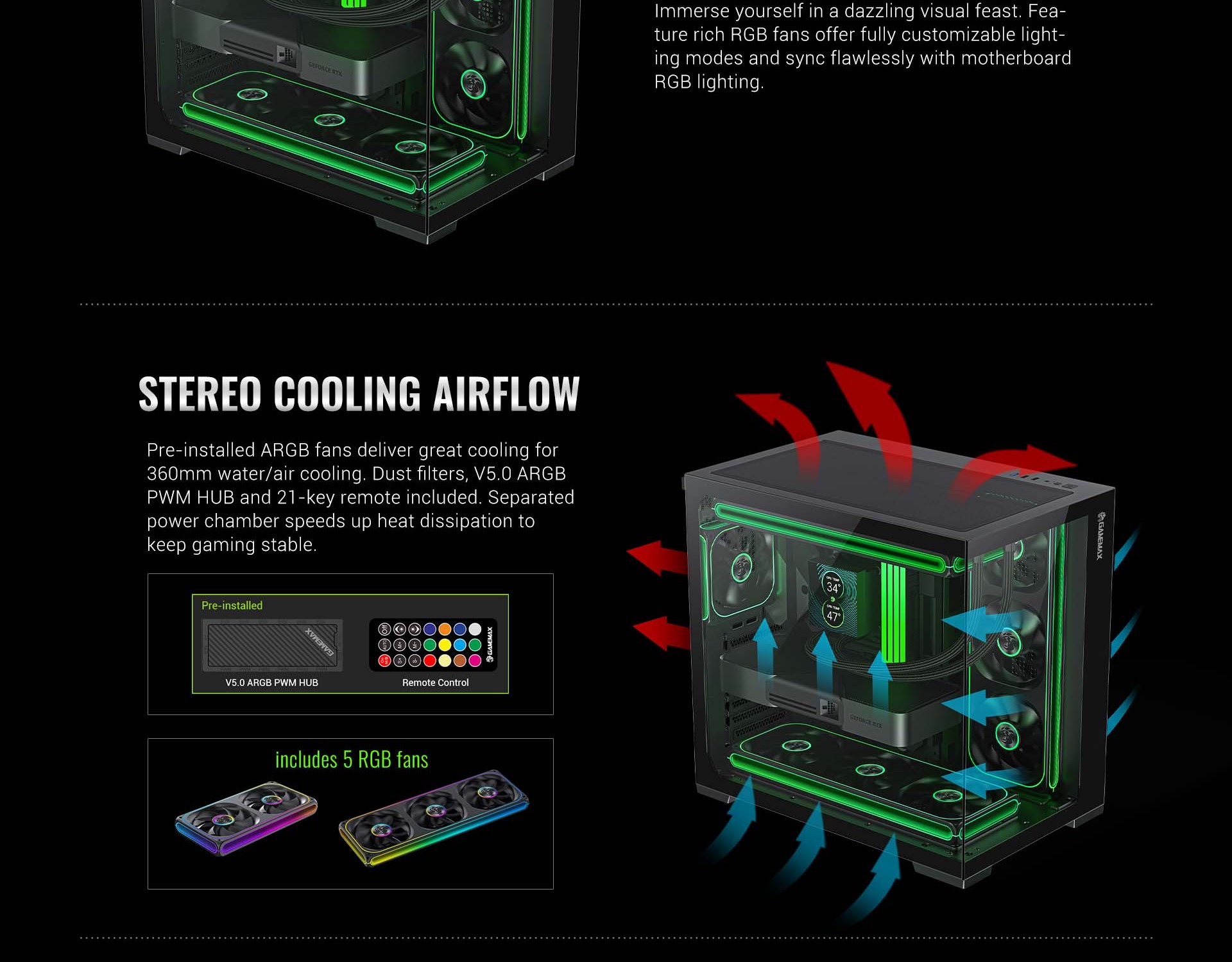

Strong heat dissipation, bottom / motherboard each pre-installed 2PCS (FN36A-F4B-R) ARGB fan fan, rear pre-installed (FN12A-F4B) fan 1PCS; top supports 360mm cold exhaust; equipped with dust filter.Pre-installed V5.0 ARGB PWM HUB+21 Keys Remote controller.
Sleek & Practical Design, Tempered glass panels (left/front) for RGB display; 95mm cable management space. I/O includes USB3.0*1 + USB2.0*1+TYPE C3.0*1+ HD Audio.
Smart Storage & Size,2×3.5 HDD + 2×2.5 SSD bays. Compact mid-tower balances space and versatility for gaming builds.

The product displays on the above pages are for reference only, may have slight differences from the actual products, and the actual products shall prevail in all cases.
Case TypeMid Tower
 Color(s)Black
 MaterialsSPCC :0.45mm,ABS,MESH
 M/B CompatibilityATX/Micro ATX/ITX
 PSU  Compatibility ATX PS2
 Side PanelLeft/Front Panelglass
RightMetal Cover
External Drive Bay(s)5.25" (ODD)N/A
3.5"N/A
Internal Drive Bay(s)3.5" (HDD)3.5"HDD x1+2.5SSDx2
2.5" (SSD)
I/O PortsPower Button*1
Reset Button*1
USB3.0  Type-A  Port(s)*1
USB2.0  Type-A  Port(s)*1
USB3.0  Type-C  Port(s)*1
Combo Audio Support*1
Cooling Fan Support (Fan Size)MB1x360mm (FN36A-F4  Pre-installed)
Top/
Rear1x120mm  (FN12A-F4  Pre-installed)
Bottom1x360mm (FN36A-F4  Pre-installed)
Water Cooling Support
(Radiator Size)
Top360mm*1
Bottom/
MB/
Dust FiltersTop /Bottom Dust Filter
PCI Expansion Slots*7
Carton & Logo

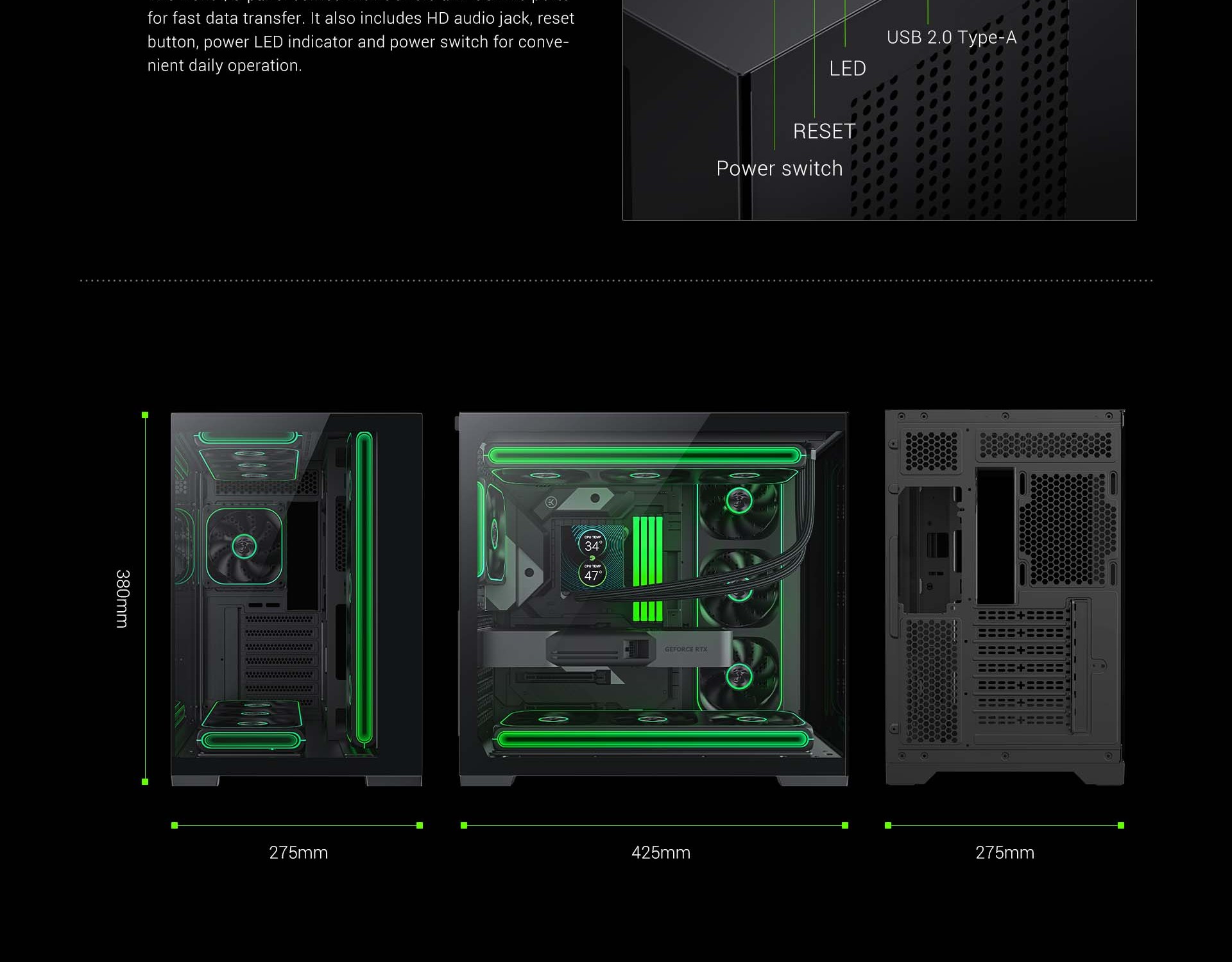

DimensionsChassis425mm×275mm×380mm
Full Case (inc Fascia)425mm×275mm×380mm
Package452mm×326mm×492mm
Net Weight (Kg)6.95kgs
Gross Weight (Kg)8.1kgs
GPU LengthUp to<400mm
CPU Cooler HeightUp to <155mm
Cable Management DepthUp to 90mm
