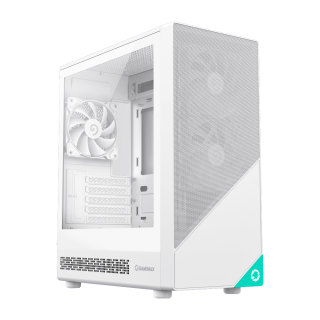

Focus WH Premium Micro ATX PC Case by GameMax - has a unique airflow path allowing for a wide range of compatibility and plenty of cooling options
• features full viewed designed to smoothly draw in the eyes of the viewer
• Computer Case Focus on Cooling- 4 x pre-installed 120mm ARGB/PWM Fans in the front version, and one at the back of the case
• help with great ventilation, The fornt of the Forge AB supports up to a 360mm radiator
• Top And Bottom -45-degree view angle captures attention and draws the eye of the viewer into the case
• 3xPCs glass on front, allows for glass-free displays
• Front panel featuring dense mesh formassive airflow and efficient dust prevention

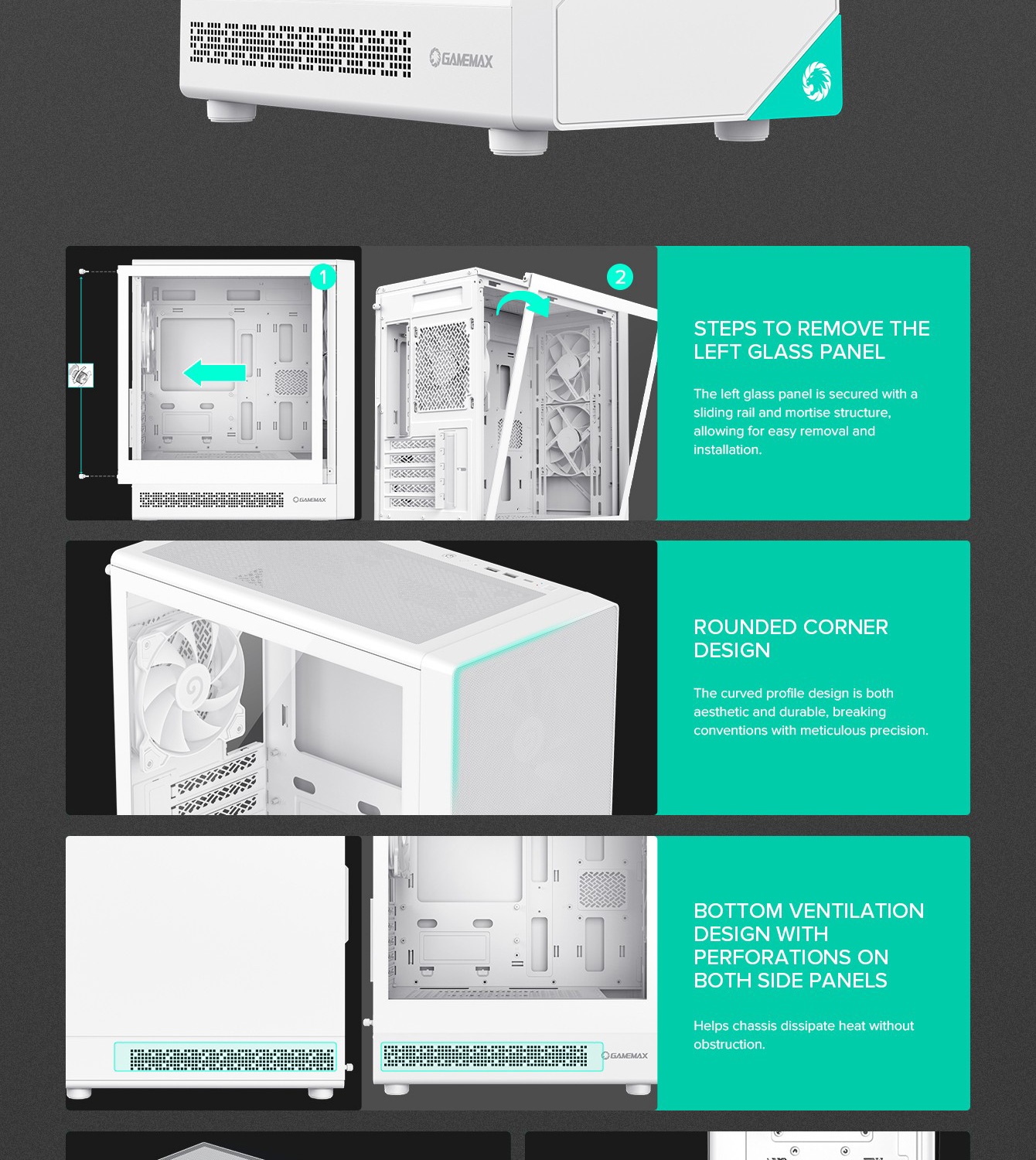

• Rounded arcfront bezel design
• Standard childproof switch lock,Power switch childproof design, make it safer
• Generous space for high-end graphics cards and large coolers.Support M-ATX,ITX motherboards.
Form Factor (Midi, Micro, Mini , Full) | MICRO | |
Chassis | SPCC :0.4mm | |
PSU Form Factor | Bottom/ATX | |
M/B Form Factor | M-ATX、ITX | |
Front Panel | ABS,MESH | |
Top Panel | metal cover | |
Branding | Box | |
Unit | ||
(Unit) Position | ||
Side Panel | Left | Tempered Glass |
Right | metal cover | |
External Drive Bay(s) | 5.25" (ODD) | *0 |
3.5" | *0 | |

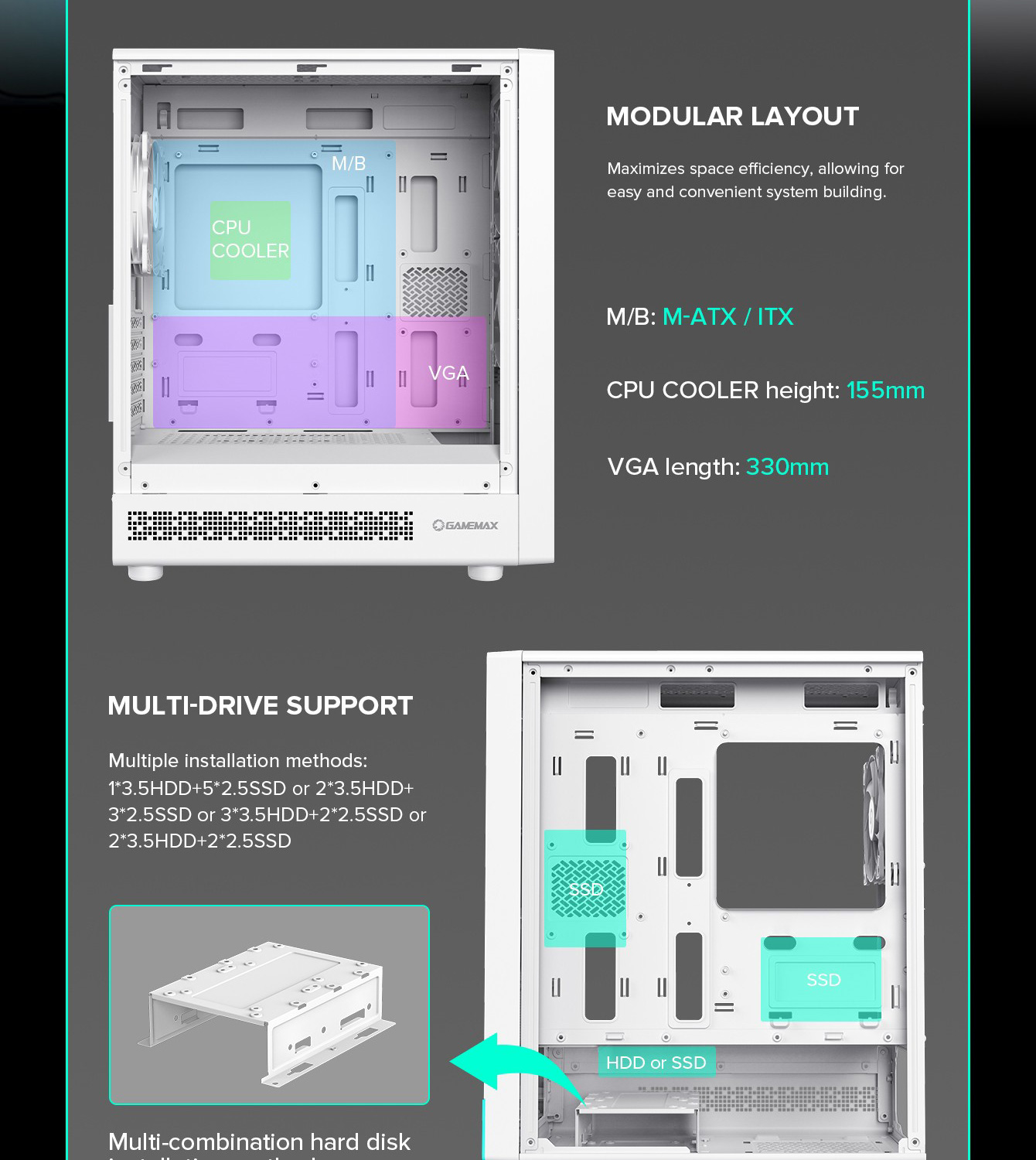

Internal Drive Bay(s) | 3.5" (HDD) | 1*3.5HDD+5*2.5SSD or 2*3.5HDD+3*2.5SSD or 3*3.5HDD+2*2.5SSD or 2*3.5HDD+2*2.5SSD |
2.5" (SSD) | ||
I/O | Buttons | *2 |
USB1.1 Port(s) | *0 | |
USB2.0 Port(s) | *1 | |
USB3.0 Port(s) | *1 | |
USB3.1 Port(s) | *0 | |
HD Audio Support | Combo Audio(CTIA)*1 | |
Type C | *1(2.) | |
P-Lock | *1 | |
RGB Controller | *0 | |
Controller max fans | *0 | |
RGB Controller max. LED strips | *0 | |
Remote (IR or RF) | *0 | |

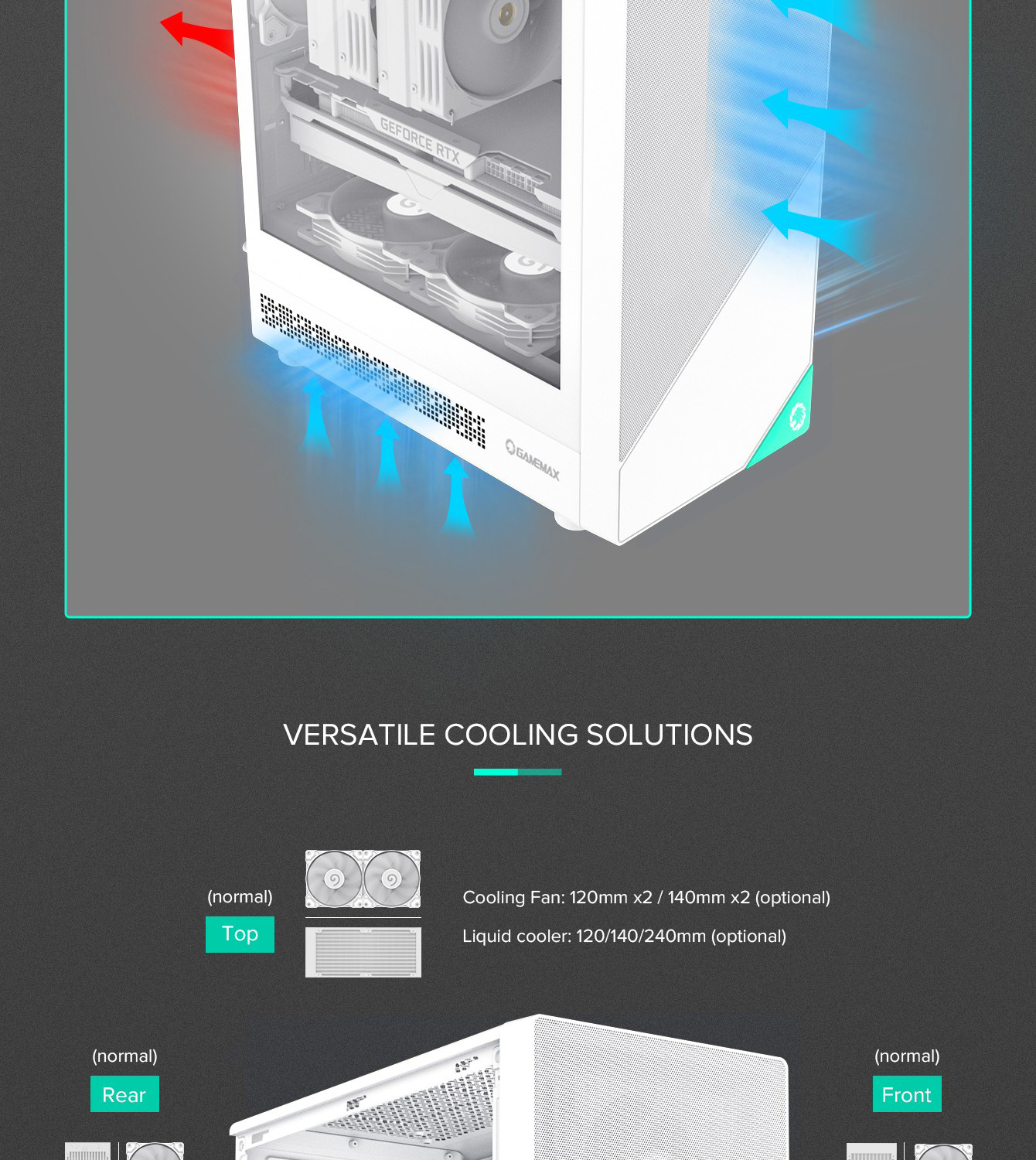

Cooling Fan Support | Front | 2x120mm(Fan include),2x140mm(Fan optional) |
Top | 2x120mm(Fan include) ,2x140mm (Fan optional) | |
Rear | 1x120mm(Fan include) | |
Left Side | 0 | |
PSU Cover | 2x120mm (Fan optional) | |
Water Cooling Support (Radiator Size) | Front | 120mm, 140mm,240mm,280mm.360mm |
Top | 120mm, 140mm,240mm | |
Rear | 120mm*1 | |
Dust Cover | Bottom and top cover with dust filter | |
Slots | *5 | |
Carton & Logo | GAMEMAX | |
Dimensions | Chassis | (L)340*(W)200*(H)436mm |
Full Case (inc Fascia) | (L)386*(W)205*(H)449mm | |
Carton | (L)486*(W)255*(H)433mm | |
Net Weight (Kg) | 3.3kgs | |
Gross Weight (Kg) | 4.1kgs | |
VGA Card Length | up to 330mm | |
CPU Cooler Height | 155mm | |
Cable Management Depth | 19mm |
