• Flexible Storage - Supports up to 3x 3.5 HDDs and 5x 2.5 SSDs, providing versatile storage options.

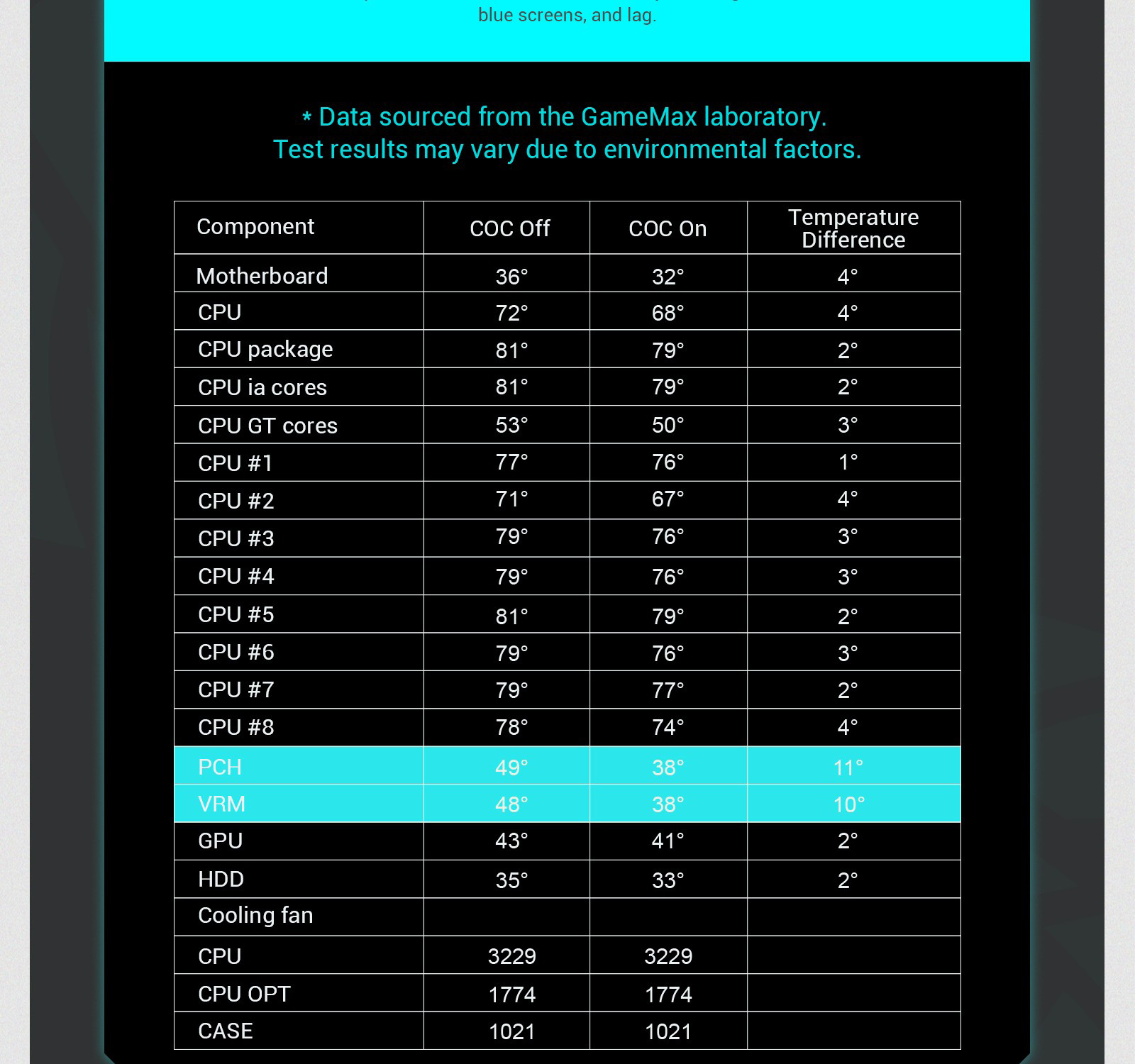

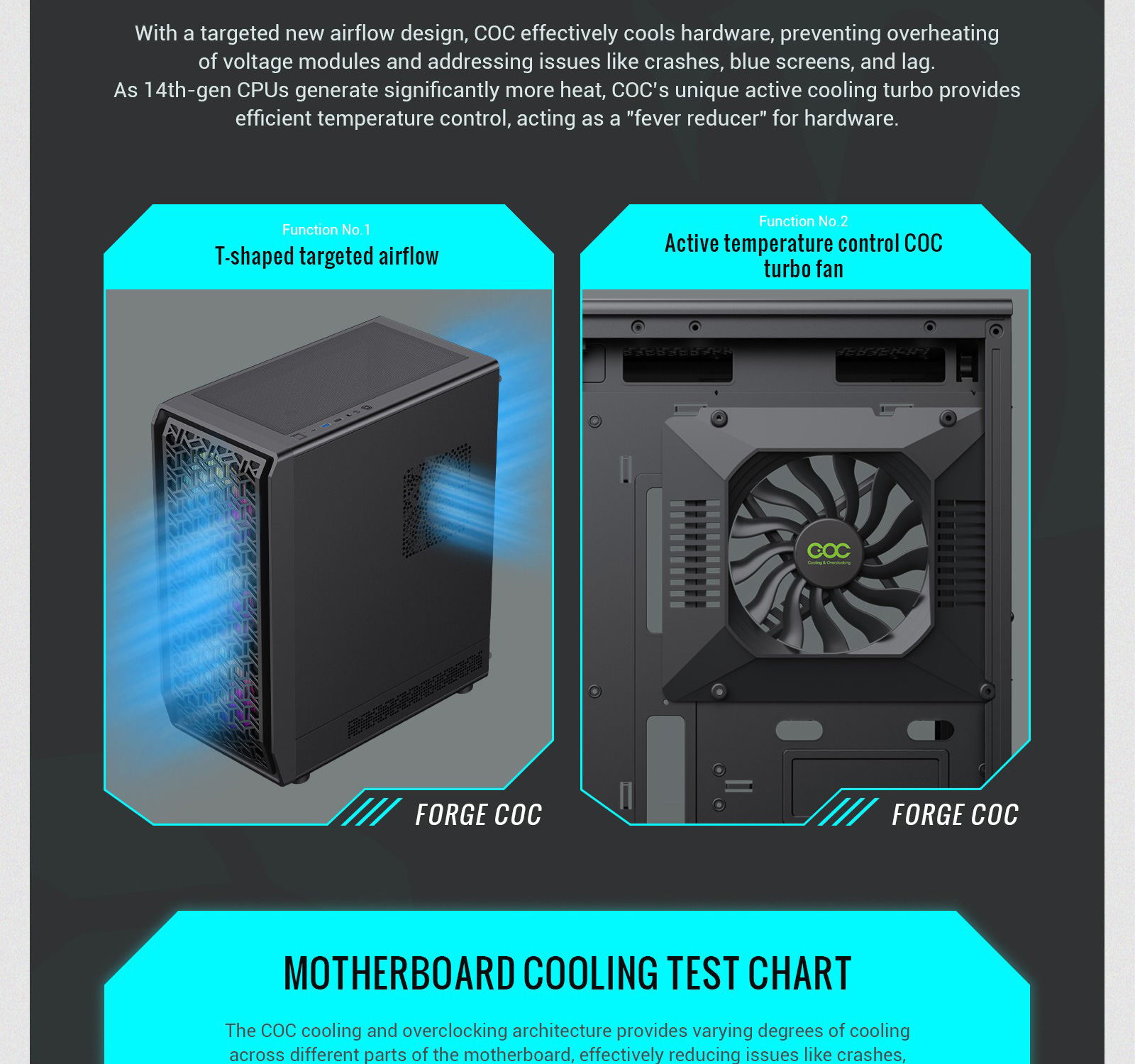

• Excellent Cooling - Accommodates up to 9 fans(Built-in 5 fans, including a COC turbo fan) and radiators up to 360mm for optimal cooling.

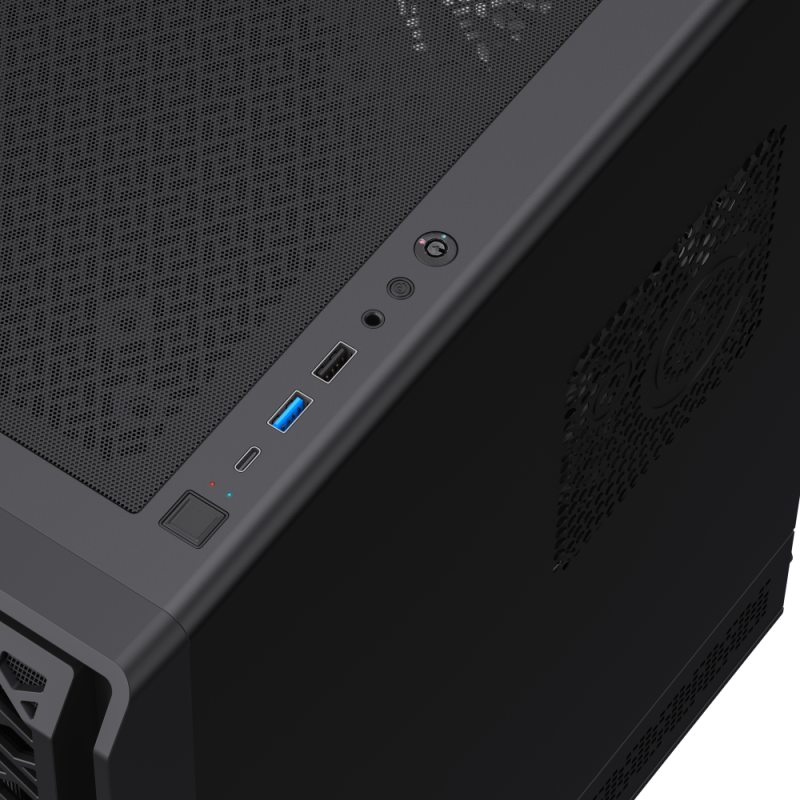

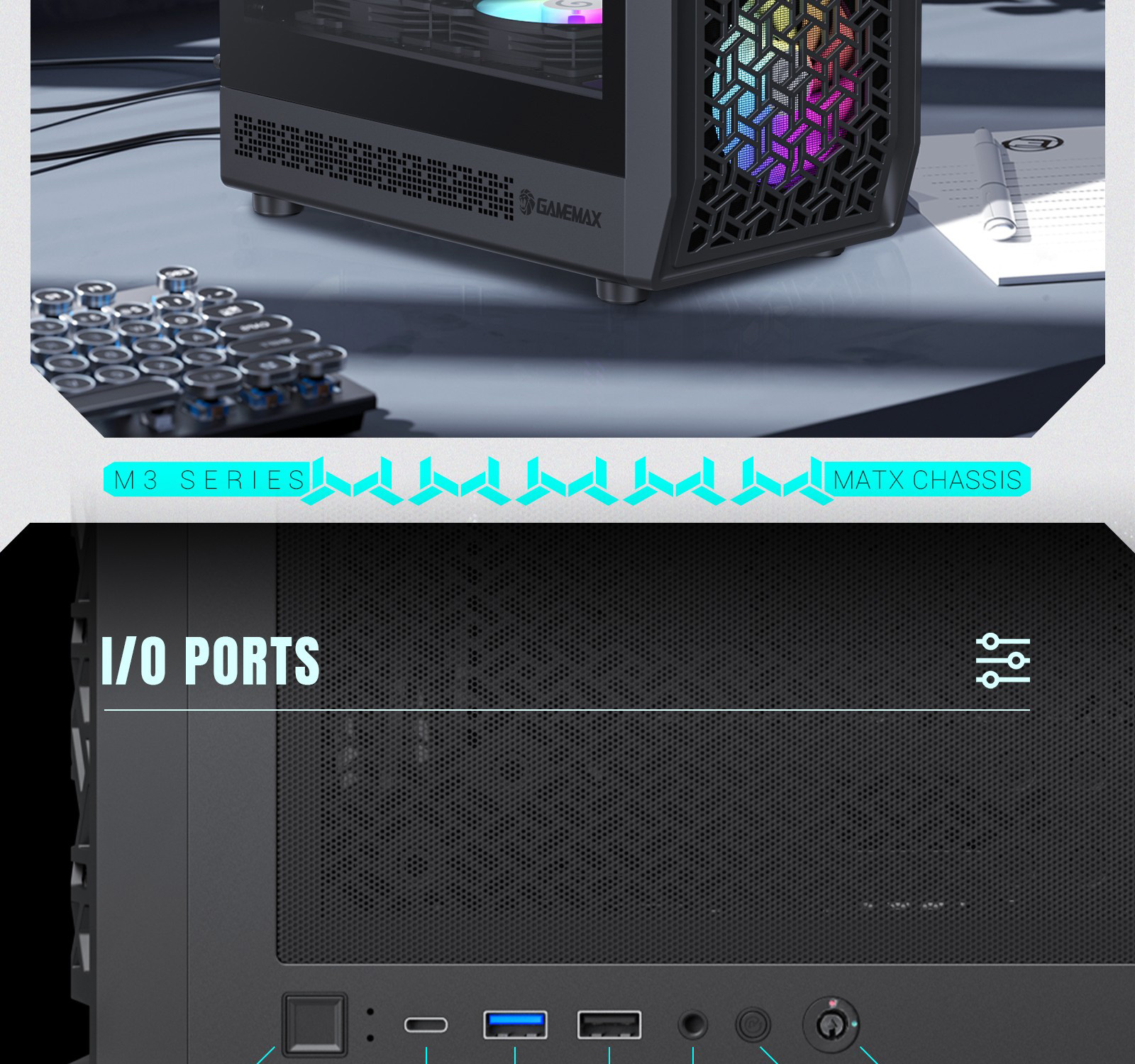

• Rich I/O Ports - Includes 1xUSB 3.0+1xUSB2.0, a Type-C, and Combo Audio jack for connectivity.

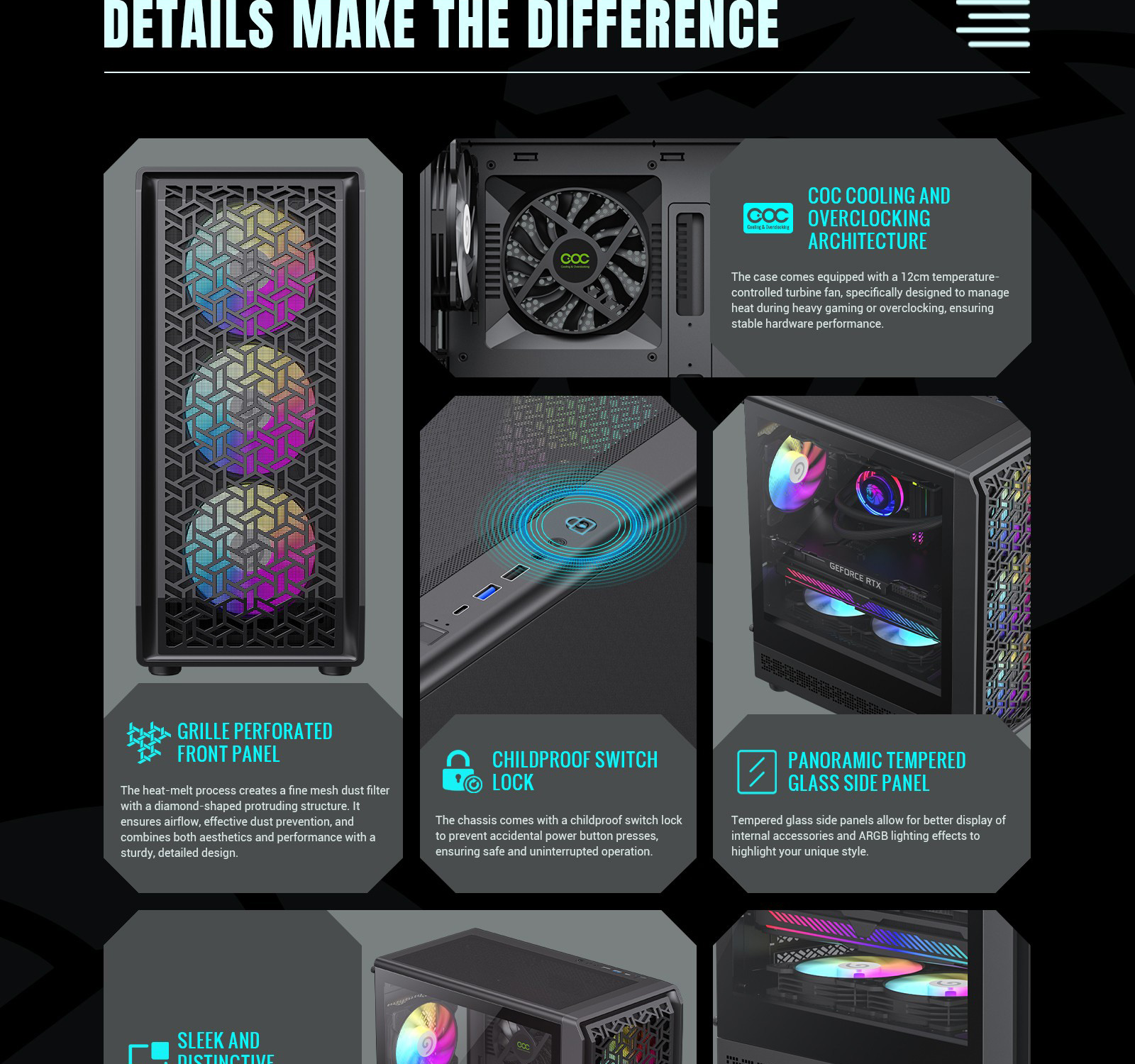

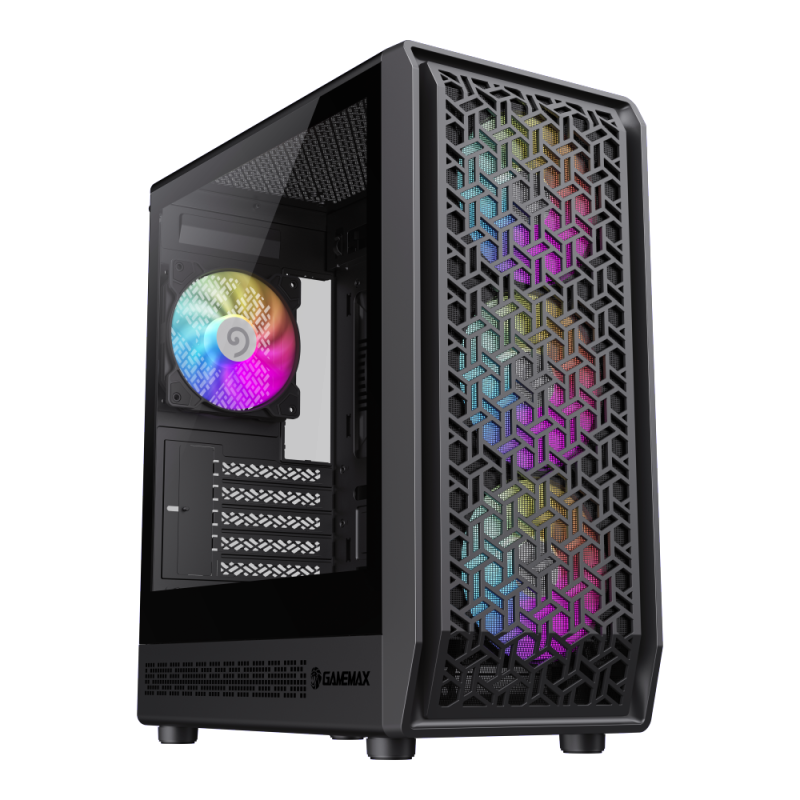

• Tempered Glass Side Panel - Stylish glass panel on the left, metal on the right, showcasing internal components.
• Compact, High Compatibility - Supports up to 330mm GPUs, 155mm CPU coolers, and offers 19mm for cable management.
| Form Factor (Midi, Mini,Full) | Mini Tower | |
| Chassis | SPCC :0.4mm | |
| PSU Form Factor | Bottom/ATX | |

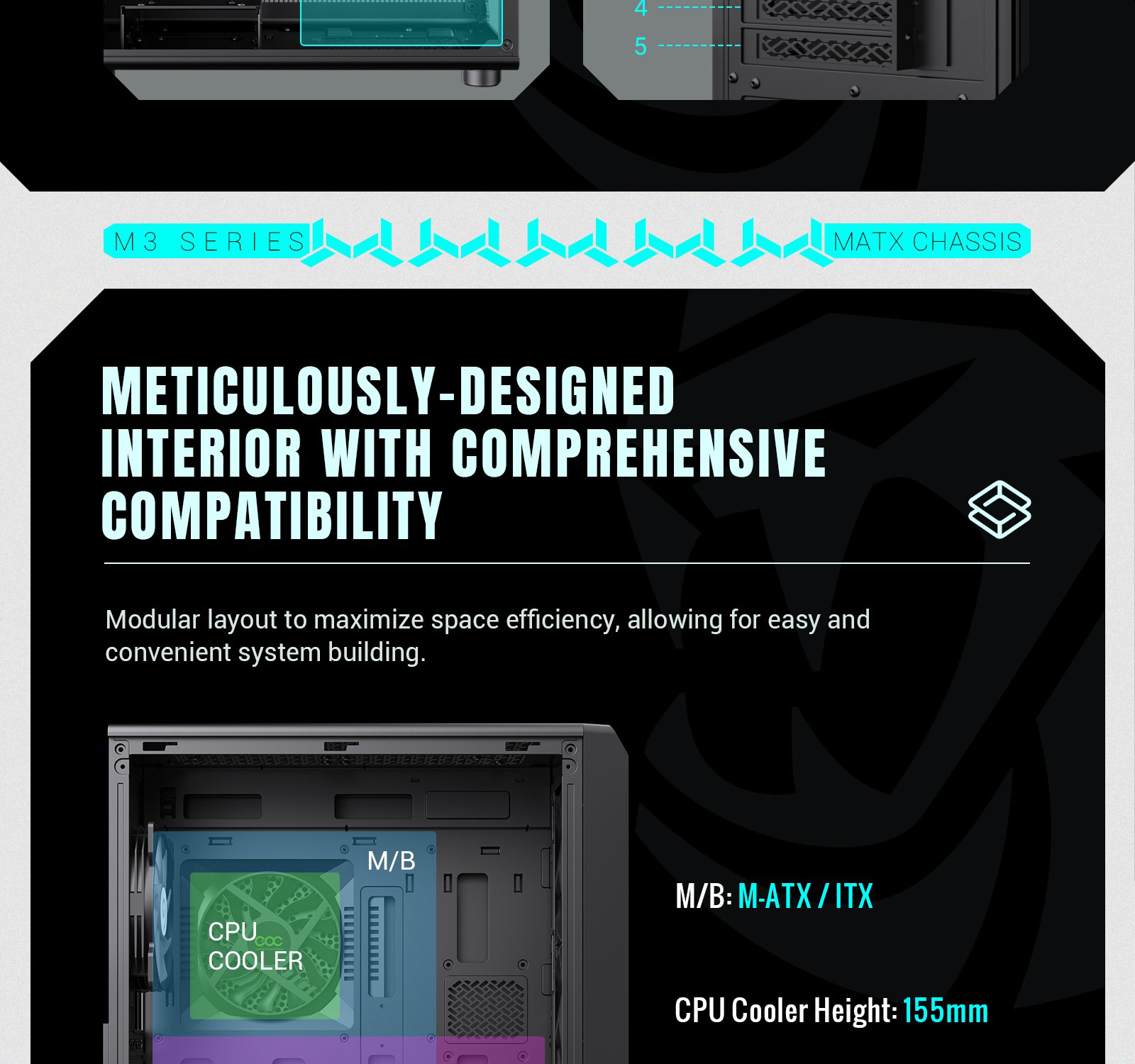

| M/B Form Factor | M-ATX、ITX | |
| Front Panel | ABS | |
| Top Panel | / | |
| Branding | Box | |
| Unit | ||
| (Unit) Position | ||

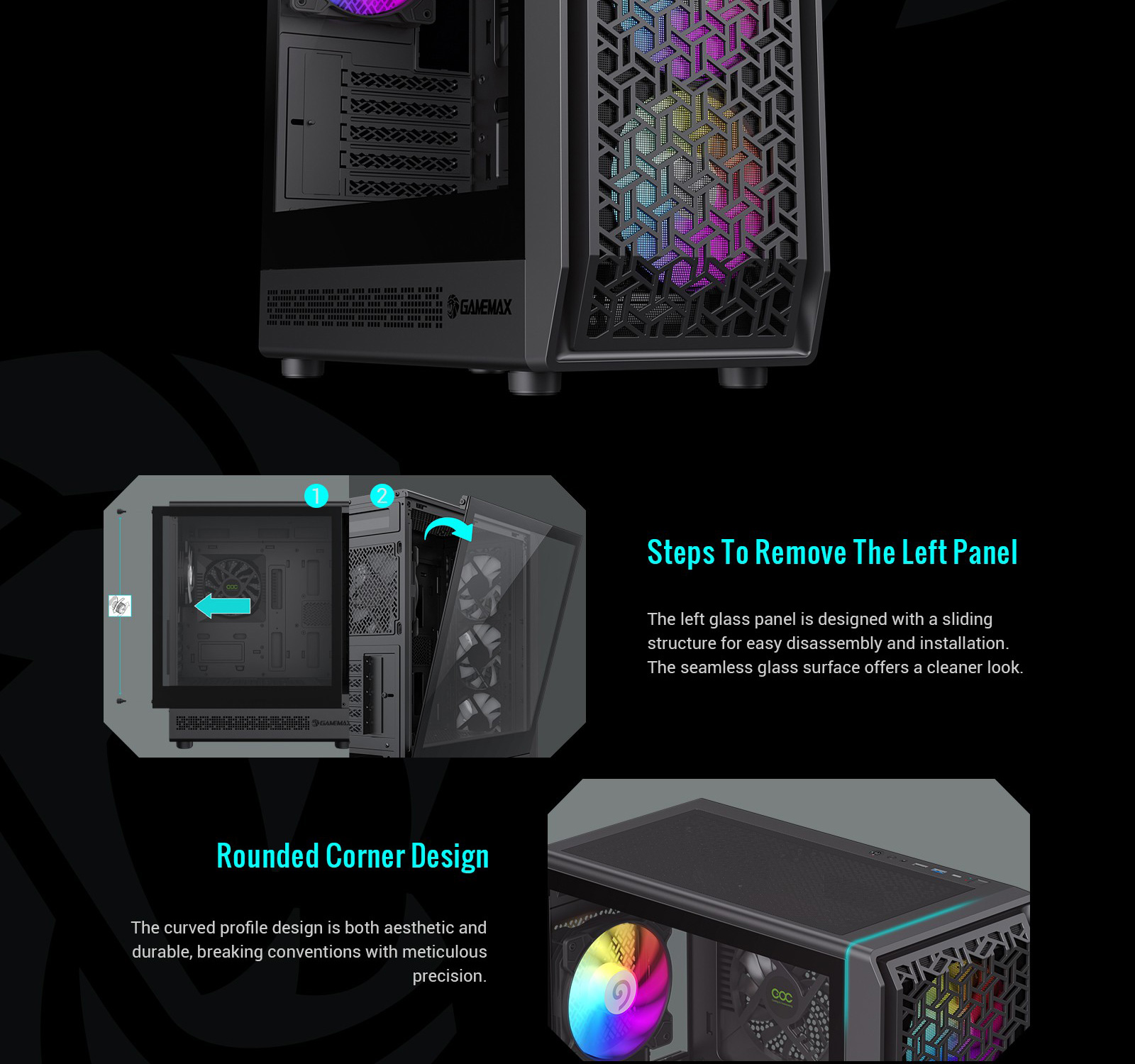

| Side Panel | Left | Tempered Glass |

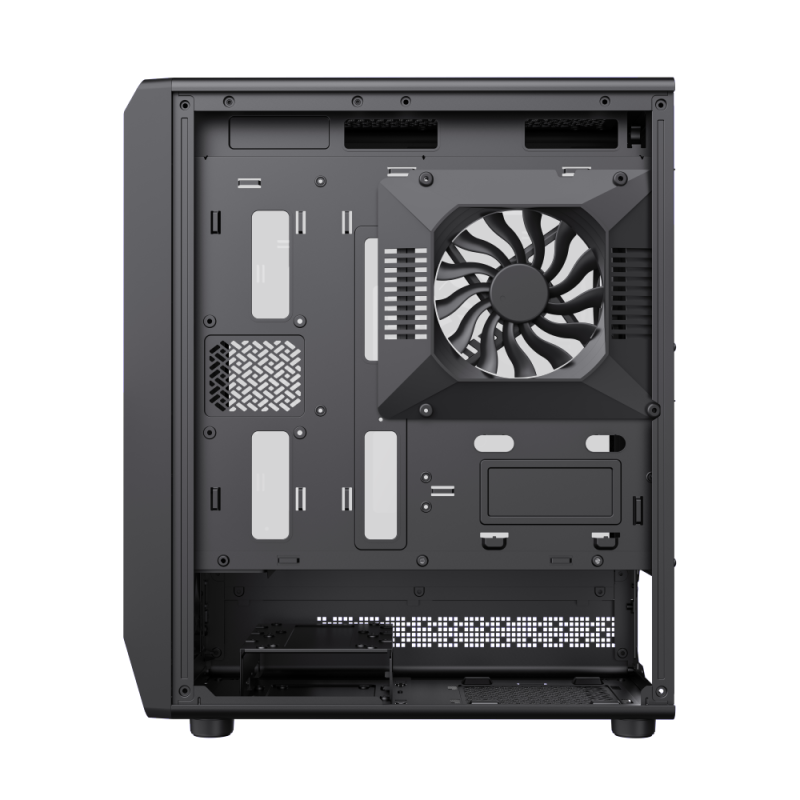

| Right | metal cover | |
| External Drive Bay(s) | 5.25" (ODD) | / |
| 3.5" | / | |

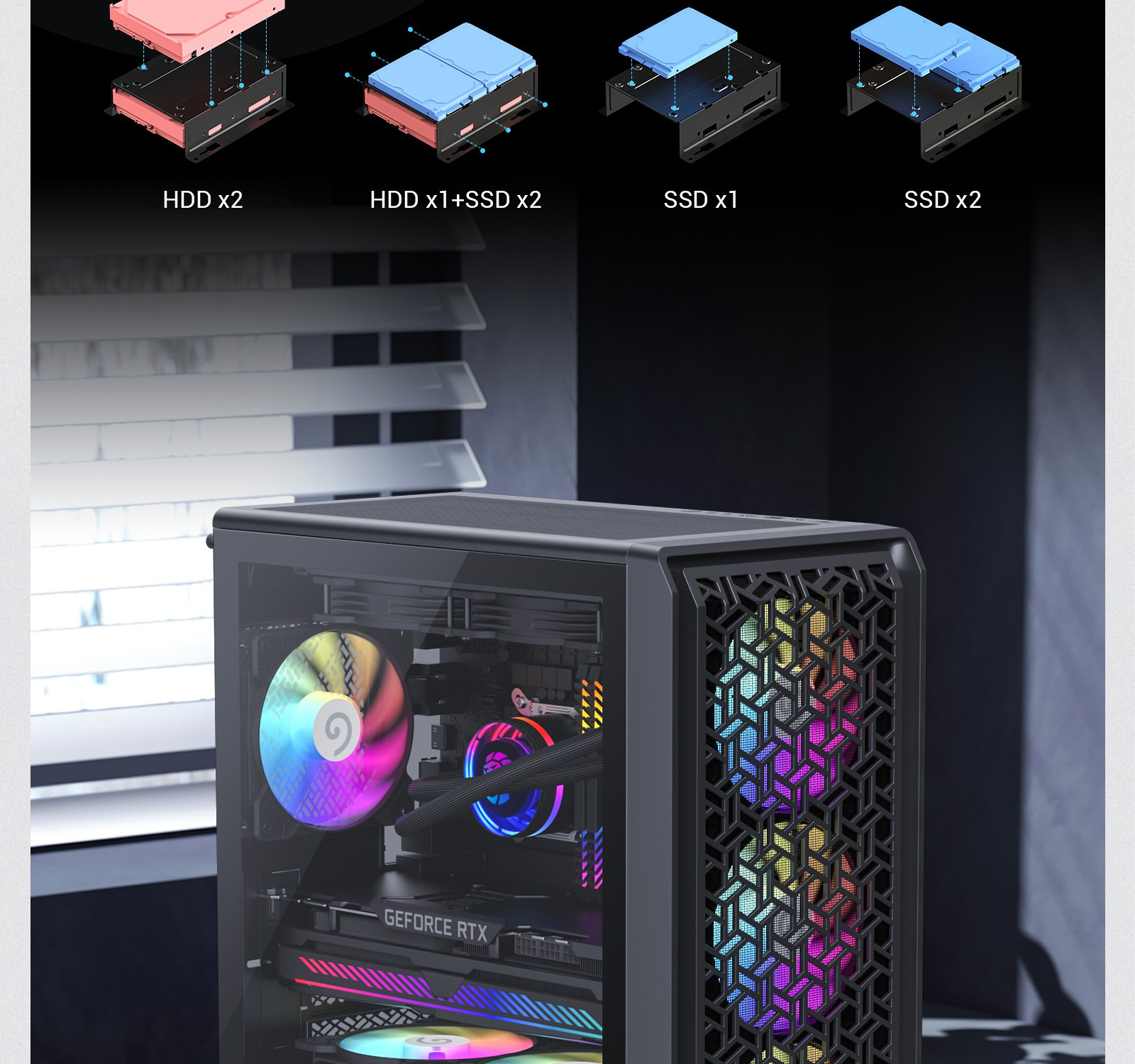

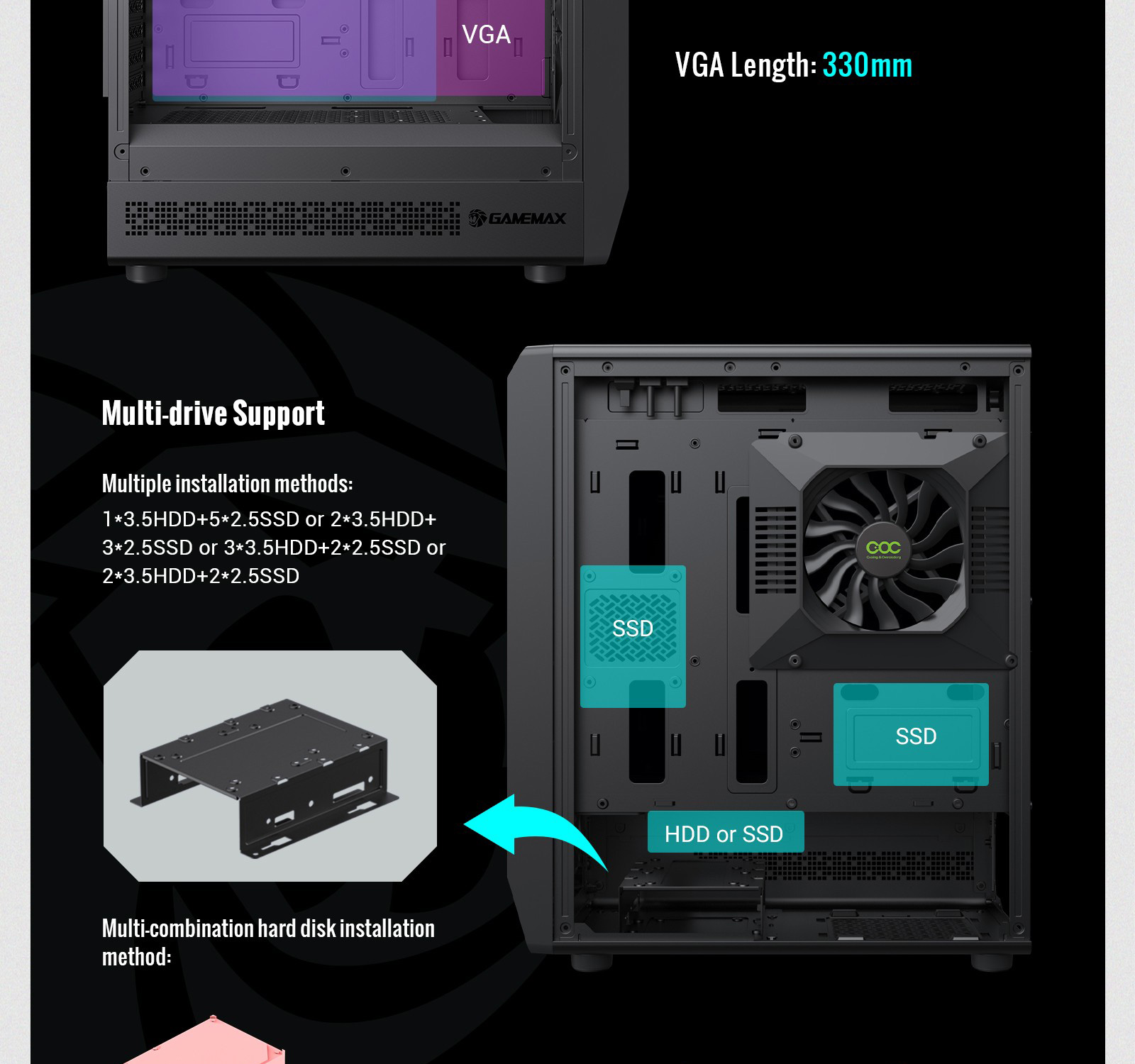

| Internal Drive Bay(s) | 3.5" (HDD) | 1*3.5HDD+5*2.5SSD or 2*3.5HDD+3*2.5SSD or 3*3.5HDD+2*2.5SSD or 2*3.5HDD+2*2.5SSD |
| 2.5" (SSD) | ||

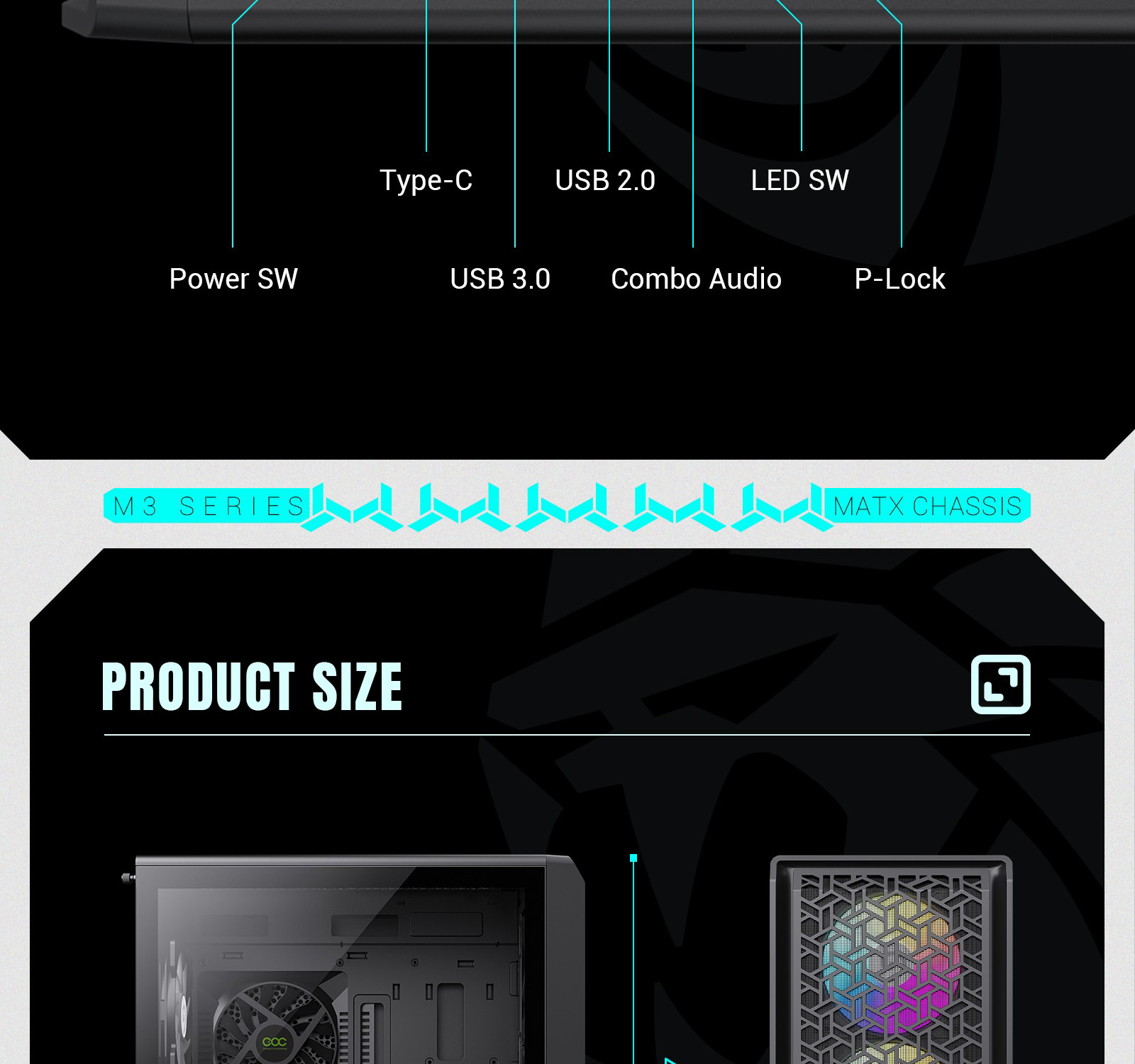

| I/O | Buttons | *2 |
| USB2.0 Port(s) | *0 | |
| USB3.0 Port(s) | *2 | |
| HD Audio Support | Combo Audio(CTIA)*1 | |
| Type C | *1(2.0 or GEN1 or GEN2) | |
| P-Lock | *1 (optional) | |
| RGB Controller | *0 | |
| Controller max. fans | *0 | |
| RGB Controller max. LED strips | *0 | |
| Remote (IR or RF) | *0 | |

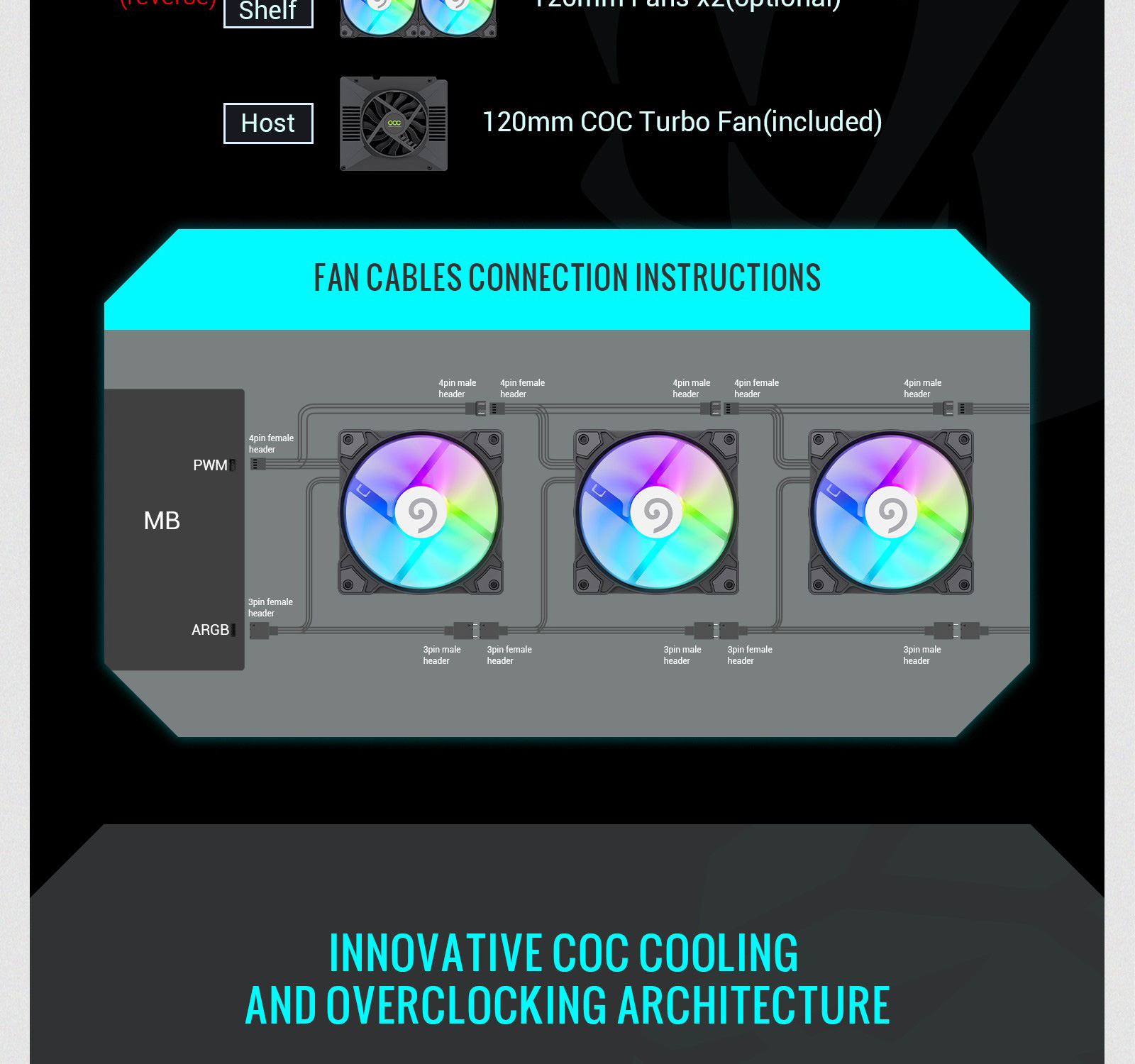

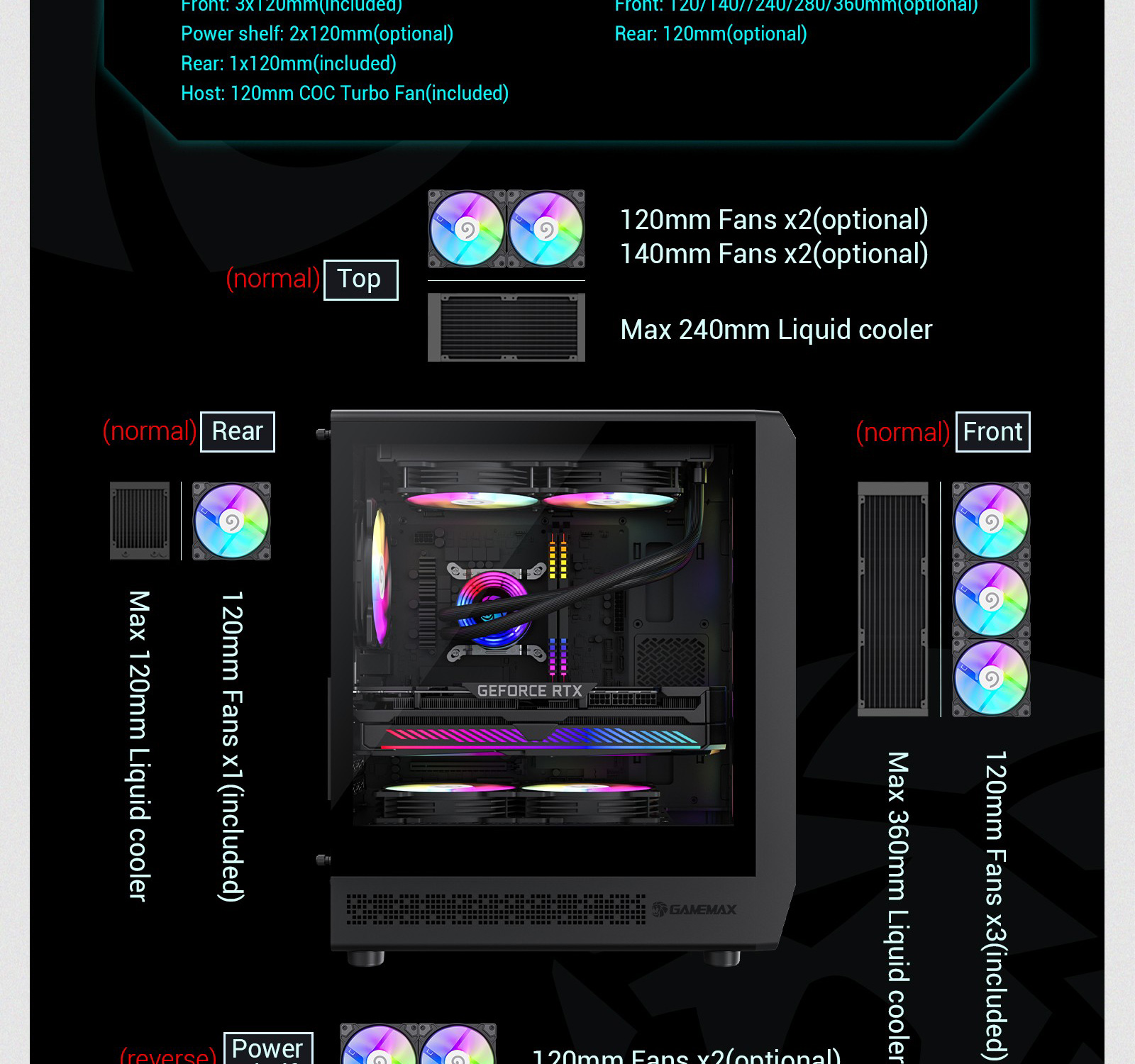

| Cooling Fan Support | Front | 3x120mm,2x140mm(Fan optional) |
| Top | 2x120mm ,2x140mm (Fan optional) | |
| Rear | 1x120mm (Fan optional) | |
| Left Side | / | |
| PSU Cover | 2x120mm (Fan optional) | |
| Water Cooling Support (Radiator Size) | Front | 120mm, 140mm,240mm,280mm,360mm |
| Top | 120mm, 140mm,240mm | |
| Rear | 120mm*1 | |

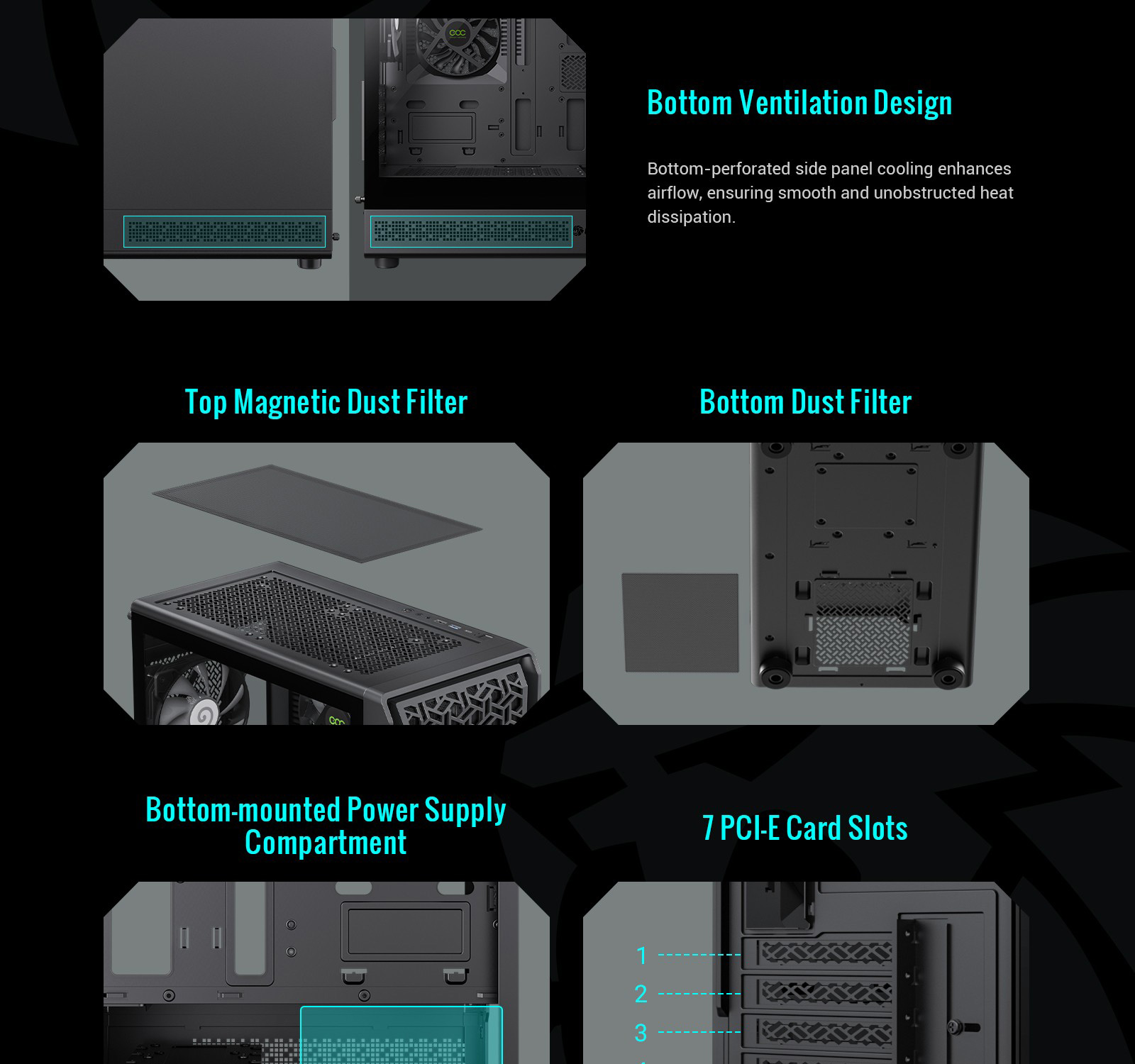

| Dust Cover | Bottom and top cover with dust filter | |
| Slots | *5 | |
| Carton & Logo | GAMEMAX | |
| Dimensions | Chassis | (L)340*(W)200*(H)436mm |

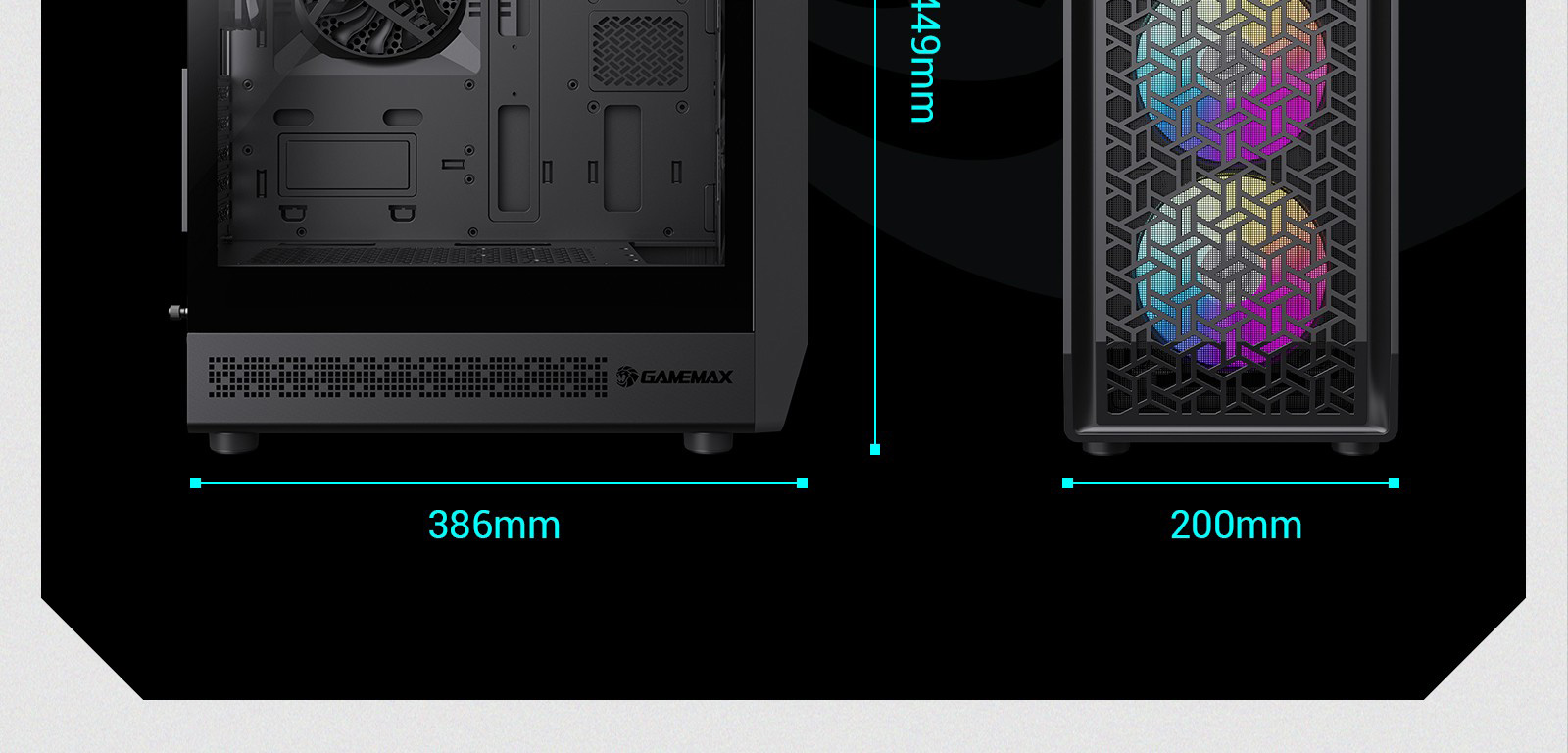

| Full Case (inc Fascia) | (L)386*(W)205*(H)449mm | |
| Carton | (L)486*(W)255*(H)433mm | |
| Net Weight (Kg) | kgs | |
| Gross Weight (Kg) | kgs | |
| VGA Card Length | up to 330mm | |
| CPU Cooler Height | 155mm | |
| PSU Length | up to 160mm | |
| Cable Management Depth | 19mm | |
