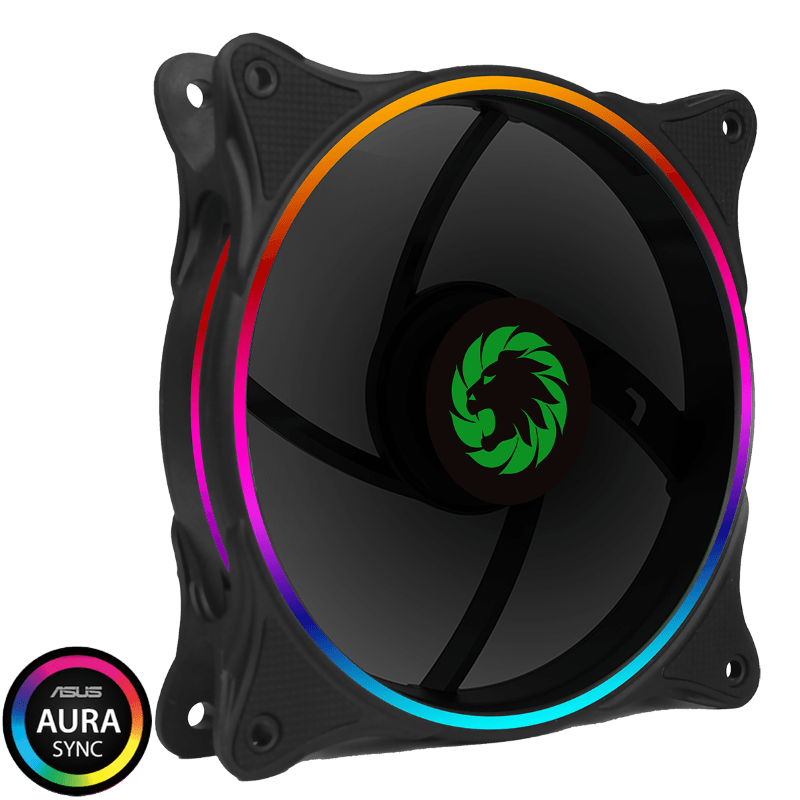

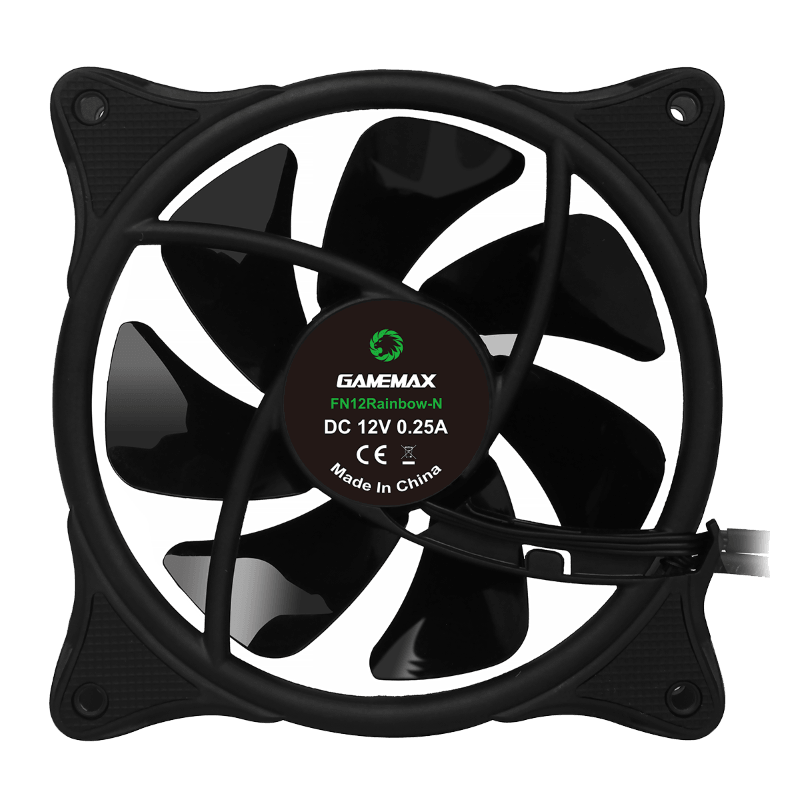

Brand new for GameMax FN-12RAINBOW-N are proud to introduce the GameMax FN-12RAINBOW-N Rainbow Dual-Ring 12cm Fan, it is an hydraulic bearing silent fan allowing for a quiet operation during use with a noise level of approx
• 25dB(A), it comes with 5V Addressable 3pin Header and the fan is powered by a regular 3pin connector
• It comes with various lighting effects when it is synced using an AURA connector, creating a unique look
• The rubber gasket increases the reduction of vibration from the fans movement
• With the even increasing need for the cooling of computer components, due to the increased performance, the FN-12RAINBOW-N gives user an affordable solution, the built in LEDs allow you with the customisation of your computer system via AURA SYNC or HUB controller, The Rainbow is an ideal upgrade to help cool various components within your computer, simply attach to a suitable CPU cooler to the chassis or to replace the fans on your water-cooling radiator.
• In line with the GameMax ethos this case offers style, performance and the ultimate experience.
Dimensions: | 120 x 120 x 25mm |
Fan Frame Colour: | Black |
Fan Blades / Colour: | 7 / Black |
LED Qty / Type: | 7 pcs / Rainbow Ring |
Bearing Type: | Hydraulic Bearing |
Fan Speed: | 1100 RPM ± 10% |
Max. Air Flow : | 36 CFM ± 10% |
Max. Static Air Pressure : | 1.08mm - H2O |
Noise Level (max.): | 25db(A) |
Cable Length : | 450mm |
Accessories: | Screws |
Connectors: | ARGB 3pin 5V Header (M/F) 3pin+Morex Power |
Rated Voltage: | 12V for Fan motor |
Rated Current (max.): | 0.19A (Max. 0.25A) |
Rated Input Power: | 2.28W (Max. 3.0W) |
Test Voltage: | 12V |
Start Voltage: | 5V |
M.T.B.F.: | 40,000 hrs |
General Specifications
Manufacturer Part Number: | MIRAGE (FN-12RAINBOW-N) |
EAN Number: | 5055492407641 |
Has Mains Plug: | No |
Colour: | Black |
What's In The Box: | Fan Screws |
Unit (Product) Dimensions (mm): | 120mm x 120mm x 25mm (W x H x D) |
Packaging Dimensions (mm): | 125mm x 140mm x 32mm (W x H x D) |
Net Weight (KGs): | 0.148 KGs |
Gross Weight (KGs): | 0.194 KGs |
Key Features
Dual Ring LED - 15 LED Dual Ring Rainbow Fan with ultra low noise.
RGB AURA Sync - With the convenience of addressable rainbow 5V RGB leds for Aura Sync, you can control RGB LED solutions to customise your computer lighting from other supported peripherals, such as RGB CPU/System Coolers, Memory Modules, Cases, HDDs, Keyboards, Mice, Mouse Pads, Headsets and LED Strips.
Connectors - 3pin header sync with motherboard directly, synchronised by Aura RGB and the fan powered by regular 3pin connector, allowing for easy and universal use.
Extra Support - As well as being able to connect to your motherboard you have support with a hub to give you manual control
Rubber Gasket - Rubber gasket helps absorb fan vibration and keep the overall noise down to a minimum.
