GameMax Ice Surface CPU Air Cooler, Super perfermance half profile height for Mini PC and ITX PC system ,4 Heat-Pipes, 92mm Hydraulic Bearing CPU Fan, Fins Bending, 4-pin CPU Cooler, for Intel LGA 1700 115X, and AMD AM4/AM5
•
【47mm Height,CPU Air Cooler】Ice Surface CPU Air Cooler is armed with 40 pieces of penetrate-design fins, and high-level metal fasteners
•
【4 Copper Heat-pipes】The 4x6mm Pure copper and vacuum heat-pipes of this CPU Cooler for can directly connect to the CPU
• Thus, the heat can be transferred to the fins quickly without any obstacles
• And it adopts 40 inserted fins, the heat pipes and fins can be closely connected, the heat conduction system is easy to work
•
【Removable PWM Fans】This CPU Fan is safe and easy to maintain with the removable fan fasteners that made of metal materials for avoiding the possibility of damage in transit
• The soft fan blades combined with each other, bringing to the bright sense of beauty
•

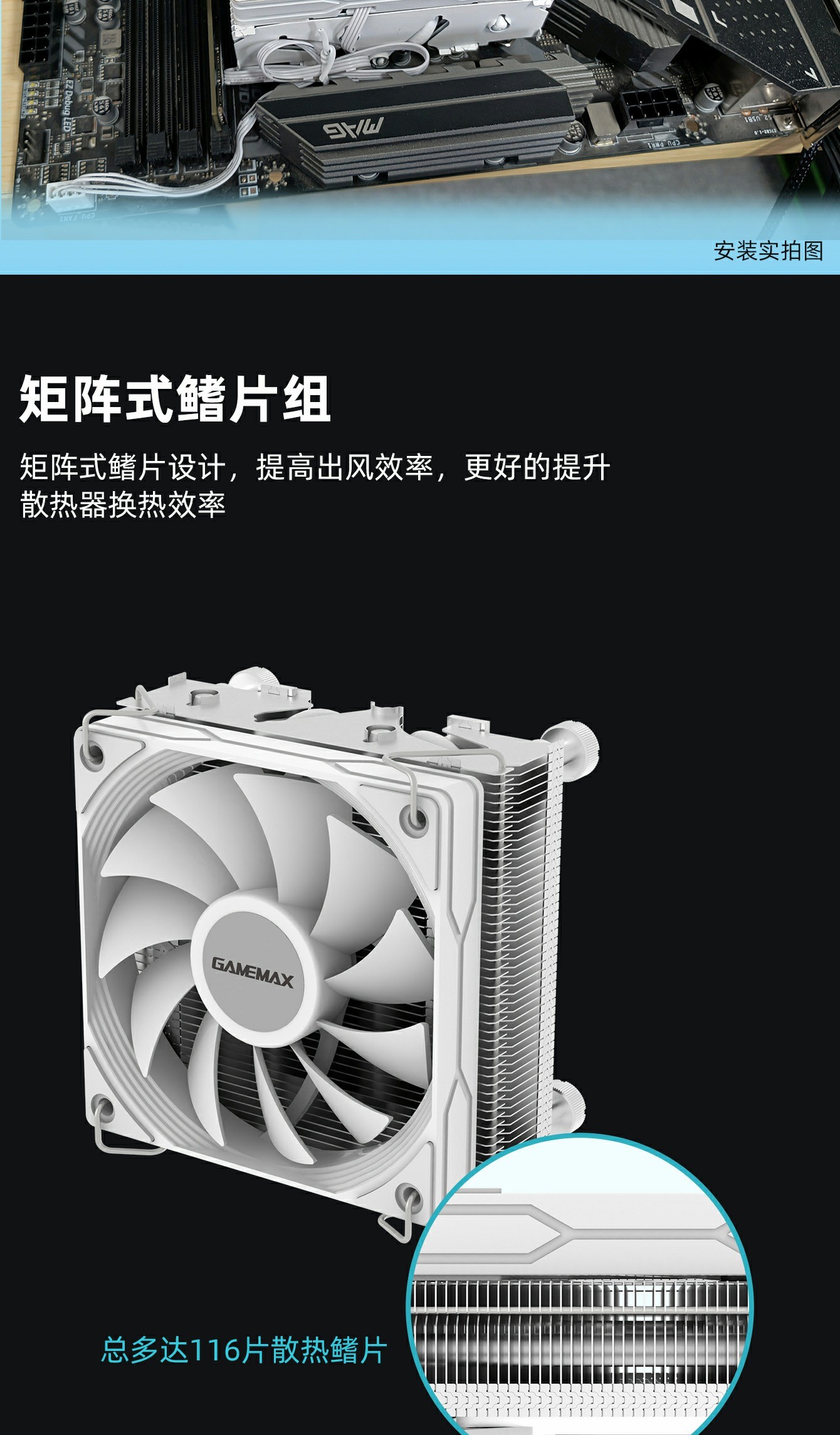

【Fins Bending Technology】The fins of this CPU Cooler adopt the bending technology that contributes to the good ventilation and heat conduction ability between the fins
•
【CPU＆Socket Support】Intel: LGA1700/1200/775/1150/1151/1155/1156
• and AMD AM4/AM5
TDP 150W，支持最新13代Intel和AM5，适配ITX小机箱
| 总尺寸 | 92(长)X92(宽)X47(高)mm |
| 重量 | 322g |
| 散热指标 | 150W，12代可以压到i5不带K |
| 热管数量 | 4根6mm铜管 |
| 传热底座 | 铜底焊接 |
| 铝鳍片 | 回流焊工艺 |
| 表面处理 | 电泳白色 |
| 风扇尺寸 | 92×92×15mm |
| 风扇转速 | 1000-3000转(温控)±10% |
| 风扇轴承 | 液压轴承 |
| 风扇寿命 | ≥40000h @25℃ |
| 风 压 | 1.78mmH2O |
| 风 量 | 48 CFM (MAX) |
| 噪 音 | 25.5dBA(MAX) |
| 风扇接口 | 4PIN PWM |
| 支持平台 | Intel LGA1700/1200/20XX/115X |
| AMD AM5/AM4 | |
| 起订量 | 1020PCS |
| 包装方式 | 彩盒 |
| 彩盒尺寸 | 180*65*134mm |
| 外箱尺寸 | 700*380*325mm |
| 数 量 | 40pcs/箱 |
| 净 重 | 18.5kg /箱 |
| 毛 重 | 19.5kg/箱 |

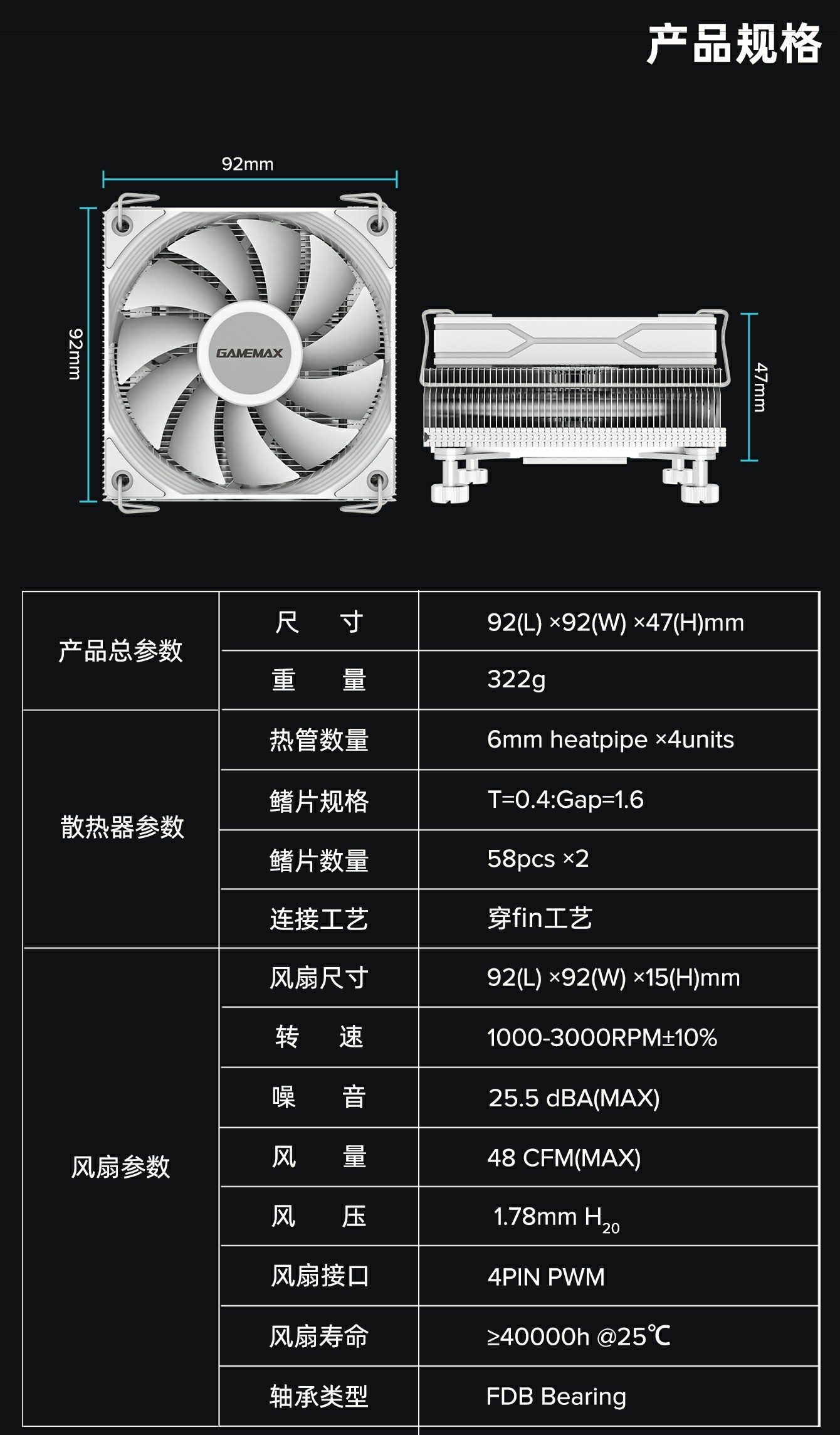

Product Drawing:
