商品质DIY机箱，从设计到选材，每一处细节精挑细选!
•

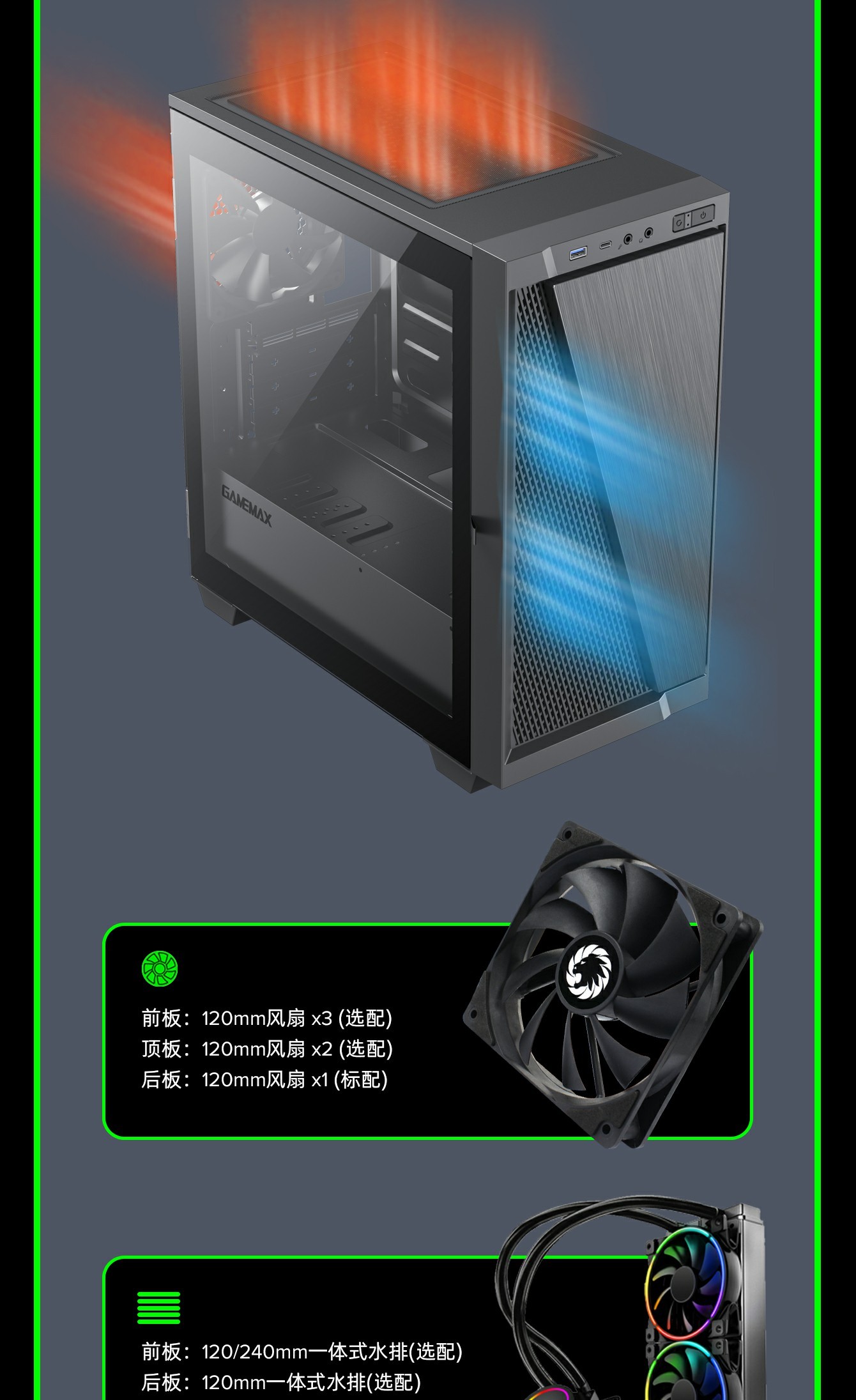

进风格栅设计，通透散热前板
•
侧拉门式钢化玻璃侧板
•
标准带快速 Type-C 接口，高速！

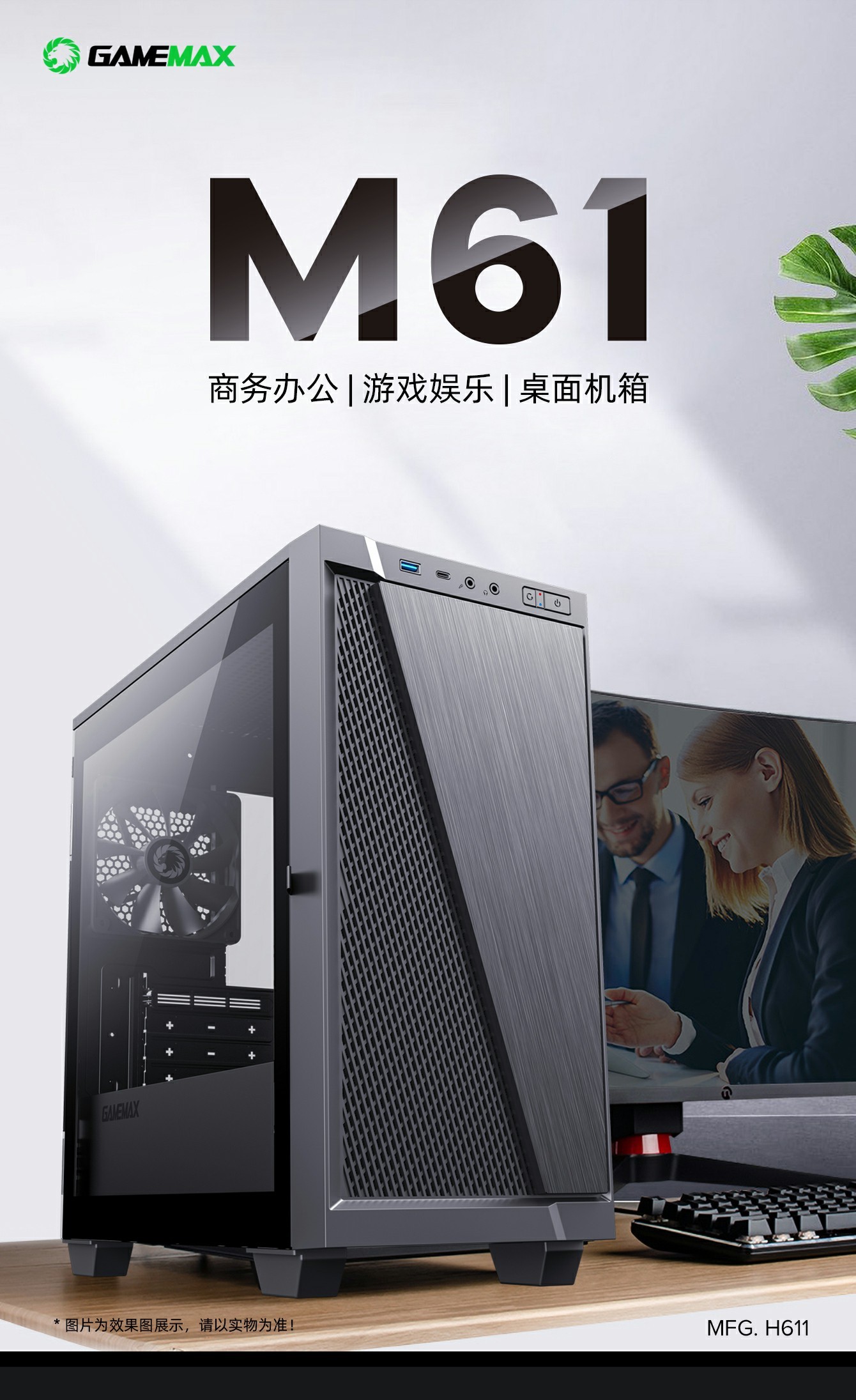

| Model No.: | M61 |
| Type: | Mid-Tower Case |
| Side Panel: | Silent side panel (included) |
| with sound dampening material | |
| Front Panel: | ABS material,aluminum-brush surface |
| Top Panel: | flat |
| Chassis: | 0.6mm mixed, Black painting interior |
| Front USB Ports: | Type-Cx 1 (included) |
| USB3.0x 1 (included) | |
| Front Audio Jackets | HD_Audio |
| PSU | ATX/Bottom |
| Tool Free Kits: | Yes (provide 2pcs of 3.5'' HDD tray) |
| VGA fit part (Optional): | VGA Card Fix part |
| Reserved Fan Ports: | Front: 2x 120mm black fan/ 15 leds fan/32 leds fan (optional) |
| Side: Null | |
| Rear: 1x 120mm black fan (included) | |
| Top: null | |
| Water-Cooling System: | Rear: 120 mm water cooling |
| Front: 240 mm water cooling | |
| Drive Bays 5.25'' exposed | 0 |
| Drive Bay 3.5'' exposed | 0 |
| Drive Bay 3.5'' hidden | 2 |
| Drive Bay 2.5'' SSD | 2 |
| PCI Expansion Slots: | 4 |
| Chassis Size: | 350*188*380mm |
| Carton Size: | 439*245*470mm |
| NW (KG): | 3.6kg |
| GW (KG): | 4.4kg |
| QTY in 20GP cntr(appr.): | 540 pcs |
| QTY in 40GP cntr(appr.): | 1120 pcs |
| QTY in 40HQ cntr(appr.): | 1320 pcs |
| M/B Form Factor : | Micro ATX/Mini ITX |
| Max.VGA Card (Length): | 340 mm |
| Max.CPU Cooler(Height): | 155mm |
