RGB-1300 ATX3.0

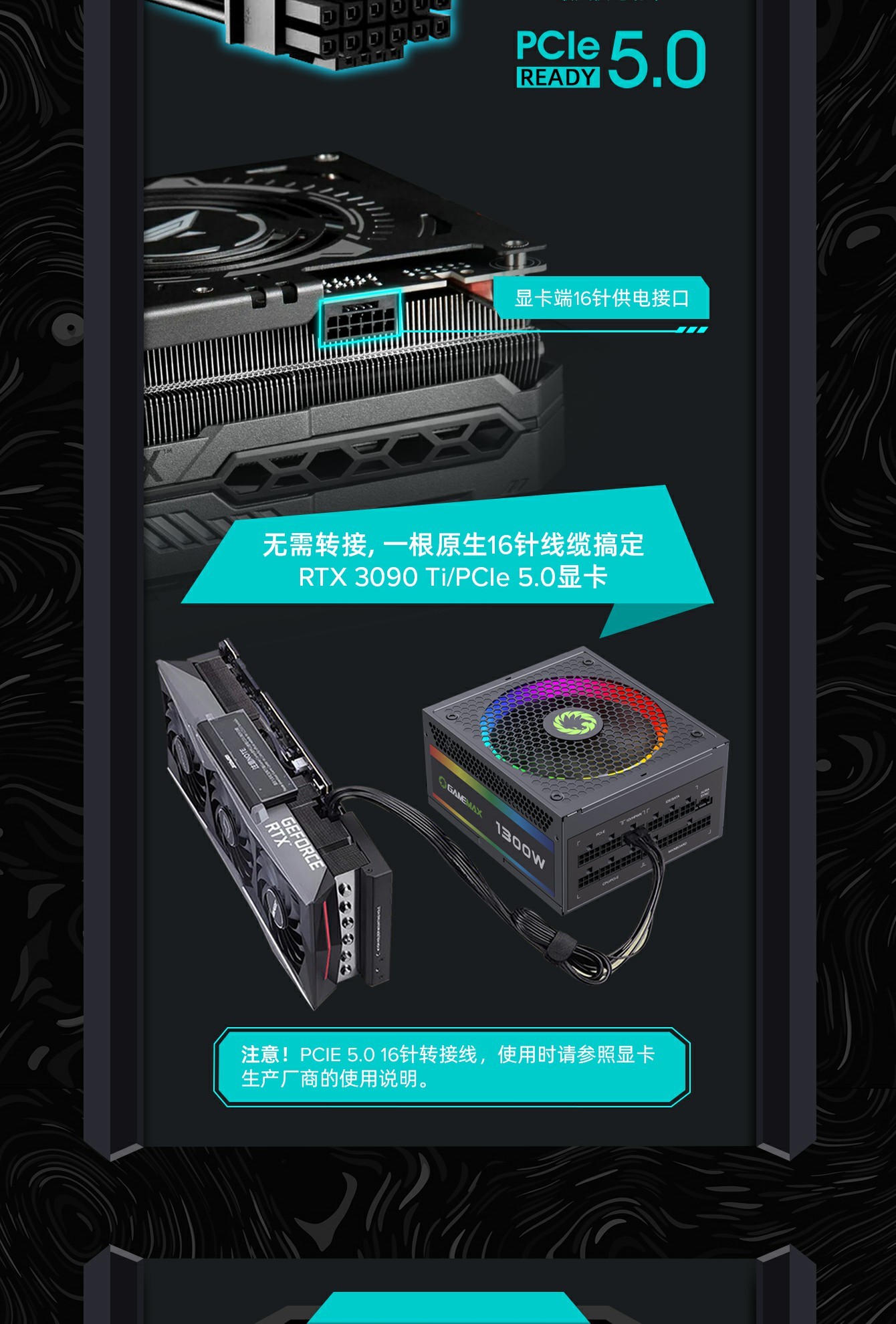

GameMax RGB-1300 ATX3.0版本支持PCIe5.0, 铂金模组电源,全模块化 LLC+DC-DC 设计,强大的单路 +12V 输出设计有助于确保稳定,并可靠地为其他 PC 组件供电。配备 140 毫米 ARGB 风扇有助于提供更明亮和令人惊叹的灯光...

We now ship internationally!
Color:

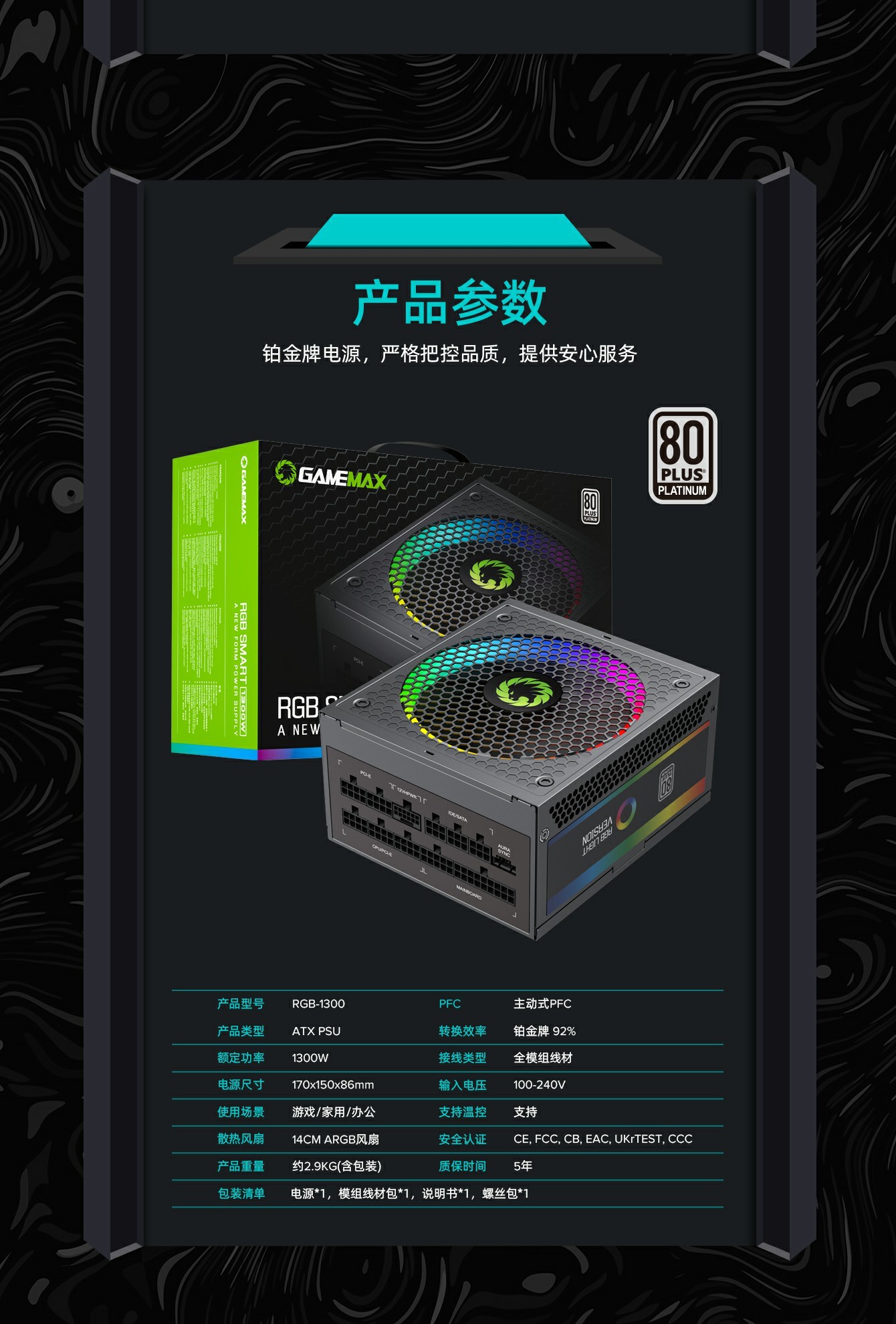

Product Technical Specifications

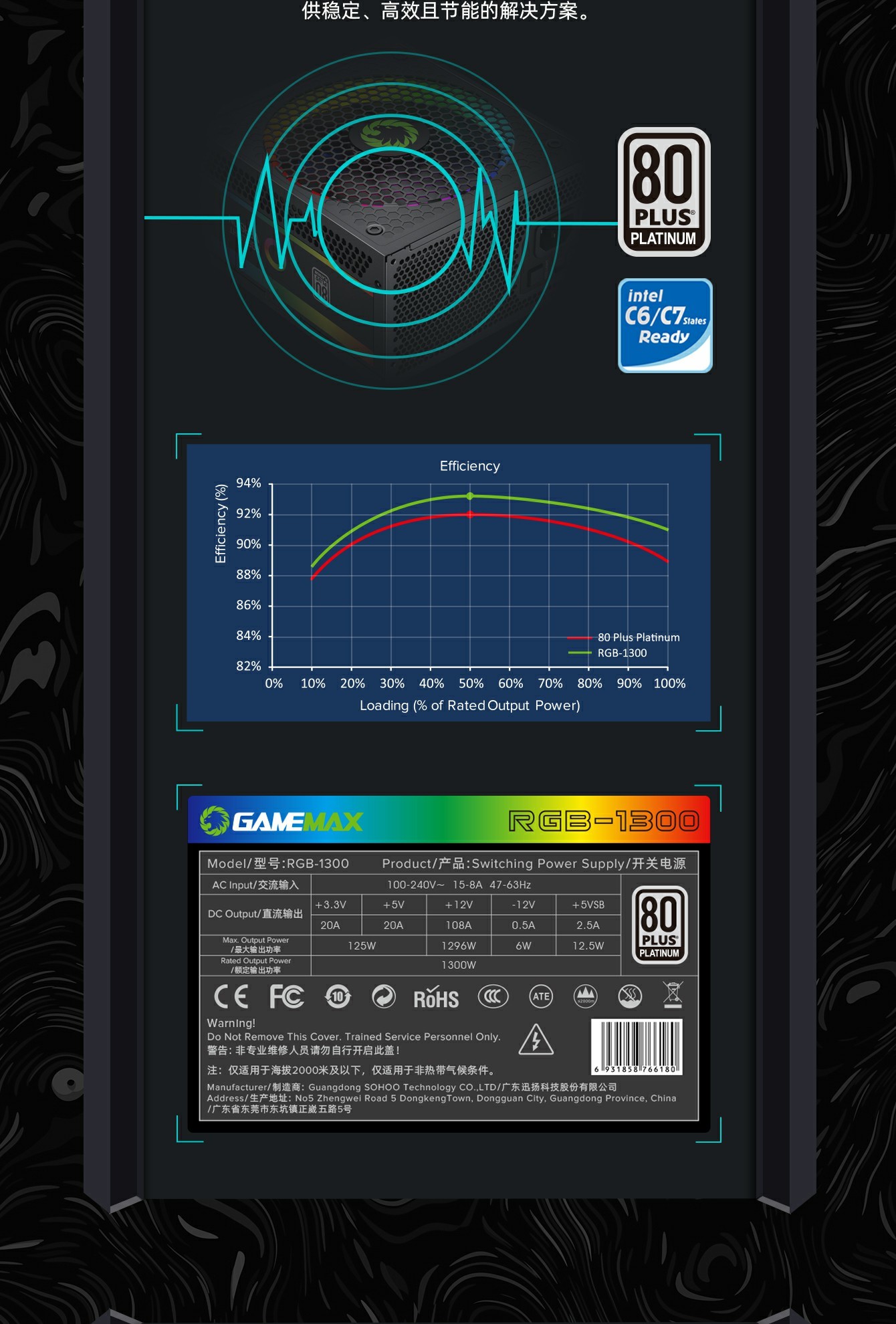

80PLUS?CetificatePLATINUM
Form FactorPower SupplyIntel ATX 12 V
Dimensions
170 mm (L) x 150 mm (W) x 86 mm (H)
Fan InformationFan Size140mm with ARGB LEDs
Fan ControlTemperature control
Fan BearingFluid Dynamic Bearing
Life Expectancy50,000 hours

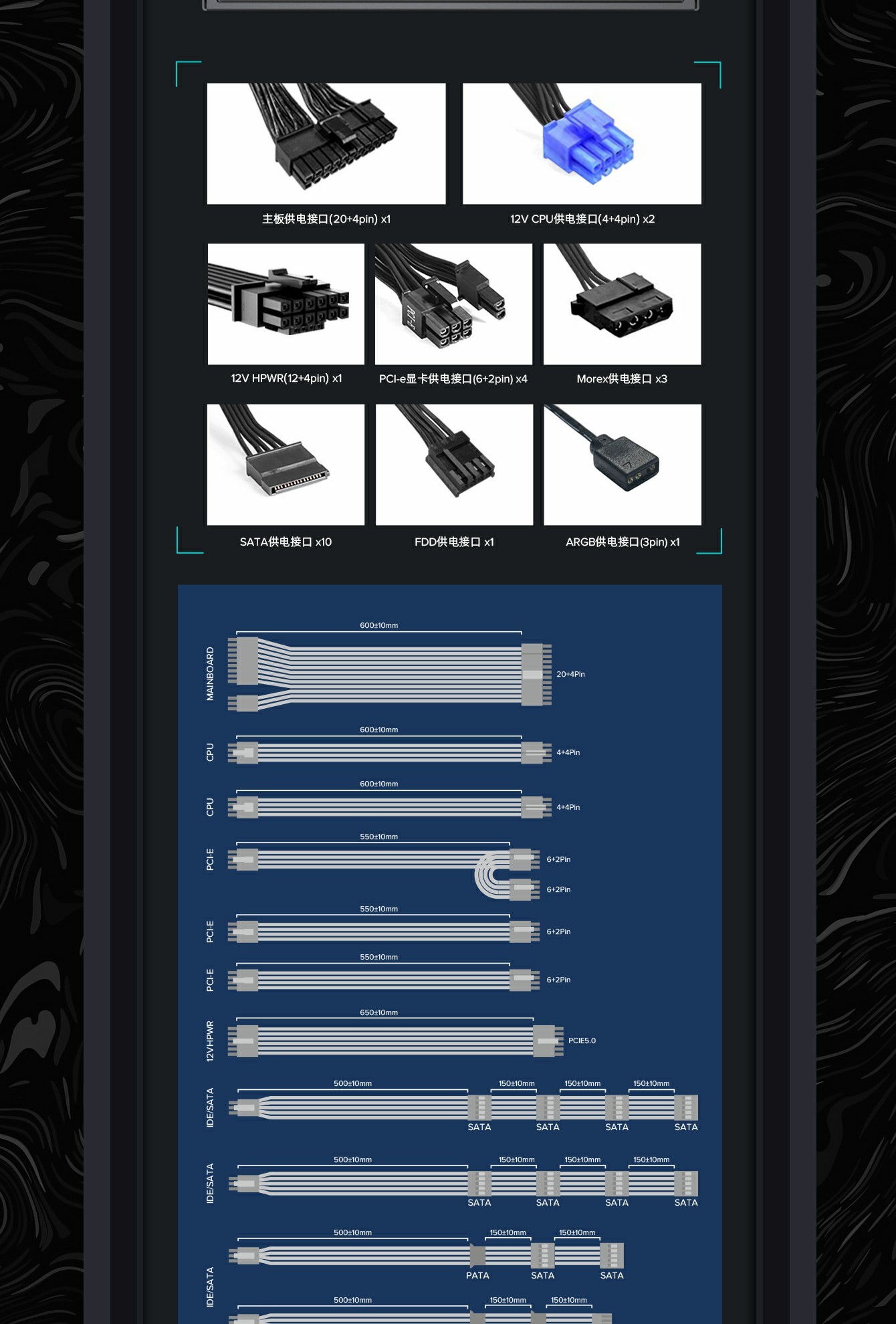

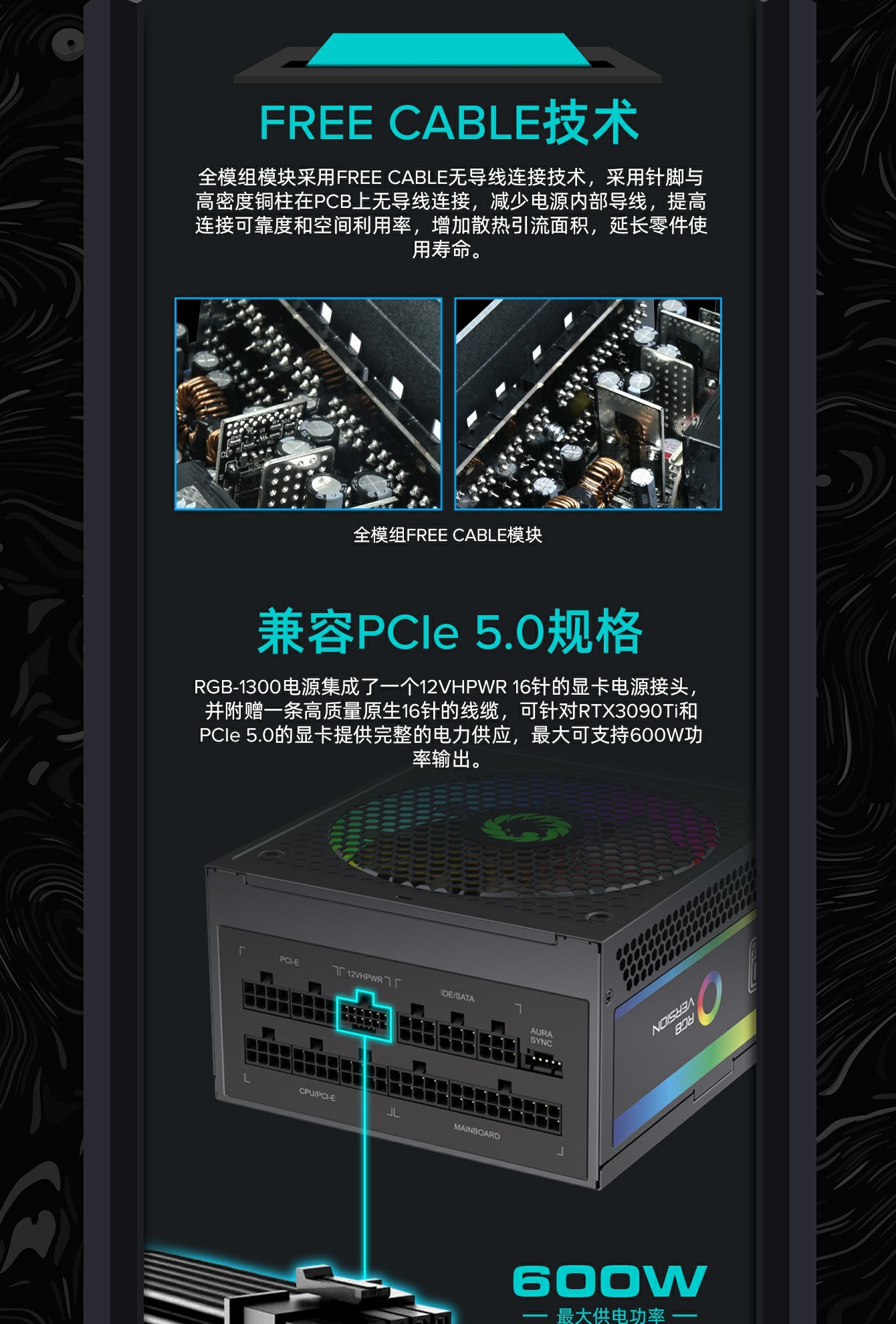

Cable InformationModularityFully Modular
Cable typeFlat black cables
Electrical FeaturesOperating Temperature0-50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
MTBF100,000 Hours (@ 25 °C, Excl. fan)
AC InputFull Range
ProtectionOPP, OVP, UVP, OCP, OTP, SCP
Safety CeritificateSafety and EMCcTUVus, TUV, CB, CCC, EAC, CE
EnvironmentalComplianceRoHS

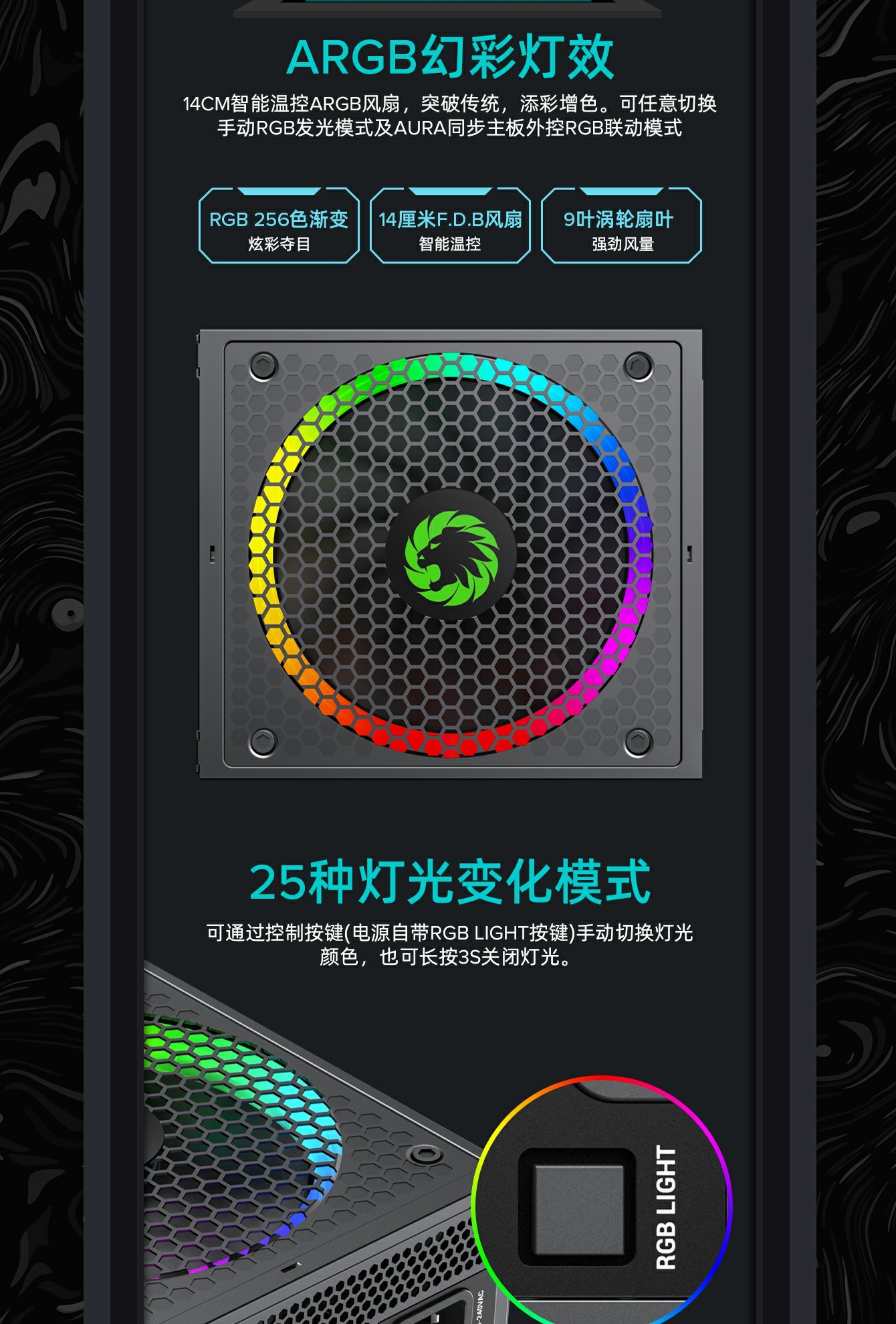

RGB Modes Operation Instructions:

Key FunctionRGB LED Status
Turn On, Entry last ModeKeep the Save memory mode
Press RGB SwitchSelect RGB light mode
Press and Hold in 3secOFF the RGB LED light
Press the Switch againWhite light flashes once and Entry in o the last mode
Press Longer Don't releaseEntry Self-Test mode(All led White Light
Release after Press longerExit Self-Test mode, Entry Last memory mode
Aura SYNC Mode:
Access external ARGB HUB or 5V 3pin signal from motherboard
