GameMax游戏帝国GM 系列电源，采用高效80+APFC电路铜牌设计，输出端口为半模组，模组化线材允许您仅连接系统需要的电缆。 更少的电缆使电脑机箱内部更整洁，并且在您的机箱内有更好的气流。并GM系列电源 具有多重保护...
PSU Specifications
| AC INPUT: 100-240 VAC 6.3-12A 50-60Hz | ||||||
| DC Output Max | +3.3V | +5V | +12V1 | +12V2 | -12V | +5VSB |
| 20A | 20A | 30A | 30A | 0.5A | 2.5A | |
| 800W | ||||||

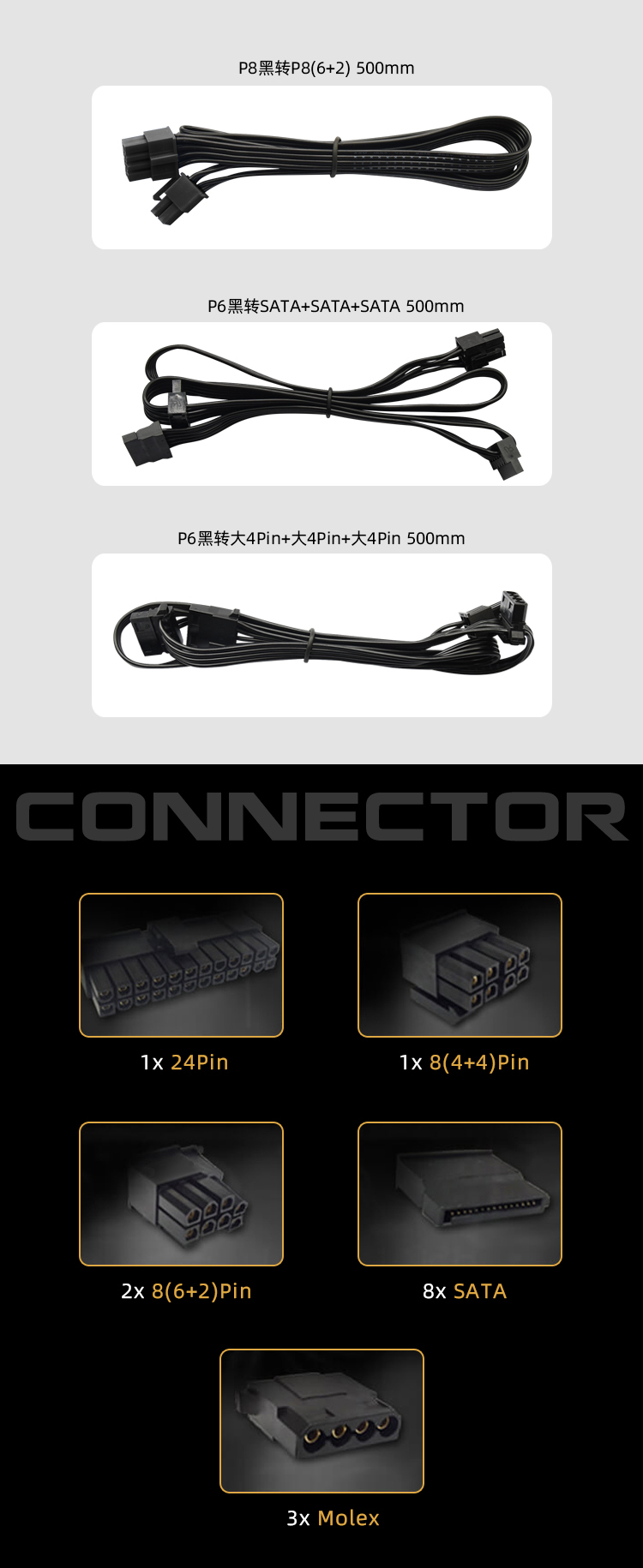

Connectors
 | 20+4 Pin Main Connectors: 1 |
 | 4+4 Pin 12V Connectors: 1 |
 | SATA Connectors: 8 |
 | 4-Pin Molex Connectors: 3 |
 | 6+2 Pin PCI-e Connectors: 2 |
Detailed Specifications

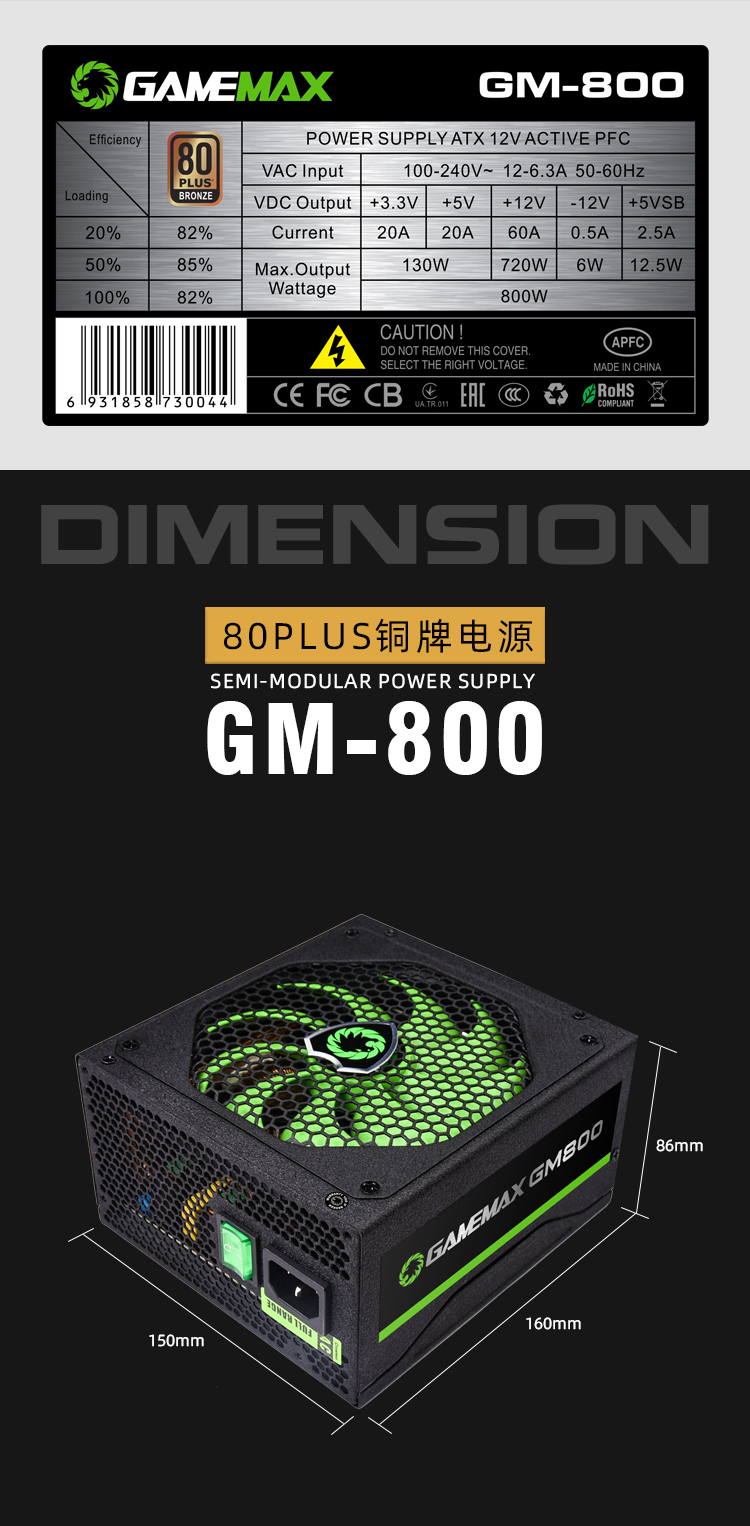

| Dimensions: | 160mm x 85mm x 150mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 6.3-12A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-500 ms |
| Hold Up Time: | >17ms |
| Efficiency: | > 81% (85% max) |
| MTBF: | > 100,000 Hours |
| Protection: | OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP |
| Power: | 800W |
| Operation Temperature: | 0-40C |
| Safety: | CE / FCC / CB |
| Cooling: | 140mm Ultra Silent Fan |
| Noise: | <25dBa |
| 80 Plus Certified: | Yes - 80 Plus Bronze |
General Specifications
| Manufacturer Part Number: | GM-800 |
| EAN Number: | 6931858730044 |
| Has Mains Plug: | No |
| Colour: | Black |
| What's In The Box: | Power Supply Screws Manual 5 x Output Cables 2 x Cable Ties |
| Unit (Product) Dimensions (mm): | 160mm x 85mm x 150mm (W x H x D) |
|
