In the PC hardware sector, the performance of the cooling system directly impacts the stability and lifespan of the host system. As high-performance processors and graphics cards become more prevalent, case fans— 作为基础散热组件 —play an increasingly critical role. GAMEMAX, a globally recognized PC hardware brand, has secured its place in the cooling market through innovative design and cost-effective strategies. This article delves into the GAMEMAX 140mm case fan, analyzing its technical specifications, real-world performance, market positioning, and user feedback to uncover its competitive edge in the industry.
The GAMEMAX 140mm case fan, represented by the FN-14 Rainbow-C9 model, utilizes Hydro Bearing technology and a 9-blade aerodynamic design to balance low noise and high air volume. Key specifications include:
Dimensions: 140×140×25mm, compatible with standard case fan mounts.
Speed: 1200±10% RPM, supports PWM intelligent speed control.
Airflow: 64.36 CFM (cubic feet per minute), meeting mid-to-high load cooling needs.
Static Pressure: 1.18 mm-H₂O, suitable for case ventilation but slightly weaker than radiator-specific fans.
Noise: Maximum 36.43 dB(A), lower than the industry average.
ARGB Lighting: 8 LED beads, supports motherboard synchronization and independent mode; light diffuses from the center to the blades for dynamic visual effects.
Anti-Vibration Design: Rubber pads and smooth blade surfaces reduce resonance noise.
Compared to competitors, the GAMEMAX 140mm fan excels in airflow and quiet operation. For example:
Arctic F14 PWM PST: 61.27 CFM airflow, 31.2 dB(A) noise, but higher static pressure (2.3 mm-H₂O).
Noctua NF-A14 PWM: 55.3 CFM airflow, 22.4 dB(A) noise, but costs twice as much as GAMEMAX.
In a standard case (e.g., DeepCool CH510 Mesh), using the GAMEMAX FN-14 Rainbow-C9 as a front intake fan with a rear 120mm exhaust fan maintained CPU temperatures at 65–70°C (i7-13700K under full load) and GPU temperatures at 75–80°C (RTX 4070 Ti). Replacing it with a high-static-pressure fan (e.g., Arctic P14 PWM) lowered temperatures by 3–5°C but increased noise by 5–8 dB(A).
Low Load (600 RPM): ~25 dB(A), nearly inaudible.
High Load (1400 RPM): Noise rises to 36 dB(A), comparable to a whisper and better than the Corsair AF140 Elite (31.8 dB(A)).
The fan supports 主流主板软件 like ASUS Aura Sync and MSI Mystic Light, enabling 16.8 million color customization and dynamic synchronization. Its light uniformity outperforms the Cooler Master MF140 Halo (which has dark edges), though there is a slight delay (≈0.5 seconds) in dynamic mode transitions.
Budget-Conscious DIY Enthusiasts: Priced at ~$15 per fan, cheaper than premium brands like Noctua or Be Quiet!.
RGB Aficionados: ARGB lighting and synchronization cater to personalized builds.
Mid-to-High Load Users: Ideal for gaming rigs and content creation PCs, but not for extreme overclocking or multi-GPU setups.
According to the 2025 PC Case Fan Market Report, high performance, quiet operation, and RGB are key trends. The GAMEMAX 140mm fan balances price and functionality, excelling in ARGB penetration (45% market share) and quiet demand (8% annual growth).
The success of the GAMEMAX 140mm fan highlights the potential of the mid-range market segment. By improving bearing durability (e.g., upgrading to FDB fluid bearings), software compatibility (optimizing drivers), and product line expansion (launching high-static-pressure variants), the brand can further solidify its position. For consumers, the GAMEMAX FN-14 Rainbow-C9 is a "no obvious weaknesses" choice, especially for budget-focused PC enthusiasts who demand both performance and aesthetics.

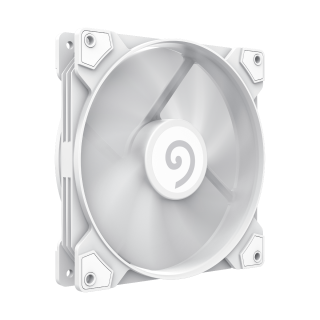

GameMax GMX-14WFBK-PWM Silent 140mm Hydraulic Bearing Fan | High-Efficiency Cooling, Ultra-Quiet Design
• Wide Airflow Range: Adjustable fan speed from 600 to 1400 RPM, delivering up to 43CFM airflow and 1.83mm-H2O static pressure for efficient cooling.
• Low-Noise Operation: Operates at a noise level of just 30dB(A), ensuring a quiet and comfortable user experience suitable for various scenarios.
• Durable Hydraulic Bearing: Equipped with a hydraulic bearing for up to 30,000 hours of reliable performance and durability.
FN14A-S5 140mm Hydraulic Bearing Fan | High-Efficiency Cooling, Ultra-Quiet Design, RGB Lighting Sync Compatible for Gaming PCs
• Efficient Cooling Performance: The fan speed range is adjustable from 600 to 1400 RPM, providing up to 43 CFM of airflow and 1.83mm-H2O static pressure for excellent cooling performance.
• Ultra-Quiet Design: The maximum noise level is 30dB(A), offering a quiet and comfortable environment, ideal for long hours of work or gaming.
• Durable and Reliable: Equipped with a hydraulic bearing, it offers a lifespan of up to 30,000 hours, ensuring stable and long-lasting performance.
• Versatile Compatibility: Supports both 4Pin PWM and 3Pin Aura connectors, compatible with motherboard lighting synchronization for enhanced visual effects and performance.

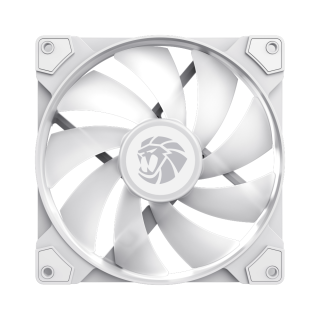

FN-14Rainbow-C9 140mm RGB Turing Fan, Gorgeous Light A-RGB Fan, Dreamy colorful effect, lighting spreads from the center to all of the white fan blades, giving smooth and pertect lighting.
• 【Fascinating RGB effects】 Colorful lighting, giving your build the texture you crave.
• 【High-qualityhydraulic bearing】Low working noise, long product lifetime.
• 【Anti-vibration pads】Unique textured anti-vibration pads ensure stable everyday PC usage.
• 【9 blade fan】Equipped with the best aerodynamic designed fan blades
• 【Special Processed Fan Blades】Smoothened blade surface, lowers windage significantly.
GameMax GMX-14WFBK-PWM Silent 140mm Hydraulic Bearing Fan | High-Efficiency Cooling, Ultra-Quiet Design
• Wide Airflow Range: Adjustable fan speed from 600 to 1400 RPM, delivering up to 43CFM airflow and 1.83mm-H2O static pressure for efficient cooling.
• Low-Noise Operation: Operates at a noise level of just 30dB(A), ensuring a quiet and comfortable user experience suitable for various scenarios.
• Durable Hydraulic Bearing: Equipped with a hydraulic bearing for up to 30,000 hours of reliable performance and durability.
FN14A-S5 140mm Hydraulic Bearing Fan | High-Efficiency Cooling, Ultra-Quiet Design, RGB Lighting Sync Compatible for Gaming PCs
• Efficient Cooling Performance: The fan speed range is adjustable from 600 to 1400 RPM, providing up to 43 CFM of airflow and 1.83mm-H2O static pressure for excellent cooling performance.
• Ultra-Quiet Design: The maximum noise level is 30dB(A), offering a quiet and comfortable environment, ideal for long hours of work or gaming.
• Durable and Reliable: Equipped with a hydraulic bearing, it offers a lifespan of up to 30,000 hours, ensuring stable and long-lasting performance.
• Versatile Compatibility: Supports both 4Pin PWM and 3Pin Aura connectors, compatible with motherboard lighting synchronization for enhanced visual effects and performance.
