The LGA 1151 platform, supporting Intel 6th to 9th generation Core processors, ranges from the 65W TDP i3-6100 to the overclocked 125W+ i7-9700K. The stock cooler’s aluminum 下压式 (downflow) design struggles under medium to high loads:
Thermal Throttling: i7-7700K at 4.8GHz overclock hits 95°C under full load, triggering CPU throttling
Excessive Noise: Fan noise exceeds 52dB at high speeds, well above the 35dB comfort threshold for office environments
Airflow Limitations: In compact ITX cases, stock cooler temperatures spike by 15°C due to restricted airflow
Twin 600 BK: 6 heat pipes with AGHP anti-gravity technology (solves liquid 回流 issue in vertical cases), paired with dual 120mm PWM fans. 实测 maintains 82°C on overclocked i7-9700K (5.0GHz).
Sigma 550 Infinity BK: 5x6mm nickel-plated heat pipes, 220W TDP capacity. Wave-shaped fins increase airflow by 18%.
Ice Wind: 92mm hydraulic bearing fan (28dB noise), 4 heat pipes with direct-touch technology. Ideal for silent office builds, achieving 32°C idle temperature.
Gamma 300 Rainbow: 120mm large fan with ARGB lighting, intelligent PWM (1000-2000RPM), caps 满载 noise at 39dB.
IceBurg 240 Digital BK: 240mm radiator + dual ARGB PWM fans, 245W TDP rating. Keeps overclocked i7-8700K (5.0GHz) at 75°C with 32dB noise.
IceBurg 360 Infinity BK: 360mm ultra-large radiator, 300W extreme cooling, supports Intel 1151/1700 and AMD AM5. Perfect for i9-9900K at 5.2GHz full-core overclock.
| Category | Model | Heat Pipes/Radiator | TDP Support | Fan Specs | Noise (Full Load) | Price (RMB) | Key Technology |
|---|---|---|---|---|---|---|---|
| Entry Air | Ice Wind | 4 Heat Pipes | 150W | 120mm PWM | 32dB | 119 | No-light silent design |
| Mainstream Air | Gamma 300 Rainbow | 4 Heat Pipes | 180W | 120mm ARGB | 39dB | 159 | Top airflow acceleration |
| High-Perf Air | Twin 600 BK | 6 Heat Pipes | 240W | Dual 120mm PWM | 36dB | 299 | AGHP anti-gravity heat pipes |
| 240mm AIO | IceBurg 240 Digital BK | 240mm Radiator | 245W | Dual 120mm ARGB | 32dB | 599 | All-white design + smart PWM |
| 360mm AIO | IceBurg 360 Infinity BK | 360mm Radiator | 300W | Triple 120mm PWM | 35dB | 999 | Motherboard-synced ARGB |
Recommended Model: Ice Wind
Advantages: 4 heat pipes with direct-touch, 92mm hydraulic fan (50,000-hour lifespan), compatible with Intel 1151/1700 and AMD AM4. Ultra-compact (125mm height for small cases).
Test Data: i5-6500 idles at 30°C, 55°C full load, noise <30dB.
Recommended Model: Gamma 300 Rainbow
Advantages: 120mm fan provides 65CFM airflow, ARGB lighting sync with motherboards. 2mm fin spacing boosts efficiency, compatible with tall RAM (155mm height).
Performance: i5-8600K at 4.5GHz overclock: 72°C in FPU test, fan speed 1800RPM (39dB noise).
Recommended Models: Twin 600 BK (air) / IceBurg 240 Digital BK (liquid)
Air Solution: Dual-tower 6 heat pipes, dual fans for 120CFM airflow. Maintains 82°C on i7-9700K (5.0GHz, 1.35V).
Liquid Solution: 240mm radiator + custom pump lowers temperature to 75°C, supports 1600RPM smart 调速，<5°C fluctuation during long renders.
Recommended Model: Ice Surface BK
Features: Low-profile design (47mm height), 4 heat pipes + 92mm hydraulic fan. Fits Intel 1151/1200 and AMD AM4, compatible with JoeSbo V4 and GAMEMAX LEADER 2 BK compact cases.
Cooler Height: Supports up to 185mm tower coolers (Twin 600 BK is 158mm). Liquid radiators fit front 420mm/top 360mm/rear 140mm.
GPU/PSU Space: 425mm GPU support (vertical mount with adapter), 245mm depth PSU bay for full-modular PSUs.
Air Cooling: Front 2x140mm intake fans (GAMEMAX FN14A-S5 recommended), rear 140mm exhaust, creating horizontal airflow through cooler fins.
Liquid Cooling: Front 360mm radiator (intake), top 360mm radiator (exhaust), positive pressure design reduces case temperature by 5-8°C.
Thermal Paste Application: Use GAMEMAX TF7 paste, apply a soybean-sized dot at CPU center.
Bracket Installation: For 1151, secure backplate on motherboard rear; tighten screws diagonally (torque ≤1.5N·m).
Cable Management: Use 32mm rear cable channels for fan wires; connect ARGB to motherboard 5V 3Pin for lighting sync.
Dust Cleaning: Quarterly compressed air cleaning for fins (air coolers) / radiator mesh (liquid coolers) to prevent 20%+ airflow loss.
Thermal Paste Replacement: Annual replacement; clean CPU and cooler base with isopropyl alcohol.
Fan Inspection: Monitor speeds via BIOS; replace noisy fans promptly (keep GAMEMAX 120mm PWM spares).
Full Performance Coverage: 7 air and 5 liquid options span 65W to 300W, fitting all CPU models.
Silent & Stylish: Choose no-light Ice Wind, ARGB Gamma, or all-white IceBurg to match build aesthetics.
Case Friendly: LEADER 2 BK supports 185mm coolers and 420mm radiators, future-proof for upgrades.
When selecting GAMEMAX cooling solutions, prioritize CPU TDP (4-5 heat pipes for i3/i5, 6 heat pipes/liquid for i7/i9), case size (Ice Surface for ITX, Twin 600 for ATX), and budget (100RMB Ice Wind to 1000RMB+ liquid). Pair with proper airflow design to unleash full potential of your LGA 1151 platform.

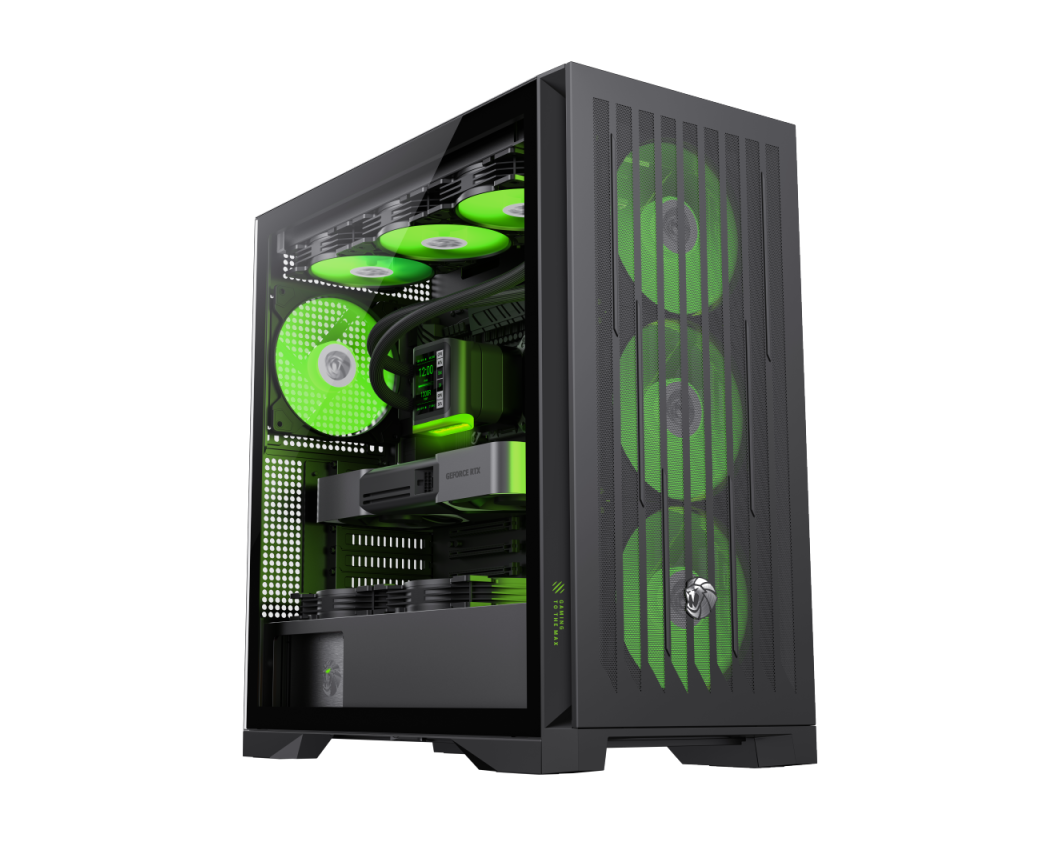

• Comprehensive Compatibility: Supports E-ATX motherboards, 425mm GPUs, 420mm radiators, 245mm PSUs, and 185mm air coolers for versatile hardware configurations.
• Advanced Cooling Matrix: Offers 9×120mm or 8×140mm fan mounts with 4 pre-installed 140mm ARGB PWM fans and a dedicated controller.
• Future-Proof Connectivity: Features Type-C Gen 2, dual USB 3.0 ports, and BTF motherboard compatibility for modern cable management.
• Effortless Building: Incorporates a tool-free design, vertical GPU support, and hidden cable routing with a detachable cover.
• Lion-Inspired Design: Showcases bold claw-mark mesh panels, a tempered glass side panel, and customizable ARGB lighting.
FN14A-S5 140mm Hydraulic Bearing Fan | High-Efficiency Cooling, Ultra-Quiet Design, RGB Lighting Sync Compatible for Gaming PCs
• Efficient Cooling Performance: The fan speed range is adjustable from 600 to 1400 RPM, providing up to 43 CFM of airflow and 1.83mm-H2O static pressure for excellent cooling performance.
• Ultra-Quiet Design: The maximum noise level is 30dB(A), offering a quiet and comfortable environment, ideal for long hours of work or gaming.
• Durable and Reliable: Equipped with a hydraulic bearing, it offers a lifespan of up to 30,000 hours, ensuring stable and long-lasting performance.
• Versatile Compatibility: Supports both 4Pin PWM and 3Pin Aura connectors, compatible with motherboard lighting synchronization for enhanced visual effects and performance.

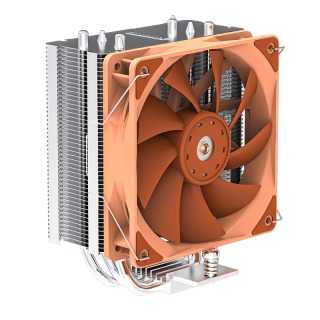

Gamemax Ice Wind CPU Air Cooler, 4 Heat-Pipes, 120mm PWM Fan, No Light ,Fins Bending, 4-pin CPU Cooler, For Intel LGA 1700 115X, and AMD AM4 AM5
• Excellent color combinationlarge air flow
• High static air pressureRiveted iron shell design, more silent, more balanced, more stable
• 2x Rotor balance corrections, no vibration during fan operation
• Nickel plated heat pipes to prevent oxidationBent heatpipes that don'
• interfere with memory, installation without removing fans
• 47 pieces of 0.4MM fins，Strong thermal performance
• Support INTEL/AMD for all platforms

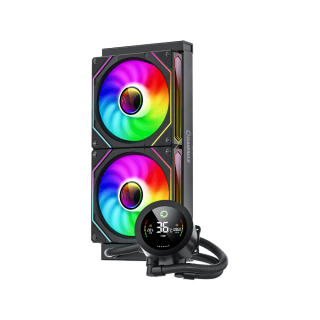

GameMax IceBurg 240V Digital BK, Liquid CPU Cooler 240mm Addressable ARGB Pump Fans 245W TDP AIO Water Cooler
