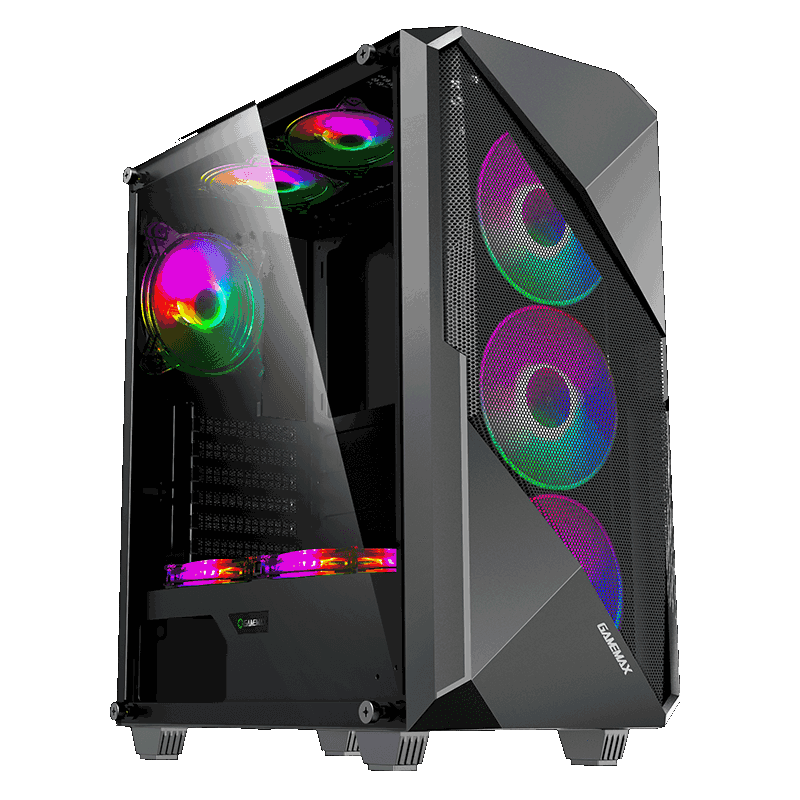

Revolt ARGB Gaming Gehäuse – Mid-Tower mit beeindruckender Kühlleistung
• Optimierte Kühlung: Vollständig mesh Front und seitliche Lüftungsschlitze für hervorragende Belüftung.
• ARGB-Beleuchtung: Über 100 Lichteffekte steuerbar via PWM- und ARGB-Hub oder direkt über das Motherboard.
• Präsentation deiner Komponenten: Gehärtetes Glas-Seitenpanel für einen klaren Blick auf deine Hardware und Beleuchtung.
• Flexibles Design: Platz für bis zu 8 Lüfter und Unterstützung für Aura SYNC zur Steuerung durch die Motherboard-Software.
| Factory #3606 (Revolt) | SPECIFICATION | |
| Form Factor (Midi, Micro, Mini ITX, Full) | Midi ATX Tower | |
| Chassis | SPCC : 0.5mm | |
| PSU Form Factor | Bottom/ATX | |
| M/B Form Factor | ATX、M-ATX、E-ATX (no Fan on front) | |
| Front Panel | ABS | |
| Top Panel | Metal cover | |
| Branding | Box | GameMax standard |
| Unit | 1 | |
| Side Panel | Left | Tempered Glass |
| Right | metal cover | |
| External Drive Bay(s) | 5.25" (ODD) | *0 |
| 3.5" | *0 | |
| Internal Drive Bay(s) | 3.5" (HDD) | *2 |
| 2.5" (SSD) | *2 | |
| I/O CONFIG | Buttons | *2 |
| USB2.0 Port(s) | *1 | |
| USB3.0 Port(s) USB3.1 GEN1 | *1 | |
| HD Audio Support | *1 | |
| Card Reader (Support) | *0 | |
| P-Lock | *0 | |
| RGB Controller | *1 | |
| Controller max. fans | *5 ARGB and 3pin fan power | |
| RGB Controller max. LED strips | *2 | |
| Remote (IR or RF) | *Top ARGB switch | |
| Cooling Fan Support | Front | 3 x 120mm ARGB FN-12N-Rainbow-T Fan(Included) |
| Top | 2x120mm ,2x140mm (optional) | |
| Rear | 1x120mm ARGB FN-12N-Rainbow-T Fan (Included) | |
| Left Side | 0 | |
| PSU Cover | 2x120mm (Fan optional) | |
| Water Cooling Support (Radiator Size) | Front | 120mm, 140mm,240mm,280mm,360 |
| Top | 120mm,240mm | |
| Rear | 120mm*1 | |
| Dust Cover | Bottom and top cover with dust filter | |
| Slots | *7 | |
| Carton Logo | GAMEMAX | |
| Dimensions | Chassis | (L)360*(W)210*(H)440mm |
| Full Case (inc Fascia) | (L)421*(W)210*（H)460mm | |
| Carton | (L)*(W)*（H)mm | |
| Net Weight (Kg) | 5.5kgs | |
| Gross Weight (Kg) | 6.6kgs | |
| VGA Card Length | up to 340mm | |
| CPU Cooler Height | 170mm | |
| Cable Management Depth | 22mm | |
