G563

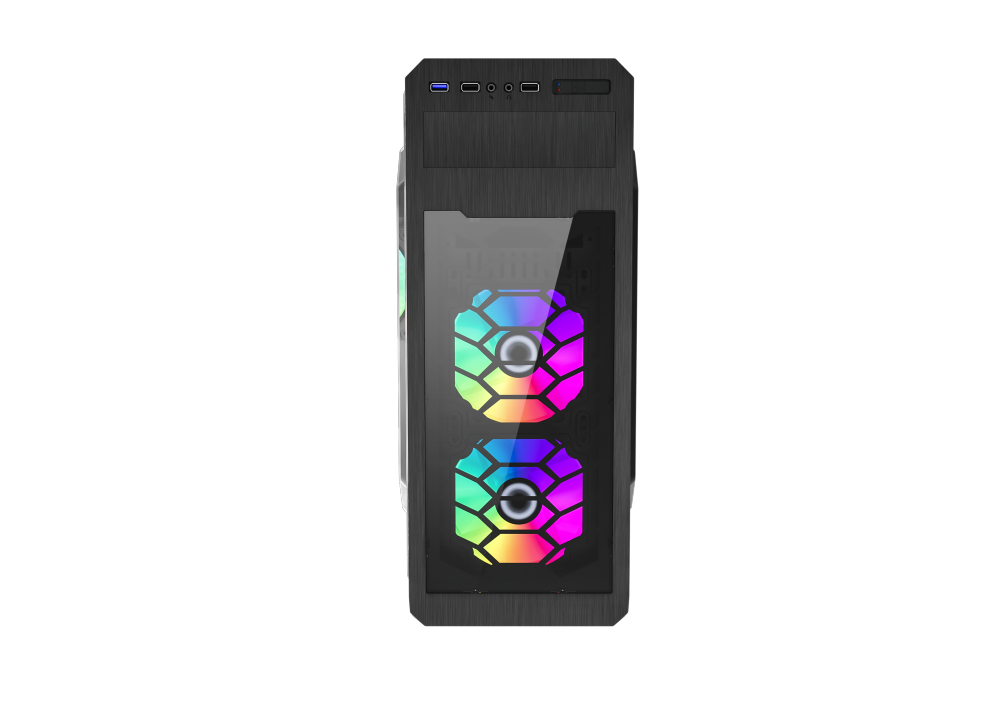

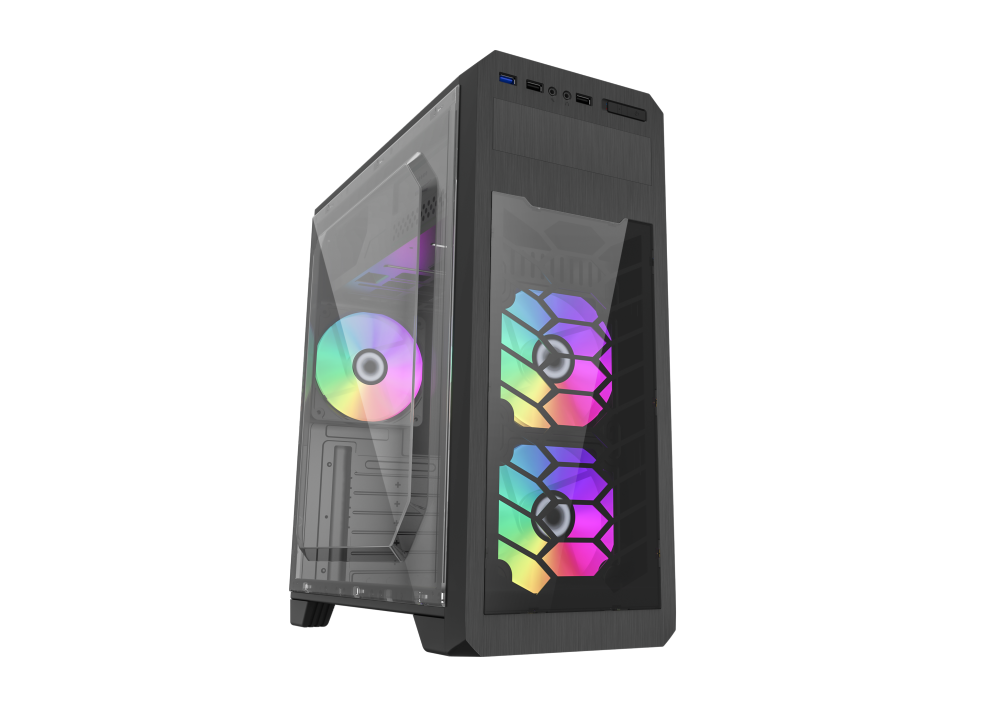

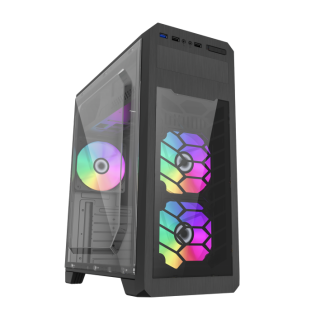

GameMax new Eco Gaming mid-tower with USB3.0 high-speed transfer, and see trough transparent front and side frameless Acrylic window
G563 model included 3x FRGB fan (fixed RGB colors fan)pre-installed, for best cooling airflow and get nice blue lighting for gaming factor

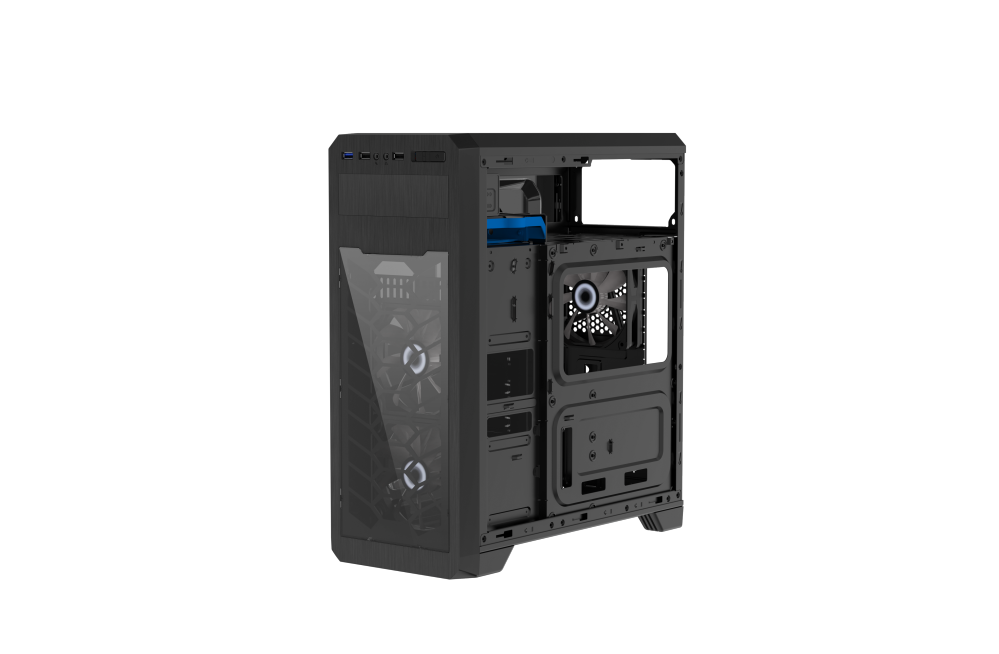

The tool-less HDD cage which easy for the user for install HDD and hand screw for maintaining gaming system components quickly, Specifically, there is top covered PSU cage, which makes PSU hidden looking and all cables in backlit management, to get clean inside once PC assembled.

Form Factor (Midi, Micro, Mini ITX, Full)ATX,Micro, Mini ITX
ChassisSPCC 0.5mm, Black painting interior
PSU Form FactorTOP/ATX
M/B Form FactorATX、M-ATX、ITX
Front PanelAcrylic
Top Panelmetal cover
BrandingBoxGAMEMAX
Unit1
(Unit) PositionOriginal
Side PanelLeftFrameless Full Transparent panel
RightMetal cover
External Drive Bay(s)5.25" (ODD)*1
3.5"*0
Internal Drive Bay(s)3.5" (HDD)*2
2.5" (SSD)*2
I/OButtons*2
USB1.1 Port(s)*0
USB2.0 Port(s)*2
USB3.0 Port(s)*0
USB3.1 Port(s)*0
HD Audio Support*1
Card Reader (Support)*0
Fan Controller*0
RGB Controller*0
Controller max. fans*0
RGB Controller max. LED strips*0
Remote (IR or RF)*0
Cooling Fan  SupportFront2x120mm  (Fan optional)
Top0
Rear1x120mm (Fan optional)
Left Side0
PSU Cover0
Water Cooling Support
(Radiator Size)
FrontWater cooling 240mm*1
Top/
RearWater cooling 120mm*1
Dust Cover*1 For PSU
Slots*7
Carton LogoGAMEMAX
DimensionsChassis(L)370*(W)180*(H)427mm
Full Case (inc Fascia)(L)418*(W)200*(H)452mm
Carton(L)494*(W)236*(H)468mm
Net Weight (Kg)4.0kgs
Gross Weight (Kg)4.8kgs
VGA Card Length360mm
CPU Cooler Height156mm
Cable Management Depth23mm
PSUIncluded*0
Wattage/
80Plus Category/
Rail Outputs/
MOQTBD
Q'ty40HQ:1208pcs    40GP:1112pcs    20GP:556pcs                                       With pallet(1M*1.2M*1.2M,40pcs/Pallet ):40HQ:1050pcs; 40GP:840pcs; 20GP:400pcs
