• All New GameMax Design - Features a bold lion-inspired theme with claw mark details across the mesh and chassis, delivering superior airflow and a striking aesthetic.
• Versatile Hardware Support - Compatible with M-ATX motherboards, 330mm GPUs, 160mm ATX PSUs, 155mm air coolers, and supports top 240mm and front 360mm radiators.

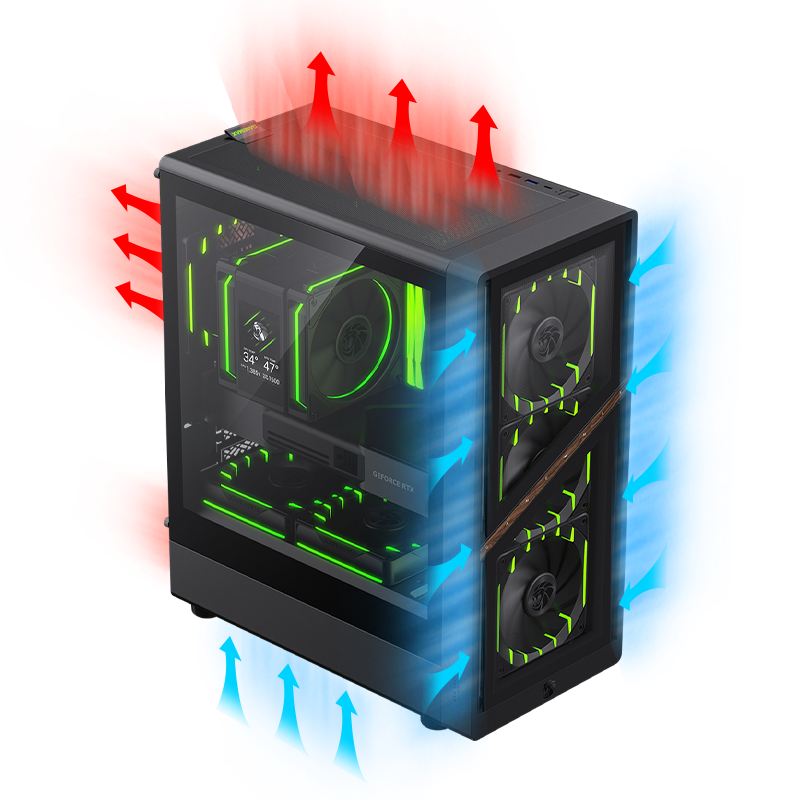

• Superior Thermal Performance - High-airflow mesh front panel and vertical airflow layout ensure efficient heat dissipation during intense gaming and heavy workloads.
• Comprehensive Cooling Options - Supports up to 8x 120mm fans, with 4 pre-installed 120mm ARGB/PWM fans and an ARGB/PWM hub for optimized airflow and synchronized lighting..
• Modern I/O Panel - Equipped with a TYPE-C port, 1x USB 3.0, 1x USB 2.0, and combo audio jack for fast connectivity and future-ready expansion.
• Multi-storage installation- supports up to 3 x 3.5 HDD + 2 x 2.5 SSD or 5 x 2.5 SSD + 1 x 3.5 HDD for versatile storage setups
Form Factor: | Mini Tower | |
Chassis: | SPCC :0.4mm | |
PSU Form Factor | Bottom/ATX | |
M/B Form Factor: | M-ATX、ITX | |
Front Panel: | Plastic + Mesh | |
Top Panel: | Metal | |
Side Panel: | Left: | Tempered Glass |
Right: | Metal cover | |
External Drive Bay(s): | 5.25”(ODD): | *0 |
3.5”: | *0 | |
Internal Drive Bay(s): | 3.5" (HDD): | 1*3.5HDD+5*2.5SSD or 2*3.5HDD+3*2.5SSD or 2*3.5HDD+4*2.5SSD or 3*3.5HDD+2*2.5SSD |
2.5" (SSD): | ||
I/O: | Buttons: | *2 |
USB 2.0 Port(s): | *1 | |
USB 3.0 Port(s): | *1 | |
Type C Port(s): | *1(U3) | |
Audio Support: | *1(Combo AUDIO) | |
Card Reader (Support): | *0 | |
P-Lock： | *0 | |
RGB Controller： | *1(6Ports PWM ARGB HUB) | |
Controller Max Fans: | *6 | |
RGB Controller max. LED strips： | *6 | |
Remote (IR or RF)： | *0 | |
Cooling Fan Support: | Front: | 3x120mm (Tornado T12 ARGB) |
Top: | 3x120mm ,2x140mm (Fan optional) | |
Rear: | 1x120mm (Tornado T12 ARGB) | |
Bottom: | *0 | |
M/B Cover： | *0 | |
PSU Cover： | *2x120mm (Fan optional) | |
Water Cooling Support (Radiator Size): | Front: | 120mm, 140mm,240mm,280mm,360mm |
Top: | 120mm, 140mm,240mm | |
Rear: | 120mm | |
M/B Cover： | *0 | |
Dust Cover: | Dust mesh on the top and bottom | |
Slots: | *5 | |
Carton & Logo: | GAMEMAX | |
Dimensions: | Chassis: | (L)340*(W)200*(H)436mm |
Full Case (Inc Fascia): | (L)386*(W)200*(H)449mm | |
Carton: | (L)486*(W)255*(H)433mm | |
Net Weight(kg): | 6.3 | |
Gross Weight(kg): | 7.25 | |
VGA Support: | up to 330mm | |
Vertical Graphics Support | No | |
CPU Cooler Height: | up to 155mm | |
SPS Length: | up to 160mm | |
Cable Management Depth: | 19mm | |
