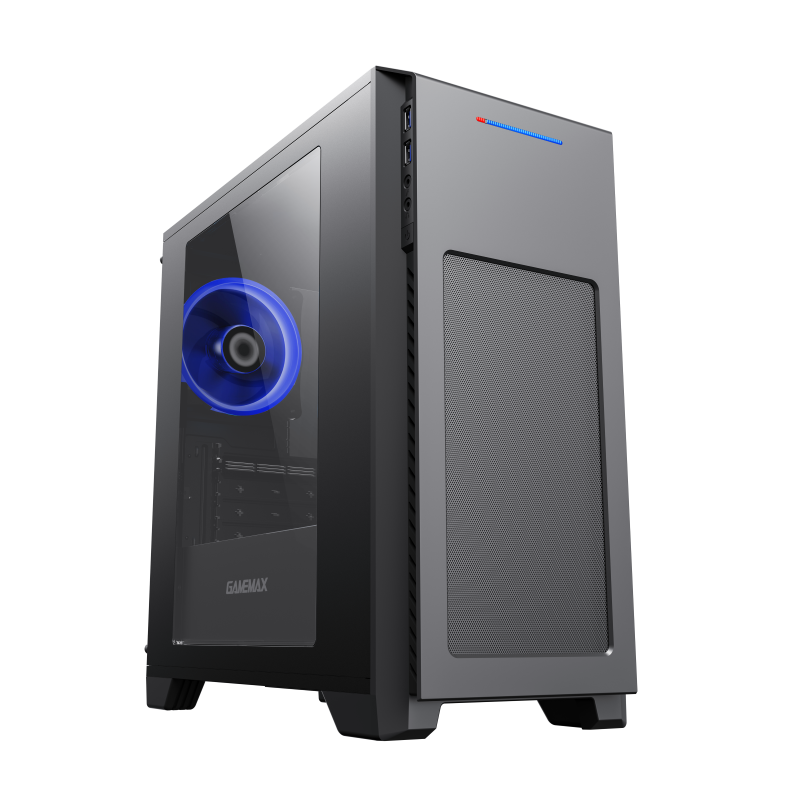

GameMax Micro gaming computer case, the M63 Mini Tower is a compact PC case made for Maximum cooling, it is a micro ATX Chassis with a simple and stylish mesh front and top panel flat design
• Improved airflow intakes from the front panel by mesh design, and the inside chassis has a richer space to install more components, complete with a transparent window side
• Dual internal layout optimized for maximum airflow or advanced water-cooling
• Don't let the compact size fool you see, this little one handles full size components while still offering roomy installation space.
| Form Factor (Midi, Micro, Mini ITX, Full) | Micro Case | |
| Chassis | SPCC 0.6mm mixed Black painting interior | |
| PSU Form Factor | BOTTOM/ATX | |
| M/B Form Factor | M-ATX、ITX | |
| Front Panel | ABS,mesh | |
| Top Panel | metal cover | |
| Side Panel | Left | metal cover |
| Right | Acrylic Transparent window | |
| External Drive Bay(s) | 5.25" (ODD) | *0 |
| 3.5" | *0 | |
| Internal Drive Bay(s) | 3.5" (HDD) | *2 |
| 2.5" (SSD) | *2 | |
| I/O | Buttons | *1 |
| USB2.0 Port(s) | *0 | |
| USB3.0 Port(s) | *0 | |
| USB3.1 Port(s) | *2 | |
| HD Audio Support | *1 | |
| Card Reader | *0 | |
| P-lock | *0 | |
| RGB Controller | *0 | |
| Controller max. fans | *0 | |
| RGB Controller max. LED strips | *0 | |
| Remote (IR or RF) | *0 | |
| Cooling Fan Support | Front | 3x120mm (Fan optional) |
| Top | 0 | |
| Rear | 1x120mm (Fan included) | |
| Left Side | 0 | |
| PSU Cover | 0 | |
| Water Cooling Support (Radiator Size) | Front | water cooling 120mm*1,240mm*1 |
| Top | 0 | |
| Rear | water cooling 120mm*1 | |
| Dust Cover | Bottom | |
| Slots | *4 | |
| Carton & Logo | GAMEMAX | |
| Dimensions | Chassis | (L)350*(W)188*(H)380mm |
| Full Case (inc Fascia) | (L)393*(W)188*（H)405mm | |
| Carton | (L)439*(W)245*（H)470mm | |
| Net Weight (Kg) | 3.6kgs | |
| Gross Weight (Kg) | 4.5kgs | |
| VGA Card Length | 340mm | |
| CPU Cooler Height | 155mm | |
| Cable Management Depth | 20mm | |
