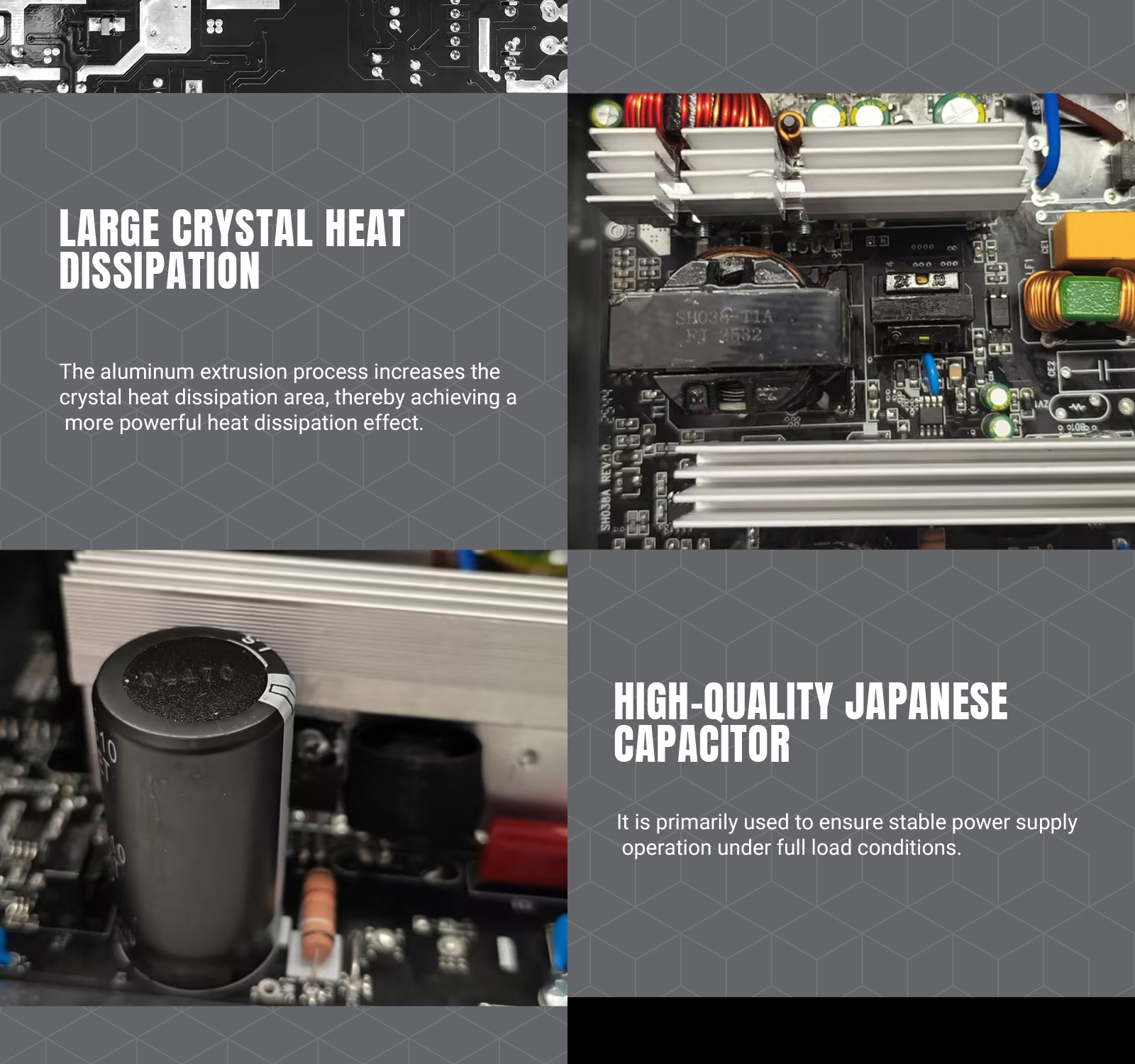

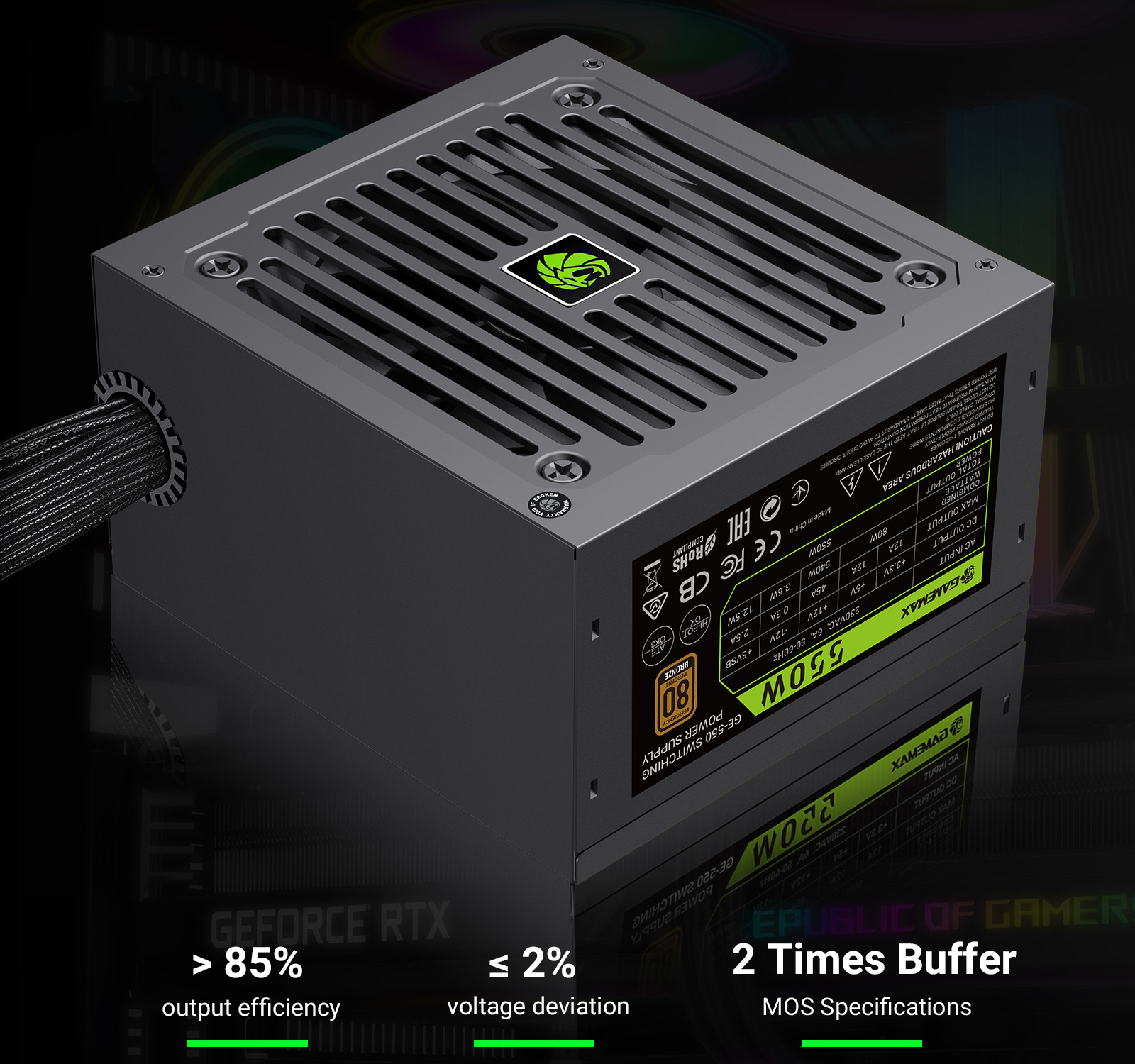

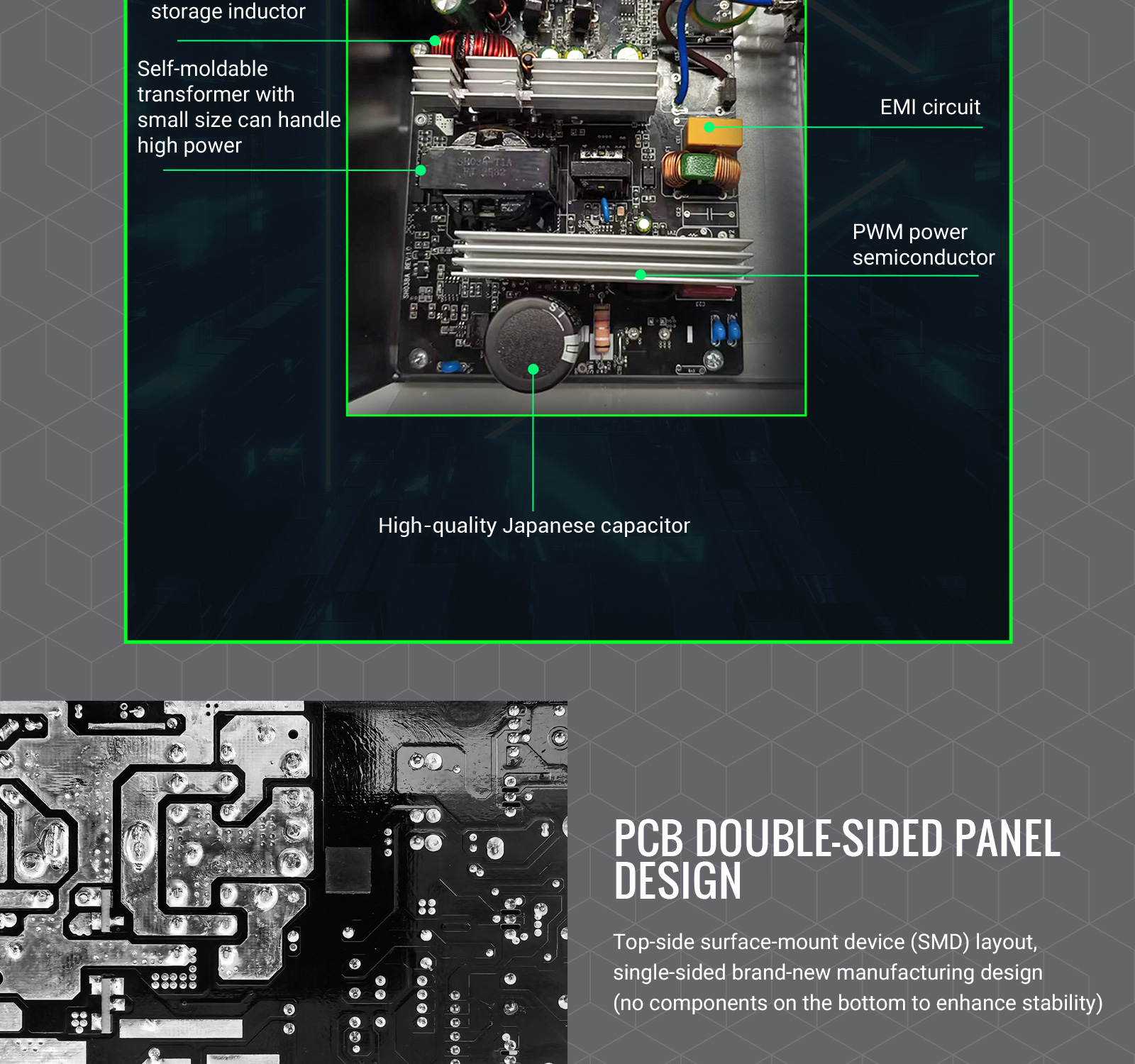

Gamemax GE range ECO 550W ATX3.1 80PLUS Certified High Efficiency Quiet Power Supply.• Save Energy & Costs – 85% efficiency with Double-forward technology.• Stable & Powerful – Single +12V rail for high-performance CPUs/GPUs.• Clean & Reliable Power – DC-DC module ensures stable voltage and low noise.• Total Protection – Built-in OVP, UVP, OCP, SCP, OTP, OPP safeguards your system.• Adopts high-grade Japanese capacitors to deliver stable continuous power output.
Detailed Specifications

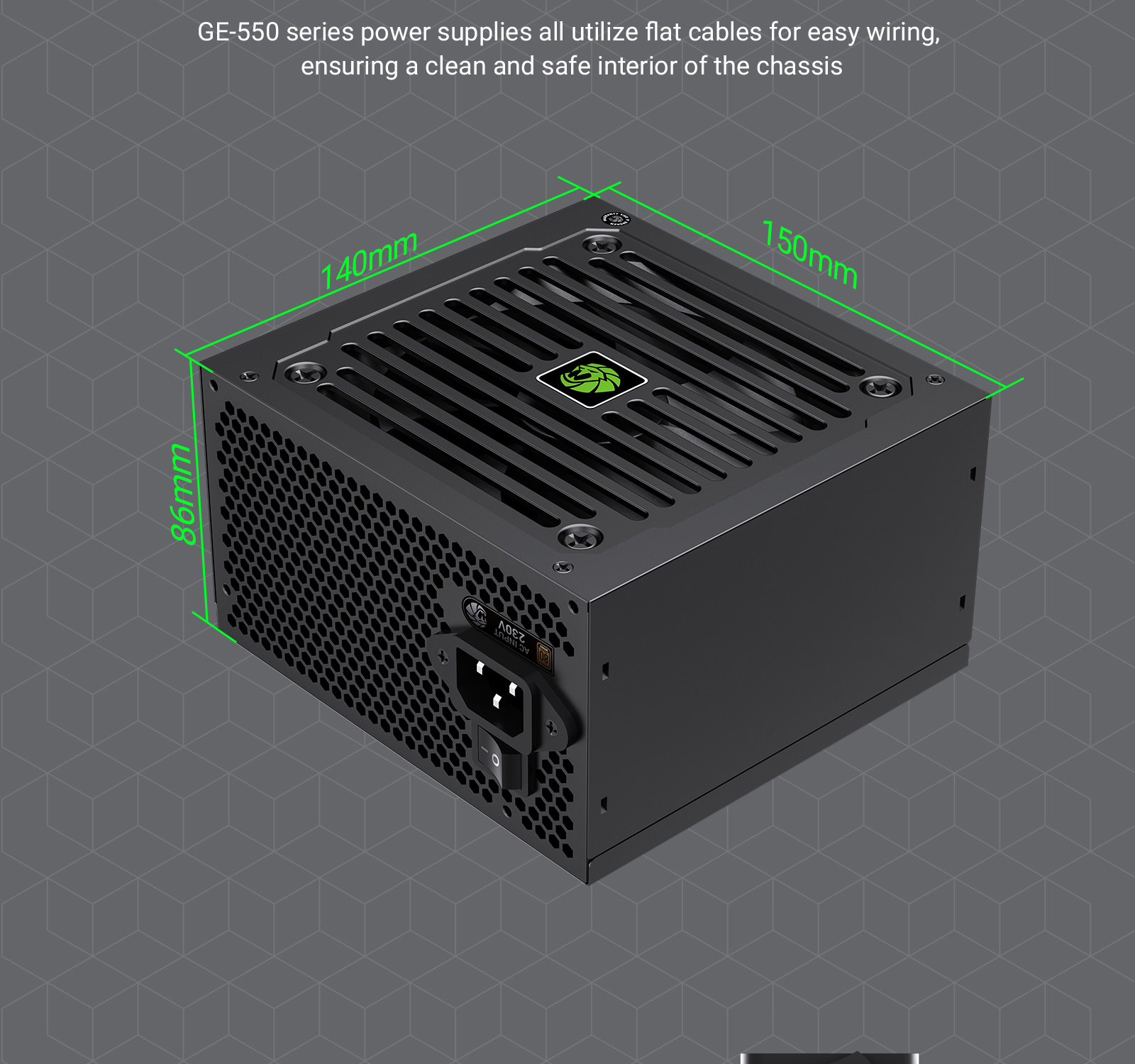

| Dimensions: | 150mm x 86mm x 140mm (W x H x D) |
| Input Voltage: | 230 VAC |
| Input Current: | 6A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Double-forward |
| Power Good Signal: | 100-150 ms |
| Hold Up Time: | >10ms |
| Efficiency: | > 82% (88% max) |
| MTBF: | > 100,000 Hours |
| Protection: | OPP / OVP/ UVP / OCP/ SCP / OTP / NLO / SIP / OLP |
| Power: | 550W |
| Operation Temperature: | 0-40C |
| Safety: | CE / FCC / CB |

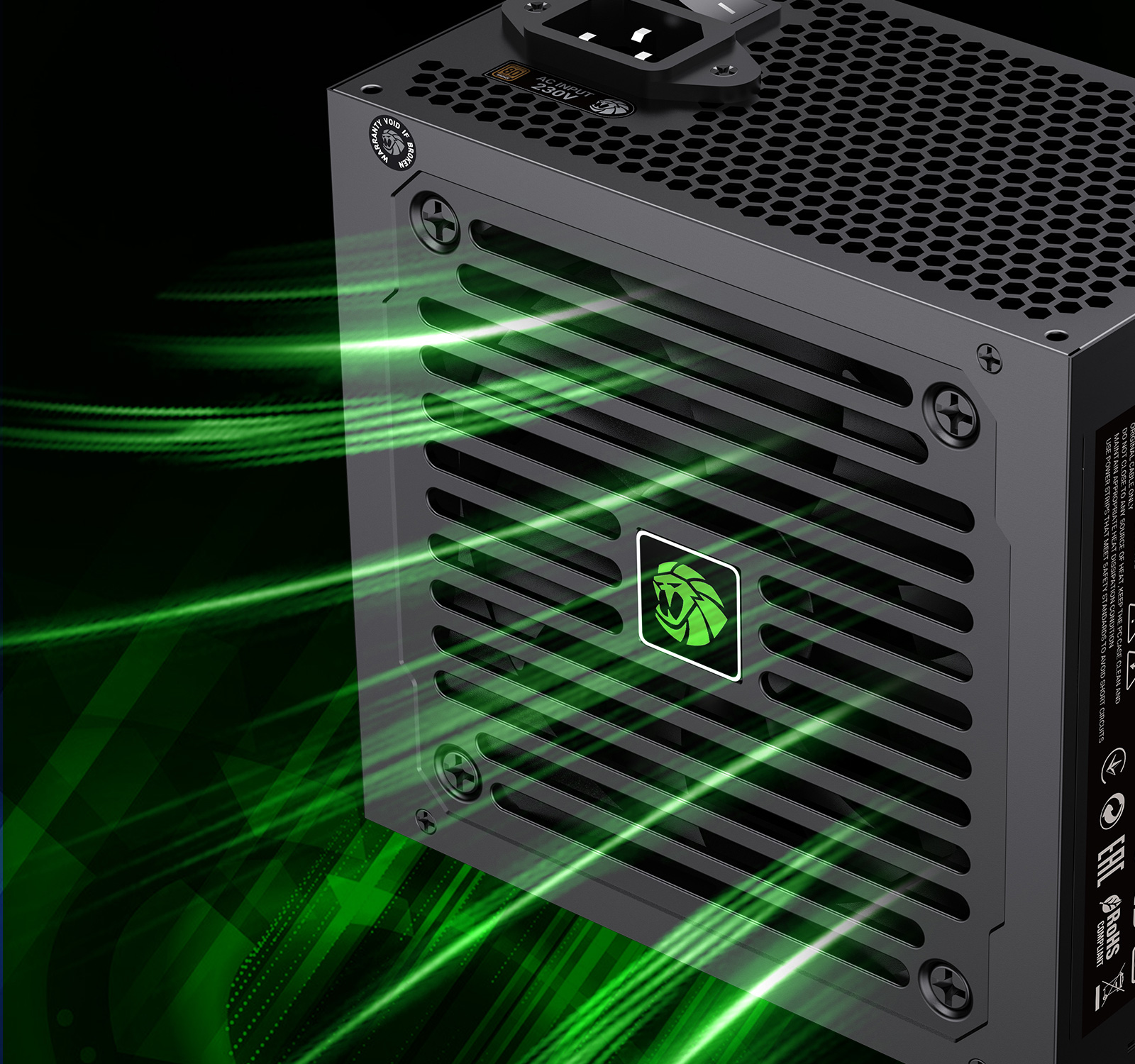

| Cooling: | 120mm Ultra Silent Fan |
| Noise: | <35dBa |
| 80 Plus Certified: | / |
