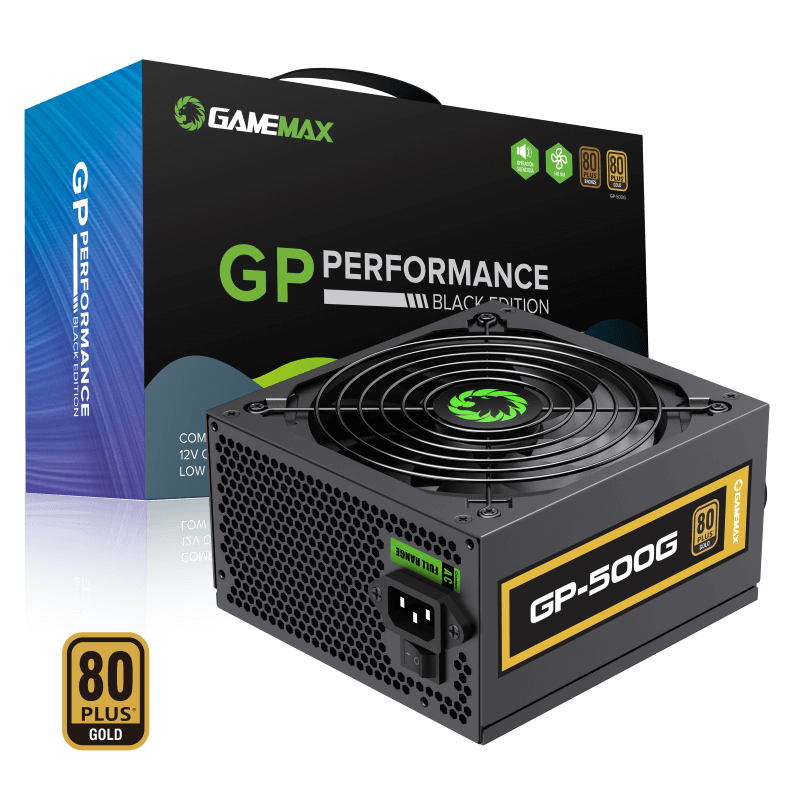

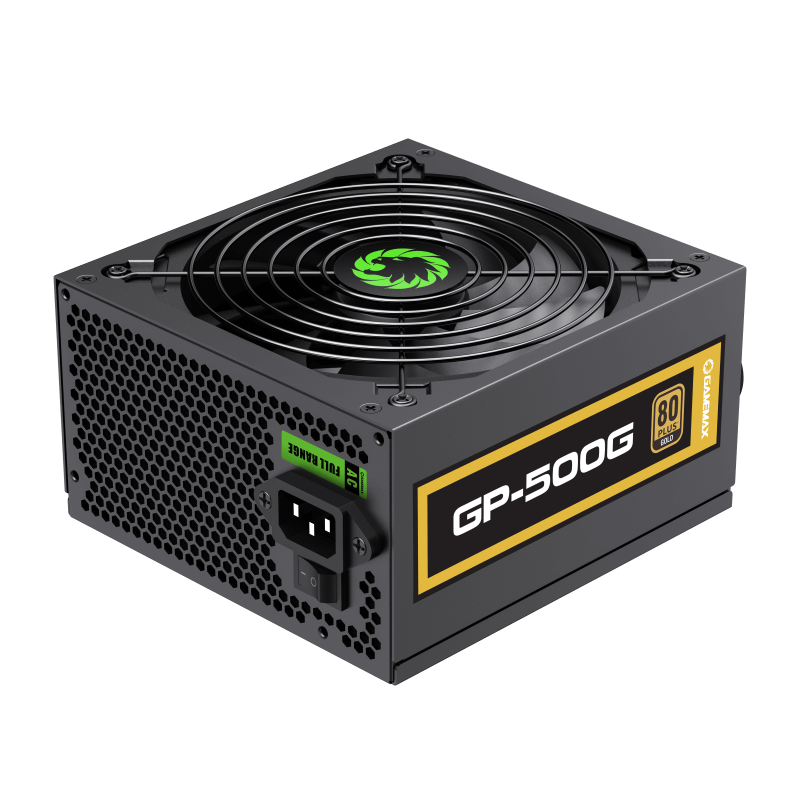

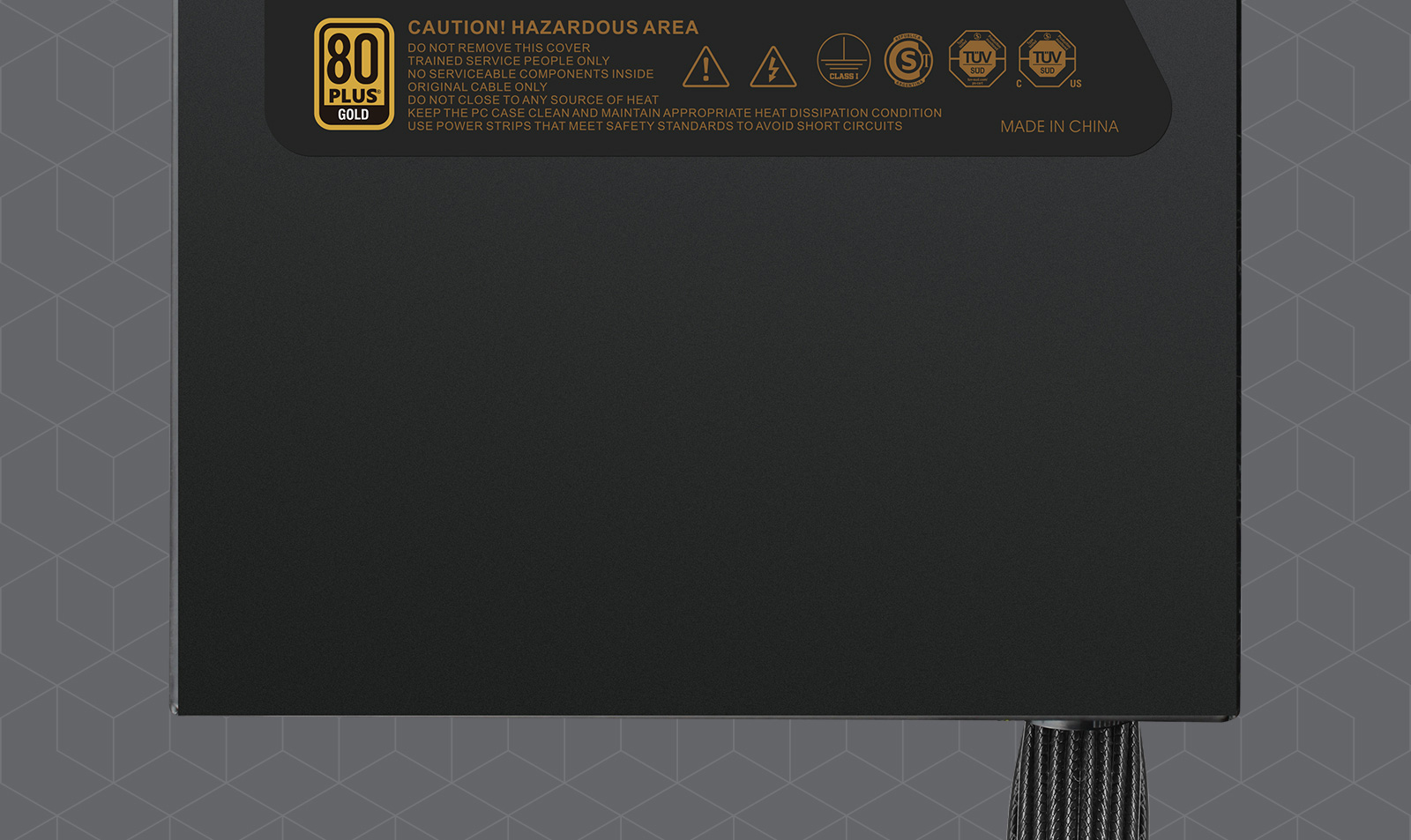

• GP-500G 80+ Gold ATX Power Supply: An innovative Gold class product based on a platinum class design.

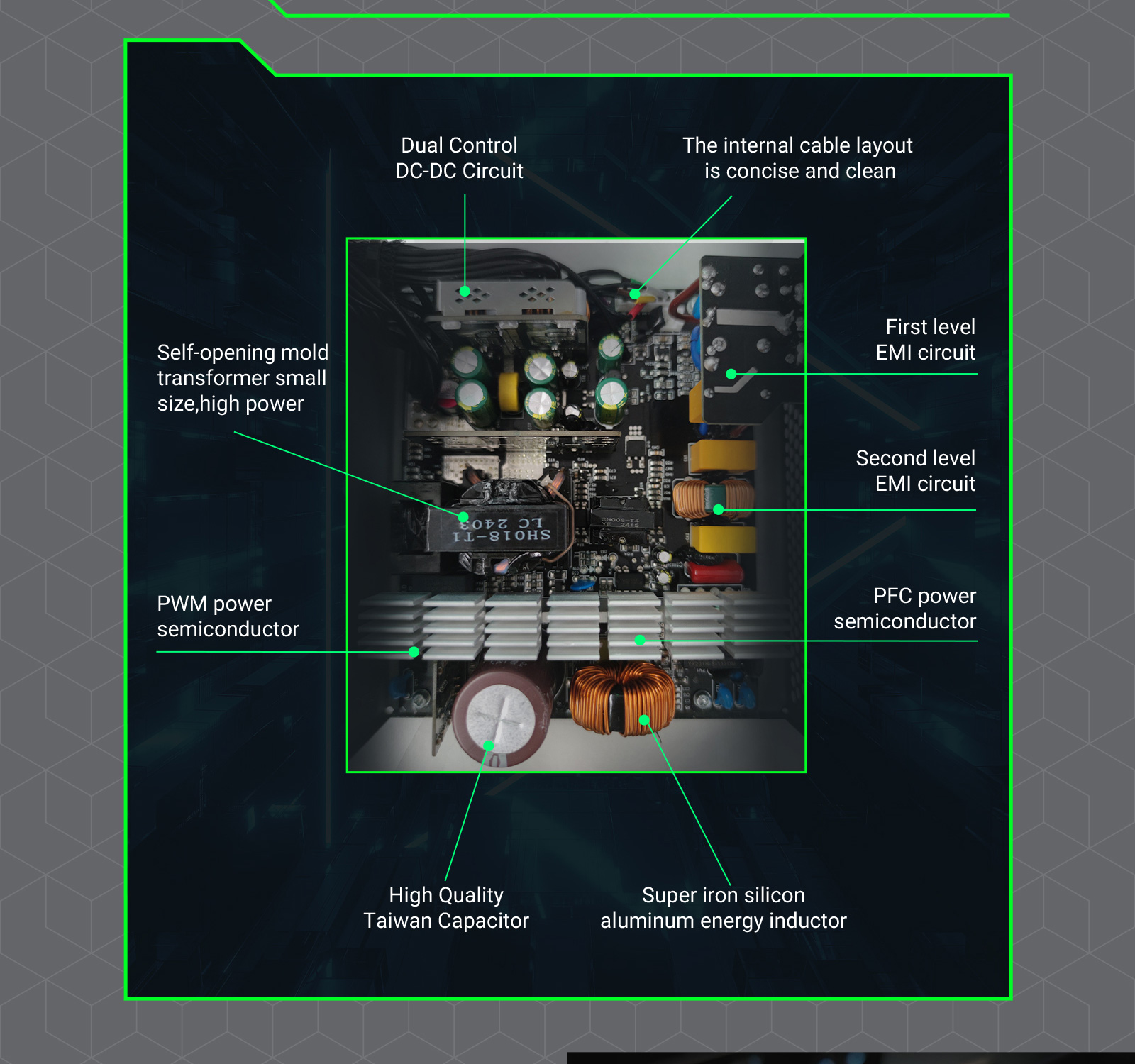

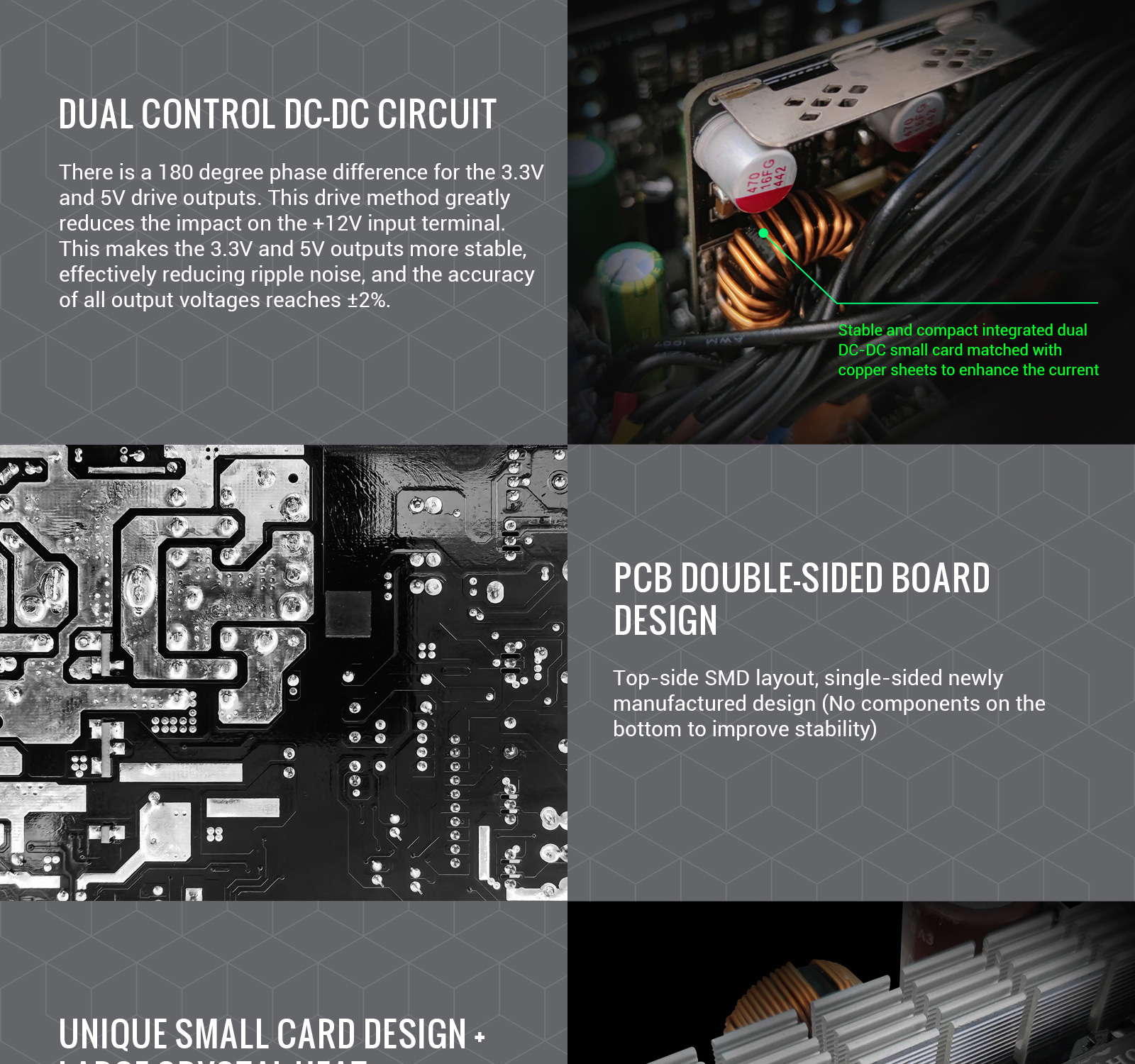

• High Efficiency: LLC and DC-DC circuits with 91% efficiency, 80+ Gold certification.

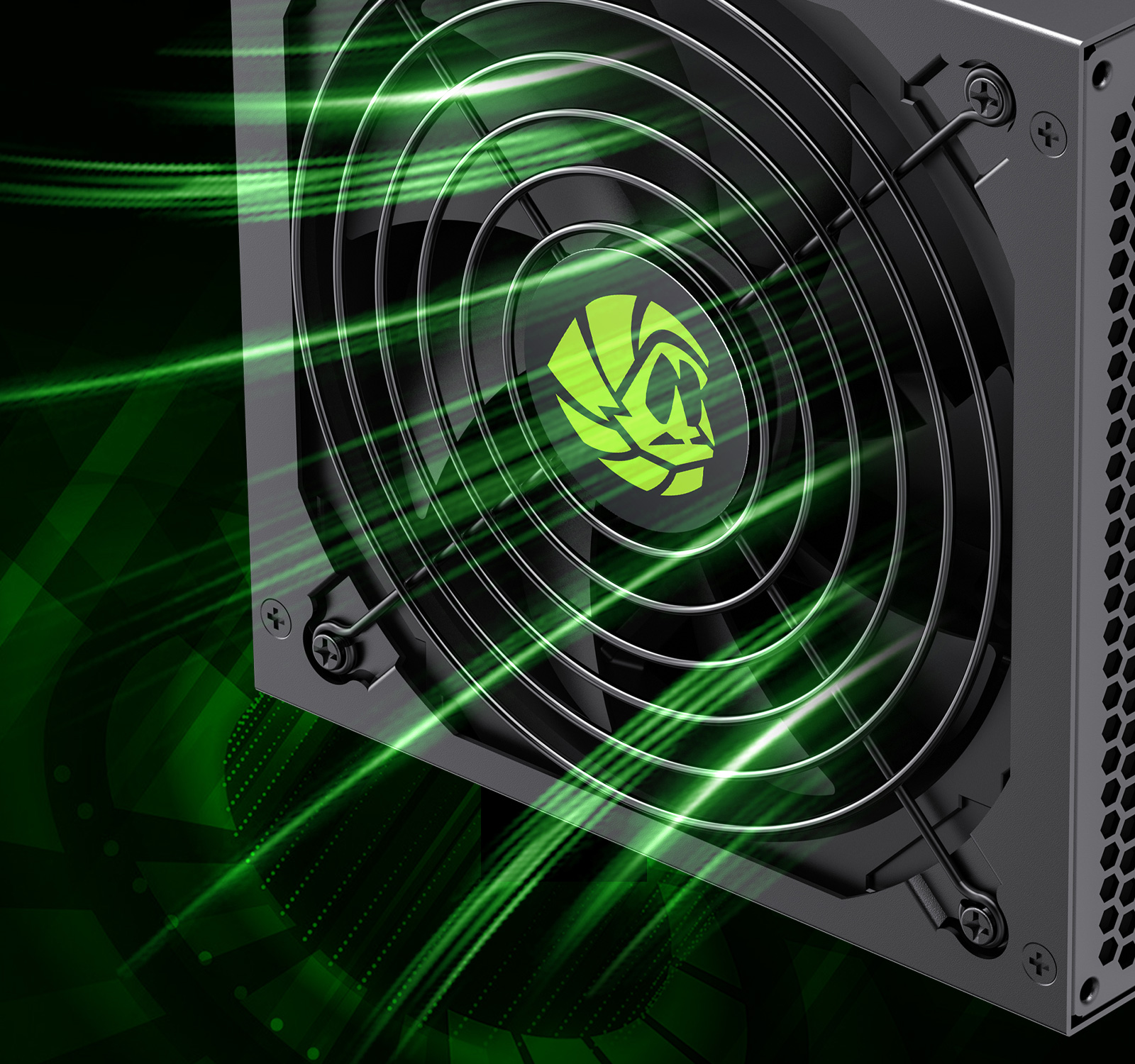

• Smart Cooling: HDB fan with intelligent control reduces heat and noise.
• Wide Voltage Support: AC100-240V with active PFC, LLC resonance, and DC-DC technology.

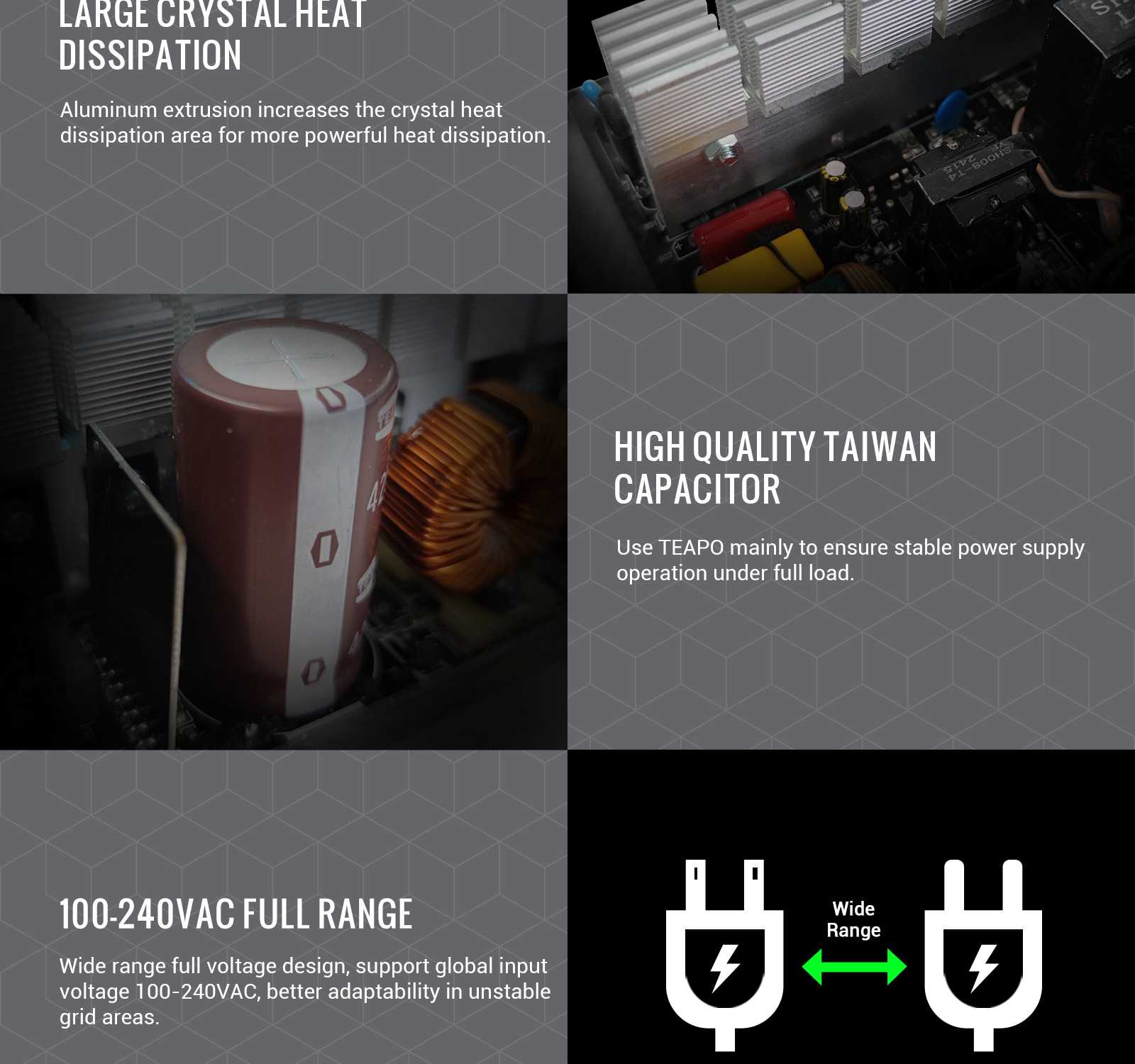

• Quality Capacitors: 105°C Taiwan capacitors ensure long-lasting, stable output.
• Comprehensive Protection: OVP, UVP, OPP, OCP, SCP, OTP for full safety.
• Flat Cables: All-black copper cables with efficient performance and better heat dissipation.
PSU Specifications
| AC INPUT: 100-240 VAC 15-5A 50-60Hz | ||||||
| DC Output Max | +3.3V | +5V | +12V1 | +12V2 | -12V | +5VSB |
| 20A | 20A | 40A | - | 0.5A | 2.5A | |
| 500W | ||||||
Detailed Specifications
| Dimensions: | 158mm x 85mm x 150mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 15-5A |
| Input FrequencyRange: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-500 ms |
| Hold Up Time: | >10ms |
| Efficiency: | > 90% |
| MTBF: | > 100,000 Hours |
| Protection: | OVP / UVP/ SIP / OCP/ OLP/ OPP/ SCP |
| Power: | 500W |
| Operation Temperature: | 0-40C |
| Safety: | CE/FCC/CB |
| Cooling: | 120mm Ultra Slient Fan |
| Noise: | <25dba<> |

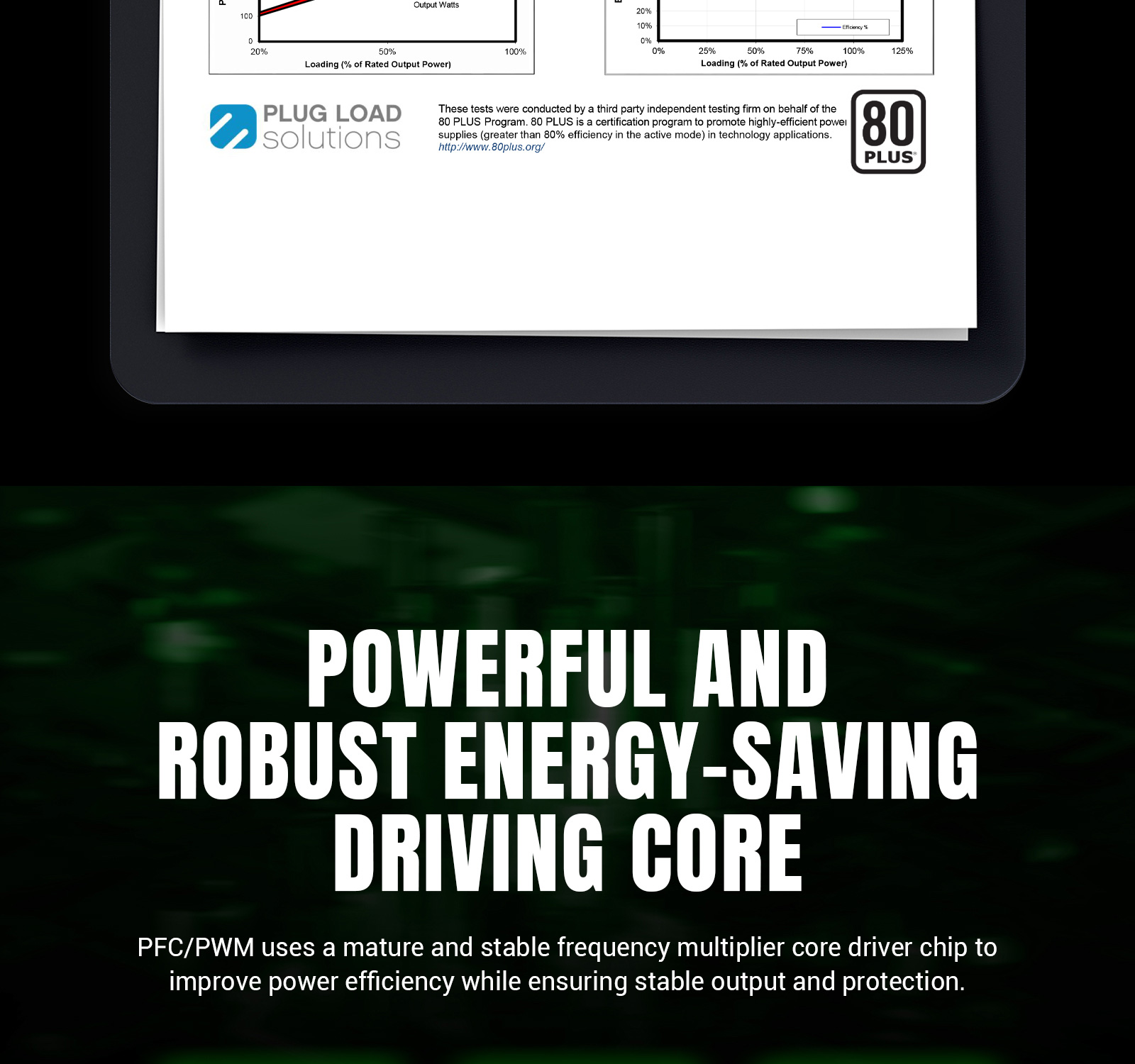

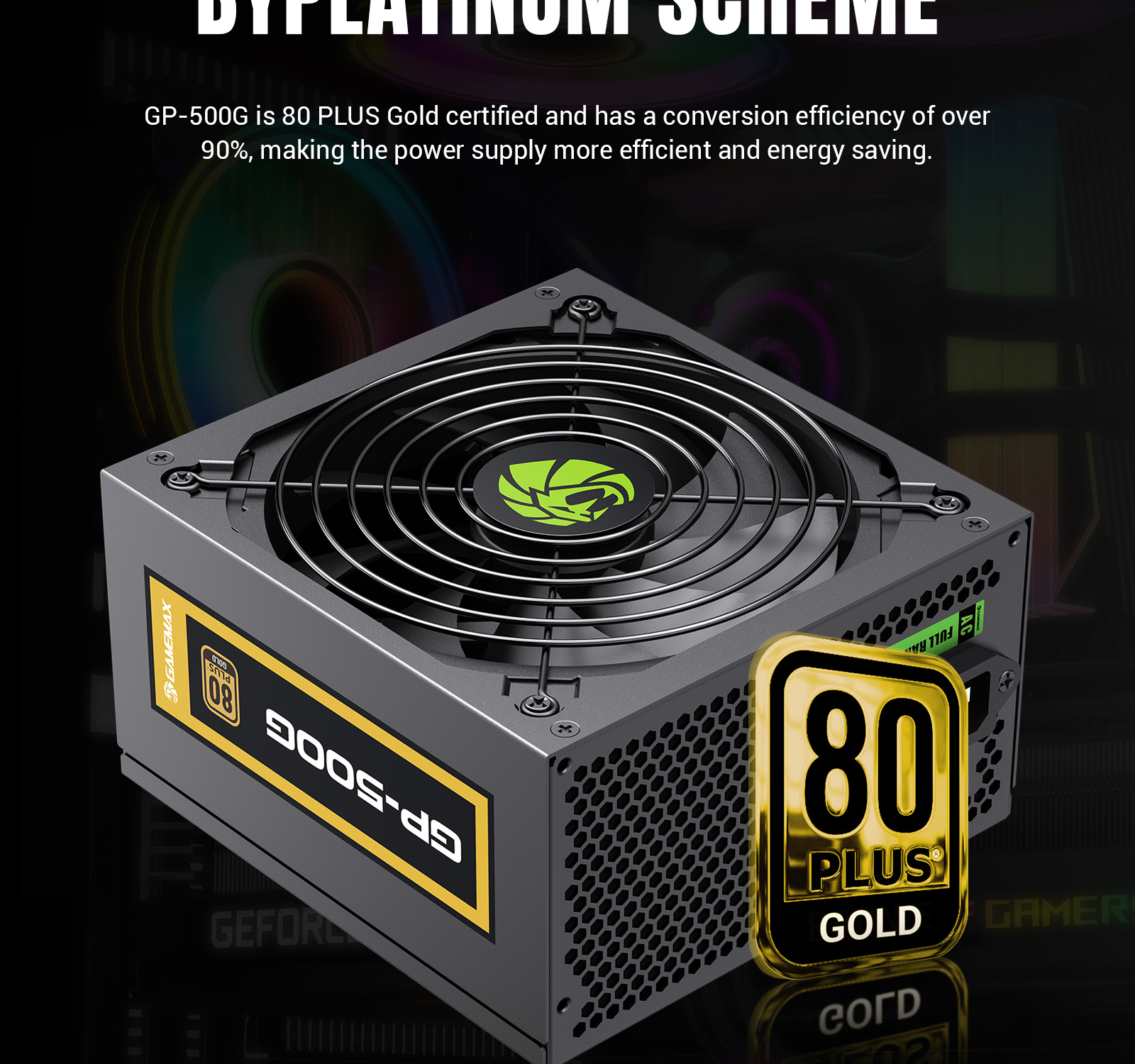

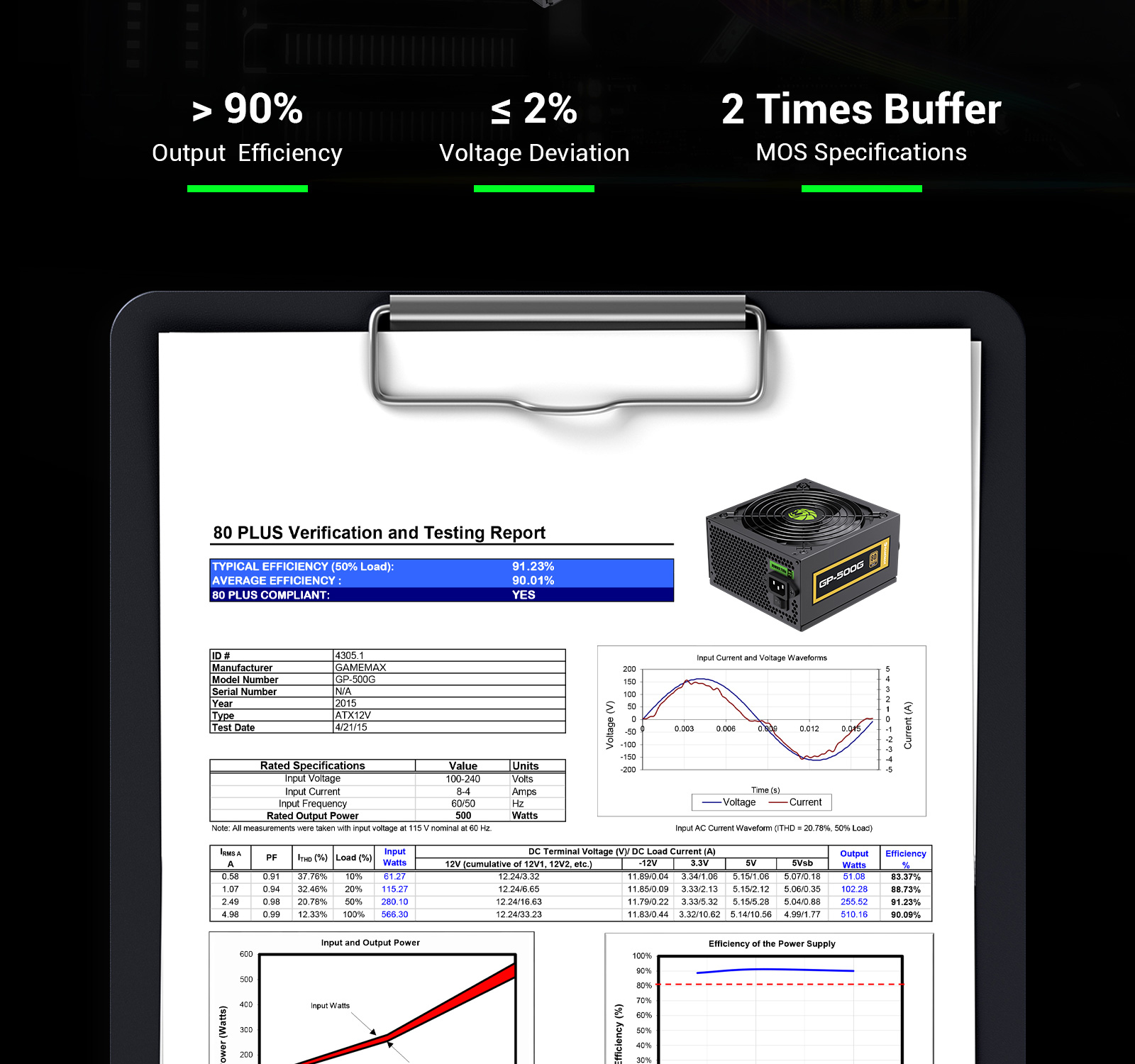

| 80 Plus Certified: | Yes - 80 Plus Gold |
