GAMEMAX GX PRO 1600W 80+ Titanium Certified ATX 3.1 Power Supply

GX PRO 1600T

GAMEMAX GX PRO 1600T 80+ Titanium Certified ATX 3.1 Power Supply, 1600W Fully Modular PSU with 13.5cm FDB Fan, Japanese 105°C Capacitors, PCIe 5.1 12V-2x6 Connectors, 10-Year Warranty for RTX 40/50 Series GPUs• 80 PLUS Titanium Certified: Ultra-high efficiency, low noise, stable performance for high-end systems
• ATX 3.1 & PCIe 5.1 Ready: Dual native 12V-2x6 connectors, optimized for next-gen RTX 40/50 GPUs
• 13.5cm FDB Smart Fan: Intelligent temperature control, ultra-quiet operation at low loads
• Japanese 105°C Capacitors: Premium components for extreme durability and long lifespan
• Fully Modular & Wireless PCB: Reduced internal wiring, enhanced reliability, improved airflow
• Full Circuit Protection: Multi-layer safety + EMI filtering, anti-burn design for hardware security
• Embossed Flat Cables: Neat cable management, clean chassis build, better airflow

Where to Buy

OVERVIEW TECH-SPECS REVIEW-DOC

...

GX PRO 1600T

1600W PSU

80+ Titanium

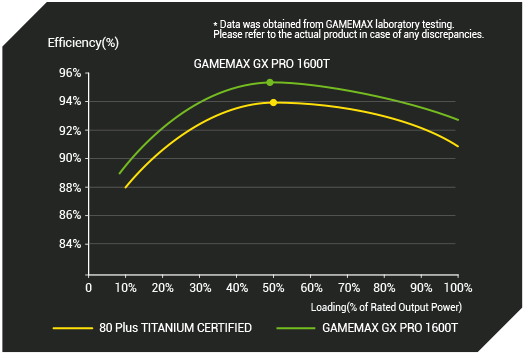

8OPLUS TITANIUM CERTIFIED

Designed based on 80 PLUS Titanium and the Cybenetics Titanium certification, this PSU ensures exceptional efficiency, low noise, and consistent performance.

13.5CM FDB FAN AND INTELLIGENT TEMP CONTROL

FDB fans utilize intelligent temperature control technology to automatically slow down at low loads to reduce wind noise.

ATX 3.1READY FOR NEXT-GEN GPUS

ATX3.1 and PCle5.1 ready with Double native 12V-2x6 connector for seamless Double RTXT 40/50 series GPU connections and reduced current loss.

COMPREHENSIVE CIRCUIT PROTECTION

Provides safety measures with multiple protection technologies including overload, overvoltage, undervoltage, overcurrent, short circuit, over-temperature protection, and so on. Ensure the stability of computers and hardware while preventing damage and interference.

HIGH-QUALITY JAPANESE MAIN CAPACITORS

The GX PRO 1600T uses high-quality Japanese capacitors with a high temperature tolerance of up to 105°C.

EMI PROTECTION & ANTI-BURN CIRCUIT

Robust EMl filtering in two stages protects against spikes, surges, noise,and interference. An NTC thermistor and relay safeguard against short circuits and abnormal currents.

WIRELESS TECHNOLOGY

The fully modular design uses wireless technology with pin and high-density copper pillars for wireless connections on the PCB.This reduces internal wiring, enhances connection reliability and space utilization,increases cooling airflow, and extend scomponent lifespan.

FULLY MODULAR DESIGN & EMBOSSED FLAT CABLES

Fully modular design with ample power connectors supports dual CPUs or three 8-pin connectors for flagship GPUs. Embossed flat cables ensure neat and aesthetically pleasing cable management.

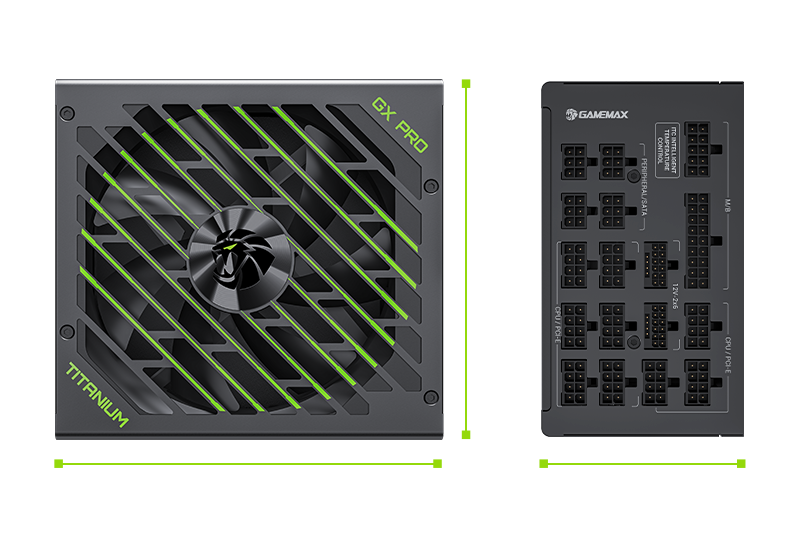

PSU DIMENSION

The product displays on the above pages are for reference only, may have slight differences from the actual products, and the actual products shall prevail in all cases.

Item	Specification
Model	GAMEMAX GX PRO 1600T
Certification	80 PLUS Titanium
Standard	ATX 3.1, PCIe 5.1 Ready
Max Output	1600W
Fan	13.5cm FDB (Fluid Dynamic Bearing) with Intelligent Temp Control
Capacitors	High-quality Japanese 105°C capacitors
Modularity	Fully Modular
GPU Connectors	Dual native 12V-2x6 (PCIe 5.1)
Protection	OPP, OVP, UVP, OCP, SCP, OTP, NLO, SIP, OLP
EMI Protection	2-stage robust EMI filtering, anti-burn circuit with NTC thermistor
PCB Technology	Wireless connection with pin & high-density copper pillars
Cable Type	Embossed flat cables

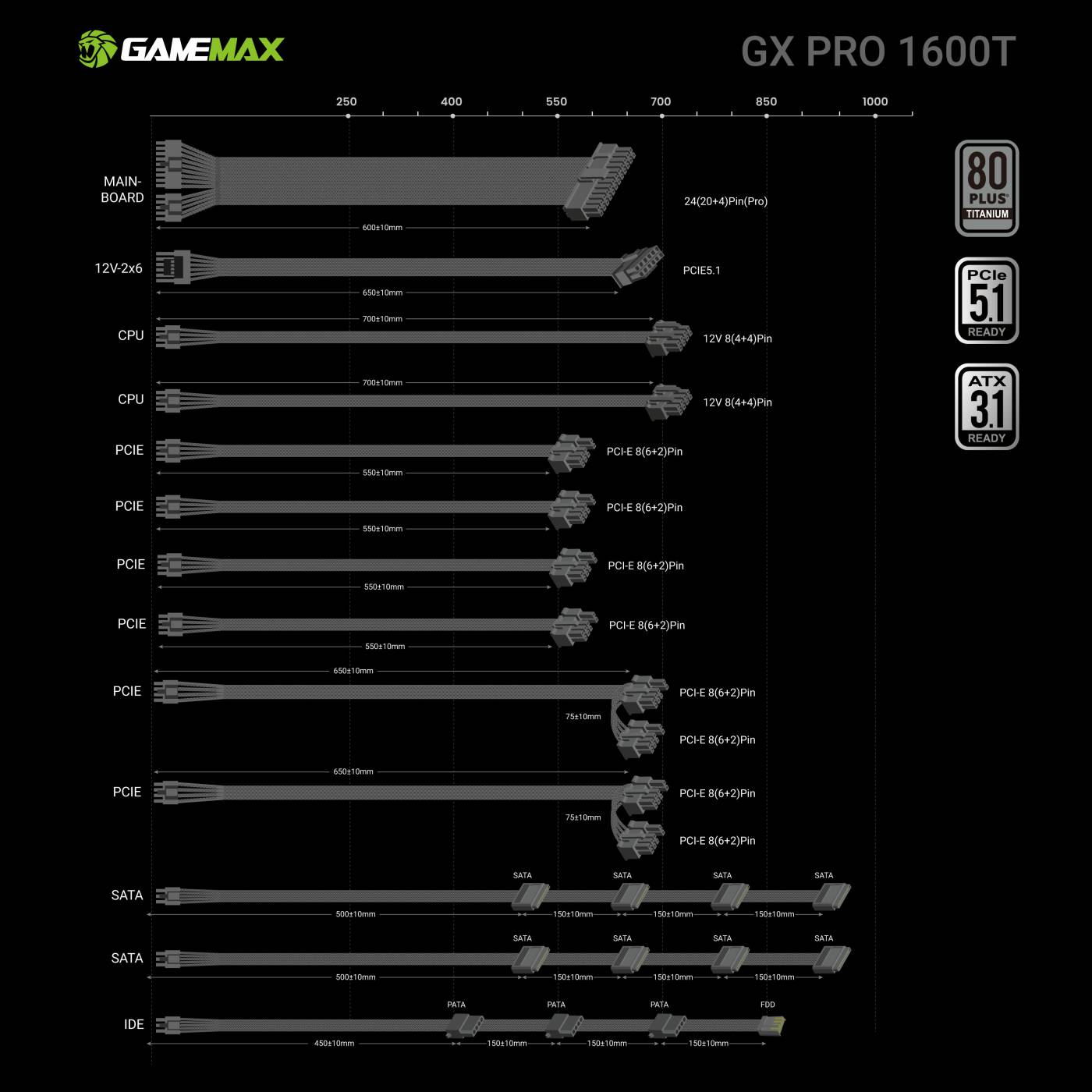

GX PRO 1600T 11.jpg
