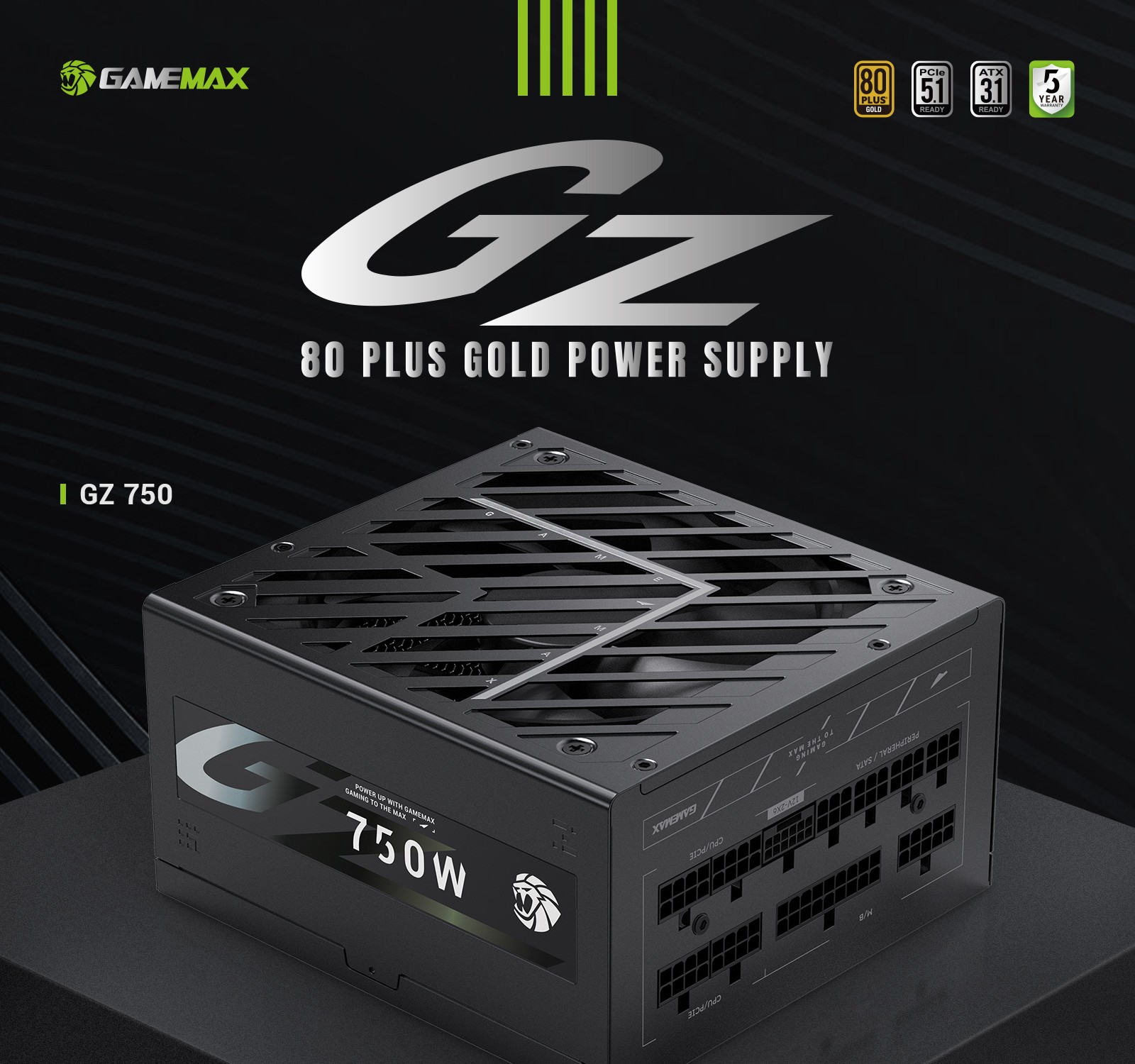

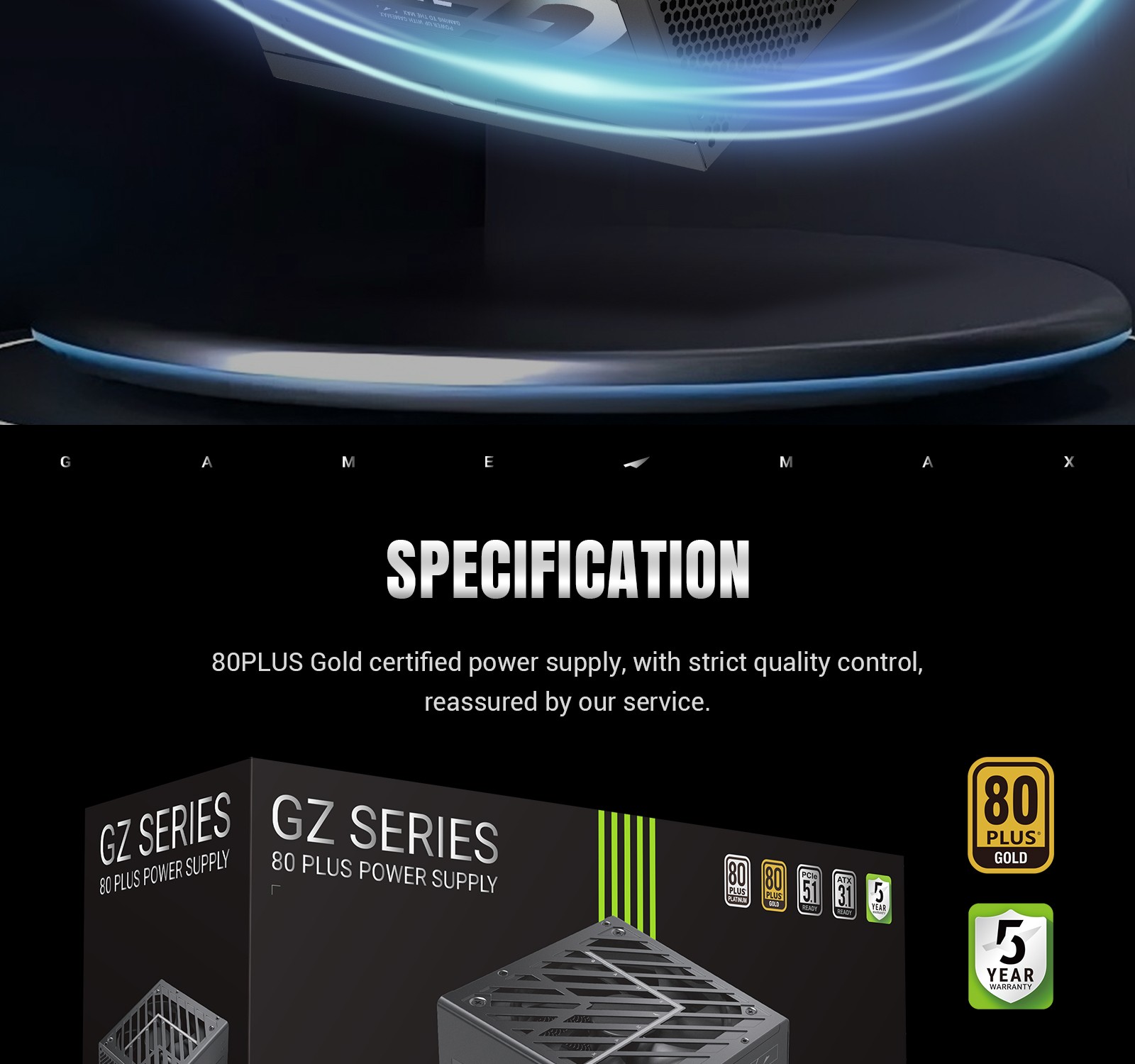

GAMEMAX GZ 750w GOLD Power Supply ATX3.1/PCIe5.1, 80 PLUS Gold certification, 5-year warranty.

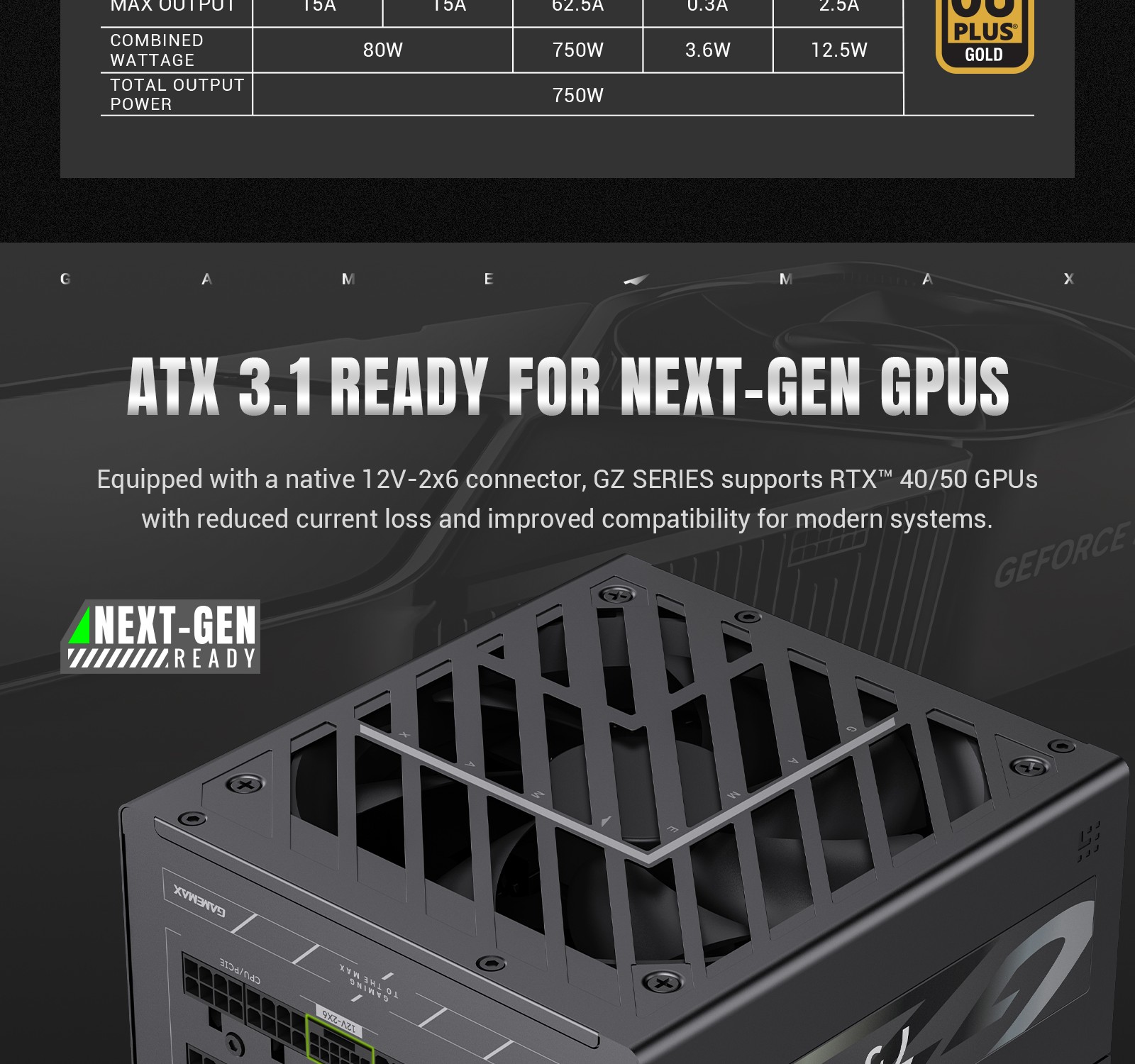

• Supports ATX3.1 and PCIe5.1 standards with a native 12V-2x6 connector for direct RTX™ 40/50 series GPU connections, reducing current loss and improving performance.

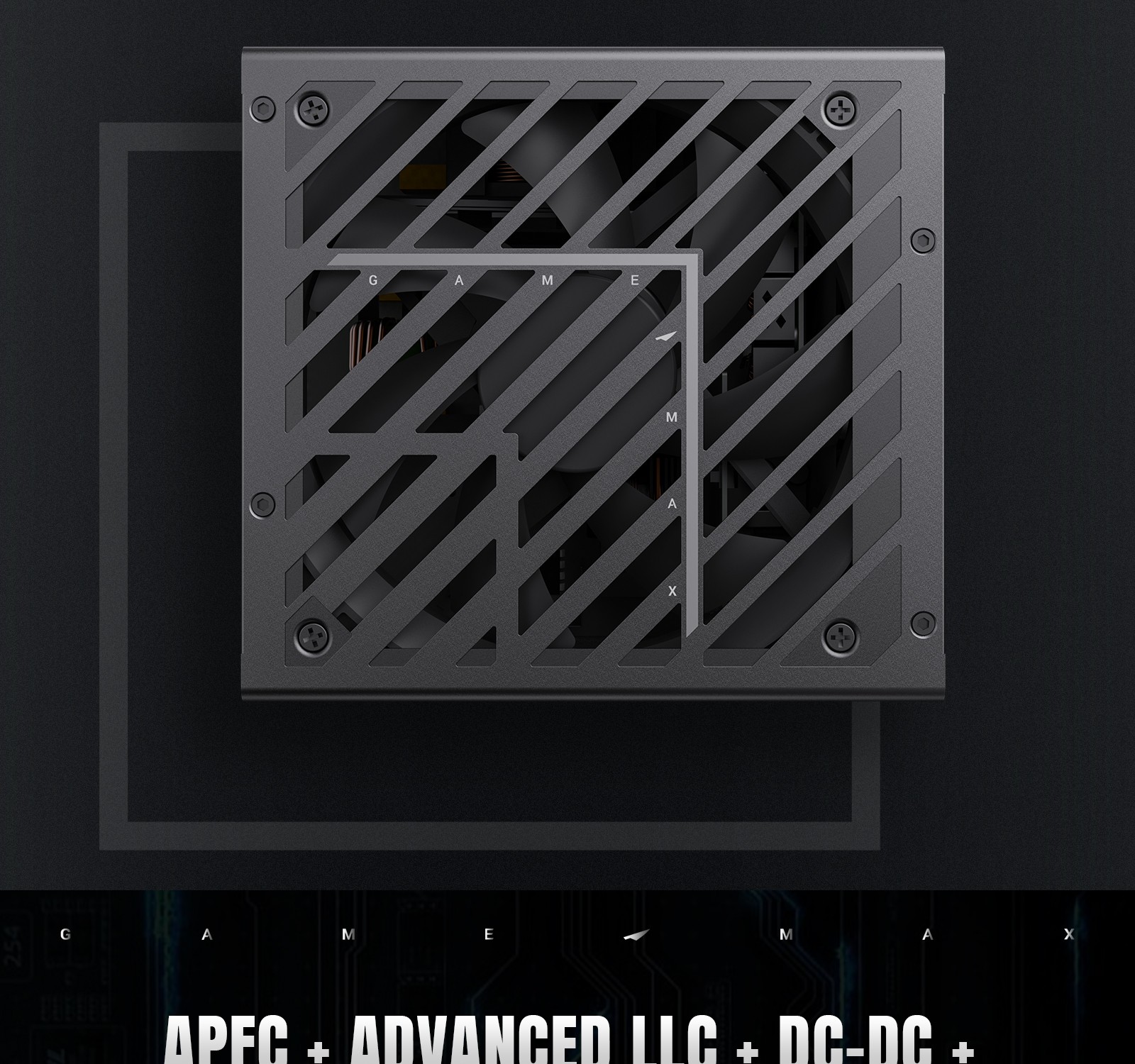

• The asymmetrical design creates a strong visual distinction from the predominantly symmetrical PSUs.

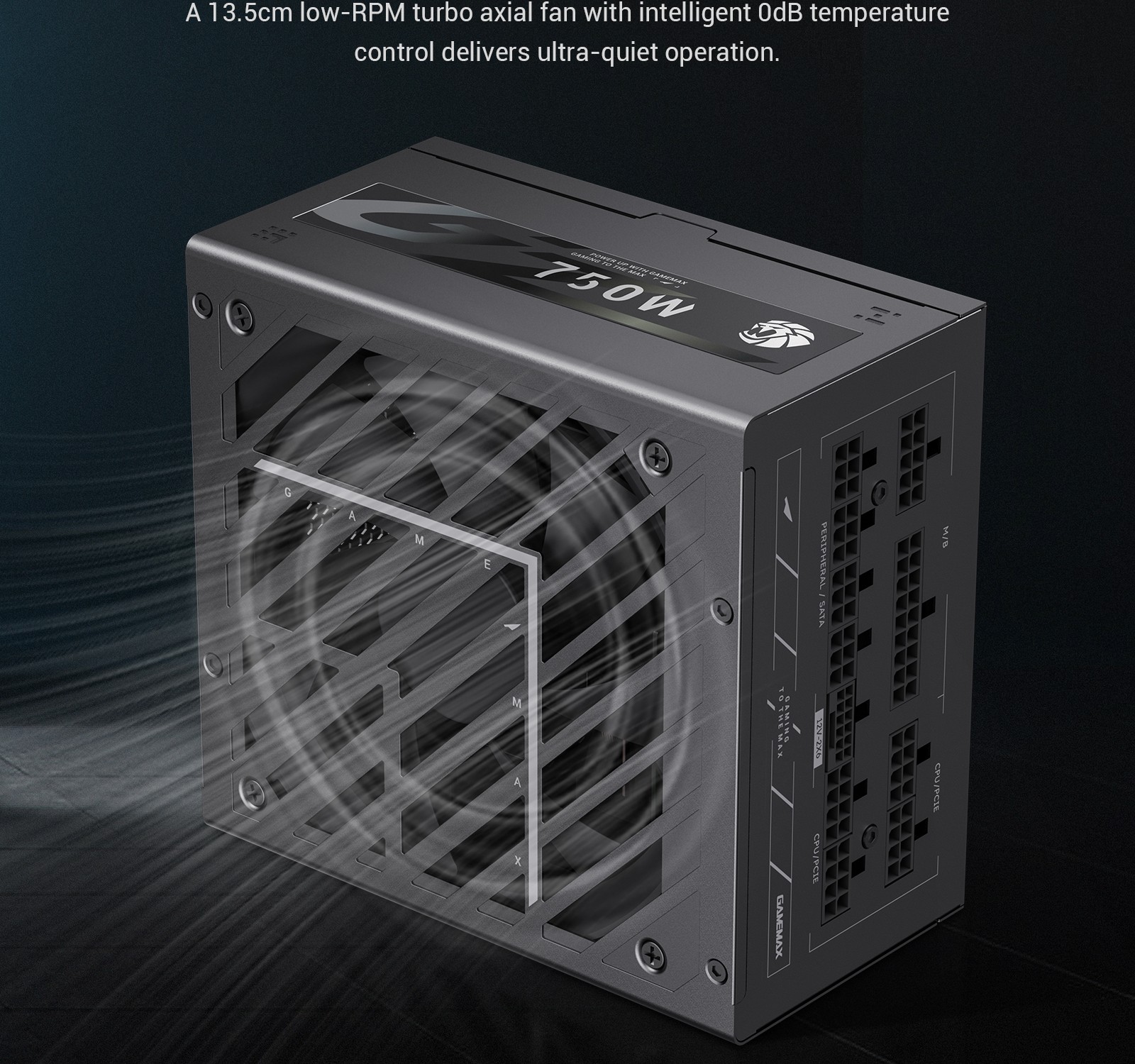

• A 13.5cm low-RPM turbo axial fan with 0dB intelligent temperature control ensures ultra-quiet operation.

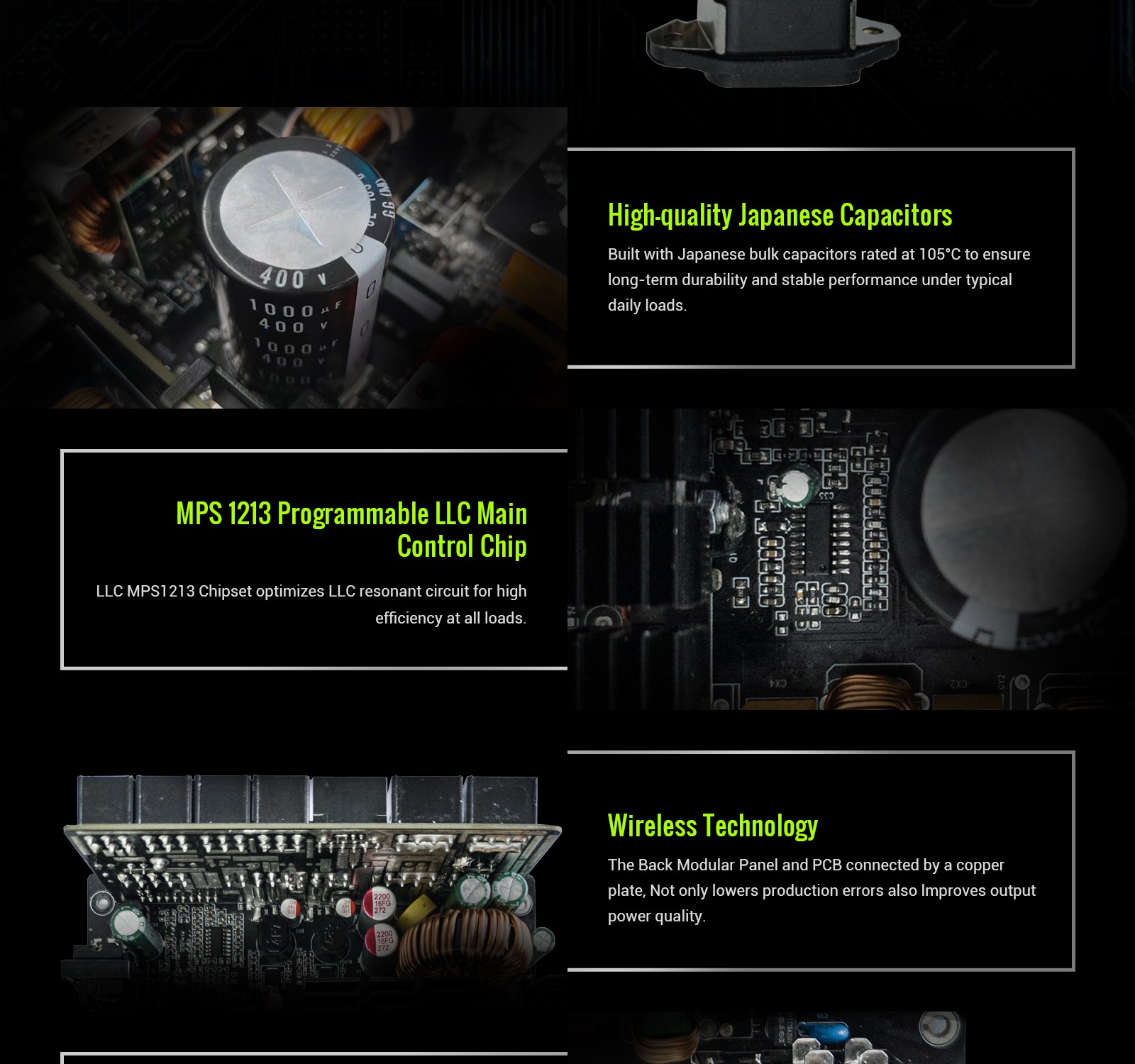

• Japanese bulk capacitors rated for up to 105℃ ensures long-lasting durability and stable power delivery.

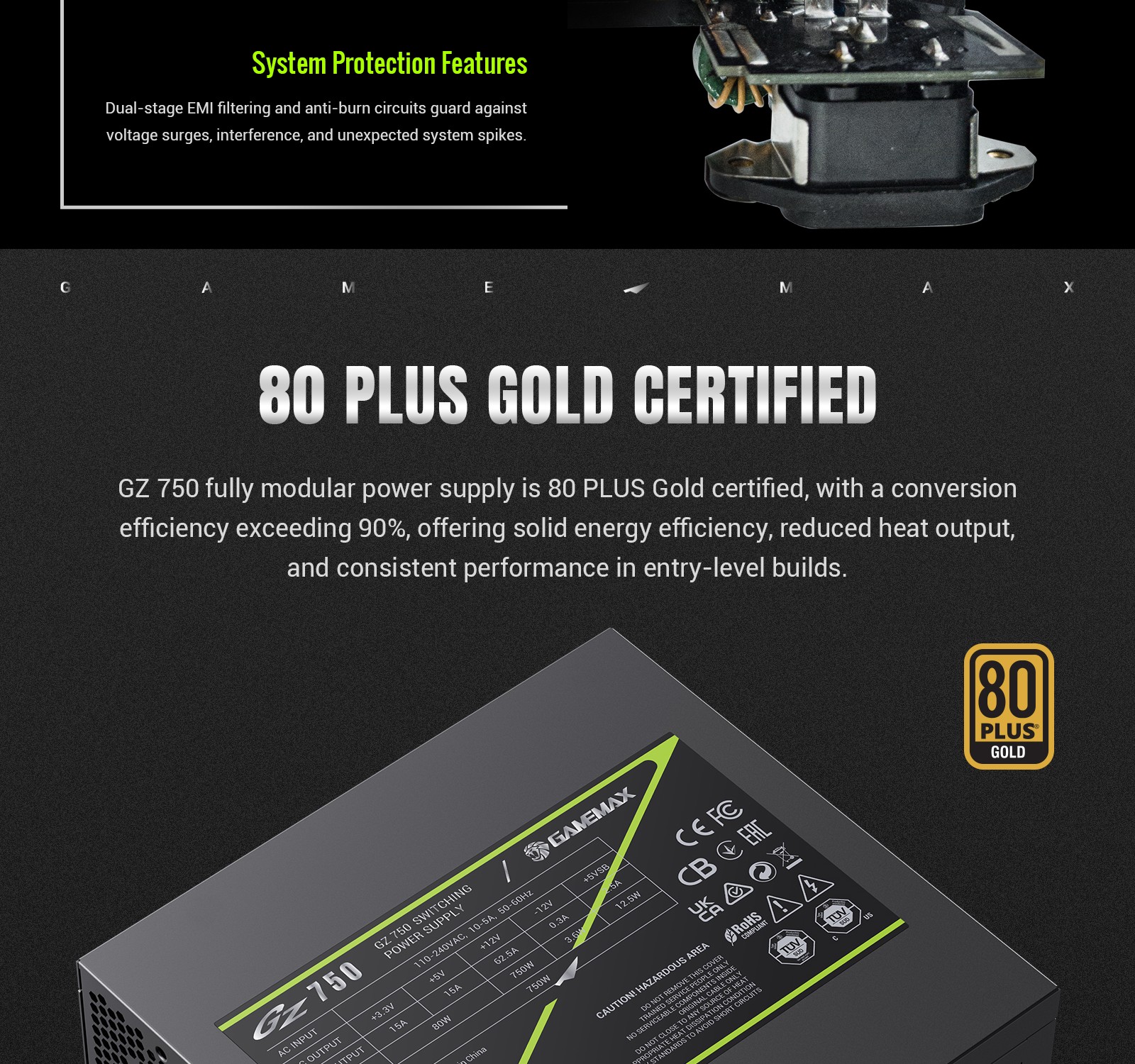

• Achieved 80 PLUS Gold, it delivers high efficiency, low noise, and consistent performance.
• Matrix-arranged solid capacitors reduce ripple and noise for cleaner and more stable power delivery.

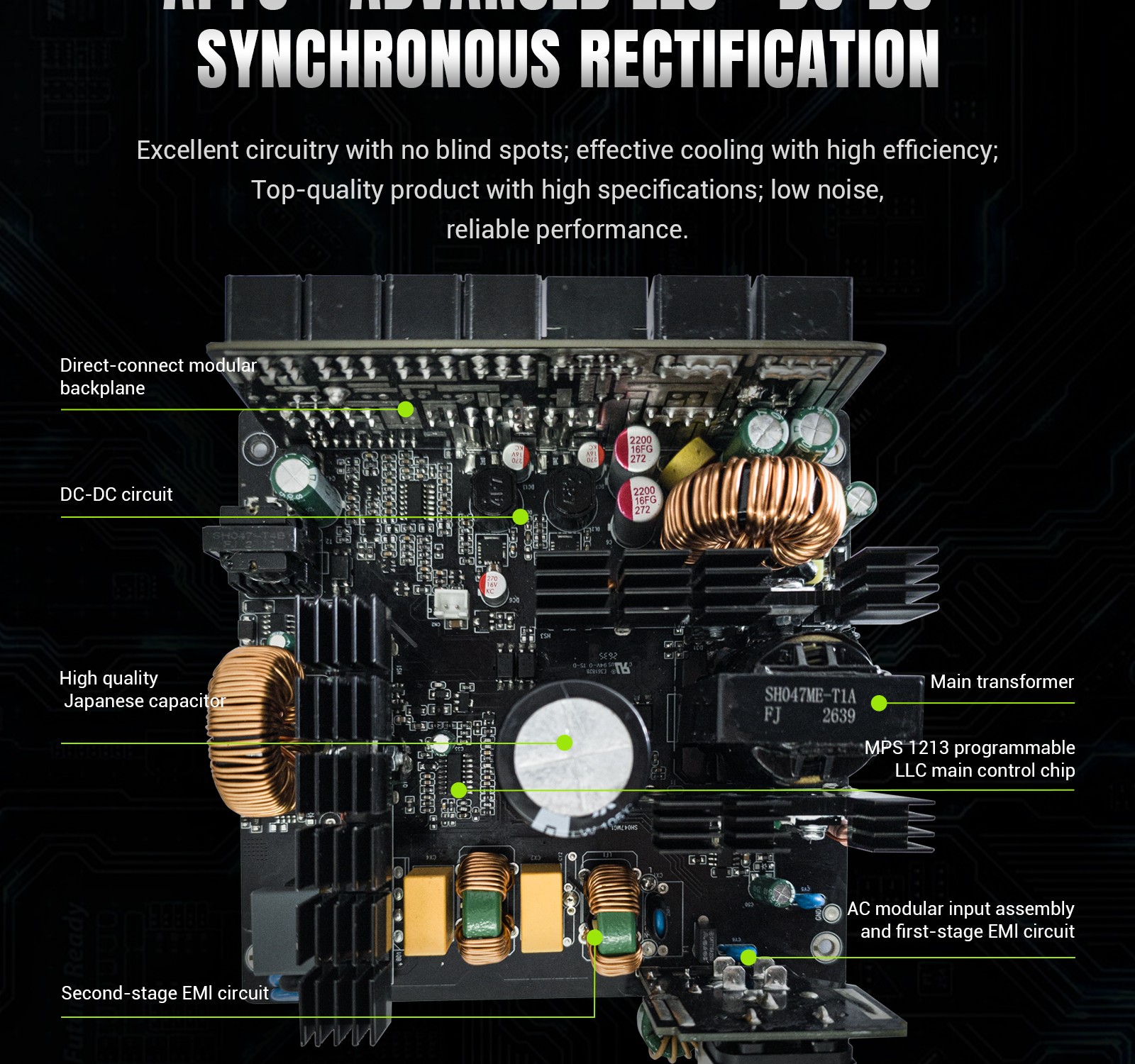

• Dual-stage EMI filtering and anti-burn circuits protect the system from spikes, surges, and interference.

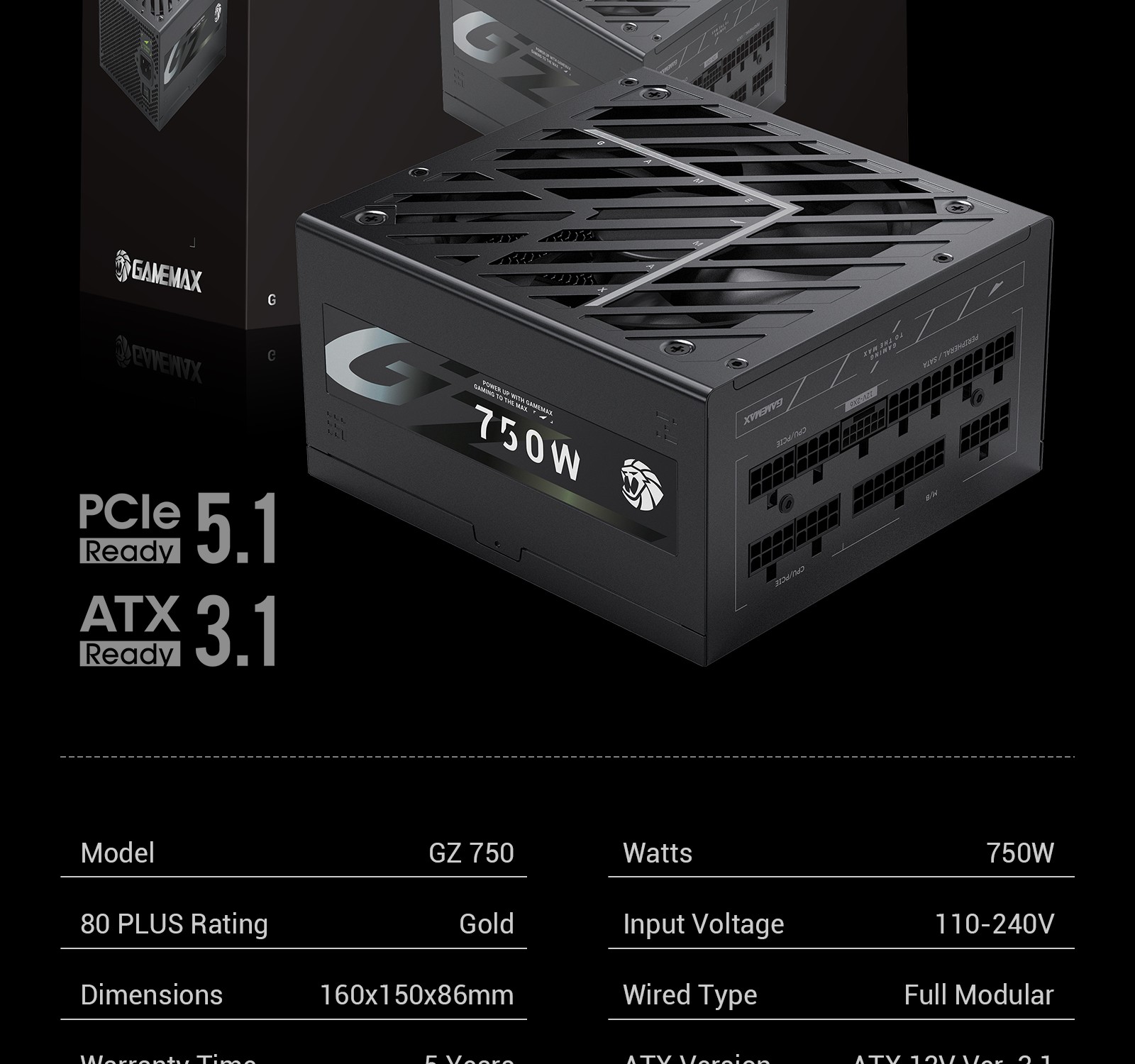

Model name | GAMEMAX GZ 750 GOLD Power Supply | |
General | ATX Version | ATX 12V Ver. 3.1 |
PFC | Active PFC | |
Input Voltage | 110-240V | |
Input Current | 10-5A | |
Input Frequency | 50-60Hz | |
Dimensions (L x W x H) | 160 x 150 x 86mm | |

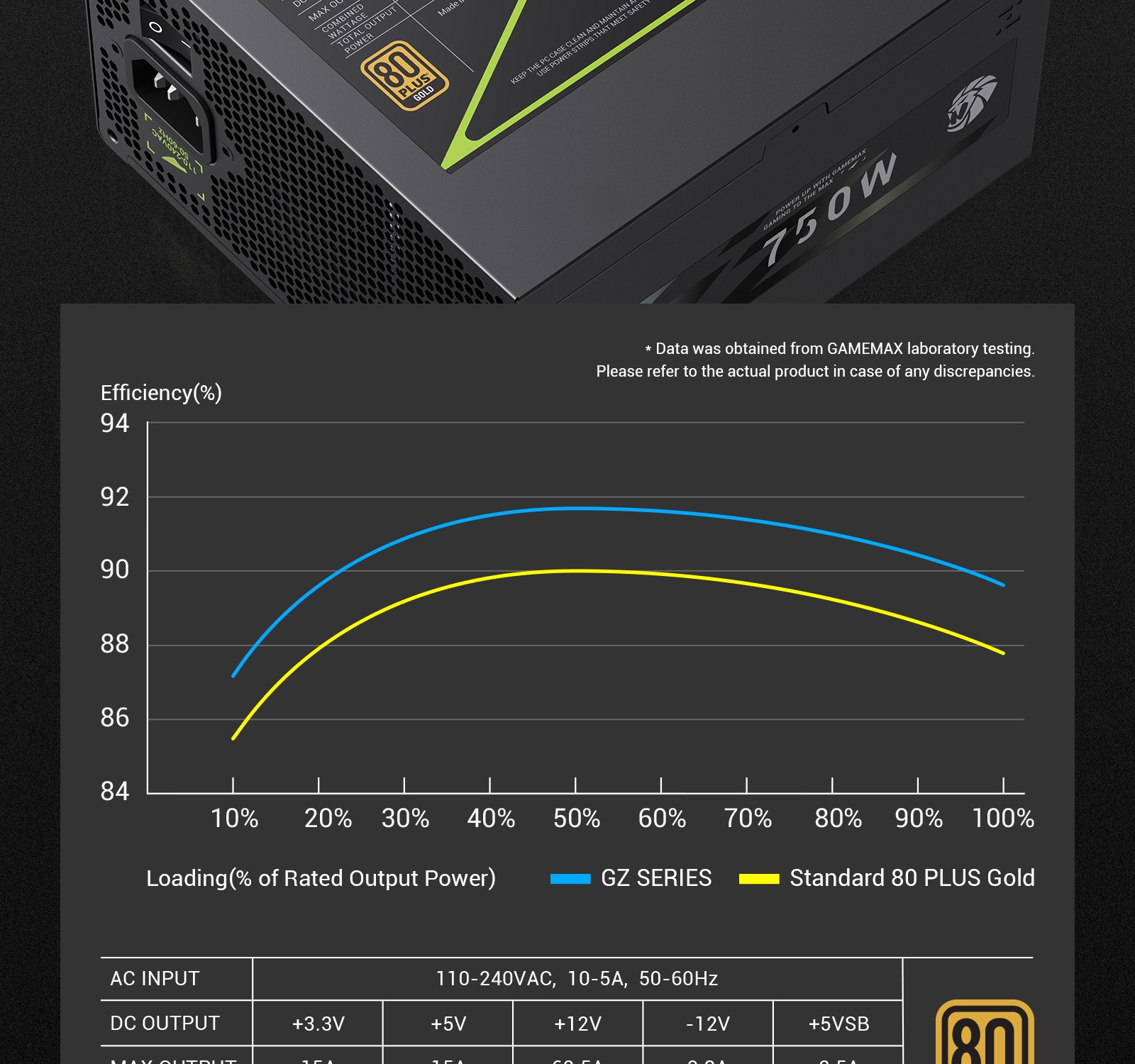

Efficiency | 90% | |
80 PLUS Rating | Gold | |

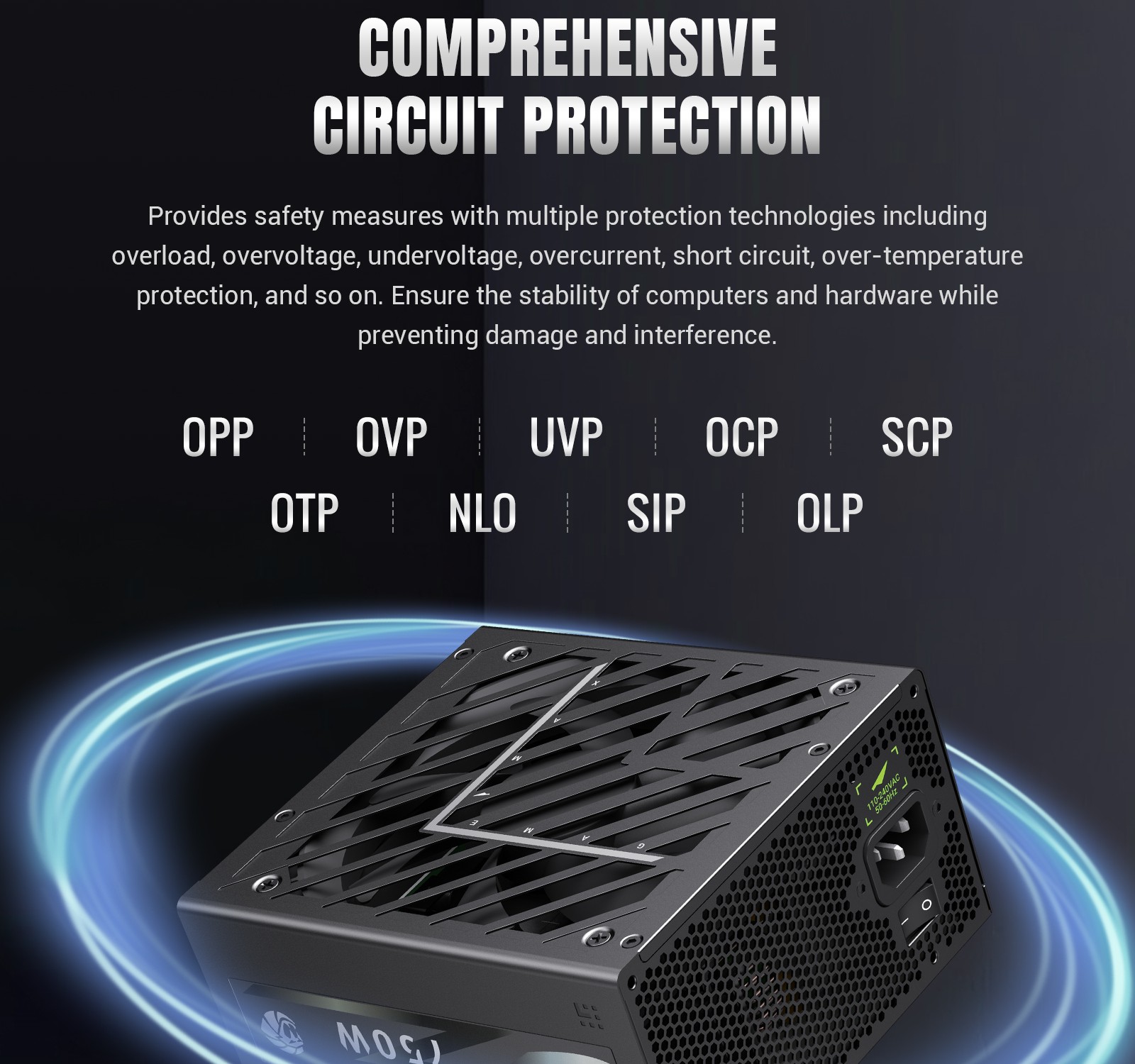

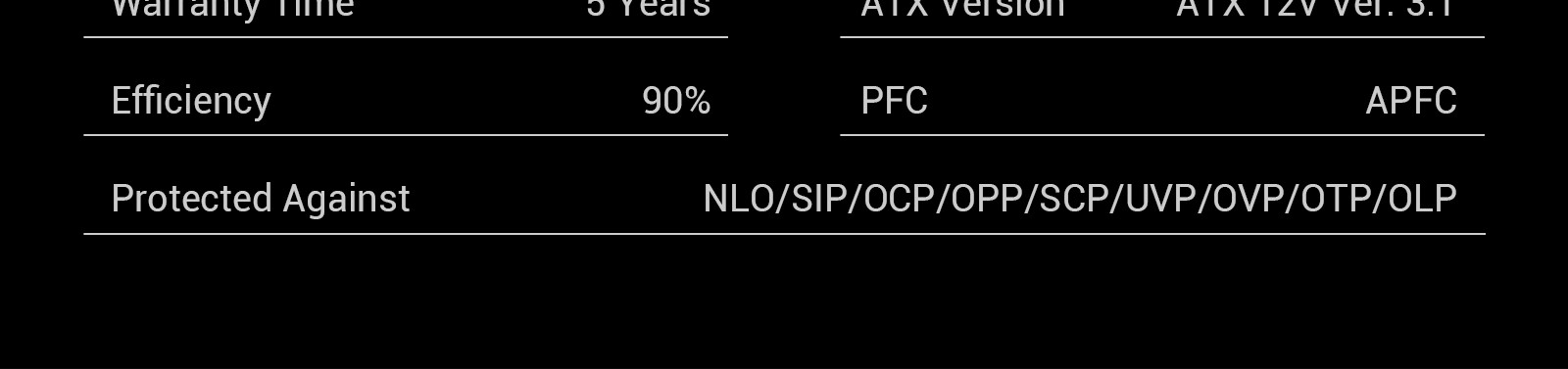

Protections | OPP / OVP / OCP / OTP/ UVP / SCP | |
Safety Certificate | CE / cTUVus / TUV / CB / RoHS | |
Warranty | 5 Years | |
Fan | Size | 135mm |
Bearing | HDB | |
0dB Mode | Yes | |

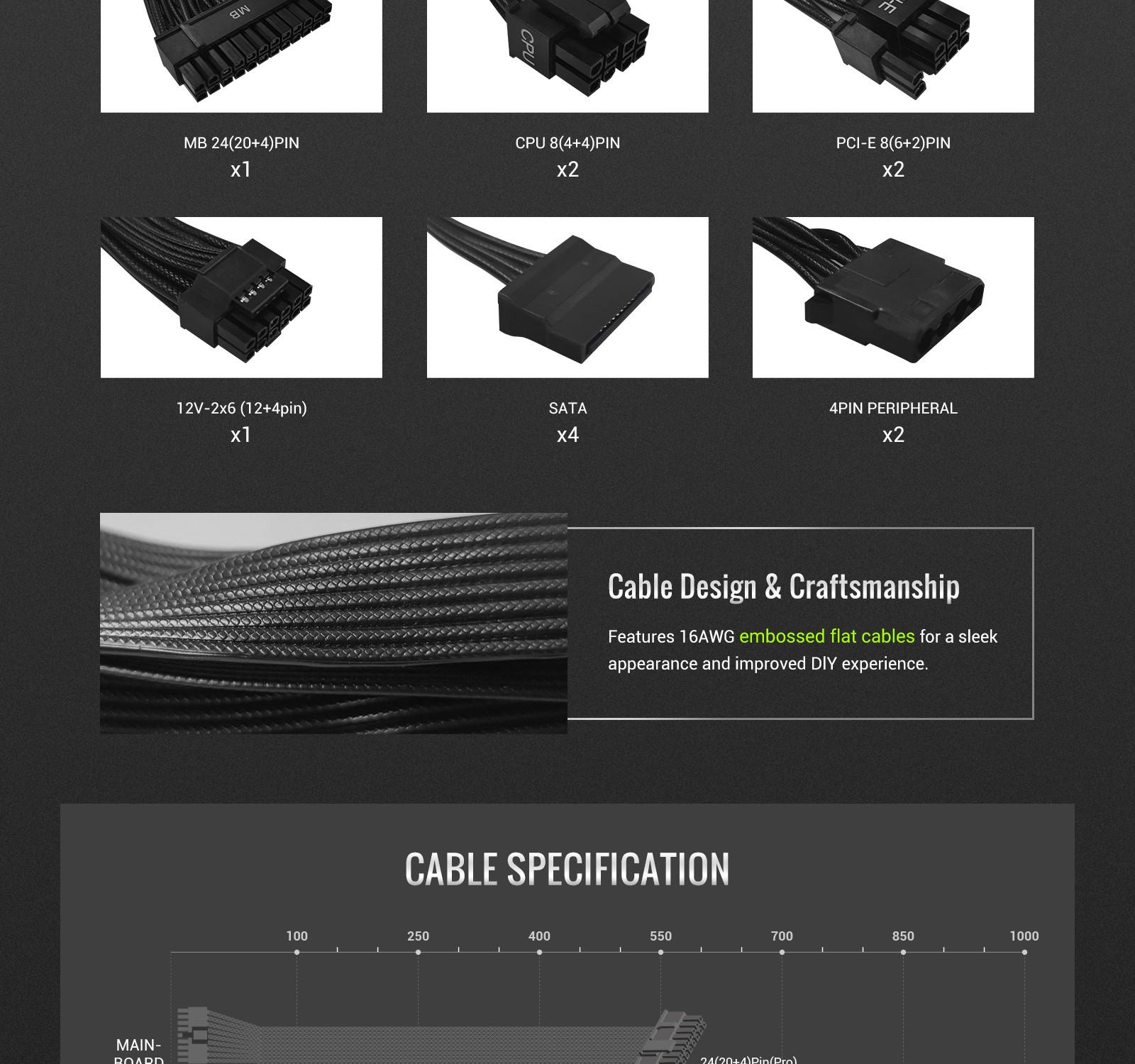

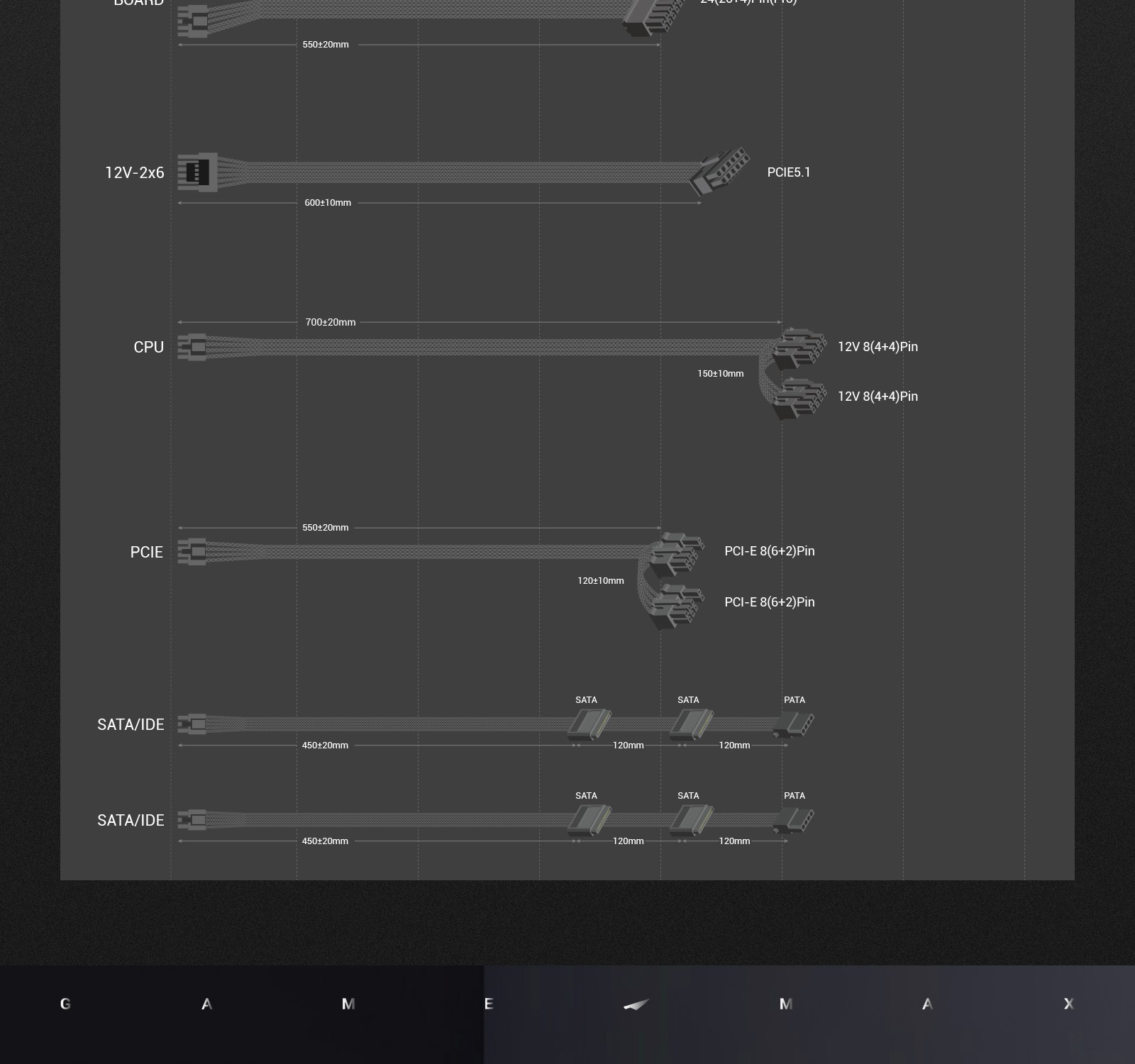

Cables | Type | Embossed Flat |

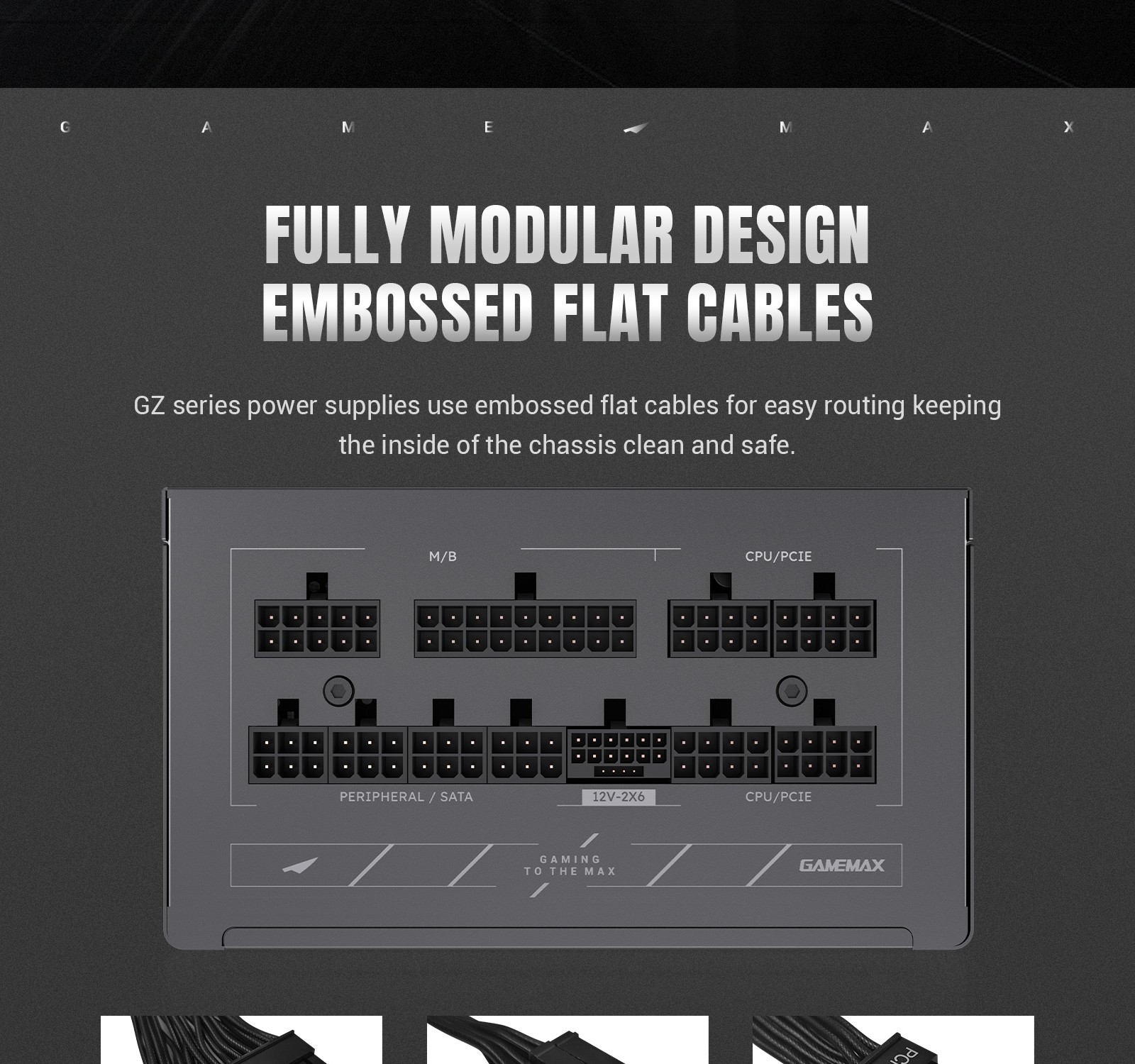

Module | Fully Modular | |
ATX 24 Pin | MB 24(20+4) Pin x 1 (650mm) | |
CPU 4+4 Pin | CPU 8(4+4) Pin x 1 (700+100mm) | |

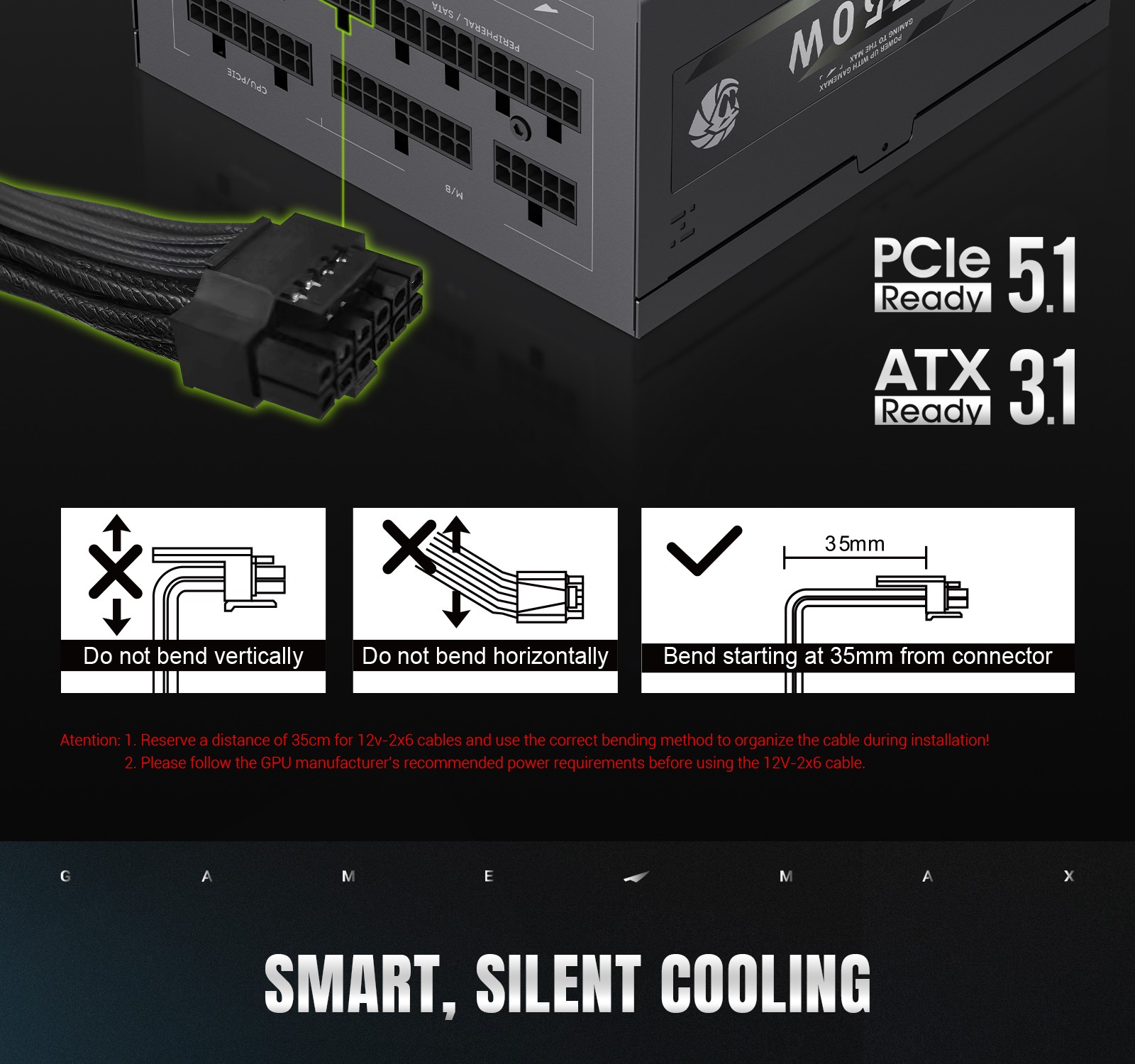

PCI-e 12+4 Pin | 12V-2x6 (12+4) Pin x 1 (650mm) | |
PCI-e 6+2 Pin | PCIe 8(6+2) Pin x 2 (550+75mm) | |
SATA | 3SATA x 2(500+150+150mm) | |
Peripheral | PATA x1 (500+150+150mm) | |
