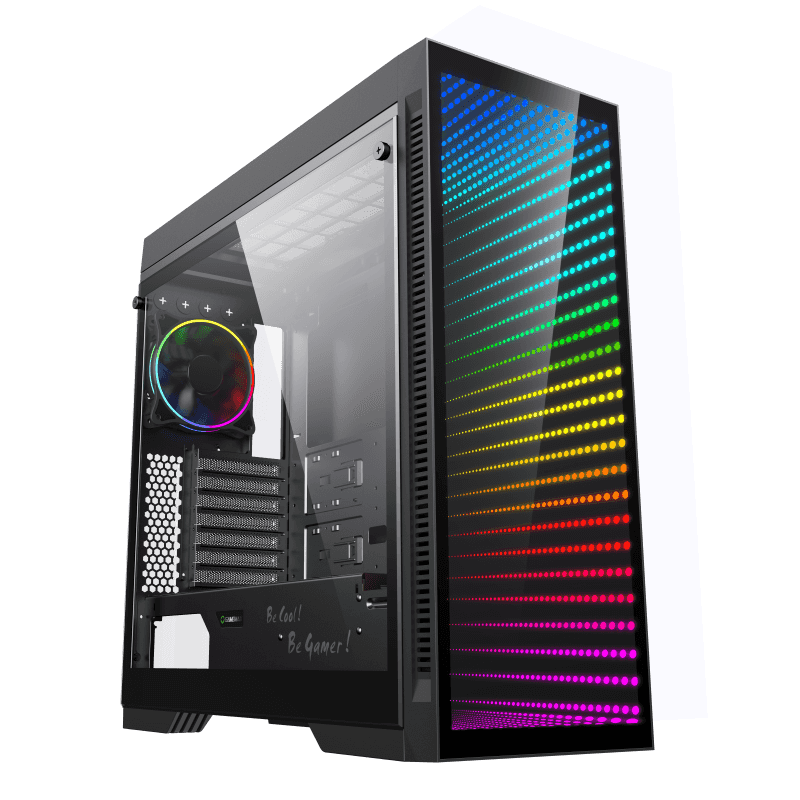

The GameMax Abyss-TR LED-Full Tower gaming PC Case. Upgraded new edition with an infinity mirror with Rainbow LED lighting(addressable) on the front and a tempered glass front panel and side panel.
• The most important adjustment feature is directly in the eye with an intelligent integrated infinity mirror at the front.
• This optical illusion is created by a glass front, consisting of an outer one-way mirror, which partially reflects light on its inner side and is partially transparent to the exterior, and a fully reflecting mirror inside, placed parallel behind it.
• The light emitted by an Addressable Rainbow LED strip arranged in the gap around the walls is thus reflected back and forth between the two mirrors, whereby, with each reflection, a part of the light penetrates visibly outwards and ultimately produces the visual effect.
• The principle corresponds to the mirrors in police interrogations frequently shown in crime series and films and AURA SYNC ready!
| ITEMS (Abyss-TR /MFG. M908-TR) | SPECIFICATION | |
| Form Factor (Midi, Micro, Mini ITX, Full) | EATX(272*305mm), ATX,Micro, Mini ITX | |
| Chassis | Steel Thickness 0.8mm Mixed, Black internal | |
| PSU Form Factor | Bottom/ATX | |
| M/B Form Factor | EATX、ATX、M-ATX、ITX | |
| Front Panel | Tempered Glass,ABS | |
| Top Panel | ABS,Mesh | |
| Branding | Box | GameMax |
| Unit | 1 | |
| (Unit) Position | Standard | |
| Side Panel | Left | Tempered Glass |
| Right | Metal cover | |
| External Drive Bay(s) | 5.25" (ODD) | *0 |
| 3.5" | *0 | |
| Internal Drive Bay(s) | 3.5" (HDD) | *3 |
| 2.5" (SSD) | *4 | |
| I/O | Buttons | *3 |
| USB2.0 Port(s) | *2 | |
| USB3.1 Gen1(USB3.0) Port(s) | *2 | |
| HD Audio Support | *1 | |
| Card Reader (Support) | *0 | |
| Fan Controller | *2 (Top Fan Controllers) | |
| RGB Controller | *1 (Rainbow V1.7) | |
| Controller max. fans | *5 | |
| RGB Controller max. LED strips | *2 | |
| Remote (IR or RF) | *0 | |
| Cooling Fan Support | Front | 3x120mm(Fan optional) |
| Top | 3x120mm ,2x140mm (Fan optional) | |
| Rear | 1x120mm (1x ARGB Rainbow Fan Included) | |
| Water Cooling Support(Radiator Size) | Front | 120mm*1,240mm*1,360mm*1 |
| Top | 120mm*1, 240mm*1,140mm*1,280mm*1,360mm*1 | |
| Rear | 120mm*1 | |
| Dust Cover | Bottom and top cover with dust filter | |
| Slots | *7 | |
| Carton Logo | GAMEMAX | |
| Dimensions | Chassis | (L)470*(W)210*(H)465mm |
| Full Case (inc Fascia) | (L)512*(W)212*（H)526mm | |
| Carton | (L)579*(W)286*（H)597mm | |
| Net Weight (Kg) | 11kgs | |
| Gross Weight (Kg) | 12.5kgs | |
| VGA Card Length | 455mm(Max) | |
| CPU Cooler Height | 170mm | |
| Cable Management Depth | 20mm | |
| PSU | Included | *0 |
| Wattage | / | |
| 80Plus Category | / | |
| Rail Outputs | / | |
| Q'ty | 40HQ: 730pcs 40GP:620pcs 20GP:300pcs | |
