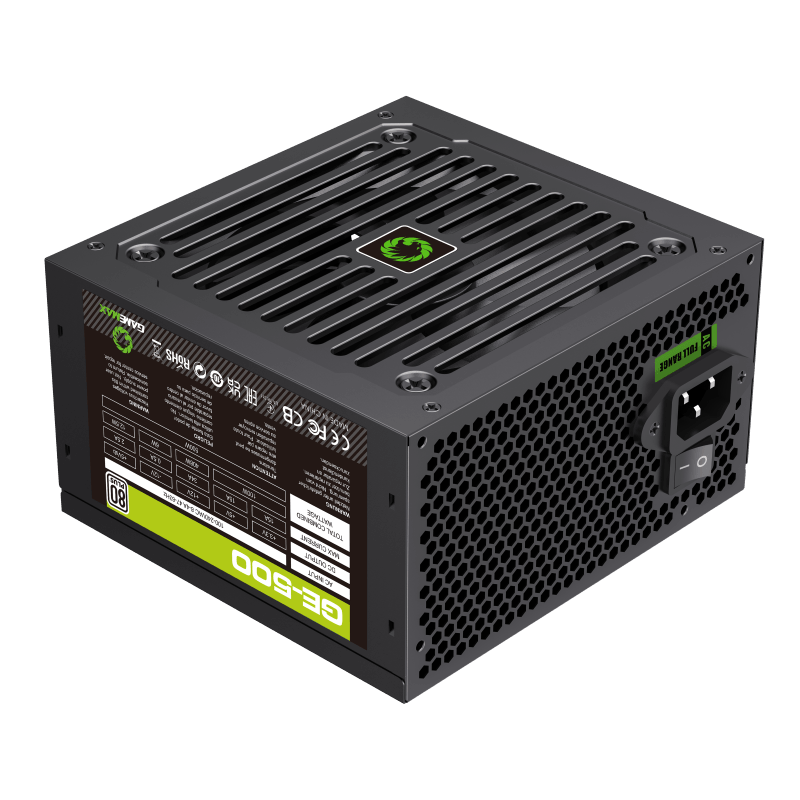

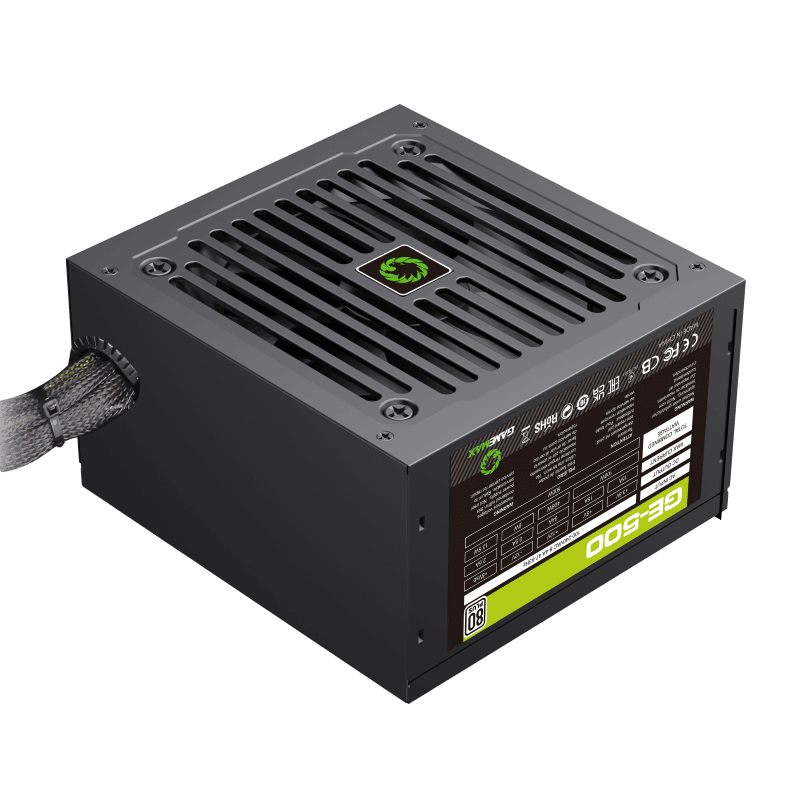

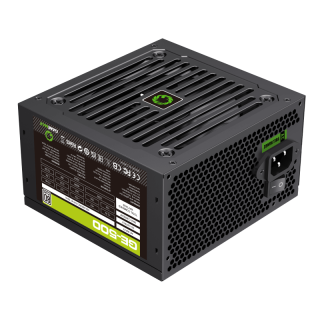

GE-500

GameMax ECO Gamer range power supplies are a great choice if you are building a home or office system as a mainstream model
APFC,80% efficiency for power saving, and a single +12V rail for extreme CPU/GPU power consumption
Good DC quality with lower ripple and noise and fully protected functions are used to guard your components in the system.


Key Features

  • Elegant black PSU casing with full black mesh cables

  • ATX12V Ver.2.30 compliant with ATX12V Ver.2.31

  • High efficiency PSU, 80+, APFC,up to 85% efficiency

  • Single 12V Rail for high compatibility and extreme high current output

  • Longer 20 + 4 and 4 + 4 pins up to 550mm is easy for high-end tower chassis installation

  • 12cm silent black fan with smart thermal fan speed control circuit

  • Full protection functions with OVP / UVP / OPP / SCP / SIP /OCP

  • Safety and EMC certified by CE

  • ECO friendly by RoHS and Erp 2013 directives

PSU Specifications



Connectors

20+4 Pin Main Connectors:

1
4+4 Pin 12V Connectors:

1
SATA Connectors:

4
4-Pin Molex Connectors:

3
6+2 Pin PCI-e Connectors:

1
