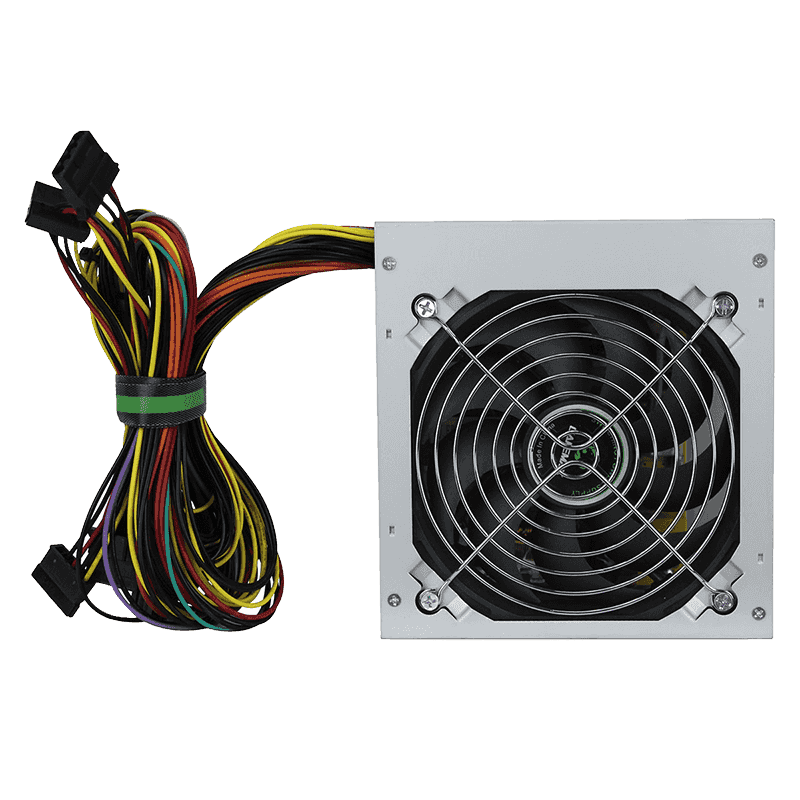

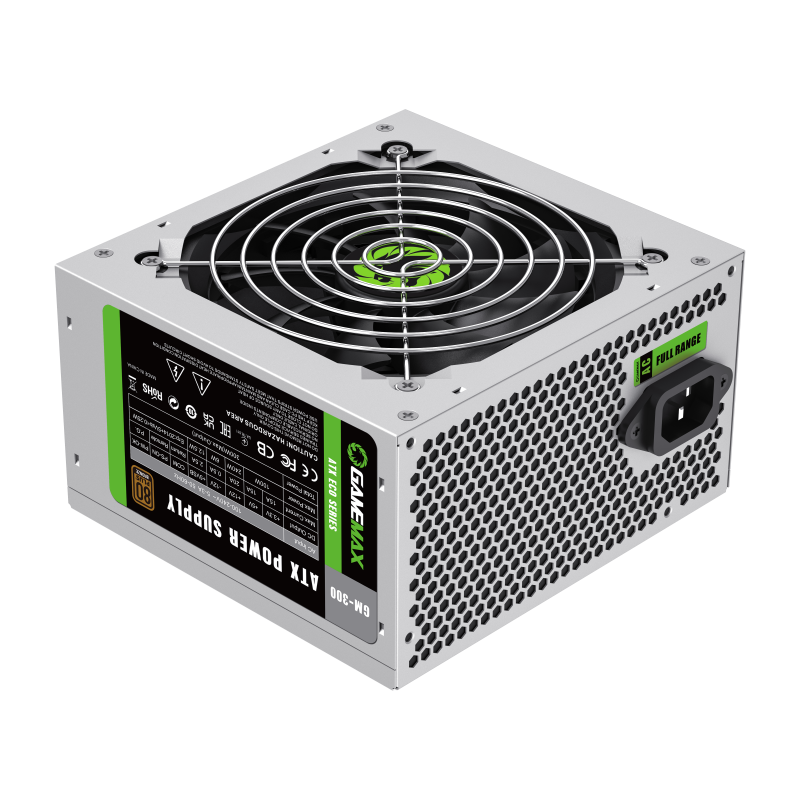

GameMax Eco Power Supply is designed for one thing, to provide a solid
• Reliable efficient and affordable line of economy high efficiency 80 Plus power supplies which is ideal for mainstream and basic computing systems
• The 300W Eco is designed for major system integrators as it is built with quality components and with 80 Plus bronze certified ensuring that you have a stable system
• It reaches 85% efficiency at typical loading and meets full protection (OVP / UVP / OPP / OCP / SCP).
Key Features
Original SECC cover with a traditonal outlook
ATX12V Ver.2.30 compliant with ATX12V Ver.2.31
High efficiency PSU, up to 85% efficiency
Extended 12V Rail for high compatibility and extreme high current output
Safety and EMC certified by CE
12cm Silent fan with smart thermal fan speed control circuit
Full protection functions with OV P/ UVP / OPP / SCP / SIP
PSU Specifications
| AC INPUT: 100-240 VAC 15-5A 50-60Hz | |||||
| DC Output Max | +3.3V | +5V | +12V | -12V | +5VSB |
| 15A | 15A | 20A | 0.5A | 2.5A | |
| 300W | |||||
Connectors
 | 20+4 Pin Main Connectors: 1 |
 | 4+4 Pin 12V Connectors: 1 |
 | SATA Connectors: 3 |
 | 4-Pin Molex Connectors: 2 |
 | 6 Pin PCI-e Connectors: 1 |
Detailed Specifications
| Dimensions: | 150mm x 85mm x 140mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 15-5A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-500 ms |
| Hold Up Time: | >10ms |
| Efficiency: | > 82% (85% max) |
| MTBF: | > 100,000 Hours |
| Protection: | OPP / OVP/ UVP / OCP/ SCP / OTP / SIP / OLP / NLO |
| Power: | 300W |
| Operation Temperature: | 0-40C |
| Safety: | CE / FCC / CB |
| Cooling: | 120mm Ultra Silent Fan |
| Noise: | <25dba<> |
| 80 Plus Certified: | Yes - 80 Plus Bronze |
General Specifications
| Manufacturer Part Number: | GM-300-ECO |
| EAN Number: | 6931858710015 |
| Has Mains Plug: | No |
| Colour: | Silver |

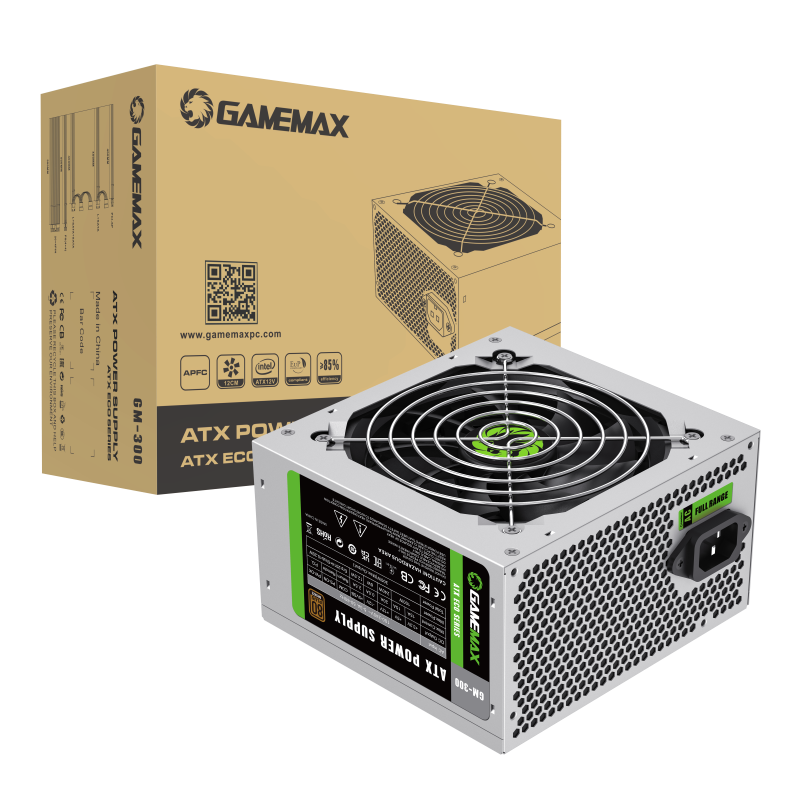

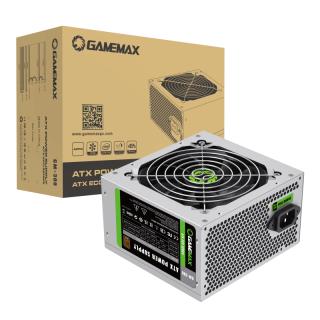

| What's In The Box: | Power Supply Screws Manual 2 x Cable Ties |
| Unit (Product) Dimensions (mm): | 150mm x 85mm x 140mm (W x H x D) |
| Packaging Dimensions (mm): | 200mm x 164mm x 92mm (W x H x D) |
| Net Weight (KGs): | 1.2 KGs |
| Gross Weight (KGs): | 1.3 KGs |
