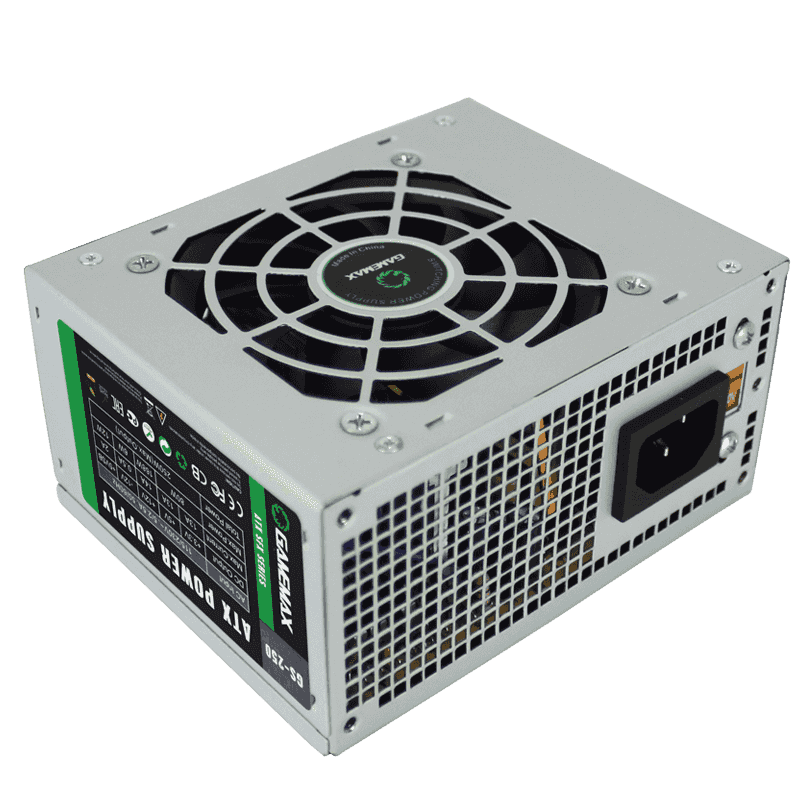

GS-250

GameMax Micro SFX Design is known mostly as a replacement power supply, but it has now evolved and can be used for Mini-ATX cases, custom-built computers, mini-servers, and much more
With the increase in wattage and efficiency, the micro SFX is a conventional PSU that can be used for multiple purposes
The Active PFC and Full Range function promote a smarter PSU
Able to detect the differences in wattage that are needed to power up your system, you can rest assured as it will provide and maintain the most suitable power needed
Thermal fan speed control will detect the amount of heat generated by the computer
Using this controller to detect the heat levels, it will automatically adjust the fan speed accordingly and the need to worry about the heat levels, of a PSU, becomes almost non-existent.

Key Features

  • Compatible with ATX 12V 2.3

  • High-end SECC 0.6mm casing

  • High-Efficiency – 76~80%

  • Low Noise 8cm Fan with intelligent fan speed control

  • Honeycomb ventilation design for optimal heat dissipation

  • Active Power Factor rate up to 0.99

  • OPP/OVP/UVP/SCP electrical protection included

  • Safety / EMI Approvals: CE,FCC,CB


PSU Specifications

AC INPUT: 110 or 230VAC 6~3A 50-60Hz
DC+3.3V+5V+12V1-12V+5VSB
Output13A13A14A0.5A2.5A
Max250W
