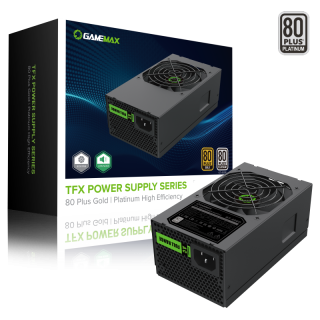

GameMax TFX 450w 80 Plus Platinum PSUs, this active PFC unit runs at a max of 92% efficiency, Silent running 80mm fan with 18 dBA minimum, and Single PCI-E 6+2pin connectors support,
• Finally, there is full electrical protection and official safety is promised
• TFX PSU 450W continuous power output, Active PFC 80Plus Platinum, at 40℃ rated operating temperature for 24/7 operation ensures unwavering power and reliability.AC Input Voltage from 100-240v
• TFX power supply is the most common in brand PC machines.Size: 150*85*65mm, smaller than ATX power supplies
• Strictly according to standard TFX form factor
• High efficiency, small volume.Low-noise fan 80mm
• High efficiency with 92%.Multiple protection including OVP, UVP, OCP, OPP, OTP and SCP, SIP.Safety / EMI Approvals: CE, FCC, CB, UL.Scope of application: TFX power supply is widely used in MINI-ITX computer ITX case, PO, IPC, server, workstation, industrial computers, all-in-one computers, etc
• TFX power supply is mainly used in small equipment, TFX cases, and some HTPC cases.
Specification:
| AC INPUT: 100-240 VAC 8~4A 50-60Hz | |||||
| DC | +3.3V | +5V | +12V | -12V | +5VSB |
| Output | 12A | 12A | 37.5A | 0.3A | 2.5A |
| Max | 450W | ||||
Description Paragraph

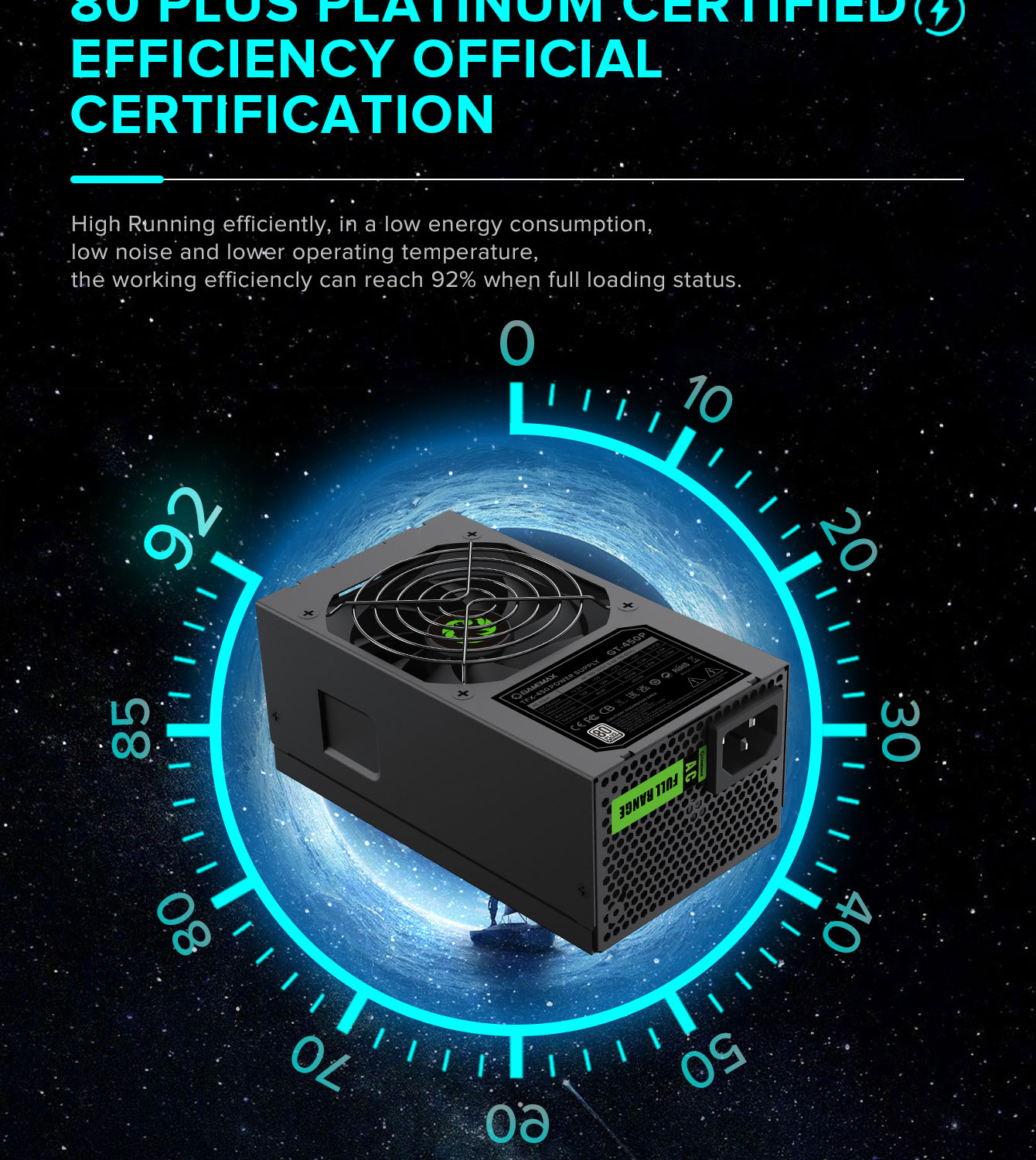

GameMax TFX 450 Platinum standard, this active PFC unit runs at a max of 92% efficiency,

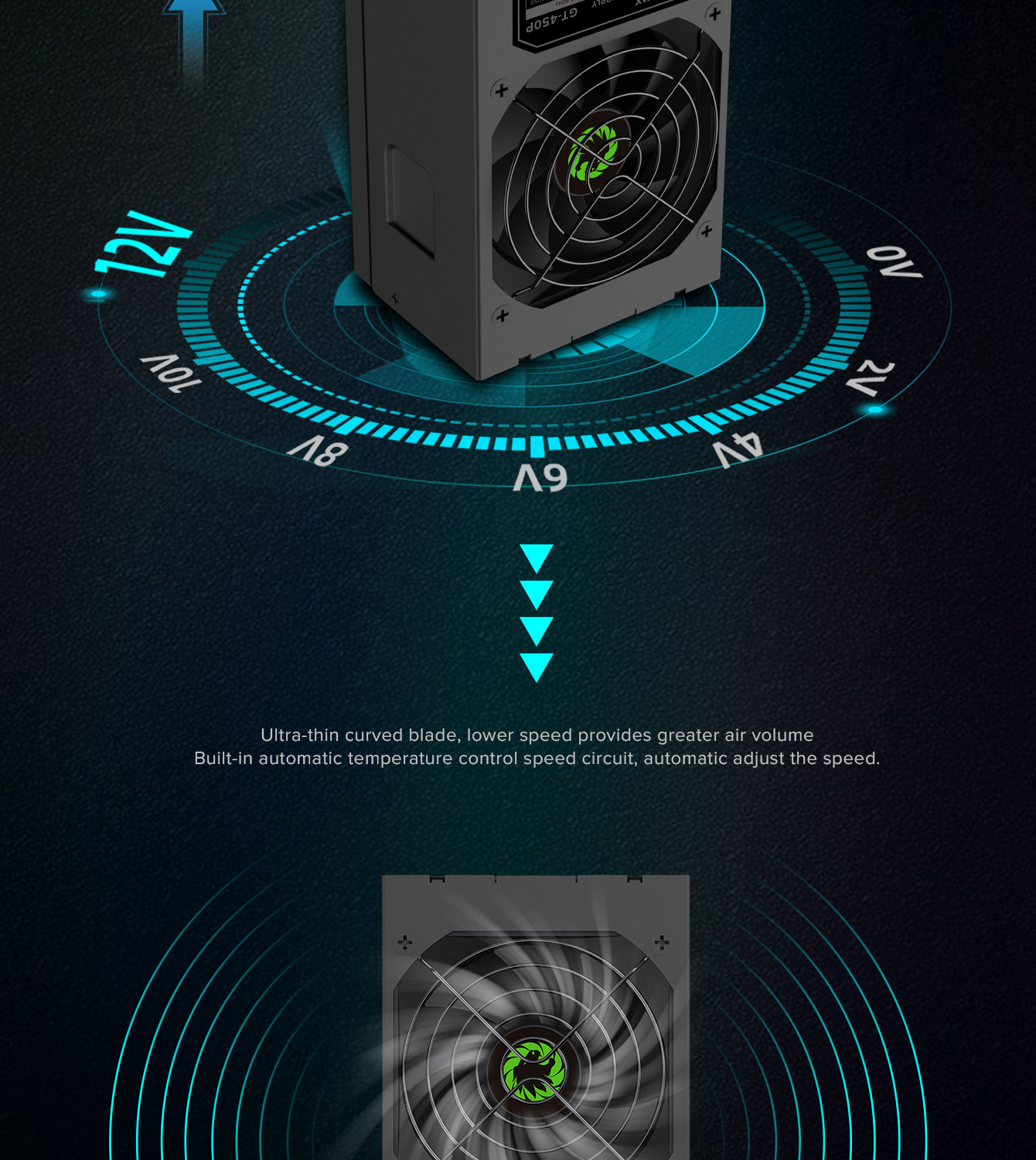

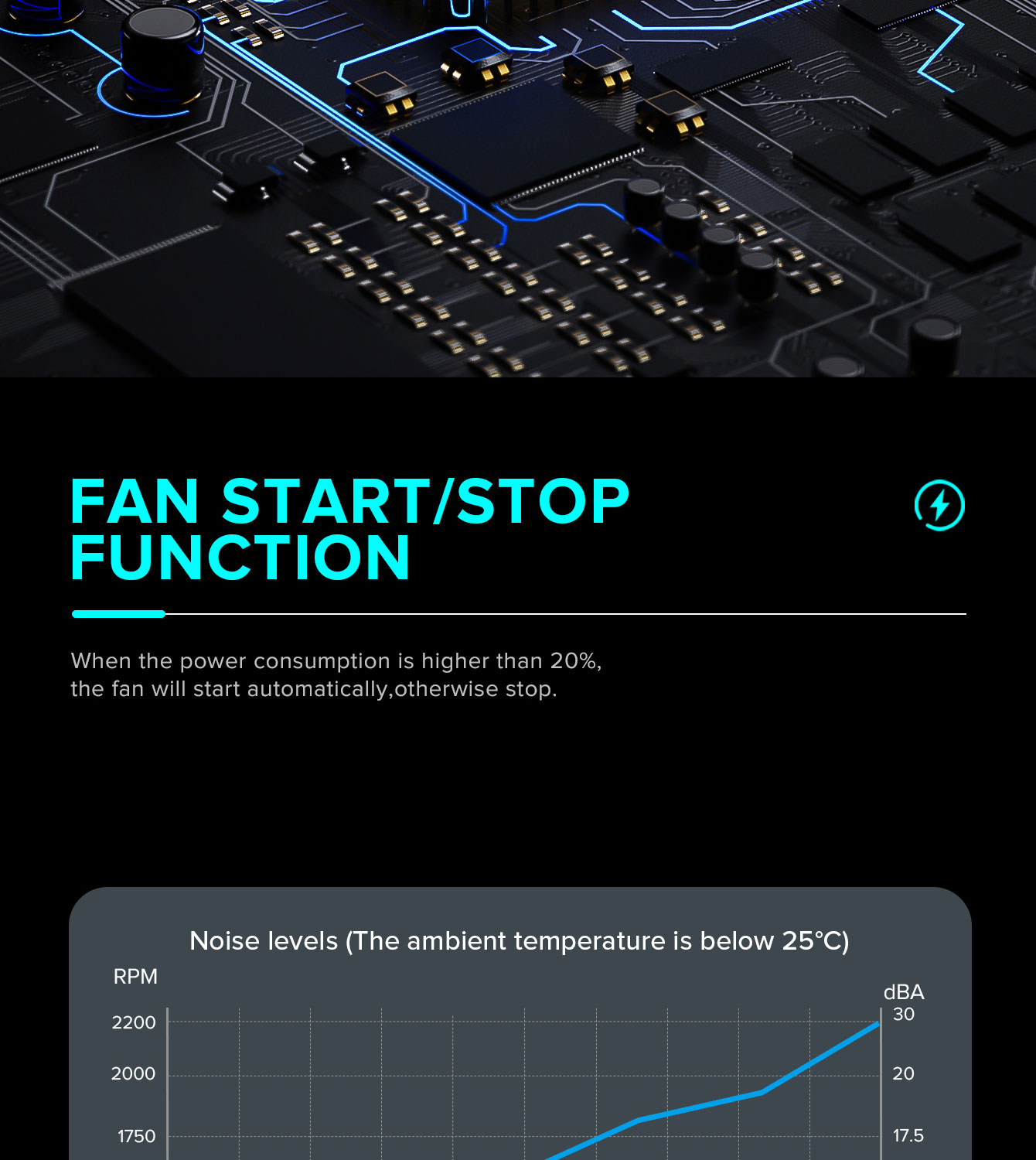

Silent running 80mm fan with 18 dBA minimum,

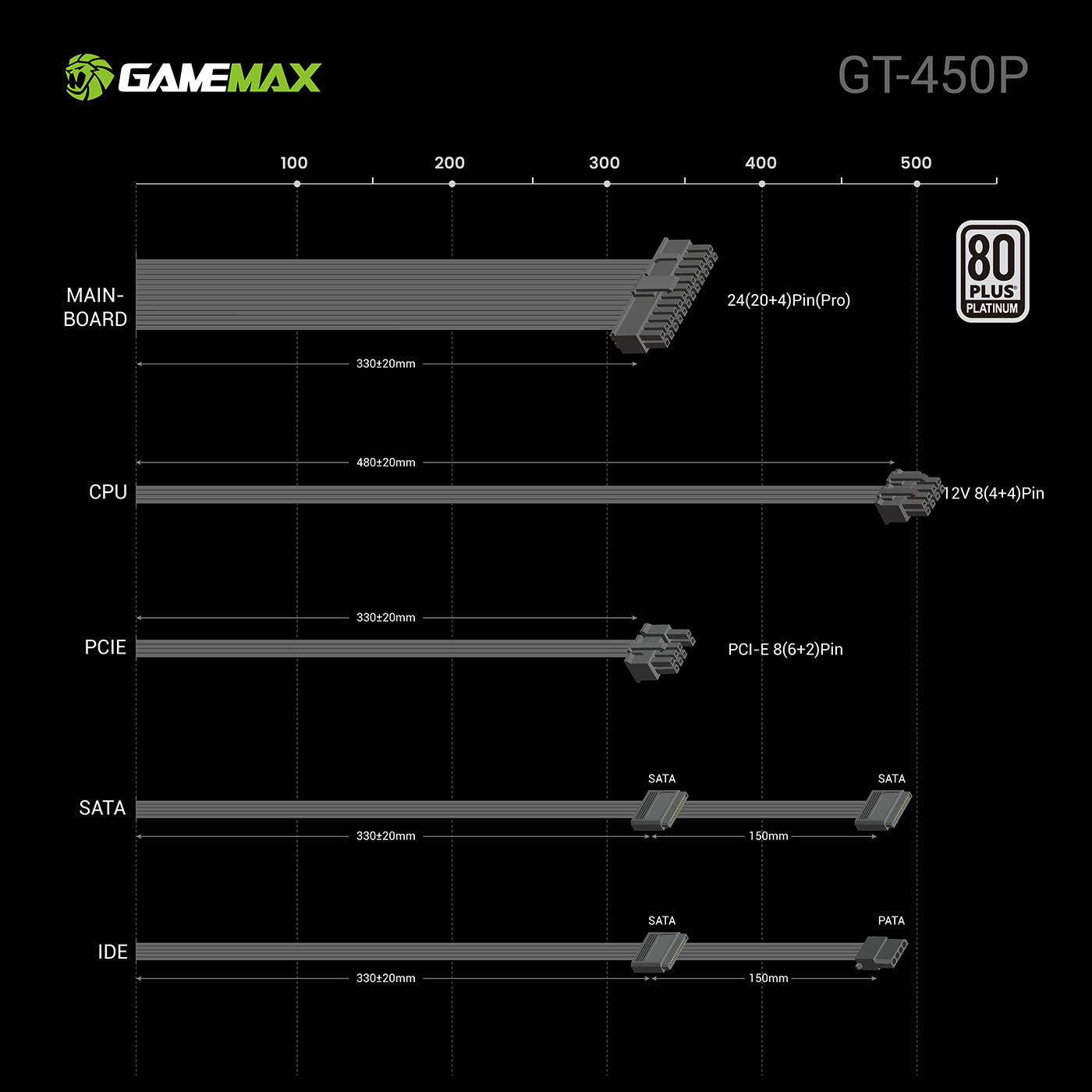

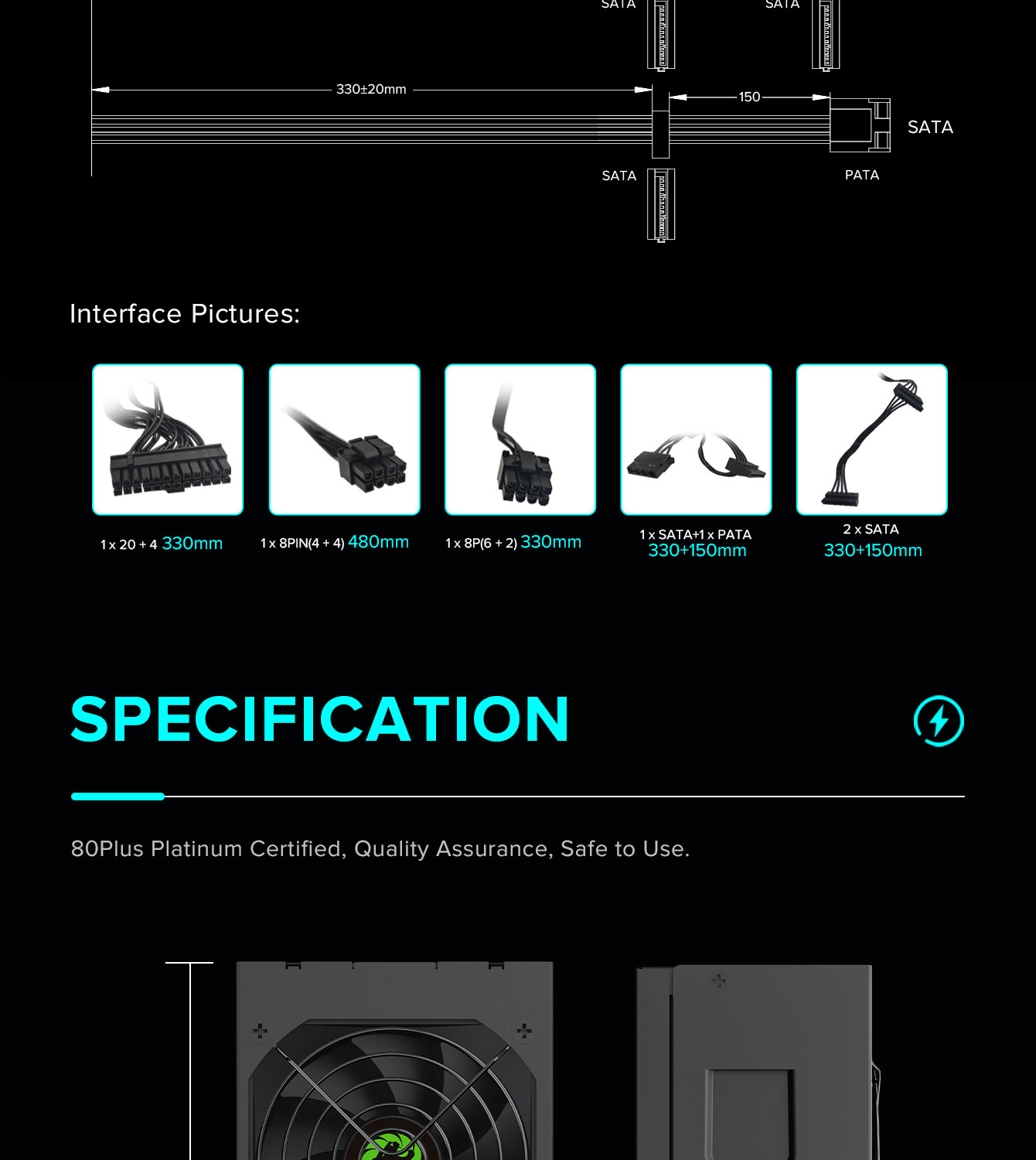

Single PCI-E 6+2pin connectors support,
Finally, there is full electrical protection and official safety is promised
Key Features
TFX PSU 450W continuous power output, Active PFC 80Plus Platinum, at 40℃ rated operating temperature for 24/7 operation ensures unwavering power and reliability

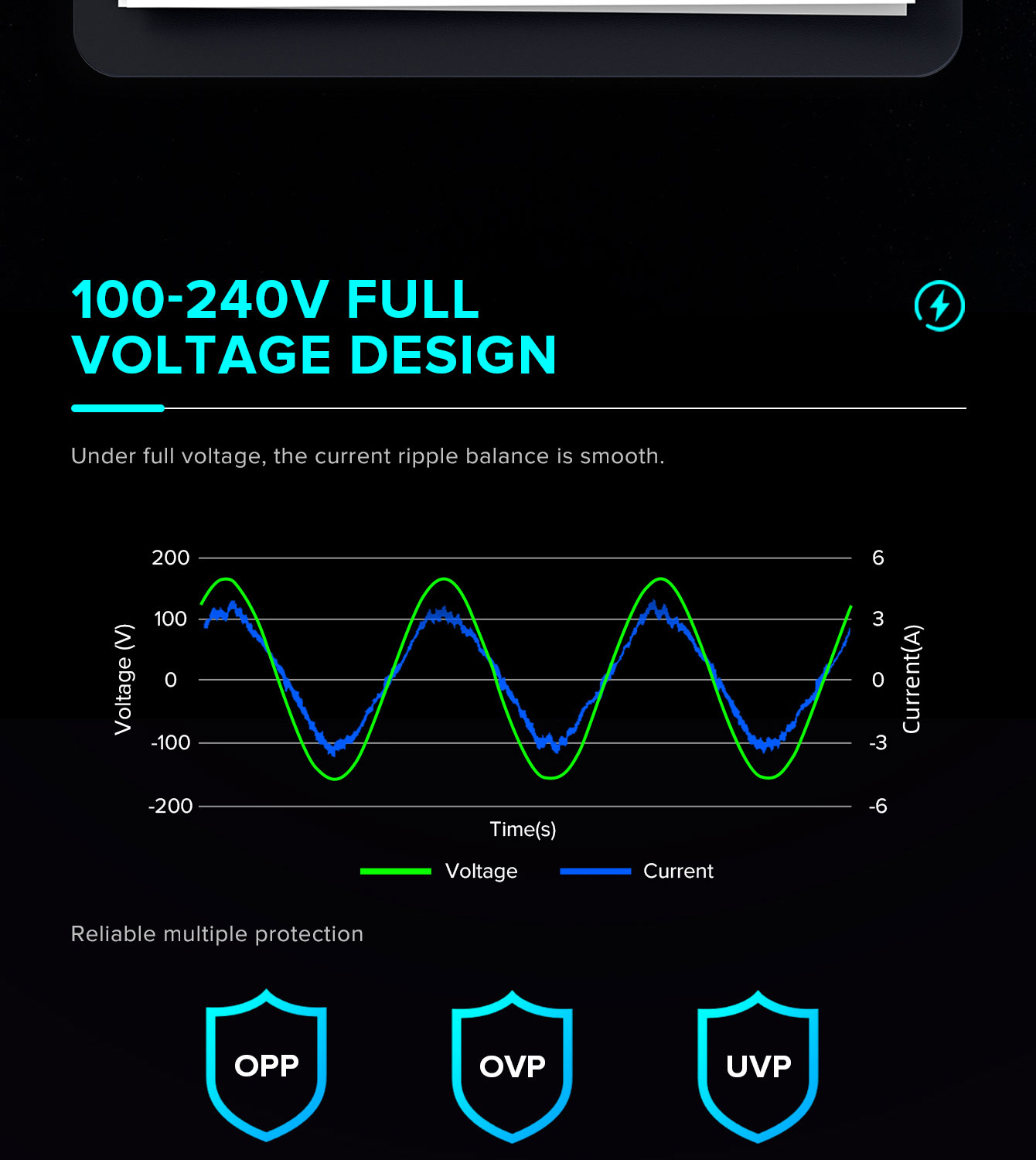

· AC Input Voltage from 100-240v. TFX power supply is the most common in brand PC machines

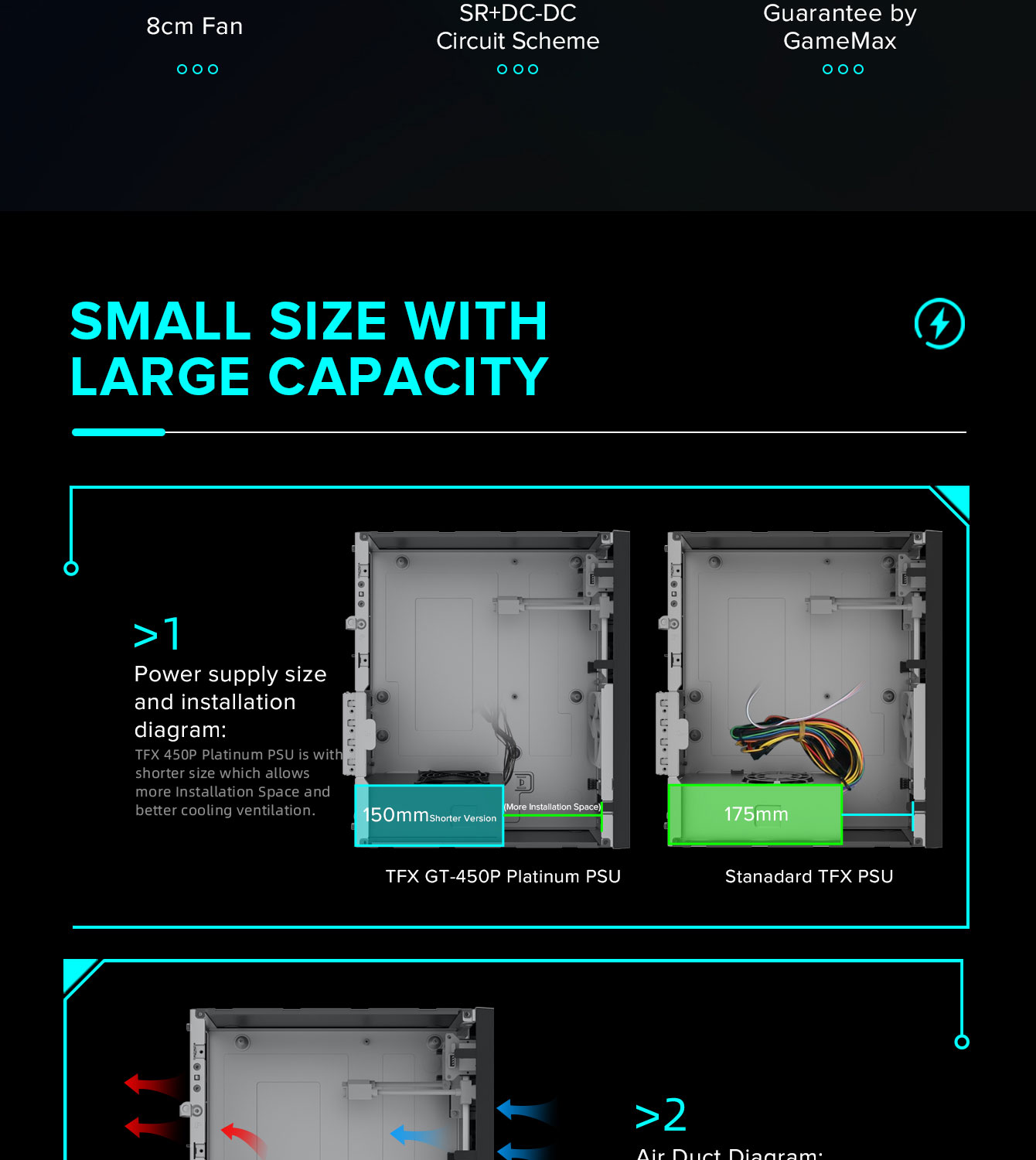

· Size: 150*85*65mm, smaller than ATX power supplies. Strictly according to standard TFX form factor. High efficiency, small volume
· Scope of application: TFX power supply is widely used in MINI-ITX computer ITX case, PO, IPC, server, workstation, industrial computers, all-in-one computers, etc. TFX power supply is mainly used in small equipment, TFX cases, and some HTPC cases
· Low-noise fan 80mm. High efficiency with 92%

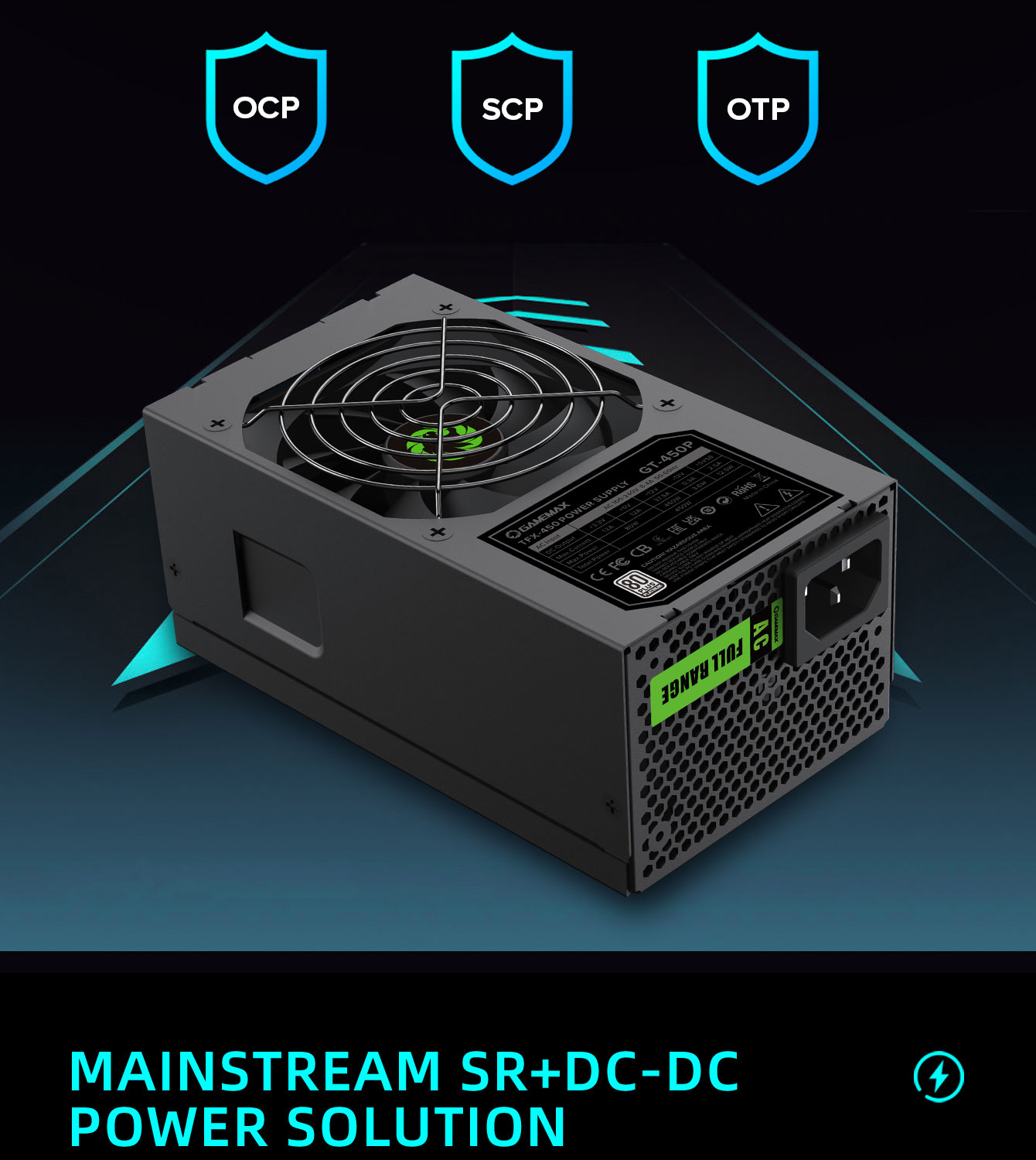

· Multiple protection including OVP, UVP, OCP, OPP, OTP and SCP
· Safety / EMI Approvals: CE, FCC, CB, UL
