GT-250W 80+ Gold TFX offers you the most suitable cost/performance ratio and is certified for 80 PLUS Gold, this active PFC unit runs at a max of 90% efficiency, making it the best choice for a system builder
• The 12V CPU power is available for a high-end Mini PC and Performance Business PC system （with a 4 + 4 CPU connector, and its 3 x L-shaped SATA,1x PCIe 8pin connectors mean you can use it in a compact desktop chassis
• Finally, there is full electrical protection and official safety is promised by GameMax

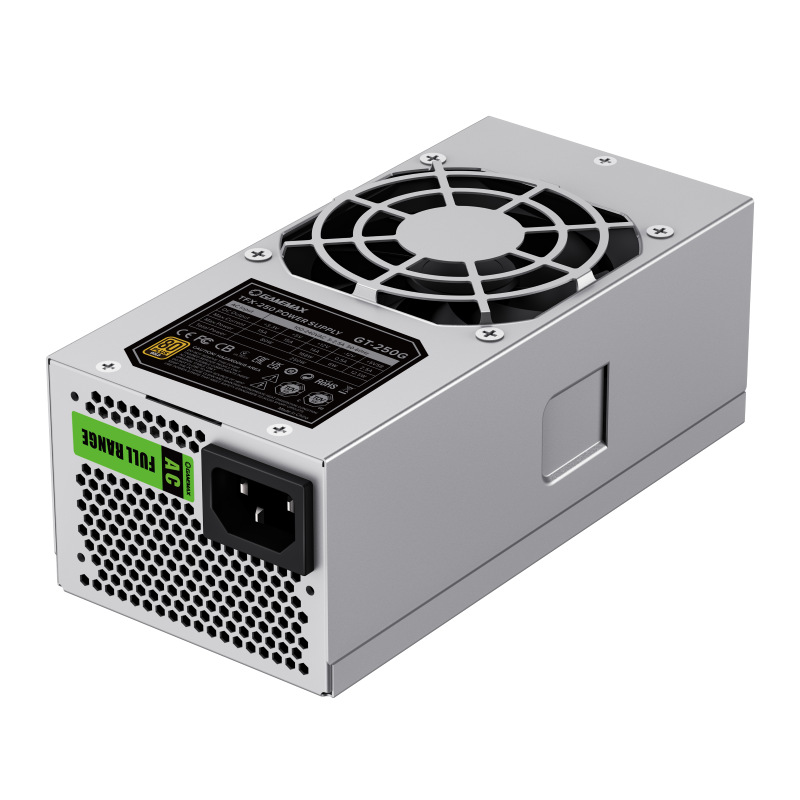

TFX 250W 80+ Gold APFC
Key Features
Compatible with ATX 12V 2.3 and 2.4
High-end SECC 0.6mm casing
High-Efficiency – 90% Certified
Low Noise 8cm Fan with intelligent fan speed control

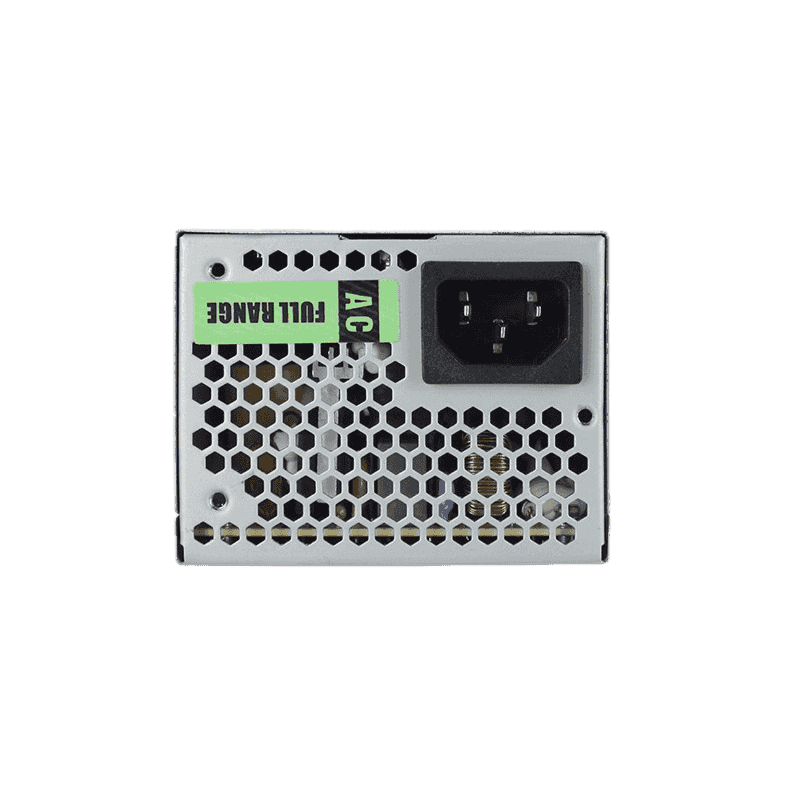

Honeycomb ventilation design for optimal heat dissipation
Active Power Factor rate up to 0.99
OPP/OVP/UVP/SCP electrical protection included
Full Range AC input 100-240Vac manual switchable
OPP/OVP/UVP/SCP electrical protection included
Safety / EMI Approvals: CE,FCC,CB,UL
Size 175*85*65mm
Box package
Specification:
| AC INPUT: 100-240 VAC 6~3A 50-60Hz | |||||
| DC | +3.3V | +5V | +12V1/+12V1 | -12V | +5VSB |
| Output | 15A | 15A | 16A/16A | 0.5A | 2.5A |
| Max | 250W | ||||
