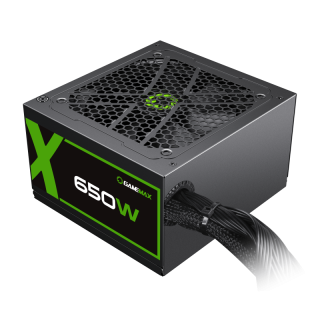

GameMax GX-650W 80+ Gold ATX Power Supply: High Efficiency Gold Design: Based on Platinum-level principles, achieving over 92% efficiency with LLC & DC-DC technology.
• Quiet & Cool Operation: FDB fan keeps noise low and effectively dissipates heat, even during heavy loads.
• Stable & Durable Build: Features all-solid capacitors and SMT components for long-lasting reliability and stability.
• Broad Compatibility: Supports 100-240Vac input and latest graphics cards with multiple PCIE interfaces.
• Comprehensive Safety: Seven levels of protection (OTP, OCP, SCP, OVP, UVP, OPP, SIP) safeguard your system.
Detailed Specifications
| Dimensions: | 150mm x 85mm x 140mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 10-5A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-150 ms |
| Hold Up Time: | >10ms |
| Efficiency: | > 87% (92% max) |
| MTBF: | > 100,000 Hours |
| Protection: | OVP / UVP/ SIP / OCP/ OLP/ OPP/ SCP/OTP |
| Power: | 650W |
| Operation Temperature: | 0-40C |
| Safety: | CE / FCC / CB/TUV/cTUVus |
| Cooling: | 120mm Ultra Silent Fan |
| Noise: | <25dBa |
| 80 Plus Certified: | Yes - 80 Plus Gold |
