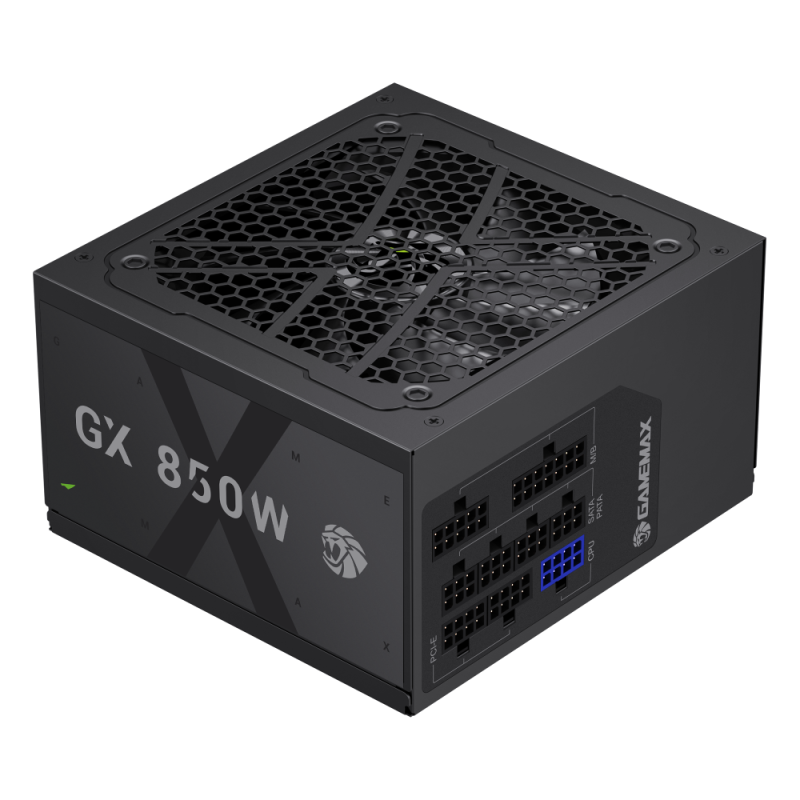

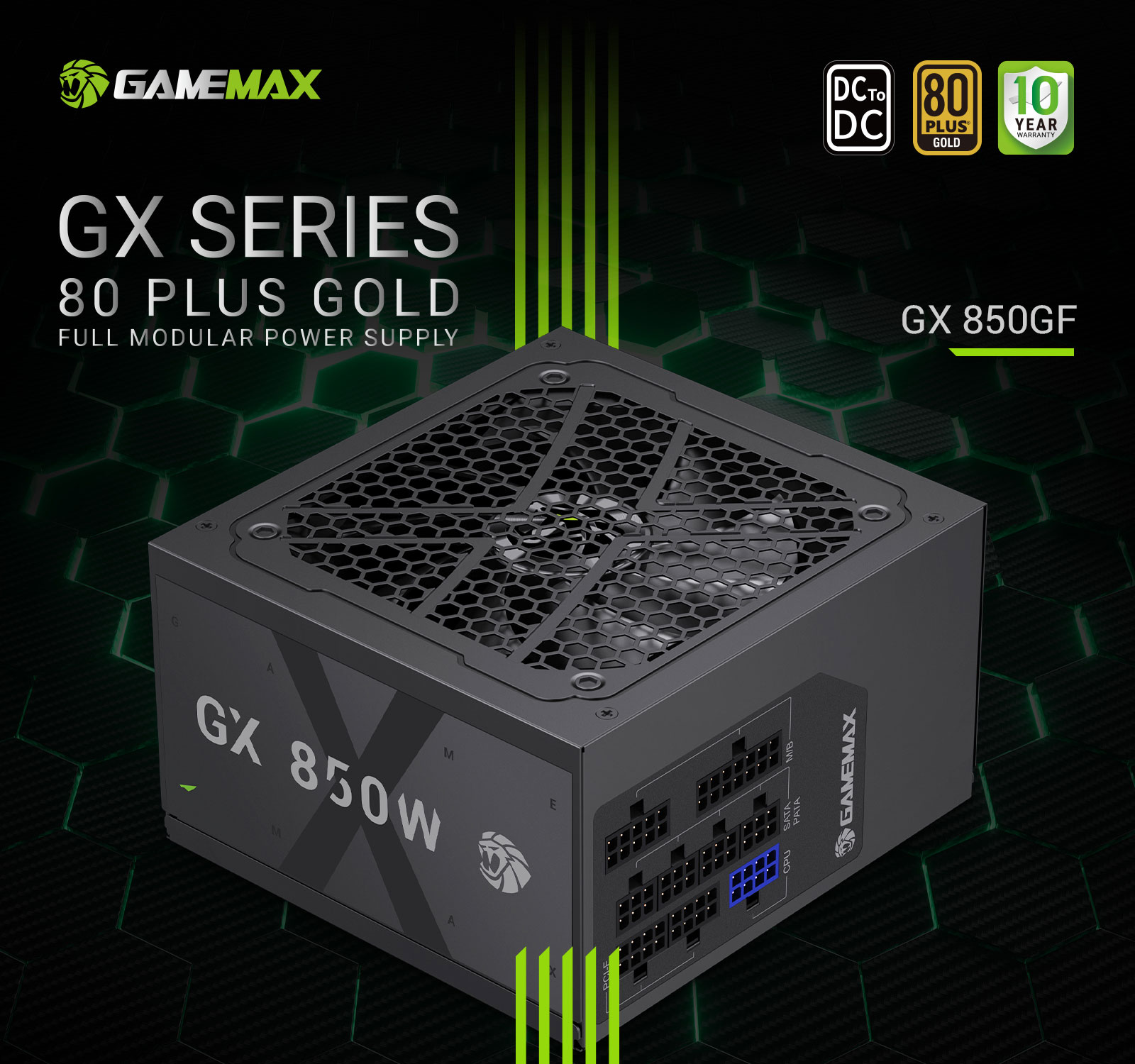

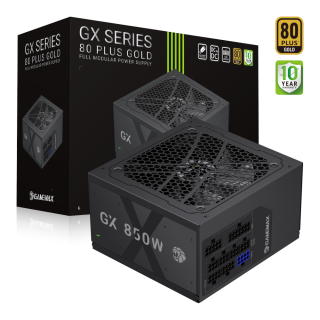

The GameMax GX 850GF Modular Power Supply, 80+ Gold certified, offers top-tier performance in a compact package. Key features:
• High Efficiency: Over 92% efficient with LLC & DC-DC technology for energy savings.

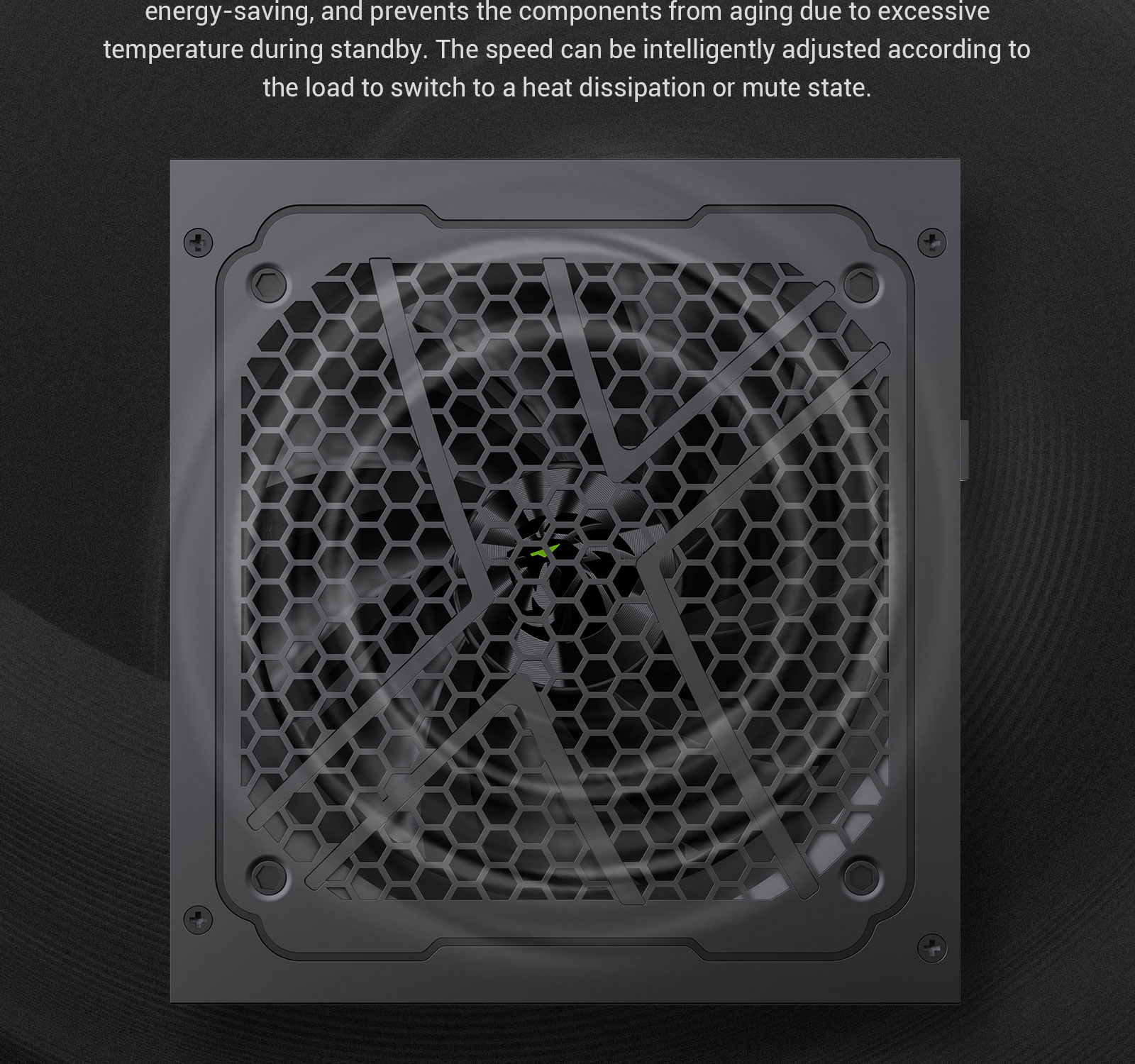

• Silent & Cool: FDB fan for whisper-quiet operation and effective heat dissipation.

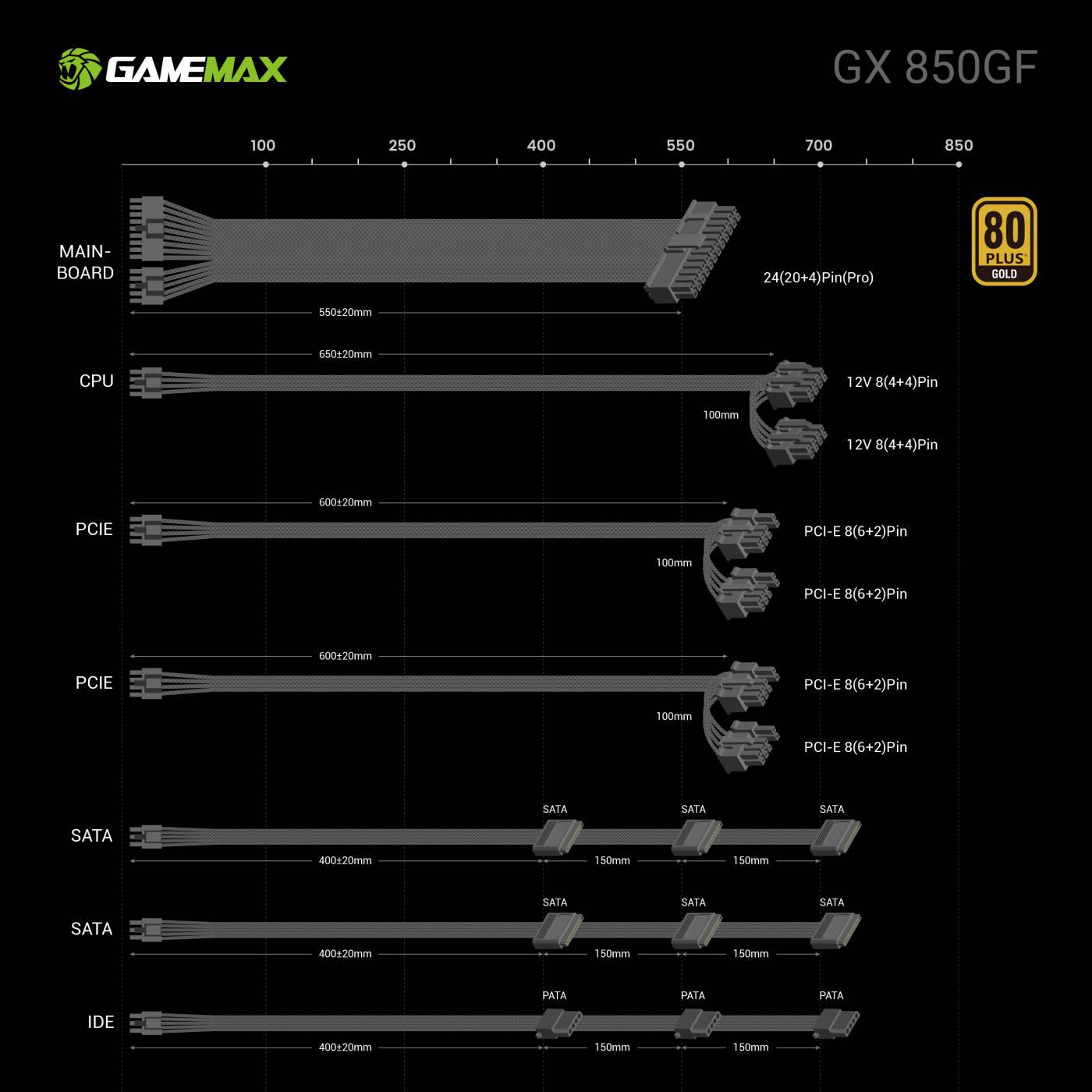

• Modular Design: Easy cable management for a cleaner build and improved airflow.

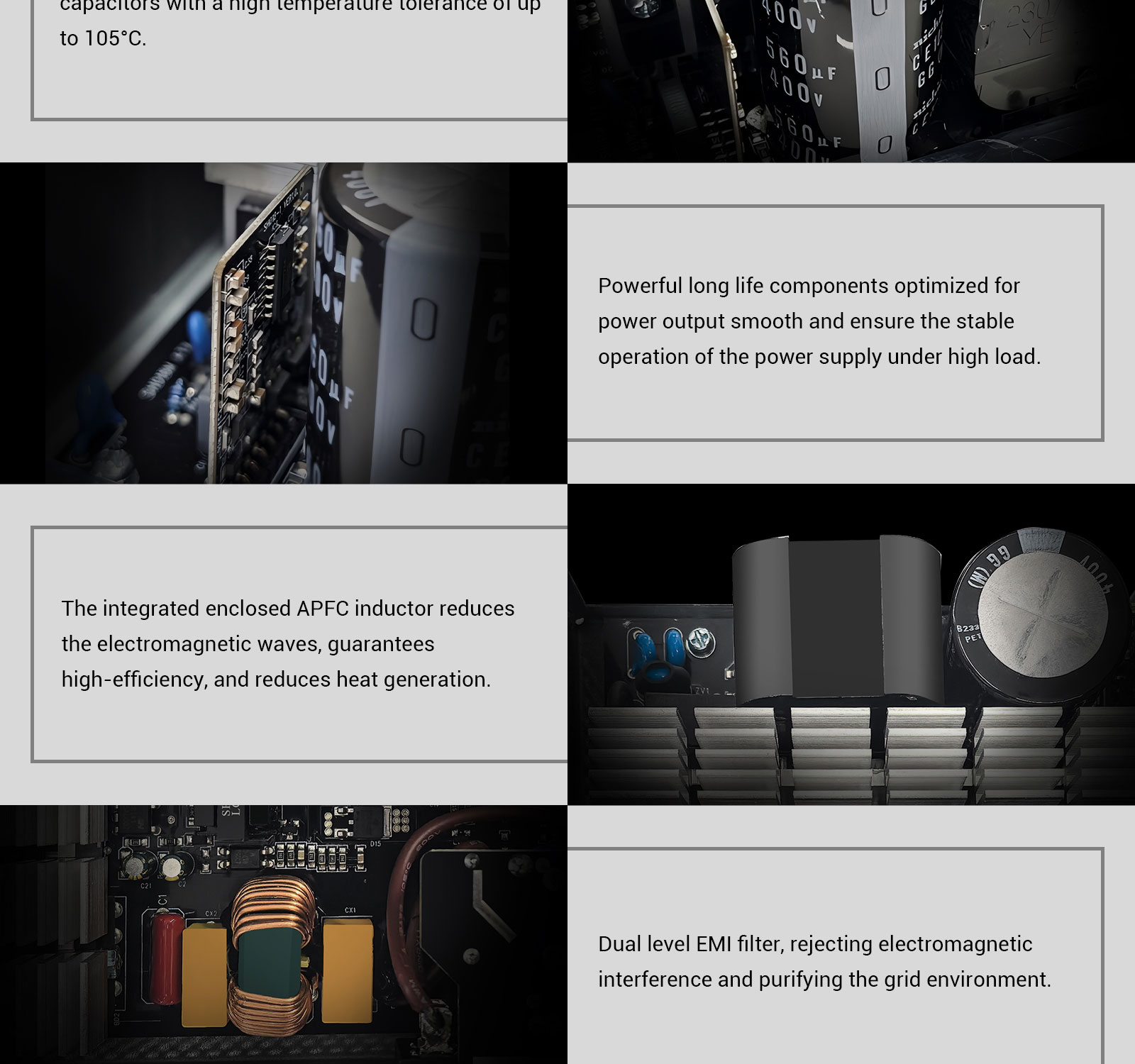

• Stable & Durable: All-solid capacitors and SMT components ensure long-lasting reliability.
• Broad Compatibility: Supports latest graphics cards and full voltage input range.
• Protection: Seven levels of safeguards protect your system from harm.

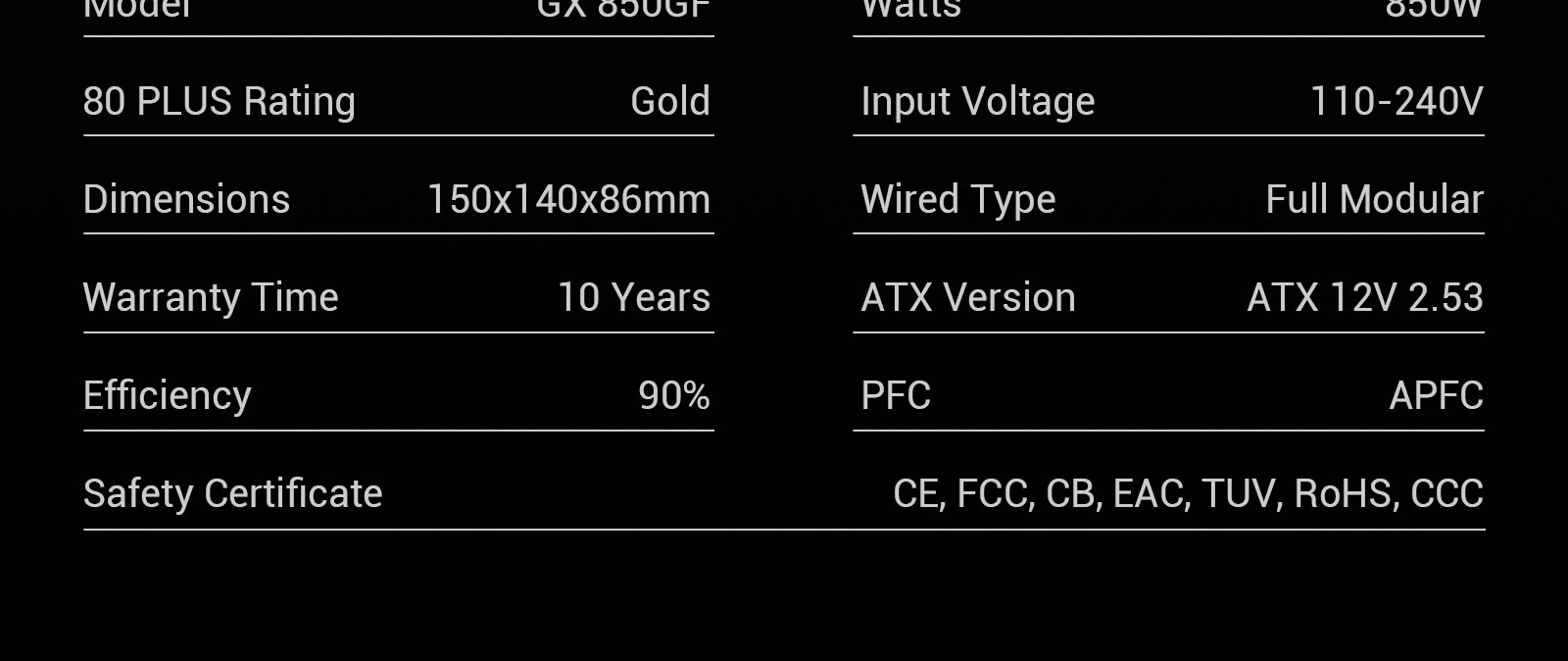

Detailed Specifications
| Dimensions: | 150mm x 85mm x 140mm (W x H x D) |
| Input Voltage: | 110-240 VAC |
| Input Current: | 10-5A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-150 ms |
| Hold Up Time: | >10ms |
| Efficiency: | > 87% (92% max) |
| MTBF: | > 100,000 Hours |
| Protection: | OVP / UVP/ SIP / OCP/ OLP/ OPP/ SCP/OTP |
| Power: | 850W |
| Operation Temperature: | 0-40C |
| Safety: | CE / FCC / CB/TUV/cTUVus |
| Cooling: | 120mm Ultra Silent Fan |
| Noise: | <25dBa |
| 80 Plus Certified: | Yes - 80 Plus Gold |
