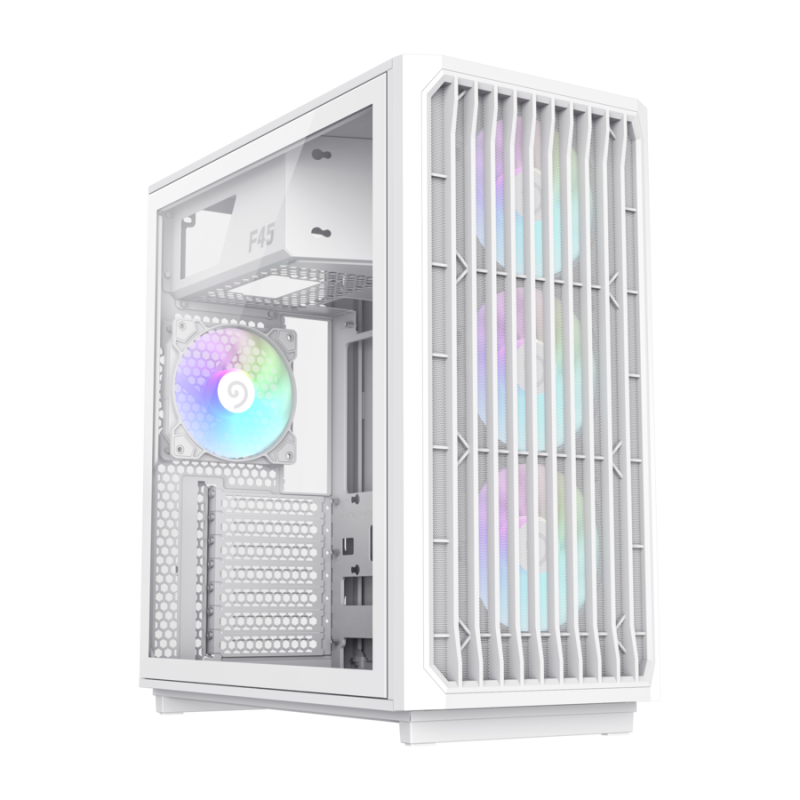

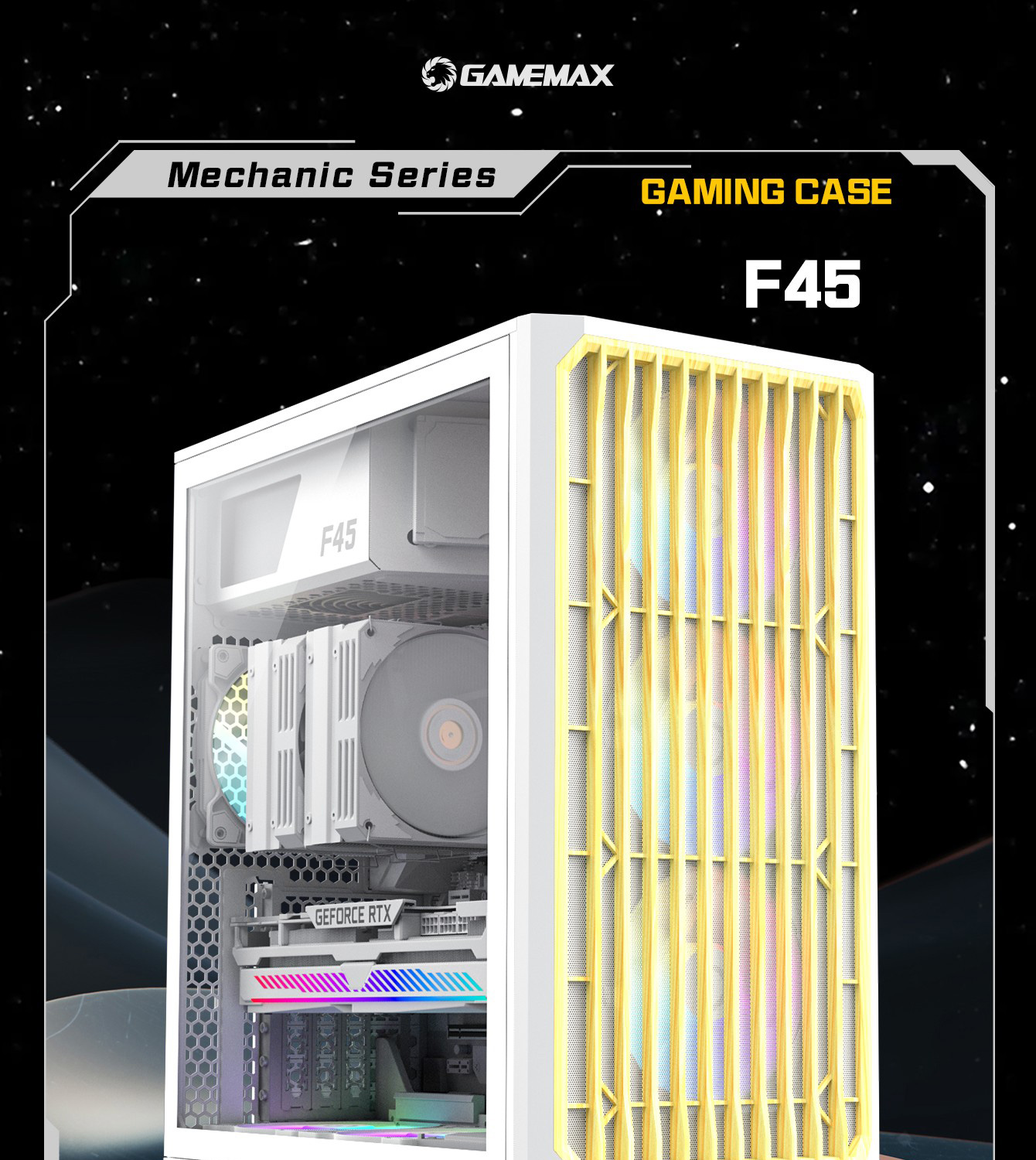

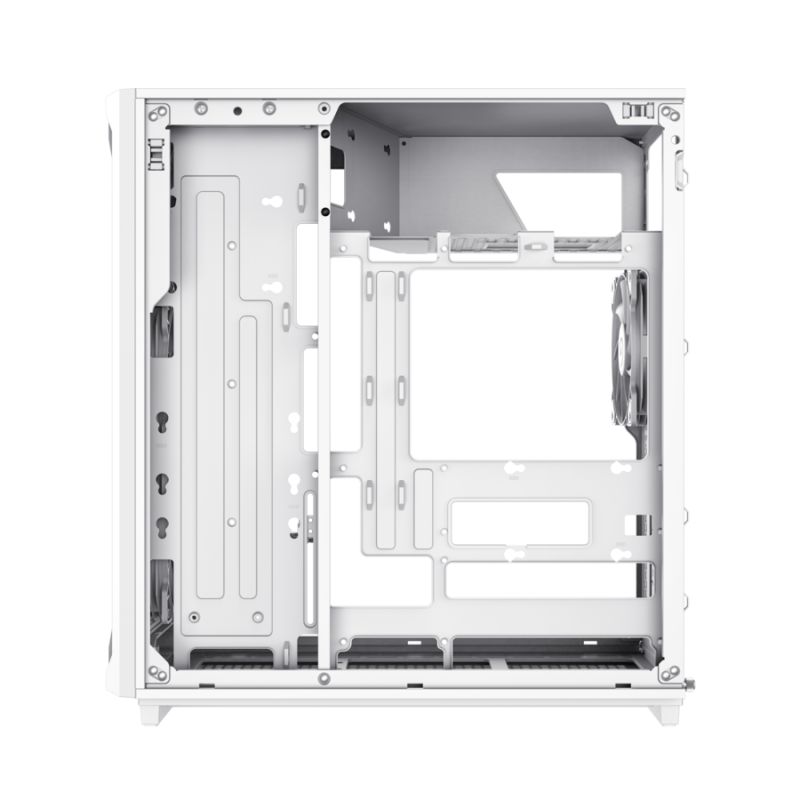

GameMax F45 White ATX Gaming Case, a great looking, airflow oriented, easy to install premium computer case with a heavy duty steel metal frame and 4.0mm tempered glass
• And it comes with 3x 120mm ARGB fans for maximum cooling.
• Supports 169mm tower air cooling, 240/280/360mm water cooling.
• Support ATX standard motherboards, backplane motherboards, 7 slot graphics card direct insertion.

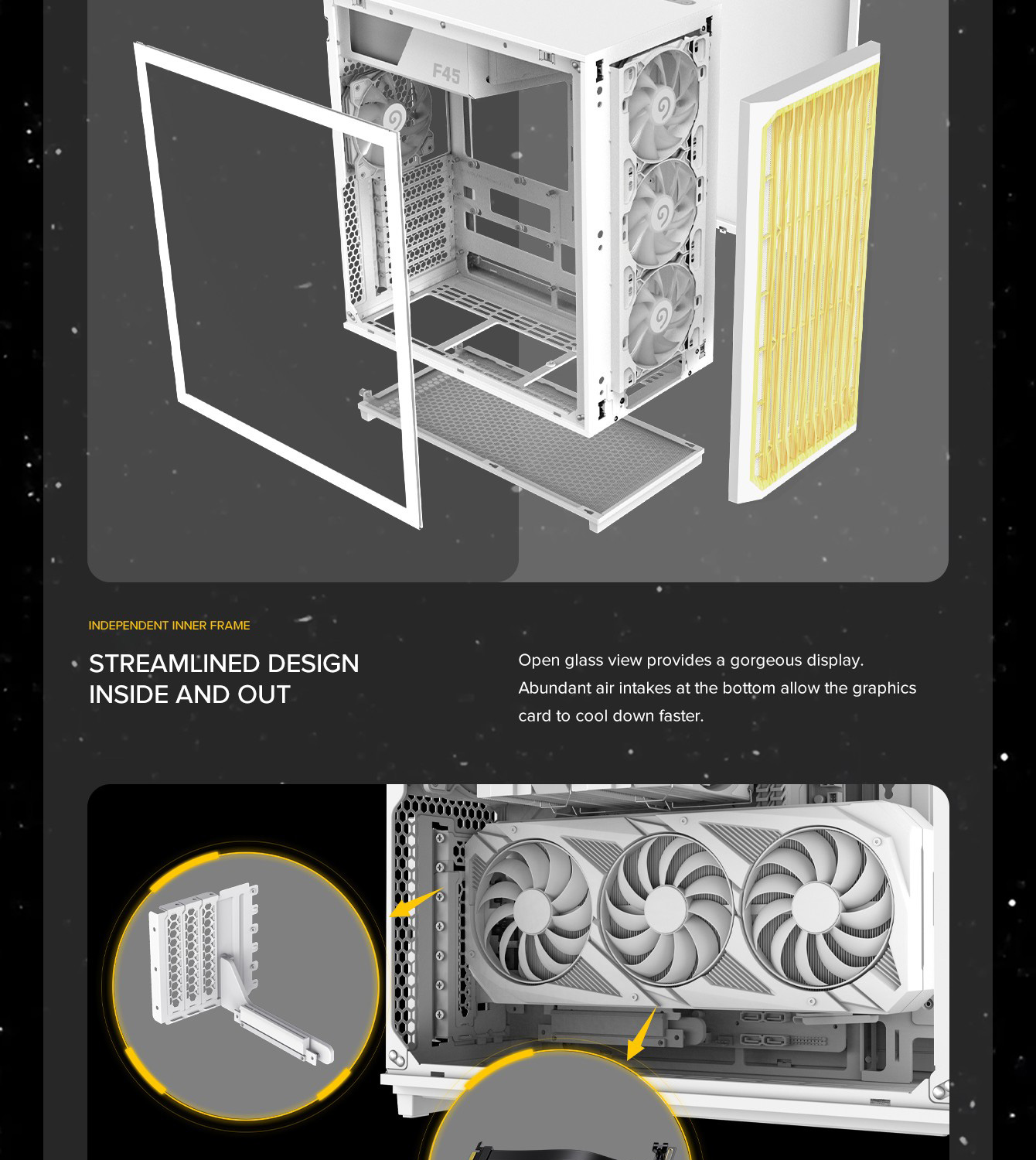

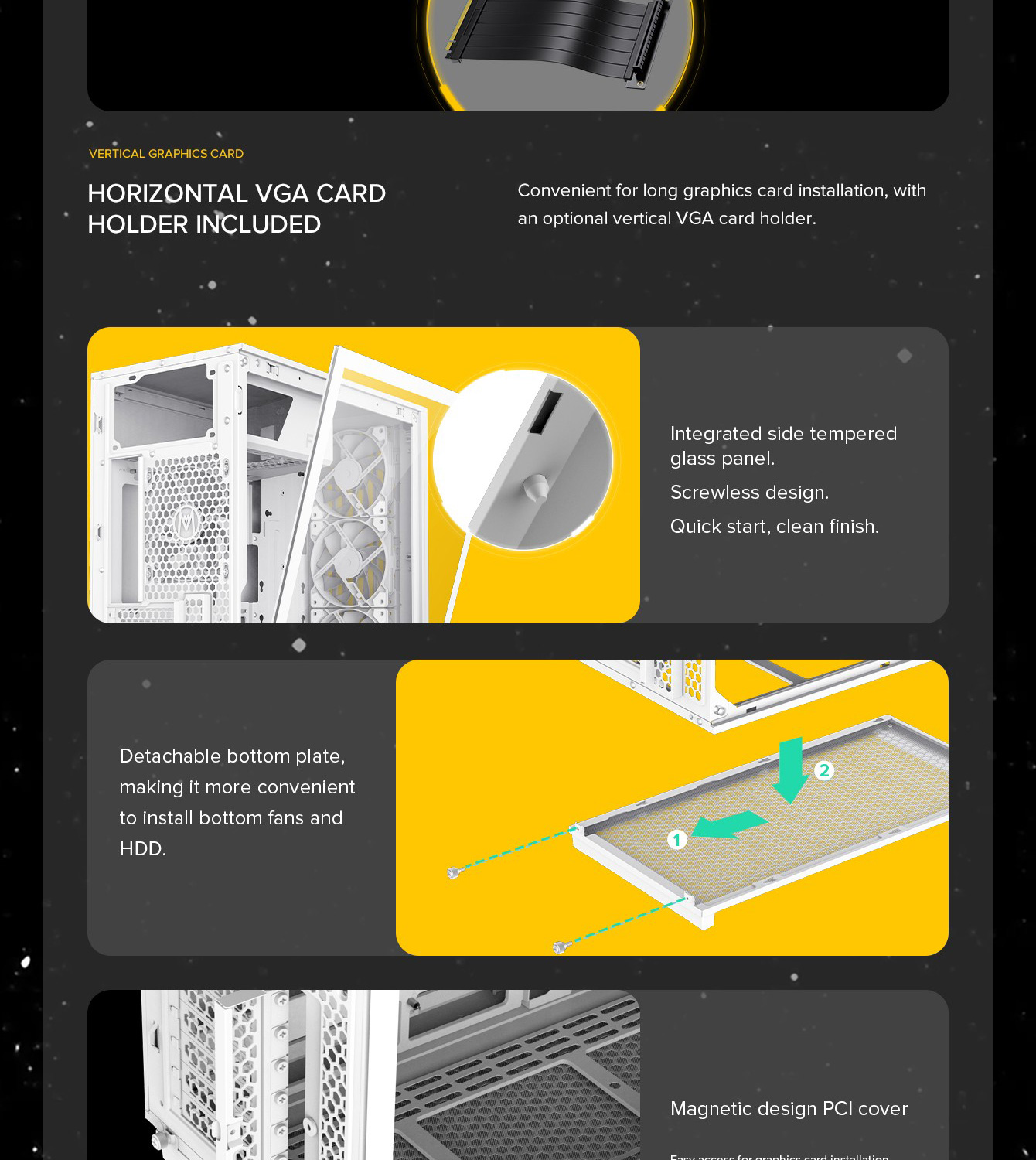

• Tool-less snap-on quick release for front panel and side panels.
• Top-mounted power supply compartment.
| Form Factor (Midi, Micro, Mini ITX, Full) | Mini Tower | |
| Chassis | SPCC :.08/0.6mm mixed | |
| PSU Form Factor | UP/ATX | |
| M/B Form Factor | ATX,M-ATX, ITX | |

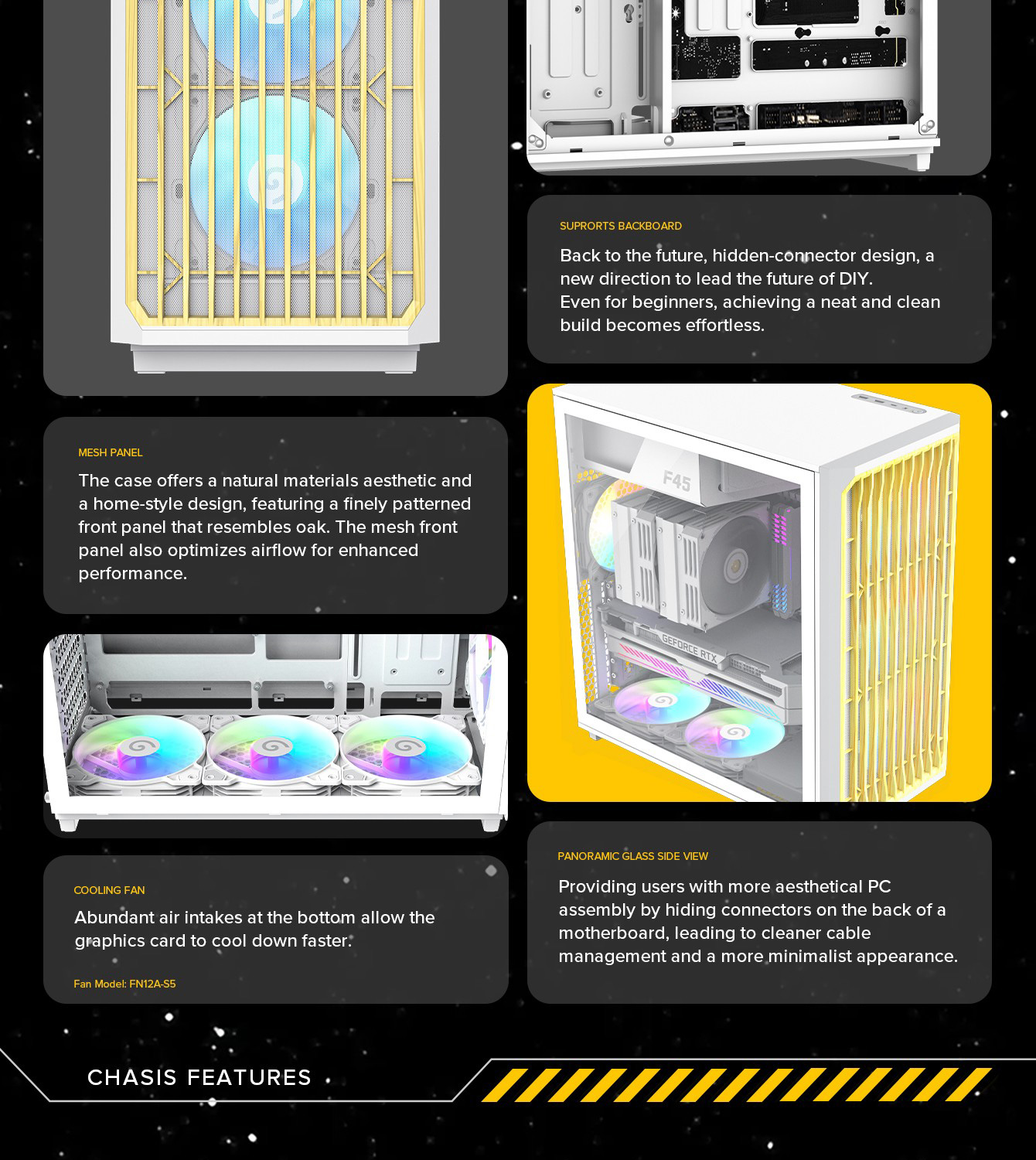

| Front Panel | MESH | |
| Top Panel | Metal cover | |
| Color | Front,Top bezel | / |
| Side Panel | Left | Tempered glass |
| Right | metal cover | |
| External Drive Bay(s) | 5.25" (ODD) | *0 |
| 3.5" | *0 | |
| Internal Drive Bay(s) | 3.5" (HDD) | *2 |
| 2.5" (SSD) | *3 | |
| I/O | Buttons | *1 |
| USB1.1 Port(s) | *0 | |
| USB2.0 Port(s) | *0 | |
| USB3.0 Port(s) | *2 | |
| Type-C | *1(GEN2) | |
| Combo Audio | *1 | |
| Card Reader (Support) | *0 | |
| Fan Controller | *0 | |
| RGB Controller | *0 | |
| Controller max. fans | *0 | |
| RGB Controller max. LED strips | *0 | |
| Remote (IR or RF) | *0 | |

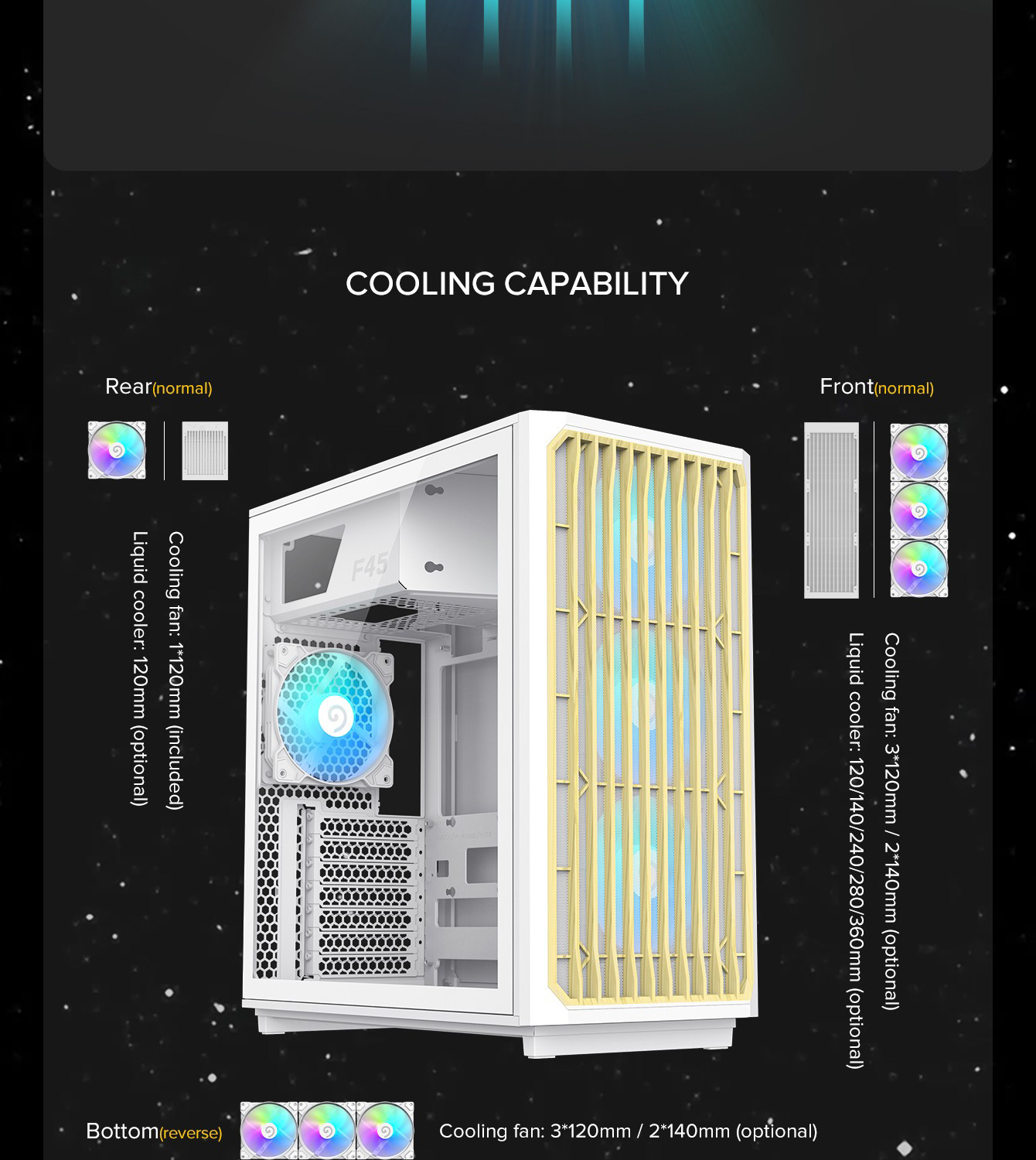

| Cooling Fan Support | Front | 3x 120mm (included) / 2x 140mm (optional) |
| Top | 0 | |
| Rear | 1x 120mm (included) | |
| Left Side | *0 | |

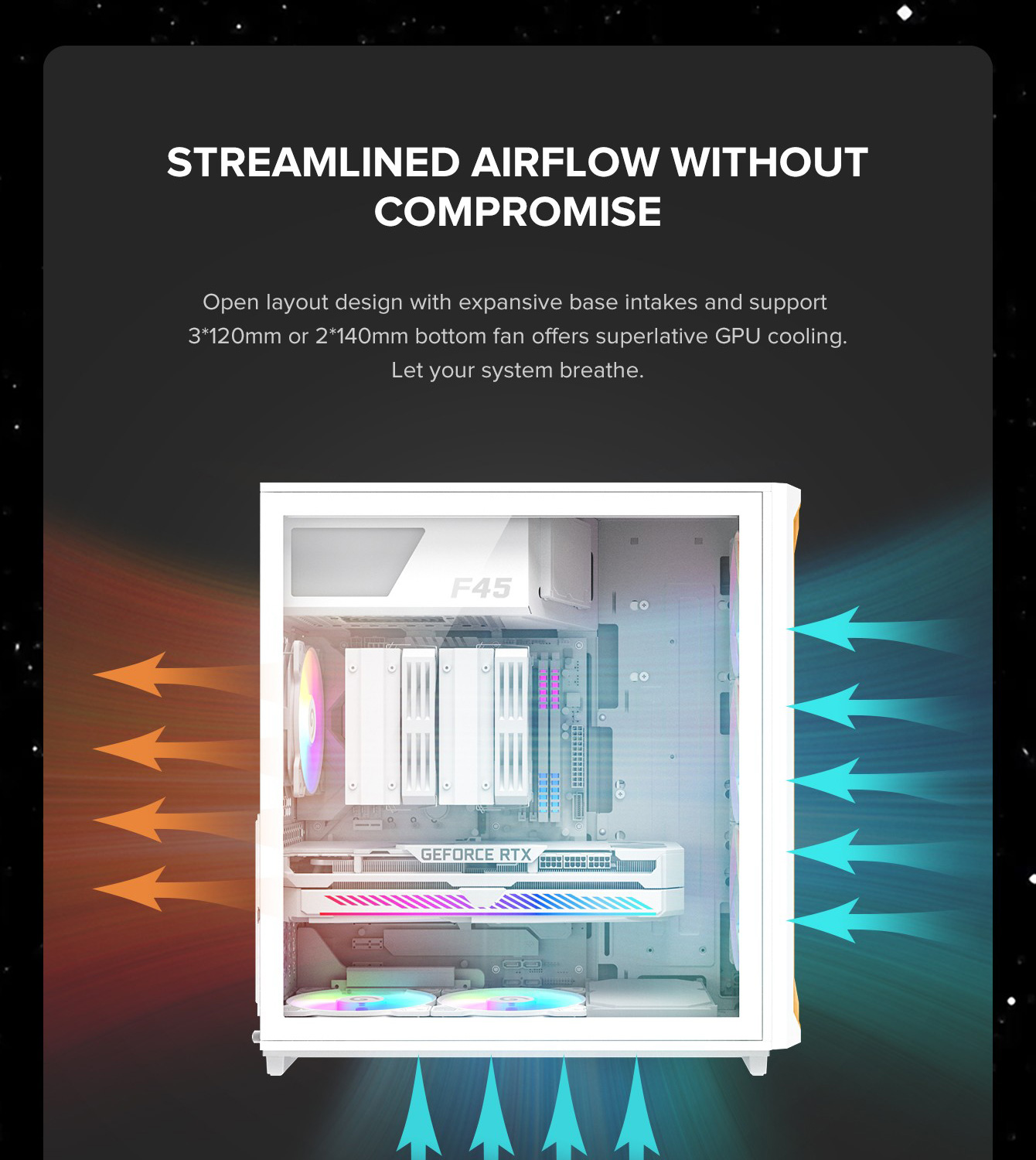

| Bottom | 3x 120mm / 2x 140mm (optional) | |
| WaterCooler Radiator | Front | 1x 120mm/240mm/280mm/360mm (optional) |
| Top | *0 | |
| Rear | 1x 120mm (optional) | |
| Dust Cover | Bottom cover with dust filter | |
| Slots | *7 | |
| Carton Logo | GAMEMAX | |
| Dimensions | Chassis | (L)386*(W)216*(H)428mm |
| Full Case (inc Fascia) | (L)419*(W)216*(H)449mm | |
| Carton | (L)485*(W)278*(H)525mm Material：K=K 14Kg above Beer hole position：110mm | |
| Net Weight (Kg) | 5.5kgs | |
| Gross Weight (Kg) | 6.5kgs | |

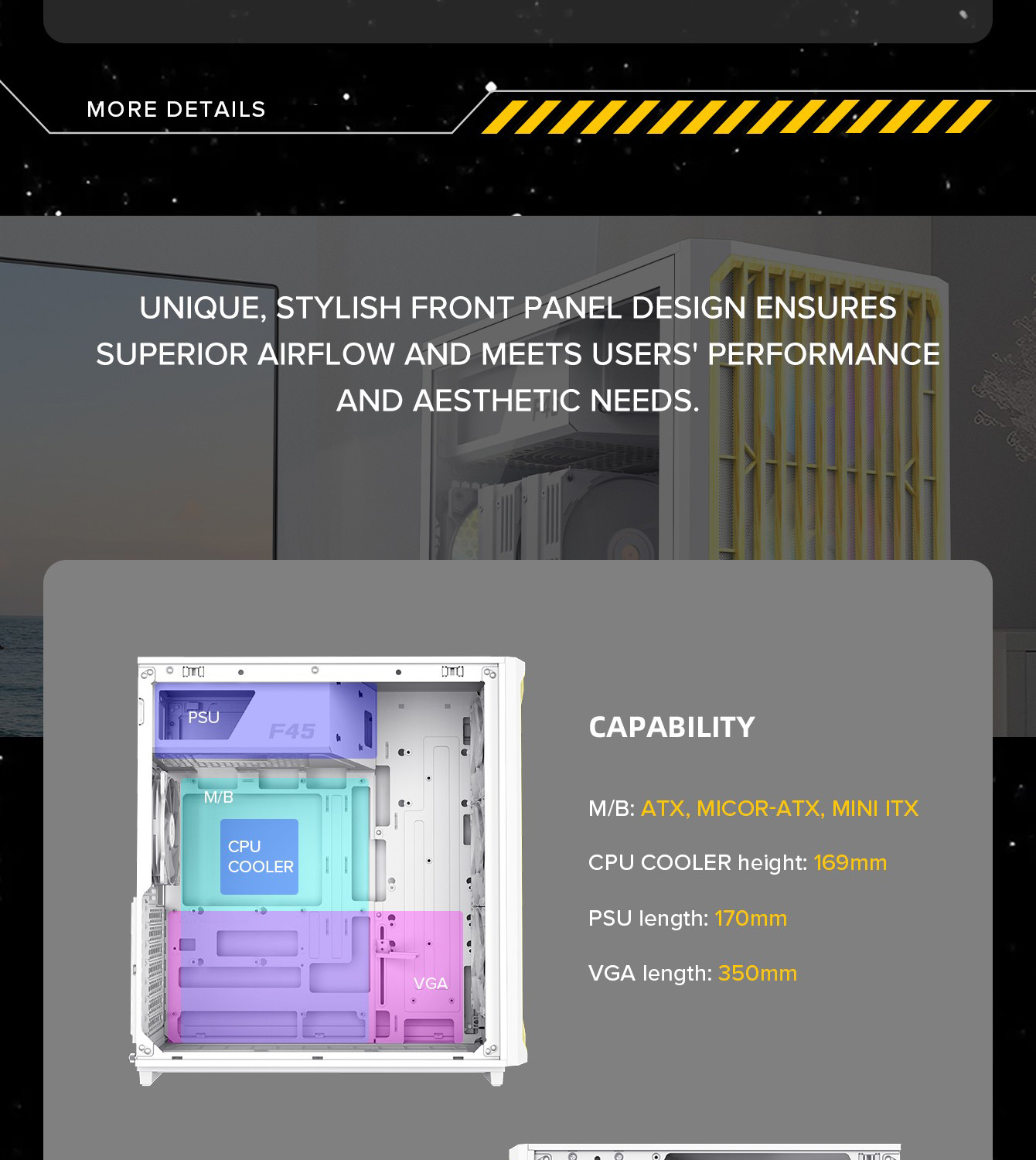

| VGA Card Length | 350mm | |
| CPU Cooler Height | 169mm | |
| SPS Length | 33mm | |
