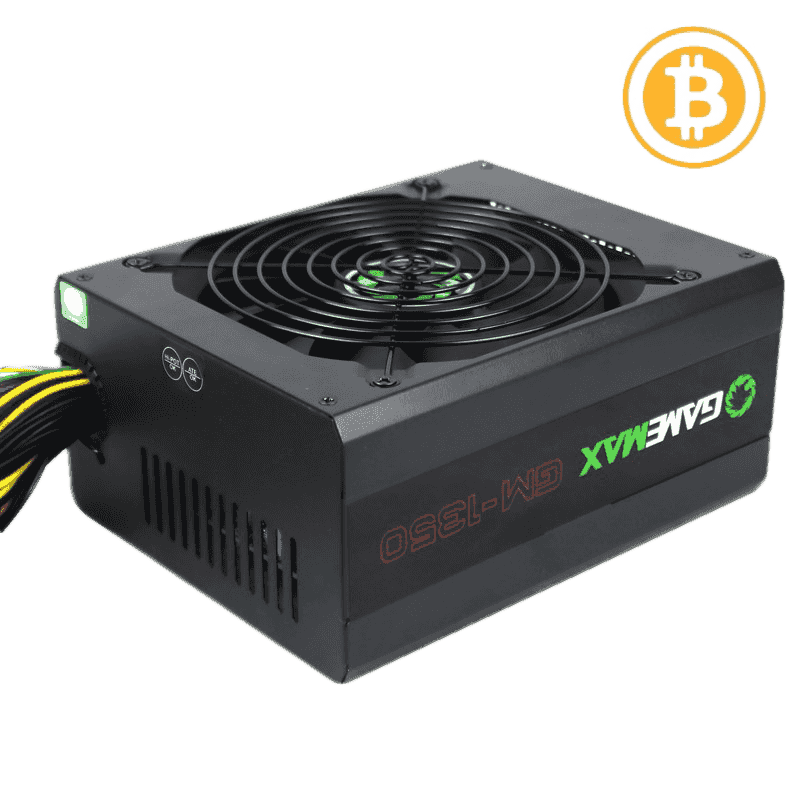

GameMax 12v atx power supply 1350w power supply psu for bitcoin mining,miner power supply for ethereum ETH miner mining 6 GPUs
• 6-channel independent + 12V output, power factor up to 1350W 80PLUS Gold high conversion efficiency
• The typical load efficiency up to 90%Large 140 mm fan structure, intelligent temperature control, large air volume, ultra mute function mature APFC + Double Forward technology
• The most green and environmentally friendly power source: high power, high efficiency, full RoSH craft, radiation.
• The applicability of the strongest power: full power input, support multiple high-power quad-core CPU, support for 6 graphics card, high-performance motherboards graphics cards and other devices.
1.Efficiency exceed 87%@220V(Gold 90% designed basis)
2.AC input full range design(100 to 240V.Optional)
3.Thermal control technology
4.Protection circuitry offer: OVP OPP SCP OCP UVP OTP
5.100% burn-in under ambient temperature upto 45℃
6.100% high voltage test under AC 1.5KV 10mA 3Sec
7.Standby power less than 1W,low power consumption
8.Low ripple,silent
9.MTBF:100K hours at 25℃
| Model NO. | GM-1350 | ||||||||||
| Rate Power | 1224W | ||||||||||
| Peak Power | 1350W | ||||||||||
| Efficiency | Over 87% | ||||||||||
| AC Input Range | 100V-240V | ||||||||||
| Active PFC Universal | Yes | ||||||||||
| Temperature Control | Yes | ||||||||||
| 12V Rail | + 12V | ||||||||||
| Housing Material | black coating | ||||||||||
| Fan &Fan Guard | 140mm black fan +silver fan guard | ||||||||||
| I/O Switch | Yes | ||||||||||
| Modular | / | ||||||||||
| Power Cord | Yes | ||||||||||
| Housing Size | 180*150*86mm | ||||||||||
| Package | PE bag 10pcs/brown box | ||||||||||
| M/B(20+4P) | 1(exposed500mm) | ||||||||||
| CPU(4P) | / | ||||||||||
| CPU(4P+4P) | 1(exposed 500mm) | ||||||||||
| PCI-E(6) | / | ||||||||||
| PCI-E(6+2)P | 6(exposed 500mm) (each cable 2xPCIE(6+2)) | ||||||||||
| SATA | 7(exposed 500mm) | ||||||||||
| Molex 4Pin | 5(exposed 500mm) | ||||||||||
| Floppy 4Pin | / | ||||||||||
| Input AC | 100-240Vac 18-9A 50-60Hz | Fuse rating 20A 250Vac | |||||||||
| Output Voltage | + 12v | +5v | +3.3V | -12V | +5Vsb | ||||||
| Output Current | 102A | 20A | 20A | 0.5A | 3A | ||||||
| Max.Output | 1224W | 100W | 21W | ||||||||
| Rated Power | 1350W | ||||||||||
