ATX 12V V2.3, Wattage 1800W Dual ball bearing 8cm*2 black fan
• Support 9xGPU cards
• Professional Mining PSU design basis

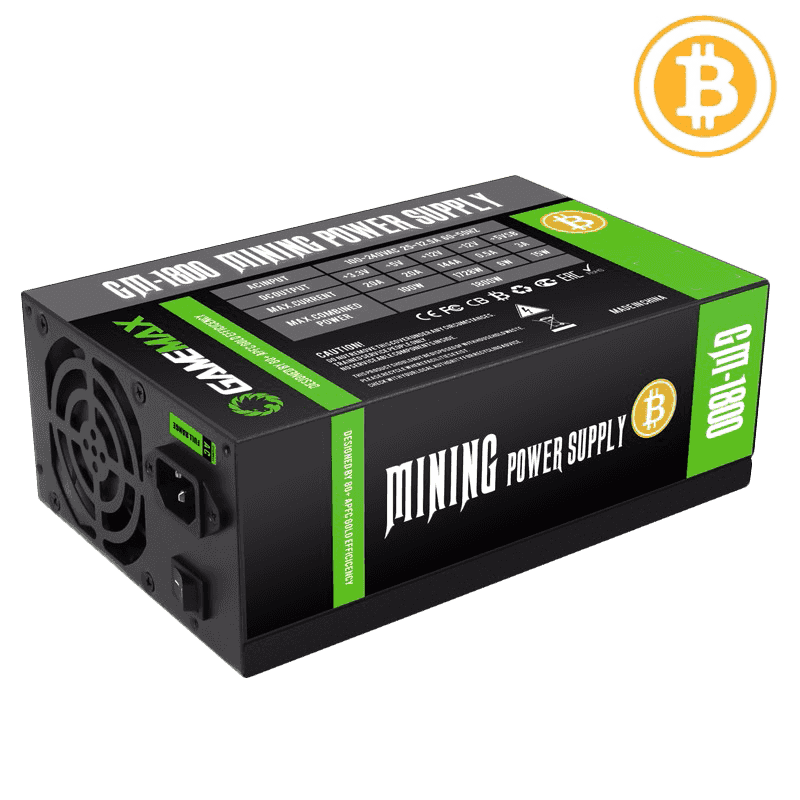

Gold Miner 1800W
Mine with Efficiency
Your hashing runs 24 hours a day 7 days a week. Gold Miner 1800W is designed to provide you up to 90% efficiency for your cryptocurrency mining. With Gold Miner you get more watts for your buck.

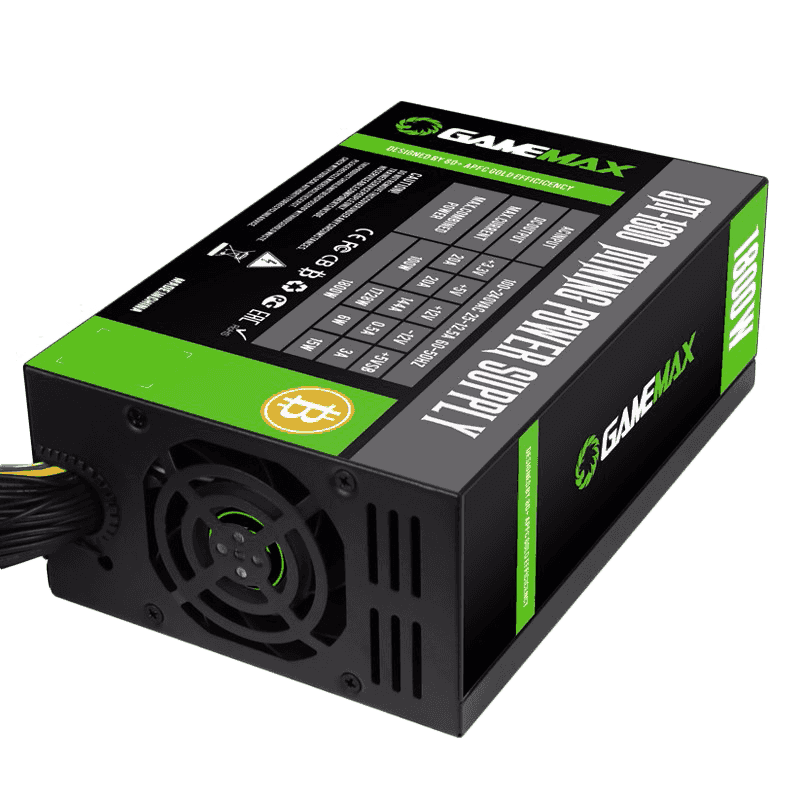

Dual Fan Configuration
Gold Miner 1800W comes with double 80mm fan configuration,intake, and exhaustion. This fan configuration induces a straight-in, straight-out constant airflow that keeps the unit at the ideal temperature.
To keep the unit cool, the Gold Miner 1800W fans constantly run at their maximum speed of 4500 RPM. The fans are designed with 2-ball bearings to ensure high durability under this heavy usage.
Heavy Duty Cables
Standard power supply units come with AWG#18* cables, according to Intel’s Power Supply Design Guide. Mining usage scenarios might cause this type of cables to overheat burning the sheath and damaging the unit.Gold Miner 1800W comes equipped with AWG#16 cables, these cables ensure safe heavy-duty operation.
Connectors Optimized for Mining Systems
Gold Miner 1800W comes with 9 PCIe connectors, and 5 Molex 4 pin connectors.
This number of connectors is optimal for 9 VGA cards system configurations with their corresponding widget adapters.
Usage Guidelines
| ■ | Gold Miner 1800W is designed for 9 VGA cards systems at Maximum. Adding more cards might DAMAGE THE UNIT AND YOUR SYSTEM. |
| ■ | The number of connectors of Gold Miner 1800W is strictly matched to its recommended load, adding connector splitters, to power extra components, might DAMAGE THE UNIT AND YOUR SYSTEM. |
| ■ | Make sure to connect each of your VGA cards to a PCIe widget adapter, and that the adapter is powered directly by Gold Miner 1800W through the corresponding Molex 4pin/PATA connector. Connecting the VGA cards directly to your motherboard might DAMAGE THE UNIT AND YOUR SYSTEM. |
| ■ | Mining systems generate considerable heat. Thus, your mining environment should be adequately ventilated. Less than ideal ventilation might reduce the lifetime of your system. |
| ■ | All connectors in Gold Miner 1800W have a particular purpose. PCIe connectors should power VGA cards, Molex 4pin/PATA connectors should power either your PCIe widget adapters or fans, and SATA connectors should power the hard drives. |
| ■ | Incorrect usage, as judged by our technical team, will void your warranty. |
| ■ | The 1800W Gold Miner, dimensions 150x86x245mm (WxHxD), can be installed in standard PC ATX Tower cases. Due to the unit’s dimensions, it is recommended to measure the space available in your case to confirm compatibility. |
ATX 12V V2.3, Wattage 1800W
1. Dual ball bearing 8cm*2 black fan
2. output cable: 1x24PIN,12V8pin(4+4),8xSATA,18xPCI-6+2PIN(9xGPU card support),5x4PIN
3. male / female socket
Major Feature
1.Efficiency exceed 87%@220V(Gold 90% designed basis)
2.AC input full range design(100 to 240V optional)
3.Thermal control technology
4.Protection circuitry offer: OVP OPP SCP OCP UVP OTP
5.100% burn-in under ambient temperature upto 45℃
6.100% high voltage test under AC 1.5KV 10mA 3Sec
7.Standby power less than 1W,low power consumption
8.Low ripple,silent
9.MTBF:100K hours at 25℃
