Built-in program > 100 modes 7 dynamic colors. Automatic and manual control.
• Mode and color adjustment.
• Brightness adjustment.（can be Selection
• SATA power supply.
• The normal 3pin fan have the PWM fan function enjoy auto-speed control
• Compatible with programmable RGB interface of RAINBOW, SYNC AURA motherboard.
• Can connect lights strip of ASUS
GMX RAINBOW+PWM V1.61 HUB CONTROLLER
1. Input Requirements
1-1. Input Voltage
The power supply interface is SATA. The SATA allows positive and negative connections.
2. FUNCTIONAL DESCRIPTION
2-1. turn on or off.
Long press mode and color key 3S can turn on or off the lights.
2-2. Initial state.
Default in o the seven color mode.
2-3. mode and color button.
Short press one times mode and color button to change mode.
Short press two times mode and color buttons to change colors in the same mode.
2-4. Brightness button
Short press brightness button can adjust the brightness of LED..
This function depends on different versions to decide whether to provide.
2-5. MB rainbow SYNC (AURA)
After connecting the motherboard programmable RGB interface, the change of light is controlled by the motherboard.
The lighting function of the controller is shielded.
2-6. Fan control
The fan speed is controlled by the PWM signal of the main board. and the fan with the
sense function is connected to FAN1，so display the speed in the CMOS of the motherboard.
2-7.Strip
It can be connected light strip with ASUS standard.
GMX RAINBOW+PWM V1.61 HUB CONTROLLER

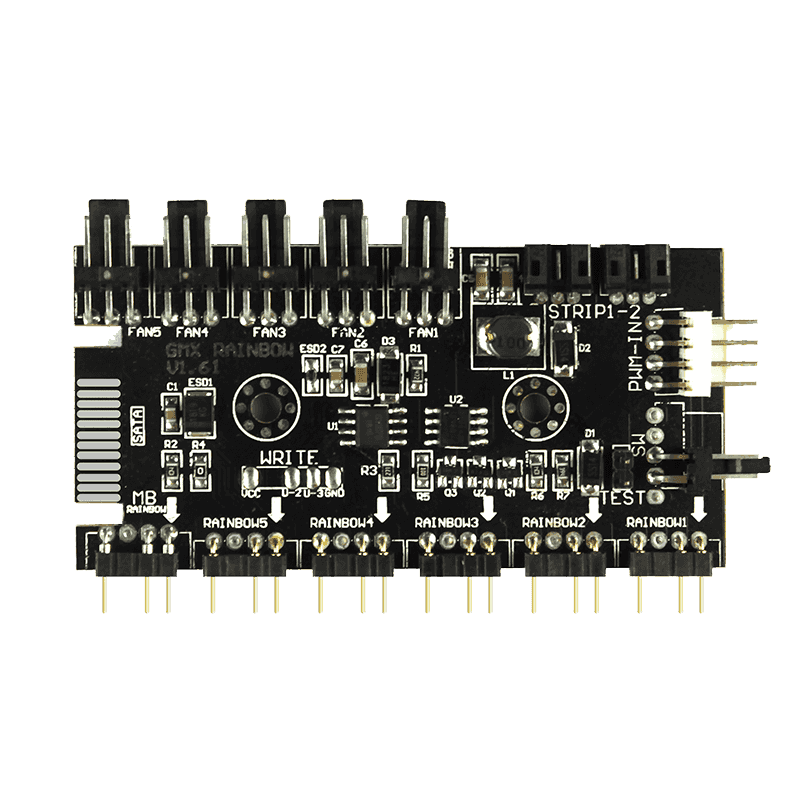

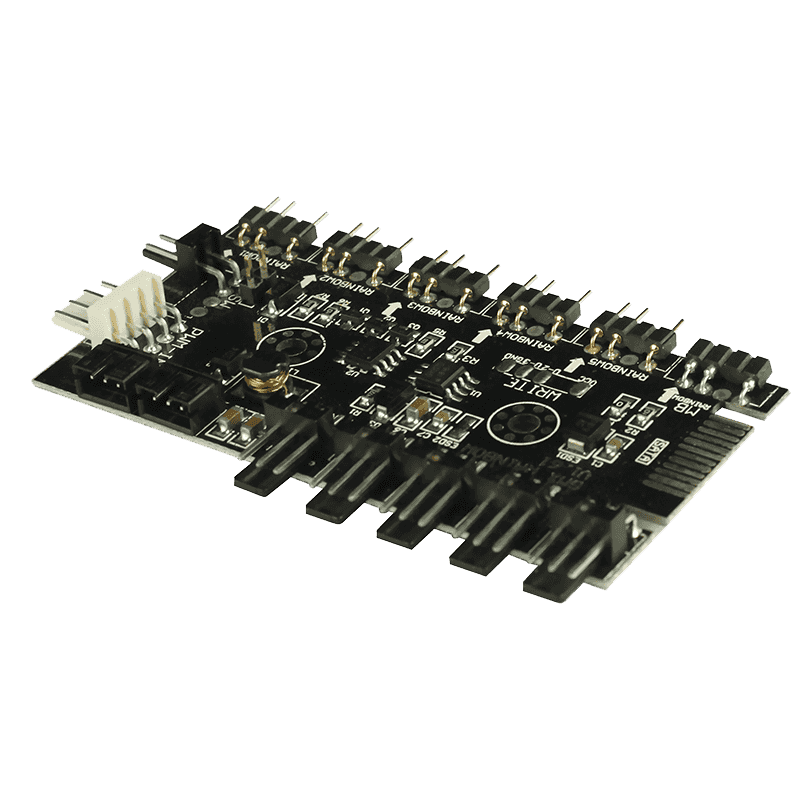

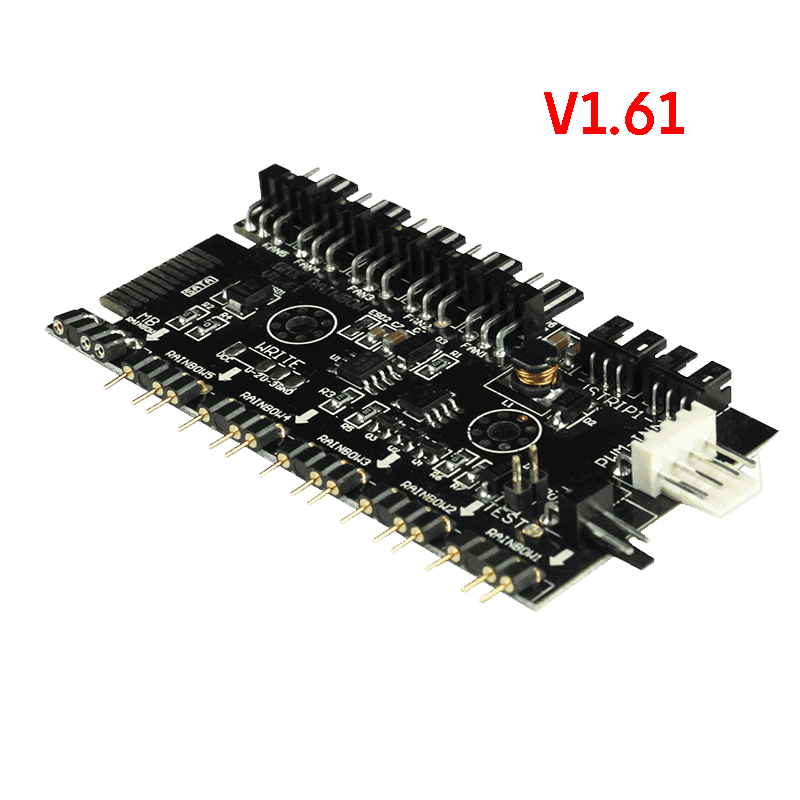

4-1. FAN 1-5 Channel
FAN1-5 connected to fan, FAN1 has sense speed detection function.
4-2. RAINBOW 1-5 Channel
RAINBOW1-5 connect fan or light bar. The triangle mark on the plug is aligned with the arrow on the controller.
4-3. MB RAINBOW
MB RAINBOW is connected to the motherboard programmable RGB interface onboard. The triangle mark on the plug is aligned with the arrow on the controller.
4-4. SATA
SATA is the power supply interface and Output 5V and 12V DC voltage.
4-5. PWM-IN
PWM-IN connects to the motherboard PWM fan interface(SYS-FAN or CHA-FAN socket onboard)
4-6. SW switch
SW is the switch interface. Some case products have mode and color control multi-functions, and some products have brightness adjustment function. Reserve touch switch button interface.
4-7. TEST
In the TEST interface, the TEST interface is the PWM demo function interface. When the PWM fan is not connected motherboard, TEST (1 and 2 shortage by Jumper) are connected to drive the fan to run full speed.
4-8. STRIP
Can connect lights strip of ASUS for 3PIN.
