The 80 PLUS Platinum certification stands as one of the highest standards for energy efficiency in consumer-grade power supplies, requiring conversion efficiencies of 90%, 92%, and 89% at 20% light load, 50% typical load, and 100% full load, respectively. This certification not only signifies lower energy consumption and electricity costs but also reflects ultimate optimization in internal circuit design—utilizing high-end components such as full-bridge LLC resonant topology, gallium nitride (GaN) transistors, and 105℃-rated Japanese capacitors throughout.
Compared to the previous Gold certification (87%/90%/87%), Platinum power supplies achieve a 2% efficiency boost at typical 50% load, saving approximately 15% on long-term electricity costs. In contrast to the higher-tier Titanium certification (90%/94%/90%), Platinum supplies offer a better cost-to-efficiency ratio, making them ideal for budget-conscious high-end users.
Full-Bridge LLC Resonance: Enables zero-voltage switching (ZVS) via resonant circuits, reducing switching losses and pushing typical-load efficiency above 92%.
Synchronous Rectification: Replaces traditional Schottky diodes to minimize conduction losses, especially effective at low-voltage outputs.
DC-DC Conversion: Separately steps down the +12V output to +5V and +3.3V via independent circuits, eliminating cross-interference between multiple outputs for enhanced stability.
All-Japanese Capacitors: Brands like Nippon Chemi-Con and Rubycon offer 105℃ heat resistance and 5,000+ hours of lifespan, ensuring stability under heavy loads.
Active PFC (Power Factor Correction): Achieves a power factor (PF) ≥ 0.99, reducing grid pollution and complying with the EU ErP Directive.
Smart Fan Control: Supports low-load fan stop (ECO mode), such as the 14cm FDB hydraulic bearing fan in the Super Flower LEADEX VII P1200W, which stays completely silent below 30% load.
ATX 3.1/PCIe 5.1: Native 16-pin 12V-2×6 connectors support up to 600W per channel, ideal for next-gen GPUs like the RTX 5090.
Fully Modular Design: Features like Corsair HX1200i’s braided modular cables with cable combs enhance cable management during installation.
Formula: (CPU peak power + GPU peak power + 100W) × 120%.
Example: i9-14900K (370W) + RTX 5090 (600W) requires (370+600+100)×1.2≈1,284W → 1,300W supply.
PCIe 5.1: Prioritize native 16-pin connectors to avoid adapter cables.
Modularity: Fully modular for custom builds; semi-modular for better cost-efficiency.

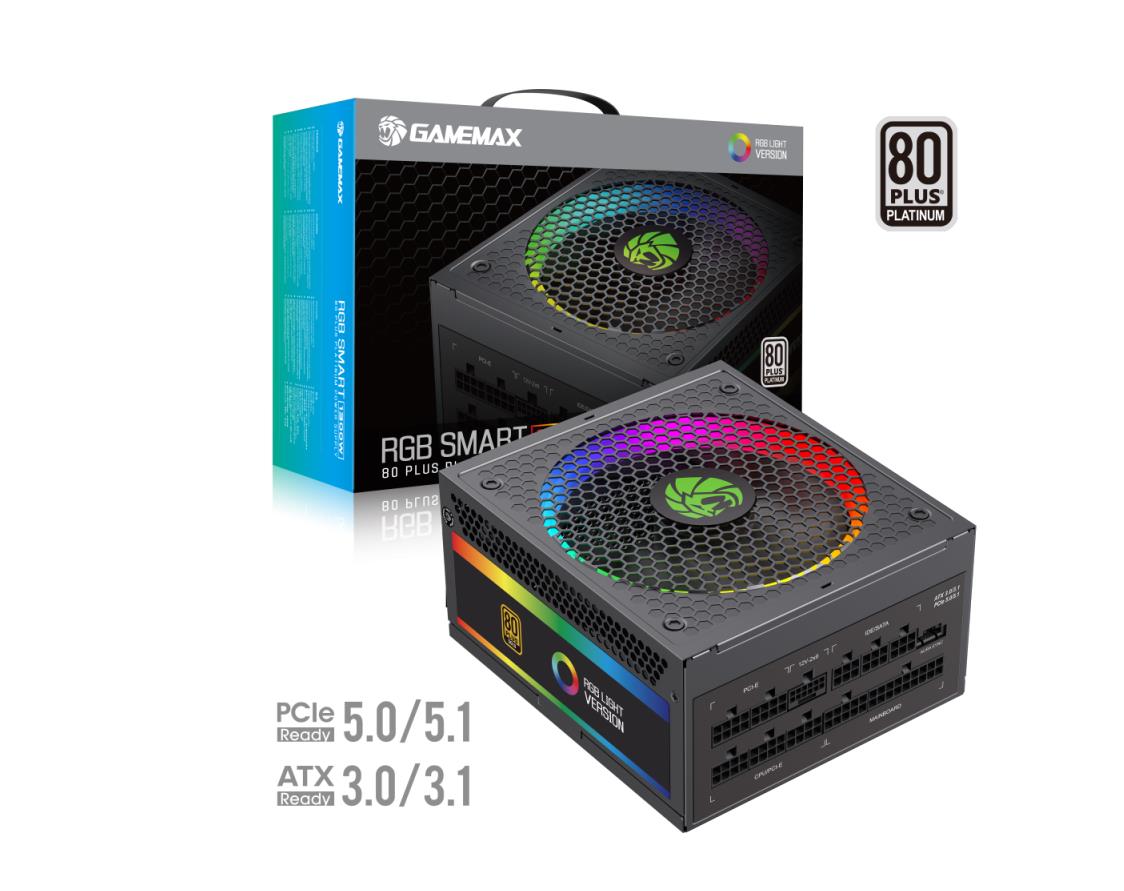

RGB PRO 1300P 1300W 80+ Platinum ATX3.1 Power Supply with Adaptive Fan & ARGB SYNC
• 80 Plus Platinum Efficiency: Delivers 92%+ efficiency under typical loads, cutting power use and noise for dependable performance.
• ATX3.1 & PCIe5.1 Support: Native 12V-2x6 connector ensures seamless power to RTX 40/50 GPUs, optimizing delivery and reducing loss.
• Adaptive Fan Control: 14CM fan auto-adjusts speed based on load, balancing energy efficiency with quiet operation.
• High-Quality Components: Japanese 105°C and solid capacitors guarantee durability, stability, and reliability for intensive tasks.
• Customizable RGB Lighting: 25 lighting modes with memory and ARGB SYNC support, enabling personalized and synchronized visual effects.
80 PLUS Platinum is the second-highest efficiency rating for power supplies, requiring 90% efficiency at 20% load, 92% at 50%, and 89% at 100% load. It ensures minimal energy loss and lower operating temperatures.
At 50% load, a Platinum PSU is 2-3% more efficient than Gold. For a 1000W unit, this translates to saving ~30W at full load, resulting in $50-$100 annual savings on electricity bills.
Yes, especially for high-end systems running 24/7. The energy savings, longer component lifespan (due to lower heat), and 10-year warranties justify the investment over time.
If you have a high-performance GPU/CPU (e.g., RTX 4090, Ryzen 9), a Platinum PSU ensures stable power and efficient cooling. Mid-range builds may benefit from lower tiers, but Platinum offers premium reliability.
Modular PSUs let you use only the cables you need, reducing clutter and improving airflow. Non-modular have fixed cables, which are simpler but limit cable management options.
Absolutely. Their robust +12V rails and tight voltage regulation (typically within 2%) provide stable power for overclocked CPUs and GPUs, minimizing crashes.
Calculate total system power (use online calculators) and add 20-30% headroom. Gaming PCs often need 650-1000W, while workstations with dual GPUs may require 1200-1600W.
No. High efficiency means less heat, so fans run slower or stay off at low loads. Many models feature 0dB modes (e.g., Seasonic PRIME TX series) for silent operation during light tasks.
Premium parts like Japanese electrolytic capacitors, synchronous rectification, and advanced digital controllers. These reduce resistance and improve energy conversion efficiency.
Yes, the 80 PLUS Ruby standard (introduced in 2025) requires 96.5% efficiency at 50% load, but it’s currently aimed at data centers. Platinum remains the top tier for consumer PSUs.
