How GAMEMAX Power Supplies Perfectly Support the AMD RX 9070 Graphics Card

I. Understanding the Power Requirements of the AMD RX 9070

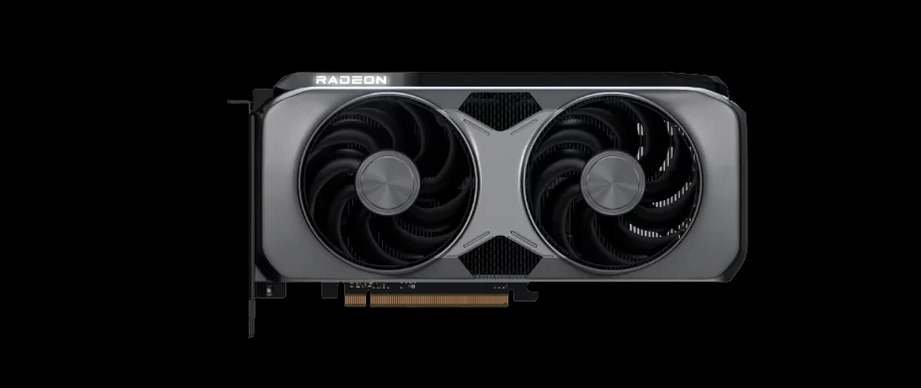

The AMD Radeon RX 9070 series, built on the RDNA 4 architecture with a 4nm process, delivers significant performance upgrades. Official data shows the RX 9070 XT has a typical board power consumption of 304W, while the standard RX 9070 is 220W. In real-world scenarios—such as overclocking or running ray tracing—peak transient power can surge higher. For example, the RX 9070 XT, with a 2.97GHz boost clock and 16GB GDDR6, may push total system power beyond 500W when gaming at 4K in demanding titles like Cyberpunk 2077.

II. Key Factors for Choosing the Right PSU

1. Power Capacity & Redundancy

• Base Requirement: Pairing the GPU with a CPU like the Ryzen 7 7800X3D (170W TDP) calls for a 750W+ PSU. For overclocking or future upgrades, 850W–1000W is ideal.

• Transient Protection: AMD’s "PowerColor" technology can cause sudden power spikes. Opt for ATX 3.0-compliant PSUs (e.g., GAMEMAX RGB-1300W), which support 600W transient peaks via the 12VHPWR connector.

2. Efficiency & Stability

• 80 Plus Certification: Gold or Platinum ratings are recommended. The GAMEMAX RGB-1300W, with a Platinum rating, achieves 92% efficiency, cutting long-term energy costs.

• Japanese Capacitors: GAMEMAX uses 105℃-rated Japanese capacitors for reliability under heavy loads, eliminating the risk of capacitor failure.

3. Connectivity & Modularity

• PCIe 5.0 Support: Native 12VHPWR connectors (found in GAMEMAX GX850 Pro and RGB-1300W) ensure 600W continuous power for the RX 9070.

• Fully Modular Design: Reduces cable clutter and improves case airflow. The RGB-1300W offers 10 SATA and 5 PCIe connectors for multi-drive and multi-GPU setups.

4. Cooling & Noise Control

• Smart Fan Control: The GAMEMAX GX850 Pro features a 135mm FDB fan that stops at <20% load, maintaining noise below 20dB.

• Thermal Design: LLC resonant + DC-DC topology with large heat sinks keeps temperatures stable even under full load.

III. Recommended GAMEMAX PSUs for RX 9070

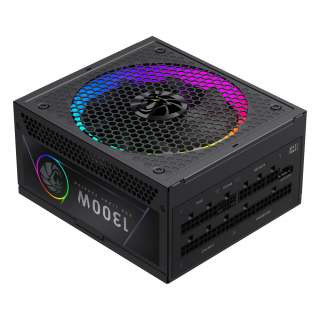

1. GAMEMAX RGB-1300W Platinum PSU

• Specs: 1300W, ATX 3.0, native PCIe 5.0, fully modular, 14cm smart fan.

• Use Case: Top-tier builds with RX 9070 XT + overclocked CPUs (e.g., Ryzen 9 7950X3D), supporting dual GPUs or extensive storage.

• Advantages: 10-year warranty, all-Japanese capacitors, 12V single-rail 108A output for extreme loads.

2. GAMEMAX GX850 Pro Gold PSU

• Specs: 850W, ATX 3.0, PCIe 5.0, fully modular, 135mm FDB fan.

• Use Case: Perfect for mainstream users with RX 9070 (standard) or mildly overclocked XT, ideal for ITX cases or quiet setups.

• Advantages: 10-year warranty, zero-noise mode (<20% load), flat cables for easy cable management.

3. GAMEMAX GS SFX Gold PSU

• Specs: 700W, SFX form factor, ATX 3.1, PCIe 5.1, 92mm smart fan.

• Use Case: Mini-ITX or HTPC builds with RX 9070 (standard), compatible with small motherboards and coolers.

• Advantages: 5-year warranty, intelligent thermal control, supports 12V-2×6 adapters.

IV. Real-World Testing & User Cases

1. High-End Gaming Rig

• Build: RX 9070 XT + Ryzen 9 7950X3D + 32GB DDR5 + 2×1TB NVMe.

• PSU: GAMEMAX RGB-1300W.

• Results: Peaked at 680W in Cyberpunk 2077 (4K, max RT), running at 52% load with <45℃ temperature and <25dB noise.

2. Quiet Mini-ITX Build

• Build: RX 9070 + Ryzen 7 7700X + 16GB DDR5 + 1TB NVMe.

• PSU: GAMEMAX GX850 Pro.

• Results: Fanless during idle, 28dB under load, stable 12VHPWR power with no crashes or driver drops.

V. Competitive Edge vs. Other Brands

• Value: GX850 Pro costs 54% of Corsair’s RM850x with native PCIe 5.0.

• Tech Lead: FDB fans and Japanese capacitors outperform competitors in noise and reliability.

VI. Buying Tips & Considerations

1. Budget Guide:

• Extreme Performance: GAMEMAX RGB-1300W (1300W Platinum).

• Mainstream Value: GAMEMAX GX850 Pro (850W Gold).

2. Compatibility Check:

• Confirm case size (ATX/SFX) and motherboard 12VHPWR support (use adapters if needed).

3. After-Sales:

• GAMEMAX offers nationwide warranty, with 1-year replacement for some models and 10-year coverage for premium units like RGB-1300W.

VII. Conclusion

GAMEMAX PSUs stand out with high-power headroom, native PCIe 5.0 support, smart cooling, and long warranties, making them the ideal partner for the AMD RX 9070 series. Whether you’re a hardcore enthusiast or a budget-conscious gamer, GAMEMAX ensures stable, efficient power—future-proofing your build while delivering reliable performance. Choose GAMEMAX for peace of mind and optimal GPU performance.

Support the AMD RX 9070 Graphics Card PSU RGB PRO 1300P | power Supply

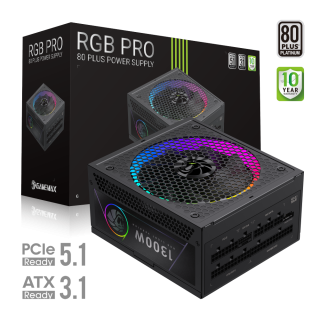

RGB PRO 1300P 1300W 80+ Platinum ATX3.1 Power Supply with Adaptive Fan & ARGB SYNC
• 80 Plus Platinum Efficiency: Delivers 92%+ efficiency under typical loads, cutting power use and noise for dependable performance.
• ATX3.1 & PCIe5.1 Support: Native 12V-2x6 connector ensures seamless power to RTX 40/50 GPUs, optimizing delivery and reducing loss.
• Adaptive Fan Control: 14CM fan auto-adjusts speed based on load, balancing energy efficiency with quiet operation.
• High-Quality Components: Japanese 105°C and solid capacitors guarantee durability, stability, and reliability for intensive tasks.
• Customizable RGB Lighting: 25 lighting modes with memory and ARGB SYNC support, enabling personalized and synchronized visual effects.
