Can Modular Power Supply Cables from Different Brands Be Mixed?

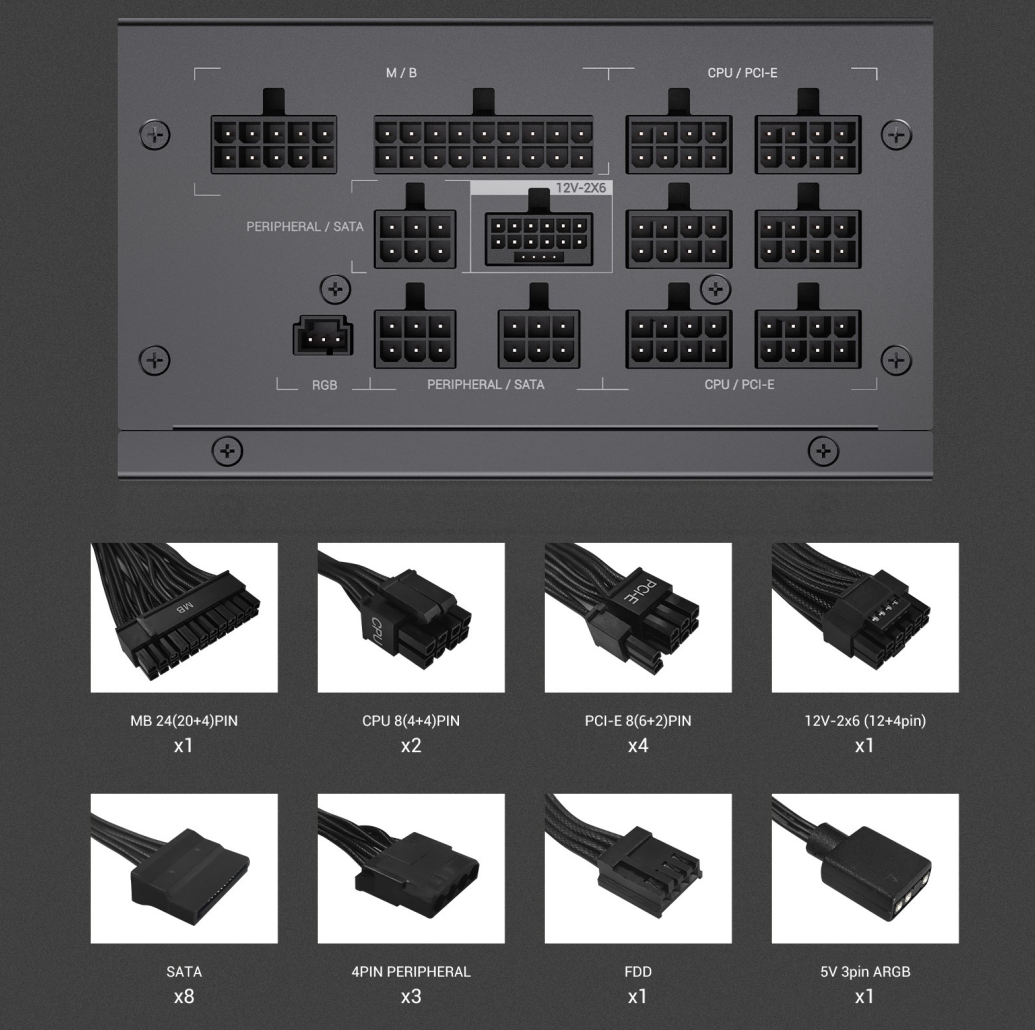

Modular power supply interfaces vary significantly between brands. For example, Seasonic’s 24-pin connector uses an 18+10-pin split design, while Corsair employs an integrated 24-pin design. Such differences can lead to cables failing to fit, or worse, damaging the port if forced. Some brands even include anti-misinsertion structures: ASUS TUF series power supplies, for instance, use a diagonal-angle CPU power connector that won’t align with the right-angle connectors of other brands.

2. Pinout Definition Conflicts

Pinout mismatches pose a critical risk of hardware damage. Take the 8-pin CPU power connector: Seasonic defines its pins as 12V, GND, 12V, GND, 12V, GND, 12V, GND, while Super Flower might arrange them as 12V, GND, 12V, GND, GND, 12V, GND, 12V. This discrepancy causes incorrect voltage distribution, potentially triggering motherboard power protection or even burning out CPU power circuits. According to tests on Chiphell, mixing CPU cables from different brands can cause instantaneous voltage fluctuations exceeding ±5%, surpassing safe hardware thresholds.

3. Inadequate Cable Specifications

Third-party cables may not meet power supply requirements in wire gauge and material. For example, PCIe 5.0 graphics cards requiring 600W power need 16AWG-rated 12VHPWR cables. Some third-party alternatives use 18AWG wires, which can exceed 80°C under high load, softening or melting the insulation. In a 2025 incident involving RTX 5090 overheating, undersized wire gauge in third-party cables was a primary culprit.

II. Feasibility Analysis for Safe Mixing

1. OEM Relationships Between Brands

Some brands share OEM partnerships, enabling potential cable compatibility. Antec’s HCG series, for example, is manufactured by Seasonic, with identical 24-pin pinouts. However, this compatibility is limited to specific product lines, not entire brand portfolios.

2. Standardized Interfaces

The ATX 3.0 standard unifies the physical design of 12VHPWR connectors, but pinouts remain manufacturer-specific. ASUS’s 12VHPWR uses a dual 12V+ design, while MSI opts for a single 12V+, making cross-brand use impossible.

3. Custom Cable Solutions

Professional custom cable manufacturers (e.g., CableMod) offer multi-brand compatible solutions through a rigorous process:

1. Collecting target power supply pinout data

2. Using UL-certified 16AWG silver-plated wires

3. Passing 500-cycle plug-test and 2-hour full-load testing

4. Providing a 3-year warranty
   These cables cost 1.5-2x more than original ones but resolve compatibility issues effectively.

III. Risk Mitigation and Safe Usage Tips

1. Four-Step Hardware Inspection Process

1. Interface Fit Check: Measure port dimensions with calipers; a tolerance over 0.5mm signals risk.

2. Pinout Verification: Use a multimeter to confirm pin definitions match the target power supply.

3. Load Testing: Run at 20% power for 2 hours and monitor cable temperature.

4. Certification Check: Prioritize third-party cables with 80PLUS certification, verifiable via official databases.

2. Alternative Solutions Comparison

3. Manufacturer Policies

• ASUS: Prohibits third-party cables; non-compliance voids warranty.

• Seasonic: Provides an official list of certified third-party cables; no liability for unlisted products.

• Cooler Master: Allows ATX-standard third-party cables but guarantees no compatibility.

IV. Case Studies

Case 1: RTX 5090 Overheating Incident

A user connected an ASUS ROG Thor power supply with a third-party 12VHPWR cable, causing port melting during Cyberpunk 2077. Analysis revealed 18AWG wires without UL certification, leading to a 12V drop to 11.6V and GPU power protection.

Case 2: Motherboard Short Circuit

A gamer mixed CPU cables from Corsair AX1600i and Seasonic PRIME TX-1000, resulting in a motherboard short. Misaligned +12V and GND pins due to pinout differences caused a catastrophic current surge.

V. Future Trends and Technological Prospects

1. ATX 3.5 Standard (2025 Est.): Promises unified modular cable interfaces for cross-brand compatibility.

2. Smart Cables: Integrated with temperature sensors and current monitors for real-time status feedback.

3. Magnetic Modular Interfaces: Quick-connect technology to prevent physical damage during installation.

Conclusion

Mixing modular power supply cables across brands carries significant risks, especially for high-end hardware. Prioritize original cables; if using third-party options, conduct thorough testing and choose reputable brands. While industry standards are evolving toward compatibility, caution remains essential to safeguard your components in the present.
