GameMax Sigma 540 ARGB Black Tower CPU air cooler with a large area radiator on four thermal tubes, Supports Intel Gen12 and Gen13 CPUs and AMD latest model, 130 mm unique high airflow fan and attachments under all current sockets
• It also provides the maximum thermal power of the processor, which the cooling system must cope with - 200 watts.

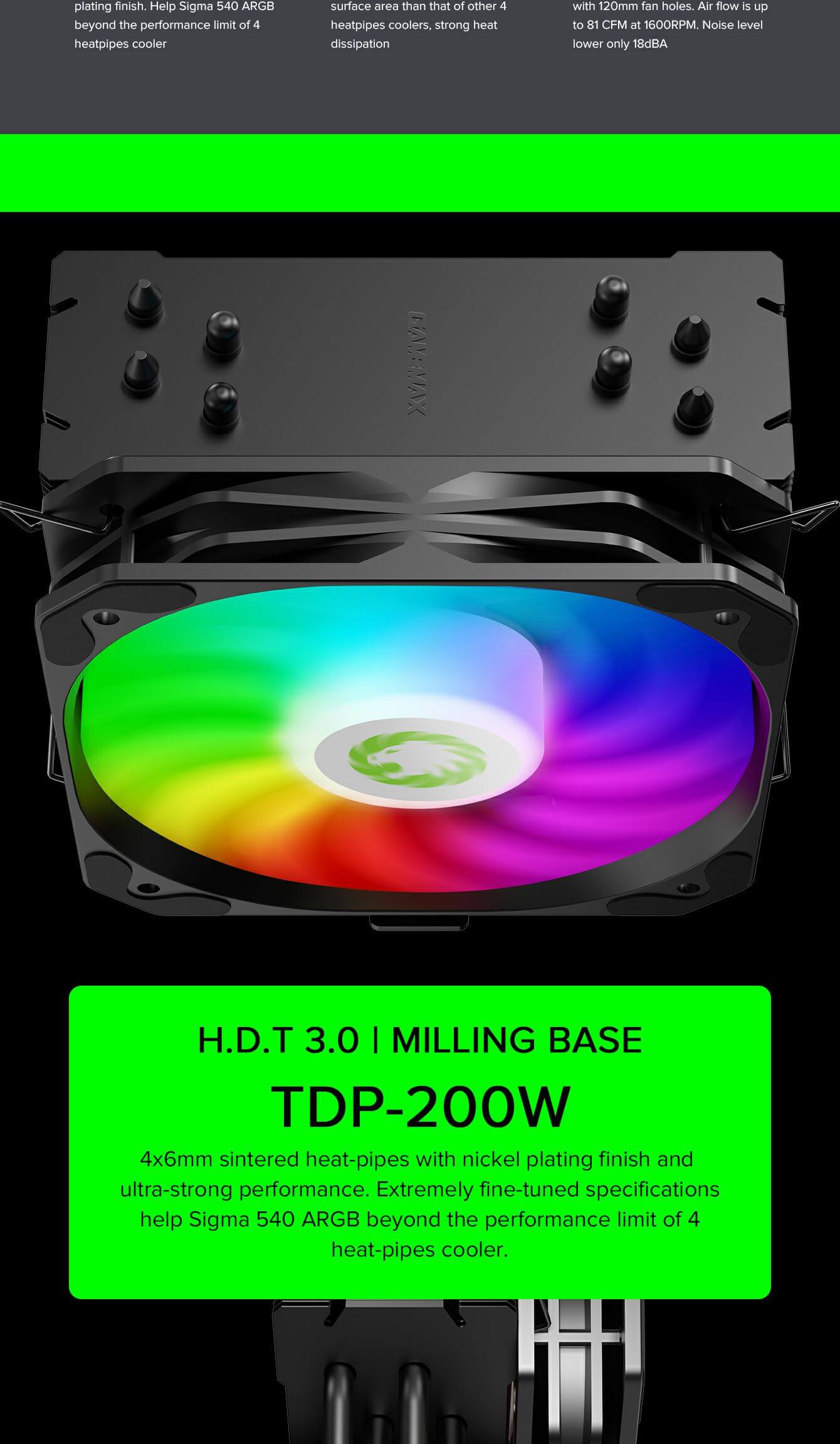

• 4x6mm sintered heat pipes with nickel plating finish and ultra-strong performance
• Extremely fine-tuned specifications, over performance then limit of 4 heat-pipes coolers

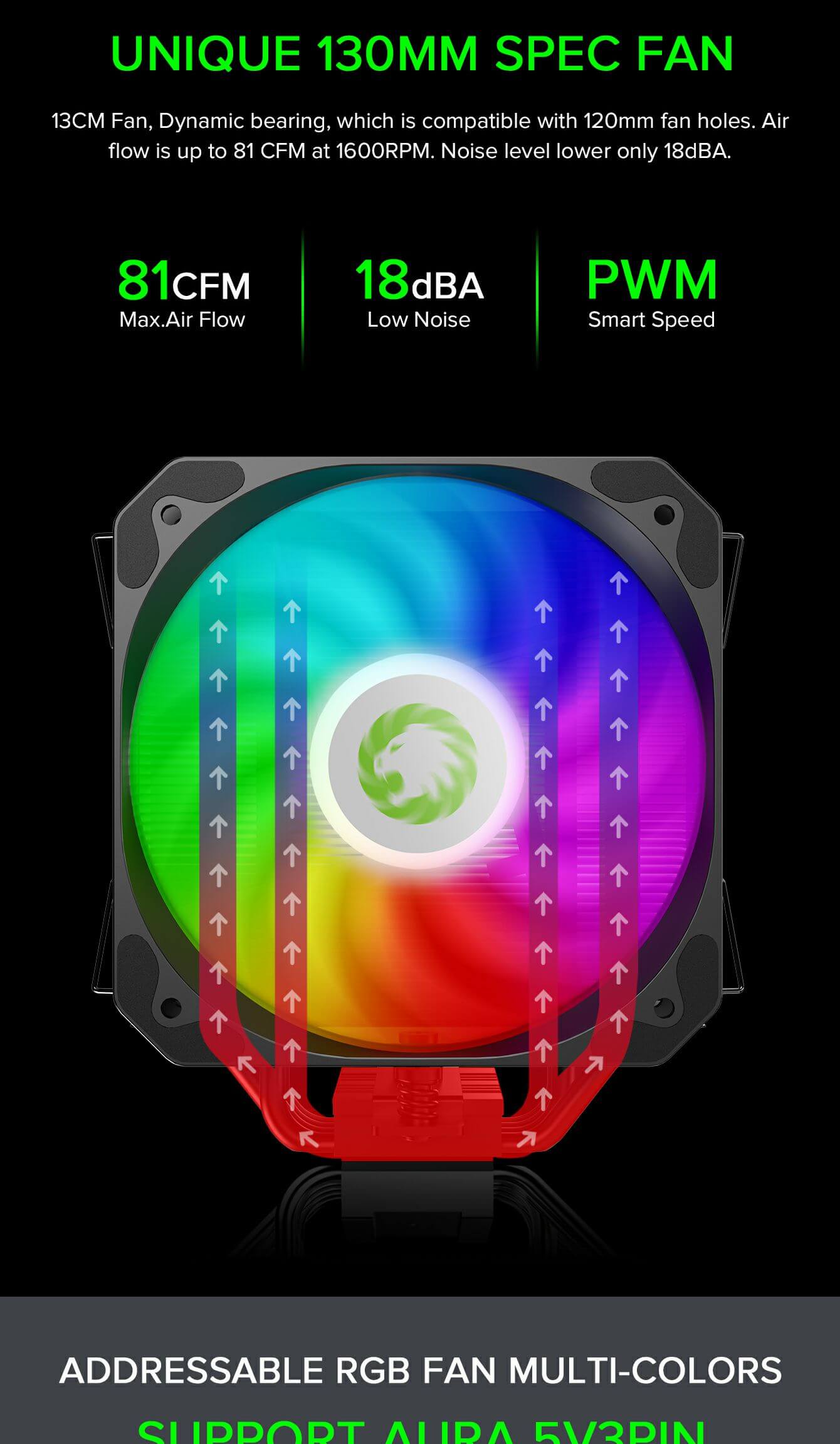

• Unique 130mm spec fan is which is compatible with 120mm fan mounting holes
• Airflow is up to 81 CFM at max fan speed 1600RPM
• And 18dBA ultra-quiet noise level at low speed

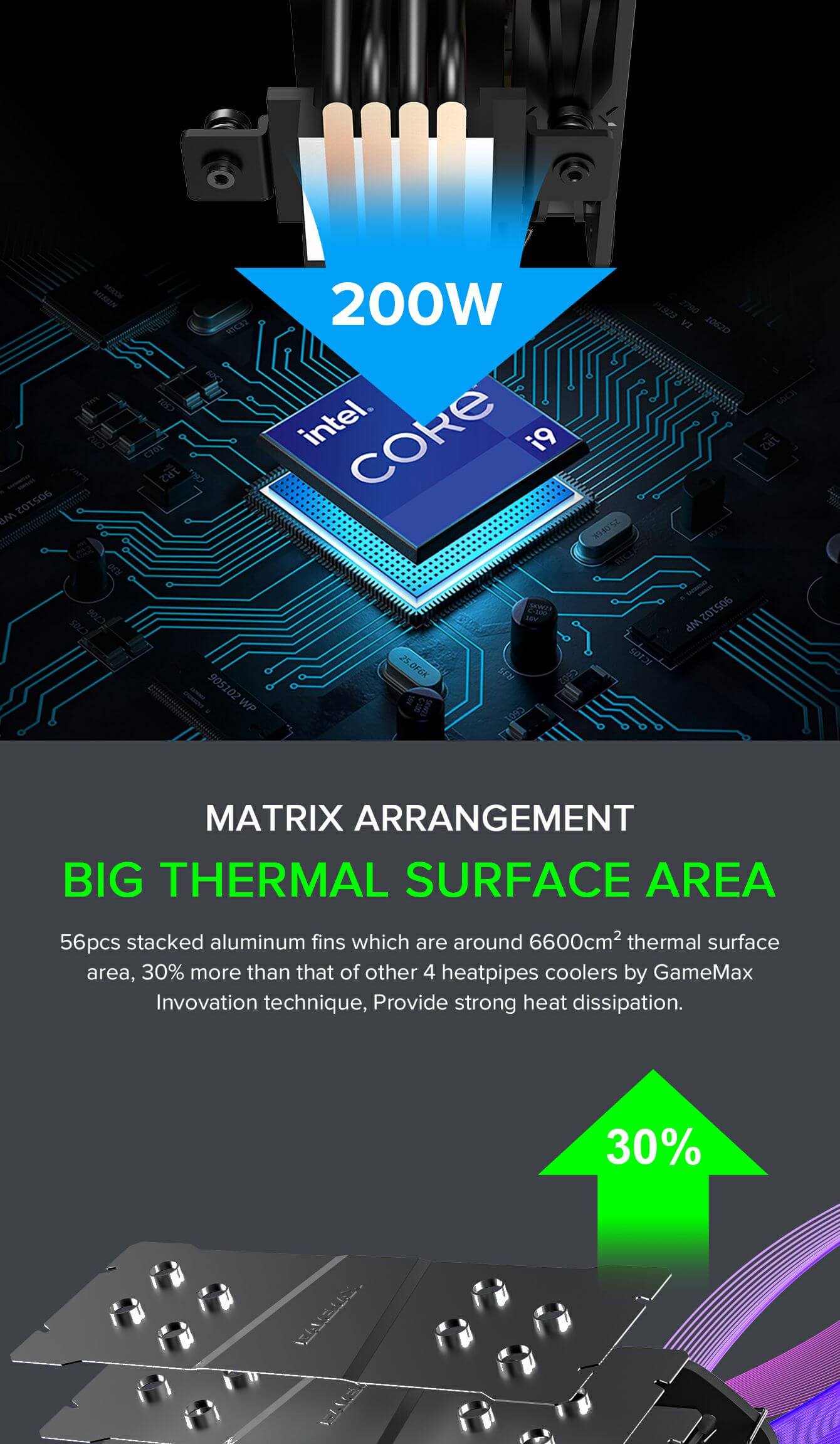

• 56pcs stacked aluminum fins with 6600cm2 thermal surface area for strong heat dissipation, 30% bigger than that of other 4 heat-pipes coolers
• H.D.T
• 3.0, milling base takes away the heat from CPU rapidly
• Upgraded metal mounting kits support INTEL/AMD mainstream platforms

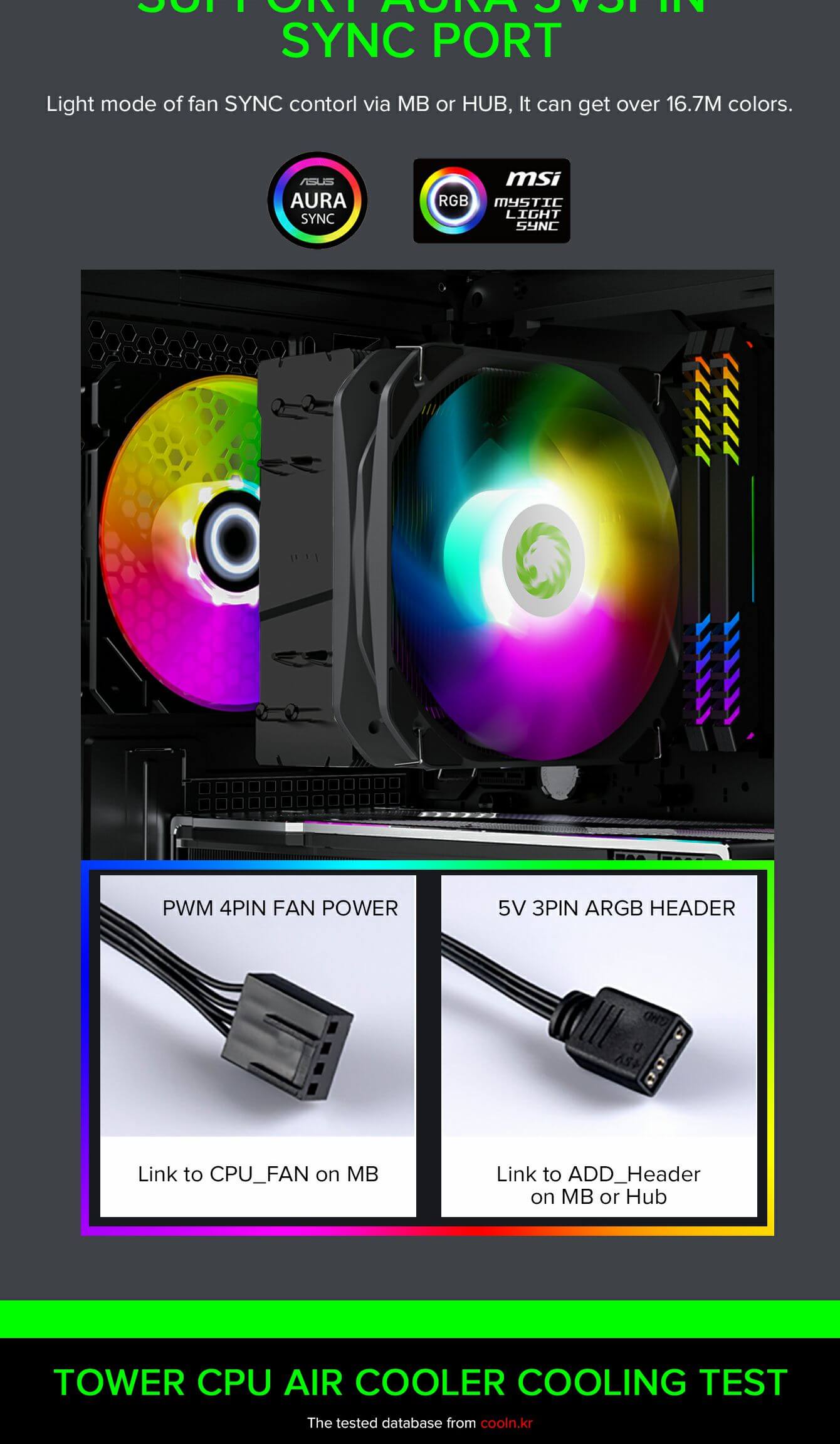

• Addressable ARGB,5V 3PIN Aura header Included, SYNC with Motherboard or HUB

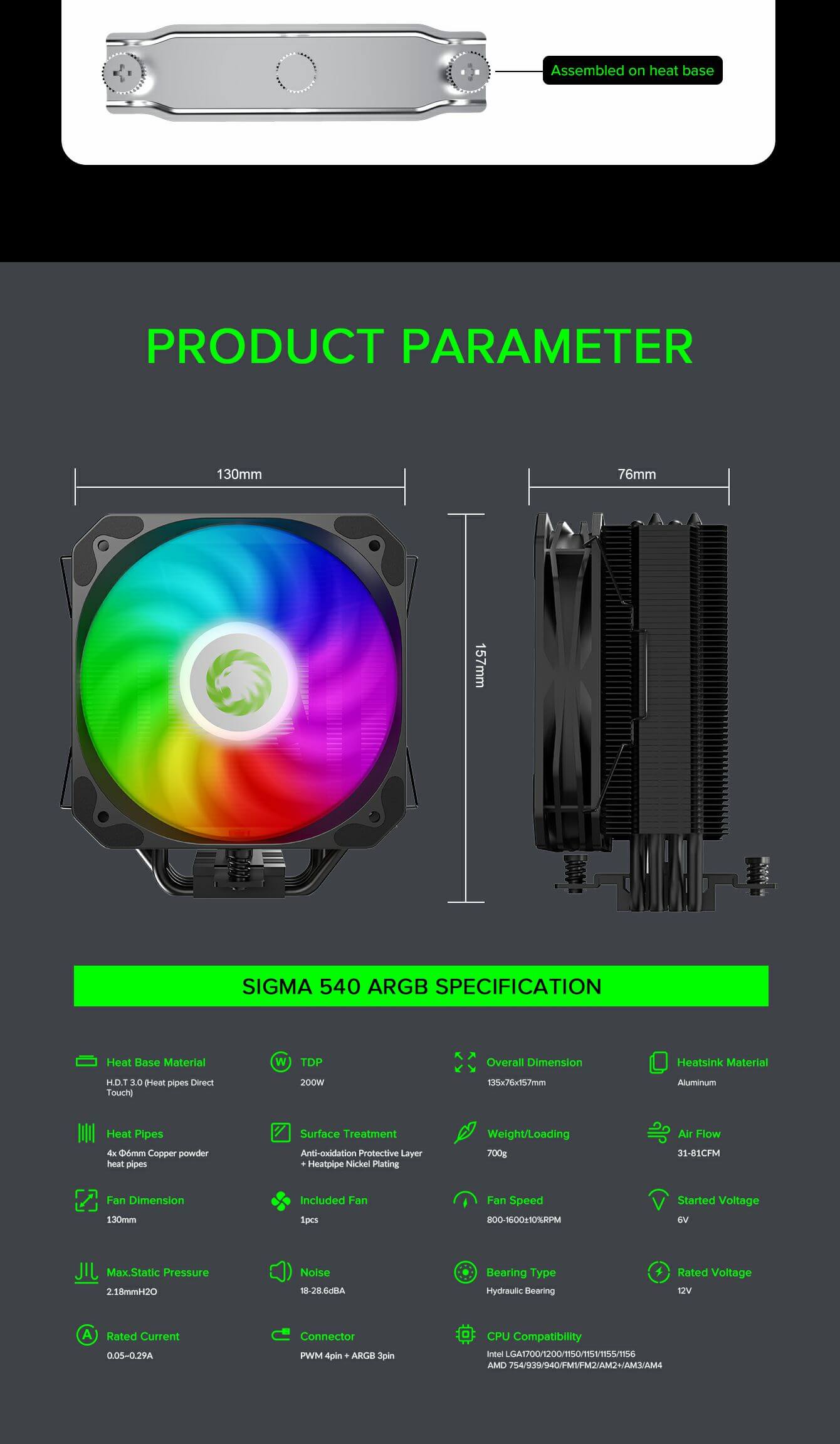

Product Size | 130.6*76*157mm |

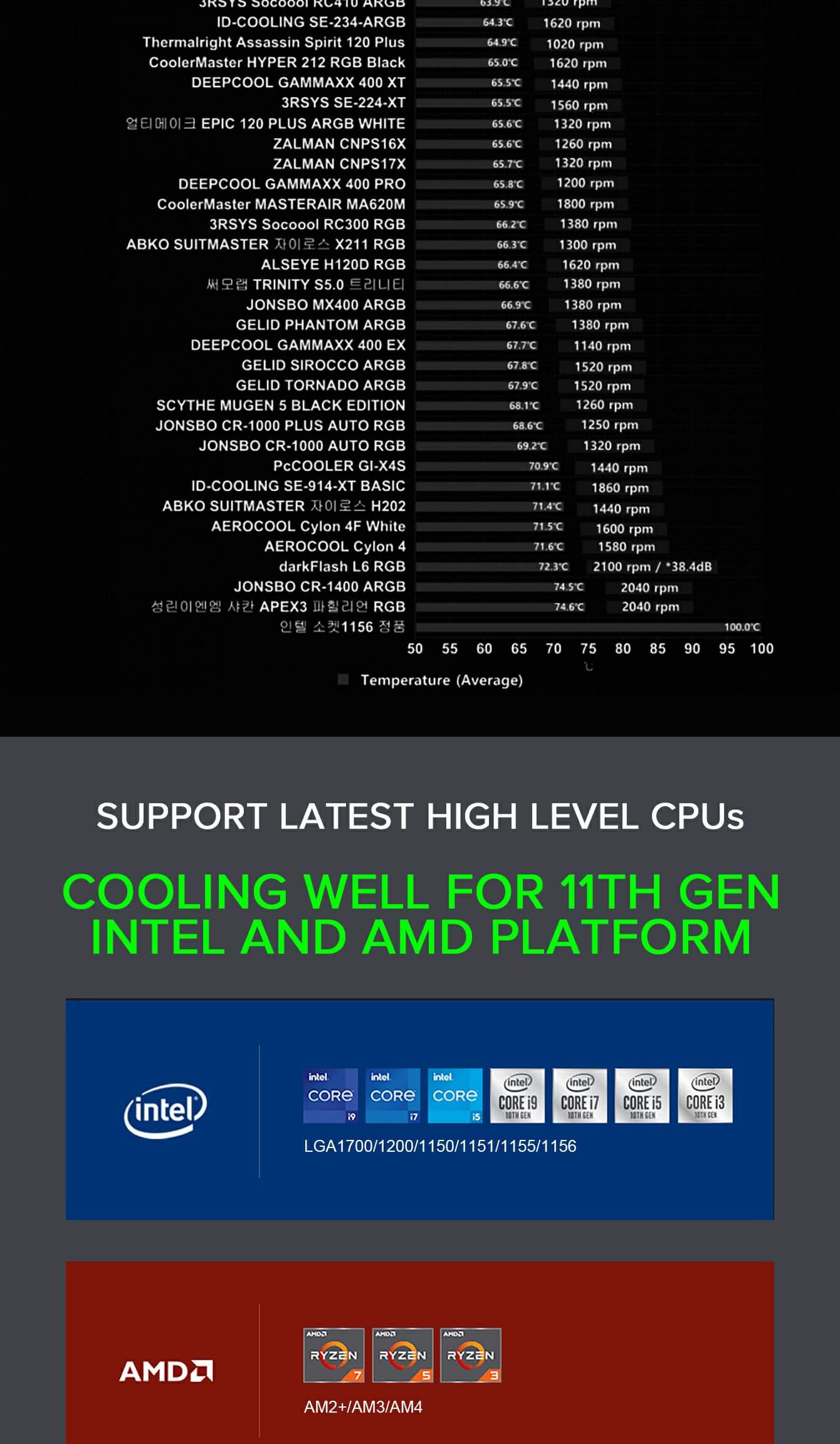

CPU Compatibility | Intel LGA1851/1700/115X |
AMD:AM4 | |
Product Weight | 700g |
Bearing Type | Hydraulic Bearing |
Fan Dimension | 130.6*130.6*25mm |
Rated Voltage | 12 VDC |
Opreating Voltage | 6-13.8VDC |
Started Voltage | 7 VDC |
Rated Current | 0.29A±10%(MAX) |
Bearing Type | Hydraulic Bearing |
Fan Speed | 800-1600RPM±10% |
Air Flow | 38.4-81CFM |
Acoustical Noise | 18-28.6dBA±10% |
Connector of Fan | 4-Pin PWM |
ARGB Connector | 5V 3pin Aura Header |
Power Input Watt | 3.24W |
TDP | 200W !! |
QTY In Carton | 24Pcs/CTN |
Product Weight | 700g |
Product Drawing:
