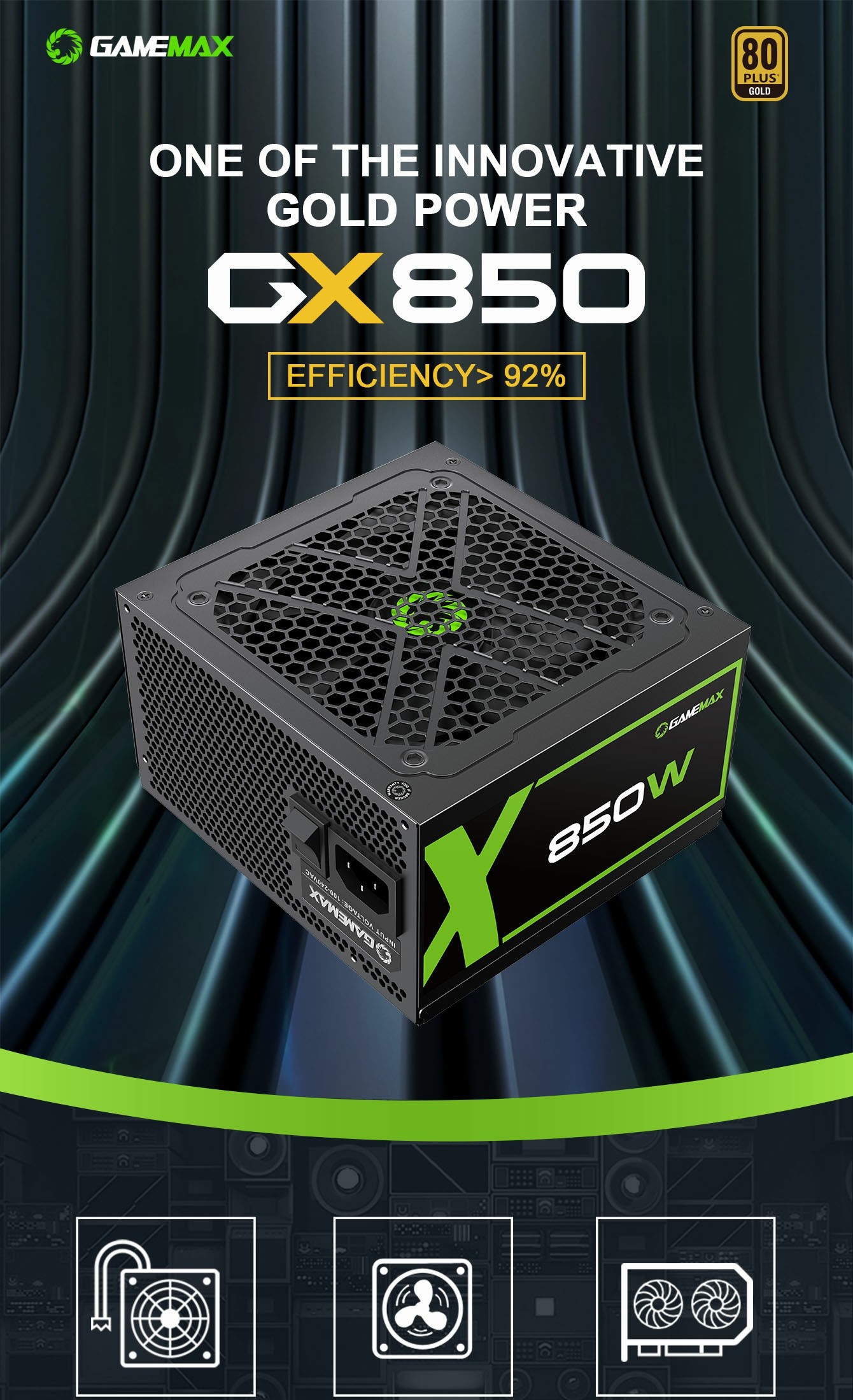

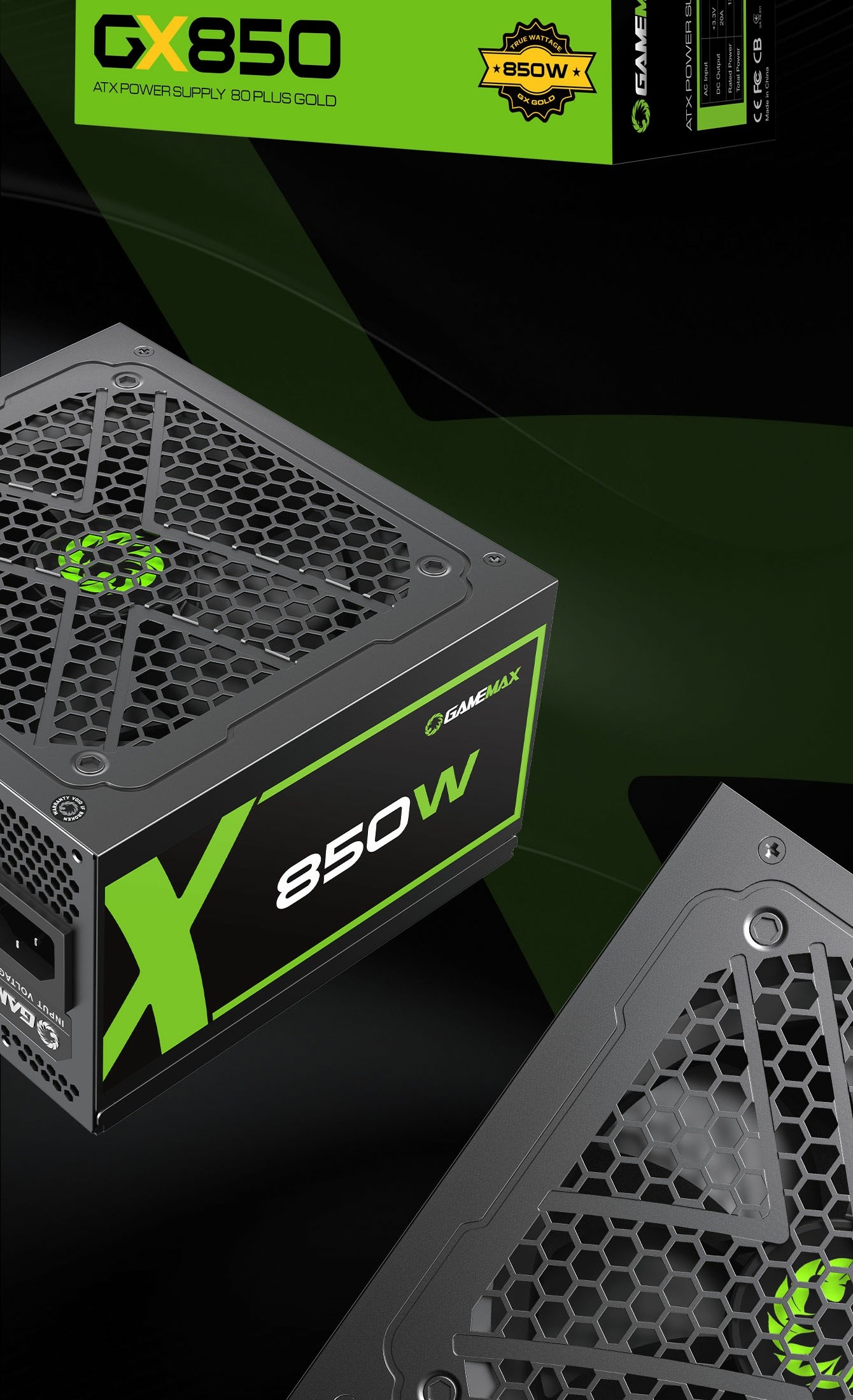

GameMax GX-850 80+ Gold None-Modular ATX Power supply. Gold Efficiency: 80+ Gold certified for high efficiency.
• Innovative Circuits: LLC & DC-DC for optimal performance.
• Quiet Cooling: Low-noise FDB fan.

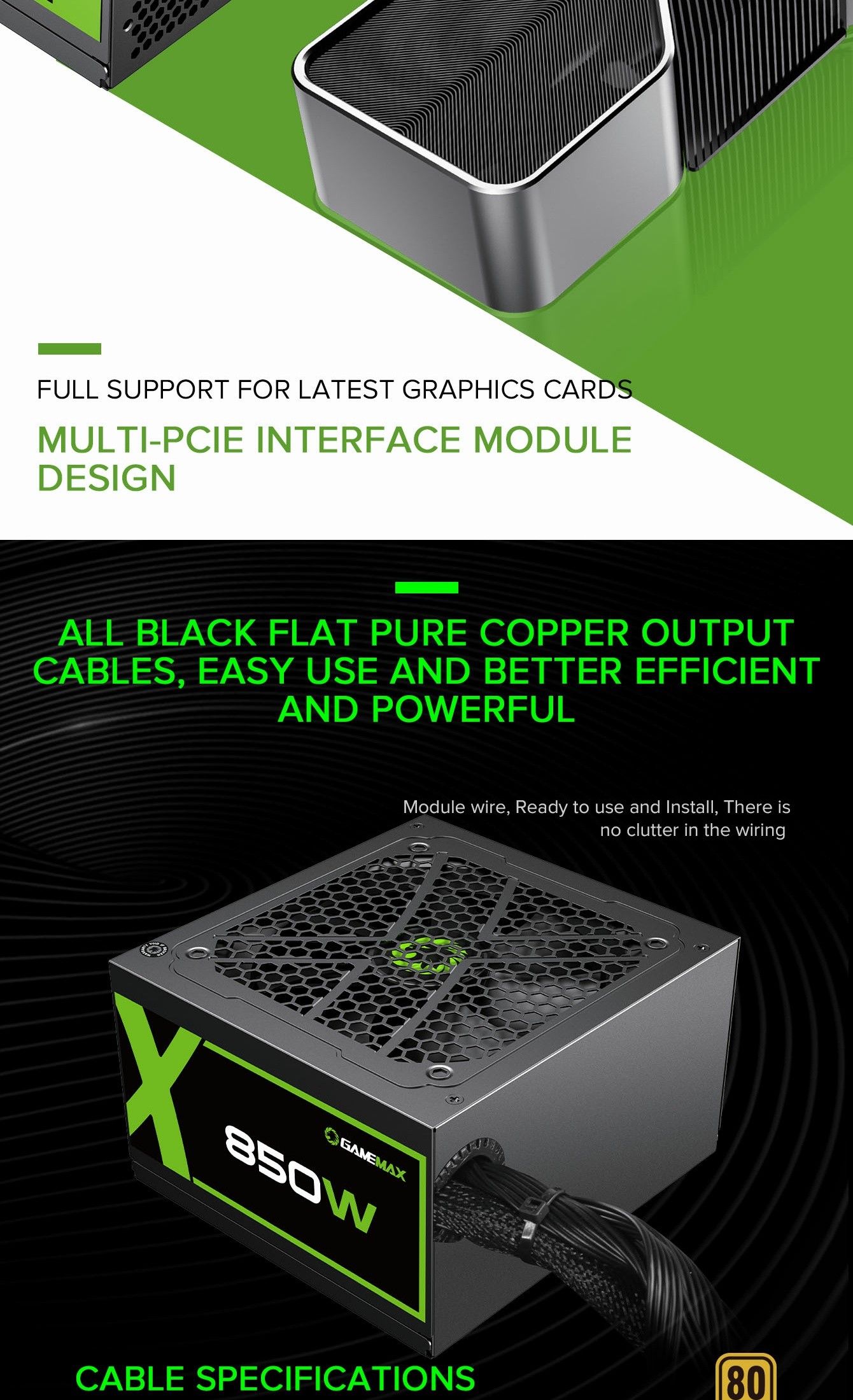

• Wide Compatibility: Supports latest GPUs and full voltage range.

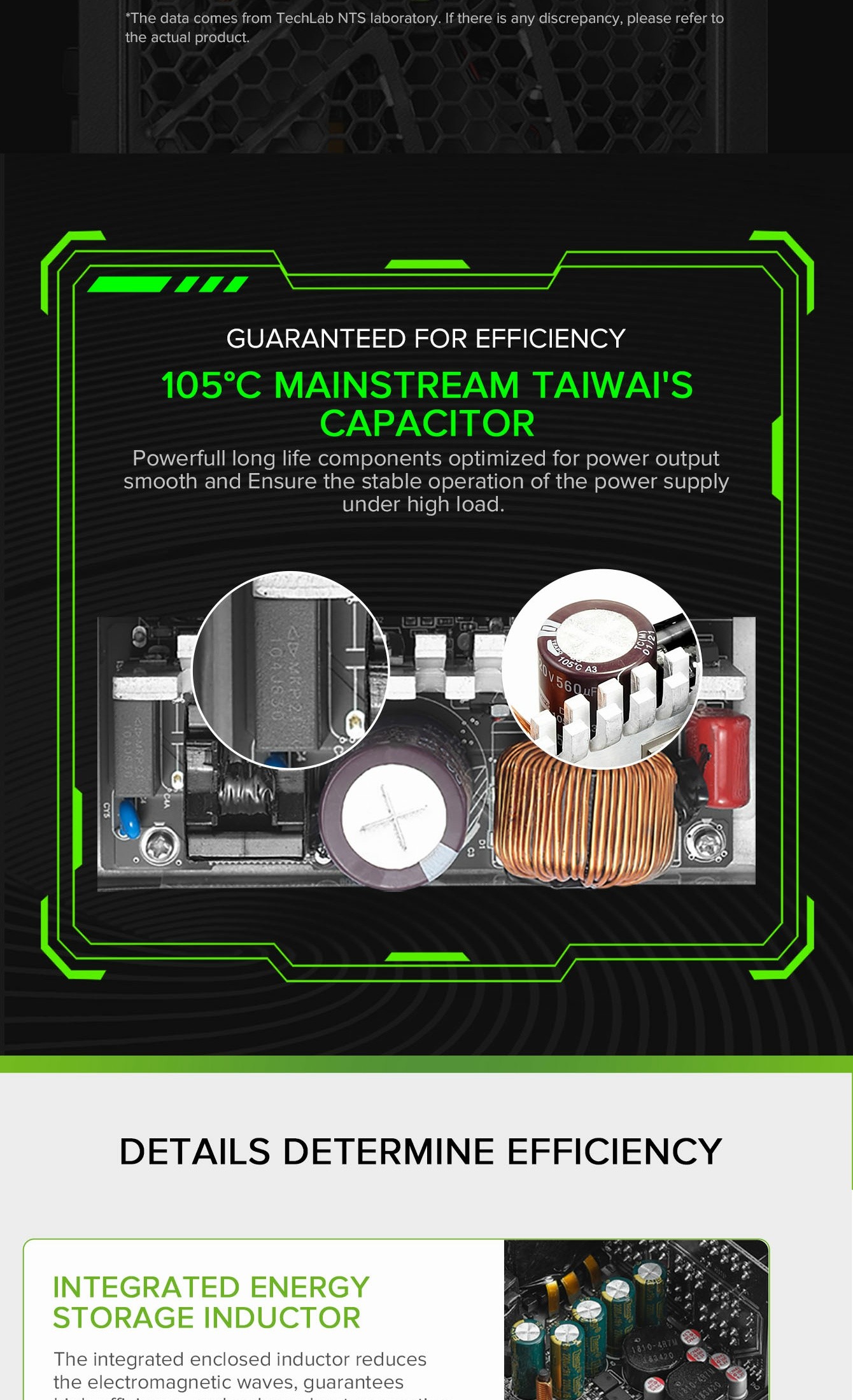

• Safe & Reliable: Seven protections & solid components.
Detailed Specifications
| Dimensions: | 150mm x 85mm x 140mm (W x H x D) |

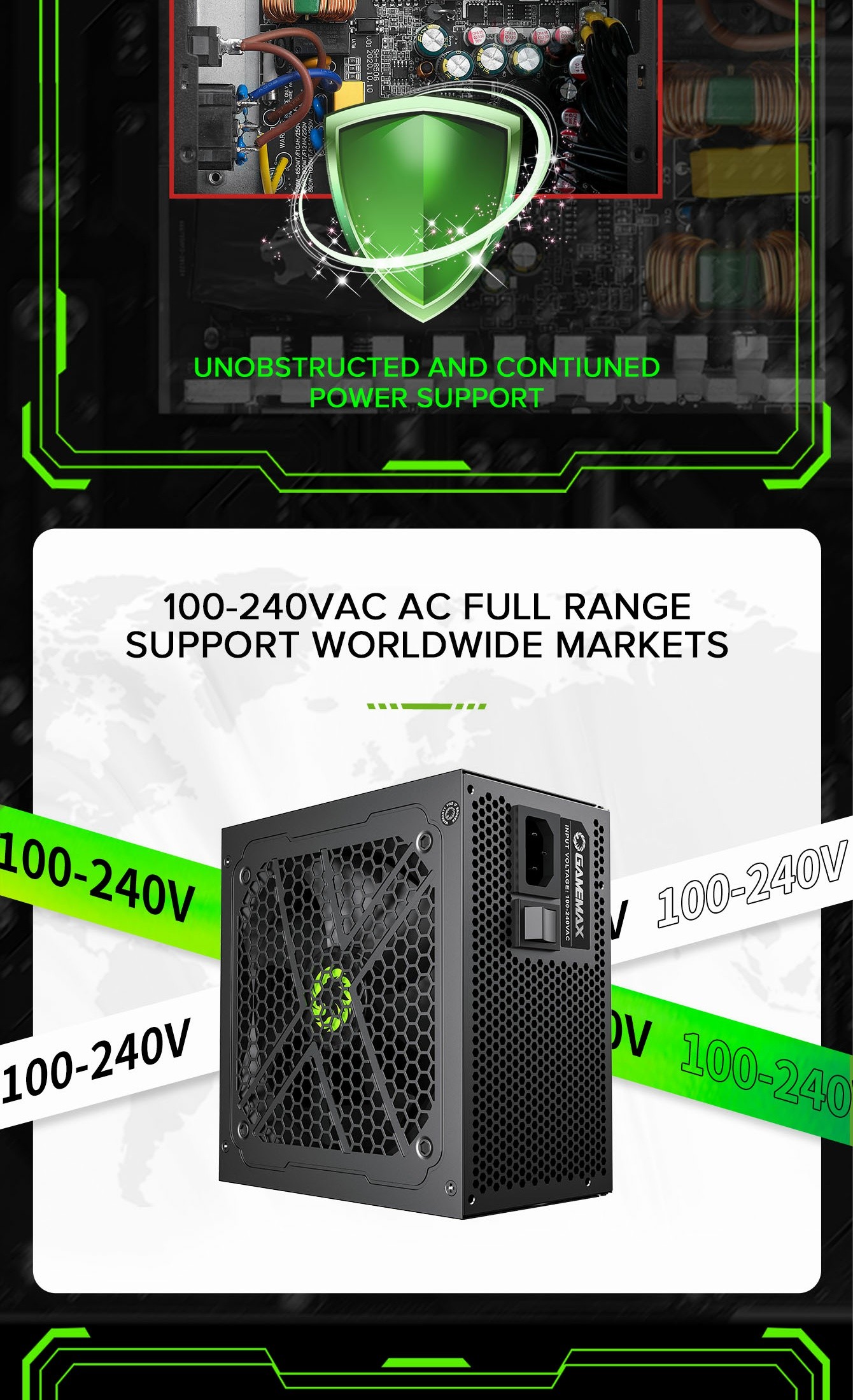

| Input Voltage: | 100-240 VAC |
| Input Current: | 10-5A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-150 ms |
| Hold Up Time: | >10ms |

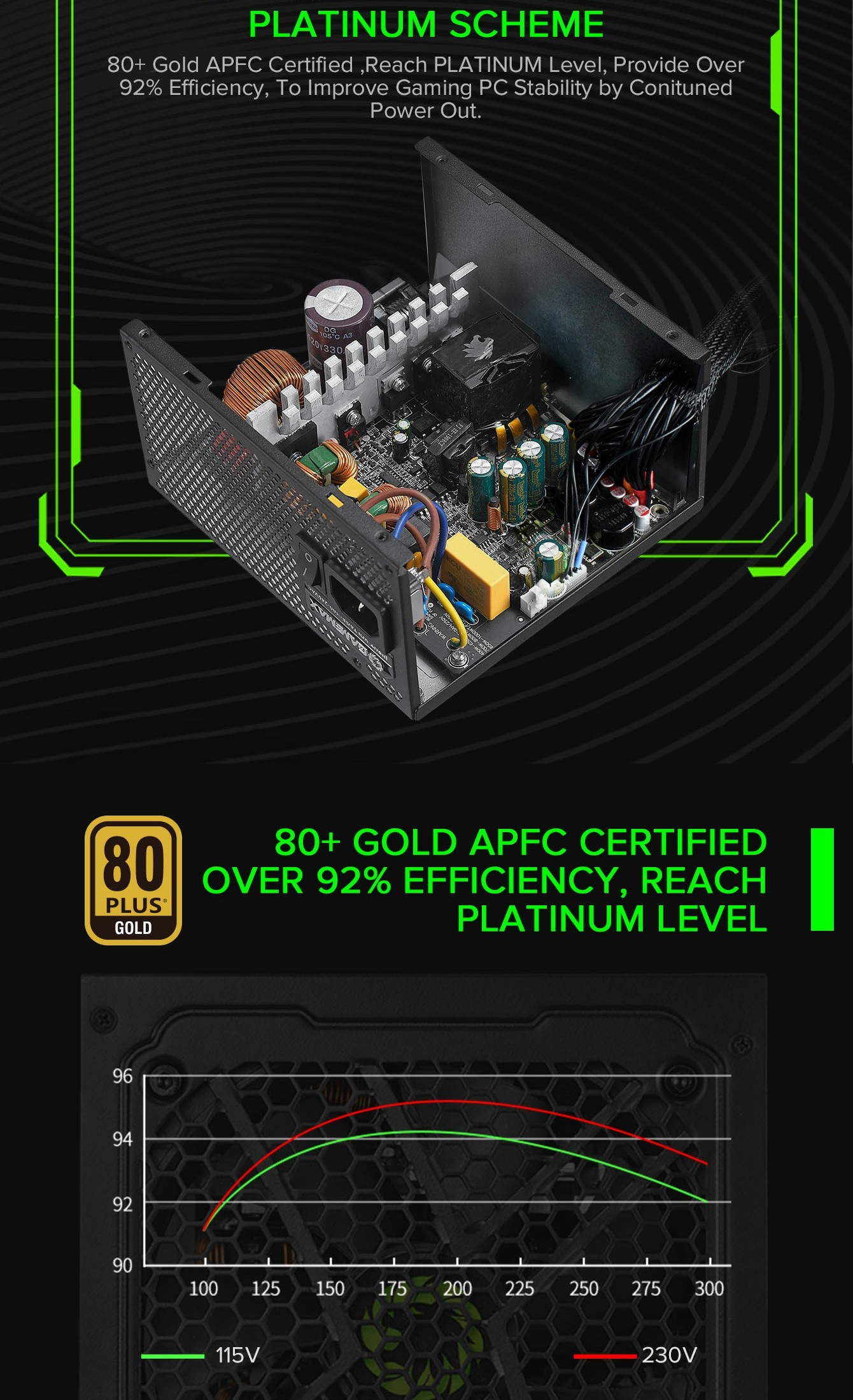

| Efficiency: | > 87% (92% max) |
| MTBF: | > 100,000 Hours |
| Protection: | OVP / UVP/ SIP / OCP/ OLP/ OPP/ SCP/OTP |
| Power: | 850W |
| Operation Temperature: | 0-40C |
| Safety: | CE / FCC / CB/TUV/cTUVus |

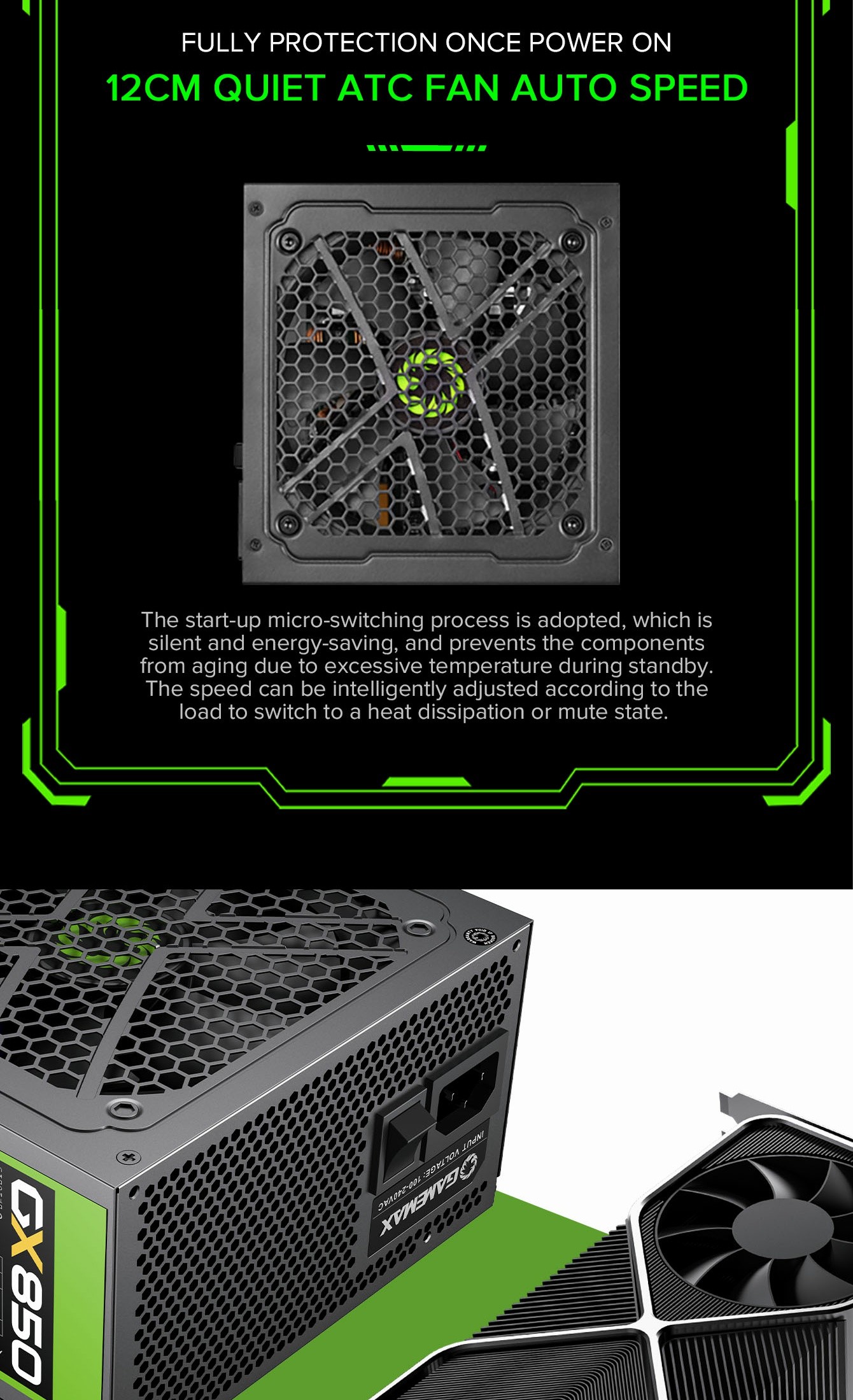

| Cooling: | 120mm Ultra Silent Fan |
| Noise: | <25dBa |
| 80 Plus Certified: | Yes - 80 Plus Gold |
