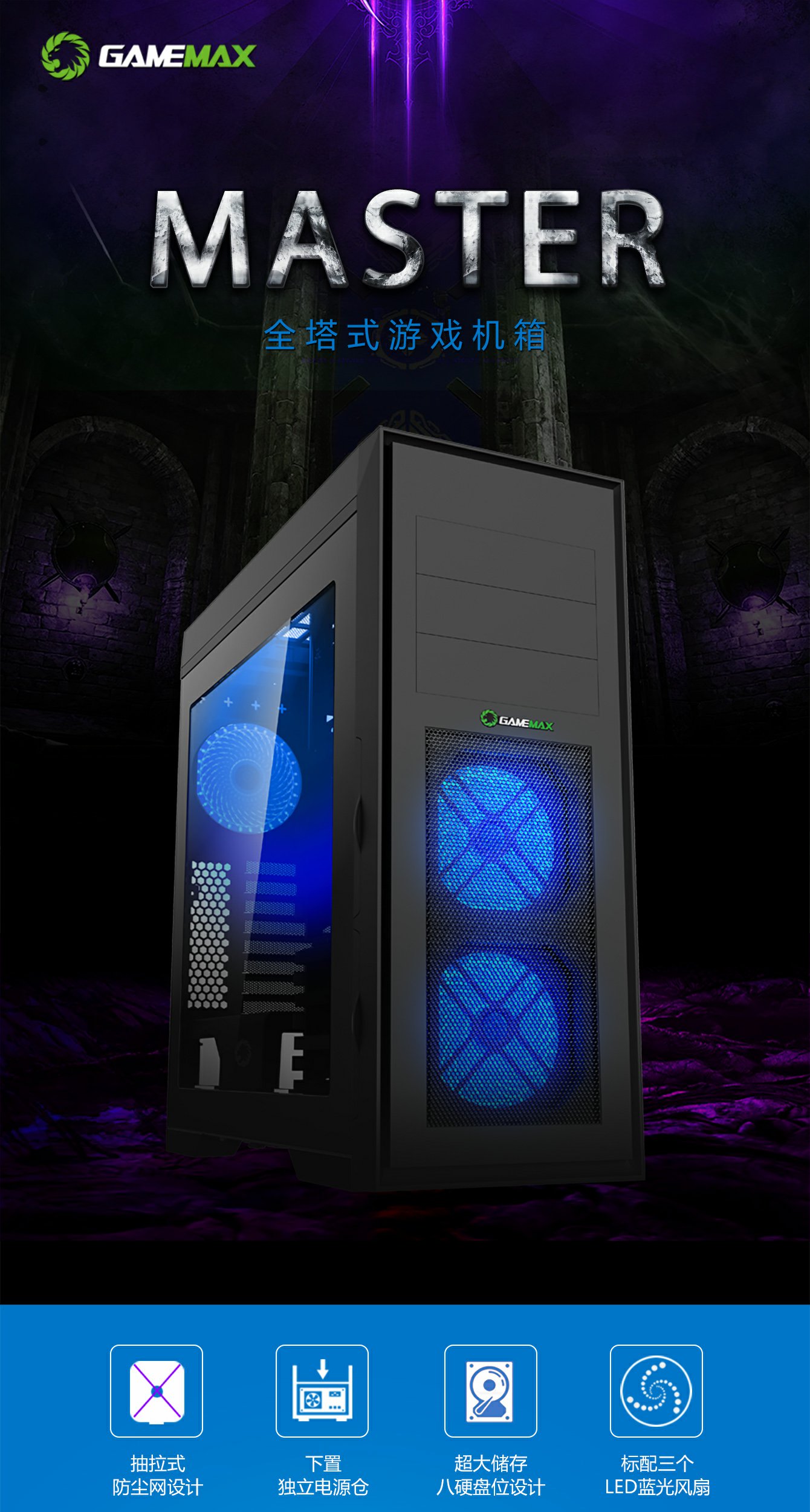

钛60 M905

GameMax游戏帝国 Master 是全塔式图形工作站M905机箱,支持 360水排顶置,预装 3x12cm led 风扇用于进气,排出热空气,为您的系统提供最佳冷却效果

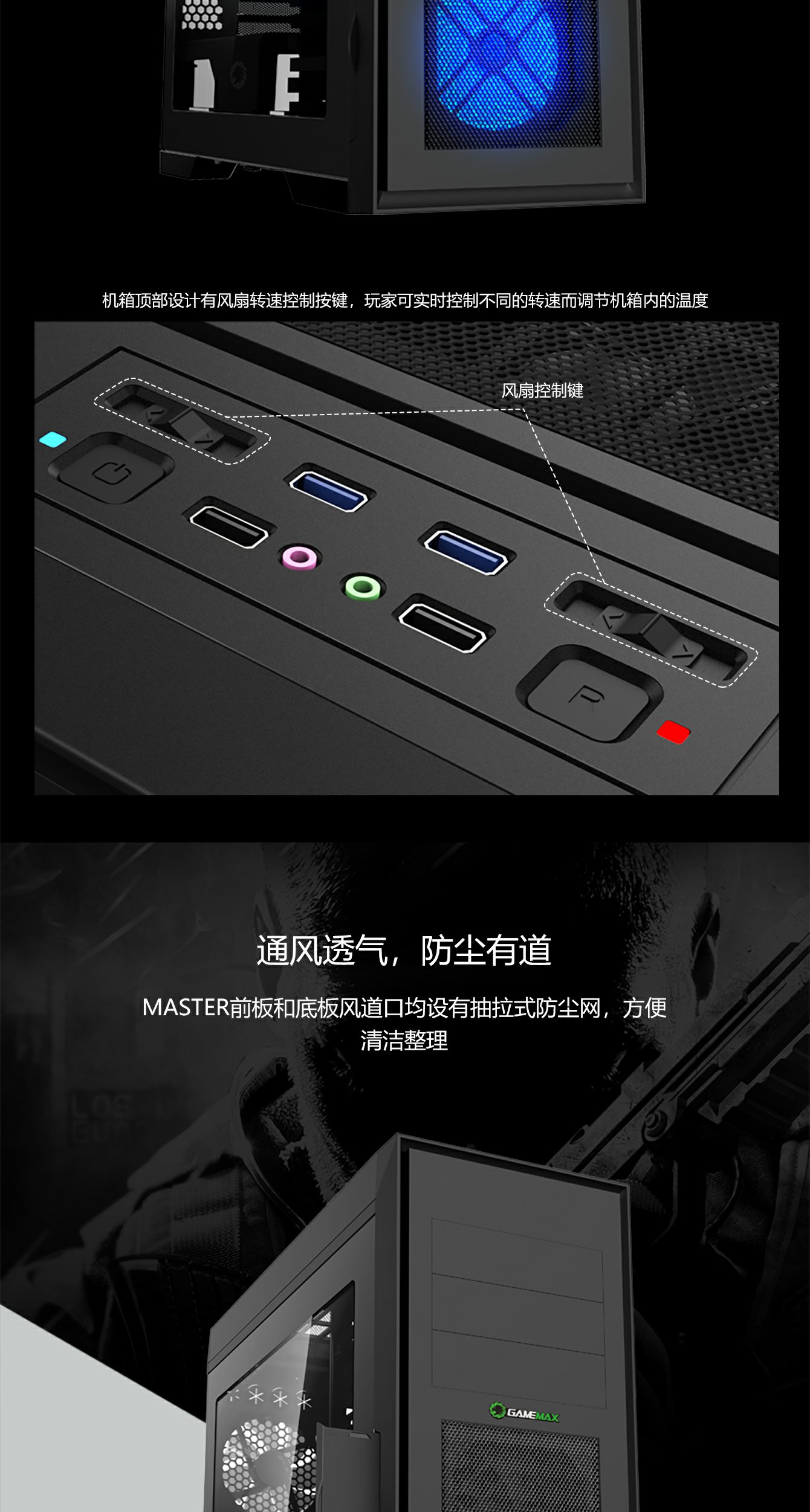

Master M905机箱还支持 E-ATX(272*305) 尺寸的主板,重要的是它可以安装总共 10 个 HDD/SSD 以轻松地将 PC 的存储设置为 Raid 3 或 Raid 5(独立驱动器冗余阵列)< br/> 通过顶部按钮控制“FAST-STOP-SLOW”的 2 通道风扇速度控制器,增加用户体验的静音底座设计。 Master 在顶部有各种 IO 端口,高清音频,2 x USB 2.0 和 2 x USB 3.0,让用户轻松访问。

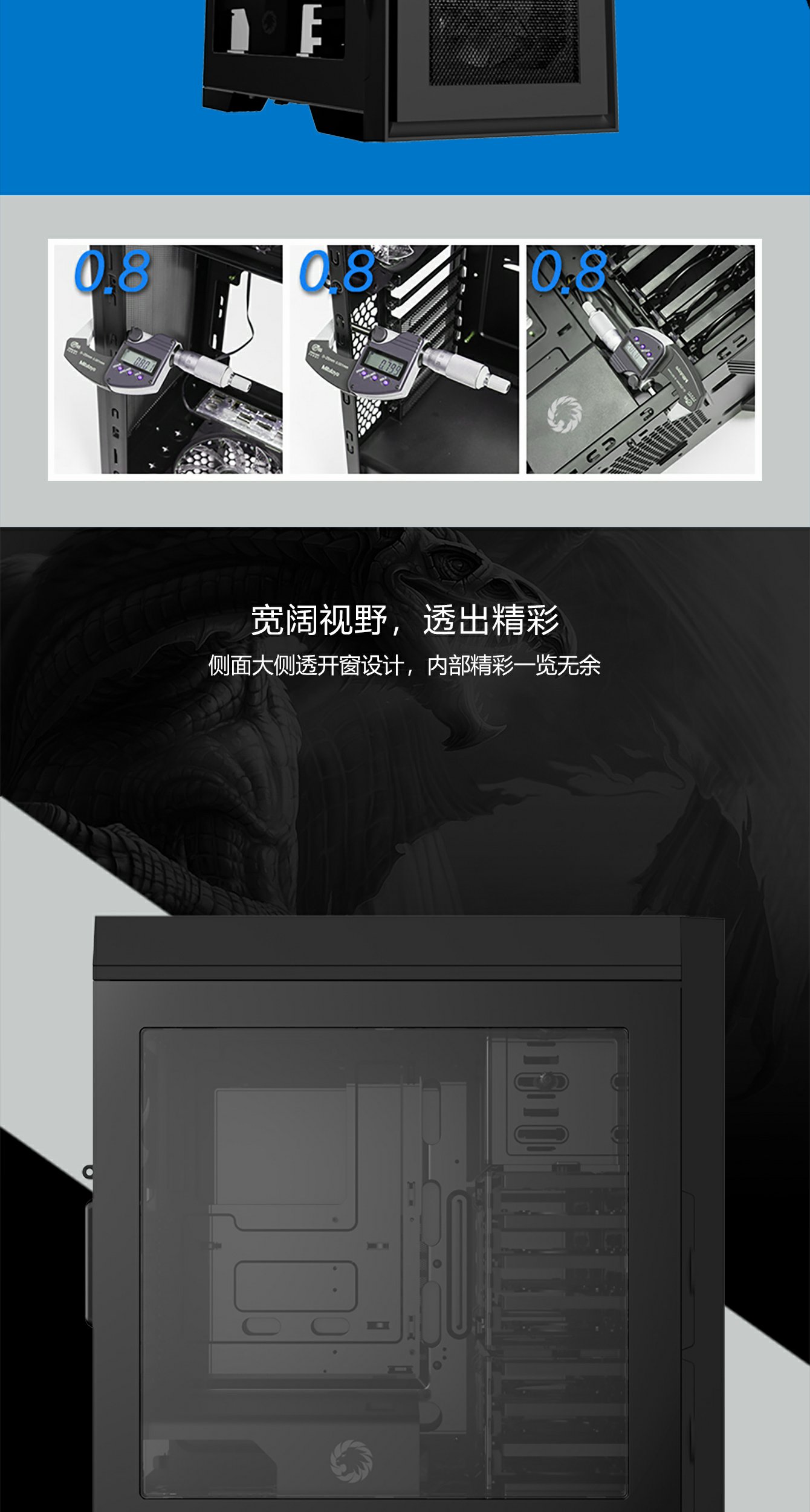

视野开阔,尽显精彩,侧板带侧透窗,内部一目了然

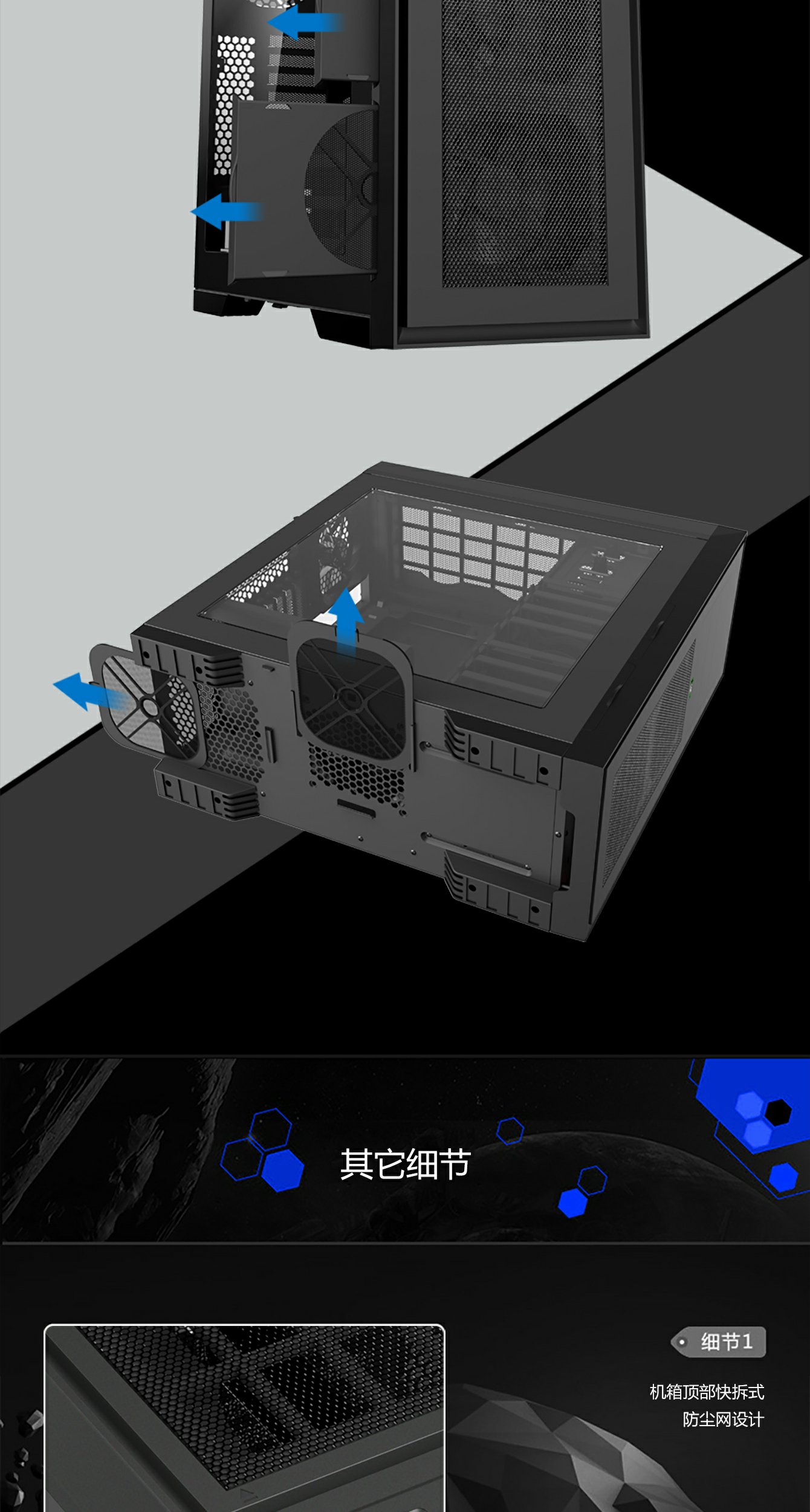

M905机箱通风透气,一套更好的防尘方法,对于Master来说,前面板和底板的风洞都带有拉出式防尘,方便清洁。
Master M905 是一款出色的设计,采用滚边机箱确保安全,共有 10 个免工具硬盘托盘,易于组装,支持 430 毫米 GPU 卡长度和 165 毫米 CPU 空气冷却器高度。它适用于构建高性能游戏系统、PC 服务器和工作站!

  • 机箱类型: 全塔机箱
  • 光效类型: 单色光
  • 神光同步: 支持
  • COC散热: 不带COC
  • 机箱颜色: 黑色

GameMaxGameMaxGameMaxGameMaxGameMaxGameMaxGameMaxGameMaxGameMaxGameMaxGameMaxGameMax

最新游戏商务款式

Form Factor (Midi, Micro, Mini ITX, Full)Full Tower
ChassisSPCC 0.8mm, Black painting interior
PSU Form FactorBottom/ATX

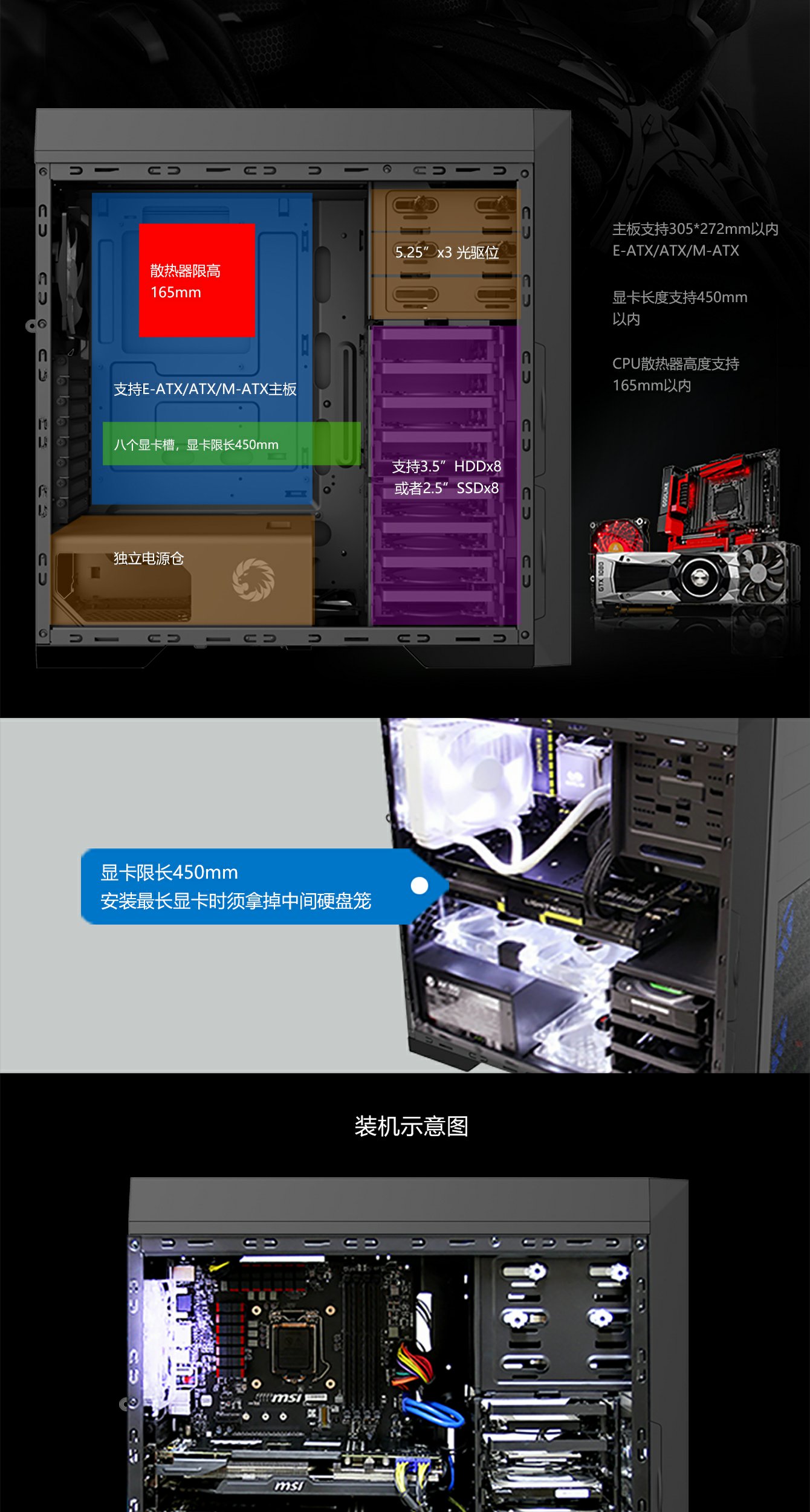

M/B Form FactorEATX(272*305), ATX、M-ATX、ITX
Front PanelElegant matte finish with mesh
Top PanelWith mesh for better heat disspation
BrandingBoxGAMEMAX
Unit1
Side PanelLeftBig window side panel
RightMetal
External Drive Bay(s)5.25" (ODD)*3
3.5"*0

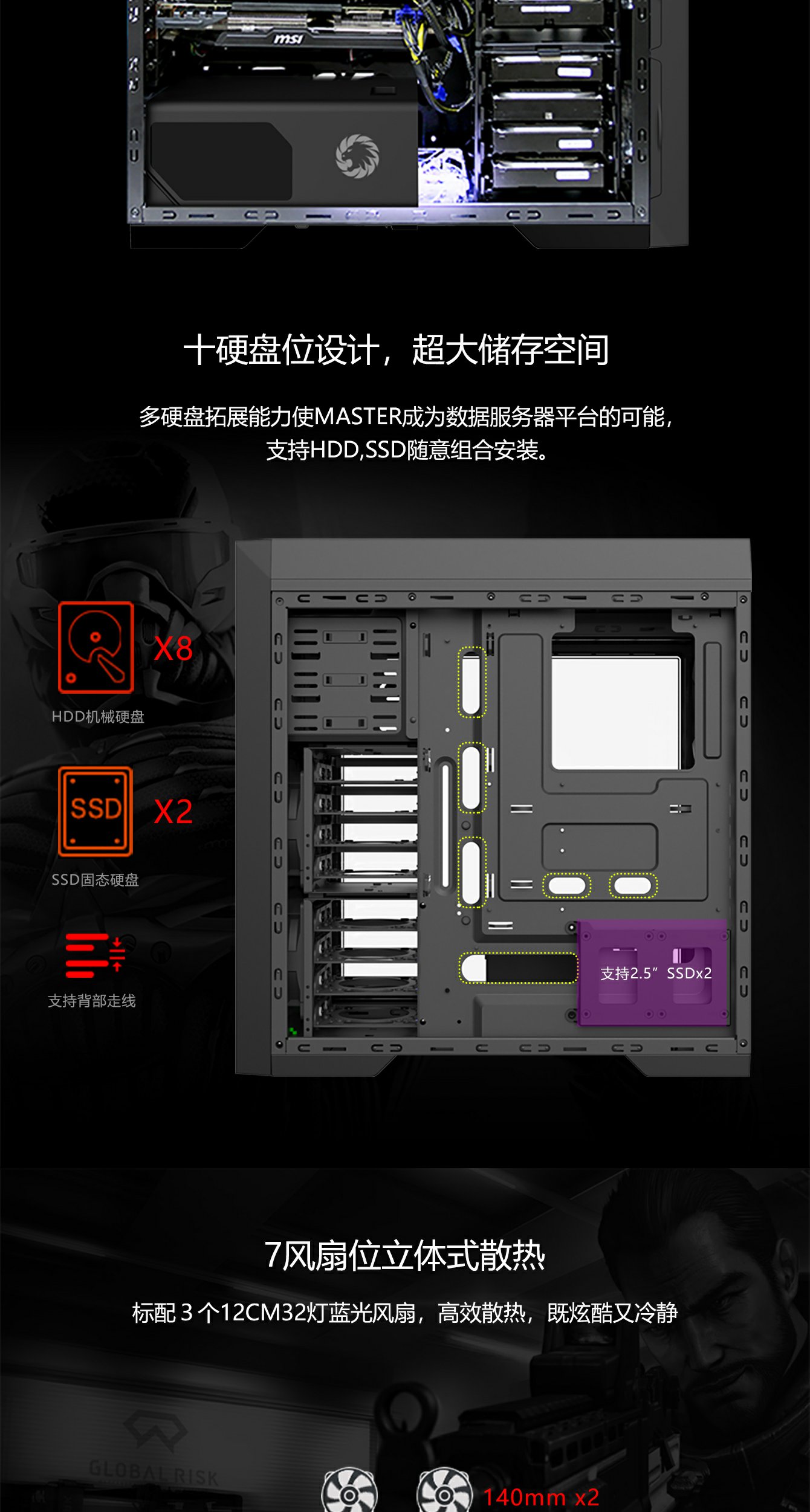

Internal Drive Bay(s)3.5" (HDD)*8
2.5" (SSD)*10 (Exchangeable)
I/O SPECButtons*2
USB2.0 Port(s)*2
USB3.0 Port(s)*2
USB3.1 Port(s)*0
HD Audio Support*1
Card Reader (Support)*0
Fan Controller*2
RGB Controller*0
Controller max. fans*6
RGB controller*0

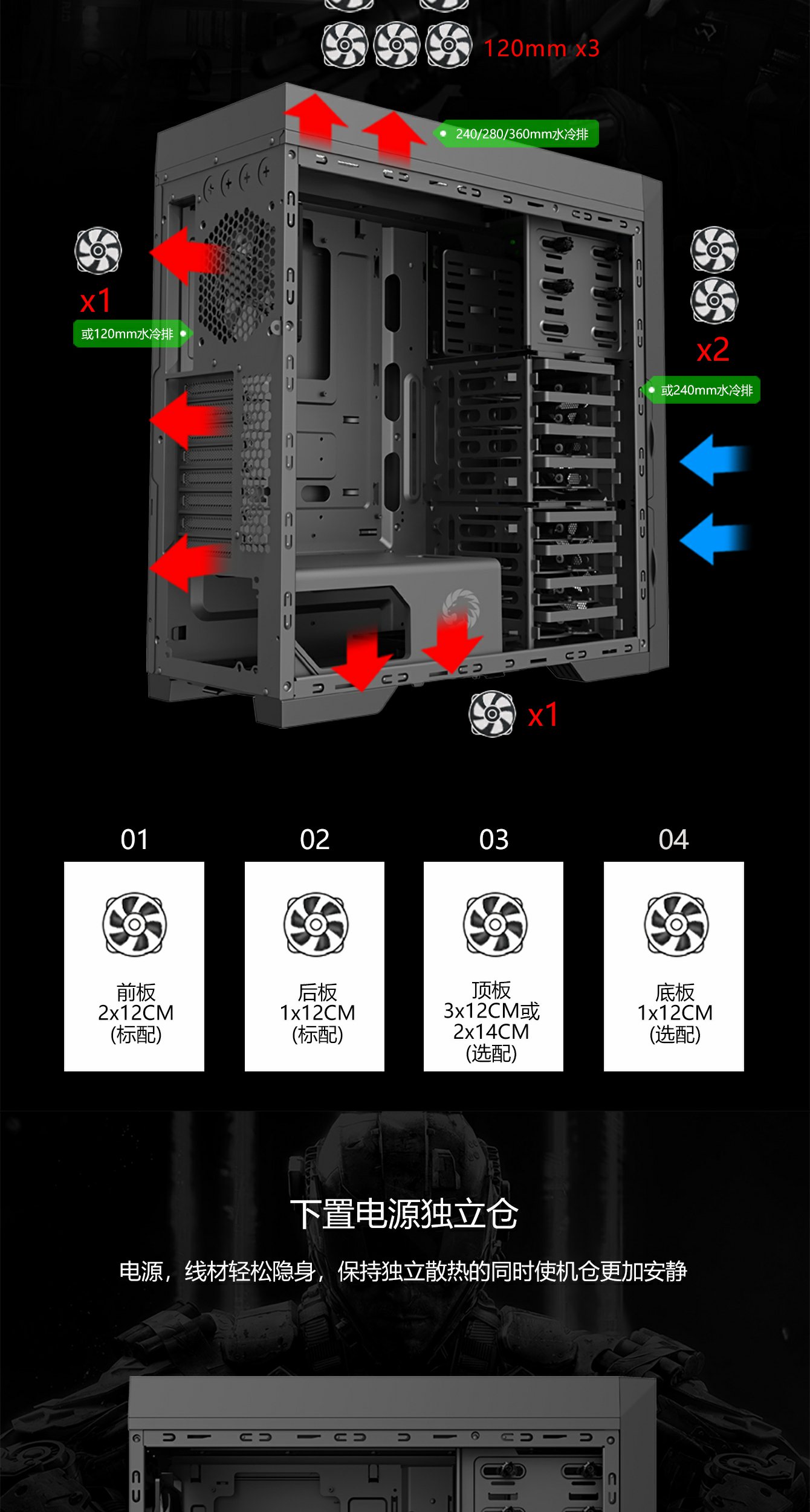

Cooling Fan  SupportFront2x12cm Blue Led Fan (Included)
TopNone
Rear1x12cm Blue Led Fan (Included)
Bottom1*12cm (Fan Optional)
Left Side0
PSU Cover*1
Water Cooling Support
(Radiator Size)
FrontSupport 240/360mm water cooling
TopSupport 240/360mm water cooling
RearSupport 120mm water cooling
Dust filterBottom cover with dust filter (2*pieces)
Slots*8
Carton & LogoGAMEMAX

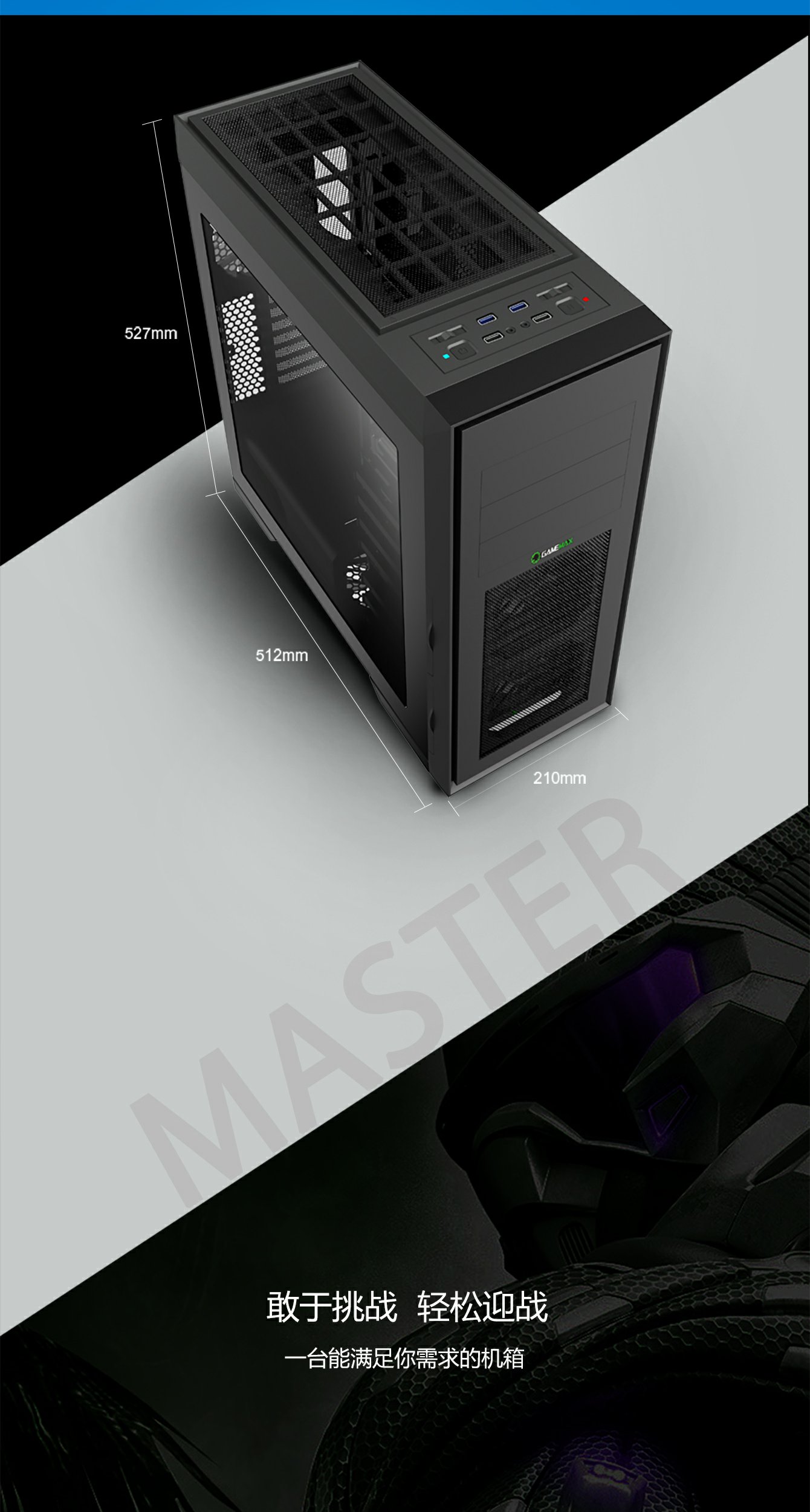

DimensionsChassis(L)470*(W)210*(H)465mm
Full Case (inc Fascia)(L)520*(W)212*(H)488mm
Carton(L)540*(W)286*(H)597mm
VGA Card Length420mm
CPU Cooler Height170mm
Cable Management Depth25mm
WeightNet Weight (Kg)8.7 kgs
Gross Weight (Kg)9.8 kgs


最新游戏商务款式

Key Features

  • Case Type - Midi tower high-end gaming case

  • Chassis Thickness- made by 0,8mm steel

  • MB Type- E-ATX/ATX/mATX/ITX

  • Cooling System - Supports 240mm front and 360mm Top water cooling radiator

  • Max.VGA Card (Length) - 430mm

  • Max.CPU Cooler (Height) - 165mm

  • Support Cable Management - 21mm

  • I/O Port - HD Audio, 2 x USB 2.0 & 2 x USB 3.0

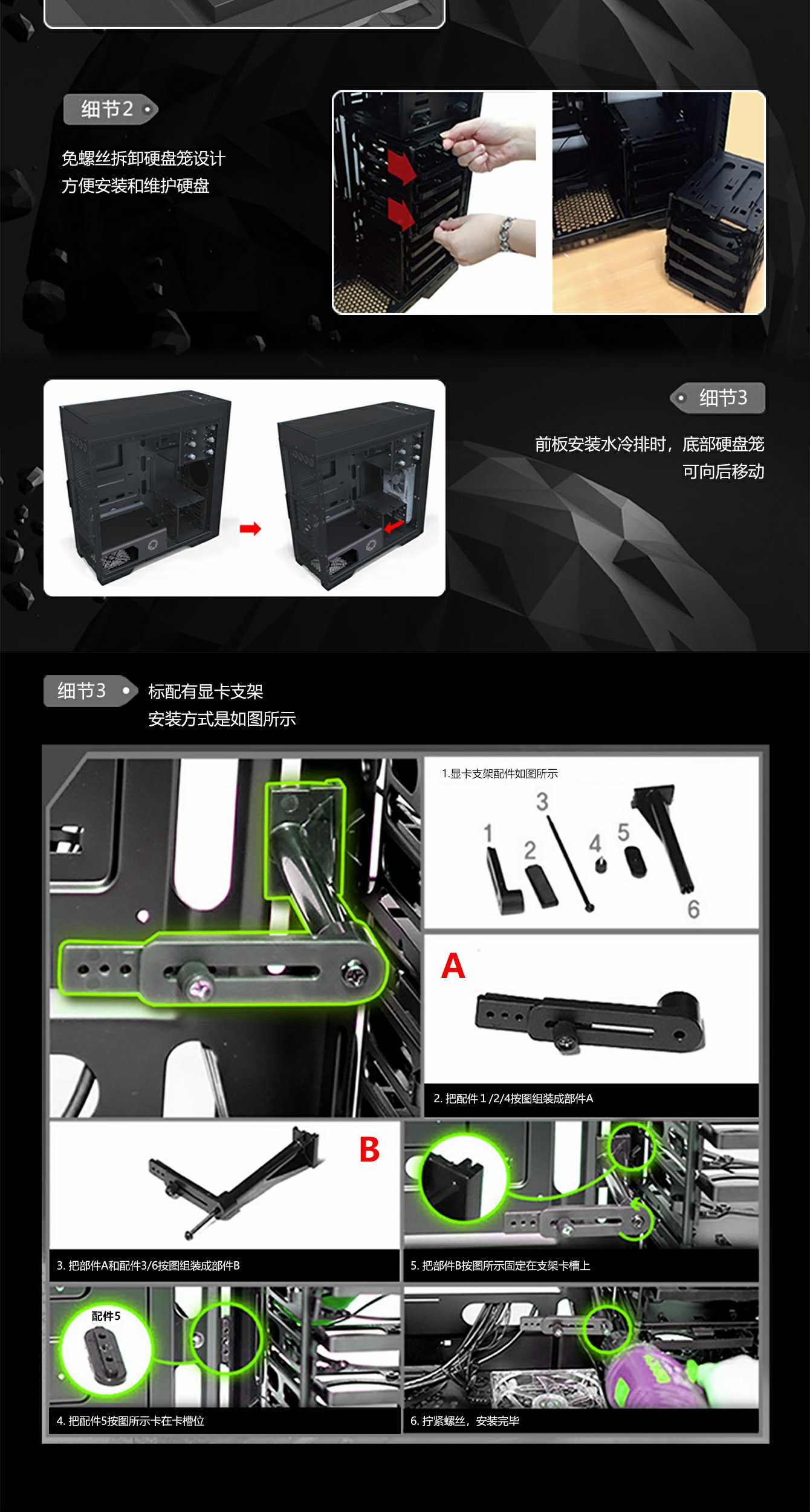

  • Tool-Free- 2x(3.5 or 2.5)HDD tool free brackets+2x2.5 extra cage

  • Side Window - Outstanding side window

  • Fan controller - 2 x Fan controllers each supporting up to 3 x fans (3 pin connector)

  • Vent Filters - Removable filter for PSU vent at the bottom and a magnetic vent filter at the side

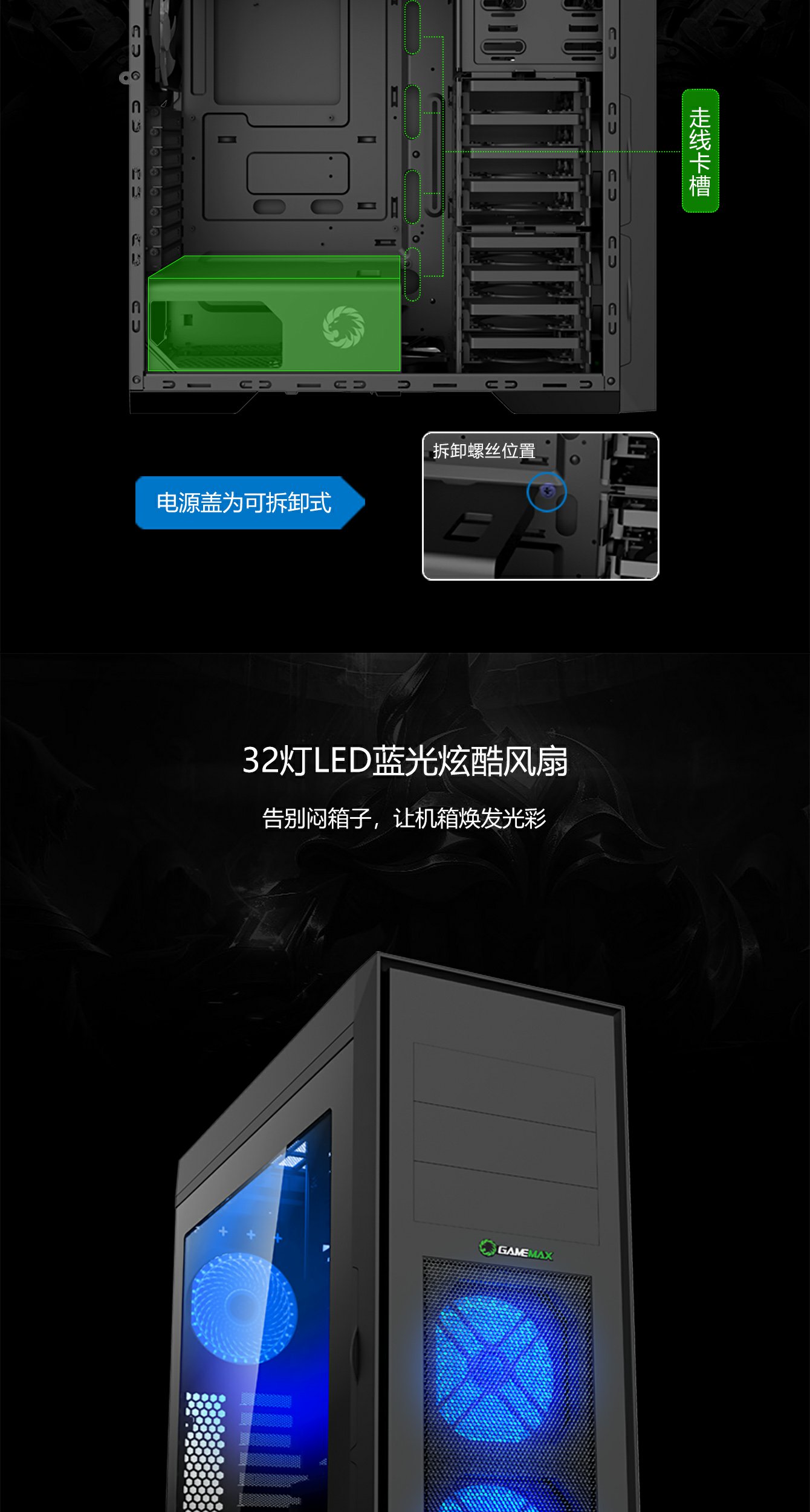

  • Fans - 3 x 12cm LEDs  fans on the front and rear (Included)

  • The fan per-installed- 2x12cm blue LED fan on frontm and 1x12cm blue LED fan on rear

  • NW/GW-8.5kg/9.5kg

  • Chassis Size-510*210*530mm

  • Packing Size-579*286*597mm
