GameMax 80 plus Bronze Certified GP-750 None-Modular PSU features a cut-edge DC-to-DC design, Provides high-performance business and gaming build, and experiences gaming Bliss with the GP-750 power supply!

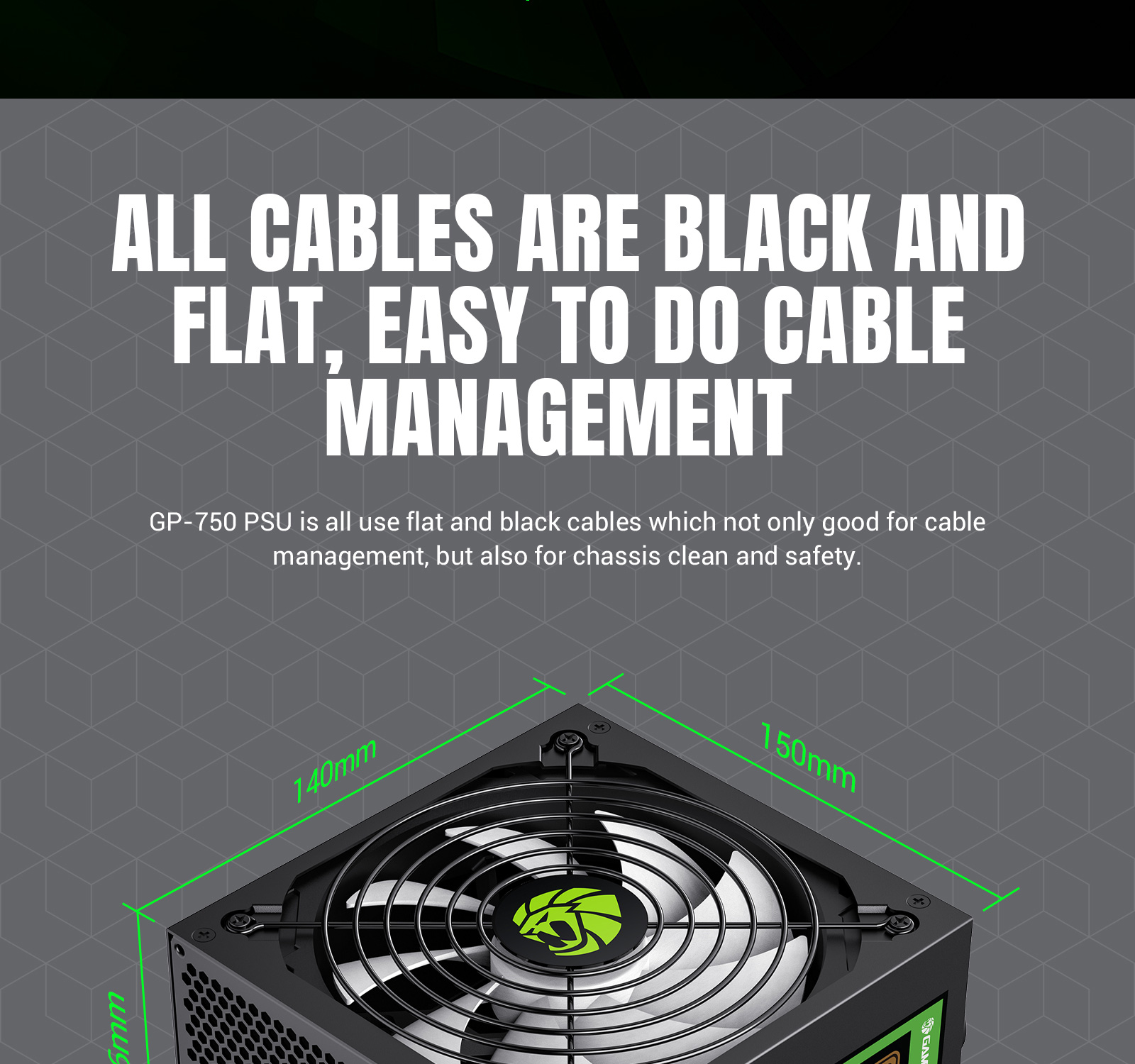

• Engineered with high-end components, Elegant black PSU casing with black flat cable.

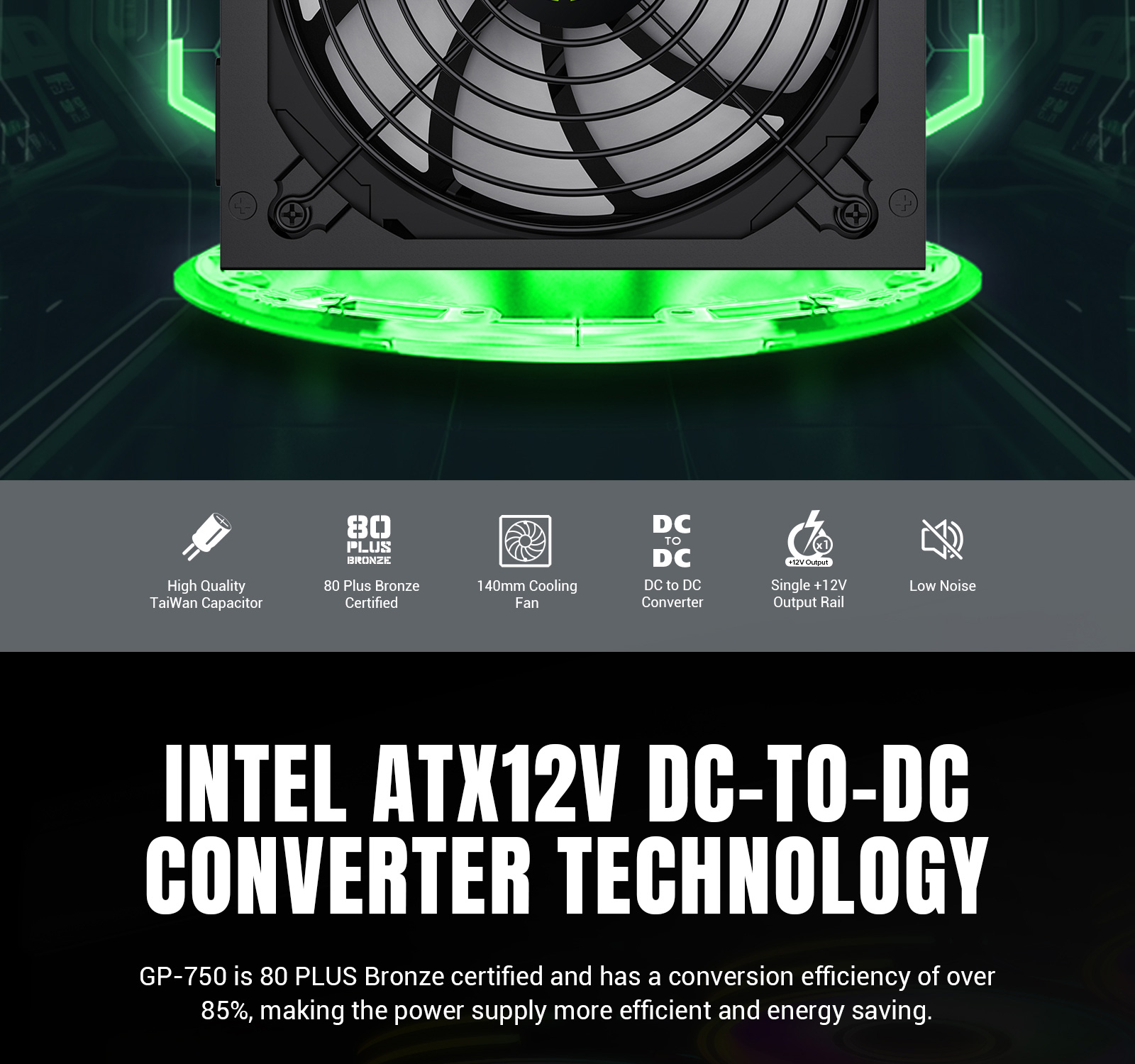

• DC-to-DC technology ensures optimal power efficiency and stable output across all components.

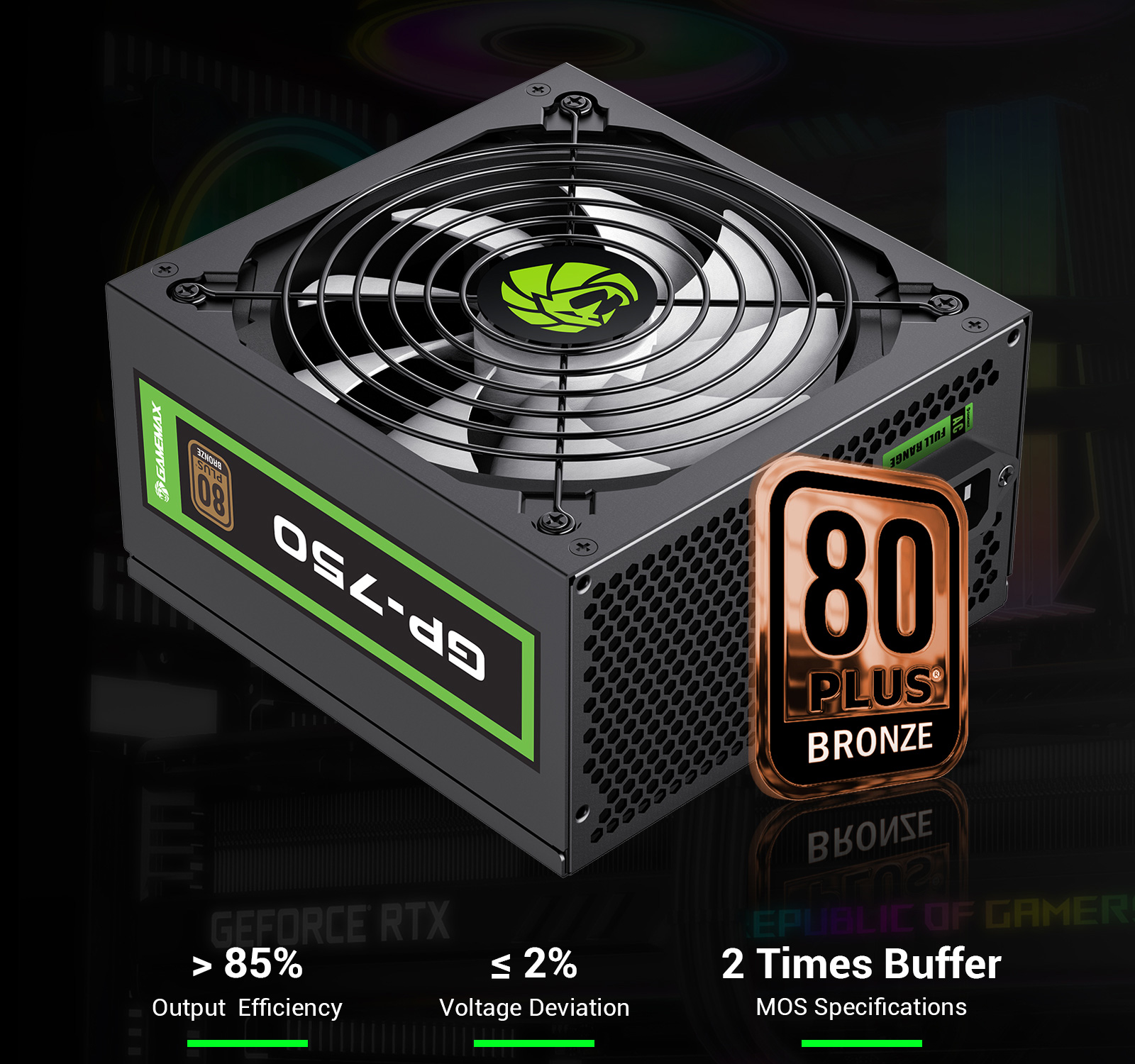

• ATX12V 80 PLUS Bronze Certified power supply ensures high energy efficiency and minimizes heat generation.
• Extended 12V Rail for high compatibility and extremely high current output
• Longer 12V8pin(4+4) pins up to 650mm is easy for high-end tower chassis installation

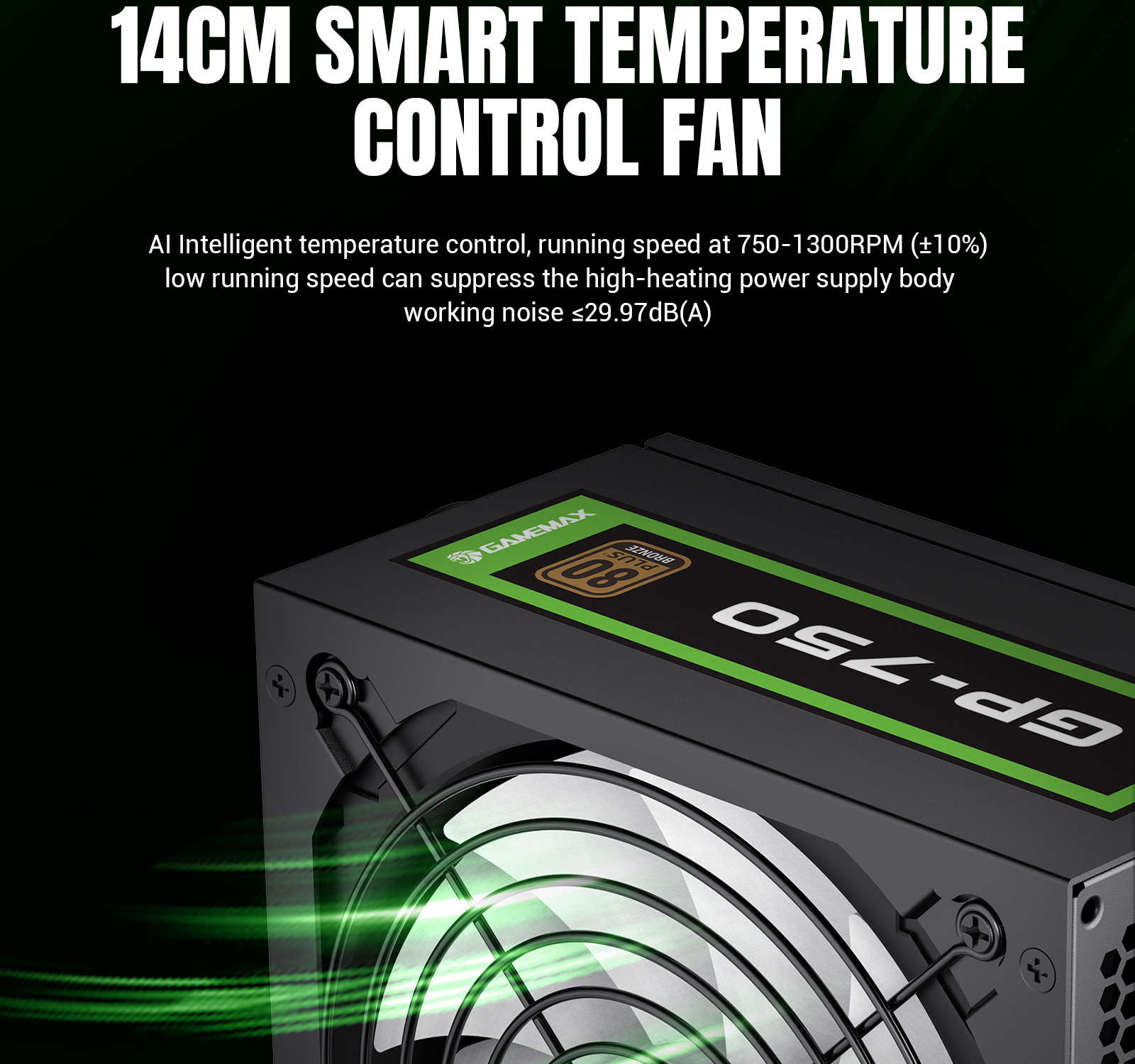

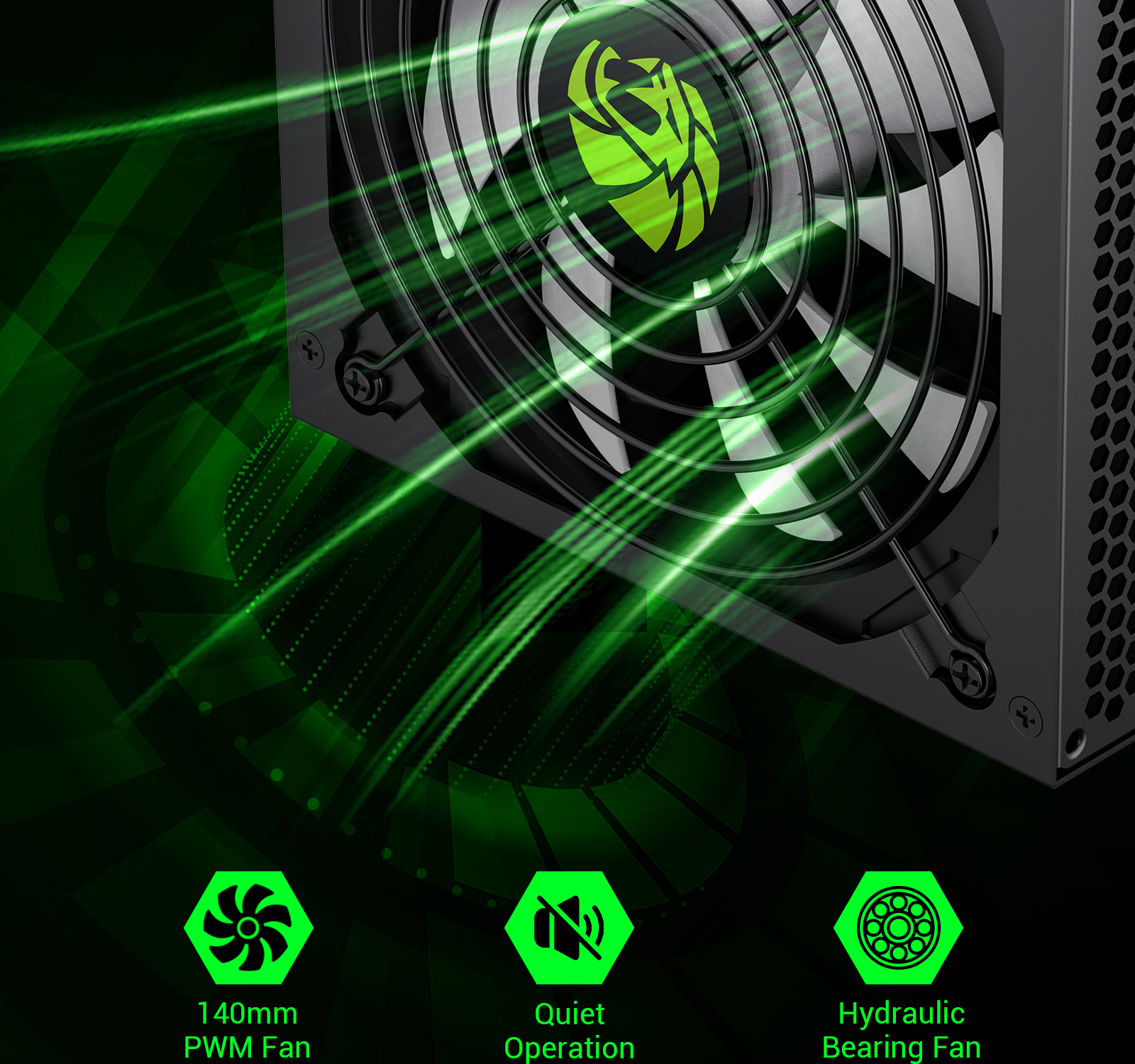

• 14cm silent black fan provides silent operation and efficient cooling system with smart thermal sensor.
• Features six essential safety mechanisms providing system stability with OVP/UVP/ OPP/OCP/OTP/SCP.
• Safety Certified by TUV Lab with CE strict standards.
Germany Version
Globe Version
PSU Specifications
| AC INPUT: 100-240 VAC 15-5A 50-60Hz | |||||
| DC Output Max | +3.3V | +5V | +12V | -12V | +5VSB |
| 18A | 18A | 54A | 0.5A | 2.5A | |
| 750W | |||||
Detailed Specifications
| Dimensions: | 158mm x 85mm x 150mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 15-5A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-150 ms |
| Hold Up Time: | >10ms |
| Efficiency: | > 85% (87% max) |
| MTBF: | > 100,000 Hours |
| Protection: | OVP / UVP / SIP / OCP / OLP / OPP / SCP |
| Power: | 750W |
| Operation Temperature: | 0-40C |
| Safety: | CE / FCC / CB |
| Cooling: | 140mm Ultra Silent Fan |
| Noise: | <25dba< |
| 80 Plus Certified: | Yes - 80 Plus Bronze |
General Specifications
| Manufacturer Part Number: | GP-750 |
| EAN Number: | 6931858720052 |
| Has Mains Plug: | No |
| Colour: | Black |
| What's In The Box: | Power Supply, User Manual, Screws |
| Warranty: | 2 Years |
