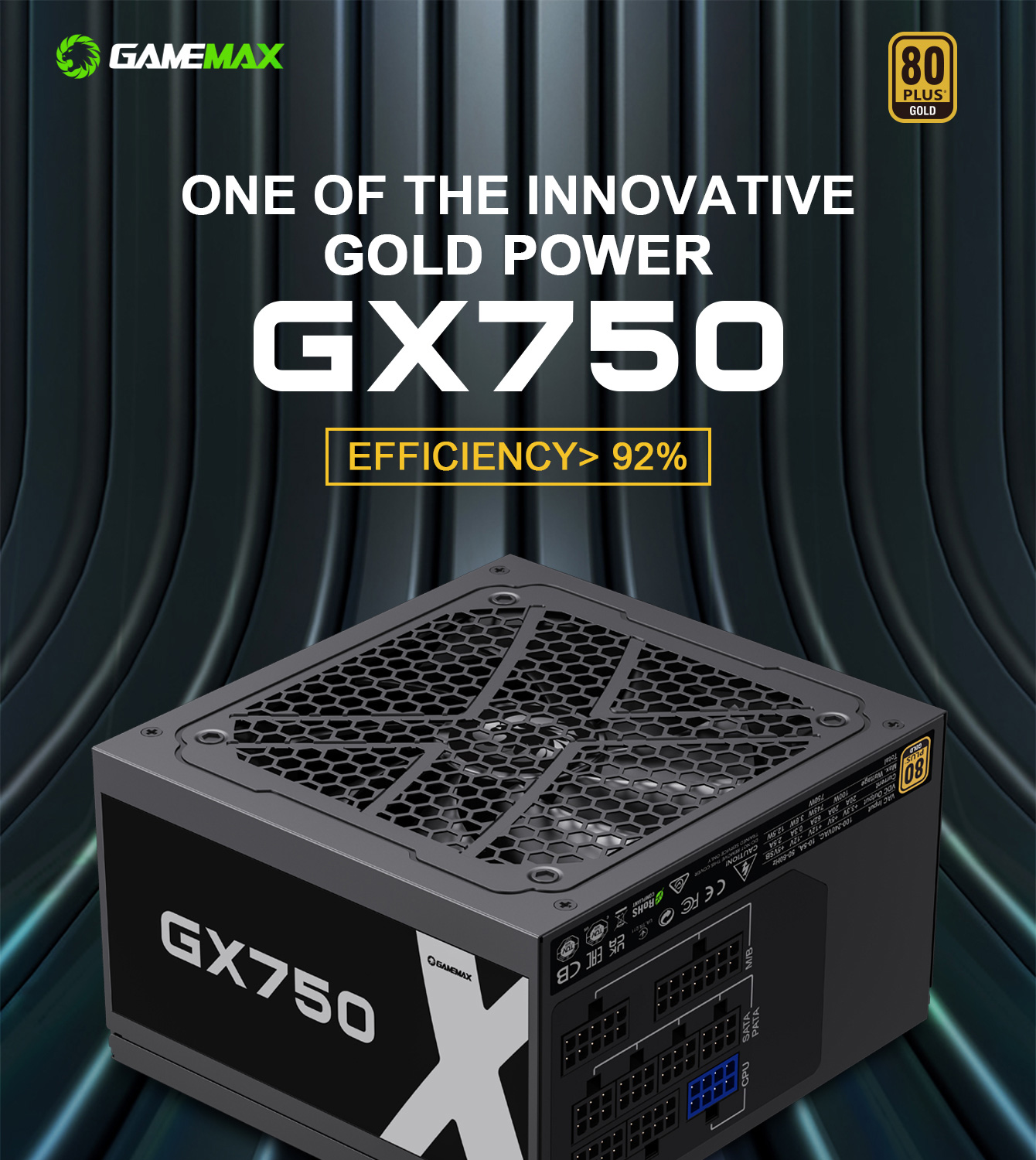

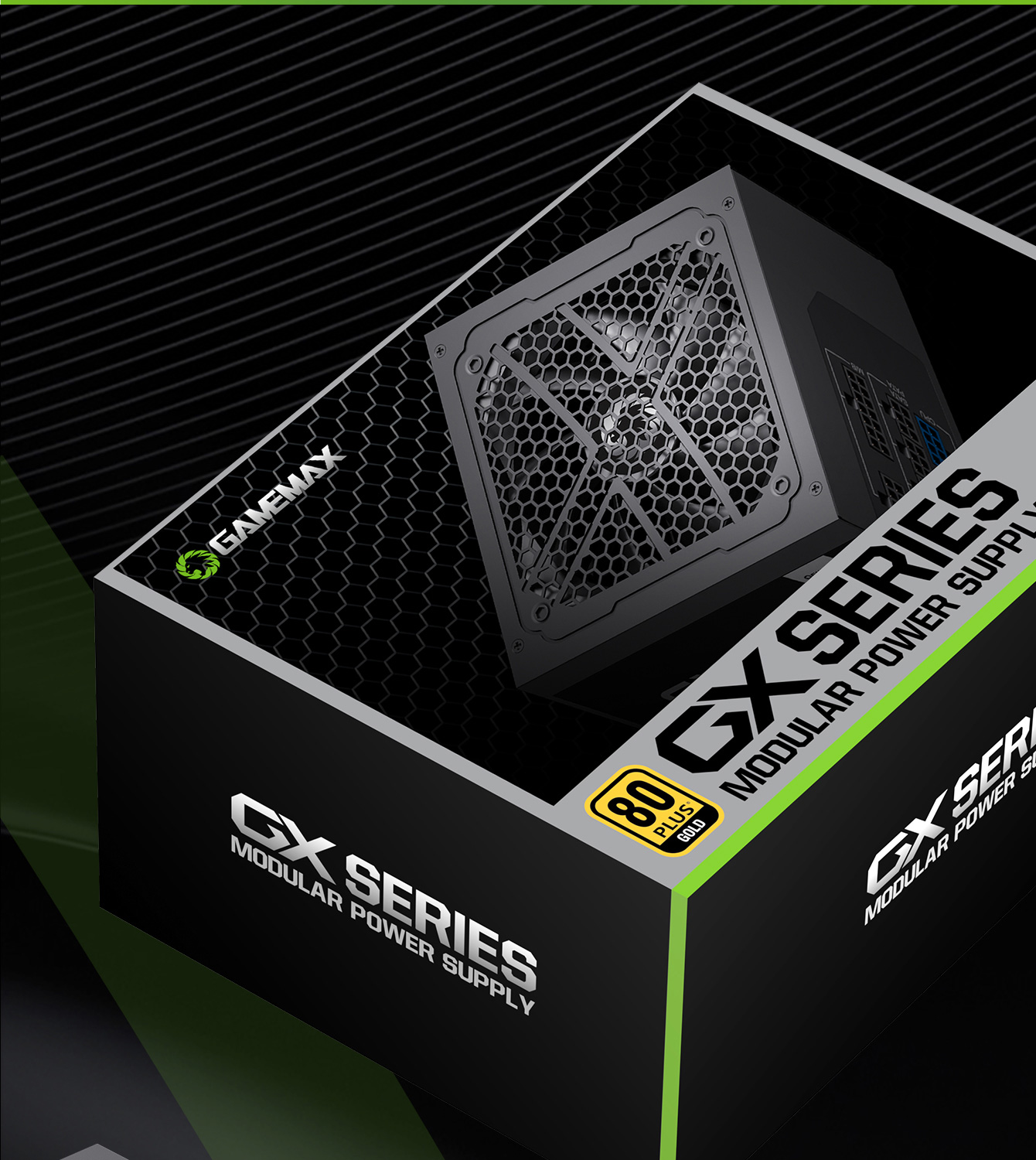

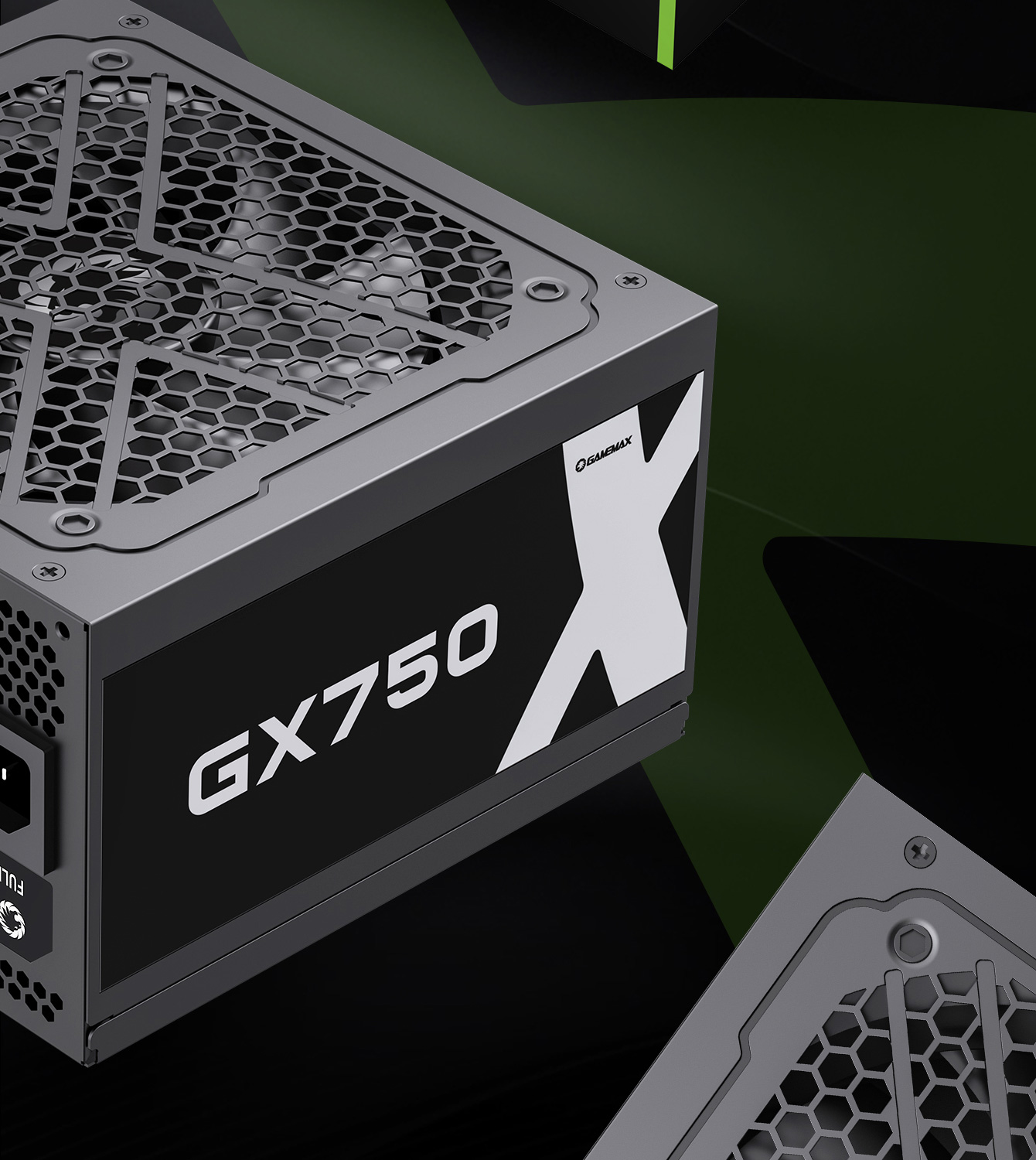

GameMax GX-750 Modular, 80+ Gold ATX Power supply: High Efficiency: Over 92% efficiency with Gold certification.

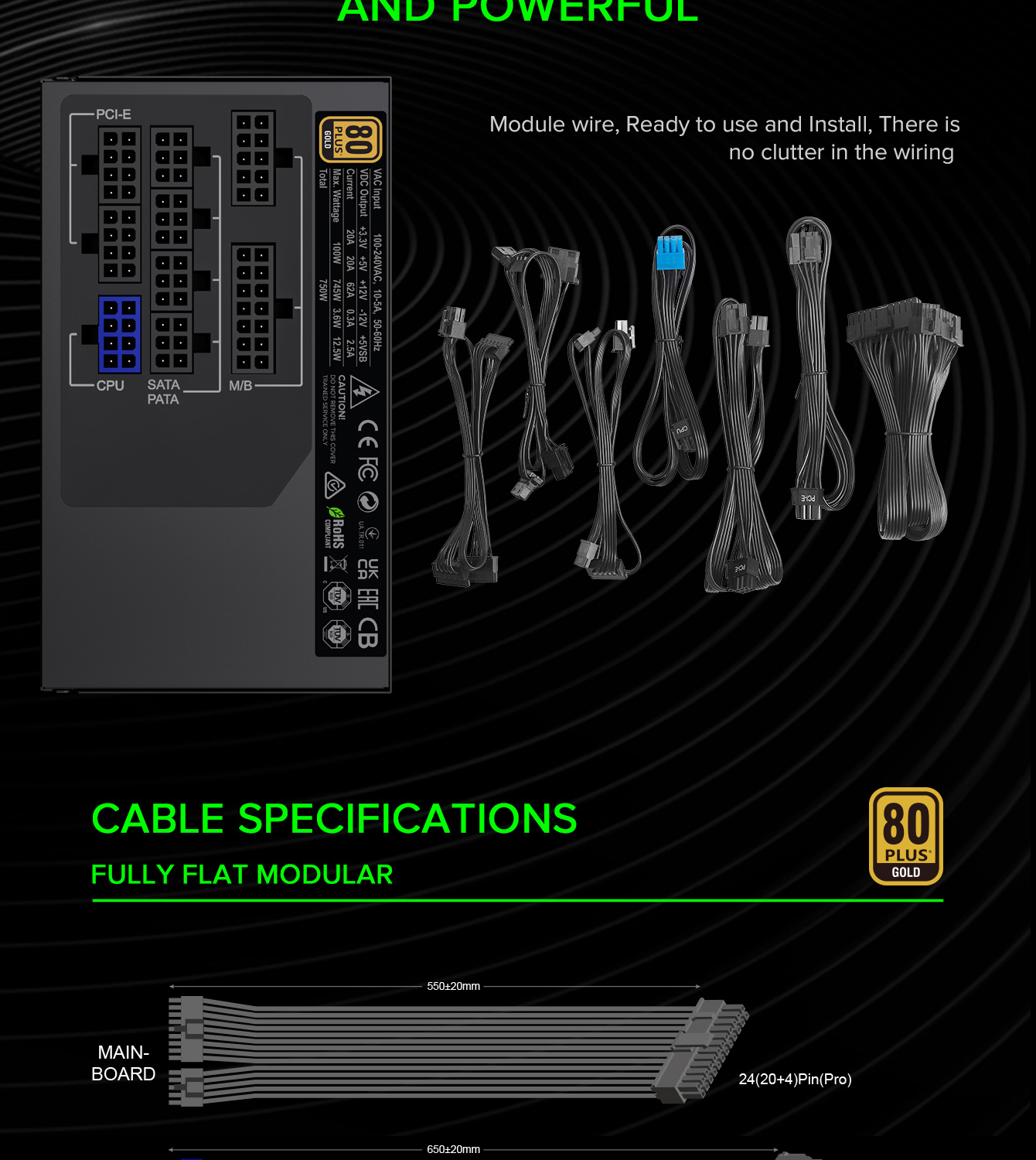

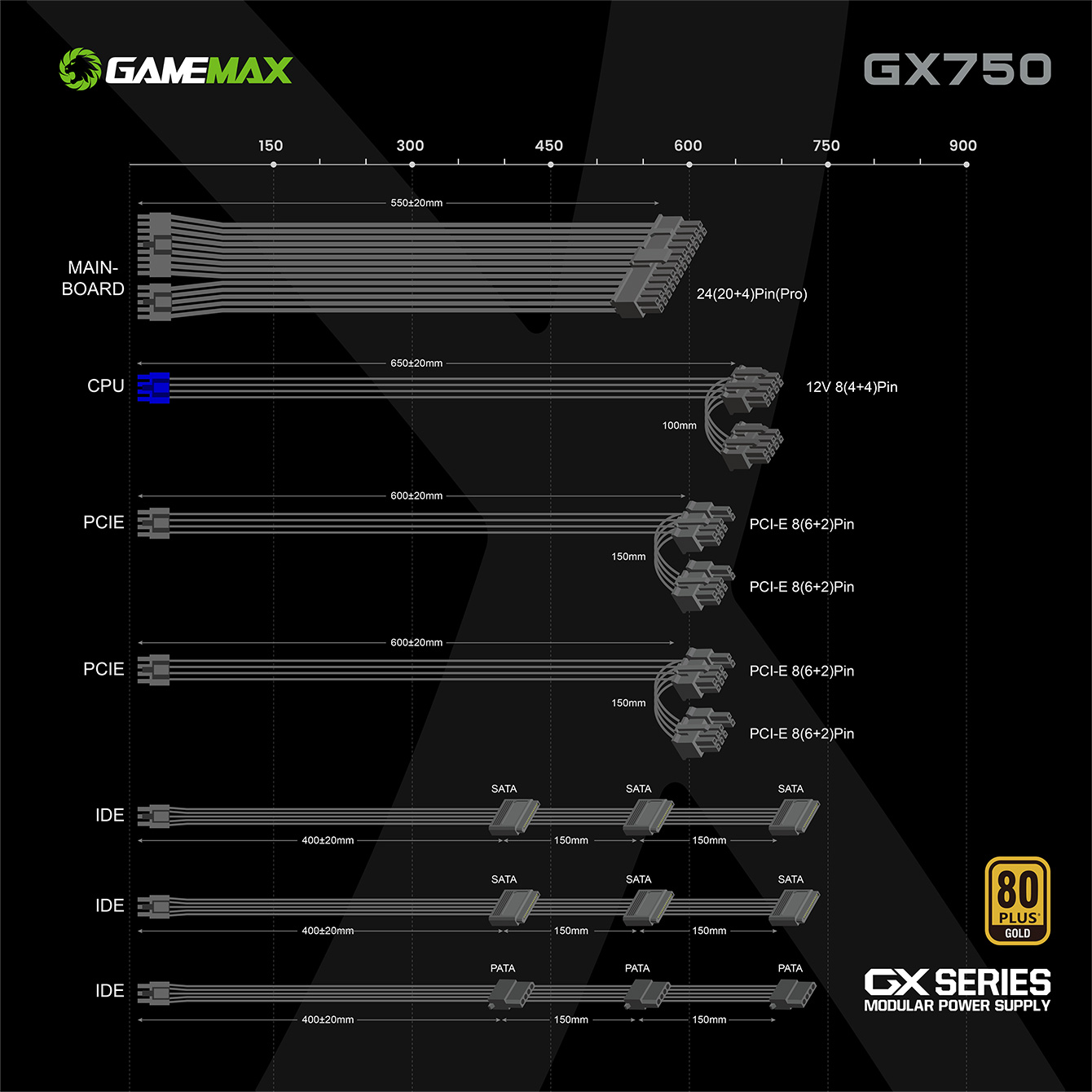

• Modular Design: Easy cable management for a clean build.

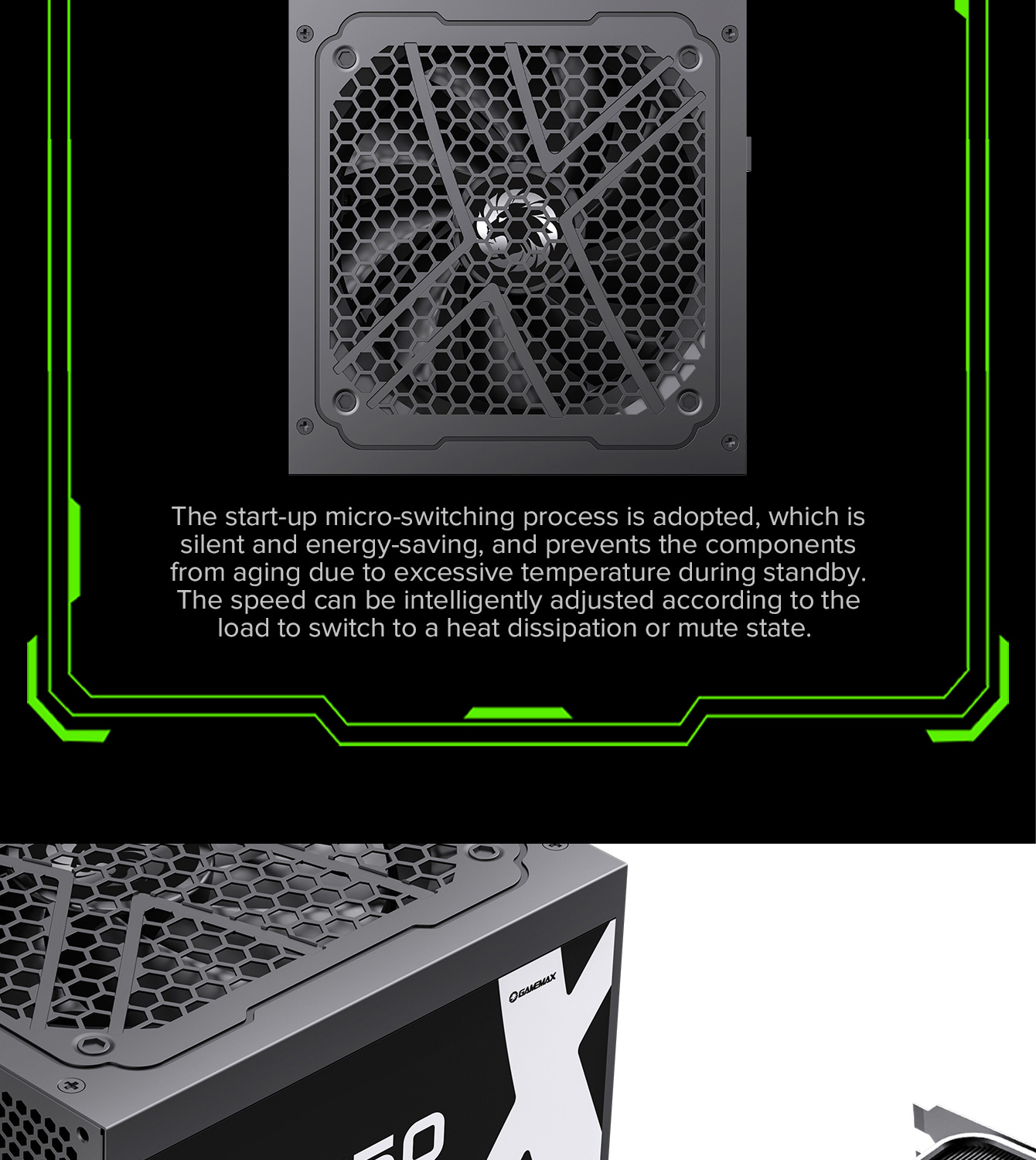

• Quiet Operation: Low-noise FDB fan during heavy loads.

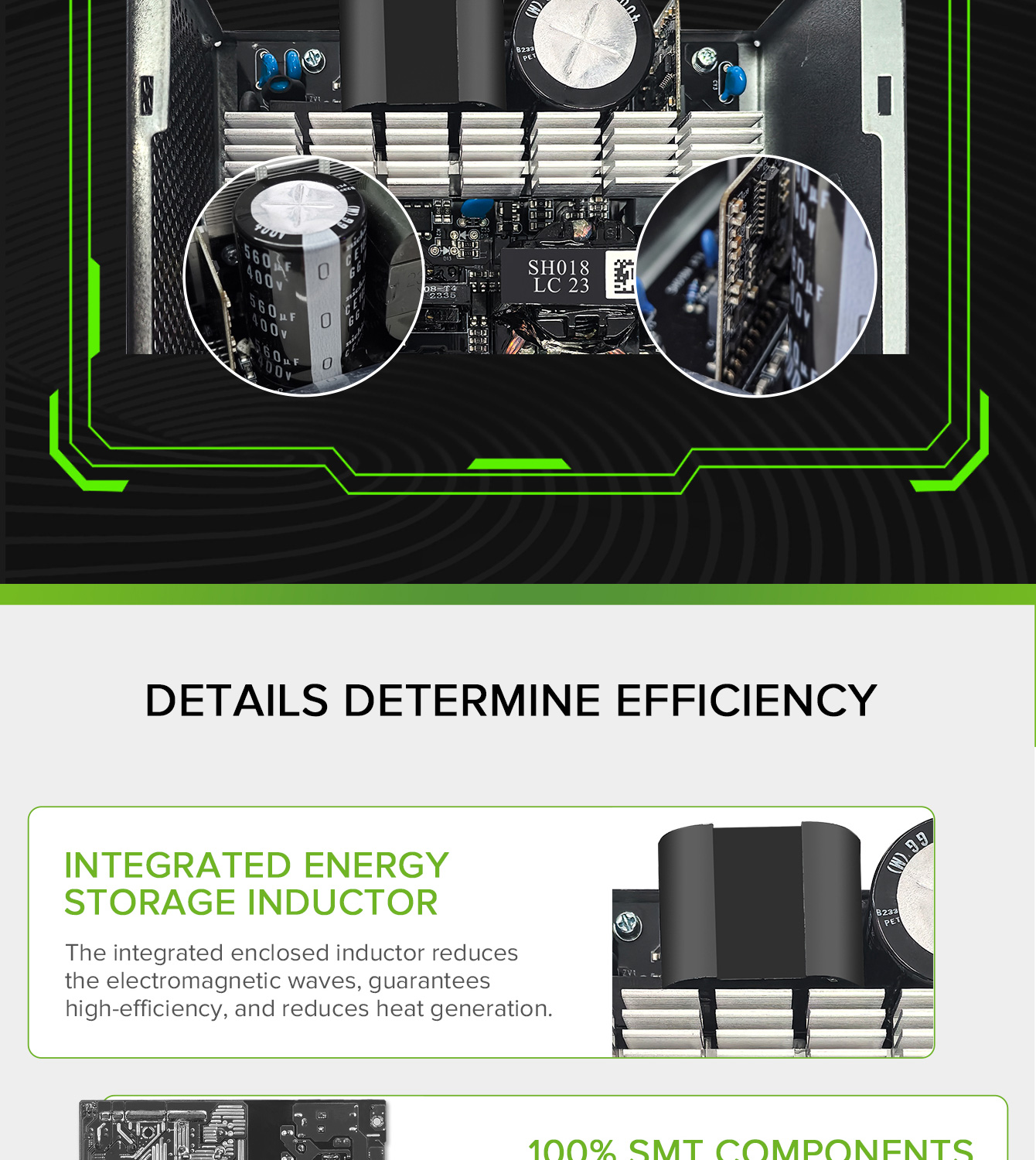

• Stable Components: All-solid capacitors for durability.
• Comprehensive Safety: Seven protection levels for secure operation.
Detailed Specifications

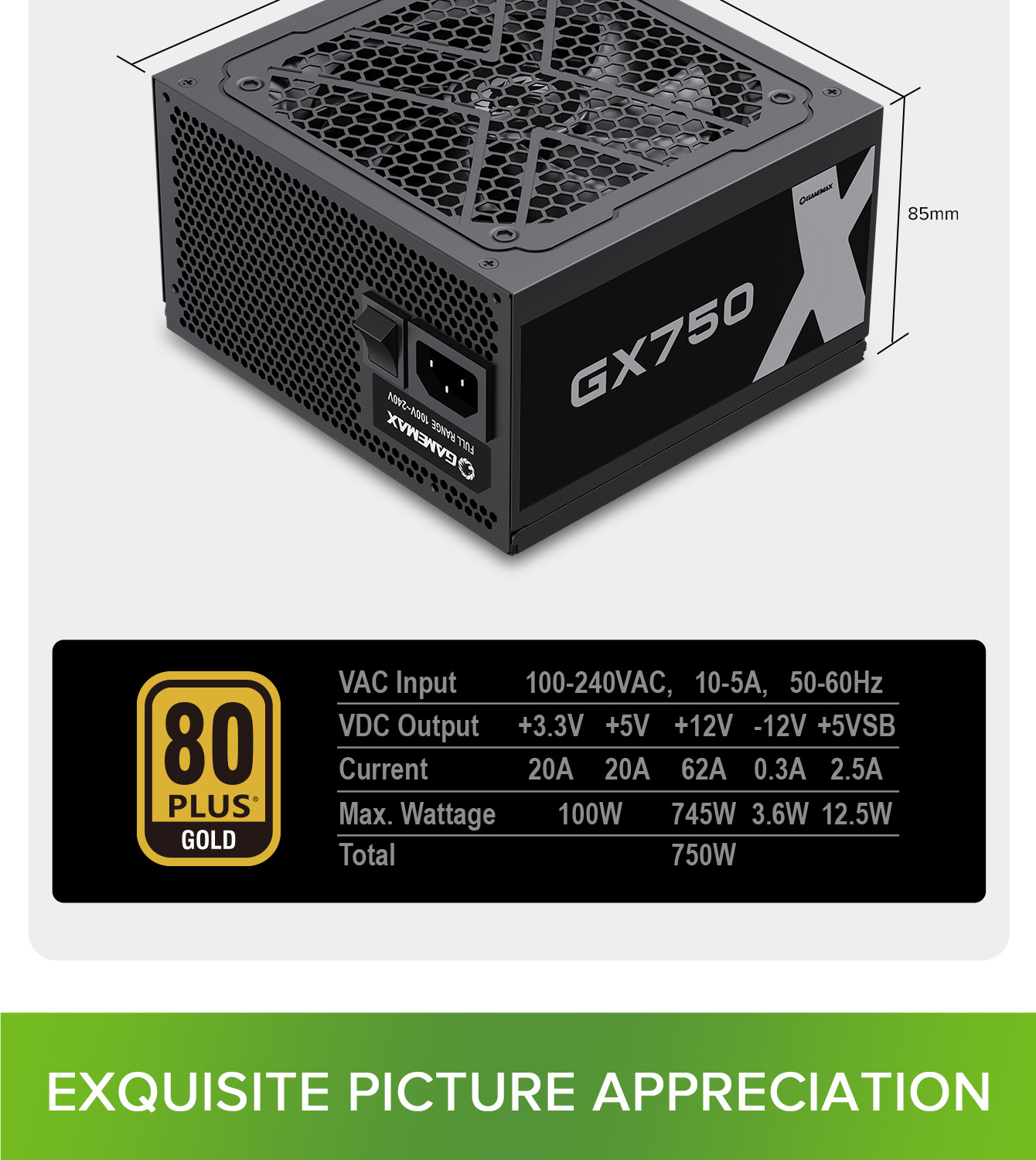

| Dimensions: | 150mm x 85mm x 140mm (W x H x D) |

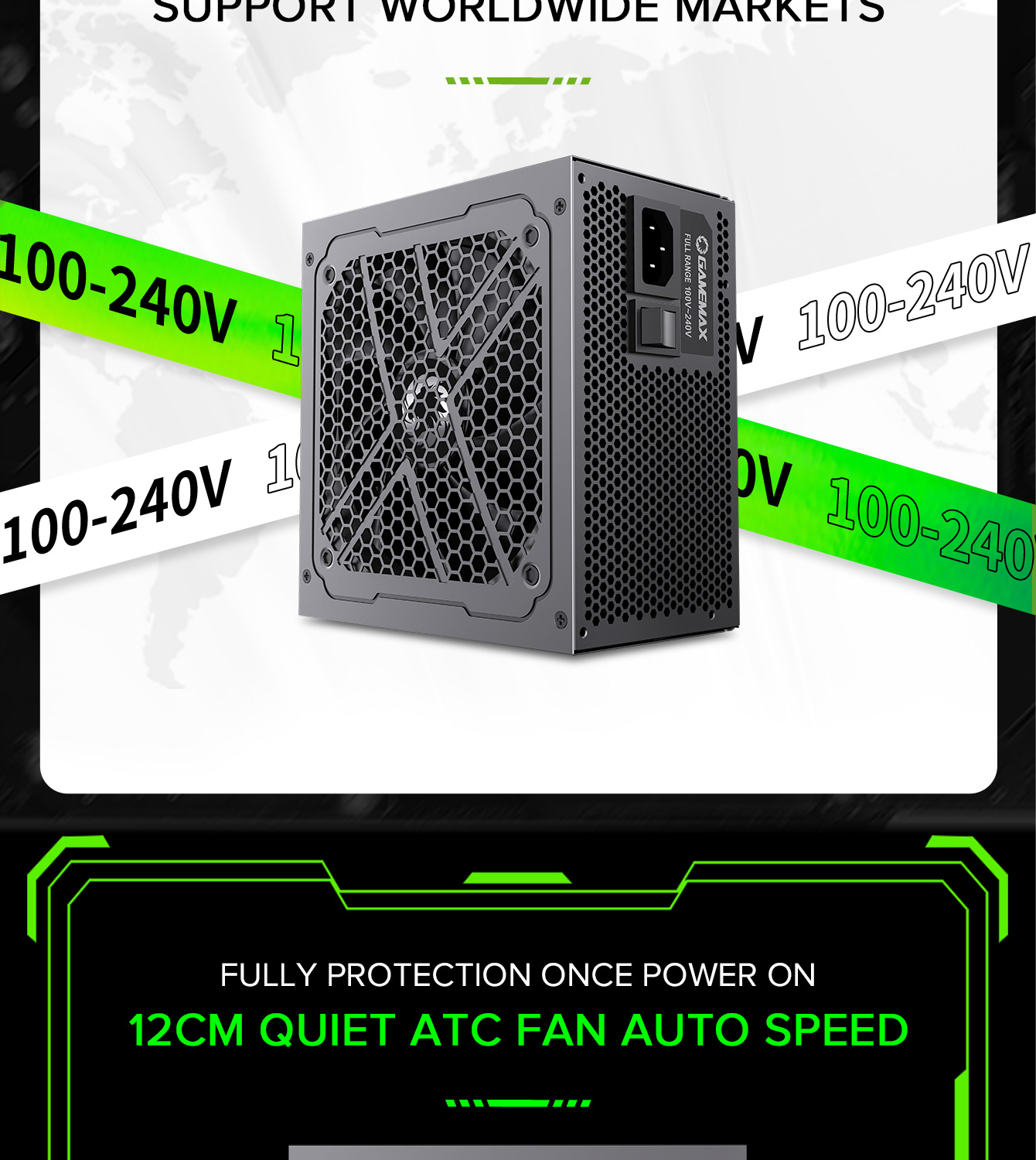

| Input Voltage: | 100-240 VAC |
| Input Current: | 10-5A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC (>.99) |
| Power Good Signal: | 100-150 ms |
| Hold Up Time: | >10ms |

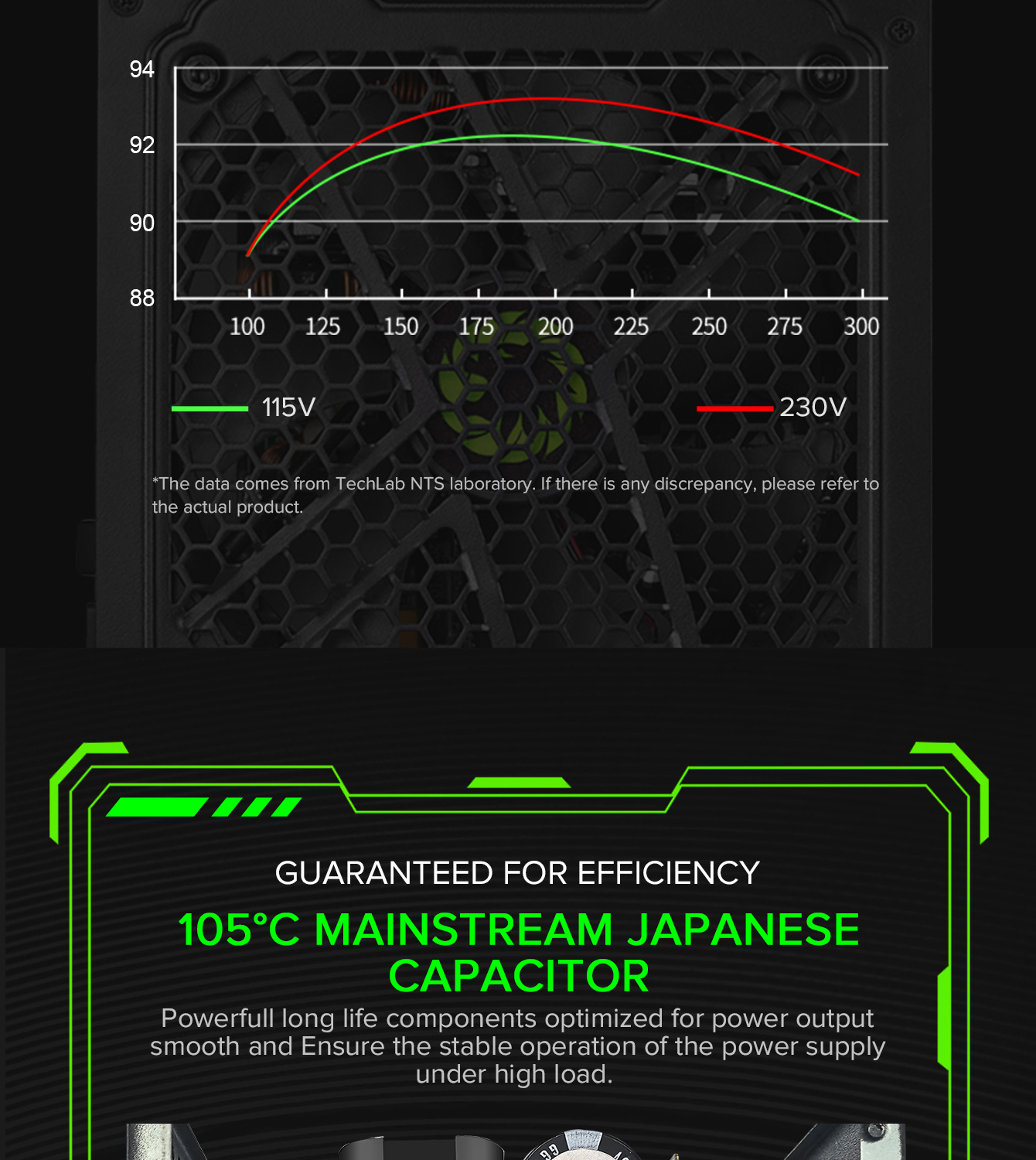

| Efficiency: | > 87% (92% max) |
| MTBF: | > 100,000 Hours |

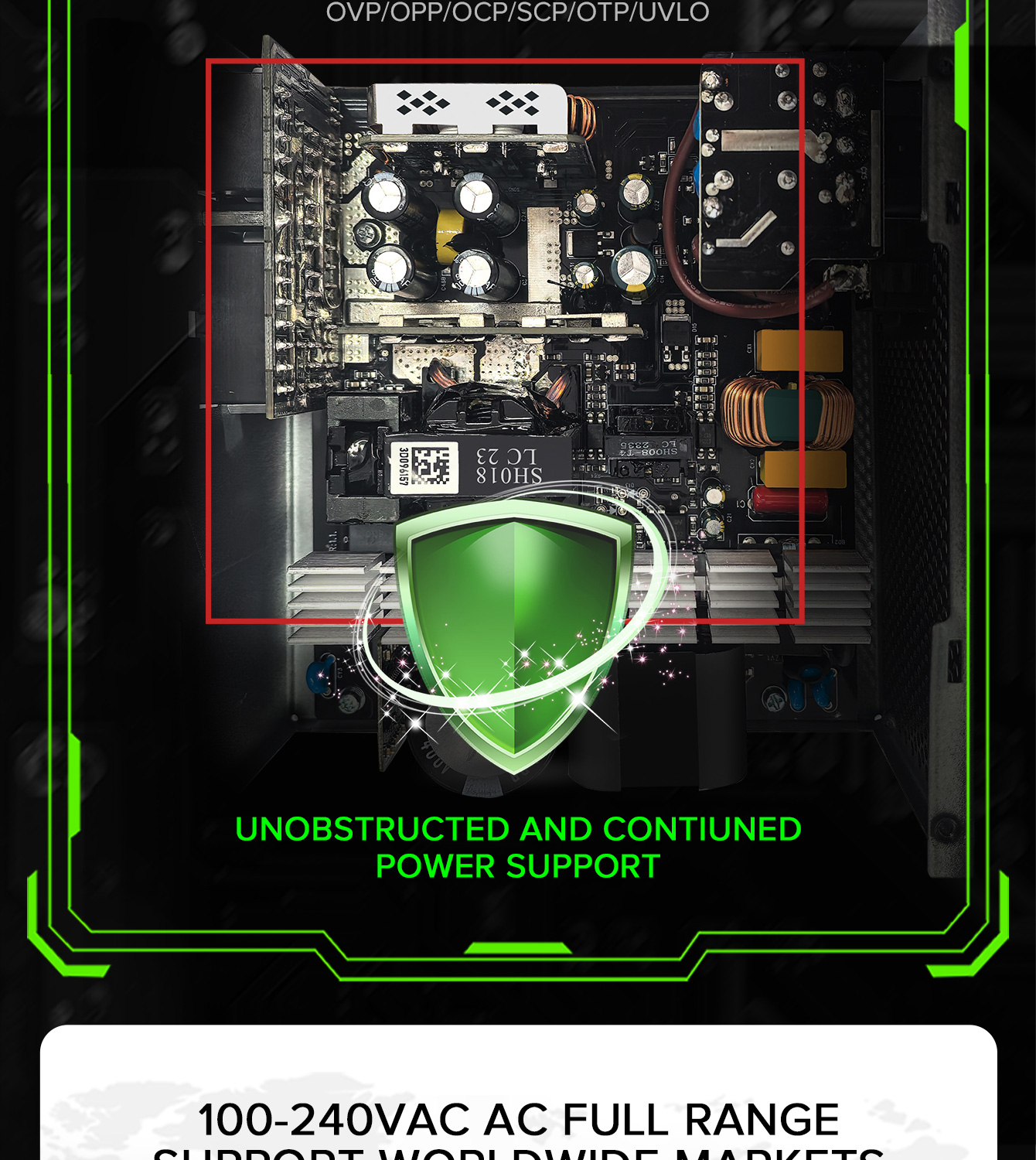

| Protection: | OVP / UVP/ SIP / OCP/ OLP/ OPP/ SCP/OTP |
| Power: | 750W |
| Operation Temperature: | 0-40C |
| Safety: | CE / FCC / CB/TUV/cTUVus |

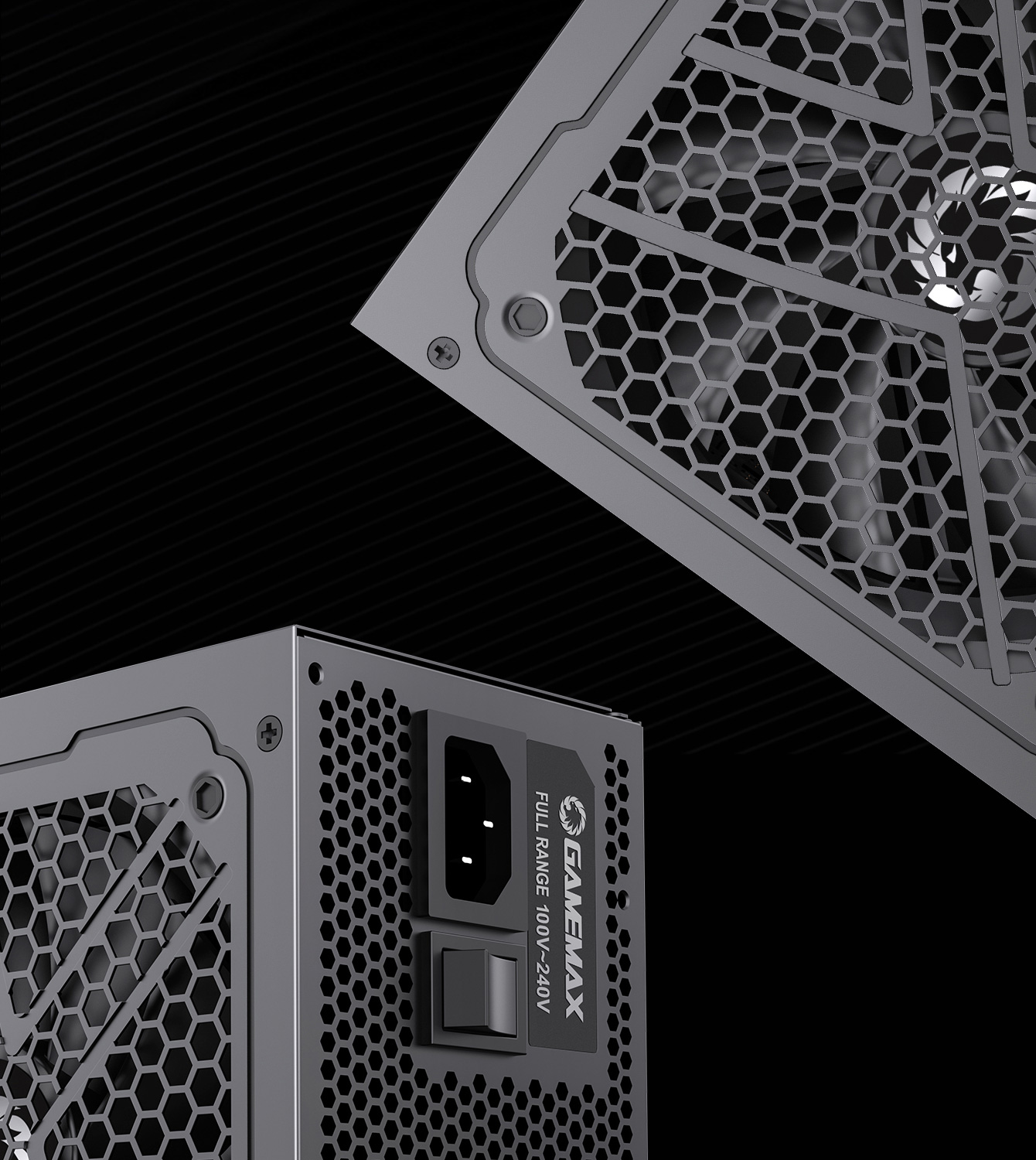

| Cooling: | 120mm Ultra Silent Fan |
| Noise: | <25dBa |

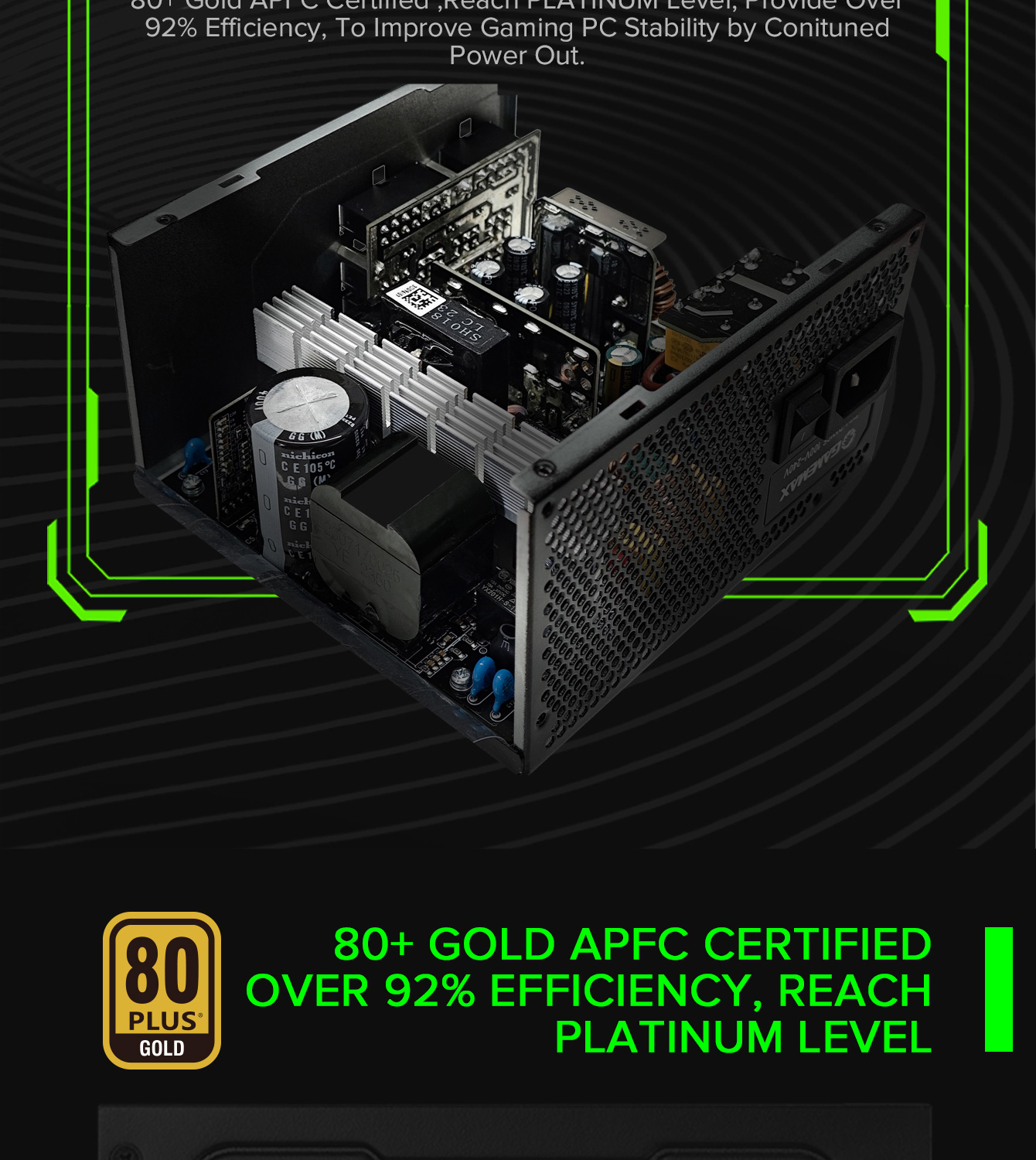

| 80 Plus Certified: | Yes - 80 Plus Gold |
