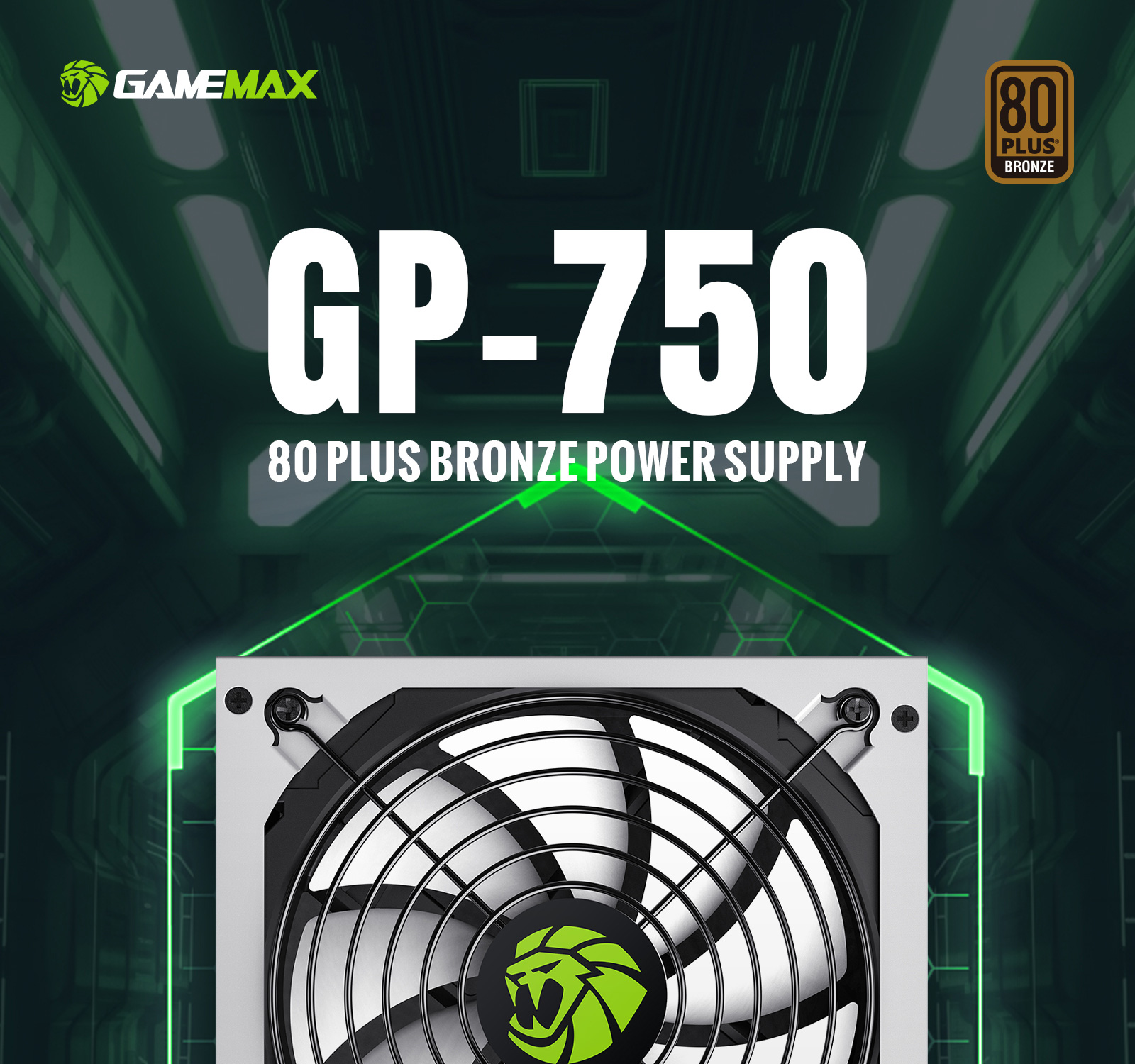

GP-750 White

GameMax GP-750 White Elegant PSU casing with white flat cables, Designed for high performance business and gaming build and various compatibility
Elegant black PSU casing with full black mesh cables
ATX12V Ver.2.30 compliant with ATX12V Ver.2.31
High efficiency PSU, up to 85% efficiency
Extended 12V Rail for high compatibility and extreme high current output
Longer 20 + 4 and 4 + 4 pins up to 550mm is easy for high-end tower chassis installation

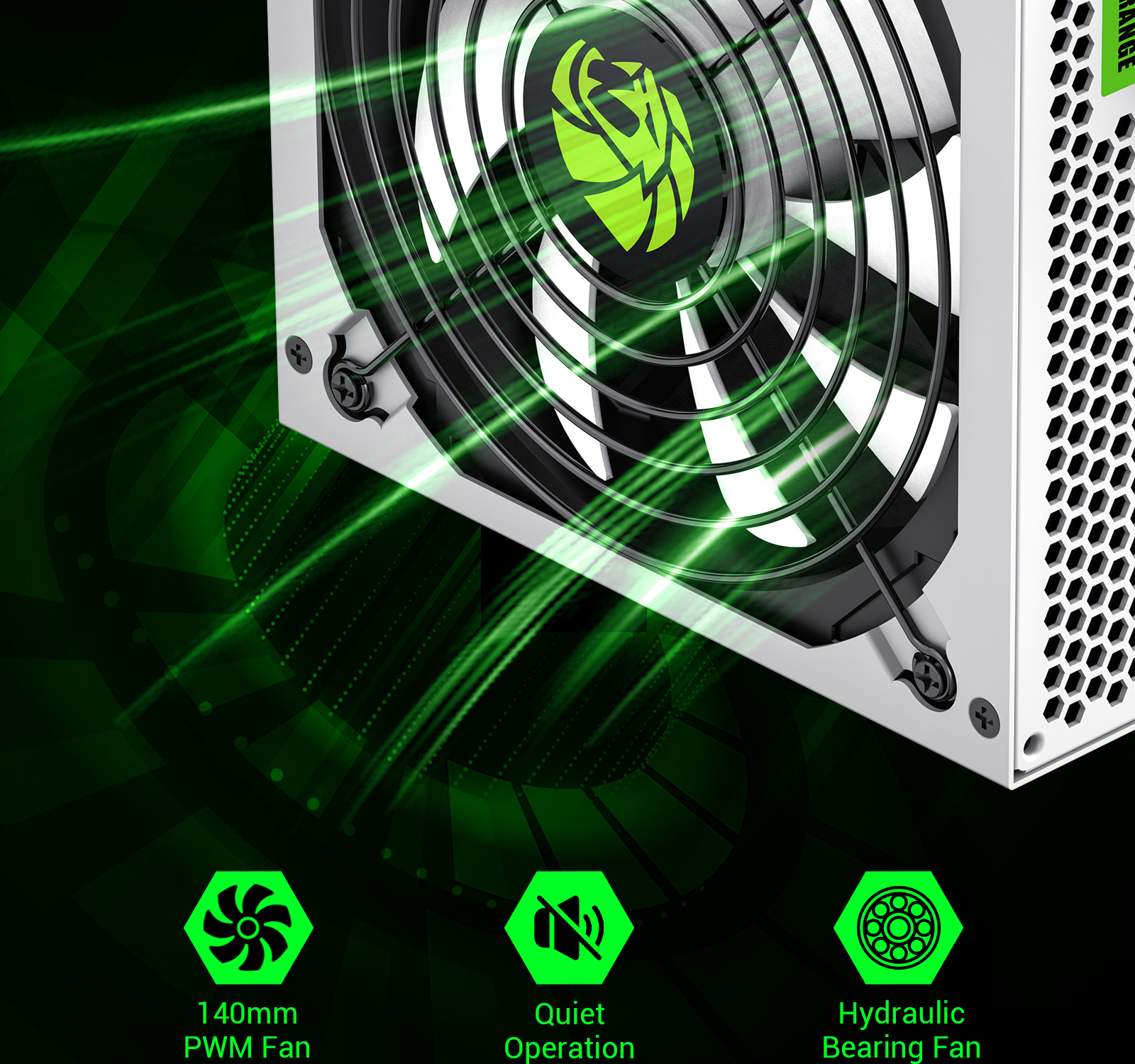

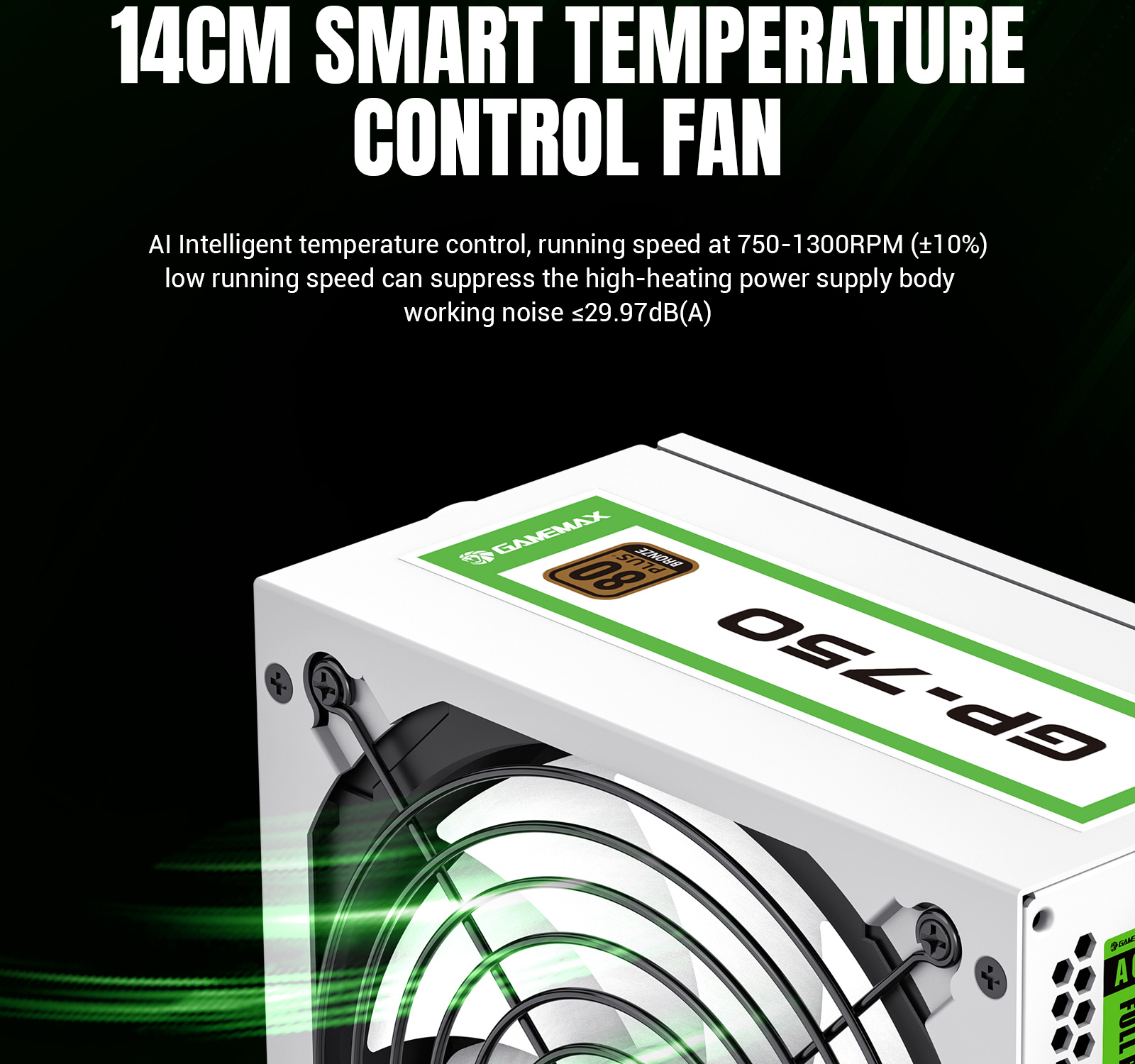

14cm silent black fan with smart thermal fan speed control circuit
Full protection functions with OVP / UVP / OPP / SCP / SIP
Safety and EMC certified by CE
ECO friendly by RoHS and Erp 2013 directives

  • PSU Type: ATX
  • Cabling: Wired

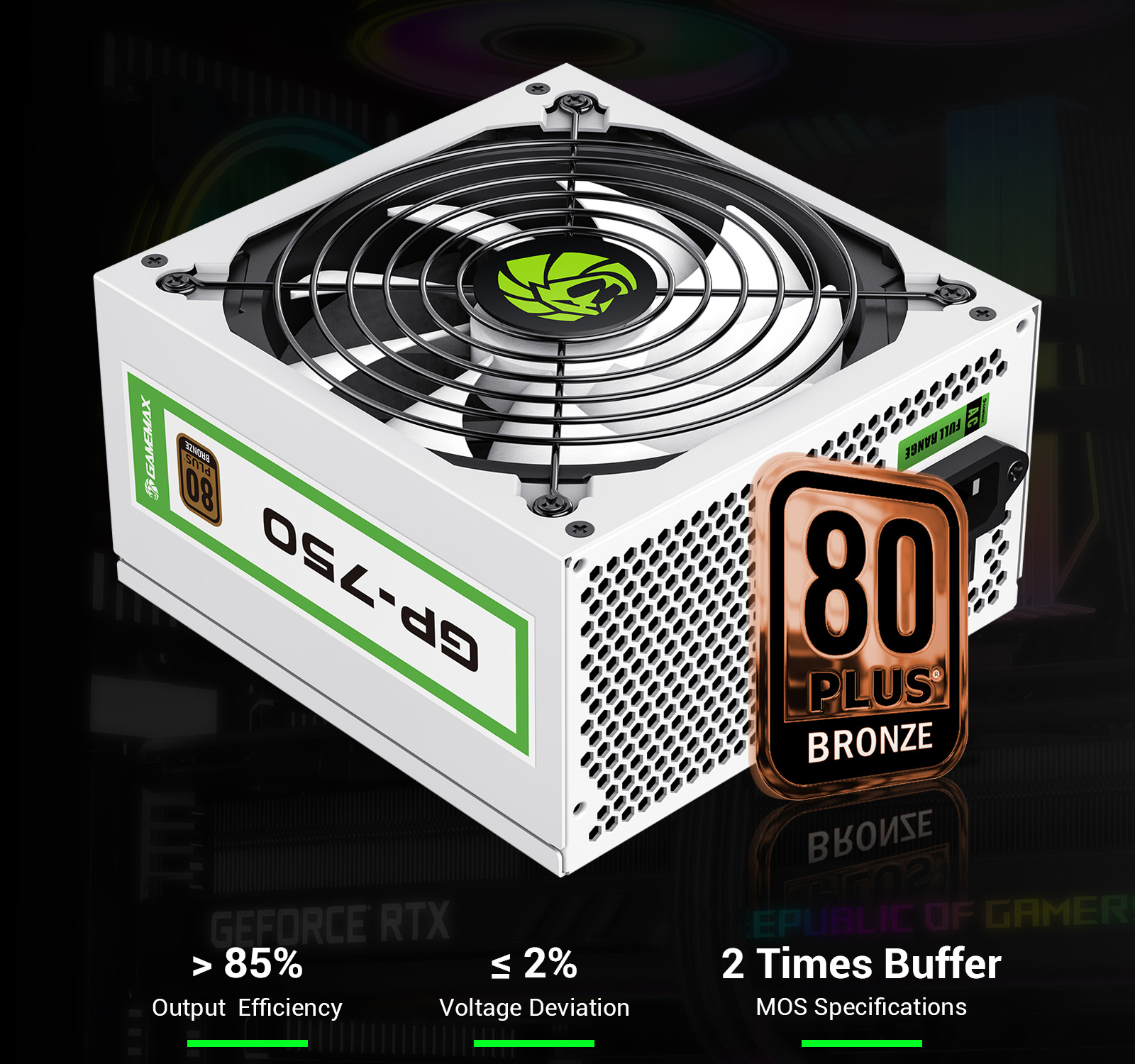

  • Efficiency: 85+ Bronze

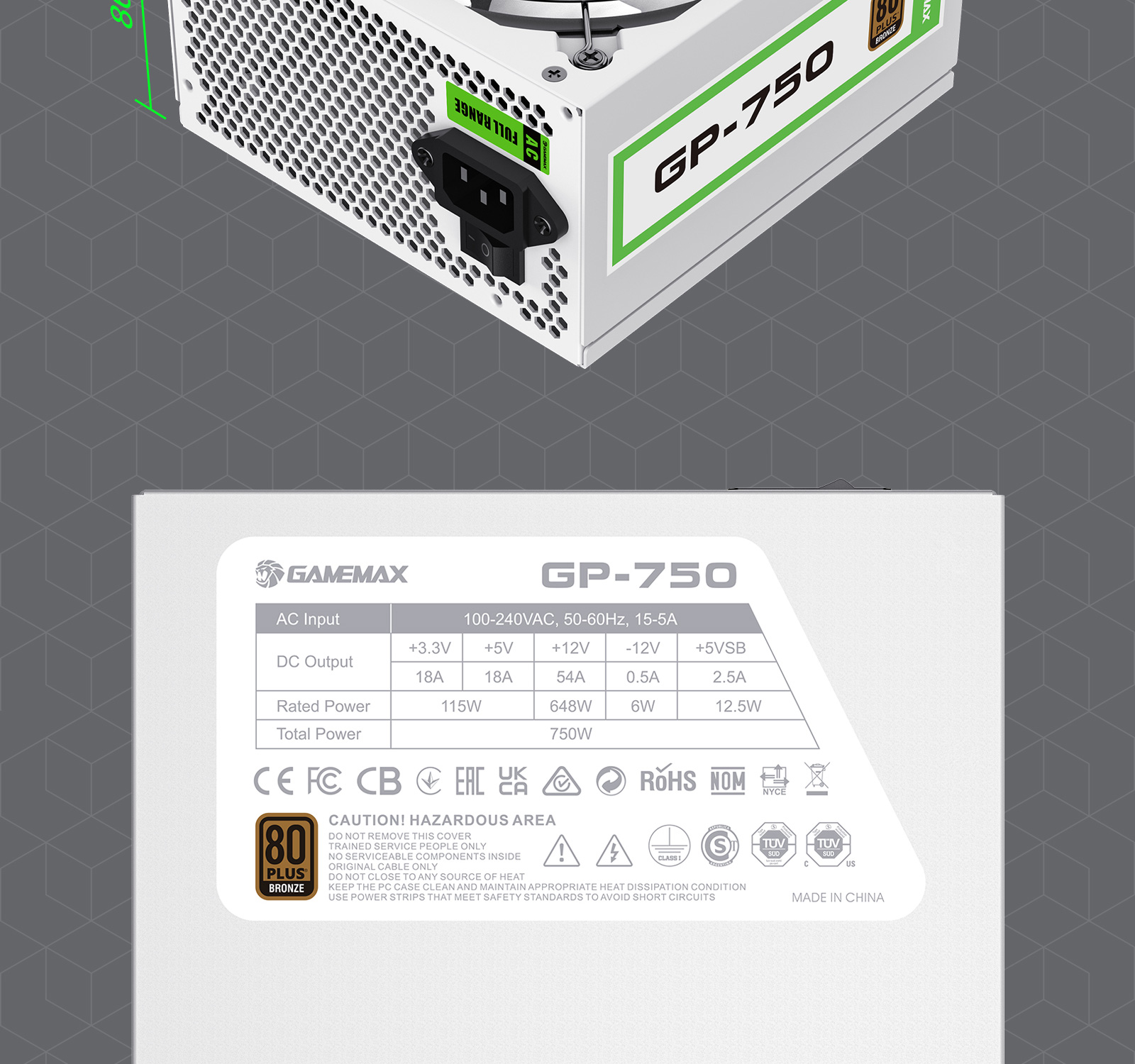

PSU Specifications

AC INPUT: 100-240 VAC 12-6A 50-60Hz
DC
Output
Max
+3.3V+5V+12V1+12V2-12V+5VSB
18A18A27A27A0.5A2.5A
750W

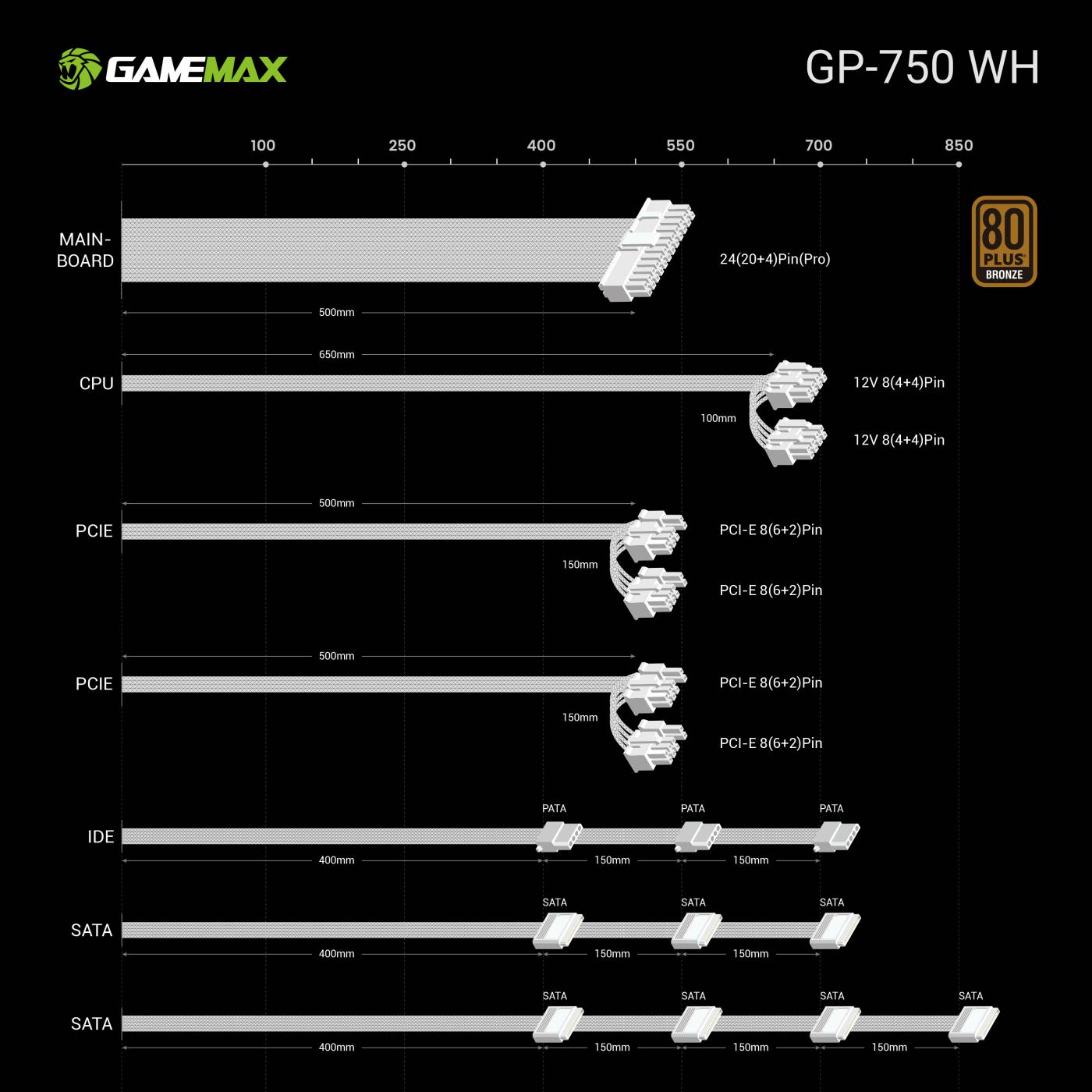

Connectors

GameMax20+4 Pin Main Connectors:

1
GameMax4+4 Pin 12V Connectors:

1
GameMaxSATA Connectors:

7
GameMax4-Pin Molex Connectors:

3
GameMax6+2 Pin PCI-e Connectors:

4

Detailed Specifications

Dimensions:158mm x 85mm x 150mm (W x H x D)
Input Voltage:100-240 VAC
Input Current:12-6A
Input Frequency Range:50-60Hz
PFC:Active PFC (>.99)
Power Good Signal:100-500 ms
Hold Up Time:>17ms
Efficiency:> 81% (85% max)
MTBF:> 100,000 Hours
Protection:OVP / UVP/ SIP / OCP/ OLP/ OPP/ SCP
Power:750W
Operation Temperature:0-40C
Safety:CE / FCC / CB
Cooling:140mm Ultra Silent Fan
Noise:<25dBa

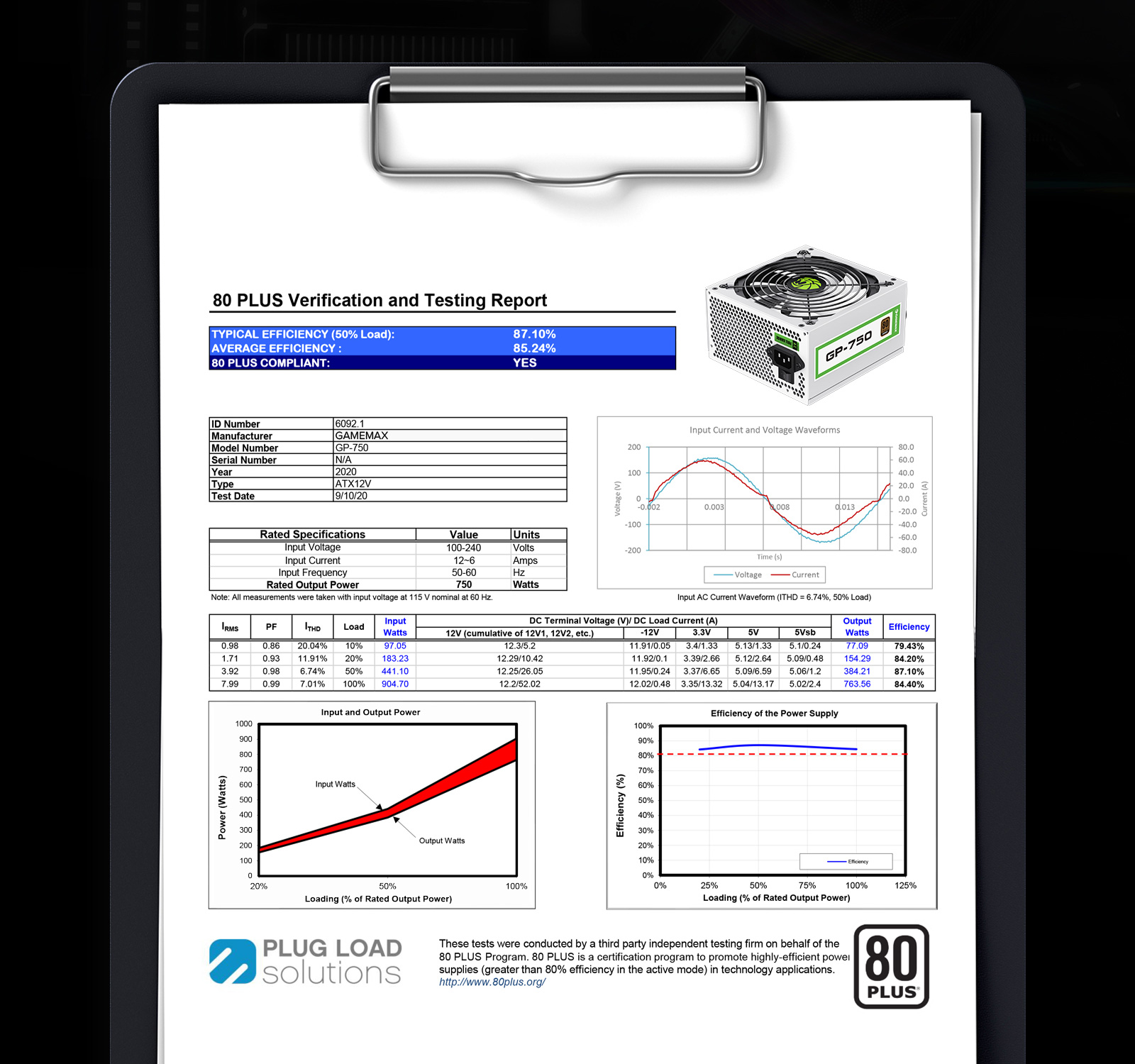

80 Plus Certified:Yes - 80 Plus Bronze

General Specifications

Manufacturer Part Number:GP-750
EAN Number:6931858720052
Has Mains Plug:No
Colour:White
What's In The Box:Power Supply
Screws
Manual
2 x Cable Ties
Unit (Product) Dimensions (mm):150mm x 85mm x 140mm (W x H x D)
Packaging Dimensions (mm):300mm x 180mm x 115mm (W x H x D)
Net Weight (KGs):1.6 KGs
Gross Weight (KGs):2 KGs
