Master TG

GameMax Master TG,With tempered glass side , is a full tower chassis, Supports a 360-liquid cooler, Pre-installed 3x12cm AF-12X FRGB fans for air intake, and exhaust hot air to provide maximum cooling for your system in the best <br/> The Master case also supports an E-ATX(272*305) size motherboard and important that it can install a total of 10 x HDD/SSDs to easily set the PC’s storage in Raid 3 or Raid 5 (Redundant Arrays of Independent Drives) <br/> The silent base design for increased user experience, by 2-Channel Fan speed controller via the top button control at “FAST-STOP-SLOW”. And Master has various IO ports located on the top, HD Audio, 2 x USB 2.0 & 2 x USB 3.0, To give the user easy access. <br/> Wide field of view, Showing splendidness, Side panel with a side transparent window, making internal in everything in a glance <br/> Ventilating and Breathability, a set of better methods to keep dust-proof, For Master, wind tunnel of the front panel and bottom panel both with pull-out dust-proof, to make clean conveniently. <br/> Master M905 is an outstanding design with Rolled edges chassis to ensure safety and with a total of 10 tool-free HDD's tray easy to assemble, Supports 430mm GPU card length and 165mm height of CPU Air cooler. It is suitable for building high-performance Gaming systems, PC servers & workstations!

  • Chassis Type: E-ATX
  • Led's Mode: FRGB
Form Factor (Midi, Micro, Mini ITX, Full)Full Tower
ChassisSPCC 0.8mm, Black painting interior
PSU Form FactorBottom/ATX
M/B Form FactorEATX(272*305mm), ATX、M-ATX、ITX
Front PanelElegant matte finish with mesh
Top PanelWith mesh for better heat disspation

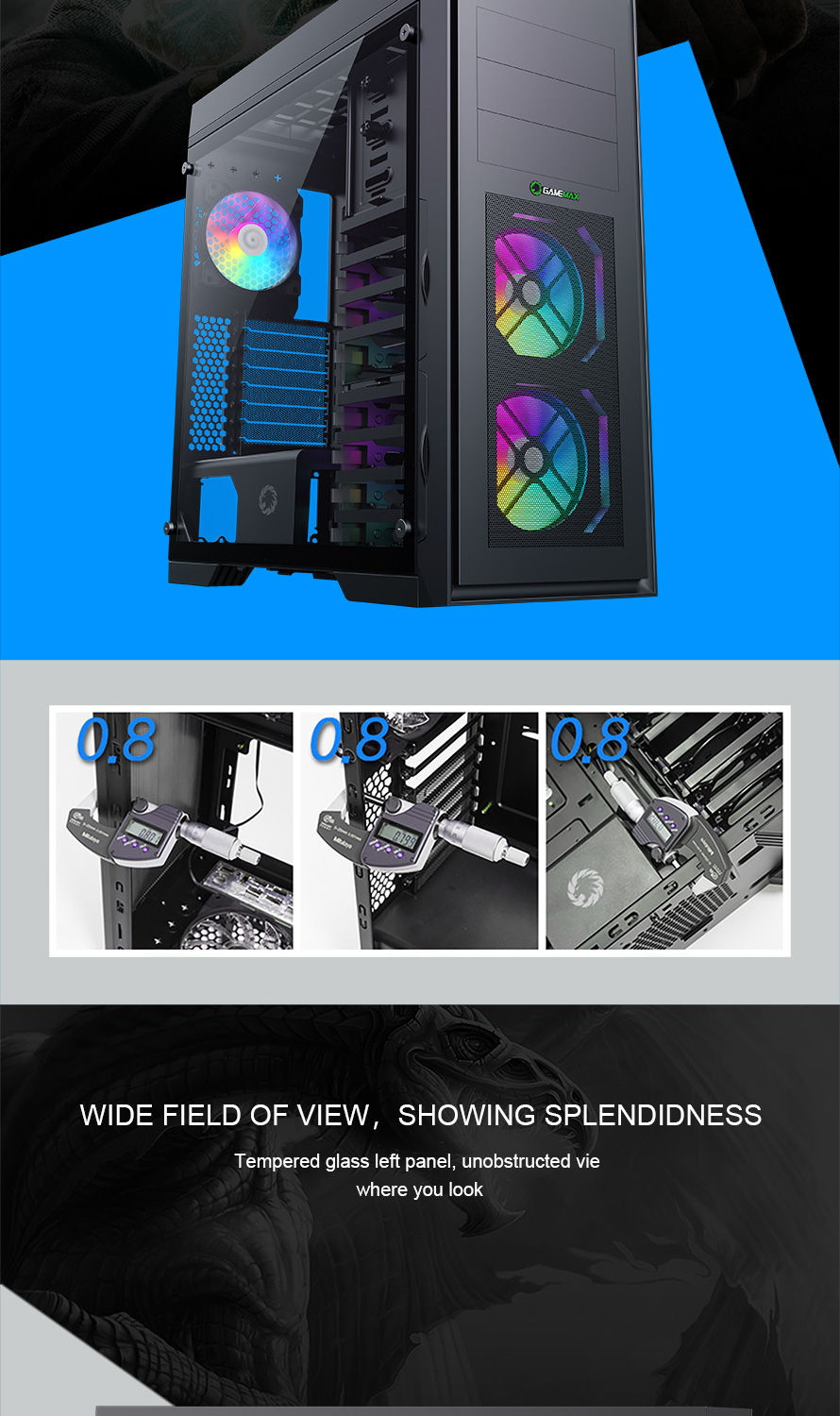

Side PanelLeftBig window side panel
External Drive Bay(s)5.25" (ODD)*3

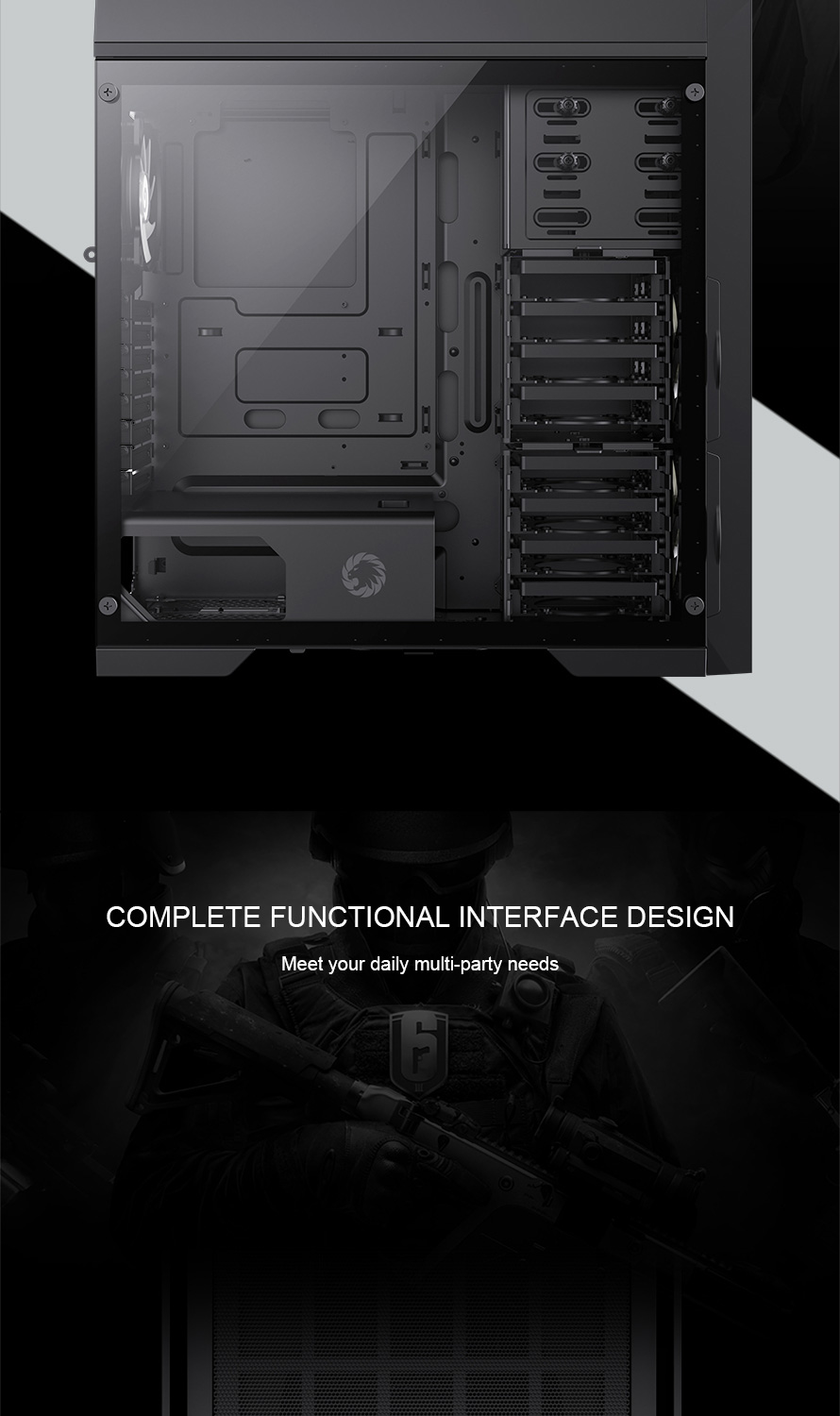

Internal Drive Bay(s)3.5" (HDD)*8
2.5" (SSD)*10 (Exchangeable)

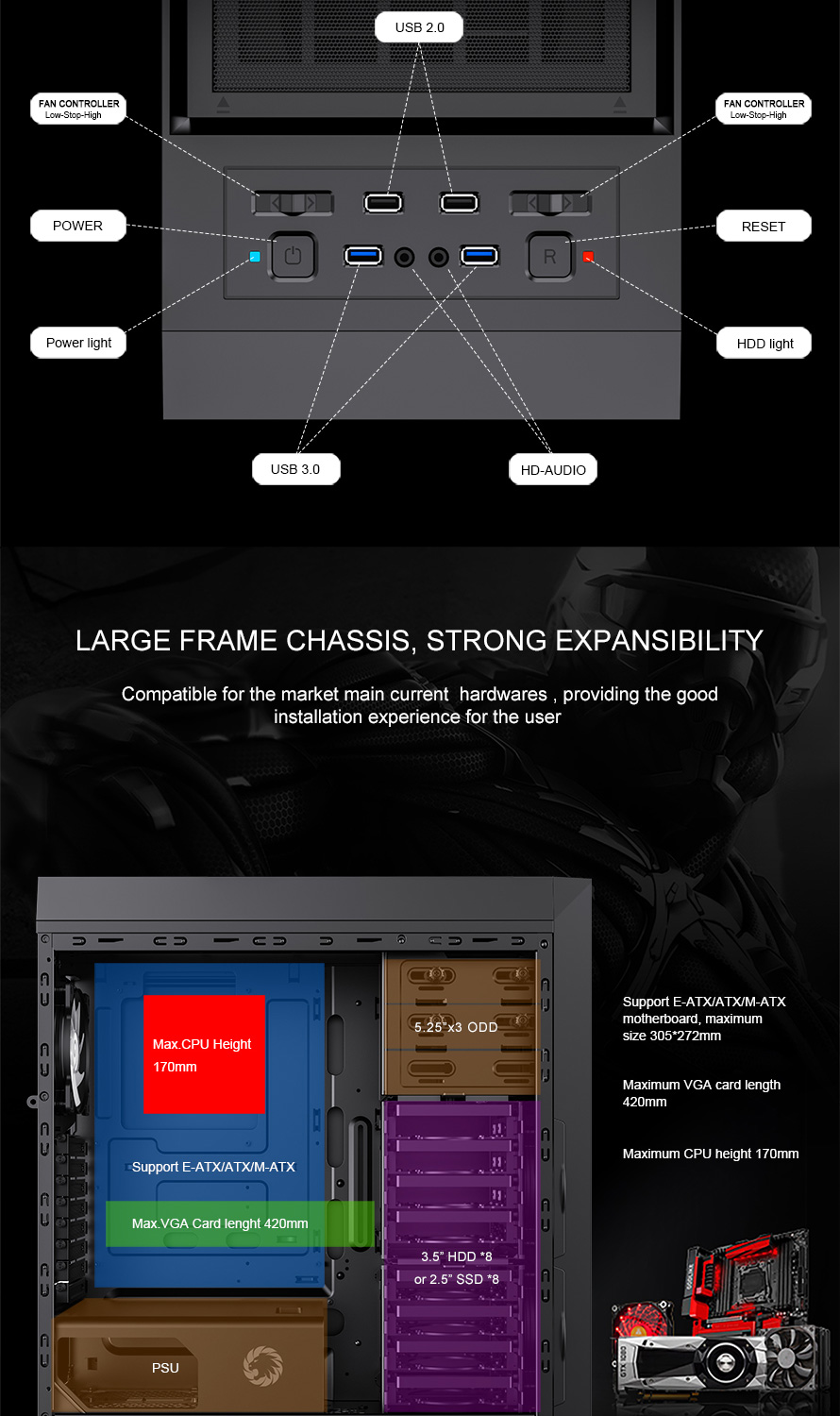

I/O SPECButtons*2
USB2.0 Port(s)*2
USB3.0 Port(s)*2
USB3.1 Port(s)*0
HD Audio Support*1
Card Reader (Support)*0

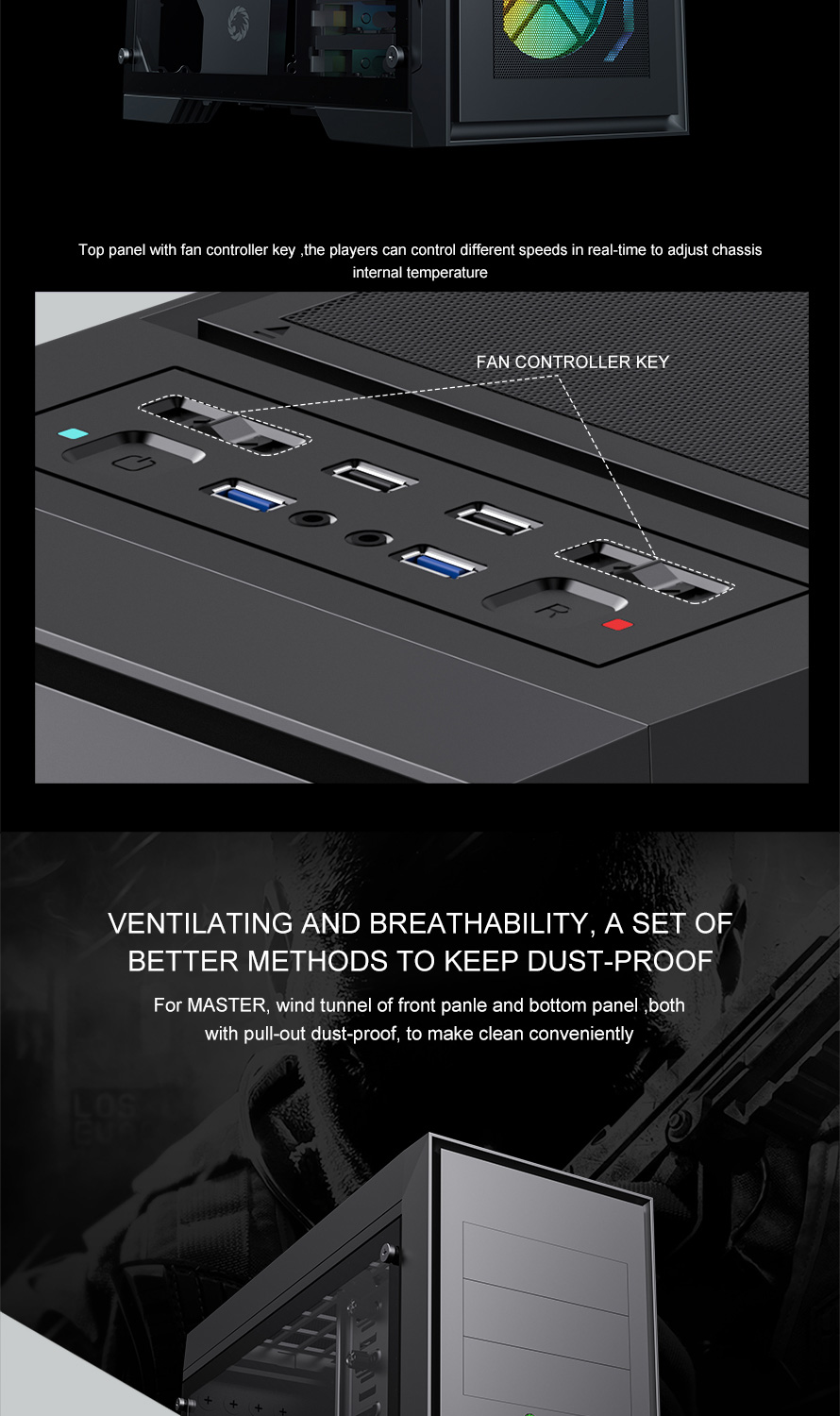

Fan Controller*2
RGB Controller*0
Controller max. fans*6
RGB controller*0

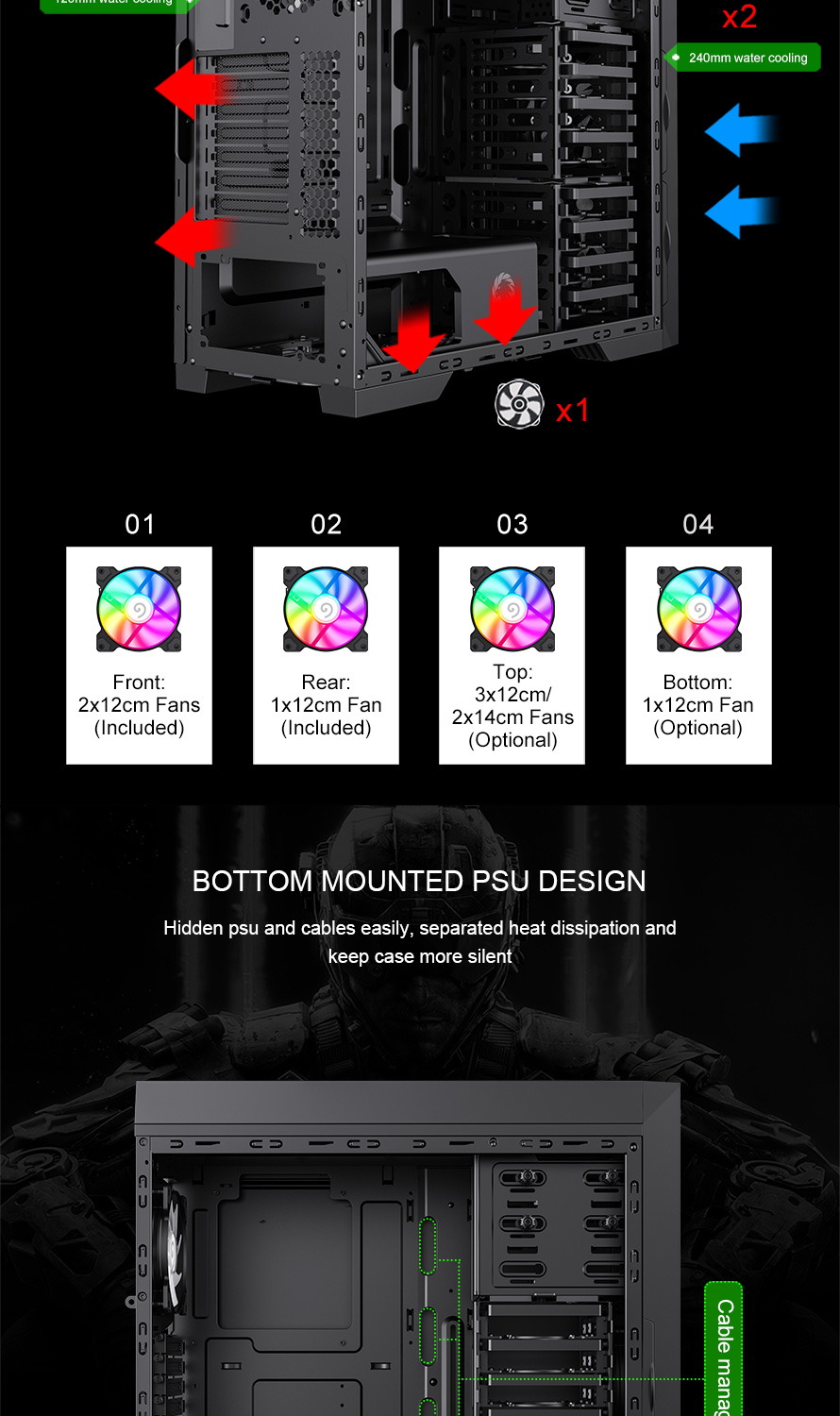

Cooling Fan  SupportFront2x12cm AF-12x FRGB Fans (Included)
Rear1x12cm  AF-12x FRGB Fan (Included)
Bottom1*12cm (Fan Optional)
Left Side0

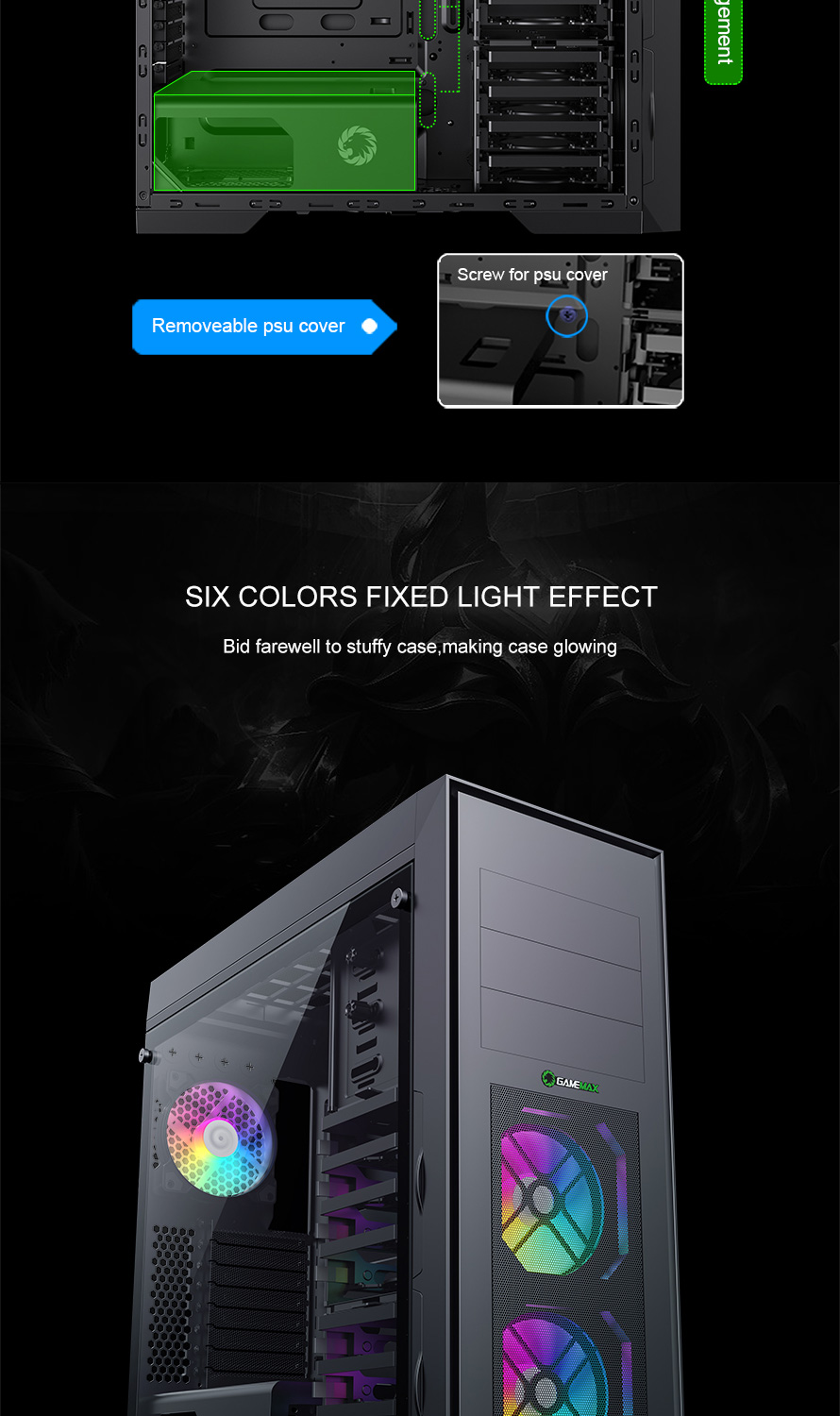

PSU Cover*1

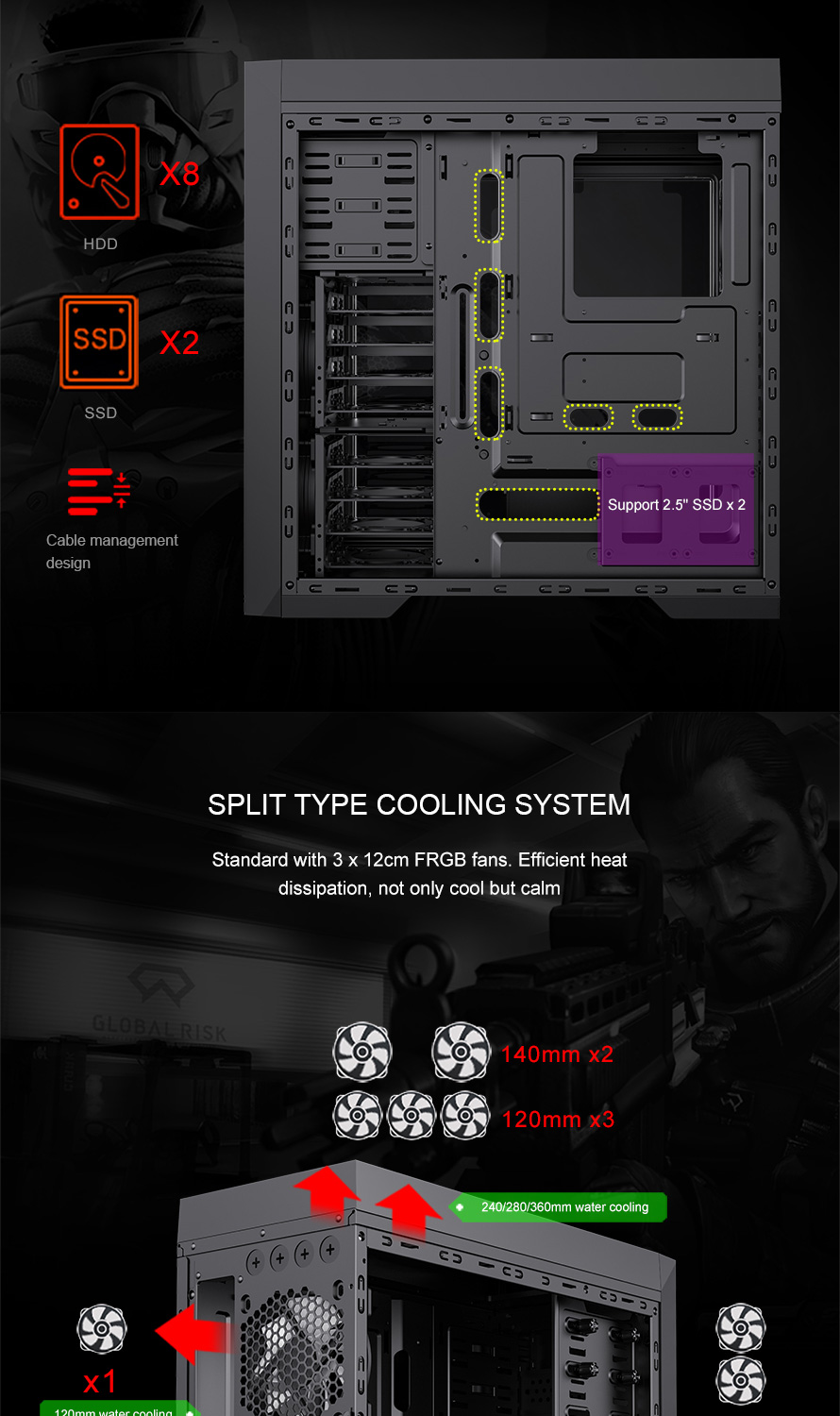

Water Cooling Support
(Radiator Size)
FrontSupport 240/360mm water cooling
TopSupport 240/360mm water cooling
RearSupport 120mm water cooling

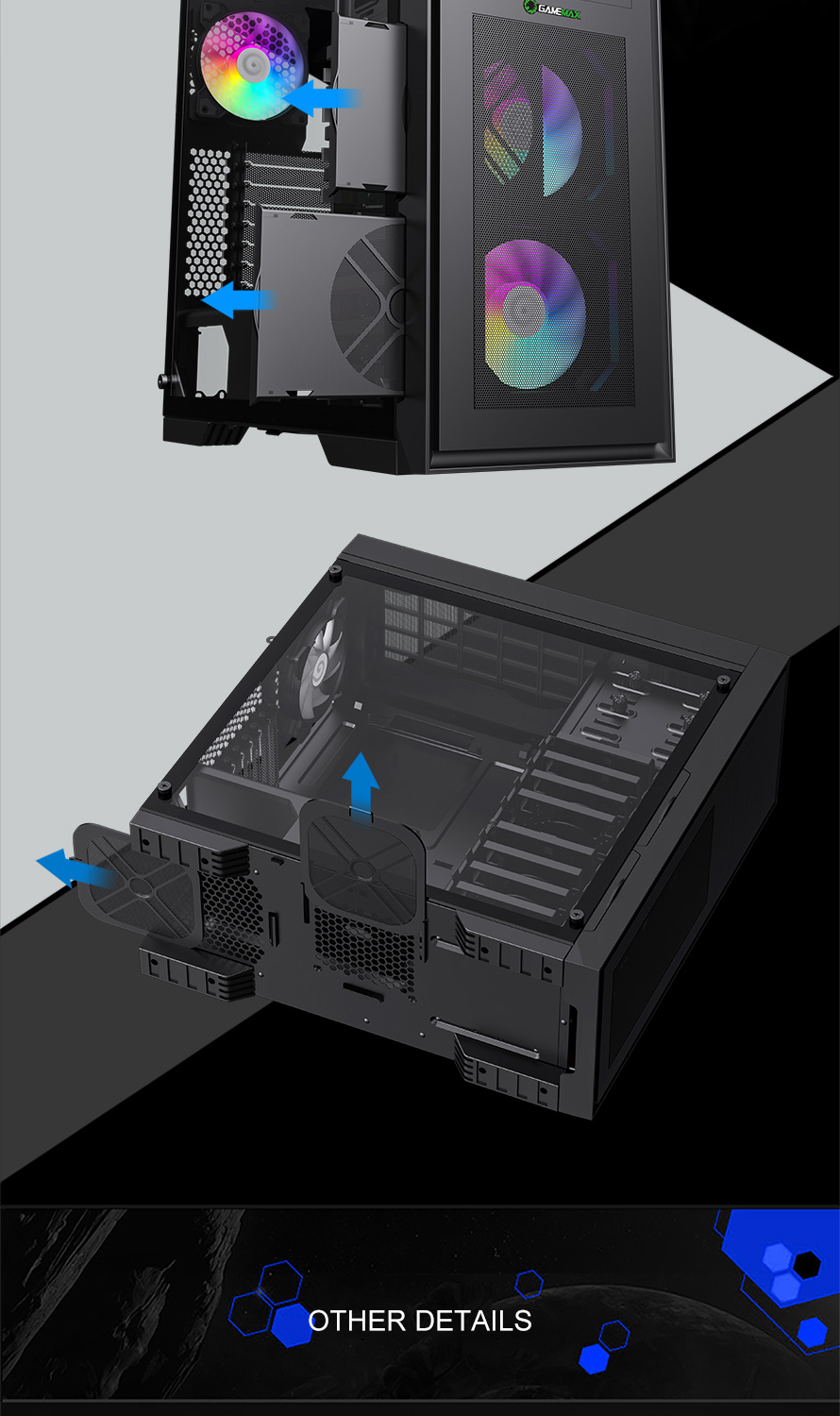

Dust filterBottom cover with dust filter (2*pieces)
Carton & LogoGAMEMAX

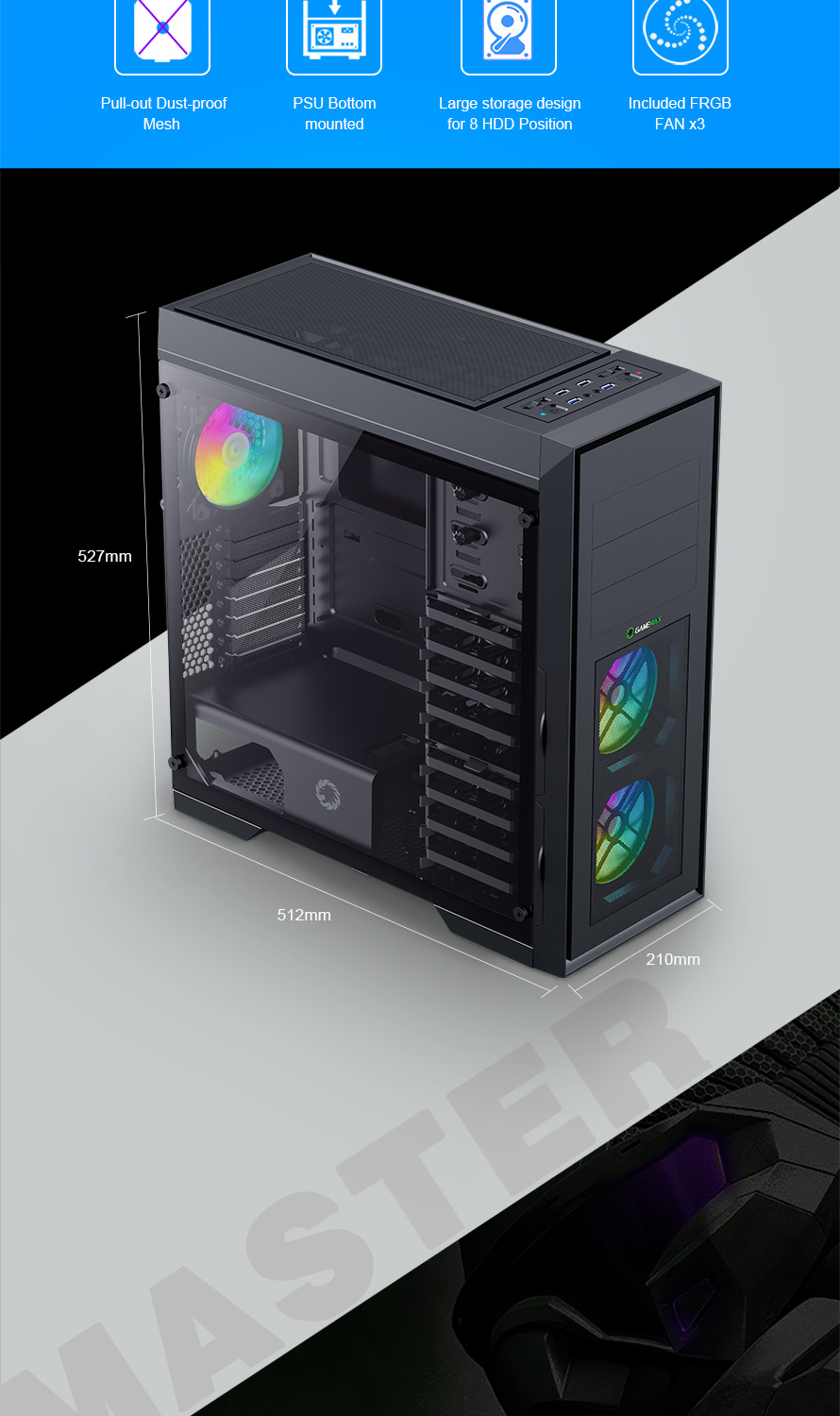

Full Case (inc Fascia)(L)520*(W)212*(H)488mm

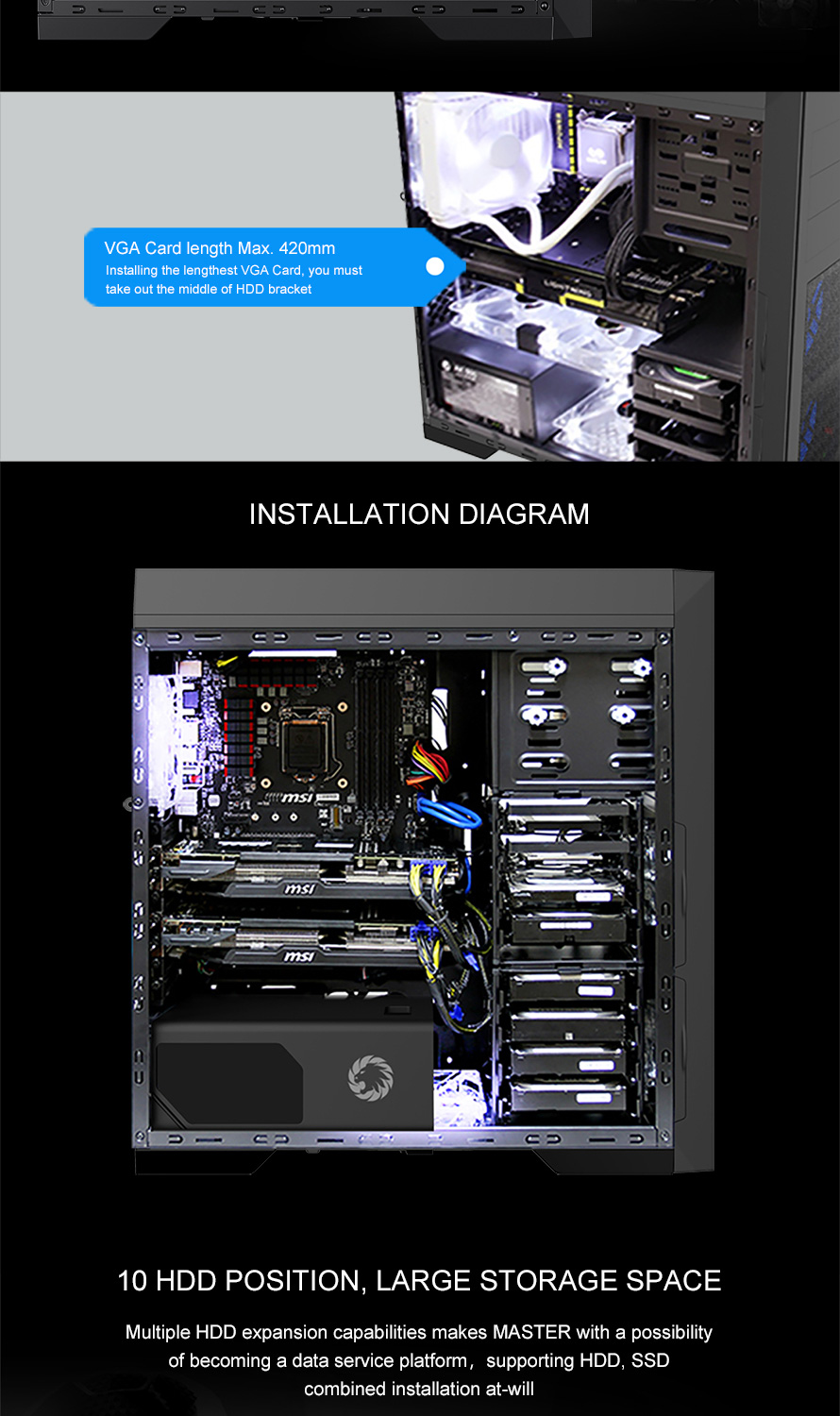

VGA Card Length420mm
CPU Cooler Height170mm
Cable Management Depth25mm
WeightNet Weight (Kg)8.7 kgs
Gross Weight (Kg)9.8 kgs

Master M905 Manual DownLoad:

GameMaxGAMEMAX Master M905 Manual.pdf
